LD LDEB82(A)G2 User manual

LD STINGER G² SERIES
ACTIVE & PASSIVE SYSTEMS
LDEB82(A)G² / LDEB102(A)G² / LDEB122(A)G² / LDEB152(A)G²
USER´S MANUAL
BEDIENUNGSANLEITUNG
MANUEL D`UTILISATION
MANUAL DE USUARIO
INSTRUKCJA OBSŁUGI
MANUALE D‘ USO

2
ENGLISHDEUTSCHFRANCAIS
FRANCAISFRANCAIS FRANCAISFRANCAIS ESPAÑOLPOLSKIITALIANO
Introduction
The LD Systems Stinger G² Series loudspeakers are designed for professional use.
Brilliant sound at high SPL, reliable service and quality components, all at a fair price are the characteristics of
the LD Systems Stinger G² Series.
This series includes four active two-way loudspeaker cabinets of 8“, 10“, 12“ and 15“ size and four passive
two-way loudspeaker cabinets of similar size. Application flexibility and reliability make the loudspeakers of LD
Systems Stinger G² Series the perfect choice for professional sound reinforcement.
Thank you for choosing LD-Systems!
We have designed this product to operate reliably over many years. Therefore LD-Systems guarantees for high
quality products with its name and many years of experience as a producer.
Please, take a few moments to read these instructions carefully, as we want you to enjoy your new LD-Systems
products quickly and to the fullest.
For information about LD-Systems check out our website WWW.LD-SYSTEMS.COM

3
ITALIANO
POLSKI
ESPAÑOL
FRANCAIS
FRANCAIS FRANCAIS FRANCAIS FRANCAIS
DEUTSCH
ENGLISH
LD STINGER G² SERIES
ACTIVE & PASSIVE SYSTEMS
LDEB82(A)G² / LDEB102(A)G² / LDEB122(A)G² / LDEB152(A)G²

4
ENGLISHDEUTSCHFRANCAIS
FRANCAISFRANCAIS FRANCAISFRANCAIS ESPAÑOLPOLSKIITALIANO
1. Please read this information carefully.
2. Keep all information and instructions in a safe place.
3. Please follow the instructions.
4. Please observe all warnings. Don‘t remove safety instructions or any other information located on the device.
5. Use the device only in the intended manner.
6. Use only stable and appropriate stands and/or mounts when the device is permanently installed. Make certain
that wall brackets are firmly secured. Make certain that the unit is installed securely and cannot fall down.
7. When installing please observe the corresponding safety standards for your country.
8. Do not install the device near radiators, heat accumulators, ovens or other sources of heat. Make certain that
the device is always installed so that is cooled sufficiently and cannot overheat.
9. Do not place open sources of ignition, e.g., burning candles, on the device.
10. Do not cover ventilation slots.
11. Do not operate the device in the immediate vicinity of water. Do not expose this equipment to combustible
materials, liquids or gases.
12. Please make certain that dripping or splashing water cannot get inside the device. Do not put objects filled
with fluids, such as vases or drinking vessels, on top of the device.
13. Make certain that objects cannot fall into the device.
14. Use the device only with accessories with which the manufacturer intends the device to be used.
15. CAUTION: If this device has a mains connector equipped with protective earth, it must be connected to a
mains socket with a protective ground connection. Never disable the function of the protective ground connection
of the included power cord.
16. Do not turn on the device immediately if it was exposed to strong temperature fluctuations (for example after
transportation). Moisture and condensation may damage the device. Leave the device switched off until it has
reached room temperature.
17. Do not open the device and do not make any changes to the device.
18. Before connecting to mains power, make certain that the mains voltage and the mains frequency are the
same as the operating values of the device (see type label). If the device is equipped with a supply voltage selec-
tor switch, make certain that the values of the device match the values of the mains power before connecting.
If the plug on the included cord does not fit your mains outlet, contact your electrician.
19. Make certain that the power cord is not stepped on. Protect the power cord against pinching, especially at
the device plug and the power plug.
20. In order to prevent damage or accidents, for example, due to tripping hazards, check all connections once
you have connected the device.
21. When connecting the device, make certain that the power plug remains readily accessible.
Always pull out the power plug when the device is not in use or when you clean the device. Disconnect the
power cord by pulling the plug not the cable.
22. Avoid switching the device on and off at short intervals, because it may shorten the durability of the device.
23. IMPORTANT: Replace fuse only by fuse of same type and rating! If fuse blows repeatedly please contact
authorized service center!
24. In order to disconnect the device completely from the mains voltage, the power plug must be unplugged.
25. If your device is equipped with a Volex power connector, the matching Volex device plug must be unlocked
in order to disconnect it. This also means that a tug on the power cord can pull the device out of place, thus
causing personal injuries and/or property damage. Thus please make certain to route your cables carefully.
PREVENTIVE MEASURES:

5
ITALIANO
POLSKI
ESPAÑOL
FRANCAIS
FRANCAIS FRANCAIS FRANCAIS FRANCAIS
DEUTSCH
ENGLISH
26. If there is a risk of lightning strike or during extended periods of disuse, unplug the power plug.
27. During transport, make certain that the equipment being transported cannot fall down and possibly
cause personal injuries and/or property damage.
28. If your device no longer works properly, if it has been exposed to liquids or an object has fallen inside it or
if it has been damaged in some other manner, turn the device off immediately und unplug the power plug. This
device should be repaired only by authorized experts.
29. Use only a dry cloth to clean the device.
30. Comply with all of the disposal laws that are applicable in your country. During disposal, please separate
plastic and paper/cardboard.
31. Plastic bags must be kept out of the reach of children.
CAUTION
RISK OF ELECTRIC S HOCK
DO NOT OPEN
PREVENTIVE MEASURES:
CAUTION:
To reduce the risk of electric shock, do not remove cover (or back). No user serviceable parts inside. Refer
servicing to qualified personnel.
The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the
user to the presence of uninsulated “dangerous voltage” within the product´s enclosure that may be
of sufficient magnitude to constitute a risk to persons.
The exclamation mark within an equilateral triangle is intended to alert the user to the presence of
important operating and maintenance (servicing) instructions in the literature accompanying the
appliance.
CAUTION! HIGH VOLUME!
You will operate this transmission system for professional use. Therefore the commercial use of this equipment
is liable to the rules and regulations of the Accident Prevention & Insurance Association of your industry sector.
Adam Hall as a manufacturer is bound to inform you formally about the existence of eventual sanitary risks.
Risk of hearing damage due to prolonged exposure to excessive volumes: The loudspeaker is easily capable of
generating sound pressure levels (SPL) sufficient to cause permanent hearing damage to performers, production
crew and audience members. Caution should be taken to avoid prolonged exposure SPL in excess of 90 dB.
ENGLISH

6
ENGLISHDEUTSCHFRANCAIS
FRANCAISFRANCAIS FRANCAISFRANCAIS ESPAÑOLPOLSKIITALIANO

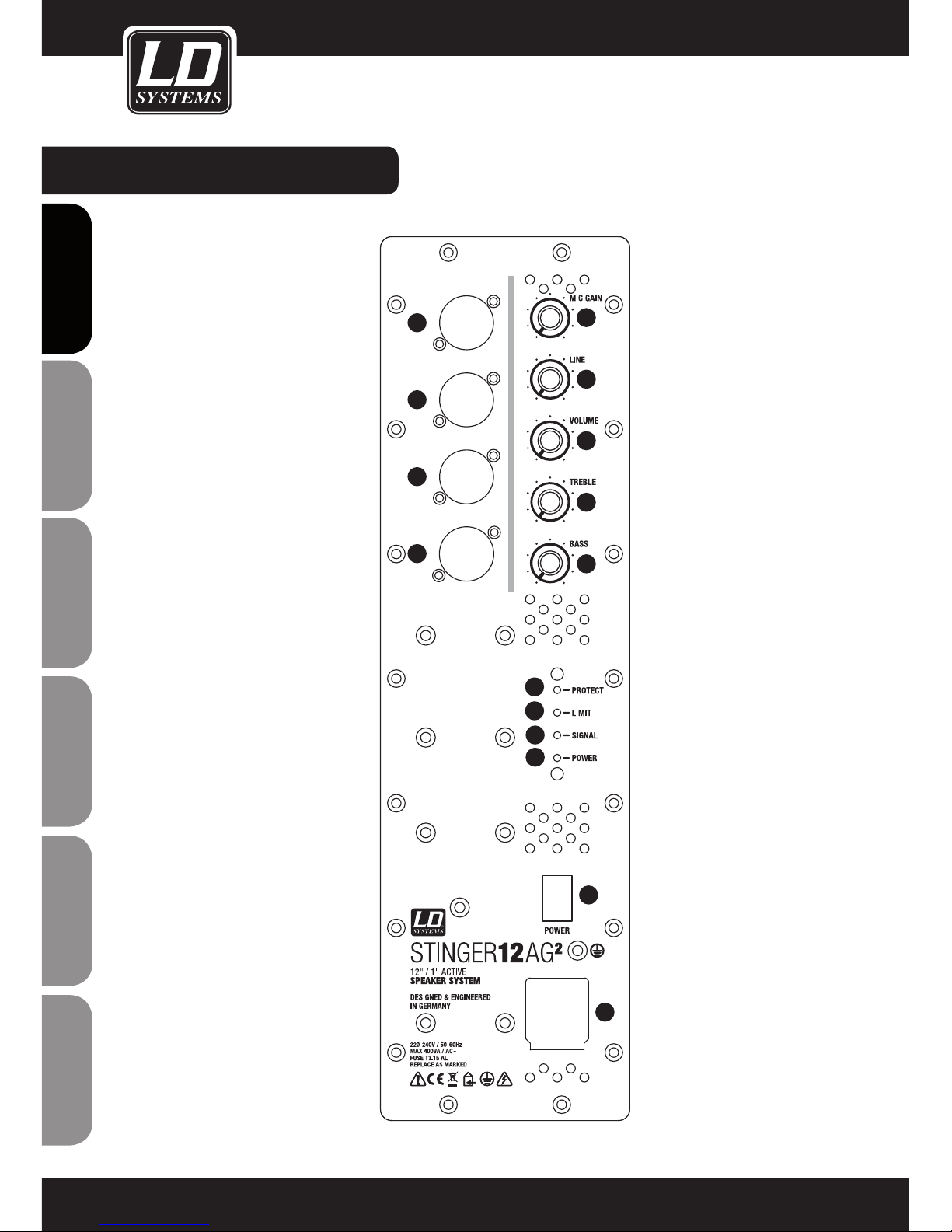

ACTIVE BACKPANEL:
2
1
4
3 6
5
7
8
9
10
11
12
LDEB82AG²
LDEB102AG² (shown)

7
ITALIANO
POLSKI
ESPAÑOL
FRANCAIS
FRANCAIS FRANCAIS FRANCAIS FRANCAIS
DEUTSCH
ENGLISH
1MIC IN
Balanced microphone input XLR/6.3 mm jack
(combo).
2MIC GAIN
Gain control for microphone input.
3LINE IN
Balanced line input XLR/6.3 mm jack (combo).
4LINE GAIN
Gain control for line input.
5LINE OUT
Balanced XLR output which allows you to connect
another active loudspeaker or mixer. Signal mix of
MIC IN and LINE IN.
6VOLUME
Master volume control of the loudspeaker cabinet.
7TREBLE
Turn left to decrease high frequencies. Turn right
to increase high frequencies.
8 BASS
Turn left to decrease low frequencies. Turn right to
increase low frequencies.
9 LIMIT LED
Lights up when the loudspeaker is operated at its
limit. Short-term blinking of the LED is not critical.
If the limiter LED lights up longer than a brief mo-
ment or permanently (= over-driving the system),
reduce the volume of the connected signal source.
Non-compliance will lead to unpleasant and
distorted sound and may cause malfunction of the
speaker system.
10 POWER LED
Lights up when power is switched on and mains
cable is connected correctly.
11 POWER SWITCH
Before switching power on, all level controls
should be set to minimum.
12 MAINS SOCKET (VOLEX POWER PLUG)
AC connection via IEC connector (220 - 240V AC).
A power cord with a lockable Volex connector is
supplied with this unit.
IMPORTANT: Replace fuse only by fuse
of same type and rating! If fuse blows
repeatedly please contact authorized service
center!
ACTIVE SYSTEMS FEATURES:

8
ENGLISHDEUTSCHFRANCAIS
FRANCAISFRANCAIS FRANCAISFRANCAIS ESPAÑOLPOLSKIITALIANO
ACTIVE BACKPANEL:
2
1
4
3
6
5
7
8
9
10
11
12
13
14
15
LDEB122AG² (shown)
LDEB152AG²

9
ITALIANO
POLSKI
ESPAÑOL
FRANCAIS
FRANCAIS FRANCAIS FRANCAIS FRANCAIS
DEUTSCH
ENGLISH
1MIC IN
Balanced microphone input XLR/6.3 mm jack
(combo).
2MIC GAIN
Gain control for microphone input.
3LINE IN
Balanced line input XLR/6.3 mm jack (combo).
4LINE GAIN
Gain control for line input.
5LINE OUT
Balanced XLR output which allows you to connect
another active loudspeaker or mixer. Signal mix of
MIC IN and LINE IN.
6VOLUME
Master volume control of the loudspeaker cabinet.
7TREBLE
Turn left to decrease high frequencies. Turn right
to increase high frequencies.
8 BASS
Turn left to decrease low frequencies. Turn right to
increase low frequencies.
9 PROTECT LED
Lights up in case of unit overload/overheating.
Amplifier switches to mute automatically. The
unit will return to operation mode under normal
conditions after a few minutes.
ACTIVE SYSTEMS FEATURES:
10 LIMIT LED
Lights up when the loudspeaker is operated at it‘s
limit. Short-term blinking of the LED is not critical.
If the limiter LED lights up longer than a brief mo-
ment or permanently (= over-driving the system),
reduce the volume of the connected signal source.
Non-compliance will lead to unpleasant and
distorted sound and may cause malfunction of the
speaker system.
11 SIGNAL LED
Lights up when the unit receives an audio signal.
12 POWER LED
Lights up when power is switched on and mains
cable is connected correctly.
13 POWER SWITCH
Before switching power on, all level controls
should be set to minimum.
14 MAINS SOCKET (VOLEX POWER PLUG)
AC connection via IEC connector (220 - 240V AC).
A power cord with a lockable Volex connector is
supplied with this unit.
IMPORTANT: Replace fuse only by fuse
of same type and rating! If fuse blows
repeatedly please contact authorized service
center!
15 SPEAKER OUT
Powered Speakon compatible output which allows
you to connect a passive 8 Ohm speaker cabinet,
for example LDEB122G² or LDEB152G².

10
ENGLISHDEUTSCHFRANCAIS
FRANCAISFRANCAIS FRANCAISFRANCAIS ESPAÑOLPOLSKIITALIANO
ACTIVE SPECIFICATIONS:
LDEB82AG2 LDEB102AG2 LDEB122AG2 LDEB152AG2
Product sort: PA Loudspeaker PA Loudspeaker PA Loudspeaker PA Loudspeaker Type: Active Active Active Active Woofer Size: " 8 10 12 15 Woofer Size: mm 203,2 254 304,8 381 Woofer Magnet: Ferrit Ferrit Ferrit Ferrit Woofer Brand: Custom Made Custom Made Custom Made Custom Made Woofer Voice Coil: " 2 2 2,5 3 Woofer Voice Coil: mm 50,8 50,8 63,5 70,6 Horn: CD Horn CD Horn CD Horn CD Horn HF Driver Size: " 1 1 1 1 HF Driver Size: mm 25,4 25,4 25,4 25,4 HF Driver Magnet: Ferrit Ferrit Ferrit Ferrit HF Driver Brand: BMS BMS BMS BMS HF Driver Voice Coil: " 1 1 1 1 HF Driver Voice Coil: mm 25,4 25,4 25,4 25,4 Amplification: Class D, ICEpower
50ASX2
Class D, ICEpower 50ASX2 Class D, Hypex Ucd400 Class D, Hypex
Ucd400
Dispersion (H x V): ° 100 x 55 100 x 55 100 x 55 100 x 55 Power (RMS): W 200 200 400 400 Power (Peak): W 800 800 1.600 1.600 Frequency Range: Hz 70 -19.000 65 -19.000 58 - 19.000 50 - 19.000 Crossover Frequency: Hz 2.200 2.400 1.800 1.800 Max SPL Continuous: dB 116 117 118 120
Max. SPL Peak: dB 129 130 132 134 Protection: Tweeter, short circuit, over
voltage
Tweeter, short circuit, over voltage
Tweeter, over current, over voltage
Tweeter, over current, over voltage
Controls: Mic Gain, Line Gain, Volu-
me, Treble, Bass, Power
Mic Gain, Line Gain, Volu- me, Treble, Bass, Power
Mic Gain, Line Gain, Volume, Treble, Bass, Power
Mic Gain, Line Gain, Volume, Treble, Bass, Power
Indicators: Limit, Power Limit, Power Protect, Limit, Signal,
Power
Protect, Limit, Signal, Power
Input Connector Line: XLR/jack (combo) XLR/jack (combo) XLR/jack (combo) XLR/jack (combo) Input Connector Mic: XLR/jack (combo) XLR/jack (combo) XLR/jack (combo) XLR/jack (combo) Output Connector Line: XLR XLR XLR XLR Output Connector Speaker: - - Speakon compatible /
8 Ohm
Speakon compatible / 8 Ohm
Power Supply: 220-240 V AC 220-240 V AC 220-240 V AC 220-240 V AC Cabinet Material: 15 mm plywood 15 mm plywood 15 mm plywood 15 mm plywood Cabinet Surface: Structure coating Structure coating Structure coating Structure coating Cabinet Design: Bassreflex Bassreflex Bassreflex Bassreflex Monitor Angle: ° - 54° 54° 54° Dimensions (W x H x D): mm 270 x 450 x 290 320 x 500 x 290 390 x 570 x 370 480 x 650 x 460 Weight: kg 11 12,7 21 28,5 Features:
ergonomic milled handles, M10 threaded flange for SuperClamp, Aluminium stand support 36 mm
ergonomic milled handles, M10 threaded flange for SuperClamp, Aluminium stand support 36 mm
LD Systems Evolutive handles, SM707 stands support 36 mm, 6x M8 rigging point
LD Systems Evolutive handles, stands sup- port 36 mm, 6x M8 rigging point
Since all our products are constantly controlled and improved, technical changes are possible without prior notice.

11
ITALIANO
POLSKI
ESPAÑOL
FRANCAIS
FRANCAIS FRANCAIS FRANCAIS FRANCAIS
DEUTSCH
ENGLISH
LDEB82AG2 LDEB102AG2 LDEB122AG2 LDEB152AG2
Product sort: PA Loudspeaker PA Loudspeaker PA Loudspeaker PA Loudspeaker Type: Active Active Active Active Woofer Size: " 8 10 12 15 Woofer Size: mm 203,2 254 304,8 381 Woofer Magnet: Ferrit Ferrit Ferrit Ferrit Woofer Brand: Custom Made Custom Made Custom Made Custom Made Woofer Voice Coil: " 2 2 2,5 3 Woofer Voice Coil: mm 50,8 50,8 63,5 70,6 Horn: CD Horn CD Horn CD Horn CD Horn HF Driver Size: " 1 1 1 1 HF Driver Size: mm 25,4 25,4 25,4 25,4 HF Driver Magnet: Ferrit Ferrit Ferrit Ferrit HF Driver Brand: BMS BMS BMS BMS HF Driver Voice Coil: " 1 1 1 1 HF Driver Voice Coil: mm 25,4 25,4 25,4 25,4 Amplification: Class D, ICEpower
50ASX2
Class D, ICEpower 50ASX2 Class D, Hypex Ucd400 Class D, Hypex
Ucd400
Dispersion (H x V): ° 100 x 55 100 x 55 100 x 55 100 x 55 Power (RMS): W 200 200 400 400 Power (Peak): W 800 800 1.600 1.600 Frequency Range: Hz 70 -19.000 65 -19.000 58 - 19.000 50 - 19.000 Crossover Frequency: Hz 2.200 2.400 1.800 1.800 Max SPL Continuous: dB 116 117 118 120
Max. SPL Peak: dB 129 130 132 134 Protection: Tweeter, short circuit, over
voltage
Tweeter, short circuit, over voltage
Tweeter, over current, over voltage
Tweeter, over current, over voltage
Controls: Mic Gain, Line Gain, Volu-
me, Treble, Bass, Power
Mic Gain, Line Gain, Volu- me, Treble, Bass, Power
Mic Gain, Line Gain, Volume, Treble, Bass, Power
Mic Gain, Line Gain, Volume, Treble, Bass, Power
Indicators: Limit, Power Limit, Power Protect, Limit, Signal,
Power
Protect, Limit, Signal, Power
Input Connector Line: XLR/jack (combo) XLR/jack (combo) XLR/jack (combo) XLR/jack (combo) Input Connector Mic: XLR/jack (combo) XLR/jack (combo) XLR/jack (combo) XLR/jack (combo) Output Connector Line: XLR XLR XLR XLR Output Connector Speaker: - - Speakon compatible /
8 Ohm
Speakon compatible / 8 Ohm
Power Supply: 220-240 V AC 220-240 V AC 220-240 V AC 220-240 V AC Cabinet Material: 15 mm plywood 15 mm plywood 15 mm plywood 15 mm plywood Cabinet Surface: Structure coating Structure coating Structure coating Structure coating Cabinet Design: Bassreflex Bassreflex Bassreflex Bassreflex Monitor Angle: ° - 54° 54° 54° Dimensions (W x H x D): mm 270 x 450 x 290 320 x 500 x 290 390 x 570 x 370 480 x 650 x 460 Weight: kg 11 12,7 21 28,5 Features:
ergonomic milled handles, M10 threaded flange for SuperClamp, Aluminium stand support 36 mm
ergonomic milled handles, M10 threaded flange for SuperClamp, Aluminium stand support 36 mm
LD Systems Evolutive handles, SM707 stands support 36 mm, 6x M8 rigging point
LD Systems Evolutive handles, stands sup- port 36 mm, 6x M8 rigging point
Since all our products are constantly controlled and improved, technical changes are possible without prior notice.

12
ENGLISHDEUTSCHFRANCAIS
FRANCAISFRANCAIS FRANCAISFRANCAIS ESPAÑOLPOLSKIITALIANO
1
2

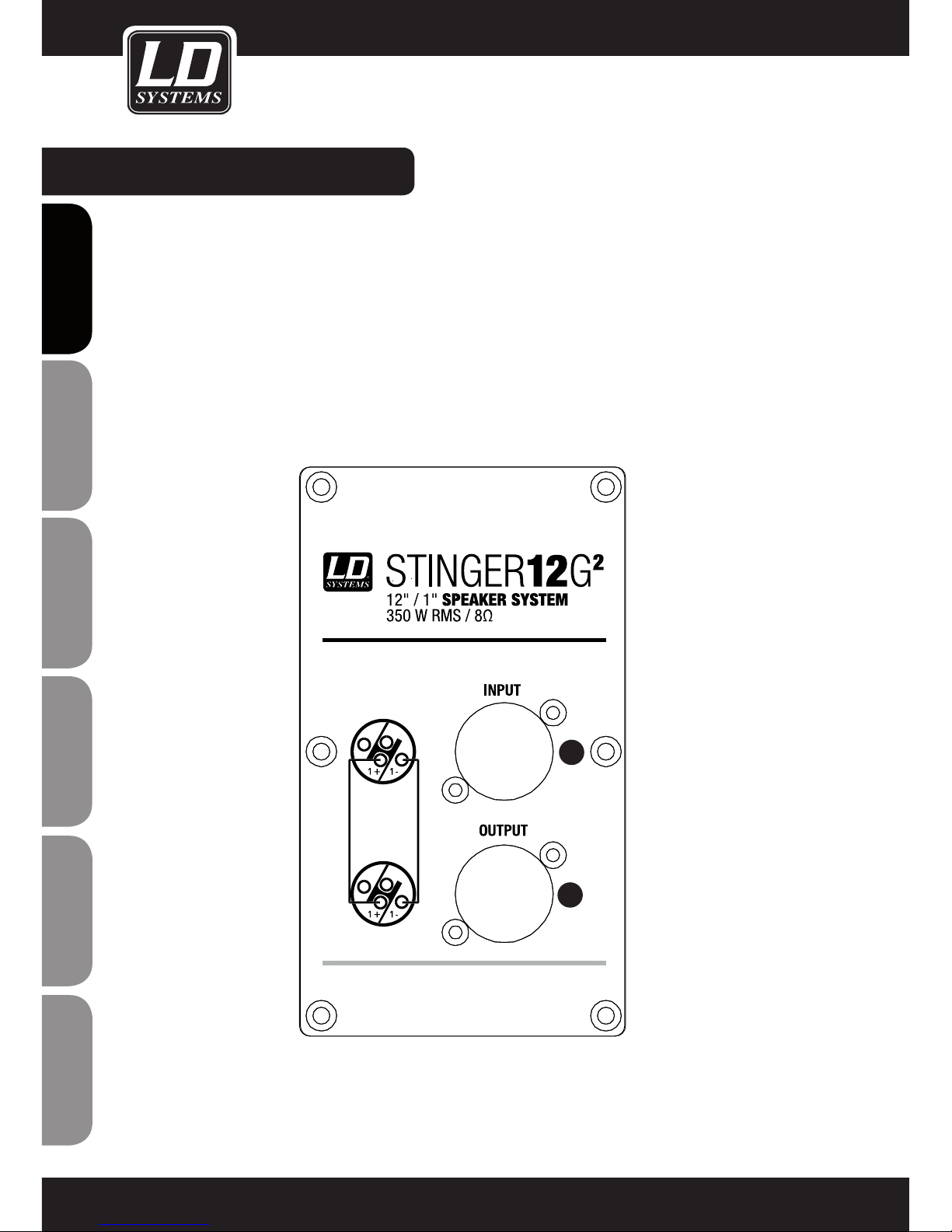

PASSIVE BACKPANEL:
LDEB82G2
LDEB102G2
LDEB122G2(shown)
LDEB152G2

13
ITALIANO
POLSKI
ESPAÑOL
FRANCAIS
FRANCAIS FRANCAIS FRANCAIS FRANCAIS
DEUTSCH
ENGLISH
1INPUT
Speakon compatible input.
2OUTPUT
Speakon compatible output (parallel wired with Speakon compatible input 1+/1-)
PASSIVE BACKPANEL:

14
ENGLISHDEUTSCHFRANCAIS
FRANCAISFRANCAIS FRANCAISFRANCAIS ESPAÑOLPOLSKIITALIANO
LDEB82G2 LDEB102G2 LDEB122G2 LDEB152G2
Product sort: PA Loudspeaker PA Loudspeaker PA Loudspeaker PA Loudspeaker Type: Passive Passive Passive Passive Woofer Size: " 8 10 12 15 Woofer Size: mm 203,2 254 304,8 381 Woofer Magnet: Ferrit Ferrit Ferrit Ferrit Woofer Brand: Custom Made Custom Made Custom Made Custom Made Woofer Voice Coil: " 2 2 2,5 3 Woofer Voice Coil: mm 50,8 50,8 63,5 70,6 Horn: CD Horn CD Horn CD Horn CD Horn HF Driver Size: " 1 1 1 1 HF Driver Size: mm 25,4 25,4 25,4 25,4 HF Driver Magnet: Ferrit Ferrit Ferrit Ferrit HF Driver Brand: BMS BMS BMS BMS HF Driver Voice Coil: " 1 1 1 1 HF Driver Voice Coil: mm 25,4 25,4 25,4 25,4 Dispersion (H x V): ° 100 x 55 100 x 55 100 x 55 100 x 55 Power (RMS): W 200 250 400 500 Power (Peak): W 800 1000 1.600 2.000 Frequency Range: Hz 70 -19.000 65 -19.000 58 - 19.000 50 - 19.000 Crossover Frequency: Hz 2.200 2.400 1.800 1.800 SPL (1 W / 1 m): db 95 96 99 100
Max SPL Continuous: dB 118 120 125 127 Impedance: Ohm 8 8 8 8 Protection: Tweeter Tweeter Tweeter Tweeter Input Connector Speaker: Speakon compatible Output Connector Speaker: Cabinet Material: 15 mm plywood 15 mm plywood 15 mm plywood 15 mm plywood Cabinet Surface: Structure coating Structure coating Structure coating Structure coating Cabinet Design: Bassreflex Bassreflex Bassreflex Bassreflex Monitor Angle: ° - 54° 54° 54° Dimensions (W x H x D): mm 270 x 450 x 290 320 x 500 x 290 390 x 570 x 370 480 x 650 x 460 Weight: kg 10 kg 11,5 kg 19 kg 25,5 kg Features:
ergonomic milled handles, M10 threaded flange for SuperClamp, Aluminium stand support 36 mm
ergonomic milled handles, M10 threaded flange for SuperClamp, Aluminium stand support 36 mm
LD Systems Evolutive handles, SM707 stands support 36 mm, 6x M8 rigging point
LD Systems Evolutive handles, stands sup- port 36 mm, 6x M8 rigging point
Since all our products are constantly controlled and improved, technical changes are possible without prior notice.
PASSIVE SPECIFICATIONS:

15
ITALIANO
POLSKI
ESPAÑOL
FRANCAIS
FRANCAIS FRANCAIS FRANCAIS FRANCAIS
DEUTSCH
ENGLISH
LDEB82G2 LDEB102G2 LDEB122G2 LDEB152G2
Product sort: PA Loudspeaker PA Loudspeaker PA Loudspeaker PA Loudspeaker Type: Passive Passive Passive Passive Woofer Size: " 8 10 12 15 Woofer Size: mm 203,2 254 304,8 381 Woofer Magnet: Ferrit Ferrit Ferrit Ferrit Woofer Brand: Custom Made Custom Made Custom Made Custom Made Woofer Voice Coil: " 2 2 2,5 3 Woofer Voice Coil: mm 50,8 50,8 63,5 70,6 Horn: CD Horn CD Horn CD Horn CD Horn HF Driver Size: " 1 1 1 1 HF Driver Size: mm 25,4 25,4 25,4 25,4 HF Driver Magnet: Ferrit Ferrit Ferrit Ferrit HF Driver Brand: BMS BMS BMS BMS HF Driver Voice Coil: " 1 1 1 1 HF Driver Voice Coil: mm 25,4 25,4 25,4 25,4 Dispersion (H x V): ° 100 x 55 100 x 55 100 x 55 100 x 55 Power (RMS): W 200 250 400 500 Power (Peak): W 800 1000 1.600 2.000 Frequency Range: Hz 70 -19.000 65 -19.000 58 - 19.000 50 - 19.000 Crossover Frequency: Hz 2.200 2.400 1.800 1.800 SPL (1 W / 1 m): db 95 96 99 100
Max SPL Continuous: dB 118 120 125 127 Impedance: Ohm 8 8 8 8 Protection: Tweeter Tweeter Tweeter Tweeter Input Connector Speaker: Speakon compatible Output Connector Speaker: Cabinet Material: 15 mm plywood 15 mm plywood 15 mm plywood 15 mm plywood Cabinet Surface: Structure coating Structure coating Structure coating Structure coating Cabinet Design: Bassreflex Bassreflex Bassreflex Bassreflex Monitor Angle: ° - 54° 54° 54° Dimensions (W x H x D): mm 270 x 450 x 290 320 x 500 x 290 390 x 570 x 370 480 x 650 x 460 Weight: kg 10 kg 11,5 kg 19 kg 25,5 kg Features:
ergonomic milled handles, M10 threaded flange for SuperClamp, Aluminium stand support 36 mm
ergonomic milled handles, M10 threaded flange for SuperClamp, Aluminium stand support 36 mm
LD Systems Evolutive handles, SM707 stands support 36 mm, 6x M8 rigging point
LD Systems Evolutive handles, stands sup- port 36 mm, 6x M8 rigging point
Since all our products are constantly controlled and improved, technical changes are possible without prior notice.

16
ENGLISHDEUTSCHFRANCAIS
FRANCAISFRANCAIS FRANCAISFRANCAIS ESPAÑOLPOLSKIITALIANO
FRONT OF HOUSE CONFIGURATION
100˚
100˚
For LDEB102(A)G2, LDEB122(A)G2
STAGE MONITOR CONFIGURATION
For Front of House configuration the narrow opening of the HF horn has to point downwards.
For stage monitor configuration the HF horn has to be turned by 90 degrees, narrow opening pointing upwards.
Remove the front grille and loosen the 4 screws of the HF horn. Turn the HF horn by 90 degrees and tighten the 4 screws. Then
remount the front grille.
HORN CONFIGURATION:

17
ITALIANO
POLSKI
ESPAÑOL
FRANCAIS
FRANCAIS FRANCAIS FRANCAIS FRANCAIS
DEUTSCH
ENGLISH
FLYWARE COMPONENTS
We recommend the Adam Hall Universal Hook Clamp SCP710B + SS018 for LDEB82(A)G² and LDEB102(A)G².
LDEB122(A)G² and LDEB152(A)G² are equipped with 6 x M8 rigging points each.
We recommend the LD Premium Screw Eye M8 LDVSE for installation.
LDEB82G2WB / LDEB102G2WB
Wall mounting Bracket
SS018
16mm bolt M10
SCP710B
Hook Clamp with Toggle
ACCESSORIES:
LDEB82G2B / LDEB102G2B
Protective Cover
LDEB82(A)G² and LDEB102(A)G²

18
ENGLISHDEUTSCHFRANCAIS
FRANCAISFRANCAIS FRANCAISFRANCAIS ESPAÑOLPOLSKIITALIANO
LDEB122(A)G² and LDEB152(A)G²
ACCESSORIES:
LDEB122G2B / LDEB152G2B
Protective Cover
LDEB122G2SB / LDEB152G2SB
Swing Bracket

19
ITALIANO
POLSKI
ESPAÑOL
FRANCAIS
FRANCAIS FRANCAIS FRANCAIS FRANCAIS
DEUTSCH
ENGLISH
UNIVERSAL ACCESSORIES:
SMBS5
Wall mounting Plate
SPS023S / SPS023
Speaker stand
SPS023SET
2x Speaker stands with bag
SPS023SET2
2x Speaker stands with bag and 2x
Speakon compatible Cables

20
ENGLISHDEUTSCHFRANCAIS
FRANCAISFRANCAIS FRANCAISFRANCAIS ESPAÑOLPOLSKIITALIANO
INSTALLATION & PLACEMENT:
SM707 SPEAKER STAND FLANGE ADJUSTMENT
(LDEB122(A)G2and LDEB152(A)G2ONLY)
The integrated, patented speaker stand flange SM707 offers unparalleled possibilities for angle adjustments.
The SM707 provides angles of +/- 13,5 degrees in 4.5° steps.
Lift the cabinet slightly and carefully from the latching mechanism (approximately 1/2 cm), turn into desired angle
and lower the cabinet.
Centre of Rotation
+/- 13,5°
Lift cabinet
Attention! Please hold the
cabinet firmly!
Turn the cabinet into the
required angle.
Lower the cabinet.
