Introduction
The LD-Systems Singer Sub G² series subwoofers are designed for professional use. They offer quality compo-
nents, solid bass reproduction and a modern design, all at a fair price.
This series includes two active subwoofers, the LDESUB12AG² and the LDESUB15AG² and the passive model
LDESUB15².
ENGLISHDEUTSCHFRANCAIS
FRANCAISFRANCAIS FRANCAISFRANCAIS ESPAÑOLPOLSKIITALIANO
2
Thank you for choosing LD-Systems!
We have designed this product to operate reliably over many years. Therefore LD-Systems guarantees for high
quality products with its name and many years of experience as a producer.
Please, take a few moments to read these instructions carefully, as we want you to enjoy your new LD-Systems
products quickly and to the fullest.
For information about LD-Systems check out our website WWW.LD-SYSTEMS.COM

LD STINGER SUB G² SERIES
LDESUB12AG² / LDESUB15AG² / LDESUB15G²
ITALIANO
POLSKI
ESPAÑOL
FRANCAIS
FRANCAIS FRANCAIS FRANCAIS FRANCAIS
DEUTSCH
ENGLISH
3

ENGLISHDEUTSCHFRANCAIS
FRANCAISFRANCAIS FRANCAISFRANCAIS ESPAÑOLPOLSKIITALIANO
4
PREVENTIVE MEASURES:
1. Please read this information carefully.
2. Keep all information and instructions in a safe place.
3. Please follow the instructions.
4. Please observe all warnings. Don‘t remove safety instructions or any other information located on the device.
5. Use the device only in the intended manner.
6. Use only stable and appropriate stands and/or mounts when the device is permanently installed. Make certain
that wall brackets are firmly secured. Make certain that the unit is installed securely and cannot fall down.
7. When installing please observe the corresponding safety standards for your country.
8. Do not install the device near radiators, heat accumulators, ovens or other sources of heat. Make certain that
the device is always installed so that is cooled sufficiently and cannot overheat.
9. Do not place open sources of ignition, e.g., burning candles, on the device.
10. Do not cover ventilation slots.
11. Do not operate the device in the immediate vicinity of water. Do not expose this equipment to combustible
materials, liquids or gases.
12. Please make certain that dripping or splashing water cannot get inside the device. Do not put objects filled
with fluids, such as vases or drinking vessels, on top of the device.
13. Make certain that objects cannot fall into the device.
14. Use the device only with accessories with which the manufacturer intends the device to be used.
15. CAUTION: If this device has a mains connector equipped with protective earth, it must be connected to a
mains socket with a protective ground connection. Never disable the function of the protective ground connection
of the included power cord.
16. Do not turn on the device immediately if it was exposed to strong temperature fluctuations (for example after
transportation). Moisture and condensation may damage the device. Leave the device switched off until it has
reached room temperature.
17. Do not open the device and do not make any changes to the device.
18. Before connecting to mains power, make certain that the mains voltage and the mains frequency are the
same as the operating values of the device (see type label). If the device is equipped with a supply voltage selec-
tor switch, make certain that the values of the device match the values of the mains power before connecting.
If the plug on the included cord does not fit your mains outlet, contact your electrician.
19. Make certain that the power cord is not stepped on. Protect the power cord against pinching, especially at
the device plug and the power plug.
20. In order to prevent damage or accidents, for example, due to tripping hazards, check all connections once
you have connected the device.
21. When connecting the device, make certain that the power plug remains readily accessible.
Always pull out the power plug when the device is not in use or when you clean the device. Disconnect the
power cord by pulling the plug not the cable.
22. Avoid switching the device on and off at short intervals, because it may shorten the durability of the device.
23. IMPORTANT: Replace fuse only by fuse of same type and rating! If fuse blows repeatedly please contact
authorized service center!
24. In order to disconnect the device completely from the mains voltage, the power plug must be unplugged.
25. If your device is equipped with a Volex power connector, the matching Volex device plug must be unlocked
in order to disconnect it. This also means that a tug on the power cord can pull the device out of place, thus
causing personal injuries and/or property damage. Thus please make certain to route your cables carefully.

ITALIANO
POLSKI
ESPAÑOL
FRANCAIS
FRANCAIS FRANCAIS FRANCAIS FRANCAIS
DEUTSCH
ENGLISH
5
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
26. If there is a risk of lightning strike or during extended periods of disuse, unplug the power plug.
27. During transport, make certain that the equipment being transported cannot fall down and possibly
cause personal injuries and/or property damage.
28. If your device no longer works properly, if it has been exposed to liquids or an object has fallen inside it or
if it has been damaged in some other manner, turn the device off immediately und unplug the power plug. This
device should be repaired only by authorized experts.
29. Use only a dry cloth to clean the device.
30. Comply with all of the disposal laws that are applicable in your country. During disposal, please separate
plastic and paper/cardboard.
31. Plastic bags must be kept out of the reach of children.
CAUTION:
To reduce the risk of electric shock, do not remove cover (or back). No user serviceable parts inside. Refer
servicing to qualified personnel.
The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the
user to the presence of uninsulated “dangerous voltage” within the product´s enclosure that may be
of sufficient magnitude to constitute a risk to persons.
The exclamation mark within an equilateral triangle is intended to alert the user to the presence of
important operating and maintenance (servicing) instructions in the literature accompanying the
appliance.
CAUTION! HIGH VOLUME!
You will operate this transmission system for professional use. Therefore the commercial use of this equipment
is liable to the rules and regulations of the Accident Prevention & Insurance Association of your industry sector.
Adam Hall as a manufacturer is bound to inform you formally about the existence of eventual sanitary risks.
Risk of hearing damage due to prolonged exposure to excessive volumes: The loudspeaker is easily capable of
generating sound pressure levels (SPL) sufficient to cause permanent hearing damage to performers, production
crew and audience members. Caution should be taken to avoid prolonged exposure SPL in excess of 90 dB.

BACK PANEL / CONTROL ELEMENTS:
LD ESUB15G²
1SPEAKON COMPATIBLE INPUT
Connect output from an external
amplifier.
2SPEAKON COMPATIBLE OUTPUT
Connect other passive
subwoofers, e.g. LDESUB15G².
3LOW-PASS SWITCH
In "ON“ position the internal low-
pass filter (120Hz / -12dB/oct.)
is activated. This mode is used,
when powering the subwoofer
without an external crossover.
Note: The subwoofers impendance
is 4Ω in this mode.
When the subwoofer is used with
an external crossover, switch to
"OFF“. In this mode the internal
low-pass filter is disabled and the
subwoofer can be used as am 8Ω
speaker.
ENGLISHDEUTSCHFRANCAIS
FRANCAISFRANCAIS FRANCAISFRANCAIS ESPAÑOLPOLSKIITALIANO
6
LOW PASS (120 Hz)
OFF (8 Ω) ON (4 Ω)
12
3

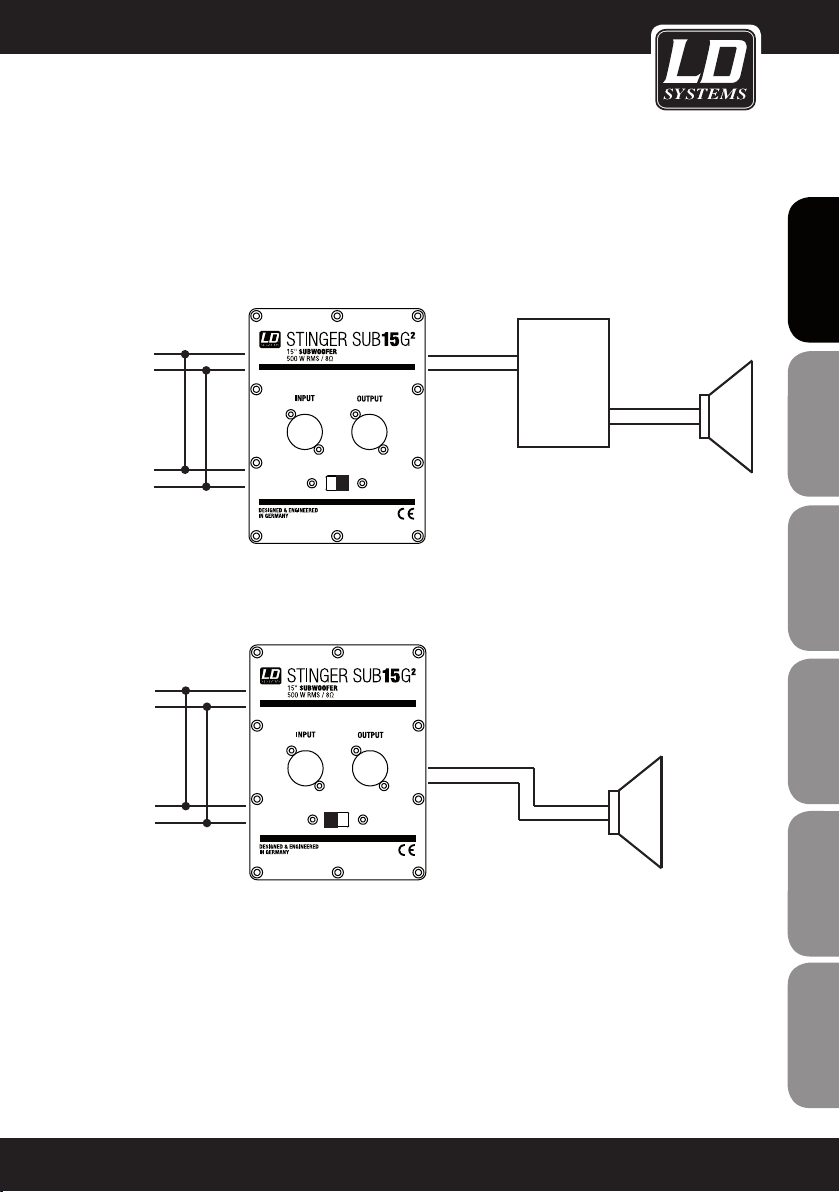

Low-pass filter ON
Low-pass filter OFF
low-pass
filter (120Hz)
Input
Output
Input
Output
ITALIANO
POLSKI
ESPAÑOL
FRANCAIS
FRANCAIS FRANCAIS FRANCAIS FRANCAIS
DEUTSCH
ENGLISH
7
LOW PASS (120 Hz)
OFF (8 Ω) ON (4 Ω)
1+
1-
1+
1-
LOW PASS (120 Hz)
OFF (8 Ω) ON (4 Ω)
1+
1-
1+
1-
WOOFER
WOOFER
+
-
+
-

BACK PANEL / CONTROL ELEMENTS:
LDSUB12AG²
ENGLISHDEUTSCHFRANCAIS
FRANCAISFRANCAIS FRANCAISFRANCAIS ESPAÑOLPOLSKIITALIANO
8
8
7
6
42
3
1 5
9
10

1LINE INPUT
Balanced line input XLR / 6,3mm jack (combo).
2SUB LEVEL
Subwoofer volume.
3SUB PHASE
Inverts the phase of the subwoofer (0° / 180°) if necessary.
4SUB FREQ
Adjusts the upper cut-off frequency of the subwoofer (80 - 200 Hz Low-Pass).
5LINE DIRECT OUTPUT
Balanced XLR line output.
6POWER LED
7SIGNAL LED
Lights up when the unit receives an audio signal.
8LIMIT LED
Lights up when the limiter is active. The limiter function protects your subwoofer from damage. If the limiter
LED lights up permanently, reduce volume.
9POWER
Switches power on/off.
10 MAINS SOCKET (VOLEX POWER PLUG)
with built-in fuse holder. AC connection via IEC connector (220 - 240V AC). A power cord with a lockable
Volex connector is supplied with this unit. IMPORTANT: Replace fuse only by fuse of same type and rating! If
fuse blows repeatedly please contact authorized service center!
ITALIANO
POLSKI
ESPAÑOL
FRANCAIS
FRANCAIS FRANCAIS FRANCAIS FRANCAIS
DEUTSCH
ENGLISH
9

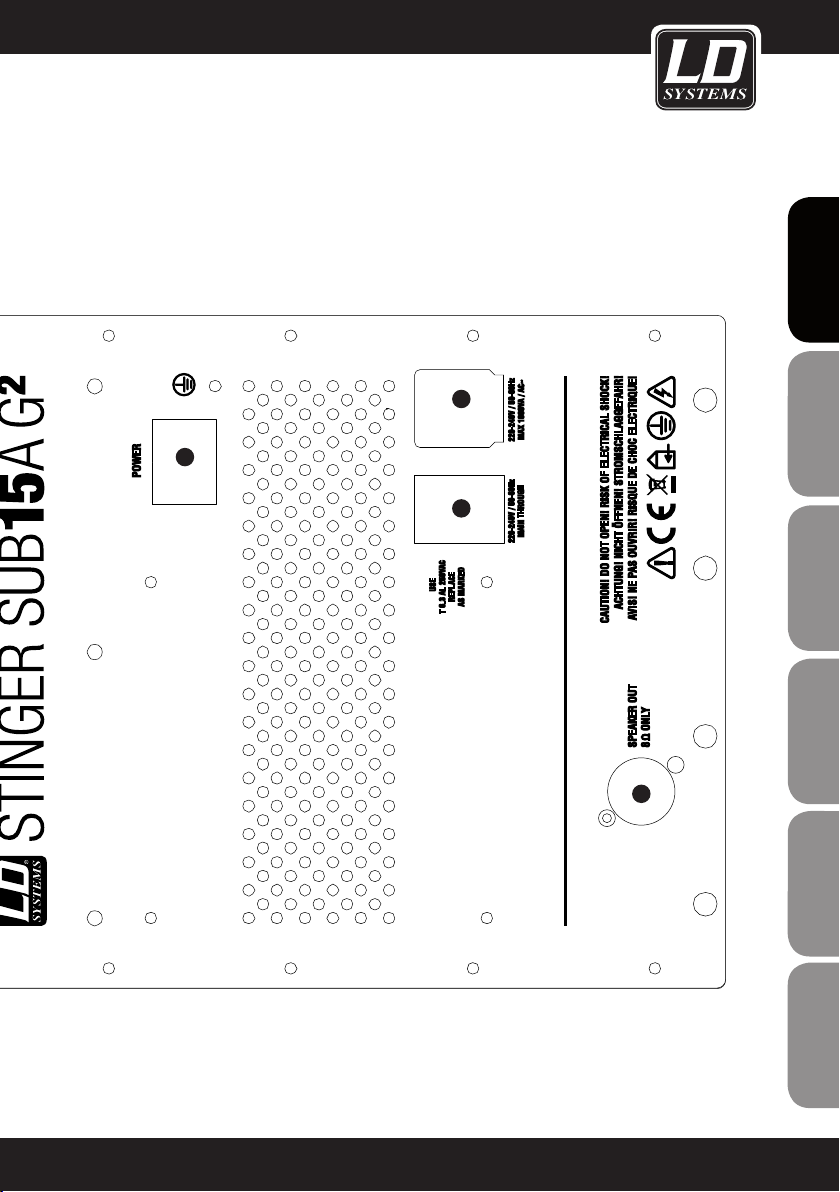

BACK PANEL / CONTROL ELEMENTS:
LDESUB15AG²
ENGLISHDEUTSCHFRANCAIS
FRANCAISFRANCAIS FRANCAISFRANCAIS ESPAÑOLPOLSKIITALIANO
10
16
5
109
782 3 4

ITALIANO
POLSKI
ESPAÑOL
FRANCAIS
FRANCAIS FRANCAIS FRANCAIS FRANCAIS
DEUTSCH
ENGLISH
11
14
12
11
13

1LINE INPUT
Balanced line input (left/right) XLR/ 6,3 mm jack
(combo).
2SUB LEVEL
Subwoofer volume.
3SUB PHASE
Inverts the phase of the subwoofer (0° / 180°)
if necessary.
4SUB FREQ
Adjusts the upper cut-off frequency of the
subwoofer (80 - 200 Hz Low-Pass).
5LINE DIRECT OUTPUT (LEFT/RIGHT)
Balanced XLR line output (left/right).
6SAT OUTPUT 100Hz (LEFT/RIGHT)
Balanced XLR line output with 100 Hz High-Pass
for active satellites or power amplifiers.
7POWER LED
8SIGNAL LED
Lights up when the unit receives an audio
signal.
9LIMIT LED
Lights up when the limiter is active. The limiter
function protects your subwoofer from damage.
If the limiter LED lights up permanently, reduce
volume.
10 PROTECT LED
LED lights up, when the active subwoofer
is overloaded. The subwoofer automatically
switches to mute.
11 POWER
Switches power on/off.
12 MAINS SOCKET (VOLEX POWER PLUG)
Lockable power input socket with built-in fuse
holder (Fuse T6.3AL / 250 V AC).
13 MAINS THROUGH
Lockable power output socket. Supplies other
units, e.g. active subwoofers or active subwoofers
or active satellite speakers.
14 SPEAKER OUT
Speakon compatible subwoofer output. Only con-
nect passive 8Ω subwoofers, e.g. LDESUB15G².
CONTROL ELEMENTS:
ENGLISHDEUTSCHFRANCAIS
FRANCAISFRANCAIS FRANCAISFRANCAIS ESPAÑOLPOLSKIITALIANO
12

SPECIFICATIONS:
MODEL Name LDESUB15AG² LDESUB15G² LDESUB12AG² Product Sort: PA-subwoofer PA-subwoofer PA-subwoofer Type: active passive active Woofer Size: " 15 15 12 Woofer Size: mm 381 381 304,8 Woofer Magnet: ferrit ferrit ferrit Woofer Brand: custom made custom made custom made Woofer Voice Coil: " 3 3 3 Woofer Voice Coil: mm 76,5 76,5 76,5 Amplification: Class D Class A/B Power (RMS): W 700 500 250 Power (Peak): W 1400 1000 500 Frequency Range: Hz 35-200 38-200 38-200 SPL [1W/1m] dB 99 Max. SPL continuous: dB 124 126 120 Max. SPL peak: dB 133 128 Impendance Ω 8Ω (low-pass filter disabled) / 4Ω (low-pass
filter enabled)
Protection: overvoltage, DC, short circuit, limiter overvoltage, DC, short circuit, limiter Controls: Sub Level, Sub Phase, Sub Freq (adjustable
low-pass filter)
switchable low-pass filter (120Hz/-12dB/ oct.)
Sub Level, Sub Phase, Sub Freq (adjus- table low-pass filter)
Indicators Power, Signal, Limiter, Protect Power, Signal, Limiter Line Input: 2x XLR/jack 6,3mm (combo) (left,right) 1x XLR/jack 6,3mm (combo) Line Output: 2x Direct Output XLR, 2x Sat Output 100Hz
XLR
1x Line Out XLR
Powered Speaker Output: Speakon Compatible Speaker Input: Speakon Compatible Speaker Output: Speakon Compatible Operating Voltage 220 V AC - 240 V AC 220 V AC - 240 V AC Cabinet Material: 15mm plywood 15mm plywood 15mm plywood Cabinet Surface: texture paint texture paint texture paint Cabinet Design bass reflex bass reflex bass reflex Dimensions [W x H x D] mm 480 x 570 x 630 480 x 570 x 630 390 x 500 x 540 Weight: kg 41 32,5 25,5 Features: LD SYSTEMS Evolutive handles, threaded flange M20
Since all our products are constantly controlled and improved, technical changes are possible without prior notice.
ITALIANO
POLSKI
ESPAÑOL
FRANCAIS
FRANCAIS FRANCAIS FRANCAIS FRANCAIS
DEUTSCH
ENGLISH
13

CASTOR BOARD
38112G3 / 38115G3
PROTECTION BAG
LDESUB12AG²B / LDESUB15(A)G²B
ACCESSORIES:
ENGLISHDEUTSCHFRANCAIS
FRANCAISFRANCAIS FRANCAISFRANCAIS ESPAÑOLPOLSKIITALIANO
14
LDESUB12AG² / LDESUB15(A)G²

ITALIANO
POLSKI
ESPAÑOL
FRANCAIS
FRANCAIS FRANCAIS FRANCAIS FRANCAIS
DEUTSCH
ENGLISH
15
MANUFACTURER´S DECLARATIONS:
LIMITED WARRANTY
This Limited Warranty applies to the Adam Hall, LD Systems, LD Premium, Defender, Palmer, Cameo and Eminence
branded products.
The statutory warranty rights towards the seller are not affected by this guarantee. In fact, it justifies, additional
independent warranty claims towards Adam Hall.
Adam Hall warrants that the Adam Hall product you have purchased from Adam Hall or from an Adam Hall autho-
rized reseller is free from defects in materials or workmanship under normal use for a period of 2 or 5 years from
the date of purchase.
The Limited Warranty Period starts on the date of purchase. In order to receive warranty services you are required
to provide proof of the purchase date. Your dated sales or delivery receipt, showing the date of purchase, is your
proof of the purchase date. Should products of the brands named above be in need of repair within the limited war-
ranty period, you are entitled to warranty services according to the terms and conditions stated in this document.
This Limited Warranty extends only to the original purchaser of this Adam Hall branded product and is not trans-
ferable to anyone who obtains ownership of the Adam Hall branded product from the original purchaser. During
the Limited Warranty Period, Adam Hall will repair or replace the defective component parts or the product. All
component parts or hardware products removed under this Limited Warranty become the property of Adam Hall.
In the unlikely event that your Adam Hall product has a recurring failure, Adam Hall, at its discretion, may elect to
provide you with a replacement unit of Adam Hall´s choice that is at least equivalent to your Adam Hall branded
product in hardware performance.
Adam Hall does not warrant that the operation of this product will be uninterrupted or error-free. Adam Hall is not
responsible for damage that occurs as a result of your failure to follow the instructions included with the Adam
Hall branded product.
This Limited Warranty does not apply,
- to wear parts (e.g. accumulator)
- to any product from which the serial number has been removed or that has been damaged or rendered defecti-
ve as the result of an accident
- in case of, misuse, abuse, or other external causes
- by operation outside the usage parameters stated in the user´s documentation shipped with theproduct by use
of spare parts not manufactured or sold by Adam Hall
- by modification or service by anyone other than Adam Hall
These terms and conditions constitute the complete and exclusive warranty agreement between you and Adam
Hall regarding the Adam Hall branded product you have purchased.

ENGLISHDEUTSCHFRANCAIS
FRANCAISFRANCAIS FRANCAISFRANCAIS ESPAÑOLPOLSKIITALIANO
16
LIMITATION OF LIABILITY
If your Adam Hall branded hardware product fails to work as warranted above, your sole and exclusive remedy
shall be repair or replacement. Adam Halls’ maximum liability under this limited warranty is expressly limited
to the lesser of the price you have paid for the product or the cost of repair or replacement of any hardware
components that malfunction in conditions of normal use.
Adam Hall is not liable for any damages caused by the product or the failure of the product, including any lost
profits or savings or special, incidental, or consequential damages. Adam Hall is not liable for any claim made by
a third party or made by you for a third party.
This limitation of liability applies whether damages are sought, or claims are made, under this Limited Warranty
or as a tort claim (including negligence and strict product liability), a contract claim, or any other claim. This limi-
tation of liability cannot be waived or amended by any person. This limitation of liability will be effective even if
you have advised Adam Hall of an authorized representative of Adam Hall of the possibility of any such damages.
This limitation of liability however, will not apply to claims for personal injury.
This Limited Warranty gives you specific legal rights. You may also have other rights that may vary from state to
state or from country to country. You are advised to consult applicable state or country laws for a full determina-
tion of your rights.
REQUESTING WARRANTY-SERVICE
To request warranty service for the product, contact Adam Hall or the Adam Hall authorized reseller from which
you purchased the product.
EC DECLARATION OF CONFORMITY
These devices meet the essential requirements and further relevant specifications of Directives 2004/108/EC
(EMC) and 2006/95/EC (LVD). For more information, see www.adamhall.com.
CORRECT DISPOSAL OF THIS PRODUCT (ELECTRICAL WASTE)
(Applicable in the European Union and other European countries with separate collection systems)
This marking shown on the product or its literature, indicates that it should not be disposed with other household
wastes at the end of its working life. To prevent possible harm to the environment or human health from uncon-
trolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the
sustainable reuse of material resources.
Household users should contact either the retailer where they purchased this product, or their local government
office, for details on where and how they can recycle this item in an enviromentally friendly manner.
Business users should contact their supplier and check the terms and conditions of the purchase contract. This
product should not be mixed with other commercial wastes for disposal.
MANUFACTURER´S DECLARATIONS:

ECOLOGY AND ENERGY SAVING
Saving electric energy helps to protect the environment. Please turn off all electrical equipment when it is not in
use. To avoid power consumption in idle mode, disconnect all electrical equipment from mains when not in use.
ITALIANO
POLSKI
ESPAÑOL
FRANCAIS
FRANCAIS FRANCAIS FRANCAIS FRANCAIS
DEUTSCH
ENGLISH
17
WEEE-DECLARATION
Your LD-Systems product was developed and manufactured with high quality materials and components wich
can be recycled and/or reused. This symbol indicates that electrical and electronic equipment must be disposed
of separately from normal waste at the end of its operational lifetime.
Please dispose of this product by bringing it to your local collection point or recycling centre for such equipment.
This will help to protect the environment in which we all live.
BATTERIES AND ACCUMULATORS
The supplied batteries or rechargeable batteries can be recycled. Please dispose of them as special waste or
return them to your specialist dealer. In order to protect the environment, only dispose exhausted batteries.
Adam Hall GmbH, all rights reserved. The technical data and the functional product characteristics can be subject
to modifications. The photocopying, the translation, and all other forms of copying of fragments or of the integral-
ity of this user’s manual is prohibited.

ENGLISHDEUTSCHFRANCAIS
FRANCAISFRANCAIS FRANCAISFRANCAIS ESPAÑOLPOLSKIITALIANO
18

ITALIANO
POLSKI
ESPAÑOL
FRANCAIS
FRANCAIS FRANCAIS FRANCAIS FRANCAIS
DEUTSCH
ENGLISH
19

Einführung
Die LD-Systems Subwoofer der Stinger Sub G² Serie wurden für den professionellen Einsatz konzipiert. Zu einem
fairen Preis bieten sie hochwertige Komponenten und eine solide Basswiedergabe in einem zeitgemäßen Design.
Die Serie umfasst die zwei aktiven Subwoofer LDESUB12AG² und LDESUB15AG² sowie das passive Modell
LDESUB15².
ENGLISHDEUTSCHFRANCAIS
FRANCAISFRANCAIS FRANCAISFRANCAIS ESPAÑOLPOLSKIITALIANO
20
Sie haben die richtige Wahl getroffen!
Diese LD-Systems Produkte werden Sie lange Jahre durch Zuverlässigkeit, Wirtschaftlichkeit und einfaches
Handling überzeugen. Dafür garantiert LD-Systems mit seinem Namen und seiner in vielen Jahren erworbenen
Kompetenz als Hersteller hochwertiger Geräte.
Nehmen Sie sich nun ein paar Minuten Zeit, diese Anleitung zu lesen. Wir möchten, dass Sie einfach
und schnell in den Genuss dieser Technik kommen.
Mehr Informationen zu LD-SYSTEMS finden Sie auf unserer Internetseite WWW.LD-SYSTEMS.COM
