LD ROADMAN 102 User manual

LD ROADMAN 102
PORTABLE SounD SyStem 200 W
uSeR´S mAnuAL
BeDIenunGSAnLeItunG
moDe D´emPLoI

Thank you for choosing LD-Systems!
We have designed this product to operate reliably over many years.Therefore LD-Systems guarantees for high
quality products with its name and many years of experience as a producer.
Please, take a few moments to read these instructions carefully, as we want you to enjoy your new LD-Systems
products quickly and to the fullest.
For information about LD-Systems check out our website WWW.LD-SYSTEMS.COM
02
ENGLISHDEUTSCHFRANCAIS

03
ENGLISHDEUTSCHFRANCAIS
LD ROADMAN 102
PORTABLE SounD SyStem 200 W

04
ENGLISHDEUTSCHFRANCAIS
PREVENTIVE meASuReS:
1. Please read the attached safety instructions as well as the following instructions carefully.
2. Please keep all the instructions.
3. Please use the device only as intended.
4. Please respect the valid waste management rules. Please deliver the packaging divided into plastic and
paper/ cardboard to the recycling management.
5. Please refer all servicing to qualified personel only if the device is damaged, exposed to liquid/rain or if it does
not operate normally.
6. Please, do not expose to any kind of heat such as ovens, radiators, or any other devices (incl. amplifiers).
Please check for enough distance between amplifiers and walls, racks, etc. to prevent overheating.
7. After connection please check the wiring to prevent any kind of accident or damage.
Please never use any kind of damaged cable and wiring.
8. Only use authorized and stable stands, brackets, shelfs, tables etc.. for installations. Please check for
adequate stability against collapse.
CAUTION:
To reduce the risk of electric shock, do not remove cover (or back). No user serviceable parts inside. Refer
servicing to qualified personnel.
The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the
user to the presence of uninsulated “dangerous voltage” within the product´s enclosure that may be
of sufficient magnitude to constitute a risk to persons.
The exclamation mark within an equilateral triangle is intended to alert the user to the presence of
important operating and maintenance (servicing) instructions in the literature accompanying the
appliance.
CAUTION! HIGH VOLUME!
You will operate this system for professional use. Therefore the commercial use of this equipment is liable to the
rules and regulations of the Accident Prevention & Insurance Association of your industry sector. Adam Hall as a
manufacturer is bound to inform you formally about the existence of eventual sanitary risks.
These speakers are able to induce high acoustic sound pressure levels. 85 db is by law the maximum audio
pressure level which your ear can be exposed to during a work day. It was set according to the technical exper-
tise of the occupational medicine as a basis for the noise rating level. Higher sound levels or longer exposition
times could damage your ear. The time of exposition by higher sound pressure levels should be shortened in
order to prevent from ear damages. Here are a few reliable warning signals which show that you have exposed
yourself for a too long period to excessive sound pressure levels:
- You hear bell- or whistling sounds!
- You have the impression that you can’t hear high tones anymore!
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT O PEN

05
ENGLISHDEUTSCHFRANCAIS

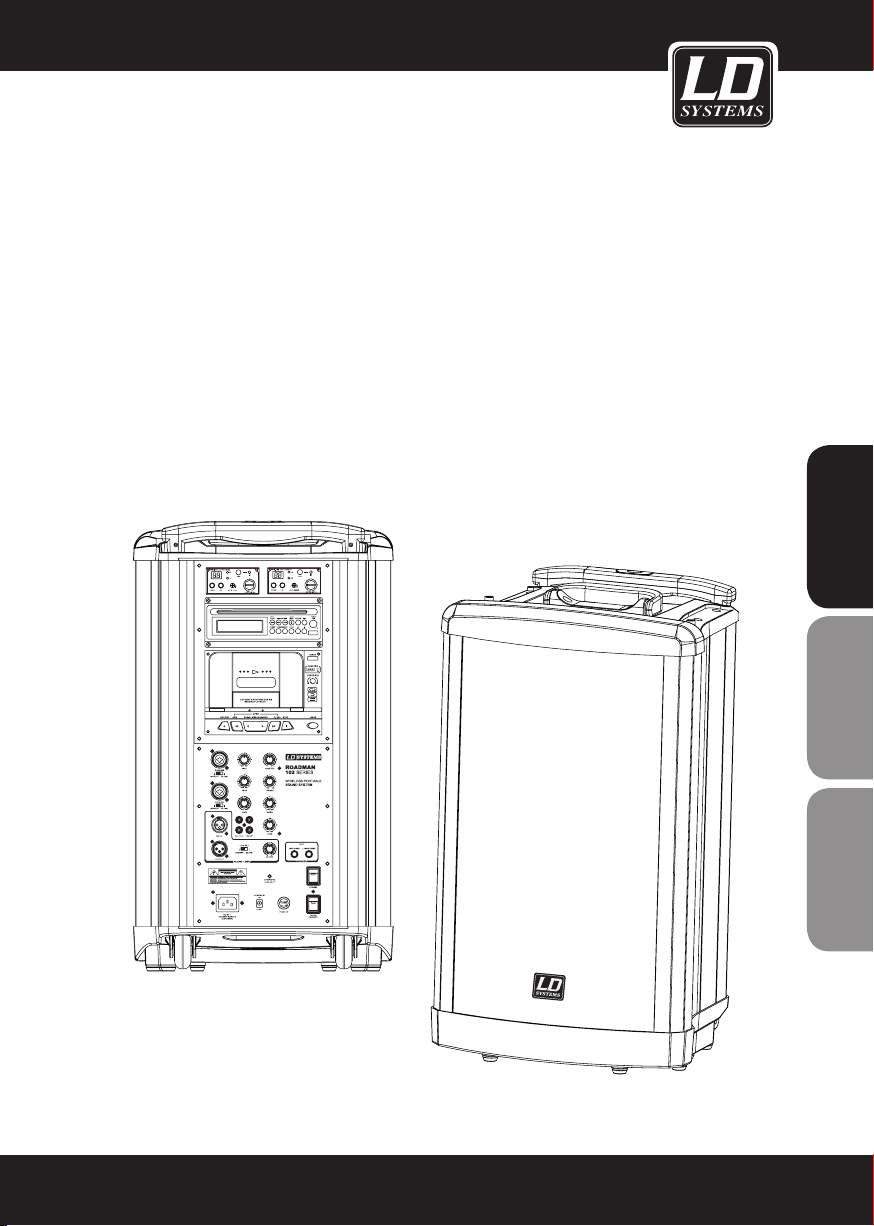

BACK PAneL:
1
2
3
4
5
6
7
8
1WIRELESS RECEIVER MODULE
The roadman 102 disposes of one wireless receiver
module. You can install a second receiver module if you
wish to use a second microphone simultaneously.
2CD PLAYER
Digital Slot-In CD Player with USB Input interface. CD
Player with anti-shock function.
Supported files (CD Player and USB Player):
Audio CD, MP3, WMA
3TAPEDECK
Cassette player/recorder, with tape reverse function
4CONTROL PANEL
Volume Control: Master, Wired Mic 1 & 2, Line-In, Tape
EQ: Bass, Treble
Audio Link: XLR In & XLR Out (Master or Slave),
RCA Phono In & Out
Speaker Out: Switched & Unswitched
LED Indicator: Low Battery power (red), battery
charging (green blinking), battery fully charged (green).
5TROLLEY
6CARRY HANDLE
7WIRELESS ANTENNAS THREAD
8WHEELS

06
ENGLISHDEUTSCHFRANCAIS

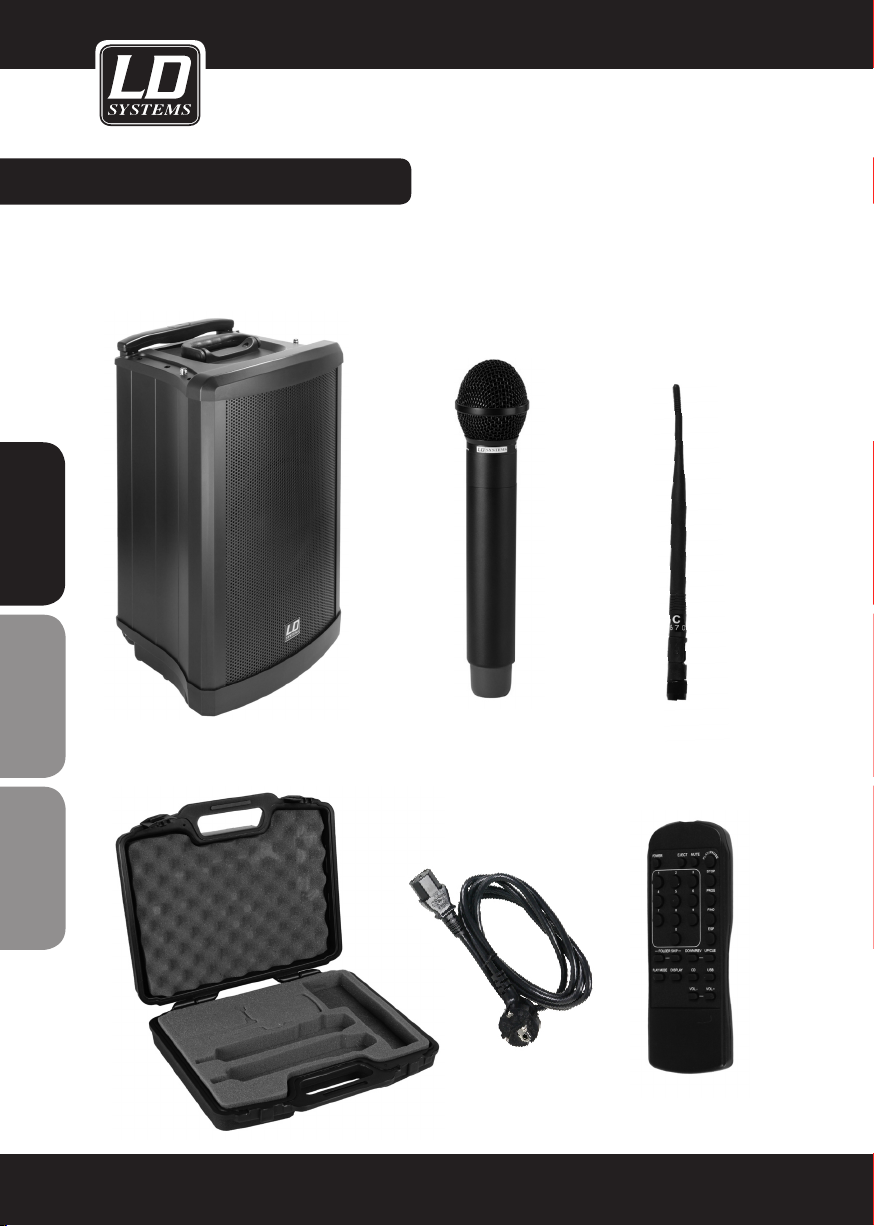

SYSTEM ComPonentS:
Roadman
Microphone Antenna
Case
Remote Control
Power Plug

07
ENGLISHDEUTSCHFRANCAIS

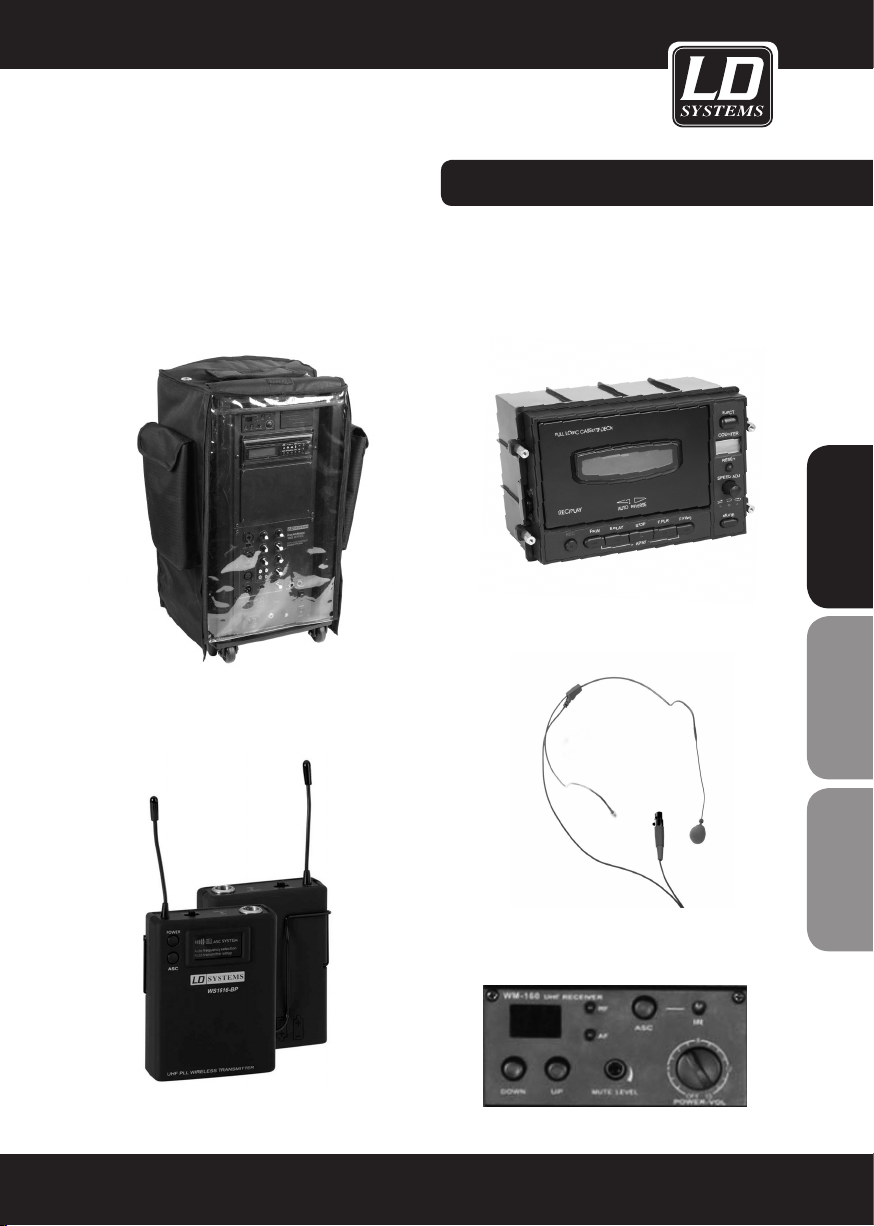

oPtIonAL ACCESSORIES:
Transport Bag (LDRM102BAG)

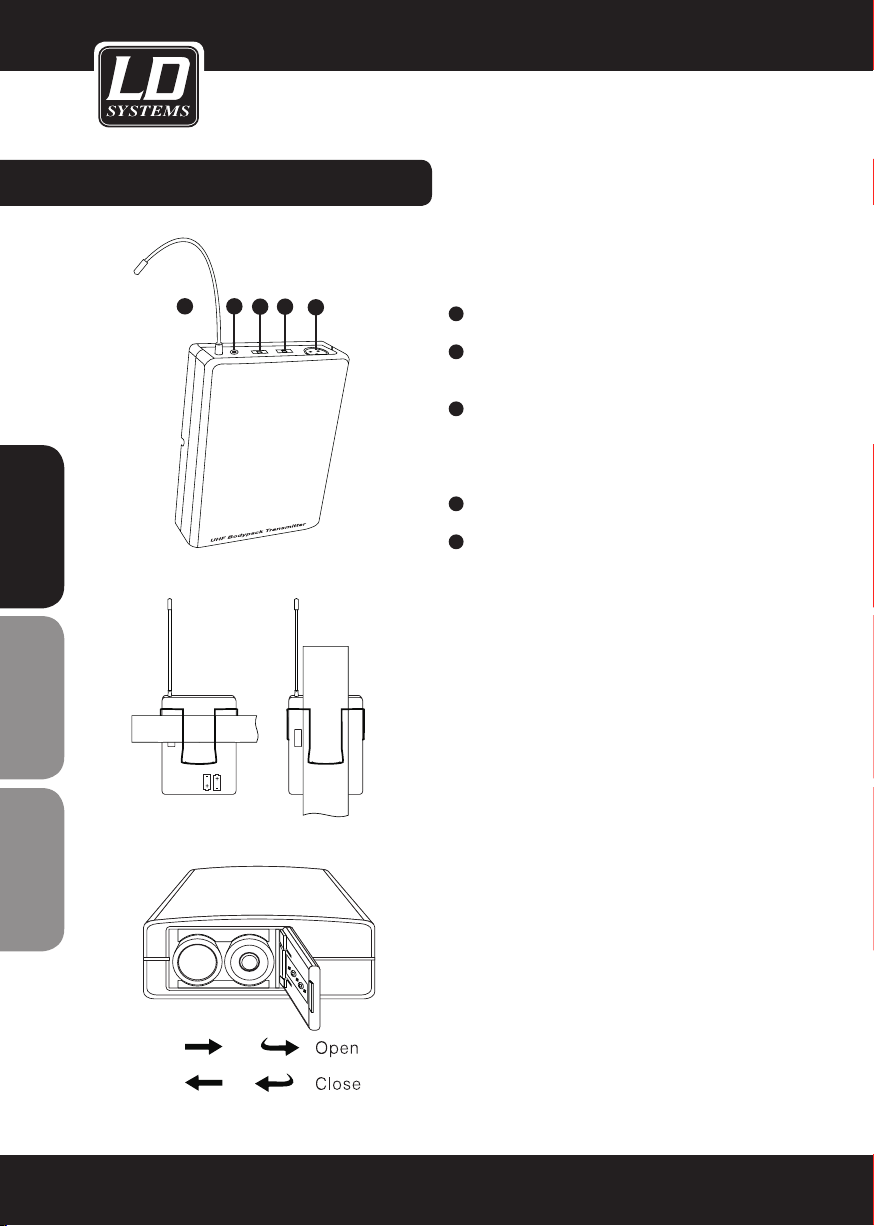

Beltpack Transmitter (LDWS1616BP)
Headset / Micro (WS100MH3)
Separate Receiver TD (LDWS6216M)
Tapedeck (102TD)

CD PLAyeR:
08
ENGLISHDEUTSCHFRANCAIS
97 5 3 11
10 8 6 4 2 12
1
1
POWER / VOLUME BUTTON
To switch the CD Player On, press shortly on the button. Keep the button pressed to switch it off.
Vol down: Turn this button towards left to decrease the volume (1 dB less per step)(min 0 dB)
Vol Up: Turn this button towards right to increase the volume (1 dB more per step)(max 30 dB)
2
USB SOCKET
USB 1.1 Input. Supports MP3 and WMA files. Only for USB Memory Sticks.
3
FIND
In USB & MP3 CD Mode pressing this button will show you the music folders available (on the USB Stick or on the
MP3/WMA CD).
4
IR
Infrared receiver for the remote control
5
REPEAT
IN USB & MP3 CD Mode the repeat modes are shown in this order
PLAY ALL RANDOM REPEAT TRACK REPEAT FOLDER
REPEAT ALL RANDOM REPEAT PLAY ALL
In Audio CD Mode the repeat modes are shown in this order
PLAY ALL RANDOM REPEAT TRACK
REPEAT ALL RANDOM REPEAT PLAY ALL
6ESP
Available only in Audio CD Mode. Press this button to activate the ESP anti-shock function. Display shows “40
SEC CD”. Press again to deactivate the ESP anti-shock function. Display shows “ESP Off”.
y

09
ENGLISHDEUTSCHFRANCAIS
CD PLAyeR:
7STOP/EJECT
When a CD is playing, press “STOP/EJECT” to stop the playing. By pressing a second time you will eject the CD.
When USB is playing, press “STOP/EJECT” to stop the playing.
8PROG
The PROG Button allows you to program a playlist.
In Audio CD Mode: Press PROG to enter the Program Mode, use “SKIP” (Left or right) to run over the
different available files. When the desired file is shown on the LCD screen press PROG again to add this file to
the playlist. Once you added the files you wanted to the playlist press the “PLAY/PAUSE” button to play the
playlist.
In MP3 CD Mode: Press PROG to enter the Program Mode, use “SKIP” (Left or right) to run over the
different folders available on the MP3 CD. Press PROG to enter the folder, use “SKIP” (Left or right) to
run over the different MP3/WMA files available in the folder. When the desired file is shown on the LCD screen
press PROG again to add this file to the playlist. Once you added the files you wanted to the playlist press the
“PLAY/PAUSE” button to play the playlist.
IN USB Mode: Press PROG to enter the Program Mode, use “SKIP” (Left or right) to run over the different
folders available on the USB Stick. Press PROG to enter the folder, use “SKIP” (Left or right) to run over
the different MP3/WMA files available in the folder. When the desired file is shown on the LCD screen press
PROG again to add this file to the playlist. Once you added the files you wanted to the playlist press the “PLAY/
PAUSE” button to play the playlist.
9SKIP (LEFT/RIGHT) BUTTONS
In Play and Stop Mode, press SKIP (LEFT/RIGHT) to go to the previous /next track.
In Play Mode keep the SKIP button pressed to fast forward (SKIP RIGHT) or fast reverse (SKIP LEFT) a track.
10 FOLDER (LEFT/RIGHT) BUTTONS
Available in MP3 CD and USB Mode
In Stop Mode: Use the FOLDER (LEFT/RIGHT) Buttons to go to the previous/next folder.
In Play Mode: Use the FOLDER (LEFT/RIGHT) Buttons to go to the first file of the previous/next folder.
In Program Play Mode: Use the FOLDER (LEFT/RIGHT) Buttons to go to the first playlist file of the previous/next
folder.
11 PLAY/PAUSE
12 CD/USB
Use the CD/USB button to switch between the CD and the USB Mode.

10
ENGLISHDEUTSCHFRANCAIS
CD Remote ContRoL:
1
57
8
9
1014
18
20
13 4 1719
2
36
11
12
15
16
1INFRARED TRANSMITTER
2POWER ON /OFF
3
CD EJECT
4
MUTE
The Mute button allows you to completely switch
off the sound of the CD / USB Player. Press once to
turn the Mute function ON, press again to turn it OFF.
Please Note:The Mute button doesn’t stop the
playing of a song or a file. It only turns the sound off.
5
PLAY / PAUSE
61-9 BUTTONS
7STOP
8
PROG
See CD Player (8)
9
FIND
See CD Player (3)
10
ESP
See CD Player (6)
11 FOLDER SKIP LEFT
See CD Player (10)
12
FOLDER SKIP RIGHT
See CD Player (10)
13 SKIP LEFT
See CD Player (9)
14
SKIP RIGHT
See CD Player (9)
15 REPEAT PLAYBACK MODES
16 SHOW SONG INFORMATION
17 SWITCH TO CD MODE
08 SWITCH TO USB MODE
19
VOLUME –
20 VOLUME +

CASSETTE ReCoRDeR / PLAyeR:
11
ENGLISHDEUTSCHFRANCAIS
1EJECT
Opens the Cassette slot.
2COUNTER
Shows the minutes.
3SPEED ADJ
With this button you can regulate the play speed of
the cassette reader.
4CONTINUOUS LOOP
The player will play continuously (A and B Side
repeated) until you press stop.
5SINGLE LOOP
The player will play the A and the B Side and then
stop from itself
6SINGLE SIDE PLAYING
The player will read only one side of the cassette
and then stop from itself.
7MODE
Allows you to select between Continuous Loop,
Single Loop or Single Side playing Mode.
8STOP
9FAST FORWARD
The cassette player features an auto search func-
tion, pressing this button during play will take you to
the next song on the cassette.
10 PLAY
The cassette player features the Auto-Reverse
Function. You do not need to turn the cassette
when one side is over. The Play button disposes of 2
directions representing both sides of the cassette.
11 FAST REVERSE
The cassette player features an auto search
function, pressing this button during play will take
you to the previous song on the cassette.
12
RECORD
Push the record button to activate the Recording
Mode, then push the play button to start recording.
1
2
3
4
5
6
7
89101112

12
ENGLISHDEUTSCHFRANCAIS
BACK PAneL:
1
8 9
2 3
4
5
5
6
7
16
15
14
1320
21
22
23
24
10
11 12
25
26
181719
1AC 100-240 V POWER INPUT PLUG
2DC 24-32V COMMUTATOR INPUT PLUG
3
FUSE 5A
4
VOICE PRIORITY
When Music is playing, turning on the Voice Priority
function will automatically decrease the volume of
the music when you speak in the microphone.
As soon as you stop talking the music volume
increases again. It is the so called “Talk Over”
function.
5
POWER SWITCH
This is the general power switch (ON/OFF for the
whole system)

13
ENGLISHDEUTSCHFRANCAIS
SYSTEM SettInGS AnD oPeRAtIonS:
6
SWITCHED OUT
Use this Output to plug a further passive speaker.
When using this output the speaker of the Roadman
102 is automatically muted and the sound only
comes out of the passive speaker.
7UNSWITCHED OUT
Use this Output to plug a further passive speaker.
When using this output the sound comes out of both
the Roadman and the passive speaker.
8LINK OUTPUT
This output allows you to connect the Roadman to
another Roadman.
9LINK SET

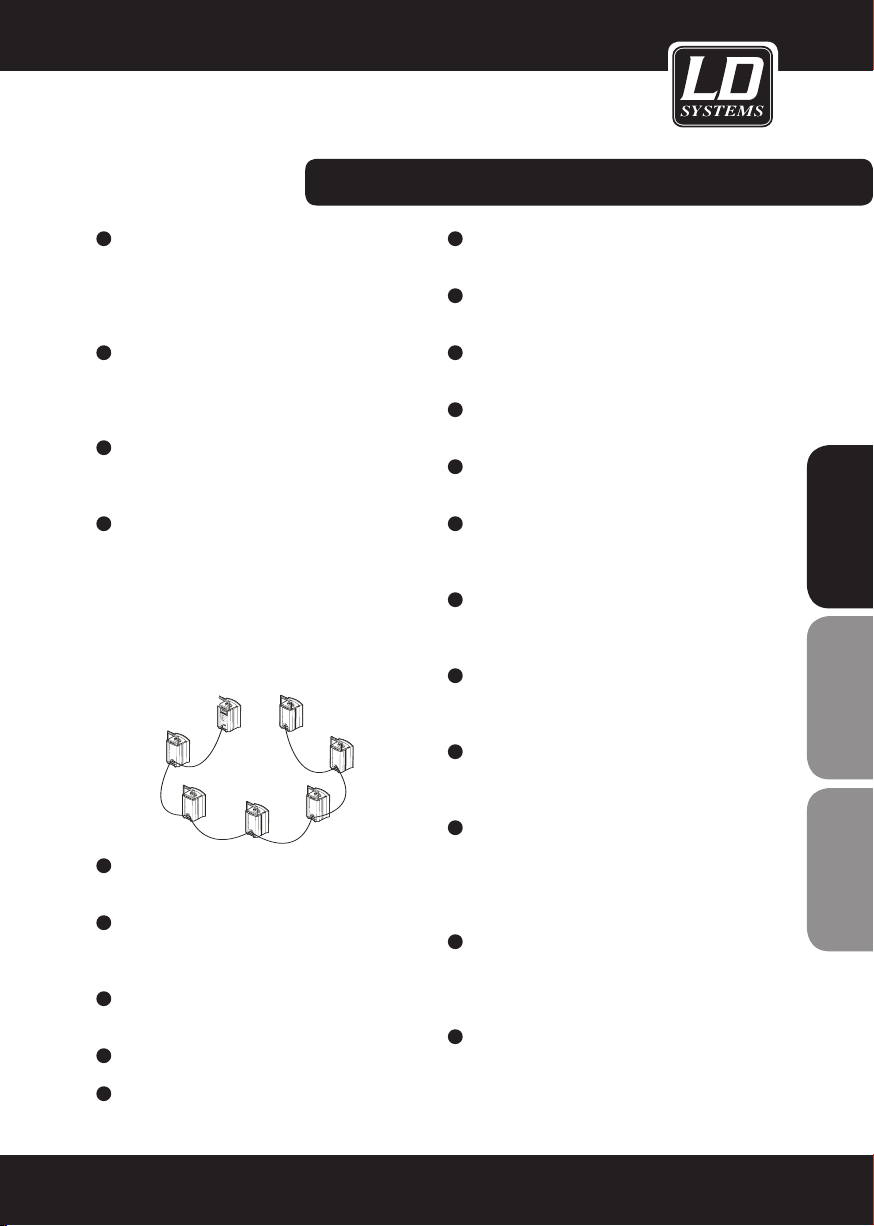

MASTER / SLAVE: When connecting several
Roadman together (from 2 to max. 7) the Master /
Slave Order hast to be respected. First Roadman of
the “Chain” should be set on Master, the following
ones should be set on Slave. The Roadman that
is set on Master takes the control over all other
Roadman (Volume control, switch ON/OFF etc.)
10 VOLUME
Control of Slave Speakers
11 RCA PHONO OUTPUT
Allows line level output for recording or any other
use
12 RCA PHONO INPUT
Allows the connection of any line level device
13
MASTER
General volume control of the system
14 TREBLE
TREBLE / HIGH TONE Equalizer
15 BASS
BASS / LOW TONE Equalizer
16 LINE
Line Input (12) volume controller
17 MIC 1
Microphone 1 (20) volume controller
18 MIC2
Microphone 2 (22) volume controller
19 TAPE
Tape volume controller
20 MIC/LINE
Microphone or Line Input 1. Accepts Jack or XLR
connectors.
21 SPEECH/MUSIC
SPEECH: Microphone Input Level
Music: Line Input Level
22 MIC/LINE
Microphone or Line Input 2. Accepts Jack or XLR
connectors.
23 SPEECH/MUSIC
SPEECH = MIC: Microphone Input Level
Music = LINE: Line Input Level
24 LINK INPUT
This Input allows you to connect a Roadman to
another Roadman. The Link Input of the Slave
Roadman should be connected to the Link Output of
the Master Roadman.
25 CHARGING / LOW BATT
LED Indicator: Low Battery power (red), battery
charging (green blinking), battery fully charged
(green).
26 LED INDICATOR
When red, the system is in operation.
Turned ON.

14
ENGLISHDEUTSCHFRANCAIS
WIReLeSS RECEIVER moDuLe:
8769 5 4 321
1IR WINDOW
Sends Infra Red signals to the transmitter (hand-
held Mic) in order to synchronize the frequencies
2POWER
Power switch and Volume controller
3ASC
Begins the automatic frequency selection
(synchronization)
4MUTE LEVEL
Noise Mute adjust. Set on Factory setting. Do not
change this setting.
5AF
Shows if the module receives an audio signal
6RF
Shows if the module receives a radio signal
7UP
Channel Up
8DIGITAL DISPLAY
Digital channel display
9DOWN
Channel Down

15
ENGLISHDEUTSCHFRANCAIS
HANDHELD tRAnSmItteR
1MICROPHONE HEAD
2GAIN
Use this controller to adjust the microphone sensitivity.
Left decrease, right increase.
Factory settings should give you complete satisfaction.
3RF POWER SWITCH
H stands for High power signal, L for Low power
signal.
4IR PORT
Receives the Infra Red frequencies sent by the
receiver in order to synchronize and find the best
transmitting frequency.
5BATTERIES RACK
Please Insert 2 AA Alkaline batteries (LR6 1,5 V)
6POWER/ASC
Green light: Power On
Green flash: IR transmission in progress
Red flash: battery low
7ON/OFF SWITCH
CHANGING BATTERIES
Battery life is about 8 hours. If the Low Battery
indicator glows then change the batteries imme-
diately.
1
4
5
6
7
2
3

16
ENGLISHDEUTSCHFRANCAIS
BELTPACK tRAnSmItteR:
1ANTENNA
2ON/MUTE/OFF SWITCH
The middle position is the mute position
3GAIN
Mic: Microphone Use
0: Guitar with passive pickup
-10 dB: Guitar with active pickups
4MINI XLR INPUT
5POWER INDICATOR
Battery status indicator
WEARING THE BELTPACK TRANSMITTER
Clip the receiver to a belt. For ultimate results, clip the
receiver onto a belt by pushing the receiver down onto
the belt as far as it goes.
For guitarists, attach the guitar strap ”through” the
receiver clip.
CHANGING THE BATTERIES
Expected life for two alkaline batteries is approxima-
tively 8 hours.
When the battery status indicator flashes red the
batteries should be changed immediately as show on
the left side. Please Insert 2 AA Alkaline batteries (LR6
1,5 V)
52 3 4
1

17
ENGLISHDEUTSCHFRANCAIS
HAnDLInG oF tHe BATTERY:
Before you use your device for the first time the battery should be charged for 12 hours.
When the battery is low, the LED will glow red, when the battery is charging it will flash green.
To charge the battery simply connect the device with the power voltage cable to the AC Current.
This device is equipped with two 12 V4.5AH batteries. They can be used and recharged around 500 times, depen-
ding on the use and care.
The batteries should be charged 8 hours long. If the device stays for a long time unused make sure that you char-
ge the battery once every 3 month or at least before the next use.
HOW TO REPLACE THE BATTERIES
1. Make sure that the device is turned off and not connected to the power voltage
2. Unscrew the bottom panel to access the battery storage
3. Disconnect old batteries and connect the new ones. Make sure to respect the +/- order (Red + // Black -).
4. Place the new batteries in the battery storage and screw the bottom panel back.
5. Charge the new batteries at least 12 hours.
AT THE BOTTOM YOU CAN FIND
THE BATTERY STORAGE

18
ENGLISHDEUTSCHFRANCAIS
TECHNICAL SPeCIFICAtIonS:
BASIC SPECIFICATIONS
Output power: MAX 100 W RMS / 4 Ω
Frequency response: 50Hz - 20KHz
Maximum sound pressure: 118dB
Speaker: 10“ Woofer / 1“ Tweeter
Power: 100V-240V (150W) Switching power supply
Charge battery 12V / 5AH (2 pieces)
THD: <0,5%
Size (W x H x D): 600 x 350 x 300
Weight: 21,5 kg
Receiver module: A set of UHF (470-1000MHZ)
Using time: 4-6 hours
CD PLAYER
Product type:
Compact disc digital audio system with mechanic &
electronic anti-shock CD, CD-R, CD-R/W, MP3, WMA,
USB MP3 WMA available.
Product No: EC-461HUR
Disc loading: Slot-in Type
Supply voltage: DC 12V (10~14V)
Power consumption: Within 5W
Dimensions (W x H x D): 160mm x 147,4mm x 68,5mm
Weight:1,2 kg
HANDHELD TRANSMITTER
Max Audio input level: 0dBV
Dimensions (L x Ø): 250mm x 54mm
Weight: 270 gram (without batteries)
Power Requirements: 2 “AA” size alkaline or recharge-
able batteries
Battery Life: >12 hours
BODYPACK TRANSMITTER
Max Audio input level: 0dBV to +10dBV
Gain Adjustment Range: 30 dB
Input Impedance
470KΩ
Dimensions (W x H x D): 85mm x 65mm x 23mm
Weight: 80 gram (without batteries)
Power Requirements: 2 “AA” size alkaline or recharge-
able batteries
Battery Life: >10 hours

LIMITED WARRANTY
This Limited Warranty applies to the Adam Hall, LD Systems, Defender, Palmer and Eminence branded products.
The statutory warranty rights towards the seller are not affected by this guarantee. In fact, it justifies, additional
independent warranty claims towards Adam Hall.
Adam Hall warrants that the Adam Hall product you have purchased from Adam Hall or from an Adam Hall autho-
rized reseller is free from defects in materials or workmanship under normal use for a period of 2 or 5 years from
the date of purchase.
The Limited Warranty Period starts on the date of purchase. In order to receive warranty services you are required
to provide proof of the purchase date. Your dated sales or delivery receipt, showing the date of purchase, is your
proof of the purchase date. Should products of the brands named above be in need of repair within the limited war-
ranty period, you are entitled to warranty services according to the terms and conditions stated in this document.
This Limited Warranty extends only to the original purchaser of this Adam Hall branded product and is not transfe-
rable to anyone who obtains ownership of the Adam Hall branded product from the original purchaser. During the
Limited Warranty Period,Adam Hall will repair or replace the defective component parts or the product. All compo-
nent parts or hardware products removed under this Limited Warranty become the property of Adam Hall.
In the unlikely event that your Adam Hall product has a recurring failure, Adam Hall, at its discretion, may elect to
provide you with a replacement unit of Adam Hall´s choice that is at least equivalent to your Adam Hall branded
product in hardware performance.
Adam Hall does not warrant that the operation of this product will be uninterrupted or error-free. Adam Hall is not
responsible for damage that occurs as a result of your failure to follow the instructions included with the Adam
Hall branded product.
This Limited Warranty does not apply,
- to wear parts (e.g. accumulator)
- to any product from which the serial number has been removed or that has been damaged or rendered defec
tive as the result of an accident
- in case of, misuse, abuse, or other external causes
- by operation outside the usage parameters stated in the user´s documentation shipped with the
product
- by use of spare parts not manufactured or sold by Adam Hall
- by modification or service by anyone other than Adam Hall
These terms and conditions constitute the complete and exclusive warranty agreement between you and Adam
Hall regarding the Adam Hall branded product you have purchased.
MANUFACTURER´S DeCLARAtIonS:
19
ENGLISHDEUTSCHFRANCAIS

LIMITATION OF LIABILITY
If your Adam Hall branded hardware product fails to work as warranted above, your sole and exclusive remedy
shall be repair or replacement. Adam Halls’ maximum liability under this limited warranty is expressly limited
to the lesser of the price you have paid for the product or the cost of repair or replacement of any hardware
components that malfunction in conditions of normal use.
Adam Hall is not liable for any damages caused by the product or the failure of the product, including any lost
profits or savings or special, incidental, or consequential damages. Adam Hall is not liable for any claim made by
a third party or made by you for a third party.
This limitation of liability applies whether damages are sought, or claims are made, under this Limited Warranty
or as a tort claim (including negligence and strict product liability), a contract claim, or any other claim. This limi-
tation of liability cannot be waived or amended by any person. This limitation of liability will be effective even if
you have advised Adam Hall of an authorized representative of Adam Hall of the possibility of any such damages.
This limitation of liability however, will not apply to claims for personal injury.
This Limited Warranty gives you specific legal rights. You may also have other rights that may vary from state to
state or from country to country. You are advised to consult applicable state or country laws for a full determina-
tion of your rights.
REQUESTING WARRANTY-SERVICE
To request warranty service for the product, contact Adam Hall or the Adam Hall authorized reseller from which
you purchased the product.
EG-DECLARATION OF CONFIRMITY
These products meet the essential requirements as well as the further standards of the EU Directives 199/5/EU,
89/336/EU.
CORRECT DISPOSAL OF THIS PRODUCT (ELECTRICAL WASTE)
(Applicable in the European Union and other European countries with separate collection systems)
This marking shown on the product or its literature, indicates that it should not be disposed with other household
wastes at the end of its working life. To prevent possible harm to the environment or human health from uncon-
trolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the
sustainable reuse of material resources.
Household users should contact either the retailer where they purchased this product, or their local government
office, for details on where and how they can recycle this item in an enviromentally friendly manner.
Business users should contact their supplier and check the terms and conditions of the purchase contract. This
product should not be mixed with other commercial wastes for disposal
20
ENGLISHDEUTSCHFRANCAIS
