LD SATG2 SERIES User manual

USER´S MANUAL
BEDIENUNGSANLEITUNG
MANUEL D`UTILISATION
MANUAL DE USUARIO
INSTRUKCJA OBSŁUGI
MANUALE D‘ USO
LD SATG²/SUB series
PASSIVE INSTALLATION SPEAKER: LDsAT42G2(W) / LDsAT242G2(W) /
LDsAT62G2(W) / LDsAT82G2(W) / LDsUB88
POWERED INSTALLATION SPEAKER: LDsAT62AG2(W) / LDsUB88A / LDsUB10A

2
ENGLISHDEUTSCHFRANCAIS
FRANCAISFRANCAIS FRANCAISFRANCAIS ESpAñoLpoLSKIITALIANo
You‘ve made the right choice!
We have designed this product to operate reliably over many years. LD Systems stands for this with its name and
many years of experience as a manufacturer of high-quality audio products.
Please read this User‘s Manual carefully, so that you can begin making optimum use of your LD Systems product
quickly.
You can find more information about LD SYSTEMS at our Internet site WWW.LD-SYSTEMS.COM
Introduction

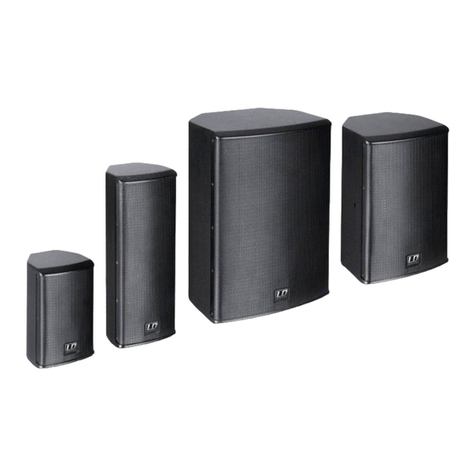

The LD Systems SATG2 Series consists of ultracompact speakers that are suitable for smaller installations and
unobtrusive integration in practically any surroundings, e.g., in bars and restaurants, retail shops or even at
home.
Four different passive 2-way speakers in various sizes and an active variant are available in black or white
cabinets. The series is rounded out by one passive and two active subwoofers.

3
ITALIANOPOLSKIESPAÑOL
FRANCAISFRANCAIS FRANCAISFRANCAIS FRANCAISDEUTSCHENGLISH
LD SATG²/SUB series
PASSIVE INSTALLATION SPEAKER: LDsAT42G2(W) / LDsAT242G2(W) /
LDsAT62G2(W) / LDsAT82G2(W) / LDsUB88
POWERED INSTALLATION SPEAKER: LDsAT62AG2(W) / LDsUB88A / LDsUB10A

4
ENGLISHDEUTSCHFRANCAIS
FRANCAISFRANCAIS FRANCAISFRANCAIS ESpAñoLpoLSKIITALIANo
PREVENTIVE MeAsUres:
1. Please read these instructions carefully.
2. Keep all information and instructions in a safe place.
3. Follow the instructions.
4. Observe all safety warnings. Never remove safety warnings or other information from the equipment.
5. Use the equipment only in the intended manner and for the intended purpose.
6. Use only sufficiently stable and compatible stands and/or mounts (for fixed installations). Make certain that wall
mounts are properly installed and secured. Make certain that the equipment is installed securely and cannot fall down.
7. During installation, observ e the applicable safety regulations for your country.
8. Never install and operate the equipment near radiators, heat registers, ovens or other sources of heat. Make
certain that the equipment is always installed so that is cooled sufficiently and cannot overheat.
9. Never place sources of ignition, e.g., burning candles, on the equipment.
10. Ventilation slits must not be blocked.
11. Do not use this equipment in the immediate vicinity of water (does not apply to special outdoor equipment -
in this case, observe the special instructions noted below. Do not expose this equipment to flammable materials,
fluids or gases.
12. Make certain that dripping or splashed water cannot enter the equipment. Do not place containers filled with
liquids, such as vases or drinking vessels, on the equipment.
13. Make certain that objects cannot fall into the device.
14. Use this equipment only with the accessories recommended and intended by the manufacturer.
15. Do not open or modify this equipment.
16. After connecting the equipment, check all cables in order to prevent damage or accidents, e.g., due to
tripping hazards.
17. During transport, make certain that the equipment cannot fall down and possibly cause property damage and
personal injuries.
18. If your equipment is no longer functioning properly, if fluids or objects have gotten inside the equipment or
if it has been damaged in anot her way, switch it off immediately and unplug it from the mains outlet (if it is a
powered device). This equipment may only be repaired by authorized, qualified personnel.
19. Clean the equipment using a dry cloth.
20. Comply with all applicable disposal laws in your country. During disposal of packaging, please separate
plastic and paper/cardboard.
21. Plastic bags must be kept out of reach of children.
FOR EQUIPMENT THAT CONNECTS TO THE POWER MAINS:
22. CAUTION: If the power cord of the device is equipped with an earthing contact, then it must be connected to
an outlet with a protective ground. Never deactivate the protective ground of a power cord.
23. If the equipment has been exposed to strong fluctuations in temperature (for example, after transport), do
not switch it on immediately. Moisture and condensation could damage the equipment. Do not switch on the
equipment until it has reached room temperature.
24. Before connecting the equipment to the power outlet, first verify that the mains voltage and frequency match
the values specified on the equipment. If the equipment has a voltage selection switch, connect the equipment to
the power outlet only if the equipment values and the mains power values match. If the included power cord or
power adapter does not fit in your wall outlet, contact your electrician.
25. Do not step on the power cord. Make certain that the power cable does not become kinked, especially at the
mains outlet and/or power adapter and the equipment connector.
26. When connecting the equipment, make certain that the power cord or power adapter is always freely
accessible. Always disconnect the equipment from the power supply if the equipment is not in use or if you want

5
ITALIANOPOLSKIESPAÑOL
FRANCAISFRANCAIS FRANCAISFRANCAIS FRANCAISDEUTSCHENGLISH
ENGLISH
SAFETY:
to clean the equipment. Always unplug the power cord and power adapter from the power outlet at the plug or
adapter and not by pulling on the cord. Never touch the power cord and power adapter with wet hands.
27. Whenever possible, avoid switching the equipment on and off in quick succession because otherwise this
can shorten the useful life of the equipment.
28. IMPORTANT INFORMATION: Replace fuses only with fuses of the same type and rating. If a fuse blows repea-
tedly, please contact an authorised service centre.
29. To disconnect the equipment from the power mains completely, unplug the power cord or power adapter
from the power outlet.
30. If your device is equipped with a Volex power connector, the mating Volex equipment connector must be
unlocked before it can be removed. However, this also means that the equipment can slide and fall down if
the power cable is pulled, which can lead to personal injuries and/or other damage. For this reason, always be
careful when laying cables.
31. Unplug the power cord and power adapter from the power outlet if there is a risk of a lightning strike or
before extended periods of disuse.
CAUTION
RISK OF ELECTRIC S HOCK
DO NOT OPEN
CAUTION:
Never remove the cover, because otherwise there may be a risk of electric shock. There are no user serviceable
parts inside. Have repairs carried out only by qualified service personnel.
The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user
to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of
sufficient magnitude to constitute a risk of electrical shock.
The exclamation mark within an equilateral triangle is intended to alert the user to the presence of
important operating and maintenance instructions.
CAUTION – HIGH VOLUME LEVELS WITH AUDIO PRODUCTS!
This equipment is intended for professional use. Therefore, commercial use of this equipment is subject to the
respectively applicable national accident prevention rules and regulations. As a manufacturer, Adam Hall is
obligated to notify you formally about the existence of potential health risks.
Hearing damage due to high volume and prolonged exposure: When in use, this product is capable of producing
high sound-pressure levels (SPL) that can lead to irreversible hearing damage in performers, employees, and
audience members. For this reason, avoid prolonged exposure to volumes in excess of 90 dB.
CAUTION! IMPORTANT INFORMATION ABOUT LIGHTING PRODUCTS
1. Do not look into the beam from a distance of less than 40 cm.
2. Do not stare into the beam for extended periods at short-to-medium distances.
3. Do not view the beam directly with optical instruments such as magnifiers.
4. Under some circumstances, stroboscopic effects may trigger epileptic seizures in sensitive individuals! For this
reason, persons who suffer from epilepsy should always avoid places where strobe lights are used.

6
ENGLISHDEUTSCHFRANCAIS
FRANCAISFRANCAIS FRANCAISFRANCAIS ESpAñoLpoLSKIITALIANo
PASSIVE SPEAKERS
SAT42G2(W) and SAT62G2(W)
Up to four SAT42G2(W) or SAT62G2(W) speakers per power amplifier output can be operated in parallel at 4
ohms. The speaker signal is simply looped through to the next speaker via the connector panel on the rear.
SAT242G2(W) and SAT82G2(W)
Up to two SAT42G2(W) or SAT62G2(W) speakers per power amplifier output can be operated in parallel at 4
ohms. The speaker signal is simply looped through to the next speaker via the connector panel on the rear.
SUB88 in conjunction with SAT42G2(W), SAT62G2(W), SAT242G2(W) or SAT82G2(W)
Connect the speaker cables from the power amplifier (Output Left and Right) to the Input Left and Right
connectors of the subwoofer.
Afterwards, connect the SAT Series speakers to the Output Left and Right connectors of the subwoofer.
Up to two SAT42G2(W) or SAT62G2(W) speakers per subwoofer output (Output Left and Right) can be operated in
parallel at 4 ohms.
One SAT242G2(W) or SAT82G2(W) speaker per subwoofer output (Output Left and Right) can be operated in this
configuration at 4 ohms.
We recommend using speaker cable with a conductor cross-section of at least 2 x 1.5 mm².
ACTIVE SPEAKERS
It is advisable to always turn on active speakers last and turn them off first in order to avoid the
switch-on noises caused by connected mixers, etc. If multiple active speakers are
connected one after the other in series (SAT62AG2), then they should always be switched on in the order in
which they are connected and switched off in reverse order.
Turn the active speakers off before you connect them. They can be connected both via 6.3 mm
TRS plugs (balanced three-pole / unbalanced two-pole) as well as balanced three-pole XLR plugs
. Once you have connected all of the necessary cables and set the volume (MAIN LEVEL) of the active speaker to
minimum, you can switch on the audio source (e.g., mixer). Afterwards you can also switch on the active spea-
kers. Start an audio signal and now turn the MAIN LEVEL knob clockwise until the desired volume is attained.
Carry out these steps with all connected active speakers.
On the following pages of this user manual, you will find a summary of the connectors, controls, and indicators.
OPERATING INSTRUCTIONS:

7
ITALIANOPOLSKIESPAÑOL
FRANCAISFRANCAIS FRANCAISFRANCAIS FRANCAISDEUTSCHENGLISH
SUB 10A in conjunction with passive SAT Series speakers
Connect the passive SAT Series speakers to the speaker outputs (SPEAKER OUT LEFT / RIGHT) of the SUB10A.
Up to four SAT42G2(W) or SAT62G2(W) speakers per speaker output can be operated in parallel.
The speaker signal is simply looped through to the next speaker via the connector panel on the rear of the
passive speaker.
Up to two SAT242G2(W) or SAT862G2(W) speakers per speaker output can be operated in parallel.
The speaker signal is simply looped through to the next speaker via the connector panel on the rear of the
passive speaker.
We recommend using speaker cable with a conductor cross-section of at least 2 x 1.5 mm².
SUB10A in conjunction with SAT62AG2(W) active speakers
Connect the active speakers to the line outputs (LINE DIRECT OUTPUT) of the SUB10A.
LOOPING THROUGH THE SIGNAL
With the SAT62AG2(W) active speakers, the audio signal can be looped through to additional systems using a
three-pole XLR cable
. Accordingly, it is not necessary to connect each device to the audio source individually. Please
use high-quality XLR cables for this and ensure that they are connected carefully.
SUB88A
To connect the SUB88A active subwoofer to the SAT62AG2 active speakers, the subwoofer must be connected as
the last speaker in the chain, since it only has one line input.
OPERATING INSTRUCTIONS :

8
ENGLISHDEUTSCHFRANCAIS
FRANCAISFRANCAIS FRANCAISFRANCAIS ESpAñoLpoLSKIITALIANo
3
5
6
21
4
7
CONNECTORS, conTroLs, AnD inDicATors:
LDSAT62AG2(W):
(LDSAT62AG2 shown)
1POWER SOCKET
IEC power socket 220V-240V with built-in fuse
holder.
IMPORTANT INFORMATION: Replace the fuse only
with a fuse of the same type and rating. If the fuse
blows repeatedly, please contact an authorised
service centre.
2POWER
On / off switch. Before switching the active
speaker on or off, always adjust the volume to
zero (MAIN LEVEL all the way to the left).
3BALANCED LINE INPUT
Balanced line input (XLR / 6.3 mm TRS combo) for
connecting an external audio source (e.g., mixer).
4DIRECT OUT
Balanced XLR line output for looping through the
input signal.
5MAIN LEVEL
Volume control
6POWER MODE
Toggles between continuous operation (ON) and
auto mode (AUTO). In the AUTO position, the
amplifier of the speaker system switches on auto-
matically as soon as a signal is received. If there
is no signal for several minutes, the amplifier
switches to standy mode.
7POWER LED
The LED lights up red if the unit is switched on
and is in AUTO mode, but no signal is present.
Once a signal is present, the LED changes colours
to green.
The LED also lights up green if the unit is
switched on and is in ON mode.

9
ITALIANOPOLSKIESPAÑOL
FRANCAISFRANCAIS FRANCAISFRANCAIS FRANCAISDEUTSCHENGLISH
3
5 5
6
2
1
4 4
78
CONNECTORS, conTroLs, AnD inDicATors:
CONNECTORS, conTroLs, AnD inDicATors:
LDSUB10A:
1MAIN LEVEL
Overall volume of the system (subwoofer and
connected passive speakers).
2SUB PHASE
Phase reverse switch for the subwoofer (0°/180°).
3SUB LEVEL
Sets the relative volume of subwoofers and
satellite speakers.
4LINE DIRECT OUTPUT (LEFT / RIGHT)
Balanced XLR line output (left / right) for looping
through the input signal.
5LINE INPUT XLR (LEFT / RIGHT)
Balanced line input (XLR / 6.3 mm TRS combo, left
/ right) for connecting an external audio source
(e.g., mixer).
6SPEAKER OUT (LEFT / RIGHT)
Terminal posts for speaker cables. Connection of
speakers or speaker systems with a total
impedance of at least 4 ohms per channel.
Connect the positive pole (+) of the speaker cable
to the red terminal clamp (+) and the negative
pole (-) of the speaker cable to the black terminal
clamp (-) of the respective channel. Optionally,
speaker cables with banana plugs can also be
used.
7POWER SOCKET
IEC power socket 220V-240V with built-in fuse holder.
IMPORTANT INFORMATION: Replace the fuse only
with a fuse of the same type and rating. If the fuse
blows repeatedly, please contact an authorised
service centre.
8POWER
On / off switch. Before switching the active spea-
ker on or off, always adjust the volume to zero
(MAIN LEVEL all the way to the left).

10
ENGLISHDEUTSCHFRANCAIS
FRANCAISFRANCAIS FRANCAISFRANCAIS ESpAñoLpoLSKIITALIANo
3
5
6
2
1
4
7
8
9
CONNECTORS, conTroLs, AnD inDicATors:

11
ITALIANOPOLSKIESPAÑOL
FRANCAISFRANCAIS FRANCAISFRANCAIS FRANCAISDEUTSCHENGLISH
CONNECTORS, conTroLs, AnD inDicATors:
LDSUB88A:
1POWER SOCKET
IEC power socket 220V-240V with built-in fuse holder.
IMPORTANT INFORMATION: Replace the fuse only with a fuse of the same type and rating. If the fuse blows
repeatedly, please contact an authorised service centre.
2POWER
On / off switch. Before switching the active speaker on or off, always adjust the volume to zero (SUB LEVEL
all the way to the left).
3BALANCED LINE INPUT
Balanced line input (XLR / 6.3 mm TRS combo) for connecting an external audio source (e.g., mixer).
4SUB LEVEL
Volume control
5SUB CROSSOVER
Variable low-pass filter 70 - 140 Hz. Controls the lower limit frequency of the subwoofer.
6SUB PHASE
Phase reverse switch for the subwoofer (0°, 180°).
7POWER LED
Lights up when the subwoofer is switched on and properly connected to the power mains.
8SIGNAL LED
The LED lights up when an audio signal is present at the line input.
9LIMIT LED
Lights up if the speaker is operating in the clipping range. Brief flashing is not a cause for concern, since
the internal audio limiter compensates for over-modulation. Permanent illumination should be avoided by
reducing the input level.
CONNECTORS, conTroLs, AnD inDicATors:

12
ENGLISHDEUTSCHFRANCAIS
FRANCAISFRANCAIS FRANCAISFRANCAIS ESpAñoLpoLSKIITALIANo
CONNECTORS, conTroLs, AnD inDicATors:
LDSATG2 PASSIVE SPEAKER:
(LDSAT42G2W shown)
TERMINAL CLAMPS FOR SPEAKER CABLES
Connect the positive pole (+) of the speaker cable
coming from the amplifier to the red terminal clamp (+)
and the negative pole (-) of the speaker cable coming
from the amplifier to the black terminal clamp (-).
LDSUB88 PASSIVE SUBWOOFER:
SUB88 IN (IN LEFT shown)
Terminal clamps for speaker cables.
Connect the positive pole (OUTPUT LEFT +) of the
speaker cable coming from the amplifier to the red
terminal clamp (IN LEFT +) and the negative pole
(OUTPUT LEFT -) of the speaker cable coming from
the amplifier to the black terminal clamp (IN LEFT -) of
the subwoofer.
Connect the SUB88 IN RIGHT and the amplifier OUT-
PUT RIGHT in the same manner.
SUB88 SAT OUT (SAT OUT LEFT shown)
Terminal clamps for speaker cables.
Connect the positive pole (+) of the speaker cable
to the red terminal clamp (SAT OUT LEFT +) and the
negative pole (-) of the speaker cable to the black
terminal clamp (SAT OUT LEFT -) of the respective
channel.
Connect the SATG2 Series speakers to the other side
of the speaker cable in the same manner.
IMPORTANT: Observe the remarks rearding the
LDSUB88 subwoofer and the passive LDSATG2 Series
speakers in the "OPERATING INSTRUCTIONS" section
of this user manual!

13
ITALIANOPOLSKIESPAÑOL
FRANCAISFRANCAIS FRANCAISFRANCAIS FRANCAISDEUTSCHENGLISH
3
5
6
2
1
4
7
89
SPEAKER MOUNT incLUDeD:
CONNECTORS, conTroLs, AnD inDicATors:
1WALL BRACKET
2M6 BOLT
3U-SHAPED MOUNTING BRACKET
4WASHER
5M6 WINGNUT
6RUBBER WASHER
7M6 SOCKET SCREW x 16
8SPRING WASHER
9WASHER
NOTE: Speaker brackets for wall mounting are included with all SATG2 Series speakers. With the LDSAT242G2(W)
speaker, a bracket for horizontal mounting is included in addition to the bracket for vertical mounting.

14
ENGLISHDEUTSCHFRANCAIS
FRANCAISFRANCAIS FRANCAISFRANCAIS ESpAñoLpoLSKIITALIANo
1 X LDSUB10A + 2 X 4 LDSAT42G2(W)
COMBINATION eXAMPLes:
SPEAKER OUT LEFT SPEAKER OUT RIGHT

15
ITALIANOPOLSKIESPAÑOL
FRANCAISFRANCAIS FRANCAISFRANCAIS FRANCAISDEUTSCHENGLISH
1 X LDSUB10A + 2 X 2 LDSAT242G2(W)
COMBINATION eXAMPLes:
COMBINATION eXAMPLes:
SPEAKER OUT LEFT SPEAKER OUT RIGHT

16
ENGLISHDEUTSCHFRANCAIS
FRANCAISFRANCAIS FRANCAISFRANCAIS ESpAñoLpoLSKIITALIANo
1 X LDDJ500 + 1X LDSUB88 + 2 X 2 LDSAT62G2(W) )
COMBINATION eXAMPLes:
SAT OUT LEFT SAT OUT RIGHT
SPEAKER OUT LEFT SPEAKER OUT RIGHT
SUB88 OUT LEFT SUB88 OUT RIGHT

17
ITALIANOPOLSKIESPAÑOL
FRANCAISFRANCAIS FRANCAISFRANCAIS FRANCAISDEUTSCHENGLISH
COMBINATION eXAMPLes:
ACCESORIES (oPTionAL) :
SUWMB10B (BLACK)
SUWMB10W (WHITE)
Universal speaker wall bracket with safety rope. Four snap-lock joints permit mounting of the speaker in virtually
any position.
Maximum load: 10 kg

18
ENGLISHDEUTSCHFRANCAIS
FRANCAISFRANCAIS FRANCAISFRANCAIS ESpAñoLpoLSKIITALIANo
LDSAT42G2(W)
Product type Installation Speakers
Type: passive
Woofer size: 4 "
Woofer size: 101 mm
Woofer magnet: ferrite
Woofer brand: custom made
HF driver size: 1 "
HF driver size: 25 mm
HF driver magnet: ferrite
HF driver brand: custom made
Dispersion angle (H x V): 60 x 60 °
Power output (RMS): 60 W
Power output (peak): 100 W
Frequency response: 75 Hz - 20,000 Hz
Sound-pressure level (1 W/1 m): 85 dB
Max SPL: 103 dB
Impedance: 16 ohms
Protection: HF driver
Speaker inputs: 1
Speaker input connections: Clamp connector
Cabinet material: 12 mm MDF
Cabinet surface: textured coating
Cabinet colour: black (LDSAT42G2) / white (LDSAT42G2W)
Cabinet type: closed
Dimensions (W x H x D): 140 x 230 x 125 mm
Weight: 5 kg / pair
Other features: Wall bracket included
SPECIFICATIONS:
SPECIFICATIONS:

19
ITALIANOPOLSKIESPAÑOL
FRANCAISFRANCAIS FRANCAISFRANCAIS FRANCAISDEUTSCHENGLISH
SPECIFICATIONS:
SPECIFICATIONS:
LDSAT242G2(W)
Product type: Installation Speakers
Type: passive
Woofer size: 2 x 4"
Woofer size: 2 x 101 mm
Woofer magnet: ferrite
Woofer brand: custom made
HF driver size: 1 "
HF driver size: 25 mm
HF driver magnet: ferrite
HF driver brand: custom made
Dispersion angle (H x V): 60 x 60 °
Power output (RMS): 100 W
Power output (peak): 180 W
Frequency response: 75 Hz - 20,000 Hz
Sound-pressure level (1 W/1 m): 88 dB
Max SPL: 108 dB
Impedance: 8 ohms
Protection: HF driver
Speaker inputs: 1
Speaker input connections: Clamp connector
Cabinet material: 12 mm MDF
Cabinet surface: textured coating
Cabinet colour: black (LDSAT242G2) / white (LDSAT242G2W)
Cabinet type: closed
Dimensions (W x H x D): 140 x 378 x 135 mm
Weight: 4.15 kg
Other features: Wall bracket included

20
ENGLISHDEUTSCHFRANCAIS
FRANCAISFRANCAIS FRANCAISFRANCAIS ESpAñoLpoLSKIITALIANo
LDSAT62G2(W)
Product type: Installation Speakers
Type: passive
Woofer size: 6,5 "
Woofer size: 165 mm
Woofer magnet: ferrite
Woofer brand: custom made
HF driver size: 1 "
HF driver size: 25 mm
HF driver magnet: ferrite
HF driver brand: custom made
Dispersion angle (H x V): 60 x 60 °
Power output (RMS): 80 W
Power output (peak): 130 W
Frequency response: 55 Hz - 20,000 Hz
Sound-pressure level (1 W/1 m): 89 dB
Max SPL: 108 dB
Impedance: 16 ohms
Protection: HF driver
Speaker inputs: 1
Speaker input connections: Clamp connector
Cabinet material: 12 mm MDF
Cabinet surface: textured coating
Cabinet colour: black (LDSAT62G2) / white (LDSAT62G2W)
Cabinet type: bass reflex
Dimensions (W x H x D): 200 x 320 x 200 mm
Weight: 8.2 kg / pair
Other features: Wall bracket included
SPECIFICATIONS:
SPECIFICATIONS:
