LD LD OXID Series User manual

USER´S MANUAL
BEDIENUNGSANLEITUNG
MANUEL D`UTILISATION
MANUAL DE USUARIO
INSTRUKCJA OBSŁUGI
MANUALE D‘ USO

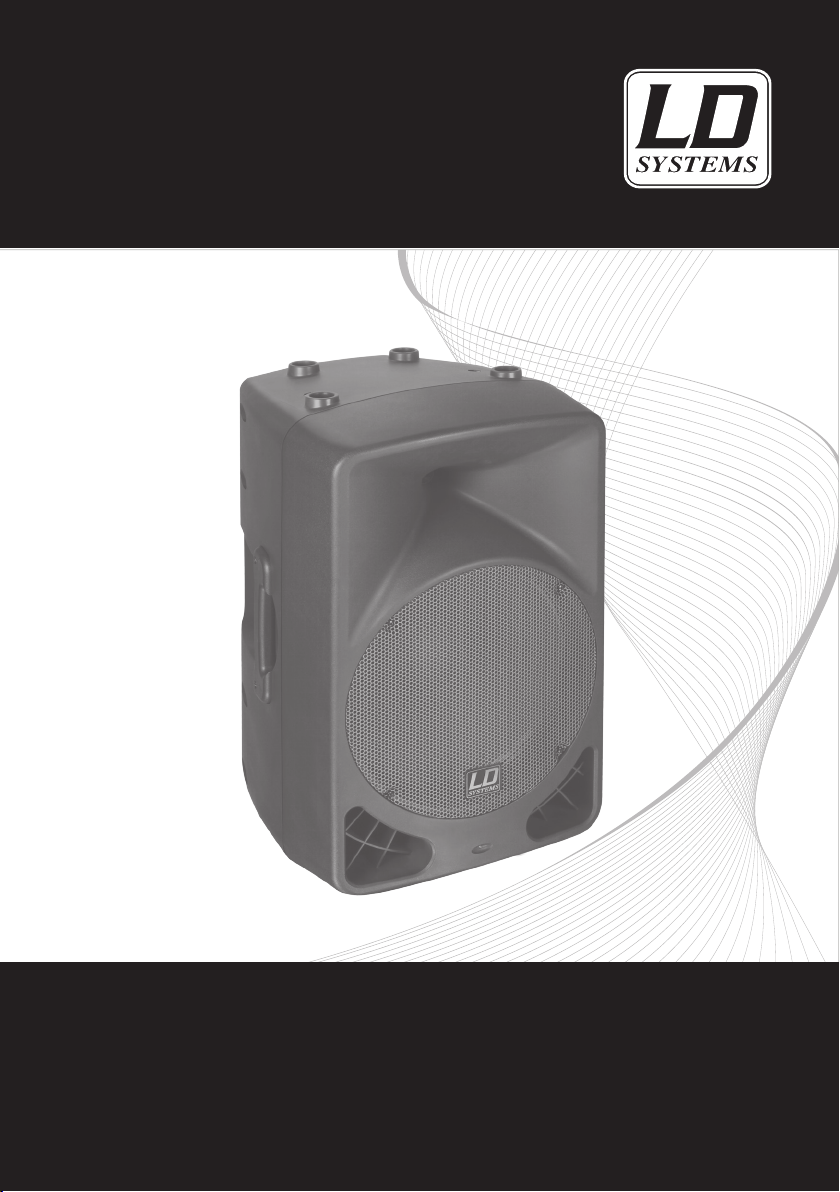

LD OXID SERIE
DSP CONTROLLED 2-WAY ACTIVE SPEAKER
LDOXID12A/LDOXID15A

Introduction
LD Systems OXID 12A and OXID 15A
The LD Systems speakers in the OXID Series are active full-range speakers with digital signal processing and a
total output of 500 watts RMS for compact PAs, monitoring, and installations.
Three selectable DSP presets optimize the frequency response for various spheres of application: linear fre-
quency response for normal operation or audio curve corrected response for low volumes or as a floor monitor.
Reliable functioning is ensured by protection circuits against overcurrent and short-circuiting and a digital limiter;
a switchable ground lift eliminates ground loop hum.
The speakers are loaded with a neodymium woofer and a 1" HF driver with a ceramic magnet. They are driven
separately by a high-efficiency Class D power amplifier with a switchable power supply and a Class AB power
amplifier. The input is a combo socket and switchable to line or microphone level; an XLR socket is used to loop
through the signal.
The light, asymmetrical bass-reflex cabinet with a 45° monitor angle is made of rugged polypropylene; two
handles ensure convenient transport. There is a built-in speaker pole mount with a locking screw for speaker
stands and six recessed M10 threads for flying points.
2
ENGLISHDEUTSCHFRANCAIS
FRANCAISFRANCAIS FRANCAISFRANCAIS ESPAÑOLPOLSKIITALIANO
You‘ve made the right choice!
We have designed this product to operate reliably over many years. LD Systems stands for this with its name and
many years of experience as a manufacturer of high-quality audio products.
Please read this User‘s Manual carefully, so that you can begin making optimum use of your LD Systems product
quickly.
You can find more information about LD SYSTEMS at our Internet site WWW.LD-SYSTEMS.COM

LD OXID SERIES
DSP-CONTROLLED 2-WAY ACTIVE SPEAKER
LDOXID12A / LDOXID15A
3
ITALIANO
POLSKI
ESPAÑOL
FRANCAIS
FRANCAIS FRANCAIS FRANCAIS FRANCAIS
DEUTSCH
ENGLISH

4
ENGLISHDEUTSCHFRANCAIS
FRANCAISFRANCAIS FRANCAISFRANCAIS ESPAÑOLPOLSKIITALIANO
PREVENTIVE MEASURES:
1. Please read these instructions carefully.
2. Keep all information and instructions in a safe place.
3. Follow the instructions.
4. Observe all safety warnings. Never remove safety warnings or other information from the equipment.
5. Use the equipment only in the intended manner and for the intended purpose.
6. Use only sufficiently stable and compatible stands and/or mounts (for fixed installations). Make certain that wall
mounts are properly installed and secured. Make certain that the equipment is installed securely and cannot fall down.
7. During installation, observ e the applicable safety regulations for your country.
8. Never install and operate the equipment near radiators, heat registers, ovens or other sources of heat. Make
certain that the equipment is always installed so that is cooled sufficiently and cannot overheat.
9. Never place sources of ignition, e.g., burning candles, on the equipment.
10. Ventilation slits must not be blocked.
11. Do not use this equipment in the immediate vicinity of water (does not apply to special outdoor equipment -
in this case, observe the special instructions noted below. Do not expose this equipment to flammable materials,
fluids or gases.
12. Make certain that dripping or splashed water cannot enter the equipment. Do not place containers filled with
liquids, such as vases or drinking vessels, on the equipment.
13. Make certain that objects cannot fall into the device.
14. Use this equipment only with the accessories recommended and intended by the manufacturer.
15. Do not open or modify this equipment.
16. After connecting the equipment, check all cables in order to prevent damage or accidents, e.g., due to
tripping hazards.
17. During transport, make certain that the equipment cannot fall down and possibly cause property damage and
personal injuries.
18. If your equipment is no longer functioning properly, if fluids or objects have gotten inside the equipment or
if it has been damaged in anot her way, switch it off immediately and unplug it from the mains outlet (if it is a
powered device). This equipment may only be repaired by authorized, qualified personnel.
19. Clean the equipment using a dry cloth.
20. Comply with all applicable disposal laws in your country. During disposal of packaging, please separate
plastic and paper/cardboard.
21. Plastic bags must be kept out of reach of children.
FOR EQUIPMENT THAT CONNECTS TO THE POWER MAINS:
22. CAUTION: If the power cord of the device is equipped with an earthing contact, then it must be connected to
an outlet with a protective ground. Never deactivate the protective ground of a power cord.
23. If the equipment has been exposed to strong fluctuations in temperature (for example, after transport), do
not switch it on immediately. Moisture and condensation could damage the equipment. Do not switch on the
equipment until it has reached room temperature.
24. Before connecting the equipment to the power outlet, first verify that the mains voltage and frequency match
the values specified on the equipment. If the equipment has a voltage selection switch, connect the equipment to
the power outlet only if the equipment values and the mains power values match. If the included power cord or
power adapter does not fit in your wall outlet, contact your electrician.
25. Do not step on the power cord. Make certain that the power cable does not become kinked, especially at the
mains outlet and/or power adapter and the equipment connector.
26. When connecting the equipment, make certain that the power cord or power adapter is always freely
accessible. Always disconnect the equipment from the power supply if the equipment is not in use or if you want

5
ITALIANO
POLSKI
ESPAÑOL
FRANCAIS
FRANCAIS FRANCAIS FRANCAIS FRANCAIS
DEUTSCH
ENGLISH
SAFETY:
to clean the equipment. Always unplug the power cord and power adapter from the power outlet at the plug or
adapter and not by pulling on the cord. Never touch the power cord and power adapter with wet hands.
27. Whenever possible, avoid switching the equipment on and off in quick succession because otherwise this
can shorten the useful life of the equipment.
28. IMPORTANT INFORMATION: Replace fuses only with fuses of the same type and rating. If a fuse blows repea-
tedly, please contact an authorised service centre.
29. To disconnect the equipment from the power mains completely, unplug the power cord or power adapter
from the power outlet.
30. If your device is equipped with a Volex power connector, the mating Volex equipment connector must be
unlocked before it can be removed. However, this also means that the equipment can slide and fall down if
the power cable is pulled, which can lead to personal injuries and/or other damage. For this reason, always be
careful when laying cables.
31. Unplug the power cord and power adapter from the power outlet if there is a risk of a lightning strike or
before extended periods of disuse.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION:
Never remove the cover, because otherwise there may be a risk of electric shock. There are no user serviceable
parts inside. Have repairs carried out only by qualified service personnel.
The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user
to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of
sufficient magnitude to constitute a risk of electrical shock.
The exclamation mark within an equilateral triangle is intended to alert the user to the presence of
important operating and maintenance instructions.
CAUTION – HIGH VOLUME LEVELS WITH AUDIO PRODUCTS!
This equipment is intended for professional use. Therefore, commercial use of this equipment is subject to the
respectively applicable national accident prevention rules and regulations. As a manufacturer, Adam Hall is
obligated to notify you formally about the existence of potential health risks.
Hearing damage due to high volume and prolonged exposure: When in use, this product is capable of producing
high sound-pressure levels (SPL) that can lead to irreversible hearing damage in performers, employees, and
audience members. For this reason, avoid prolonged exposure to volumes in excess of 90 dB.
CAUTION! IMPORTANT INFORMATION ABOUT LIGHTING PRODUCTS
1. Do not look into the beam from a distance of less than 40 cm.
2. Do not stare into the beam for extended periods at short-to-medium distances.
3. Do not view the beam directly with optical instruments such as magnifiers.
4. Under some circumstances, stroboscopic effects may trigger epileptic seizures in sensitive individuals! For this
reason, persons who suffer from epilepsy should always avoid places where strobe lights are used.

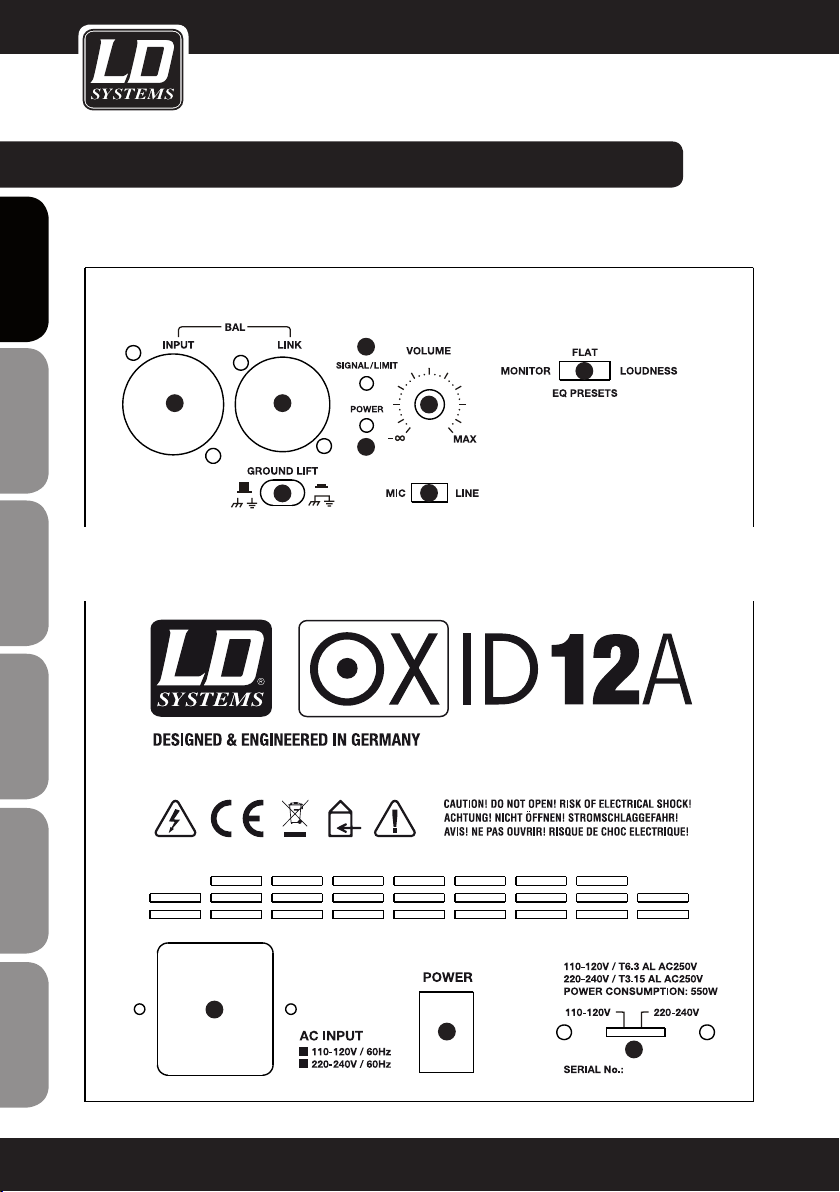

CONNECTIONS, CONTROLS, AND INDICATORS:
(LDOXID12A pictured)
6
ENGLISHDEUTSCHFRANCAIS
FRANCAISFRANCAIS FRANCAISFRANCAIS ESPAÑOLPOLSKIITALIANO
1
2
3
4 5 6
7
89
10
11

CONNECTIONS, CONTROLS, AND INDICATORS:
1IEC POWER SOCKET WITH INTEGRAL FUSE HOLDER
IMPORTANT INFORMATION: BEFORE using this equipment, make certain that the operating voltage switch
(Switch 3, 110-120V or 220-240V) is set to the correct position! The mains voltage of your energy supplier
and the operating voltage of the speaker must match! According to the voltage range, always replace the
fuse only with a fuse of the same type with the same rating (printed on the rear panel)! If the fuse blows
repeatedly, please contact an authorised service centre.
2POWER
On / off switch. Before switching the equipment on or off, always adjust the volume to zero (turn the VOLUME
control 6 all the way to the left). In order to avoid noise when switching the equipment on and off, the
speaker should always be turned on as the last link in a PA system and turned off first.
3110-120V / 220-240V
Switch for setting the operating voltage. The mains voltage of your energy supplier and the operating voltage
of the speaker must match!
4INPUT
Balanced XLR input for microphone and line signals. The adjustment is made using Switch 9 (MIC / LINE).
NOTE: The XLR input does not have phantom power.
5LINK
Balanced XLR output. Provides the option of sending the signal to additional active speakers. The signal at
the Link socket is the same as the signal at INPUT socket 4, regardless of the positions of the Volume, EQ
Preset, and MIC/LINE controls.
6VOLUME
Volume control for the active speaker. Before switching the equipment on or off, always adjust the volume to
zero (VOLUME control all the way to the left).
7EQ PRESETS
Three equalizer presets are available for optimal adaptation of the speaker to the spatial conditions, listening
habits, and intended use.
FLAT (middle switch position): The speaker has a balanced sound with a linear frequency response. This is
the standard setting for most applications with voice or music reproduction.
LOUDNESS (right switch position): Bass and treble are specifically boosted in order to obtain a full, clear
sound even at lower volumes.
MONITOR (left switch setting): Bass and treble are purposely reduced in order to avoid interfering bass
frequencies and feedback during use as a stage monitor.
8GROUND LIFT
When the switch is not depressed, ground loop hum can be eliminated if devices with a different ground
potential are connected. If the switch is pressed, the ground-lift function is deactivated.
7
ITALIANO
POLSKI
ESPAÑOL
FRANCAIS
FRANCAIS FRANCAIS FRANCAIS FRANCAIS
DEUTSCH
ENGLISH

CONNECTIONS, CONTROLS, AND INDICATORS:
9MIC / LINE
Adaptation to microphone or line signals. When a microphone is connected, set the switch to the left position (MIC).
When a sound source with a line signal is connected (e.g., mixer), set the switch to the right position (LINE).
10 SIGNAL / LIMIT LED
As soon as an audio signal is present at the input, the LED lights up green.As soon as the speaker is running
at the clipping threshold, the internal limiter is tripped and this LED lights up red. Brief flashing is not a cause
for concern, since the audio limiter compensates for over-modulation. Permanent illumination should be
avoided by reducing the input level (VOLUME control 6).
TIP: If distortion is already audible at low volumes, reduce the input level (volume of the sound source) and
increase the speaker volume (VOLUME control 6).
11 POWER LED
Lights up once the speaker is switched on and properly connected to the power mains. An LED on the front
panel also indicates that the speaker is operational.
NOTE: The speakers in the LD OXID Series have temperature-controlled fans.
8
ENGLISHDEUTSCHFRANCAIS
FRANCAISFRANCAIS FRANCAISFRANCAIS ESPAÑOLPOLSKIITALIANO

APPLICATION:
FLYING POINTS
The speakers in the LD OXID Series have 6 M10 flying points: 2 each on the top, bottom, and rear. The thread
length is 24 mm.
So-called "flown" systems may only be mounted by trained experts.
USE AS A STAGE MONITOR
The speakers of the LD OXID Series have a specially shaped cabinet to permit use as a stage monitor. The
monitor angle is 45°.
TIP: To avoid annoying bass frequencies and feedback during use as a stage monitor, move the switch for the EQ
presets to the left position "MONITOR".
M10 Eyebolt
M10 flying point
9
ITALIANO
POLSKI
ESPAÑOL
FRANCAIS
FRANCAIS FRANCAIS FRANCAIS FRANCAIS
DEUTSCH
ENGLISH
45
o
7

WIRING EXAMPLE:
Microphone
Keyboard
Mixer
Adjust volume of both speakers
(VOLUME control 6)
10
ENGLISHDEUTSCHFRANCAIS
FRANCAISFRANCAIS FRANCAISFRANCAIS ESPAÑOLPOLSKIITALIANO
7 7
99
LINE OUTPUT L / R

WIRING EXAMPLE:
Adjust volume of both speakers
(VOLUME control 6)
11
ITALIANO
POLSKI
ESPAÑOL
FRANCAIS
FRANCAIS FRANCAIS FRANCAIS FRANCAIS
DEUTSCH
ENGLISH
7 7
99
LINK OUTPUT

Model name: LDOXID12A LDOXID15A
Product type: PA speaker, DSP-controlled PA speaker, DSP-controlled
Type: active active
Woofer size: 12" 15"
Woofer size: 305 mm 381 mm
Woofer magnet: neodymium neodymium
Woofer brand: custom made custom made
Woofer voice coil: 2,5" 2,5"
Woofer voice coil: 63.5 mm 63.5 mm
Tweeter size: 1" 1"
Tweeter size: 25.4 mm 25.4 mm
Tweeter magnet: ceramic ceramic
Tweeter brand: custom made custom made
Tweeter voice coil: 1,75" 1,75"
Tweeter voice coil: 44.4 mm 44.4 mm
Dispersion angle (H x V): 90° x 45° 90° x 45°
Amplifier: BiAmp: Woofer = Class D / Tweeter
= Class A/B
BiAmp: Woofer = Class D / Tweeter
= Class A/B
Total output (RMS): 350 W 350 W
Total output (peak): 1400 W 1400 W
Frequency response: 50 Hz - 20,000 Hz 48 Hz - 20,000 Hz
Crossover frequency: 1600 Hz, (DSP 24 dB/oct.) 1500 Hz, (DSP 24 dB/oct.)
Max. SPL (continuous): 122 dB 124 dB
Max. SPL (peak): 128 dB 130 dB
Protection: Short circuit, overvoltage, overheating,
limiter
Short circuit, overvoltage, overheating,
limiter
Controls: EQ preset switch, volume, line/mic
switch, power, ground lift
EQ preset switch, volume, line/mic
switch, power, ground lift
Indicators: Power, Limit Power, Limit
Line / mic inputs (balanced): 1 (Line / Mic switchable) 1 (Line / Mic switchable)
Line / mic input connectors: XLR/ 6.3 mm jack (combo) XLR/ 6.3 mm jack (combo)
Line outputs: 1 1
SPECIFICATIONS:
12
ENGLISHDEUTSCHFRANCAIS
FRANCAISFRANCAIS FRANCAISFRANCAIS ESPAÑOLPOLSKIITALIANO

SPECIFICATIONS:
Line output connectors: XLR XLR
Input impedance: Mic: 1 kohms / Line: 30 kohms Mic: 1 kohms / Line: 30 kohms
Input sensitivity: Mic: 50 mV / Line: 3 dBu Mic: 50 mV / Line: 3 dBu
Power supply: switching power supply switching power supply
Operating voltage: 110 - 120V AC / 50 - 60Hz or 220 -
240 V AC / 50 - 60Hz (switchable)
110 - 120V AC / 50 - 60Hz or 220 -
240 V AC / 50 - 60Hz (switchable)
Power consumption (max.): 550 W 550 W
Cabinet material: polypropylene polypropylene
Cabinet type: bass reflex bass reflex
Monitor angle: 45° 45°
Dimensions (W x H x D): 396 x 664 x 372 mm 396 x 664 x 400 mm
Weight: 18 kg 18.9 kg
Other features: 36 mm speaker pole mount, 6x
M10 flying points, rubber feet, 2
ergonomic handles
36 mm speaker pole mount, 6x
M10 flying points, rubber feet, 2
ergonomic handles
13
ITALIANO
POLSKI
ESPAÑOL
FRANCAIS
FRANCAIS FRANCAIS FRANCAIS FRANCAIS
DEUTSCH
ENGLISH

14
ENGLISHDEUTSCHFRANCAIS
FRANCAISFRANCAIS FRANCAISFRANCAIS ESPAÑOLPOLSKIITALIANO
MANUFACTURER‘S WARRANTY
This warranty covers the Adam Hall, LD Systems, Defender, Palmer, and Cameo brands.
It applies to all products distributed by Adam Hall.
This warranty declaration does not affect the statutory warranty claims against the manufacturer, but expands
them with additional warranty claims vis-a-vis Adam Hall.
Adam Hall warrants that the Adam Hall product that you have purchased from Adam Hall or from an Adam Hall
authorized reseller is free from defects in materials or workmanship under normal use for a period of 2 or 5 years
(please inquire on a product-by-product basis) from the date of purchase.
The warranty period begins on the date on which the product was purchased, proof of which must be produced
(through presentation of the invoice or the delivery note with the date of purchase) in the event of a warranty claim.
Should products of the brands named above be in need of repair within the limited warranty period, you are entitled
to warranty service according to the terms and conditions stated here.
During the Limited Warranty Period,Adam Hall will repair or replace the defective component parts or the product.
In the event of repair or replacement during the Limited Warranty Period, the replaced original parts and/or pro-
ducts become property of Adam Hall.
In the unlikely event that the product which you purchased has a recurring failure, Adam Hall has the right, at its
discretion, to replace the defective product with another product, provided that the new product is at least equi-
valent to the product being replaced with regard to the technical specifications.
Adam Hall does not warrant that the operation of this product will be uninterrupted or error-free. Adam Hall is not
responsible for damage that occurs as a result of your failure to follow the instructions included with the Adam Hall
branded product. The manufacturer‘s warranty does not cover – expendable parts (e. g., rechargeable batteries)
- products from which the serial number has been removed or with a serial number that has been damaged as a
result of an accident - damage due to improper use, user error or other external reasons
- damage to devices operated outside the usage parameters stated in the documentation included with the product
- damage due to the use of replacement parts not manufactured, sold or recommended by Adam Hall,
- damage due to modification or servicing by anyone other than Adam Hall.
These terms and conditions constitute the complete and exclusive warranty agreement between you and Adam
Hall regarding the Adam Hall branded product you have purchased.
MANUFACTURER´S DECLARATIONS:

15
ITALIANO
POLSKI
ESPAÑOL
FRANCAIS
FRANCAIS FRANCAIS FRANCAIS FRANCAIS
DEUTSCH
ENGLISH
MANUFACTURER´S DECLARATIONS:
LIMITATION OF LIABILITY
If your Adam Hall branded hardware product fails to work as warranted above, your sole and exclusive remedy
shall be repair or replacement. Adam Halls’ maximum liability under this limited warranty is expressly limited to
the lesser of the price you have paid for the product or the cost of repair or replacement of any components that
malfunction under conditions of normal use.
Adam Hall is not liable for any damages caused by the product or the failure of the product, including any lost
profits or savings or special, incidental, or consequential damages. Adam Hall is not liable for any claim made by
a third party or made by you for a third party.
This limitation of liability applies whether damages are sought, or claims are made, under this Limited Warranty
or as a tort claim (including negligence and strict product liability), a contract claim, or any other claim, and
cannot be rescinded or changed by anyone. This limitation of liability will be effective even if you have advised
Adam Hall or an authorized representative of Adam Hall of the possibility of any such damages, but not, however,
in the event of claims for damages in connection with personal injuries.
This manufacturer‘s warranty grants you specific rights; depending on jurisdiction (nation or state), you may be
be entitled to additional claims. You are advised to consult applicable state or national laws for a full determina-
tion of your rights.
REQUESTING WARRANTY SERVICE
To request warranty service for the product, contact Adam Hall or the Adam Hall authorized reseller from which
you purchased the product.
EC DECLARATION OF CONFORMITY
The equipment marketed by Adam Hall complies (where applicable) with the essential requirements and other
relevant specifications of Directives 1999/5/EC (R&TTE), 2004/108/EC (EMC) und 2006/95/EC (LVD). Additional
information can be found at www.adamhall.com.

16
ENGLISHDEUTSCHFRANCAIS
FRANCAISFRANCAIS FRANCAISFRANCAIS ESPAÑOLPOLSKIITALIANO
MANUFACTURER´S DECLARATIONS:
PROPER DISPOSAL OF THIS PRODUCT
(Valid in the European Union and other European countries with waste separation)
This symbol on the product, or the documents accompanying the product, indicates that this appliance may not
be treated as household waste. This is to avoid environmental damage or personal injury due to uncontrolled
waste disposal. Please dispose of this product separately from other waste and have it recycled to promote
sustainable economic activity.
Household users should contact either the retailer where they purchased this product, or their local government
office, for details on where and how they can recycle this item in an environmentally friendly manner.
Business users should contact their supplier and check the terms and conditions of the purchase contract. This
product should not be mixed with other commercial wastes for disposal .
ENVIRONMENTAL PROTECTION AND ENERGY CONSERVATION
Energy conservation is an active contribution to environmental protection. Please turn off all unneeded electrical
devices. To prevent unneeded devices from consuming power in standby mode, disconnect the mains plug.
Adam Hall GmbH, all rights reserved. The technical data and the functional product characteristics can be subject
to modifications. The photocopying, the translation, and all other forms of copying of fragments or of the integrlity
of this user’s manual is prohibited.

17
ITALIANO
POLSKI
ESPAÑOL
FRANCAIS
FRANCAIS FRANCAIS FRANCAIS FRANCAIS
DEUTSCH
ENGLISH

Einführung
LD Systems OXID 12A und OXID 15A
Die LD Systems Lautsprecher der OXID Serie sind aktive Fullrange-Lautsprecher mit digitaler Signalbearbeitung
und 500 Watt RMS Gesamtleistung für kompakte PAs, Monitoreinsatz und Installationen.
Drei wählbare DSP-Presets optimieren die Wiedergabe für unterschiedliche Anwendungsbereiche: linearer Frequenz-
gang für normalen Betrieb, gehörkurvenrichtige Korrektur bei niedrigen Lautstärken oder als Bodenmonitor. Für eine
zuverlässige Funktion sorgen Schutzschaltungen gegen Überstrom und Kurzschluss und ein digitaler Limiter, ein
schaltbarer Ground Lift beseitigt Brummschleifen.
Die Bestückung besteht aus einem Neodym-Woofer und 1” Drucktreiber mit Keramikmagnet. Sie werden von
einer hocheffizienten Class D-Endstufe mit Schaltnetzteil und einer Class AB-Endstufe separat angetrieben. Der
Eingang ist als Combobuchse ausgeführt und auf Line- oder Mikrofonpegel schaltbar, eine XLR-Buchse dient
zum Durchschleifen des Signals.
Das leichte, asymmetrische Bassreflex-Gehäuse mit 45° Monitorwinkel ist aus robustem Polypropylen, zwei
Tragegriffe sorgen für bequemen Transport. Für Boxenstative ist ein Hochständerflansch mit Arretierschraube
integriert, zum Flugbetrieb sind sechs M10-Gewinde eingelassen.
18
ENGLISHDEUTSCHFRANCAIS
FRANCAISFRANCAIS FRANCAISFRANCAIS ESPAÑOLPOLSKIITALIANO
Sie haben die richtige Wahl getroffen!
Dieses Gerät wurde unter hohen Qualitätsanforderungen entwickelt und gefertigt, um viele Jahre einen reibungs-
losen Betrieb zu gewährleisten. Dafür steht LD Systems mit seinem Namen und der langjährigen Erfahrung als
Hersteller hochwertiger Audioprodukte.
Bitte lesen Sie diese Bedienungsanleitung sorgfältig, damit Sie Ihr neues Produkt von LD Systems schnell optimal
einsetzen können.
Mehr Informationen zu LD SYSTEMS finden Sie auf unserer Internetseite WWW.LD-SYSTEMS.COM

LD OXID SERIE
DSP GESTEUERTER 2-WEGE AKTIV-LAUTSPRECHER
LDOXID12A / LDOXID15A
19
ITALIANO
POLSKI
ESPAÑOL
FRANCAIS
FRANCAIS FRANCAIS FRANCAIS FRANCAIS
DEUTSCH
ENGLISH

20
ENGLISHDEUTSCHFRANCAIS
FRANCAISFRANCAIS FRANCAISFRANCAIS ESPAÑOLPOLSKIITALIANO
SICHERHEITSHINWEISE:
1. Lesen Sie diese Anleitung bitte sorgfältig durch.
2. Bewahren Sie alle Informationen und Anleitungen an einem sicheren Ort auf.
3. Befolgen Sie die Anweisungen.
4. Beachten Sie alle Warnhinweise. Entfernen Sie keine Sicherheitshinweise oder andere Informationen vom Gerät.
5. Verwenden Sie das Gerät nur in der vorgesehenen Art und Weise.
6. Verwenden Sie ausschließlich stabile und passende Stative bzw. Befestigungen (bei Festinstallationen). Stellen
Sie sicher, dass Wandhalterungen ordnungsgemäß installiert und gesichert sind. Stellen Sie sicher, dass das
Gerät sicher installiert ist und nicht herunterfallen kann.
7. Beachten Sie bei der Installation die für Ihr Land geltenden Sicherheitsvorschriften.
8. Installieren und betreiben Sie das Gerät nicht in der Nähe von Heizkörpern, Wärmespeichern, Öfen oder
sonstigen Wärmequellen. Sorgen Sie dafür, dass das Gerät immer so installiert ist, dass es ausreichend gekühlt
wird und nicht überhitzen kann.
9. Platzieren Sie keine Zündquellen wie z.B. brennende Kerzen auf dem Gerät.
10. Lüftungsschlitze dürfen nicht blockiert werden.
11. Betreiben Sie das Gerät nicht in unmittelbarer Nähe von Wasser. Bringen Sie das Gerät nicht mit brennbaren
Materialien, Flüssigkeiten oder Gasen in Berührung.
12. Sorgen Sie dafür, dass kein Tropf- oder Spritzwasser in das Gerät eindringen kann. Stellen Sie keine mit
Flüssigkeit gefüllten Behältnisse wie Vasen oder Trinkgefäße auf das Gerät.
13. Sorgen Sie dafür, dass keine Gegenstände in das Gerät fallen können.
14. Betreiben Sie das Gerät nur mit dem vom Hersteller empfohlenen und vorgesehenen Zubehör.
15. Öffnen Sie das Gerät nicht und verändern Sie es nicht.
16. Überprüfen Sie nach dem Anschluss des Geräts alle Kabelwege, um Schäden oder Unfälle, z. B. durch
Stolperfallen zu vermeiden.
17. Achten Sie beim Transport darauf, dass das Gerät nicht herunterfallen und dabei möglicherweise Sach- und
Personenschäden verursachen kann.
18. Wenn Ihr Gerät nicht mehr ordnungsgemäß funktioniert, Flüssigkeiten oder Gegenstände in das Geräteinnere
gelangt sind, oder das Gerät anderweitig beschädigt wurde, schalten Sie es sofort aus und trennen es von der
Netzsteckdose (sofern es sich um ein aktives Gerät handelt). Dieses Gerät darf nur von autorisiertem Fachperso-
nal repariert werden.
19. Verwenden Sie zur Reinigung des Geräts ein trockenes Tuch.
20. Beachten Sie alle in Ihrem Land geltenden Entsorgungsgesetze. Trennen Sie bei der Entsorgung der Verpa-
ckung bitte Kunststoff und Papier bzw. Kartonagen voneinander.
21. Kunststoffbeutel müssen außer Reichweite von Kindern aufbewahrt werden.
BEI GERÄTEN MIT NETZANSCHLUSS:
22. ACHTUNG: Wenn das Netzkabel des Geräts mit einem Schutzkontakt ausgestattet ist, muss es an einer
Steckdose mit Schutzleiter angeschlossen werden. Deaktivieren Sie niemals den Schutzleiter eines Netzkabels.
23. Schalten Sie das Gerät nicht sofort ein, wenn es starken Temperaturschwankungen ausgesetzt war (bei-
spielsweise nach dem Transport). Feuchtigkeit und Kondensat könnten das Gerät beschädigen. Schalten Sie das
Gerät erst ein, wenn es Zimmertemperatur erreicht hat.
24. Bevor Sie das Gerät an die Steckdose anschließen, prüfen Sie zuerst, ob die Spannung und die Frequenz
des Stromnetzes mit den auf dem Gerät angegebenen Werten übereinstimmen. Verfügt das Gerät über einen
Spannungswahlschalter, schließen Sie das Gerät nur an die Steckdose an, wenn die Gerätewerte mit den Werten
des Stromnetzes übereinstimmen. Wenn das mitgelieferte Netzkabel bzw. der mitgelieferte Netzadapter nicht in
Ihre Netzsteckdose passt, wenden Sie sich an Ihren Elektriker.
25. Treten Sie nicht auf das Netzkabel. Sorgen Sie dafür, dass spannungsführende Kabel speziell an der Netz-
