leadsun ULTRON Series User manual

Made in China AE6.118-B
www.leadsunglobal.com
INSTRUCTION MANUAL
series
ULTRON
S O L A R STREET L I G H T
INSTRUCTION MANUAL
se rie s
ULTRON
SOLAR STREE T LIGHT
LEADSUN Australia PTY LTD
Address: 42 Greens Road, Dandenong South, Victoria 3175
Phone: [phone] Fax: [phone]
Email: [email protected]
LEADSUN Global Limited
Address: No.1 Workshop, No.15, Pingbei 2nd Road, Nanping, Zhuhai City,
Guangdong Province, P.R. China, China 519060.
Phone: [phone]
Fax: [phone]
Email: [e-mail]
LEADSUN INC.
Address: 1920 S. Archibald Ave. Suite I, Ontario, CA 91761
Phone: [phone] Fax: [phone]
Email: [email protected]
www.leadsunglobal.com

12
Product maintenance
In order to assure that the solar panel receive the light efficiently, please use clear water
to clean the dirt mark on the surface of the panel regularly and prohibit the use of
chemical or abradant which includes chlorobenzene.
Only manufacturer, service agent or qualified personnel can replace the light source or
other circuit components of the lighting device. Without authorization, using the third
party component to replace is prohibited or it would cause serious damage to the
product. if the user disassembles the product without authorization, warranty becomes
void.
If you need to replace the components /accessories, please go to
www.leadsunglobal.com, or contact the local distributor.
Product recycling
Cautions
Transportation and storage
Working condition
Attention to the electric shock
To avoid electric shock, street light with AC adapter must be installed by qualified
electricians and constructors.
The street light with AC adapter is customized product, please confirm the street light
AC adapter is in accord with the local electric supply standard.
Make sure the electric supply power is cut off during the installation and implement
waterproof and insulation protection.
Please read the below cautions carefully before using the AE series solar street
light to avoid physical injury and product failure caused by improper use.
Product protection grade IP65
High tensile structure design can withstand level 3 typhoon (58m/s), beyond this level
damage might be caused to the street light.
Working temperature range from -20℃ to 60℃ ( charging temperature is limited within
0℃ to 60℃). The product with heating function can work from -40℃ to 60℃.
The product contains high capacity lithium-ion battery components, please follow the
aviation transport law. Please regard the product as the flammable and explosive
hazardous substance and store it separately from other goods.
The solar panel of the product is fragile, tier limitation is two layers. No stacking out of
limits and No press with heavy stuff.
Store the product under the temperature from 0℃ to 45℃
It should be charged every six months if the product is stored for long time. please use
the special charger to charge the product (the charger needs additional purchase) in
order to avoid battery or device damage.
All internal parts of AE3C are waterproof and rated IP65. Holes and slits on the
luminaires are designed for heat dissipation and drainage. Metal parts are made of
anodized rustproof aluminum, which can withstand high temperatures and humid
weather. However, it is recommended that you avoid installing the street light in areas
with heavy acid mist or salt influx. The strong structural design can withstand wind
speeds upto 180km/hr.
The product is made of recyclable high-performance materials and components, please
don't dispose with other household garbage.
Please understand the local rules about the separate collection of electronics and
electrical products, dispose the waste products in the right way that avoids potential
negative effects to environment and human health.

LORA terminal
7
86
1
2
5
4
10
9
3
No.
Component
Brief description
1
Solar panel
Absorb sunlight energy and transform it into electric power,
control the light by light-operated switch
2
Bird spike
Avoid bird droppings blocking the solar panel
3
LED and Charging controller
Manage LED light, communication and control charging and
discharging.
4
PIR Motion sensor
Adjust the brightness automatically by the motion sensor.
5
LED
Lighting
6
USB Type-B Port
Special port for programming
7
Switch button
ON/OFF or Turn ON/OFF the light
8
USB Type-A charging port
Charging for the battery (please use 14V, 1.5A dedicated
charger)
9
X bracket
Use to fasten the AE6 solar power supply system
10
Street light bracket
Use to fasten the LED street light
11
Reset button
Restart the gateway
12
SIM card slot
Insert 2G/4G card
13
2G/4G Module
Wireless network communication
14
LORA Antenna
Network group communication
Standard
Gateway type
34
11 12
13
14
14
Part Description

Check if all the components are complete before installation, the components and quantity of
each set as follows:
Solar Panel Components：
Lighting：
LED street light
Bracket
hasp 4pcs
M8*16
screw 6pcs
M6 cap
nut 8pcs
M6 spring
washer 8pcs
X bracket
1pc
Bird spike 2pcs Self-tapping
screw 6pcs
M8*16 Screw 6pcs
2M DC
extended cable
2pcs
Tool 1pc
(optional)
M8*25
screw 2pcs
2m three cores
extended cable
1pc

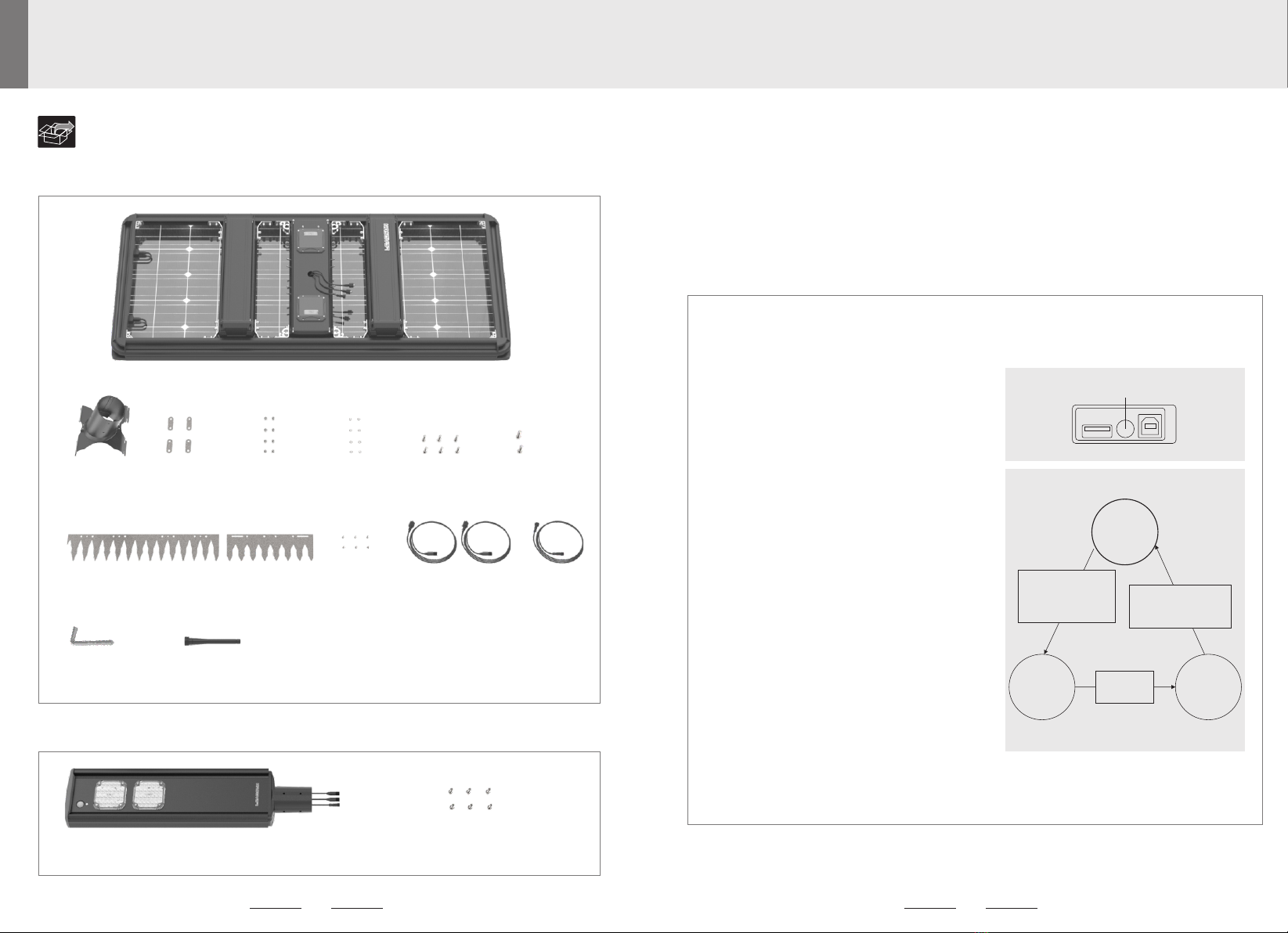

Part List
Off-grid solar power supply system (Take gateway for example)
LORA Antenna
1pc (Gateway type and LORA terminal standard)
6
5
Daytime: while connect the LED street light to solar engine, it lights 20 seconds and then Off. It
means the AE3C has been activated automatically.
At Night : Press the button for 5s , the light is on. Short press the button, the light will be switched
between ON and OFF.
Tips:
ON mode: the system will work normally,
charging in the daytime and discharging at
night.
Transport (idle) mode: the system will power
off in an hour and goes to the OFF mode, for
transport packing or maintenance status.
OFF mode: The system will not work, charge
or discharge.
*
Turn ON the light:
a.Connect the street light to solar engine in
daytime, it will be activated automatically
(lights 20s and then OFF).
b.Long press 5s to turn on the light when it
is OFF.
Turn OFF the light:
Press the button 5s when it is On, the light
comes into TRANSPORT MODE. Second
press the button 5s or no operation in one
hour, the light turns off.
OFF
Mode
ON
Mode
Button Switch
Transport
Mode
Product Activation
Press 5 seconds
or no operationfor
more than an hour
Long press
5 seconds
*
* **
At daytime
automatically ON or
press till the light is
ON.

8
7
Before Installation
1. Installation Direction of Solar Panel
Please choose the appropriate model depending on the sunlight intensity of the place and
required working time.
If the installation site is on the northern hemisphere, the solar panel should face to the south as
far as possible and if it is on the southern hemisphere, the panel should face to the north as much
as possible. (See 1)Picture
Make sure the sunlight is not blocked by any construction or trees during the installation or it will
affect the charging and discharging efficiency of the solar power system and the operation of the
street light. (See 2)Picture
Picture 1
Equator
Picture 2
1
2
2.How to place the Gateway ?
Road installation
Build wireless solar street light along the road, lamps have to divided into one or several
groups. Each group contains a Gateway and max 120 slave units. The Gateway should
be on the middle of each group.
Village/Factory/Park installation:
For installation at village/factory/park location, the Gateway is recommended placement
on the center of the area.
Gateway street light
120 street lights 120 street lights
Each Gateway covers a range from 800m to 3000m, depends if there are barriers to block signal
transmission. One Gateway can control 120 slave units.
Gateway street light
Gateway street light
2
1

2. Install the bird spike
Using the self-tapping screw in the accessory to fasten the bird spike on the top frame of the
solar power system. (See 2)Picture
Picture 2
Self-tapping
screw
3. Light pole cantilever wire threading
Attention to the direction
of the extended cables.
1
2To thread the 3 extended cables into the cantilever and lead out from the top of light pole.
Picture 4
2m
Picture 3
10
9
Product Installation
Set the solar power supply system and street light installation direction according to the
street condition and make a mark on the light pole. Tapping a 10mm diameter double-sided
through-hole 90mm from the light top in advanced, use for fastening the x bracket. (See
Picture 3)
90
Ø80~85
Ø10
First put the X bracket on the installation frame at the middle of the off-grid solar power supply
system, then clip the 8 screws into the X bracket slot from the installation frame, last, use the
bracket hasp, M6 spring washer, M6 cap nut to fasten the bracket. (See 1)Picture
1. Install the X bracket
Picture 1
Bracket hasp
M6 cap nut
M6 spring washer
60
(Picture 4 light pole only for reference)

6. Wireless system installation (Suitable for wireless type)
12
11
LORA Terminal antenna installation
Gateway antenna intallation
Product Installation

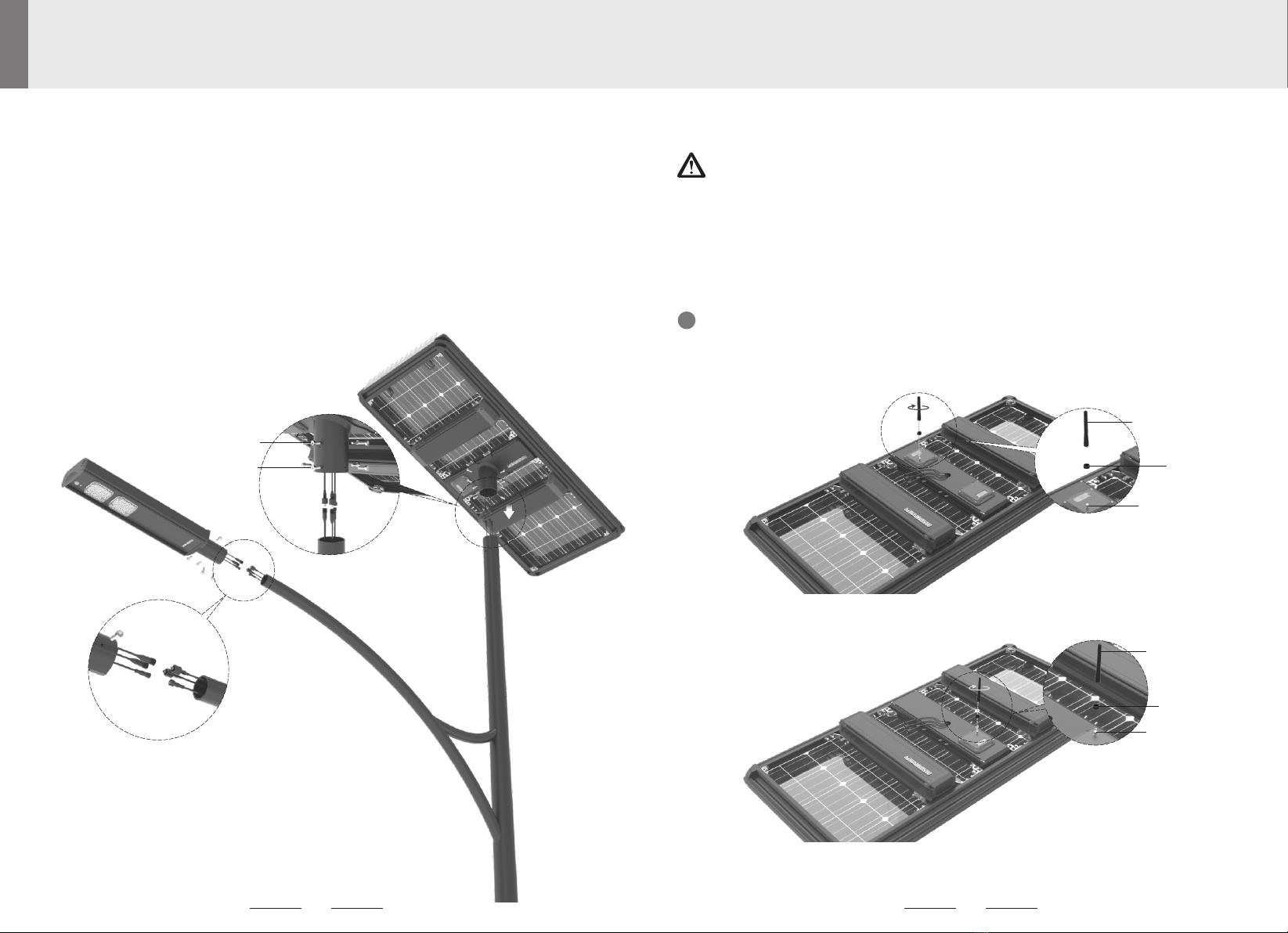

Connect the cantilever part to the extended cables of the LED street light and lock the connectors
in turns; Embed the LED street light bracket into the cantilever and fasten it by 6 M8*16 screw,
make sure the LED street light has installed stably on the light pole then the installation is
finished. (If you use the electric wrench, torsion should be set to 14N·m) (See Picture 5).
Connect the solar power system with the extended cables in the light pole and lock the
connectors in turns. Embed the light pole into the X bracket and use the dedicated tools to fasten
6 M8*16mm and 2 M8*25mm screws. (If you use the electric wrench, torsion should be set to
14N·m) (See Picture 5)
4. Install the solar power system
5. LED Street light installation
M8*16 screw
M8*25 screw
Picture 5
Silicone sleeve
Dust cover
LORA Antenna
Cautions:
Antenna installation
1
1. Please confirm if the 2G/4G module in the gateway supports the data network covered by the
local carrier before installation.
2. When using the inbuilt 2G/4G module gateway, you need to insert a SIM card which has the
data service. The data service will cause the service fee, and you need to pay the relevant
service fee to the local carrier.
The way to install the antenna has shown below. Attention: please don’t omit the silicone sleeve,
before installation, remove the dust cover from the original antenna first, then put on the silicone
sleeve, install the antenna, and the antenna must be set into place.
LORA Antenna
Silicone sleeve
Dust cover

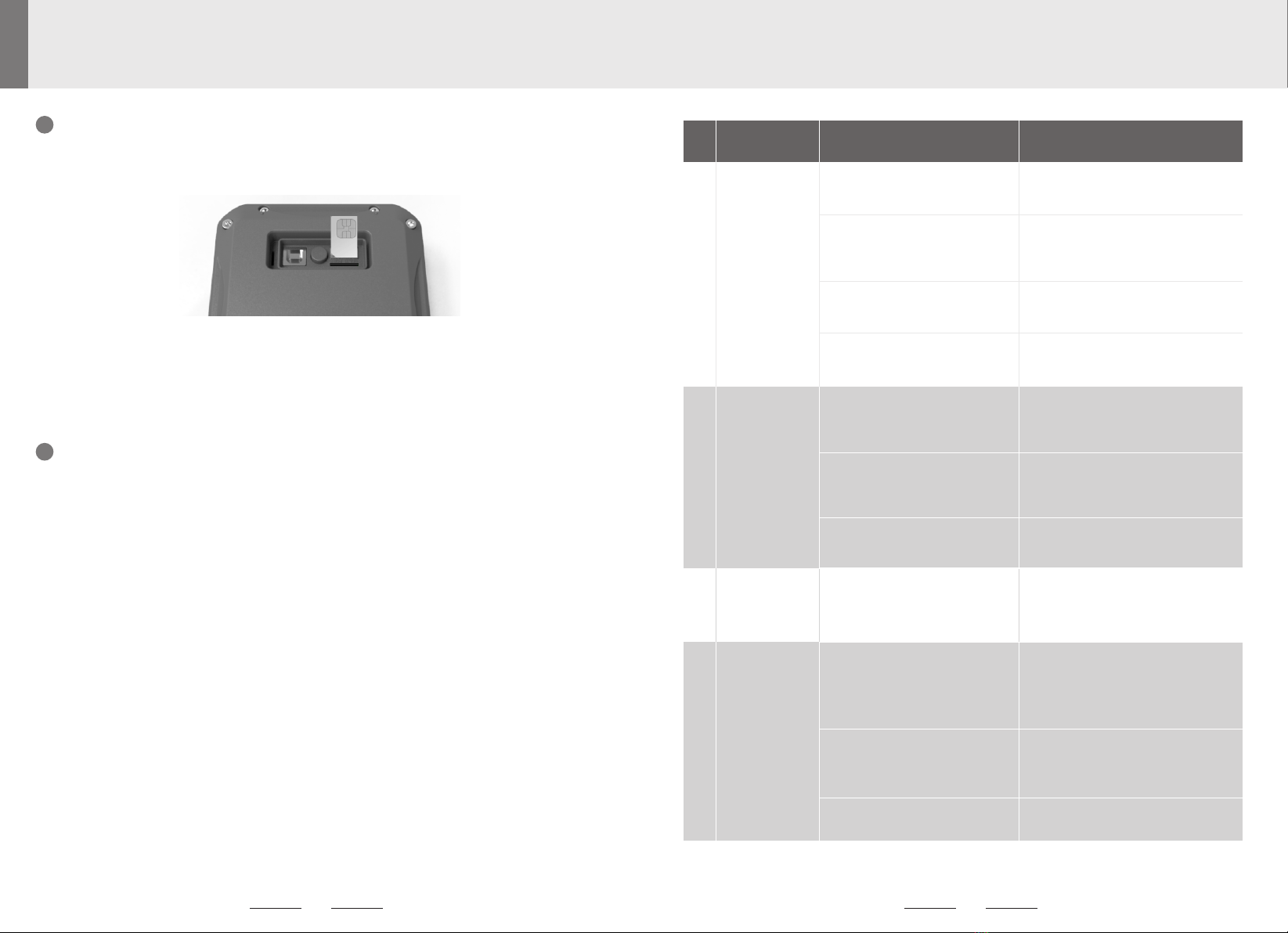

No.
Problem
Inspection
Solution
1
No lighting at night
Check if the light is in ON mode or not.
Test according to the "Button Instructions"
from the chapter "Operation Instruction" in
this manual.
Check if the solar panel is blocked by
any buildings or trees during the
daytime, which will influence the
sunlight.
Clear away the blockade or change the
street light installation site.
Check if the solar panel is illuminated
by any other artificial light source at
night.
Move the artificial light source away or
change the light installation site.
Check the states of each part from the
lighting according to the maintenance
guide.
Replace the damage part.
2
Lighting time is
seriously
inadequate
Check if the solar panel is blocked by
any buildings or trees during the
daytime, which will influence the
sunlight.
Clear away the blockade or change the
street light installation site.
Check if the solar panel has dirt or any
blocks covering on the surface which
might influence the sunlight.
Clean the solar panel surface.
Check if the battery pack is damage
according to the maintenance guide.
Replace the damage battery pack.
3
Abnormal
operation from the
light in the normal
work mode
Replace the controller or reprogram the
controller program.
4
Abnormal motion
detection
Check if the lighting environment
temperature is same as that of human
body temperature.
If the external temperature is same as of the
human body temperature, the sensitivity of
PIR motion sensor will reduce. It will return
back to normal when the external
temperature decreases.
Check if the lighting is installed too
high.
The motion detection sensitivity will
decrease when the installation height is
over 8m. It is suggested to lower the height
or use other work modes.
Replace the broken PIR motion sensor or
controller.
Troubleshooting
14
13
3
2
Software operation instruction
With LEADSUN EDGE, you can do the following operation:
1. Register to become a member
2. lighting control
3. History data query
4. Working mode configuration
5. Real-time view.
For detail instructions, please see the "APP User Guide" under "More Functions" in the
software.
Please use LEDSUN EDGE APP to remotely control and configure the street light, visit
www.leadsunglobal.com and follow the steps to Download the LEADSUN EDGE.
A. For APPLE users please go to the APP STORE and install the APP 'LEADSUN
EDGE' .
B. Android cellphone please visit www.leadsunglobal.com or go to the software
platforms like Google Play to download and install 'LEADSUN EDGE'.
C. PC App please visit http://47.52.88.104:8083/Home/Login
Insert SIM Card
Insert the 2G/4G SIM card into the slot according to the picture. Press the button next to it to
restart the gateway and then cover with the waterproof plug.
Ensure the SIM card cutting edge is face down and the
magnetic stripe is away from the indicator light.
Cautions:
Product Installation
