1 Product Summary
1.1 Product Profile
BA102 Battery Tester adopts currently the world's most advanced conductance testing technology to easily, quickly and accurately measure
the actual cold cranking amps capability of the motorcycle starting battery, healthy state of the battery itself, and common fault of the
motorcycle starting system and charging system, which can help maintenance personnel to find the problem quickly and accurately, thus to
achieve quick motorcycle repair.
1. Test all automotive cranking lead acid battery, including ordinary lead acid battery, AGM flat plate battery, AGM spiral battery, and Gel
battery, EFB battery, etc.
2. Directly detect bad cell battery.
3. Polarity reverse connection protection, reverse connection will not damage the tester or affect the motorcycle and battery.
4. Directly test the battery with loss of electricity, no need to full charge before testing.
5. Testing standards include currently the world's majority of battery standards, CCA, BCI, CA, MCA, JIS, DIN, IEC, EN, SAE, GB.
6. Support English.
1.2 Product Function
Main functions of BA102 battery tester include: battery test and other additional functions.
Battery test is mainly targeted to analyze the battery healthy status to calculate the actual cold cranking capability of the battery and the
aging extent, which provide reliable analysis evidence for the test and maintenance of the battery. It notifies the user to replace battery in
advance when the battery getting aged.
Additional functions include: Set language, voltmeter and screen brightness adjustment.
1.3 Technical Parameters
1. Cold Cranking Amps Measure Range:
Measure Standard Measure Range
CCA 20-300
BCI 20-300
CA 20-300
MCA 20-300
JIS 26A17—50D20
DIN 20-200
IEC 20-200
EN 20-300
SAE 20-300
GB 20-200
2. Voltage Measure Range: 8-30V DC

Motorcycle Battery Tester BA102 User Manual
2
BA102
1.4 Working Environment Requirement
Working Environment Temp.: -20°C-60°C
It is applicable for automotive manufacturers, automotive maintenance and repair workshops, automotive battery factories, automotive
battery distributors, and educational organizations, etc.
2 PRODUCT INFORMATION

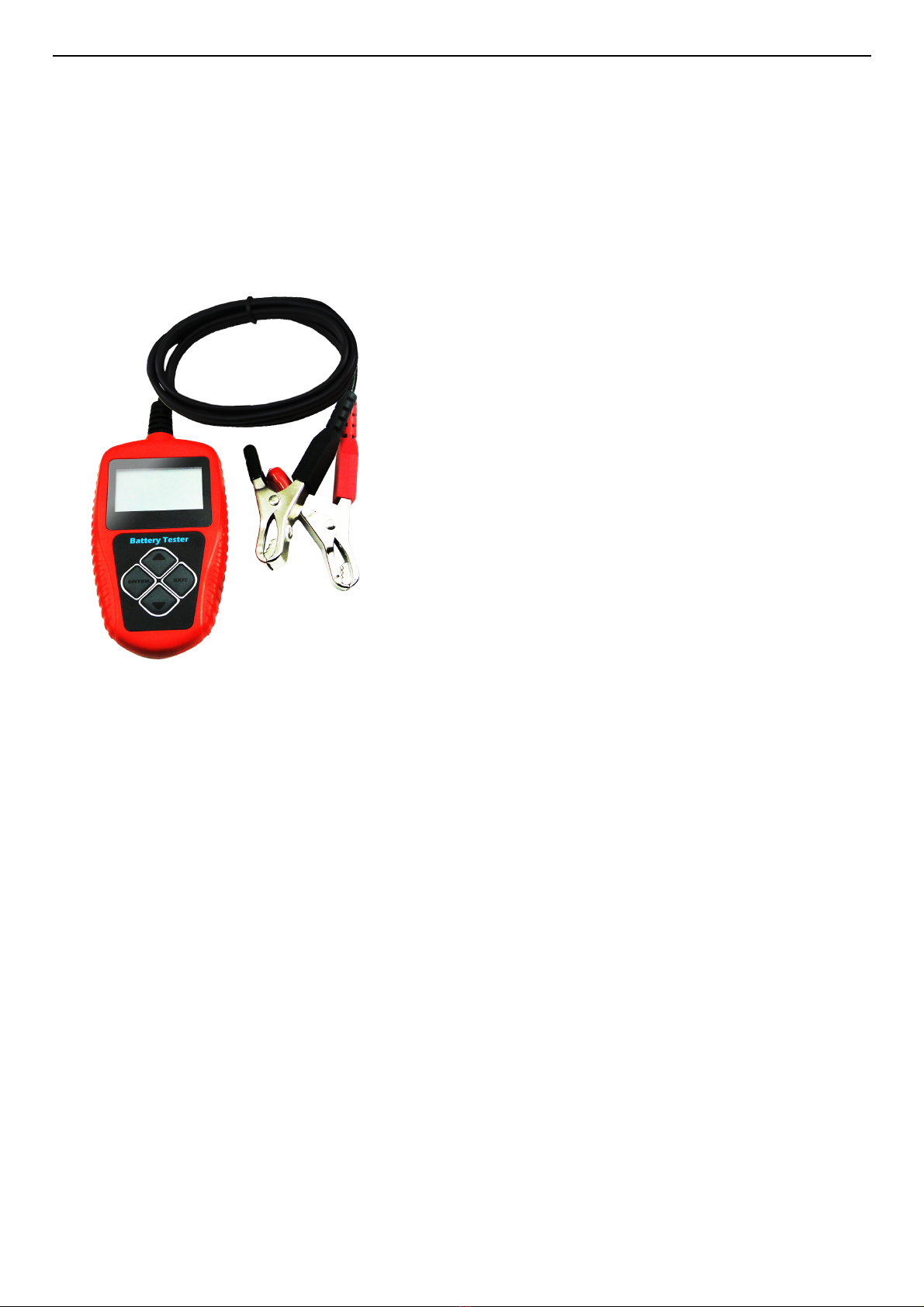

2.1 Tool Description
●Up / Down keys:
Select upwards or downwards via white UP and DOWN keys.
●Exit key:
Exit to previous menu via blue EXIT key.
●ENTER key:
Confirm the selection via green ENTER key
●Mini-USB Socket (in the side of the product): Connect to computer for print via USB cable.
2.2 Product Specifications
1). Display: LCD
2). Operating Temperature: 0 to 50°C (-32 to 122 F°)
3). Storage Temperature: -20 to 70°C (-4 to 158 F°)
4). Power—provided from car battery
5). Dimensions:
Length Width Height
110 mm ( 4.3"”) 70 mm ( 2.75"”) 16mm (0.63"”)
6). Weight: 450g
2.3 Accessories Included
1) User Manual -- Instructions on tool operations

Motorcycle Battery Tester BA102 User Manual
3
BA102
2) USB cable -- Provides link to tool and computer for print..
3). CD--- Print software inside.
2.4 Product Setup
The tool allows you to make the following adjustments and settings:
1) Language
2) Contrast adjustment: Adjusts the contrast of the LCD display.
3) Tool information: The tool show the version and produced date.
To enter the Tool Setup menu
From the second startup screen, press Exit button to enter Main menu. Press
Down button to select the Tool Setup function.
Language:
1) From Tool Setup menu, use Enter button to select Language
2) Use UP and DOWN button to select the desired language and press ENTER button to save your selection and return to previous menu.
Contrast
1) From Tool Setup menu, use Enter button to select contrast.
2) Use UP and DOWN button to select the contrast value and press ENTER button to save your selection and return to previous menu.
38%
Contrast
English
Language
Language
Contrast
Tool Information
System Setup

Motorcycle Battery Tester BA102 User Manual
4
BA102
Tool Information
From Tool Setup menu, use Enter button to select Tool Information
Press exit to return the previous menu.
3 Battery Test
After entering battery test program, tester displays the tester model and version
Tester will display the following contents in a sequence, select accordingly.
3.1Quick test
It can make sure the battery status, including voltage, CCA, electronic resistance, rated CCA, charging value, healthy value and testing result
in one second. Once input the AH value—battery rated capacity, which is marked in the label of the battery.
1). Press UP/DOWN key to select the Quick test, then press ENTER key to confirm.
2). Input the rated battery capacity—xx AH, in general, the battery capacity for 12V motorcycle is below 30AH.
3). Then press enter key, the testing result will show one of these, as below
. Battery test result includes 5 types as following:
1) Good Battery
The battery is without any problem, please be relaxed to use!
Software Version:
1.00
Hardware Version:
1.00
Tool Information
1.Quick Test
2.Battery in Vehicle
3.Out of Vehicle
4.Review Data
5. Print Data
6.System Setup
Main Menu
8 A-H
Please input the A-HR value in the
Label of the battery.
Input AH value
Healthy:96% 110CCA
Charge:98% 12.54V
Internal R=24.66mΩ
Rated: 125A
GOOD BATTERY

Motorcycle Battery Tester BA102 User Manual
5
BA102
2) Good, Recharge
Good battery but low current, recharge before using.
3) Replace
The battery is near to or already reached the end of the using life, replace battery, otherwise, bigger danger will be followed.
4) Bad Cell, Replace
Battery interior damaged, bad cell or short circuit, replace battery.
5) Charge, Retest
Unstable battery shall be recharged and retested to avoid error. If same test result appears after recharge and retest, the battery is regarded
as damaged, replace the battery.
Battery In-Motorcycle or Battery Out-Of-Motorcycle
Press UP/DOWN key to select the battery location, in motorcycle or out of motorcycle, then press ENTER key to confirm.
Battery in motorcycle means battery is connected with motorcycle generator or motorcycle electrical appliance.
3.2 Battery in motorcycle
Choose the battery in motorcycle and press Enter key, then it will enter the below menu.
1.Quick Test
2.Battery in Vehicle
3.Out of Vehicle
4.Review Data
5. Print Data
6.System Setup
Main Menu
Healthy:78% 80CCA
Charge:30% 11.20V
Internal R=37.2mΩ
Rated: 125A
GOOD, RECHARGE
Healthy:46% 40CCA
Charge:80% 9.68V
Internal R=88.1mΩ
Rated: 125A
REPLACE
Healthy:0% 0CCA
Charge:20% 10.64V
Internal R=100.2mΩ
Rated: 125A
BAD CELL，REPLACE
Healthy:39% 100CCA
Charge:20% 12.08V
Internal R=80.1mΩ
Rated: 125A
CHARGE-RETEST

Motorcycle Battery Tester BA102 User Manual
6
BA102
3.2.1 Battery test in motorcycle
When surface charge detected by the tester, it prompts "SURFACE CHARGE, TURN LIGHTS ON"
Turn lights on as prompted to eliminate battery surface charge, tester will then display the following messages in a sequence:
Now the tester detects the surface charge has been eliminated, turn lights off as prompted, then press ENTER key. The tester will recover
automatic test
OUT-OF-MOTORCYCLE means battery is not connected with any of the motorcycle loaded, i.e. battery connection is cut off.
Select Battery Type
After the battery charge status selected, tester will prompt to select battery type, i.e. Regular Flooded, AGM Flat Plate or
AGM Spiral, Gel and EFB battery. Press UP/DOWN key to select battery type, then press OK key to confirm
Battery System Standard and Rating
BA102 battery tester will test each battery according to the selected system and rating.
Use UP/DOWN key to select according to the actual system standard and rating marked on the battery. Use UP/DOWN key to select
according to the actual system standard and rating marked on the battery. See in the below picture, the arrow indicated location.
CCA: Cold Cranking Amps, specified by SAE&BCI, most frequently used value for starting battery at 0°F (-18°C).
BCI: Battery Council International standard
CA：Cranking Amps standard, effective starting current value at 0°C
MCA: Marine Cranking Amps standard, effective starting current value at 0°C.
JIS：Japan Industrial Standard, displayed on the battery as combination of the numbers and letters, e.g. 55D23,80D26.
DIN：German Auto Industry Committee Standard
IEC：Internal Electro technical Commission Standard
1.Battery Test
Test in Motorcycle
1.Check surface charge, Turn lights on.
2. Take headlights on about 10 seconds.
3.Turn lights off.
Battery Test
1.Regular Flooded.
2. AGM Flat Plate.
3.AGM spiral
4.GEL
5.EFB
Battery Type

Motorcycle Battery Tester BA102 User Manual
7
BA102
EN：European Automobile Industry Association Standard
SAE: Society of Automotive Engineers Standard
GB：China National Standard
Rating range as following:
Measure Standard Measure Range
CCA 20-300
BCI 20-300
CA 20-300
MCA 20-300
JIS 26A17—50D20
DIN 20-200
IEC 20-200
EN 20-300
SAE 20-300
GB 20-200
Input correct test standard and rating, press ENTER key, tester starts to test, and dynamic interface "TESTING" prompted. See below:
It takes around 3 seconds to display the battery test result.
Battery Test Result
Battery test result includes 5 types as following:
1) Good Battery
The battery is without any problem, please be relaxed to use!
CCA
Select Input
500
CCA
Setting Rate
Healthy:96% 110CCA
Charge:98% 12.54V
Internal R=24.66mΩ
Rated: 125A
GOOD BATTERY

Motorcycle Battery Tester BA102 User Manual
8
BA102
2) Good, Recharge
Good battery but low current, recharge before using.
3) Replace
The battery is near to or already reached the end of the using life, replace battery, otherwise, bigger danger will be followed.
4) Bad Cell, Replace
Battery interior damaged, bad cell or short circuit, replace battery.
5) Charge, Retest
Unstable battery shall be recharged and retested to avoid error. If same test result appears after recharge and retest, the battery is regarded
as damaged, replace the battery.
Attention: If "Replace" resulted from IN-MOTORCYCLE mode, it might be the reason that motorcycle cable is not well connected with the
battery. Ensure to cut off the cable and retest the battery under OUT-OF-MOTORCYCLE before making a decision to replace battery.
NOTE: After testing, if need to Exit, press EXIT key to directly Exit to the startup interface.
After testing: if it's "IN-MOTORCYCLE" test state, press ENTER key will bring to Cranking Test.
3.3 Battery out of motorcycle test
OUT-OF-MOTORCYCLE means battery is not connected with any of the motorcycle loaded, i.e. battery connection is cut off.
Choose the battery out of motorcycle test
Healthy:78% 80CCA
Charge:30% 11.20V
Internal R=37.2mΩ
Rated: 125A
GOOD, RECHARGE
Healthy:46% 40CCA
Charge:80% 9.68V
Internal R=88.1mΩ
Rated: 125A
REPLACE
Healthy:0% 0CCA
Charge:20% 10.64V
Internal R=100.2mΩ
Rated: 125A
BAD CELL，REPLACE
Healthy:39% 100CCA
Charge:20% 12.08V
Internal R=80.1mΩ
Rated: 125A
CHARGE-RETEST

Motorcycle Battery Tester BA102 User Manual
9
BA102
3.3.3 Select Battery Type
After the battery charge status selected, tester will prompt to select battery type, i.e. Regular Flooded, AGM Flat Plate or
AGM Spiral, Gel and EFB battery. Press UP/DOWN key to select battery type, then press OK key to confirm
Battery System Standard and Rating
BA102 battery tester will test each battery according to the selected system and rating.
Use UP/DOWN key to select according to the actual system standard and rating marked on the battery. Use UP/DOWN key to select
according to the actual system standard and rating marked on the battery. See in the below picture, the arrow indicated location.
CCA: Cold Cranking Amps, specified by SAE&BCI, most frequently used value for starting battery at 0°F (-18°C).
BCI: Battery Council International standard
CA：Cranking Amps standard, effective starting current value at 0°C
MCA: Marine Cranking Amps standard, effective starting current value at 0°C.
JIS：Japan Industrial Standard, displayed on the battery as combination of the numbers and letters, e.g. 55D23,80D26.
DIN：German Auto Industry Committee Standard
IEC：Internal Electro technical Commission Standard
EN：European Automobile Industry Association Standard
SAE: Society of Automotive Engineers Standard
GB：China National Standard
1.Quick Test
2.Battery in Motorcycle
3.Out of Motorcycle
4.Review Data
5. Print Data
6.System Setup
Main Menu
1.Regular Flooded.
2. AGM Flat Plate.
3.AGM spiral
4.GEL
5.EFB
Battery Type
CCA
Select Input

Motorcycle Battery Tester BA102 User Manual
10
BA102
Rating range as following:
Measure Standard Measure Range
CCA 20-300
BCI 20-300
CA 20-300
MCA 20-300
JIS 26A17—50D20
DIN 20-200
IEC 20-200
EN 20-300
SAE 20-300
GB 20-200
Input correct test standard and rating, press ENTER key, tester starts to test, and dynamic interface "TESTING" prompted. See below:
It takes around 3 seconds to display the battery test result.
Battery Test Result
Battery test result includes 5 types as following:
1) Good Battery
The battery is without any problem, please be relaxed to use!
2) Good, Recharge
Good battery but low current, recharge before using.
500
CCA
Setting Rate
Healthy:96% 110CCA
Charge:98% 12.54V
Internal R=24.66mΩ
Rated: 125A
GOOD BATTERY
Healthy:78% 80CCA
Charge:30% 11.20V
Internal R=37.2mΩ
Rated: 125A
GOOD, RECHARGE

Motorcycle Battery Tester BA102 User Manual
11
BA102
3) Replace
The battery is near to or already reached the end of the using life, replace battery, otherwise, bigger danger will be followed.
4) Bad Cell, Replace
Battery interior damaged, bad cell or short circuit, replace battery.
5) Charge, Retest
Unstable battery shall be recharged and retested to avoid error. If same test result appears after recharge and retest, the battery is regarded
as damaged, replace the battery.
3.4 Review Data
Choose the function of Review Data
Check the history of battery testing result
1.Quick Test
2.Battery in Motorcycle
3.Out of Motorcycle
4.Review Data
5. Print Data
6.System Setup
Main Menu
Healthy:96% 490CCA
Charge:98% 12.64V
Internal R=6.1mΩ
Rated: 500A
GOOD BATTERY
Healthy:46% 40CCA
Charge:80% 9.68V
Internal R=88.1mΩ
Rated: 125A
REPLACE
Healthy:0% 0CCA
Charge:20% 10.64V
Internal R=100.2mΩ
Rated: 125A
BAD CELL，REPLACE
Healthy:39% 100CCA
Charge:20% 12.08V
Internal R=80.1mΩ
Rated: 125A
CHARGE-RETEST

Motorcycle Battery Tester BA102 User Manual
12
BA102
3.5 Print Data
Before choose the print data function, it is necessary to connect the tool to the computer via USB cable.
Once all are available, please kindly insert the CD to the computer
1. Install the USB driver firstly.
2. Then open the Print software
3. Choose the COM Port NO.
If there are some data history in print software, please kindly clear them.
4. Choose the function of Print Data in the tool
1.Quick Test
2.Battery in Vehicle
3.Out of Vehicle
4.Review Data
5. Print Data
6.System Setup
Main Menu

Motorcycle Battery Tester BA102 User Manual
13
BA102
5.Once the data is transferred to the computer, the print software will show these information
Besides, the tool will turn to below menu.
Press exit to return
3.6 System setup
Please kindly review 2.4 Product setup
4.WARRANTY AND SERVICE
4.1 Limited One Year Warranty
We warrants to its customers that this product will be free from all defects in materials and workmanship for a period of one (1) year from the
date of the original purchase, subject to the following terms and conditions:
1. The sole responsibility of us under the Warranty is limited to either the repair or, at the option of us, replacement of the Scan
Tool at no charge with Proof of Purchase. The sales receipt may
be used for this purpose.
2. This warranty does not apply to damages caused by improper use, accident, flood, lightning, or if the product was altered or repaired by
anyone other than the Manufacturer’s Service Center.
3. We shall not be liable for any incidental or consequential damages arising from the use, misuse, or mounting of the Scan Tool. Some
states do not allow limitations on how long an implied warranty lasts, so the above limitations may not apply to you.
4.2 Service Procedures
For technical support, please contact your local
store or distributor. If it becomes necessary to return the code reader for repair, contact your local distributor for more information.
OK
PrintData
Healthy:96% 490CCA
Charge:98% 12.64V
Internal R=6.1mΩ
Rated: 500A
GOOD BATTERY

Motorcycle Battery Tester BA102 User Manual
14
BA102
Appendix 1
JIS CCA
26A17L 185
26A19L 185
30A19L 210
34A19L 245
26B17L 185
28B17L 195
28B19L 190
34B17L 240
34B19L 240
36B20L 260
38B19L 265
38B20L 265
40B19L 270
42B19L 290
44B19L 310
44B20L 300
46B24L 295
50B24L 325
55B24L 370
60B24L 390
65B24L 425
32C24L 195
48D26L 250
50D20L 310
