Lean Kiosk Systems LKS-TM001XA User manual

Shenzhen Lean Kiosk Systems Co., Ltd
Contact: Jesmine Zhu; Tel: [phone] ; E-mail: [e-mail] ; Website: www.lkskiosk.com
LKS-TM001XA
User Manual
Hand Cleasing Facial Scan Kiosk
Stock Code:870885

Hand Cleasing Facial Scan Kiosk User Manual
2
Contents
Part 1: Product Warranty ............................................................................................................................................... 3
Warranty description.................................................................................................................................................. 3
Warranty Period ......................................................................................................................................................... 3
Disclaimer.................................................................................................................................................................. 3
Part 2: Product Introduction .......................................................................................................................................... 3
Product Overview ...................................................................................................................................................... 4
Product Specifications................................................................................................................................................ 5
Port description .......................................................................................................................................................... 6
Electrical Performance............................................................................................................................................... 6
Work Environment..................................................................................................................................................... 6
Body Temperature Display......................................................................................................................................... 6
Application Scenarios................................................................................................................................................ 7
Installation Modes...................................................................................................................................................... 8
Part 3: Functions and Operations on the Client Interface......................................................................................... 10
Introduction to the main interface............................................................................................................................ 10

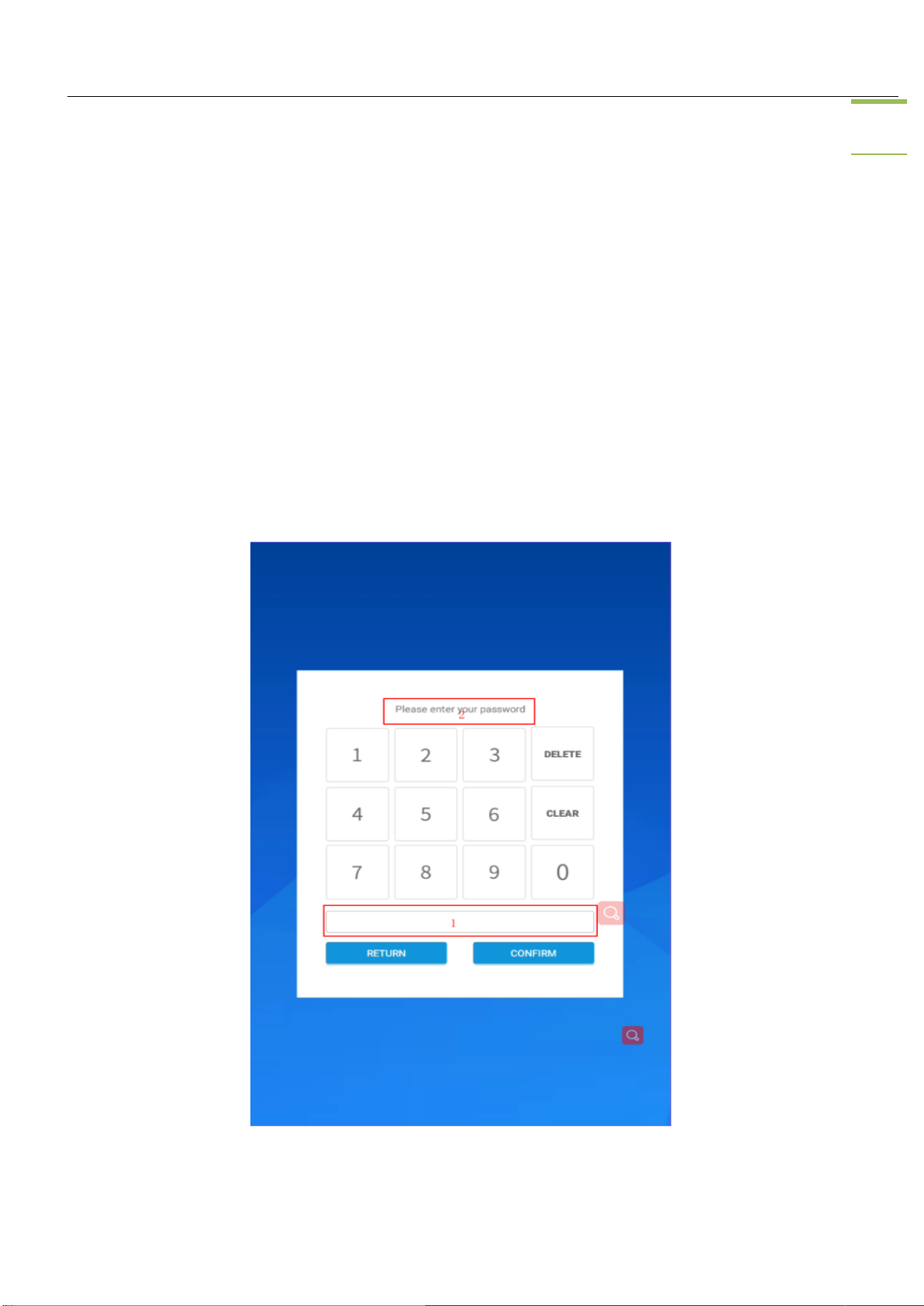

Login Interface.............................................................................................................................................................

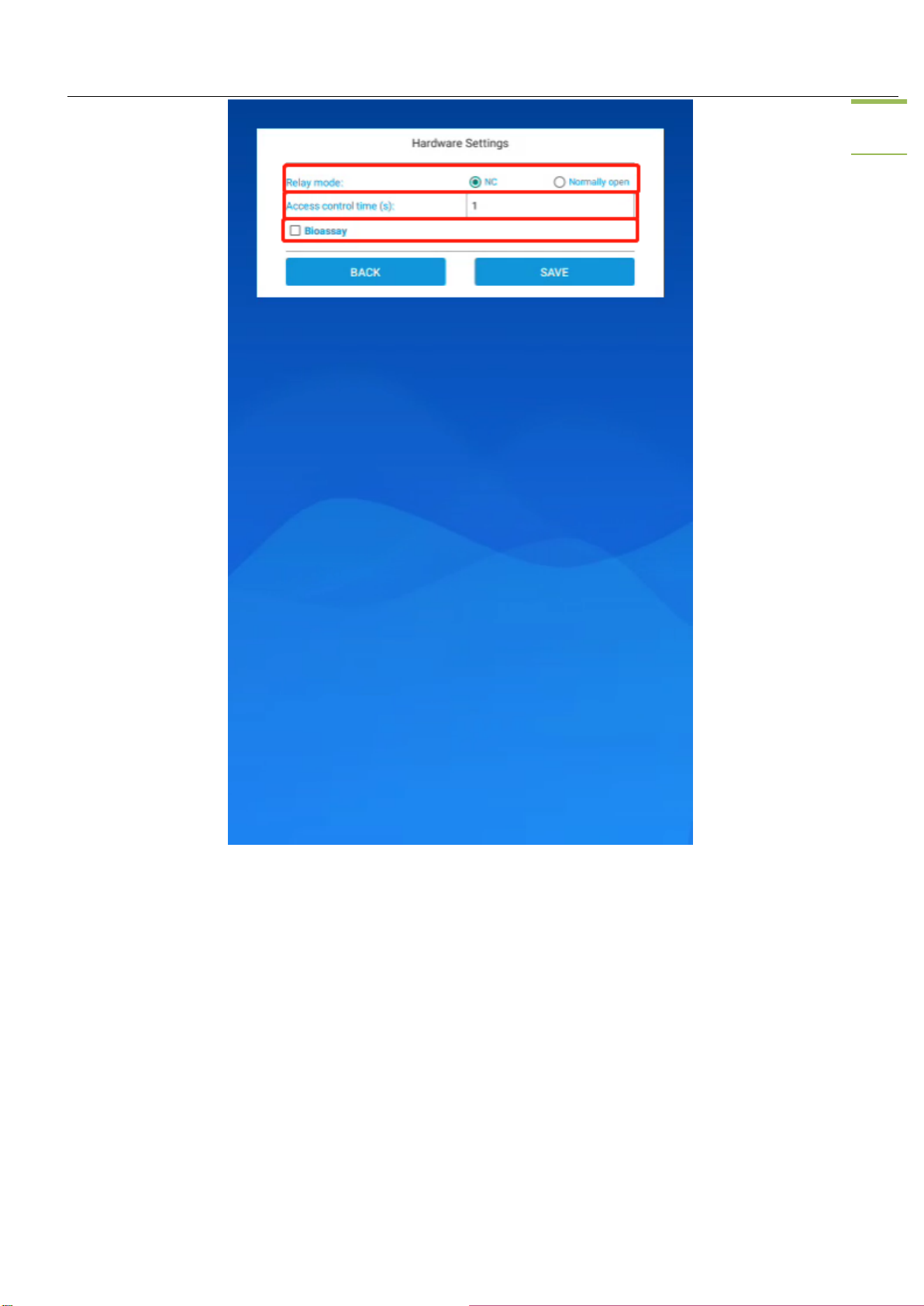

Setting Interface...........................................................................................................................................................

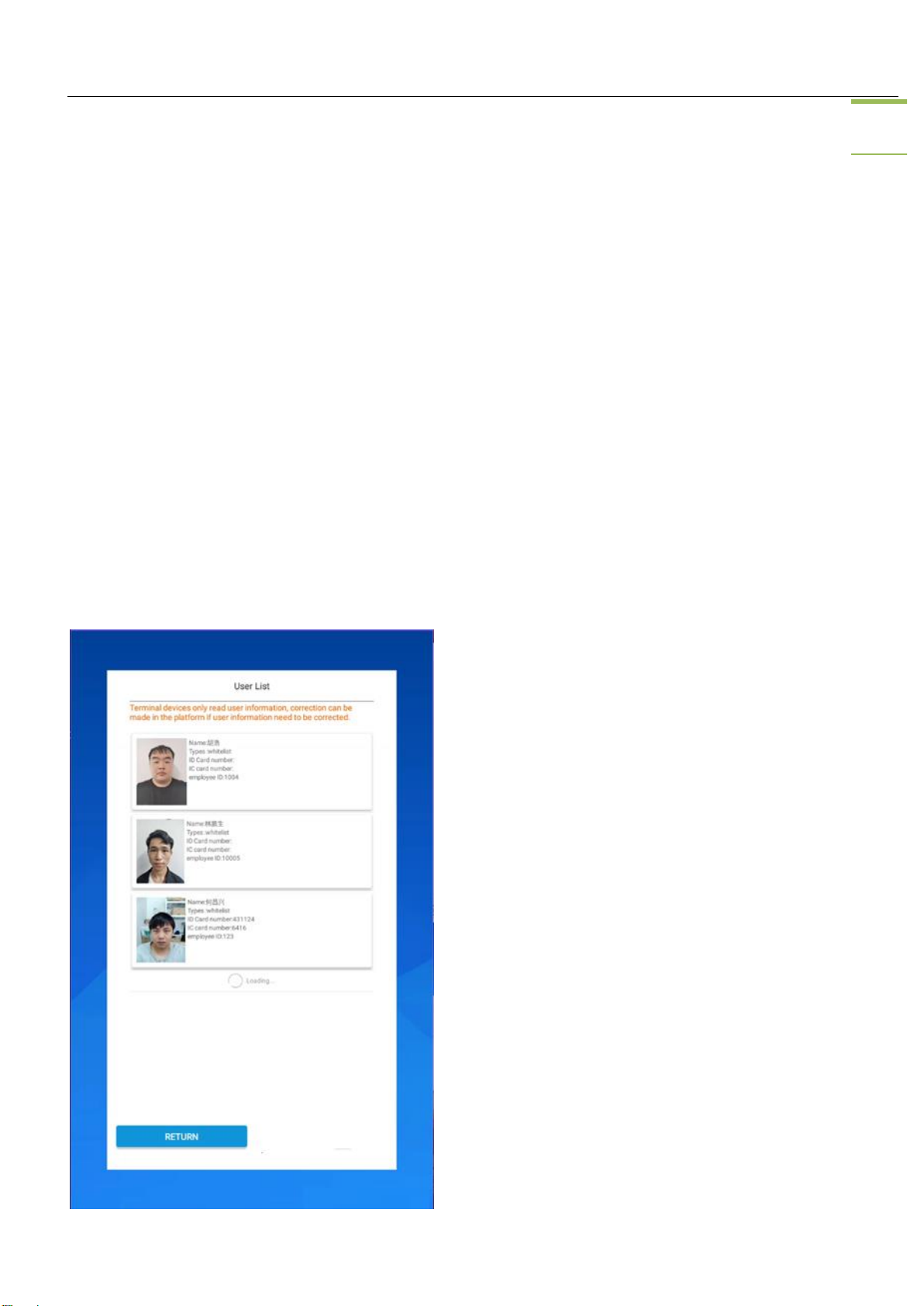

User List Interface........................................................................................................................................................
Part 4: Service Platform Operations............................................................................................................................ 17
Overview................................................................................................................................................................. 17
1.1. Terminology................................................................................................................................................. 17
1.2. System Requirements................................................................................................................................... 17
1.3. Multilingual Support.................................................................................................................................... 17

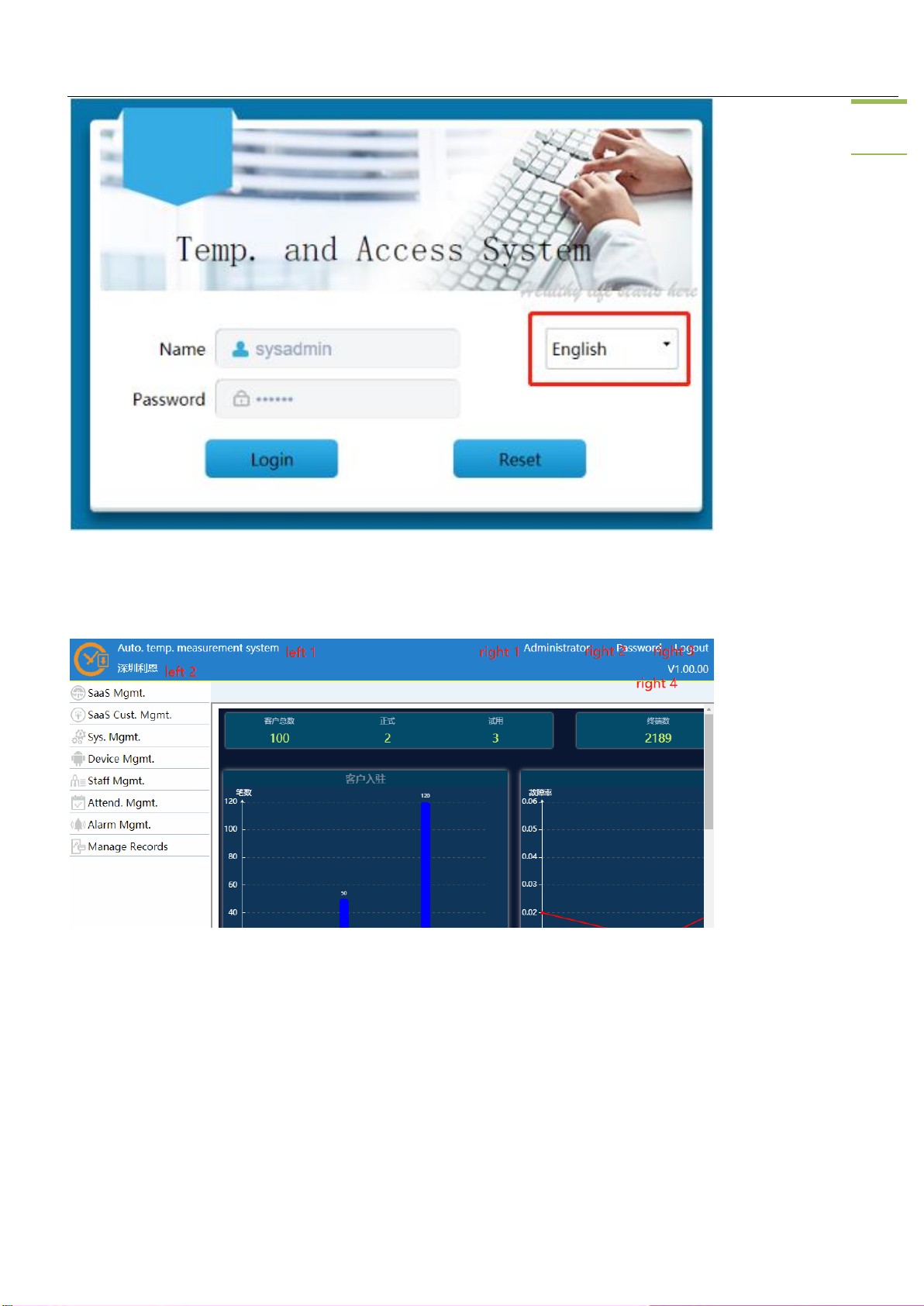

1.4. System Login ............................................................................................................................................... 17
1.5. Description of the Main Interface ................................................................................................................ 18
1.6. Device Access Process................................................................................................................................. 19
1.7. Rights Management Model.......................................................................................................................... 19
SaaS Management Functions................................................................................................................................... 19
1.8. SaaS Management Functions....................................................................................................................... 20
1.9. SaaS Customer Management ....................................................................................................................... 20
1.10. Device Registration.................................................................................................................................. 22
Customer Management Functions............................................................................................................................ 23
1.11. System Management.................................................................................................................................... 24
1.12. Device Management................................................................................................................................. 31
1.13. Staff Management .................................................................................................................................... 33
1.14. Alarm Management.................................................................................................................................. 35
1.15. Record Management ................................................................................................................................ 36
After-sales contact number ........................................................................................................................................... 37

Hand Cleasing Facial Scan Kiosk User Manual
3
Part 1: Product Warranty
■ Warranty description
The Hand Cleasing Facial Scan Kiosk is guaranteed by LKS for its defects in
workmanship and materials. The warranty period is one year from the date of original purchase. Parts
that prove to be defective within one year shall be repaired or replaced at LKS's discretion.
If the customer returns the parts to LKS for repair or replacement, please call LKS after-sales
technical support at 4006905904 to inform the part model and obtain the return address. LKS shall
carefully and strictly test the repaired or replaced parts before returning them to the customer, and
deliver the parts to the destination by reasonable commercial means.
LKS after-sales office service telephone: [phone] (office hours: 8:30 a.m. to 9:00 p.m. Beijing
time from Monday to Sunday):
No warranty under the following conditions: rust or corrosion caused by humans, damage caused by
accidents, inappropriate handling or operation, improper maintenance, transportation damage, abuse,
misuse, unauthorized repair or attempted repair, intentional damage or "natural disaster". In addition, the
use of unauthorized paper or other unauthorized components and/or supplies will void the warranty.
■Warranty Period
Parts shall be warranted and replaced free of charge for one year. The freight free shall be paid by the sender. If you
require on-site service from LKS technicians, you shall pay the travel expenses.
For parts out of the one-year free warranty period, you shall bear all the costs, including the round-trip freight and
miscellaneous duties for shipping parts.
■Disclaimer
LKS shall not assume patent liability for the use of the information contained herein, and shall not be liable for
any damages arising from the use of the information contained herein.
LKS shall not be liable for any loss or consequence resulting from the purchase of LKS products by users, their
misuse or abuse of the products or unauthorized modification, repair, or alteration of the products, or failure to strictly
comply with LKS product operation and maintenance instructions.
Part 2: Product Introduction
Model
Date
Revision Description
LKS-TM001XA
Oct 2020
Hand Cleasing Facial Scan Kiosk
Installation Manual 20.20.06

Hand Cleasing Facial Scan Kiosk User Manual
4

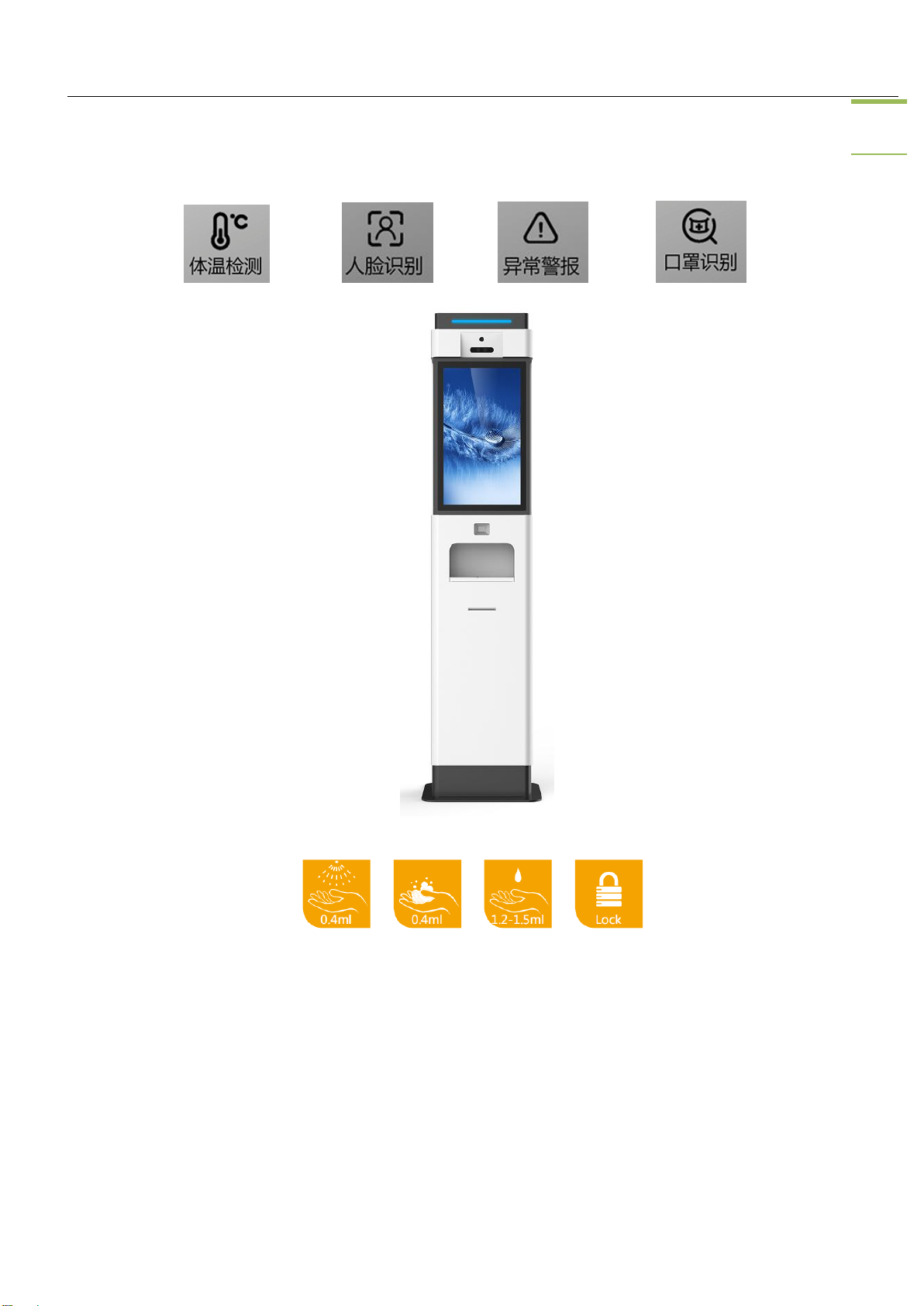

■Product Feature
▶Temperature detection, face recognition,Visitor temperature label sticker printed, and hand disinfection were
carried out simultaneously.
▶Recognition function of QR code scanner.
▶Print the temperature test results.
▶Hand infrared sensor, disinfectant intelligent quantitative liquid refining spray.
▶Intelligent induction, zero contact to avoid the risk of cross-infection.
▶The disinfectant sprayer is made of ABS material, which is environmental protection and safe, corrosion
Temperature
measurement
Face
recognition
Alarms
Mask
detection

Hand Cleasing Facial Scan Kiosk User Manual
5
resistant, insulating current and not easy to deform.
▶Hand sterilizer 10L large capacity tank, long-term use, easy to change the disinfectant.
■Product Overview
▶High-performance, high-reliability, and high-stability Android system
▶Cutting-edge deep learning algorithm used as the core
▶Standard local 20,000 faces database, face recognition accuracy > 99.97%, recognition speed < 100 ms
▶Binocular living anti-counterfeiting, preventing photo and video deceptions
▶21.5inch A-gauge LCD display, projected and capacitive touch screen technology, and full-screen operation
interface
▶Adopt 2 million intelligent wide dynamic sensor face recognition camera
▶Body temperature measurement, temperature display, and automatic alarm generation for abnormal
temperatures
▶Infrared and TGB double light compensation, and weak light identification without interference
▶Optional wired/Wi-FI/4G communication
▶Multi-language broadcasting
■Product Specifications
Model
LKS-TM001XA
Operating system
Android 7.1.2
Camera
2 million wide dynamic, live dual cameras, strong backlight resistance
Touch screen
Capacitive touch screen, 21.5-inch A-gauge LCD
Display resolution
1920 x 1080
Camera resolution
1280*720
CPU
Quad core RK3288
ARM-A17 1.8GH，GPU:Mail-T764
Storage
Memory: 2G Storage: 8G
Authentication
mode
Face recognition, temperature measurement
Measurement range
32℃—42℃（Non-medical product features）
Temperature
measurement
accuracy
Accuracy：0.5℃Face Distance：30CM—50CM
Storage capacity
20,000 faces database and 150,000 records
Label Printing
Print the normal temperature data label and sticker
Printer parameters
High-speed thermal printing (250mm/s(Max)), printing paper width 58mm-82.5mm, paper
thickness 60-150um, paper reel ∅150mm (Max), cutter life 1 million times, support full
cutting and half cutting.
External interface
USB RJ45 RS232 TTL reset switch, Wi-Fi antenna interface, Brake machine interface

Hand Cleasing Facial Scan Kiosk User Manual
6
Working voltage
AC 110V-240V
Communication
mode
Wired network, Wi-Fi, optional 4G
Hand disinfection
75% alcohol solution spray loudness/75% alcohol gel solution disinfection
Spray trigger mode
Infrared induction, induction distance adjustable, strong anti-interference, not afraid of
light changes, not affected by skin color
Disinfectant
capacity
10L refillable inner bottle
Spray pump head
Service life more than 300,000 times
External Size
420（width）×1720（high）×390（thickness）mm
Shell material
Cold rolled steel plate material
Installation mode
Vertical bracket
Warning: the function of measuring temperature of this product is not a medical
product, it is only used by quick checking of human body temperature! After the machine starts
up, the temperature measurement module needs to be preheated for 15 minutes before it can enter
the normal temperature test! If the user uses alcohol-based disinfectant, which is a flammable
liquid, please do not touch the fire source! !
■Electrical Performance
Input power
AC 110-240V
Output power
DC 12V DC 24V
Standby power consumption
< 6W
Speaker power
8Ω1W
Rated power consumption
< 50W
■Work Environment
Operating temperature
18°C –35°C
Operating humidity
0%–90% RH
Storage temperature
–10°C to 60°C
Storage humidity
0%–65% RH

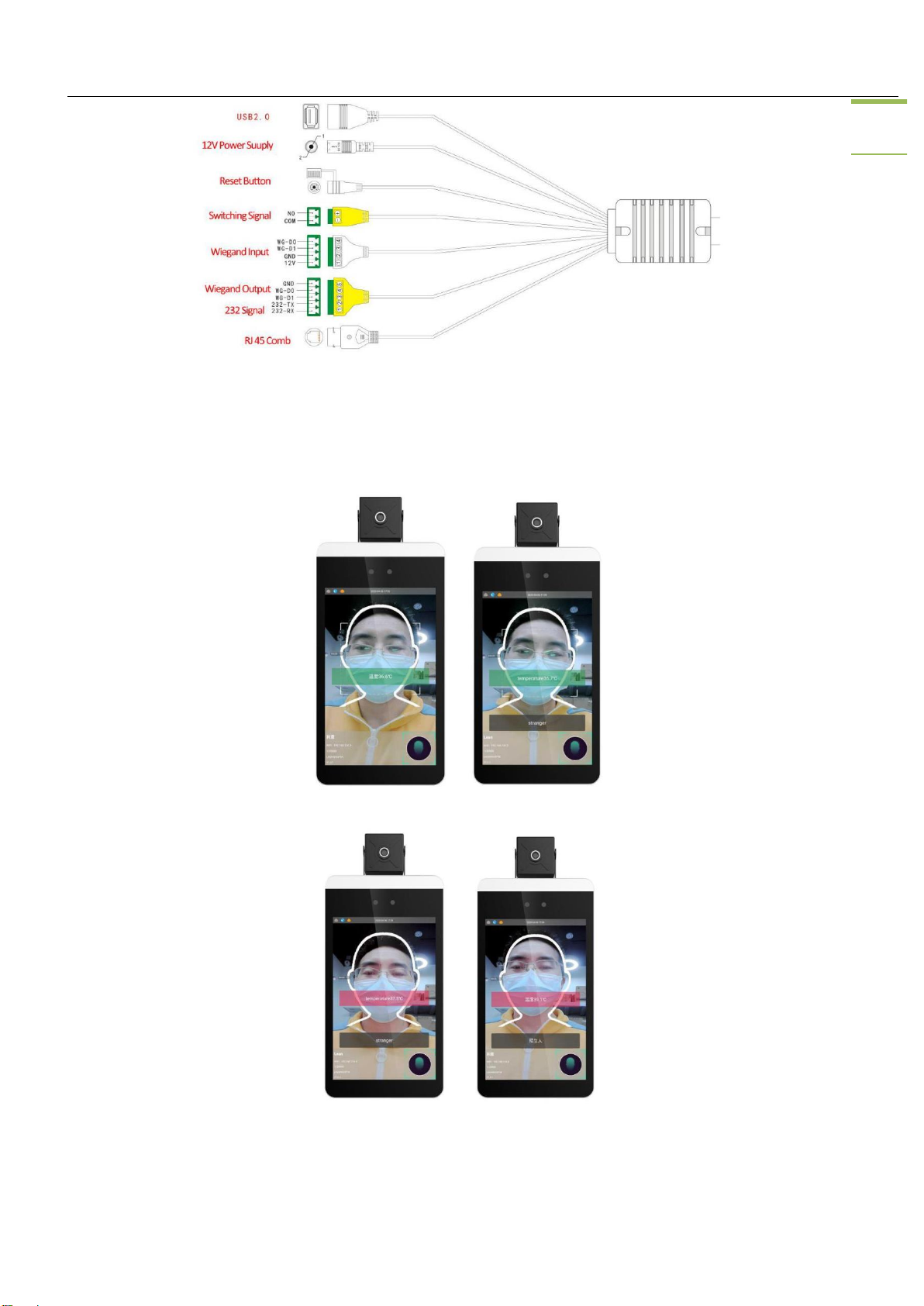

■ Port description

Hand Cleasing Facial Scan Kiosk User Manual
7
■Body Temperature Display
Normal temperature
Abnormal high temperature
■Application Scenarios
▶The machine is used for quick temperature reading and face recognition in schools, cinema, hospitals,
communities, supermarkets, checkpoints, subway stations, customs ports, airports, stations and other places.

Hand Cleasing Facial Scan Kiosk User Manual
8
■Machine Rendering
Temperature detection face recognition
machine
Remote thermometer
Stand
Label Printer
QR Code Scanner

Hand Cleasing Facial Scan Kiosk User Manual
9
Notes
1. The temperature measuring equipment should be used in the room between 18 °c and 35 °c at room
temperature. Do not install the temperature measuring equipment under the air vent to ensure that there is
no heating source within 3 meters.
2. When a person enters the room from a cold outdoor environment, the temperature measurement accuracy
will be affected. The forehead temperature test shall be conducted after the forehead temperature is stable
and the forehead is not shielded for three minutes.
3. The temperature read by the temperature measuring device is the temperature of the forehead temperature
area. When there are water, sweat, oil stains on the forehead, or heavy makeup or wrinkles in the elderly,
the temperature read will be lower than the actual temperature to ensure that there is no hair or clothing
cover in this area.
4. Temperature measuring equipment shall not be placed in a humid environment. Outdoor equipment shall be
provided with a damp proof cover. Wet use environment will accelerate the rapid aging of electronic
components, thus reducing the service life of the product, resulting in moisture damage to parts.
Thermal imaging, body temperature screening compared with professional medical level
temperature measuring method, the contact-less temperature measurement, safety non-inductive,
and the advantages of fast and efficient, is for the urban traffic, schools, companies, offices,
business to wait good solutions have been supervised rapid temperature screening. In addition, the
thermal imaging temperature cervix on installation environment, detection distance has certain
requirements, such as in the use of thermal imaging when the cervix temperature, suggested in a
relatively stable indoor environment, temperature measuring range, required by original factory
for calibration. All test distance must be in the calibration position shall prevail. All products
installed in accordance with the requirements of manufacturer must be in indoor constant
temperature environment.

Hand Cleasing Facial Scan Kiosk User Manual
10
Part 3: Functions and Operations on the Client Interface

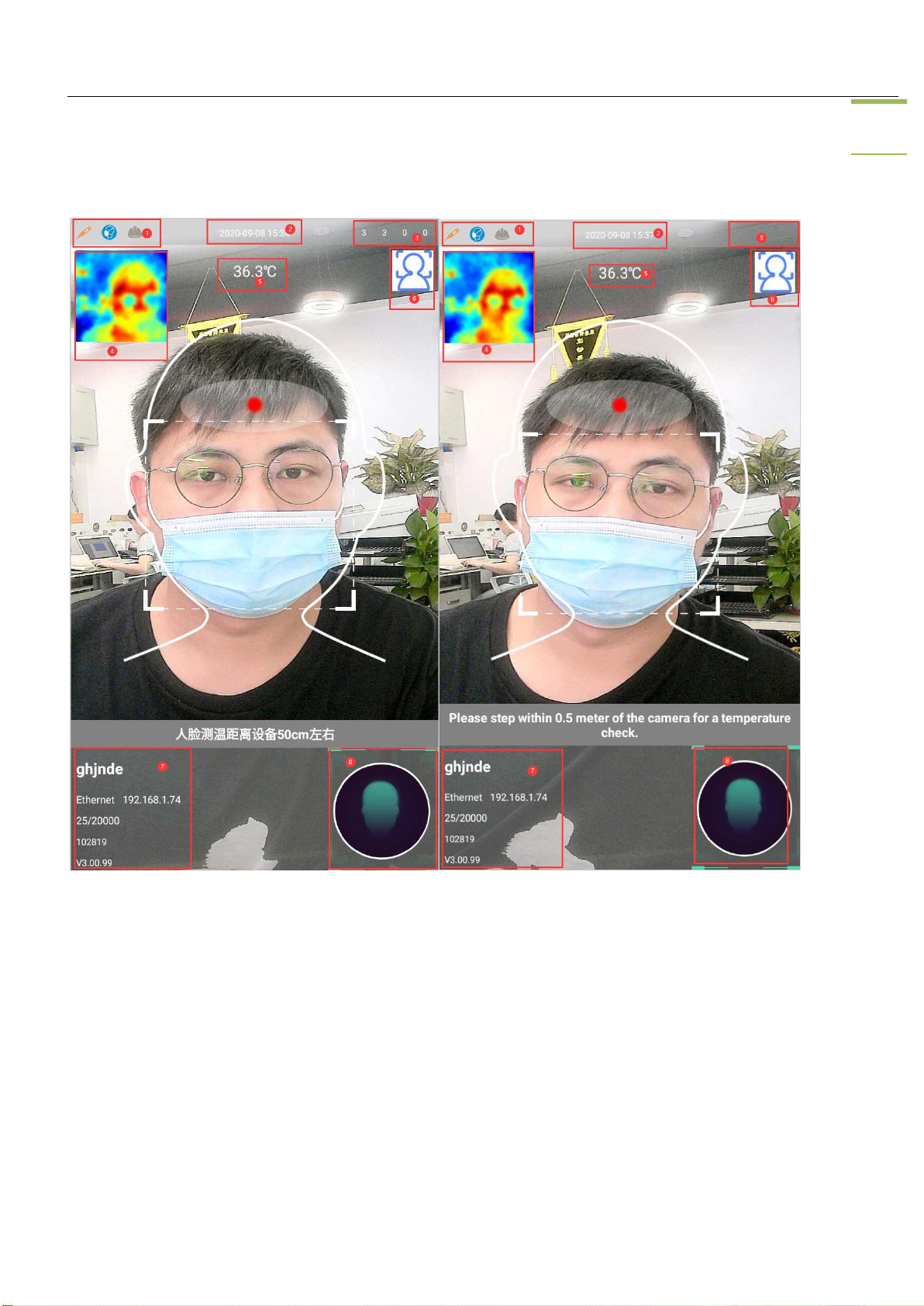

■ Introduction to the main interface
1. Main Interface
⑴Interface Introduction
This interface is the main interface, and all detection is in this interface. Most of the useful information is in this
interface.
⑵Introduction to Interface Elements
①From left to right:
Temperature Measurement Logo: Turn on the temperature measurement icon in orange, turn off in gray.
Mask Detection Logo: Open the mask detection icon in blue and close it in gray.
Detection Helmet Logo: Open the detection helmet icon in orange and close it in gray.
②Obtain and display the regional network time set by the system. (Please note for foreign sales: For machines
sold abroad, you need to set in the android system before shipment and set the time zone where the customer
is located. Otherwise, the interface will display China Standard Time, East Eight District Time.)
③Flow data. After the app is started, it is within the test temperature (35.5-42). From left to right are:
Number 1, total measurement;

Hand Cleasing Facial Scan Kiosk User Manual
11
Figure 2. Total data sent normally;
Figure 3. Total of all offline storage data now;
Figure 4. Total data sent offline.
④When using Hyman 32*32 temperature measurement module, the displayed heat map
⑤After checking "real-time temperature", the temperature obtained by the displayed temperature
measurement module in real time
⑥Company logo
⑦The data from top to bottom are:
company name. (Company name, can be set in the setting interface)
Network mode and IP.
Number of registered people and maximum number of faces (enter the entrance of the personnel list interface,
it takes 10 quick clicks within 2 seconds)
device ID
APP version name
⑧After successful recognition, the registered picture will be displayed (enter the entrance of the setting
interface, it takes 10 quick clicks within 2 seconds)
2. Login Interface
⑴Interface Introduction：
This interface is the login interface. Login is required to enter the Settings and the list of people interface. The
initial password is 123. After successful login, the setting interface can change the password.

Hand Cleasing Facial Scan Kiosk User Manual
12
⑵Introduction to Interface Elements：
Normal login process, no more details. If you forget your login password. Click ①quickly 5 times in 2 seconds,
then Click ②quickly 5 times in 2 seconds.
3. Setting Interface
⑴Interface Introduction：
The interface is the setting interface, setting server IP, company address and a series of checks.
⑵Introduction to Interface Elements：
①Click to enter the management interface -
②Login interface password.
③For main interface display (for domestic sales, please note: because the built-in input method of
android does not support Chinese, if you need to input Chinese company, you need a face machine to
download a Chinese input method)
④Server IP address
⑤Voice prompt Settings. This setting has text to grasp the voice and prompt ring tone 2, default all, can
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16

Hand Cleasing Facial Scan Kiosk User Manual
13
not be selected
⑥Access control. Face, safety helmet, mask, temperature 4 options, default all options, at least 1 option
⑦Offline data storage. If the network is off, the data is saved until there is a network and
⑧Software initialization ((use with caution! Before the equipment leaves the factory, we will set various
parameters and bind our platform well. After initialization, all the Settings of the app will be cleared, and we
cannot connect to our platform. This function is applicable to the customer to build their own platform, bind to
the customer platform, can do this operation.）
⑨Whether to turn on face detection
⑩Whether to upload a face photo
⑪Whether to check the safety helmet
⑫Test whether to wear mask
⑬Whether to take the temperature
⑭Temperature display: Fahrenheit and Celsius, one or the other
⑮Set the temperature alarm value
⑯Temperature check (the function caution! Each hardware of the temperature measuring module has
corresponding hardware characteristics, so it is not guaranteed that the measurement results of all modules
will be consistent. But our equipment will be checked out of the factory, unless there is a significant difference
in the results of customer use. Otherwise, not easy to use)
Note: Function 4 and 9, there are corresponding hints and instructions on the code.
4. User List Interface

Hand Cleasing Facial Scan Kiosk User Manual
14
⑴Interface Introduction：
The interface is the list of registered personnel interface, will show the registered personnel of various
information.
5. Management Interface
(1) Interface Introduction：
The interface is the hardware parameter setting interface, the new interface, the selection and
configuration of external equipment.
(2) Element Introduction：
①Hardware parameter setting. Enter the hardware parameter setting interface.
②Exit the app. Click to exit the face app directly and enter the main interface of the system.
③app restart
④Device restart
⑤Back
6. Hardware parameter interface
1
2
3

Hand Cleasing Facial Scan Kiosk User Manual
15
(1) Interface introduction:
This interface is a hardware parameter setting interface, a new interface for the selection and configuration of
external devices.
(2) Element introduction
①Biological testing. Live detection
②Company logo display position: upper right corner or lower right corner
③Access control time. The relay controls the time, that is, the door opening time. Customers can choose to
enter the control time
④Relay mode: normally open, normally closed 2 choose 1. This is a hardware option, sales needs and
customers determine the type of need.
(Normally open: When the door is powered on, the face machine is powered off, and the access control is
effective, and you cannot enter and leave at will.
Normally closed: When the door is powered on, the face machine is powered off, and the access control is
invalid, you can enter and exit at will. )
⑤Identification method:
1
2
3

Hand Cleasing Facial Scan Kiosk User Manual
16
1:N If a face is detected, it will be recognized immediately
1:1 need to swipe or scan code to identify
⑥Set whether there is a high temperature alarm
⑦Set high temperature alarm time
⑧Temperature compensation. When there is a difference between the detected temperature and the actual
temperature, use the ±temperature value to increase or decrease the difference temperature
⑨Mask compensation. It is detected that the temperature with a mask is lower than that without a mask, and
the temperature difference is input
⑩Selection of temperature measuring components. Melexis 90621 and Hyman 32*32 temperature measuring
components are now integrated, and the selection is made according to the corresponding hardware.
7. Exit the password interface
⑴Interface introduction:
In order to better protect the settings, you need to enter the exit password to exit the app in any case, and the
password is temporarily fixed to 12369.

Hand Cleasing Facial Scan Kiosk User Manual
17
Part 6: Service Platform Operations
■Overview
This platform is a cloud platform system in the SaaS management architecture. It allows multiple customers to
use and manage their data and functions independently in the same system without interfering with each other.
1.1. Terminology
Operator: refers to the enterprise responsible for the management of the entire cloud platform. The enterprise
has the functions of ordinary customers on the cloud platform and the rights of the super administrator for the platform.
Customer: refers to a virtual company account created by the operator for the specific enterprise on the cloud
platform after the device is purchased from the operator.
User: refers to an account that can log in to the web management system of the cloud platform for related
operations; each user belongs to a specific customer; all accounts are unique on the cloud platform.
Super administrator: the first built-in user who can log in to the cloud platform after the cloud platform is
established. This user is the operator's customer by default, and has the highest management rights of the entire system.
System administrator: When a virtual company account is created for each customer, a system administrator
account and password will be requested. If the account passes the uniqueness verification on the platform, it becomes
the customer's system administrator.
Staff: the staff to be included in customer management, and face recognition and body temperature detection;
staff and users are two completely independent concepts.
1.2. System Requirements
The system uses Google browser. If other browsers are used, some features may not be displayed and used properly.
1.3. Multilingual Support
The platform supports Chinese and English by default. It supports multiple languages for extended design, but the
support for other languages requires communication with business personnel.
In principle, multi-language support is charged. The customer provides the local language translated from
Chinese, and our technical staff integrates it into the platform to support localization.
Local languages written from right to left are not supported.
1.4. System Login
Enter http://Server IP address:8080/cwaac/login.html in the browser address bar. On the login interface, enter
the user name and password to log in.
You can select the supported local language on the right of the login interface.

Hand Cleasing Facial Scan Kiosk User Manual
18
1.5. Description of the Main Interface
The main interface consists of three parts: comprehensive information area on the top, menu bar area on the left,
and the main operation area on the right.
Comprehensive information area:
Left 1: cloud platform system name
Left 2: current login customer name
Right 1: current login user
Right 2: link for changing the password of the current user
Right 3: link for exiting the login link
Right 4: platform software version number
Menu area: The menu is a two-level menu. The level-2 menus are function menus. The operator user can view
SaaS management menus and customer menus, while the customer user can only view the customer menus.
Main operation area: allows you to complete specific operations.

Hand Cleasing Facial Scan Kiosk User Manual
19
1.6. Device Access Process
To connect a device to the cloud platform, perform three steps: registration > activation > addition.
Registration: Register the terminal in the system by using the terminal's hardware code and hardware code type.
The hardware code is shown on the following interface of the terminal.
Activation: Add the registered device. On the terminal, set the access IP address and port number of the cloud
platform, and click OK to activate the device. After activation, you can see a 6-digit terminal number on the terminal,
as shown the following figure.
Add: The activated terminal belongs to the operator's customer on the server by default. You need to add the
terminal to a specific customer on the server so that the customer can see and manage the terminal under their account.
1.7. Rights Management Model
This system provides three-level management rights. The three levels include the functions, roles, and users.
Functions: operations in the system, mainly involving the viewing (list and specific information) and editing
(addition, deletion, modification, and check).
Roles: the type of user created in the system who can perform a certain type of operation. Each role has an
editable range of functions.A role can be assigned to a user, and the user automatically has all the functions of the role.
User: an account that can log in to the system and perform corresponding operations. Each user can have only
one role.
■SaaS Management Functions
SaaS management functions are provided for the SaaS operator, not for the customer. The SaaS management
functions include SaaS system management, SaaS customer management, and device registration.

Hand Cleasing Facial Scan Kiosk User Manual
20
1.8. SaaS Management Functions
1.8. SaaS
The SaaS system management menus are as follows:
1.8.1. System Functions
The system functions interface allows you to view all the functions of the cloud platform of current version.
1.9. SaaS Customer Management
The SaaS customer management menus are as follows:
