Leb Electronics STONE 180 Instructions for use



Underground180DegreeGateAutomationSystem.
Instructions,maintenance,installationandwarningsmanual.







Suppliedby

01226370549/01405785656


-1-
ENGLISH
Warnings
- This manual is intended but for qualified technical staff and not for
end user. It is a task of the installer to inform afterwards user on the
use of the automatism and on possible dangers could come from it,
as well as on the need of a periodical maintenance.
- The set up is to be carried on only by qualified staff having got
required technical and professional requirements.
- The product is to be installed complying with rules in force about
computer-based closings.
- The device has been realised expressly to automate wing gates.
Any other employ is to be considered improper and therefore
forbidden.
- Always use original components.The manufacturer or supplier
doesn't take any responsibilityfor damages due to the use of unofficial
components.
- Before proceeding with set up, make sure the gate frame is solid
and fitted for the employ of the device.
- Before proceeding with set up, make sure that, during the gate
move, there are not friction points and that this one has no
possibilities to unhook from the pillar.
- Before acting on the device, check the power supply voltage is
disconnected.
- The equipment is not to be handled by children or incompetents.
- In case of lack of electric voltage, start the unblocking device to
manually open or close the gate.
- The maintenance of the device is to be executed but by qualified
staff authorized by the Manufacturer.
- Check the condition of the gate hinges any six months and lubricate
them when necessary.
Please read these instructions carefully before installing the
device as they contain important information concerning safety,
installation, use and maintenance.
- Use the device on respecting the technical limits described in the
following manual (see page 12).

-2-
ENGLISH

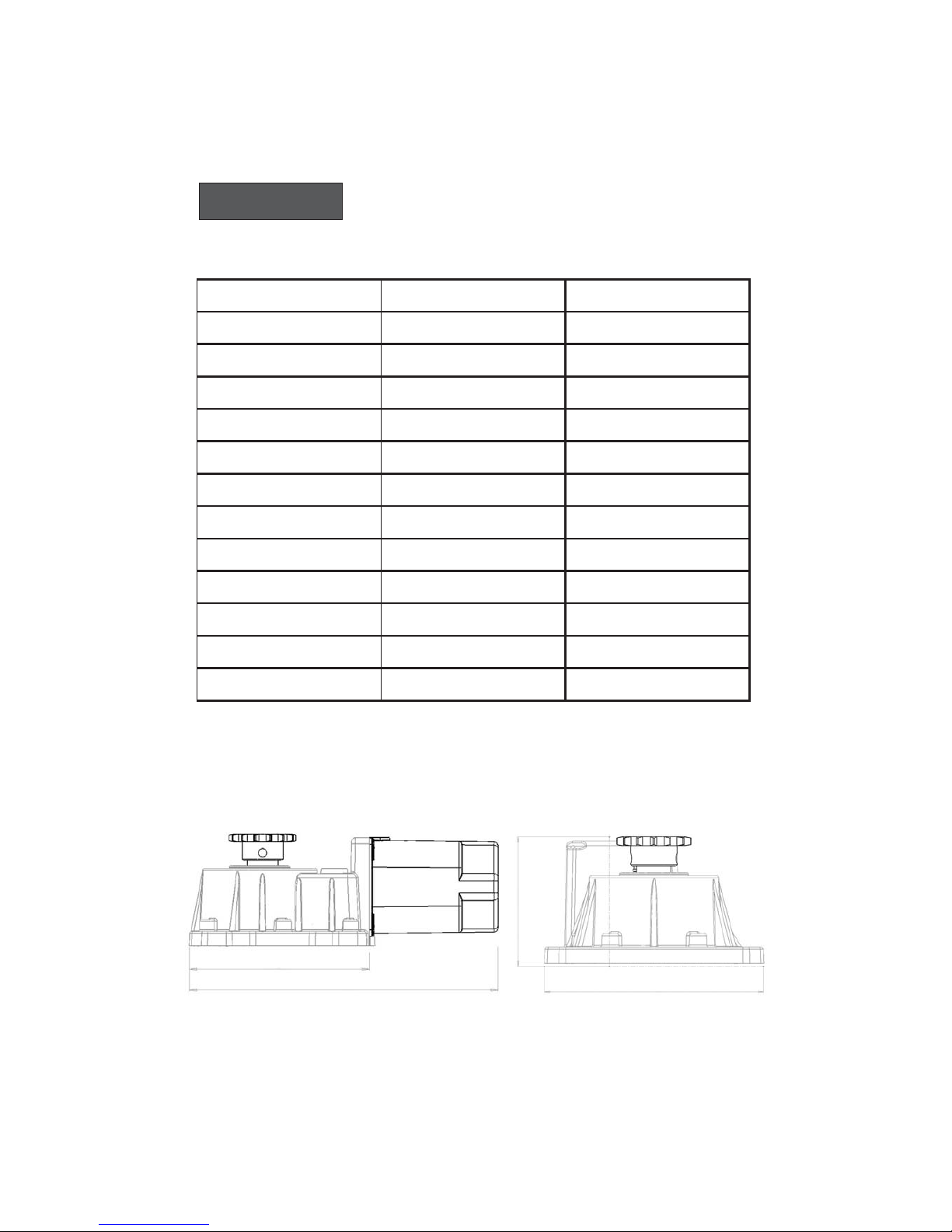

TECHNICAL CHARACTERISTICS
Gearmotor dimensions (mm)
TECHNICAL DATA STONE 180 STONE 24
Power supply 230 Vac - 50 Hz 24 Vdc
Nominal current 1,2 A 5,2 A
Electric power 1/3 HP 90 W
Maximum gate weight 350 Kg 250 Kg
Maximum gate length 2,5 mt 2,5 mt
Torque 330 Nm 270 Nm
Thermal protection 150 °C -
Operating temperature from -20 to +60°C from -20 to +60°C
Insulation degree IP67 IP67
Opening time 90° 15 Sec 15 Sec
Workingcycle 50% 90%
Weight 15 Kg 15 Kg
Fig.1
360
210,5
226
133,5

-3-
ENGLISH
Preliminary checks
Before installing STONE check the following points:
- Make sure that the device operates within its limits of employment
described in the technical characteristics table.
- Make sure that the gate structure is sturdy and that the wing moves
without frictions or other impediments.
- Make sure that the device is undamaged.
- Don’t install the product in explosive environments.

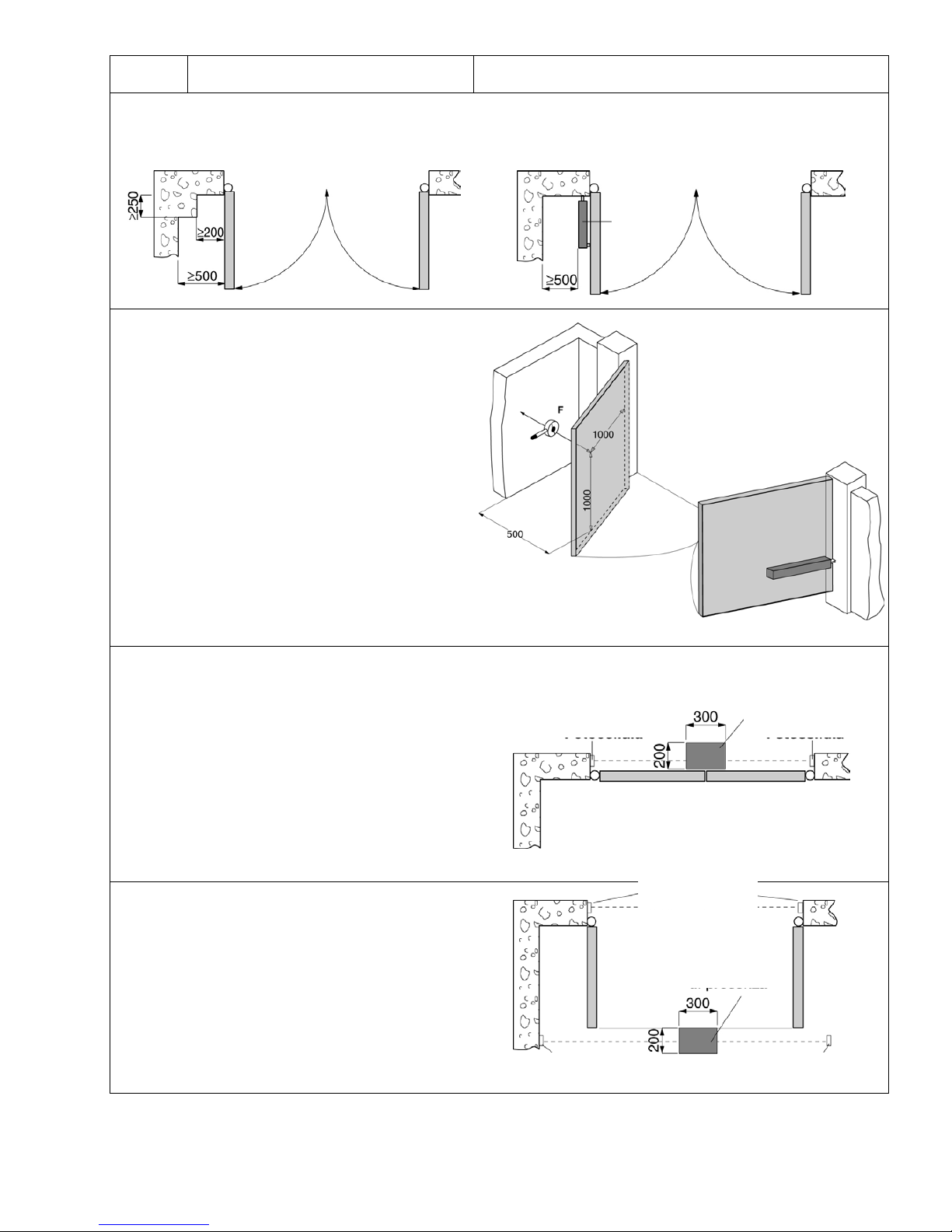

- Perform all the structural changes in order to ensure safety
distances and protect and segregate areas in which people may be
exposed to the risk of crushing, shearing, dragging or similar
dangers.
- Foresee a free area destined to the operations of maintenance and
unblocking.
- For anything not expressly specified in this handbook, follow the
norms in force.
- Each wing must have just one hinge, remove any extra ones.
- Don’t install the device on blank wing gates, functioning cannot be
guaranteed in the presence of strong wind.
- For complete safety, the mechanical stops with rubber cap (floor
stops) must be fitted in opening and closing of the wing. They
delimit the extreme points of opening and closing of the wing.
INSTALLATION

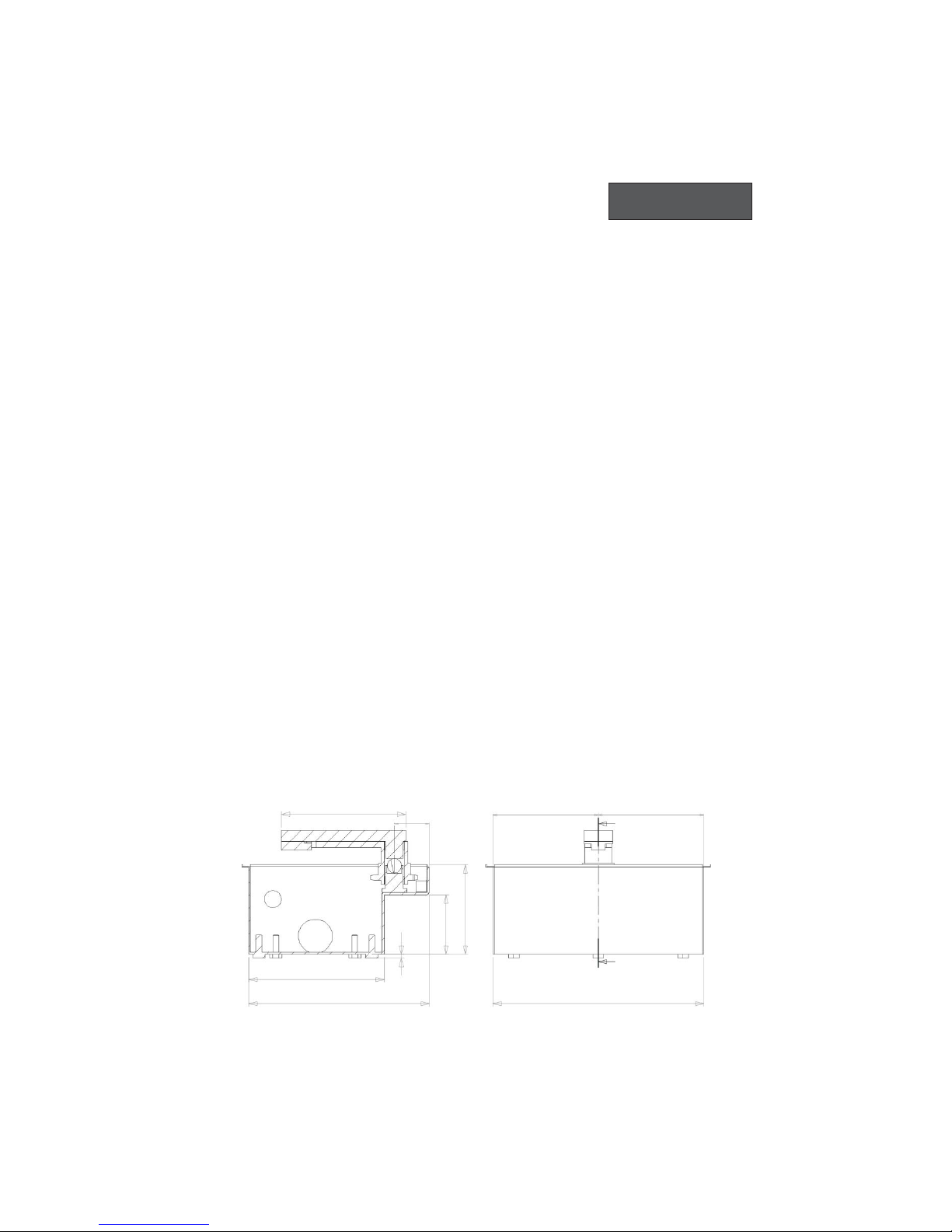

Fig.2
Foundation box dimensions (mm)
187 187
374
A
A
220
62
159
105
7
240
320

ENGLISH
Foundation box - Installation
- Dig a hole as per the measurements shown in fig.2. Foresee an
additional space for the pipes of water drainage and electric cables.
- Place the foundation box inside the hole so that the pin welded to
the box is aligned with the upper hinge of the gate (fig.3 and fig.4).
of water drainage- Insert the two pipes into the special holes fitted
on the box. Connect the pipes to a good canal of the rain
dispersion.
- Connect the tube of the electric cables into the special hole fitted on
the box, on the side of the wing opening.
- Cast the concrete inside the hole, making sure the box is level. It
must be 5 mm higher than the finished floor (cover thickness).
- Wait for the concrete has solidified.
-4-
Fig.3 Fig.4
Wing
Pillar

ENGLISH
Fig.5
Fig.6

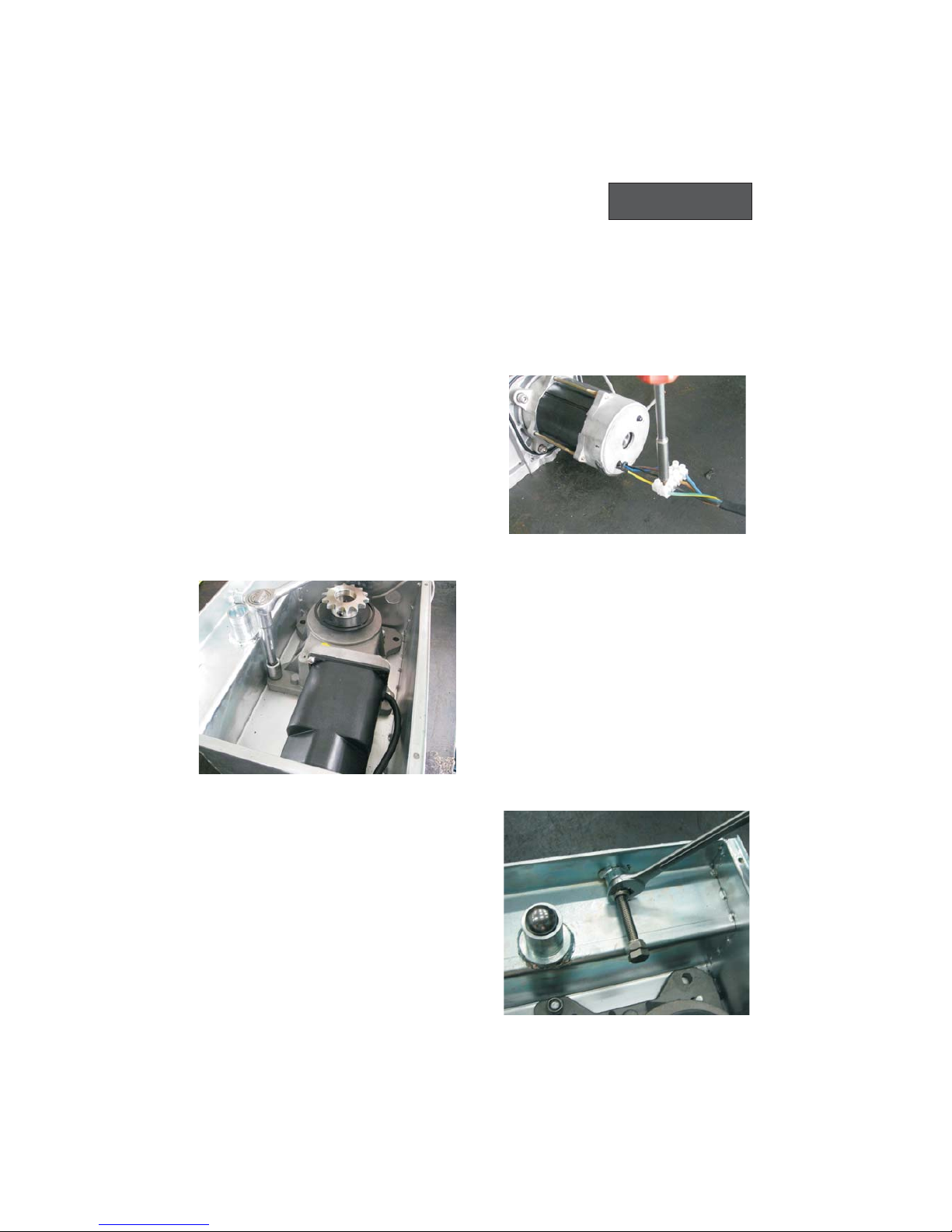

- Let to pass the motor's cable
coming from the installation
through the special cable gland
Pg9, fitted on the motor's cover.
- Connect the cable coming from
the installation to the motor's
cable piece by means of clamps
(fig.5).
- Tighten the cable gland Pg9 and
connect the motor's cover to the
gearbox by means of the four screws.
- Anchor the gearmotor to the tie rods
of the foundation box with the
supplied bolts (fig.6).

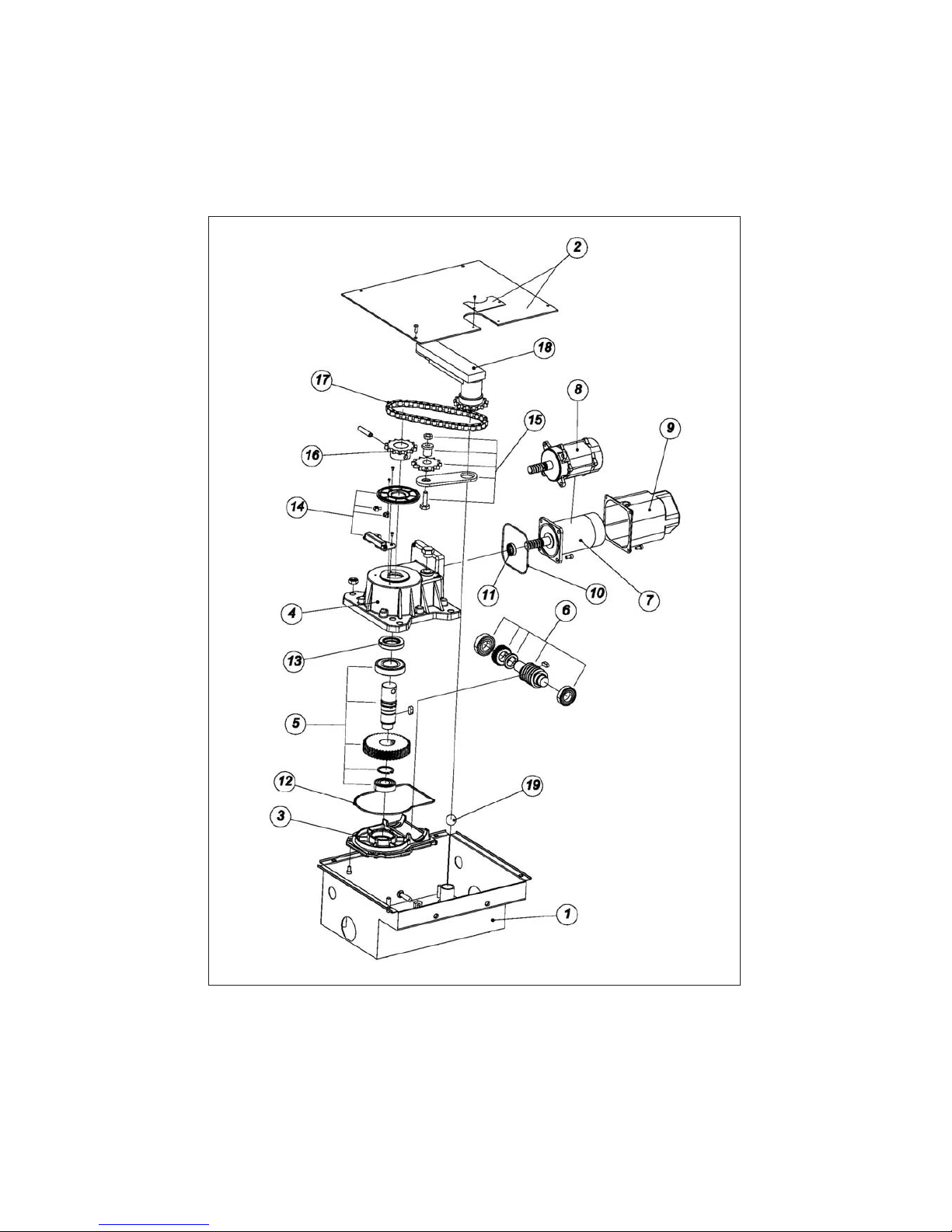

Gearmotor - assembly instructions
After positioning the foundation box, assemble all the other
components:
- Insert the screw of chain stretcher
in the special bolt welded on the
foundation box and aligned to the
gearbox shaft (fig.7).
Fig.7
-5-

-6-
ENGLISH
Fig. 9
Fig. 8
- Connect the chain stretcher group to the
foundation box pivot (fig. 8).
- Insert the metal ball in the foundation
box pivot (fig. 9).
Fig. 10
- Put the traction arm on the foundation
box pivot (fig.10).
Fig. 11
- Join the chain connecting the traction
arm to the gearmotor by means of the
supplied link (fig.11).
Fig. 12
- Adjust the screw of chain stretcher
so that the chain is sufficiently tense
(fig.12).

-7-
ITALIANOENGLISH
Limit switches set up
Warning : for complete safety, the mechanical stops with rubber
cap (floor stops) must be fitted in opening and closing of the
gate in order to define the extreme points of the run.
Step-by-Step
- Connect the cable coming from the installation to the Limit switches
cable piece by means of heat shrinkable tubing (total insulation).
- Make sure that the gearmotor isn’t unlocked.
- Set up the “ ” operation mode on the electronic card.
- Start the gate run. As soon as the gate reaches the complete
opening, stop the gate by means of the remote control.
- With a screwdriver, move the magnet of the opening Limit switch
until the LED on the control unit goes off (fig. 13).
- Start the gate closing. As soon as the gate reaches the complete
closing, stop the gate by means of the remote control.
- With a screwdriver, move the magnet of the closing Limit switch
until the LED on the control unit goes off (fig. 13).
Fig. 13 Fig. 14
Magnet Limit switches

-8-
ENGLISH

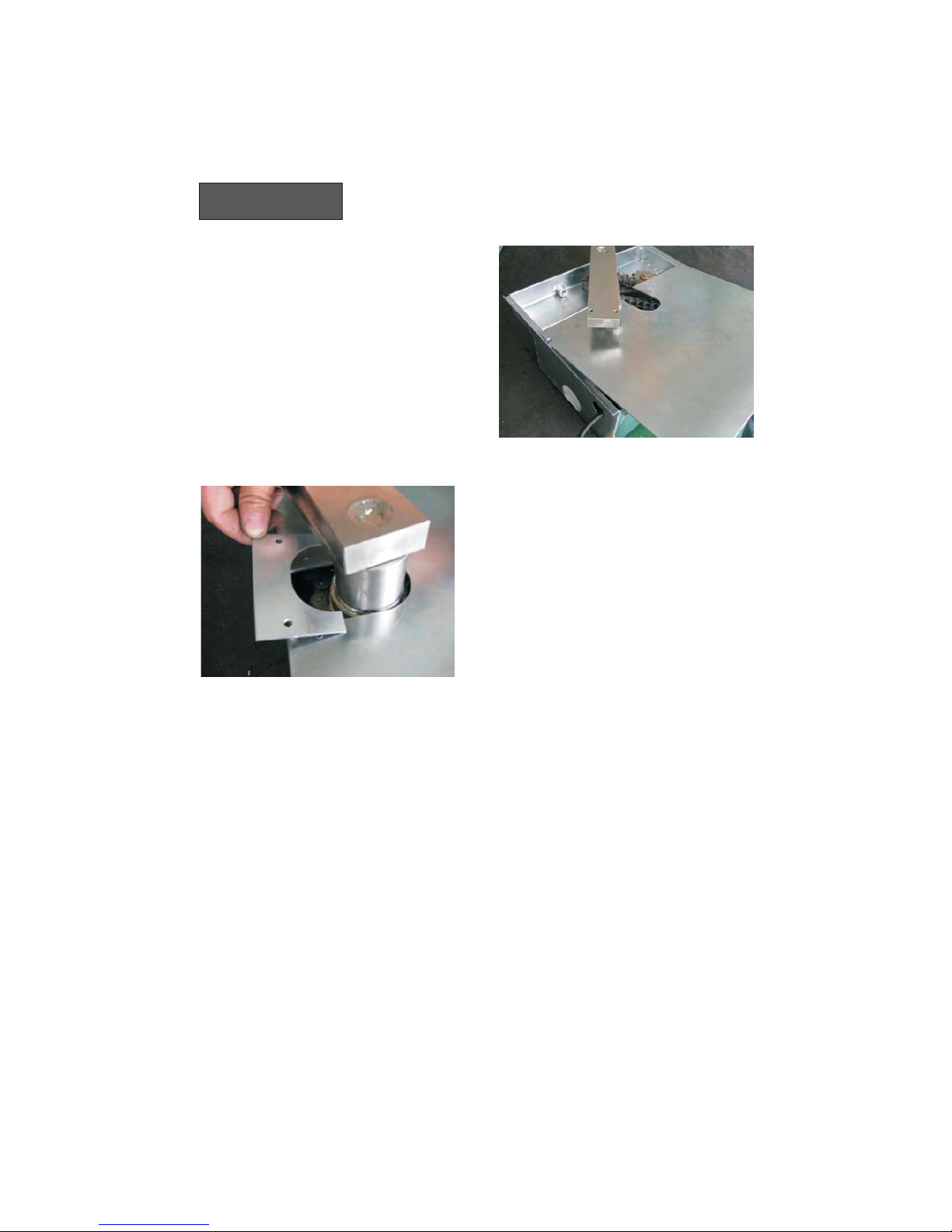

- Place the foundation box cover on
the base (fig.15).
Tighten the supplied screws in order
to fasten the cover.
Fig. 16
Fig. 15
- Place the “ ” plate on the cover.
Tighten the two supplied screws in
order to fasten the plate (fig.16).
U
ELECTRIC CONNECTIONS
Warnings
- The gearmotor must be connected but to a control unit
manufactured by the company LEB.
- All connection operations must be performed without electric
voltage.
Power supply cable
- From the electric motor comes out four wires (230Vac - )
or two wires (24Vdc - STONE 24).
- In the following table the data concerning the power supply cable,
required for the connection to the control unit, are reported.
STONE 180

ITALIANOENGLISH
-9-
STONE 180
Cable 4x1,5 mm Color STONE 24
Cable 2x1,5 mm Color
Common Blue Positive motor Red or Green
Motor OPEN Black Negative motor Black or Brown
Motor CLOSE Brown
Ground Yellow-Green
Capacitor connection
- In the gearmotor STONE180 connect the 12uF capacitor between the
black wire (Open) and the brown wire (Close) of the electric engine.
Limit switches cable
The device is equipped with two magnetic Limit switches. From the
Limit switches block three wires come out. In the following table the
data concerning the Limit switches cable, required for the connection
to the control board, are reported.
Manual unblocking
The manual unblocking causes the release of the device
from the wing, allowing the manual displacement of this one. It can be
used in case of electric voltage lack or of installation failure. The
unblocking is made through a key that is to be kept by user in a sure and
easily reachable place. In order to obtain the unblocking of the device,
proceed in the following way:
- Insert the socket spanner into the hole fitted on the traction arm (fig.17).
- Turn the socket spanner in the direction indicated in fig.17, then open the
wing of the gate by hand.
- To lock, bring the wing back to the hooking position with the traction arm.
- Turn the socket spanner in the opposite direction and simultaneously
push the wing to hook it.
Cable 3 x 1,5 mm Colour
Common Blue
Limit switch OPENING Black
Limit switch CLOSING Brown
