LeCavist TAS28VXBI User manual

www.lecavist.com
MODEL: TAS28VXBI
WINE COOLER

TABLE OF CONTENTS
Additional information on products, accessories,
warranty, replacement parts and services can be
found at www.lecavist.com
2
www.lecavist.com
5. Operation ................................................
6. Wine storage ...............................
7. Care and maintenance...............................
8. Troubleshooting guide...............................
9. Environmental tips .....................................
9.1 Disposal considerations
5.1 Start operation
5.2 Control panel
7.1 Cleaning
7.2 Power cut
7.3 Out of service for a long time
7.4 Moving the appliance
9.2 Disposing your old appliance
10. Warranty and After sales ........................
10.1 Warranty
10.2 After sales service
10.3 Replacement of spare parts
1. General Information ................................. 03 07
08
08
09
09
03
04
04
05
07
1.1 Appliance information
2. General Safety Instructions .......................
2.1 General safety information
2.2 Safety instruction - Installation
2.3 Correction use & Operation ........................
2.4 Disassembling and Disposal
of the Appliance
2.5 Accessories and Spare parts
3. Product description ..............................
4. Installation ..................................
CAUTION
WARNING PROHIBITION
This symbol means that the safe operation
of the product and the personal safety of the
operator are concerned, and that the operation
must be performed in strict compliance with
the requirements as specified.
This symbol means that the
operator must pay attention
to the information as described.
This symbol means that
the behavior as
described is not allowed.

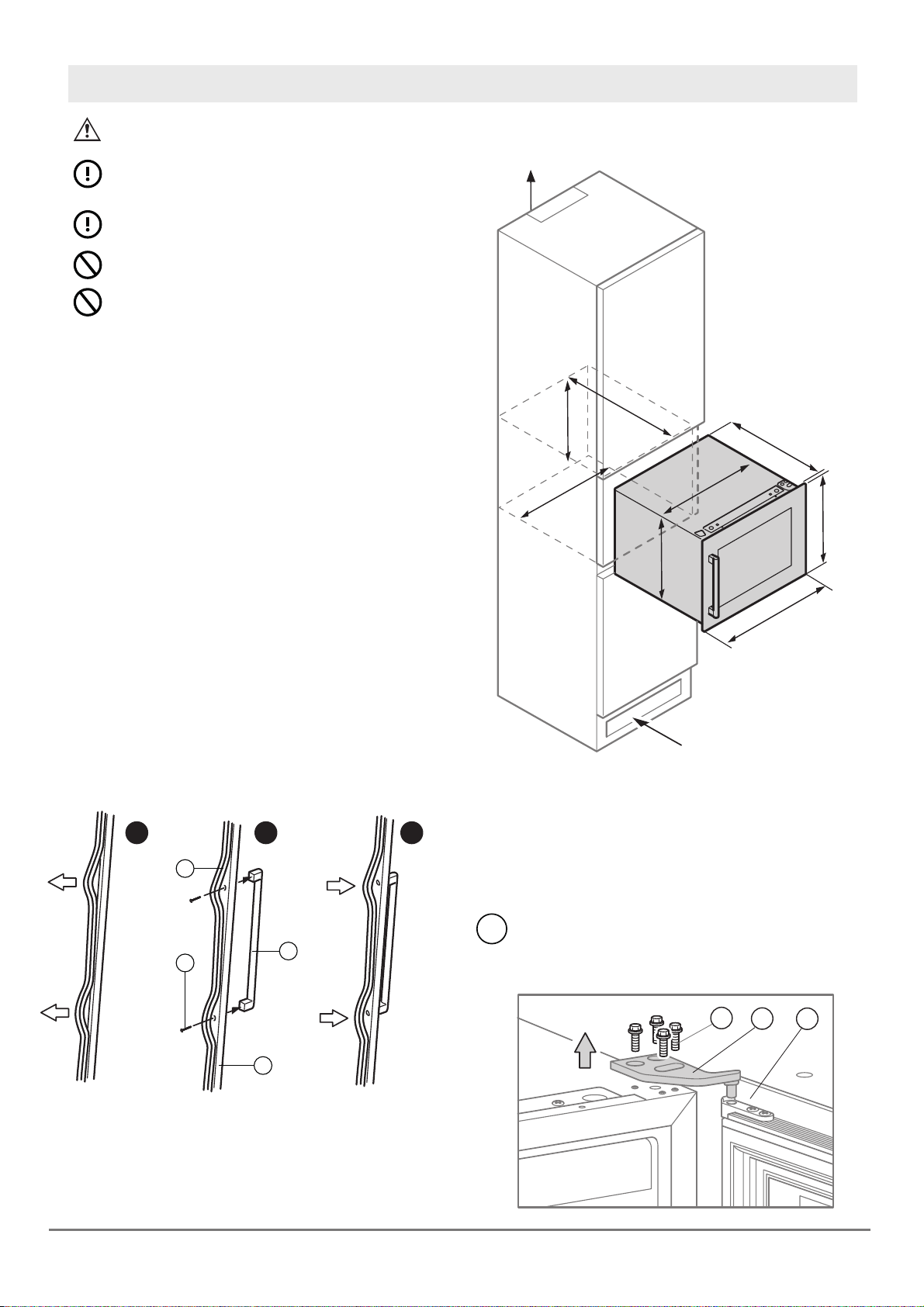

Installing the handle and reversing the
door swing
Correct Conditions of Use
The appliance is intended for use in the home and similar
environments only. It is not intended for commercial use.
The appliance is not suitable for outdoor use, non-stationary
installation.
Installation must comply with the valid standards,
regulations and laws. All safety and warning
information and the operating and installation
instructions must be complied with.
This wine cooler can be only used to store various types
of wines
Adherenceto the directions for use in this manual is
extremely important for health and safety. Failure to strictly
adhereto the requirements in this manual may result in
personal injury, property damage and affect your ability to
make a claim under the LeCavist manufacturer’s warranty
provided with your product. Products must be used,
installed and operated in accordance with this manual.
You may not be able to claim on the LeCavist
manufacturer’s warranty in the event that your product
fault is due to failure to adhere this manual.
CONGRATULATIONS
Congratulations and thank you for choosing
LeCavist for your wine storage solution.
This appliance complies with all relevant safety
requirements in Australia. Inappropriate use
can, however, lead to personal injury and
damage to property.
In order to operate the unit correctly and safely,
please read this instruction manual carefully
before installation and use. This user manual
which provides you with all required instructions
related to safety, installation, use and
maintenance of the appliance.
For future reference, please store this booklet in
a safe place and ensure that all users are familiar
with the contents. Pass them on to any future
owner of the appliance.
Record Model & Serial Number
Model:...........................................................................................
Serial Number ........................................................................
Register your product at www.lecavist.com

Cleaning & Maintenance
1. GENERAL INFORMATION
2. GENERAL SAFETY
A damaged appliance can be dangerous. If you find the
appliance is damaged or marked, you must report it within
7 days if you wish to claim for damage/marks under the
manufacturer’s warranty. This does not affect your statutory
rights. Do not use a damaged appliance.
The manufacturer's warranty will be invalidated if the
appliance is not repaired by a LeCavist approved service
technician.
Faulty components must only be replaced by genuine
LeCavist spare parts. The manufacturer can only guarantee
the safety of the appliance when LeCavist replacement
parts are used.
If the power cord is damaged, it must only be replaced by a
LeCavist
LeCavist
authorised service technician or suitably qualified
electrician in order to avoid a hazard.
ac nnot be held liable for non- compliance with
these instructions, resulting from incorrect or improper use
or operation.
1.1 Appliance Information
Unauthorised Modifications
Unauthorised modifications can cause the appliance to
pose risks. Do not conduct any modifications to the
appliance.
The device must be cleaned regularly. Dirt can lead to
damage or the build up of odours.
Always clean the appliance exactly as indicated in
the operating instructions.
Always ensure the appliance is switched off before
cleaning or replacing parts.
There is a risk of fire if cleaning is not carried out as
described in these operating instructions.
Make sure no water penetrates inside the device when
cleaning. Do not use a steam cleaning appliance to
clean this appliance. The steam could reach electrical
components and cause a short circuit.
In areas which may be subject to infestation by
cockroaches or other vermin, pay particular attention to
keeping the machine and its surroundings in a clean
condition at all times. Any damage which may be
caused by cockroaches or other vermin will not be
covered by the machine warranty.
2.1 General Safety Instructions
Children and People with Special Needs
2.2 Safety Instructions - Installation
The appliance is NOT suitable for use by children
without supervision.
Young children should be supervised near the appliance
to ensure they do not play with this appliance.
Children may be able to wrap themselves in packing
material or pull it over their heads with the risk of
suffocation. Keep children away from any packing
material.
In order to avoid any potential hazard, the installation
instructions must be followed.
Observe all regional regulations for the installation of
ventilation systems.
During installation, maintenance and repair work, the
appliance must be disconnected from the mains
electricity supply. It is only completely isolated from the
electricity supply when:
– the mains circuit breaker is switched off, or
– it is switched off at the wall socket and the plug is
withdrawn from the socket.
Do not pull the mains connection cable but the mains
plug to disconnect your appliance from the mains
electricity supply.
Do not connect the appliance to the mains electricity
supply by a multi-socket unit or an extension lead.
3
The appliance complies with the stipulated safety
requirements in Australia. The user is responsible for
appliance cleaning and maintenance as well as its safe
use. Improper use can lead to personal injury and
damage to property.
This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabi-
lities, or lack of experience and knowledge, unless they have
been given supervision or instruction concerning use of the
appliance by a person responsible for their safety.
Extension leads are a fire hazard and do not guarantee
the required safety of the appliance.
Tampering with electrical connections or components
and mechanical parts is highly dangerous to the user
and can cause operational faults. Only open the housing
as described in the instructions given in “Installation”
section of this booklet. Under no circumstances should
any other parts of the housing be opened.
Do not use mechanical devices or other means to
accelerate the defrosting process, other than those
recommended by the manufacturer.
Do not damage the refrigerant circuit.
After the wine cooler is installed in place, the plug shall
be easily accessible to facilitate the removal of the cooler
plug in case of any accident.
INSTRUCTIONS
www.lecavist.com
THIS APPLIANCE MUST BE PROPERLY EARTHED. It is
most important that this basic safety requirement is
present and tested regularly and, where there is any
doubt, the household wiring system should be inspected
by a qualified electrician.
LeCavist cannot be held liable for noncompliance with
these instructions, resulting from incorrect or improper
use or operation.

4
www.lecavist.com
3.1 Technical data sheet 3.2 Accessories and name
3. PRODUCT DESCRIPTION
Product model
Voltage/frequency
Refrigerant/weight
Effective volume
Loading capacity
Net weight
Unit dimension (WxDxH)
Packing dimension (WxDxH)
TAS28VXBI
220-240VAC, 50Hz
R600a/18g
62 L
28 bottles
26.6kg
590×563×455mm
650×650×515mm
5
91
1
2
3
4
5

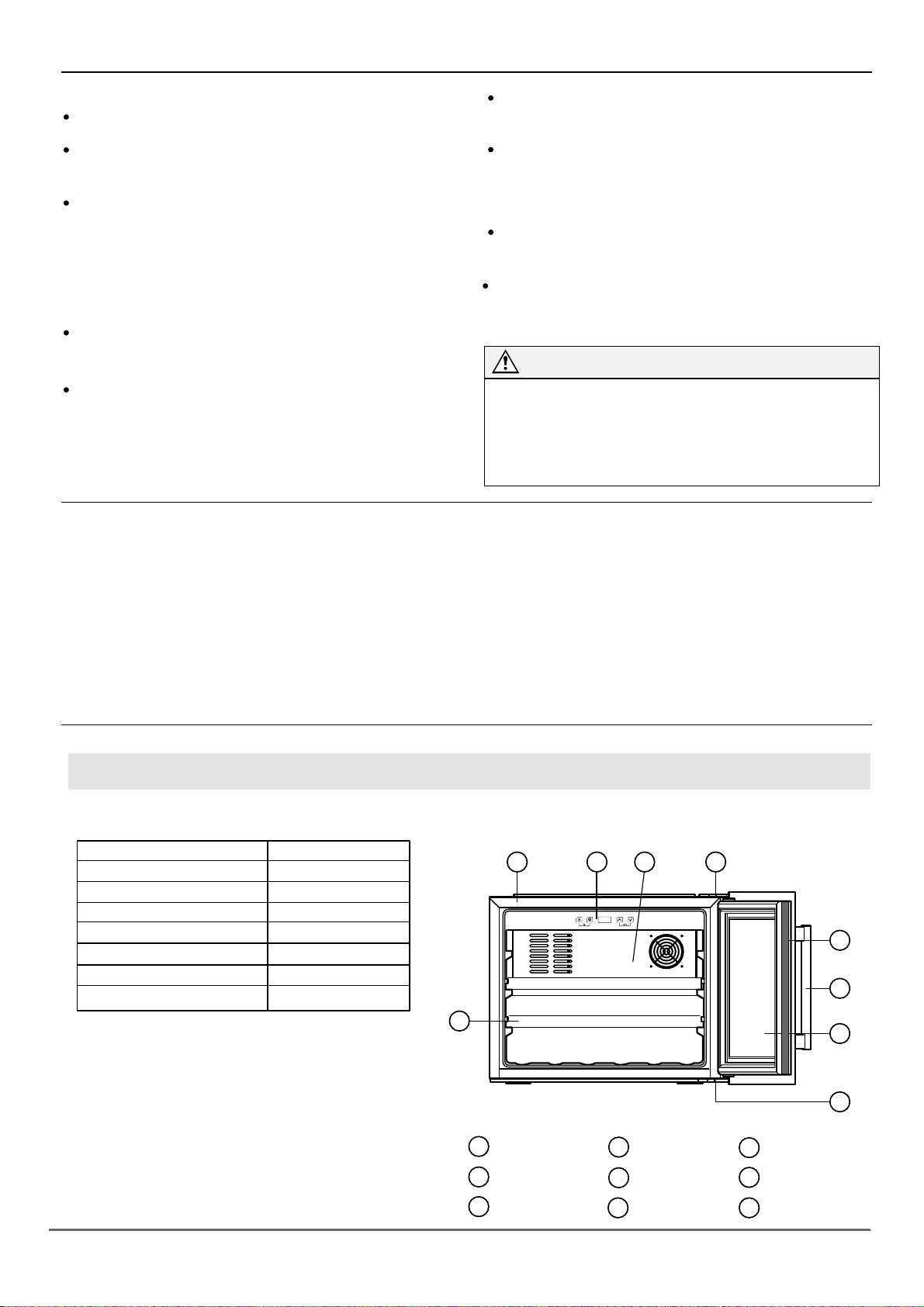

Housing
Remarks：
1. The net weight includes the shelves, and the unit
dimension is without the door’s handle.
2. The manufacturer reserves all the rights to change the
above parameters without prior notice. Please refer to
the nameplate of your appliance.
3. Loading capacity depends on the arrangement
and sizes of the bottles.
(standard Bordeaux with 750ml is applied here).
Control panel
Shelf
Cover board
Lower hinge
Door
Handle
Door seal
Upper hinge
6
7
8
9
3
42
6
7
8
2.3 Correct use and Operation
For safety reasons, this appliance may only be used after
it has been installed.
Reliable and safe operation of this appliance can only be
assured if it has been connected to the main electricity
supply.
Before using the appliance, ensure that all packaging
materials are removed from the appliance and make
sure that the connection data on the data plate [voltage
(V) and frequency (Hz)] indicated on the appliance
corresponds to the voltage and frequency of the power
supply in your household. Consult a qualified electrician
if in doubt.
D
Cracks, fissures or fractures in the panels
Prevent water ingress. Never sprinkle or flush the cooler
using water, place the cooler in an area exposed to
moisture water sprinkling, or fill the cooler
with water, so as to avoid impairment of the electric
insulation of the cooler. Furthermore, failing to follow
such requirements may lead to electric shock and fire,
or other accidents.
After the cooler is put into operation, never touch its inner
surface, especially when your hand is wet; otherwise
the skin may stick onto the inner surface to get injured.
can damage the underlying electronics. Switch off and
disconnect the appliance immediately.
O NOT store or spray flammable materials in the
appliance or near this appliance while it is in operation
(e.g. aerosols). WARNING
Regularly clean surfaces that can come in contact with
food and accessible drainage systems. If the refrigerating
appliance is left empty for long periods, switch off,
clean, dry, and leave the door open to prevent mould
developing within the appliance.
Opening the door for long periods can cause a significant
increase of the temperature in the compartments of the
appliance.
The refrigerant isobutane (R600a) is contained within the
refrigerant circuit of the appliance, a natural gas with a
high level of environmental compatibility, which is
nevertheless flammable. During transportation and
installation of the appliance, ensure that none of the
components of the refrigerant circuit becomes damaged.
2.4 Disassembling and Disposal of the
Appliance
2.5 Accessories and Spare parts
(see the “Environmental Tips” section for best practices on
disposing of this appliance).
The device must only be disassembled by trained
specialists who are familiar with and comply with the
standard national regulations and supplementary
regulations of the local utility companies.
Work on electrical components must only be conducted by
trained electrical personnel.
Incorrect components can lead to personal injury or
damage to the appliance. Only use original Lecavist
Lecavist
spare
parts for repairs.
Modifications, additions or alterations to the appliance
can lead to safety risks. If spare parts or accessories from
other manufacturers are used, the warranty will be
invalidated, and cannot accept liability.
Please check www.lecavist.com for more information.

www.lecavist.com
4. INSTALLATION
Installing the handle
Reversing the door Swing
5
Do not lean the appliance over 45° when
moving it to position.
The appliance must be put on flat, firm &
dry floor or similar noncombustible pad;
do not use the package foam pad.
Do not use the appliance in the frozen place.
Do not use the appliance outdoor in case
of sunlight or rain.
The appliance is designed to be fully build into the cabinet.
Demonstration for building into the cabinet:
Attach the handle to the door frame.
The handle is delivered in a separated
package with screws together inside the box.
①Reveal two small holes on the door
frame from the inner side by gently
pulling out the door seal, enough
for the screw to be inserted.
②Aim the handle to the holes and
insert the screws from inside.
③
Screw them up with screw-driver.
Put back door seal to cover the screws.
Do not put the appliance in the wet place.
Our wine cooler is delivered with the door opening
from left to right. To reverse the opening direction.
Open the door at 90 degrees and keep it steady.
Loosen the M5x16screws ②, remove the right
upper hinge ③, and remove the door.[Figure 1].
1
1
4
3
2
Note 1: Shelves, door frame, handle and other accessories
could be different according to different models and
configuration. All photos in this manual are for reference.
The appliance you buy might not be exactly the same
as shown here. Please refer to the actual product.
Note 2: You can start storing wine bottles after operating
an hour or when you feel cooling inside.
min. 200cm2
min. 200cm2
1 2 3
455
590
18
545
545
446
450
560-
568
550-560
234

www.lecavist.com
cont. installation
6
Loosen the M5x16 screws②, remove the right
lower hinge ⑤.[Figure 2]
Remove the hinge cover
(from the left side)
(on the right side)
①.[Figure 3]
Attach the hinge cover
①.[Figure 4]
Turn the door ④180 degrees, and insert the right
lower hinge
⑤, screw tight M5x16 screws ②.
[Figure 6]Door reversing is finished.
Install the right upper hinge ③, and screw
tight the M5x16 screws
②.[Figure 5]
Bracket installation
23
45
6
The appliance is equipped with a pair of brackets at the top
(②)
and at the bottom. This pair of brackets might not necessary
depending on your installation situation when attaching your
appliance in a closet. If the opening of the closet is bigger than
the appliance, you could fix 4 screws (①), ST4x13)
(packed separately in a plastic bag) into the inner wood plate of closet.
In this way, the appliance will be built-in and fixed tight with your closet.
Note:
LeCavist does not hold responsibility for any
damages to the door or other parts during
operation if the end-user does not follow this
instruction in installing the appliance.
1
1
2 5 4
4 3 2
254
2
1
1
2
2
1
1

www.lecavist.com

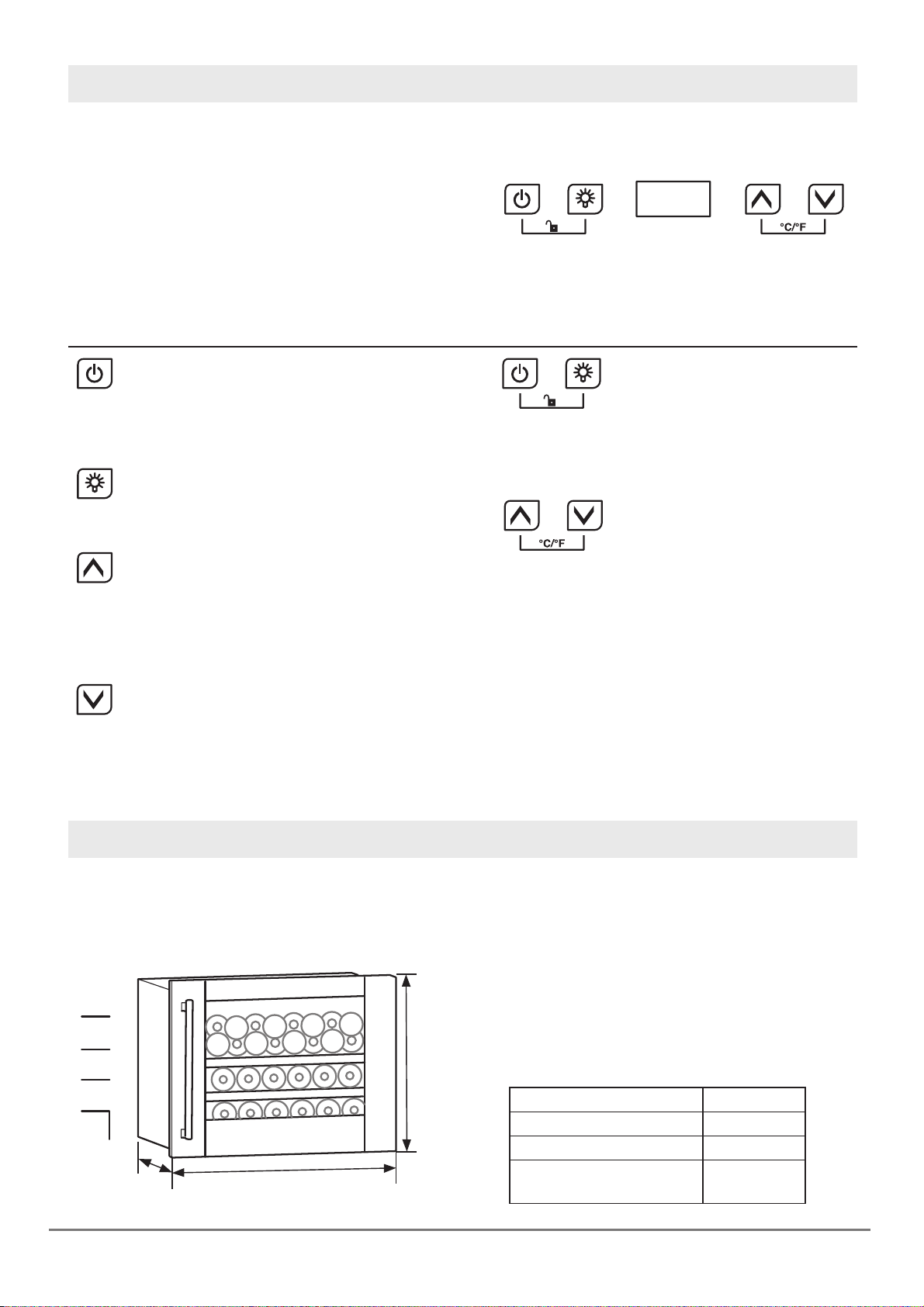

5. OPERATION
6. WINE STORAGE
5.1 Start operation 5.2 Control panel
7
1. Cleaning the compartment
2. Placement
Before turning the power for the first time,
keep it static at least for at least 30minutes.
3. Power on
When the appliance starts operation, it should start to cool down
after an hour, If not please check the power connection.
All keys won’t be active if in lock mode. Please unlock first.
1. Keep pressing the key for 3 seconds, power goes down,
then to stand-by mode.
2. Keep pressing the key again for 3 seconds to return
back to normal operation.
> The appliance is equip with independent shelf to allow your
collection of wine get mature quietly and peacefully.
> 1+1 been wooden shelves loading capacity: 28 bottles.
(standard Bordeaux with 750ml )
> Loading capacity will vary in terms of different way of
bottle arrangement or different bottle sizes.
> Each shelf is designed to put on 1 or 2 layers of wine
bottles. More than 2 layers of bottle arrangement on
one shelf are not recommended.
> Each shelf pulls out partly to store wine bottles easily.
> Open the door wide enough before pulling out shelves.
> If the wine cooler would have no load for a long time,
it is recommended to power it off, clean it carefully, and
open the door for ventilation.
> Below table is the recommended temperature for
wine storing & drinking:
Press the light key to turn ON / OFF the LED lights inside.
In stand-by mode, the key is inactive.
ON/ OFF
DOWN
1、Lock: Press both keys at the same time for 3 seconds
to lock.
2、Unlock: Press both keys at the same time for 3 seconds
to unlock.
Child Lock（Combination key）
Switch temperature display between Fahrenheit and Celsius
by pressing both keys
Attention:
1. The cooling temperature could be set from 5 to 20°C.
2. Alarm sound: when a system malfunction occurs and
the alarm sounds, press any key on the control panel to
cancel the alarm sound.
3. Error codes:
When the upper zone temperature sensor fails,
error code displays:
E1 for open circuit; E2 for short circuit.
When the defrost sensor failure occurs,
error code displays:
E3 for open circuit; E4 for short circuit.
Fahrenheit/Celsius display interchange
LIGHT
Press the UP key once, LED Display in regular flash shows
current set temperature. Continue pressing to adjust
the temperature, 1 press is an increase of 1ºC. Stop and set
required temperature. Flashing stops 5seconds after your
last press. Actual temperature is displayed on LED display.
Press the DOWN key once, LED Display in regular flash
shows current set temperature. Continue pressing to adjust
the temperature, 1 press is a decrease of 1ºC. Stop and set
required temperature. Flashing stops 5seconds after your
last press. Actual temperature is displayed on LED display.
UP
Red wine
White wine
Rose wine
Champagne and
sparkling wine
15-18°C
9-14°C
10-11°C
5-8°C
590
563
16
6
6
28
455
Before powering on, clean the inside of the appliance
and check the drainage pipe if properly connected.
See “care and maintenance”

8
7. CARE AND MAINTENANCE
8. TROUBLESHOOTING GUIDE
Disconnect the appliance before cleaning.
Clean the appliance with soft clothor sponge by water.
Do not use organic solvents, alkaline detergent,
boiling water, washing powder oracid liquid etc.
Do not flush the compartment ofthe appliance.
Clean regularly surfaces that can come in contact
with accessible drainage systems.
7.1 Cleaning
Most power cuts could be resolved within a short time.
To protect yourwines during a power cut, avoid
opening the dooras much aspossible. During very
long power cuts, take the necessary measures to protect
yourwine.
7.2 Power failure
Remove all bottles from the appliance, switch off,
defrost, clean, dry, and leave the dooropen to prevent
mould developing within the appliance.
If the appliance is disconnected or if there is a power
cut, you must wait at least five minutes before re-starting.
7.3 Out of service for long time
Cut off the power supply and unplug the appliance.
Remove all bottles from the appliance.
When moving the appliance, do not lean the
appliance over 45°.
Within 45°
7.4 Moving the appliance
You can solve many common Wine Cooler problems easily, saving you the cost ofa possible service call.
Try the suggestions below to see if you can solve the problem before calling the servicer.
- Please adjust the front foot, keep the appliance leveled.
- Please adjust the front foot, keep the appliance leveled.
- Please keep the appliance enough distance from the walls.
Liquid flowing
inside the cabinet.
- It is normal because of the
refrigerant working inside.
Compressor runs
continuously.
- If appliance is not cooling down call the after-sale service.
1. Heat the door seal with ot-wind blower or hot towel.
2. The door seal get softened and close the door.
www.lecavist.com
- A little plastic smell for a newly
bought appliance is normal
and will dissipate in a short time.
- Clean the compartment and ventilate it for a few hours.
- Please do not open the door frequently or for a long time.
- Please do not set the temperature too low.
- High ambient temperature and
humidity can cause condensation.
Unpleasant smells
inside cabinet.
Condensation on
the glass door.
The light is not
working.
Alkaline
detergent
Organic
solvent
Boiling
water
Brushes
PROBLEM POSSIBLE CAUSE POSSIBLE SOLUTION
The appliance
does start.
-Not plugged in / Turned OFF.
-Tripped breaker/ Blown fuse
-Tripped circuit breaker/ Blown fuse
- Make sure to turn the power On, or re-plugged
the appliance.
- Compressor restarts in 5minutes after a power failure.
-Turn it On, or re-plugged the appliance.
-Check circuit breaker and fuse if working.
-Check and press the light button.
-Reset temperature, wait a few minutes.
Environment and weather may require a higher setting.
-Check the door for damages. Replace door seal.
- Do not open the door too often.
Temperature is
not cold enough.
-Temperature not set correctly.
-The door is opened too often/
or not properly closed.
-Damage or loose door seal.
-Not plugged in/ Turned OFF.
-The light button is “OFF”.
Making too much
noise.
The door does
not close
properly.
-The Wine Cooler is not leveled.
-The Wine Cooler is not leveled.
- Dirty door seal is distorted, stiff
or loose.

9
9.2 Disposing of your old appliance
9. ENVIRONMENTAL TIPS
10. WARRANTY & AFTER SALES SERVICE
The transport and protective packaging has been selected
from materials which are environmentally friendly for
disposal, and can normally be recycled.
Recycling the packaging reduces the use of raw materials
in the manufacturing process and also reduces the
amount of waste in landfill sites. Ensure that any plastic
wrappings, bags etc. are disposed of safely and kept out
of the reach of babies and young children. Danger of
suffocation.
Observe all safety and warning information during
operation (see the “General Safety Instructions” section).
Observe all safety and warning information during
operation (see the “General Safety Instructions” section). Model:…………………………………………………………
Serial Number:.………………………………………………
Register your product www.lecavist.com
In the event of a fault which you cannot remedy yourself,
please contact LeCavist.
Electrical devices marked with this label may not be
disposed of in domestic waste at the end of their service
life.
Electrical and electronic appliances often contain valuable
materials. They also contain specific materials, compounds
and components, which were essential for their correct
function and safety. These could be hazardous to human
health and to the environment if disposed of with your
domestic waste or if handled incorrectly. Please do not,
therefore, dispose of your old appliance with your
household waste.
Please dispose of those materials by contacting your local
authorities and ask for the correct method of disposal.
Please ensure that your old appliance poses no risk to
children while being stored prior to disposal.
By disposing of this product in accordance with the
regulations, you protect the environment and the health of
those around you from negative consequences.
9.1 Disposal considerations
10.1 Warranty 10.3 Replacement of spare parts
10.2 After sales service
Record model & serial number
www.lecavist.com
Incorrect components can lead to personal injury or
damage to the appliance. Use only genuine original
Lecavist spare parts.
Modifications, additions or alterations to the appliance
can lead to safety risks. If spare parts or accessories from
other manufacturers are used, the warranty will be
invalidated, and Lecavist cannot accept liability.
Please check www.lecavist.com for more information.
The manufacturer’s warranty for this appliance is 2 years.
The contact details for LeCavist
LeCavist
are given at the beginning
and end of these instructions.
When contacting , please quote the model and
serial number of your appliance. These can be found on
the data plate at the back of the Wine Cooler.

LIKE TO
KNOW MORE?
For further information on all LeCavist products,
or to obtain detailed dimension and installation
information, phone or email our Customer Care
team or visit our website:
Operating and installation instructions: Original √ Translation
Osass Australia Pty Ltd.
ACN 005 635 398
ABN 96 005 635 398
www.lecavist.com
The distribution and duplication of this document, as well as the use and disclosure of its contents
are prohibited unless expressly authorised.
These operating and installation instructions have been drawn up with the greatest of care. But it
cannot be ruled out that subsequent technical modifications have not yet been incorporated or
the relevant content has not yet been adapted. Please accept our apologies in this eventuality. An
updated version can be requested from our team. Subject to printing errors and mistakes.
© LeCavist
All rights reserved.
