Electronique du Mazet Acriv'Press User manual

Page 1 on 19 27/07/2022
MEG017XN111-A0
User Manual
PRESSOTHERAPY device

Page 2 on 19 27/07/2022
MEG017XN111-A0
Instructions for use
&
Technical description
Please read these instructions carefully before using
your new device!
This manual is an integral part of the equipment and
must be kept until it is destroyed.
If you have a problem or do not understand this manual,
please contact your distributor (see stamp on the last page) or
contact Électronique du Mazet at :
Tel: [phone] - Fax: [phone]
Please return the warranty certificate on the last page of this
manual within 15 days of installation or receipt.

Page 3 on 19 27/07/2022
MEG017XN111-A0
1Presentation of the device
The device is intended for use in the following applications:
Treatment of the lower and upper limbs by applying a compressive movement to the
tissue.
The computerised technology used in the device allows for ease of use and easy
navigation through the menus.
The programs, predefined in the device, allow to perform most of the pneumatic
drainage techniques such as :
Wellness: Relaxation
water retention problems "Heavy legs"
Recovery after exercise
For all these programmes, the parameters can be modified as follows:
-Exerted pressure (mmHg)
-Duration of treatment
-Treated area
These settings can be changed and saved via the tablet application.
The device allows the choice between 2 operating modes:
-Access according to preset, but changeable and recordable
parameters
This option allows for ease of use and provides a guarantee of safety
for the user.
-Access via a tablet application to a personalised database where all
parameters can be modified and saved.
This option allows the programme to be adapted to a particular need.

Page 4 on 19 27/07/2022
MEG017XN111-A0
Table of Contents :
1Introduction to the device...................................................................................................3
2Description and technical information...............................................................................5
2.1 Symbols used...............................................................................................................6
2.2 Technical characteristics..............................................................................................7
2.2.1 General characteristics.................................................................................................................... 7
2.2.2 Technical characteristics ................................................................................................................. 7
2.2.3 Accessories...................................................................................................................................... 8
2.3 Nameplate label...........................................................................................................8
2.3.1 Device type label ............................................................................................................................. 8
2.3.2 Nameplate accessories.................................................................................................................... 9
3Warnings ..........................................................................................................................10
4Precautions .......................................................................................................................11
4.1 Residual risks.............................................................................................................11
4.1.1 Mains failure ................................................................................................................................. 11
4.1.2 Treated areas ................................................................................................................................ 11
5Installation of the appliance .............................................................................................11
5.1 Functions and connections of the device :.................................................................12
6User's Manual...................................................................................................................12
6.1 Handling the device...................................................................................................12
6.1.1 Powering up / starting up.............................................................................................................. 12
6.1.2 Stand-alone mode of operation.................................................................................................... 12
6.1.3 Operating mode with Activ'PRESS application.............................................................................. 13
6.2 Contraindications.......................................................................................................13
7Maintenance, servicing.....................................................................................................13
7.1 Enclosure...................................................................................................................13
7.2 Accessories................................................................................................................14
7.3 Sterilisation :..............................................................................................................14
8Malfunction......................................................................................................................14
9After-sales service and warranty......................................................................................15
10 Disposal............................................................................................................................16
10.1 Accessories ............................................................................................................16
10.2 Electronics..............................................................................................................16
11 Transport and storage.......................................................................................................16
12 Manufacturer....................................................................................................................17
13 Guarantee certificate ........................................................................................................19

Page 5 on 19 27/07/2022
MEG017XN111-A0
2Description and technical information
-This user and maintenance manual is published to help you get to grips with your
appliance from the initial reception phase, through commissioning, to the subsequent
stages of use and maintenance.
If you have any difficulty in understanding this manual, contact the manufacturer,
Électronique du Mazet, your dealer or distributor.
-This document must be kept in a safe place, protected from atmospheric agents,
where it cannot be damaged.
This document guarantees that the devices and their documentation are technically
up-to-date at the time of marketing. However, we reserve the right to make changes
to the device and its documentation without any obligation to update these documents.
-In the case of transfer of the device to a third party, it is obligatory to inform
Électronique du Mazet of the details of the new owner of the device. It is imperative
to provide the new owner with all documents, accessories and packaging relating to
the appliance.

Page 6 on 19 27/07/2022
MEG017XN111-A0
2.1 Symbols used
Warning: this logo draws your attention to a specific point
Operating instructions: this logo informs you that the operating
instructions must be read for safe use of the appliance
Type B applied part: applied part in contact with the patient and
which can be connected to earth.
Recycling: This appliance should be disposed of at an appropriate
collection and recycling facility. Consult the manufacturer.
Protective earth
Fuse
Caution: Switching the appliance off and on
Alternating current
Serial number
Manufacturer
Date of manufacture
Country of manufacture
Product reference
CE marking (Conformité Européenne)
Non-ionising electromagnetic radiation

Page 7 on 19 27/07/2022
MEG017XN111-A0
2.2 Technical specifications
2.2.1 General characteristics
•Operating temperature: 0°C to 40°C.
•Storage temperature: -40°C to 70°C.
•Operating relative humidity: 30% to 75%.
•Operating altitude: < 2000 metres
2.2.2 Technical data
•Housing dimensions: 320 x 305 x 116 mm
•Housing weight: .4,5 Kg.
•Case colour: White.
•Power supply: 110-230VAC - 50/60Hz
•Power consumption: 50VA (230VAC)
•Fuses: 2x size 5x20mm - T3.15A-250V.
•Class I electrical equipment.
•Power on indication: Green light and logo illumination.
•Type B applied part

Page 8 on 19 27/07/2022
MEG017XN111-A0
2.2.3 Accessories
This device is delivered with the following accessories as standard:
A pair of pressure therapy boots and a set of 10 hygiene girdles.
The use of accessories not recommended by the manufacturer does not engage his
responsibility
Indicate essential accessories (e.g. hygiene sheaths, disinfectants etc. ....)
The following accessories can be purchased separately:
- Sleeve for upper limb treatment
- Belt for abdominal treatment.
- Cap to use only one accessory.
2.3 Nameplate label
The information and characteristics are given on the back of each appliance on a
label.
2.3.1 Device nameplate

Page 9 on 19 27/07/2022
MEG017XN111-A0

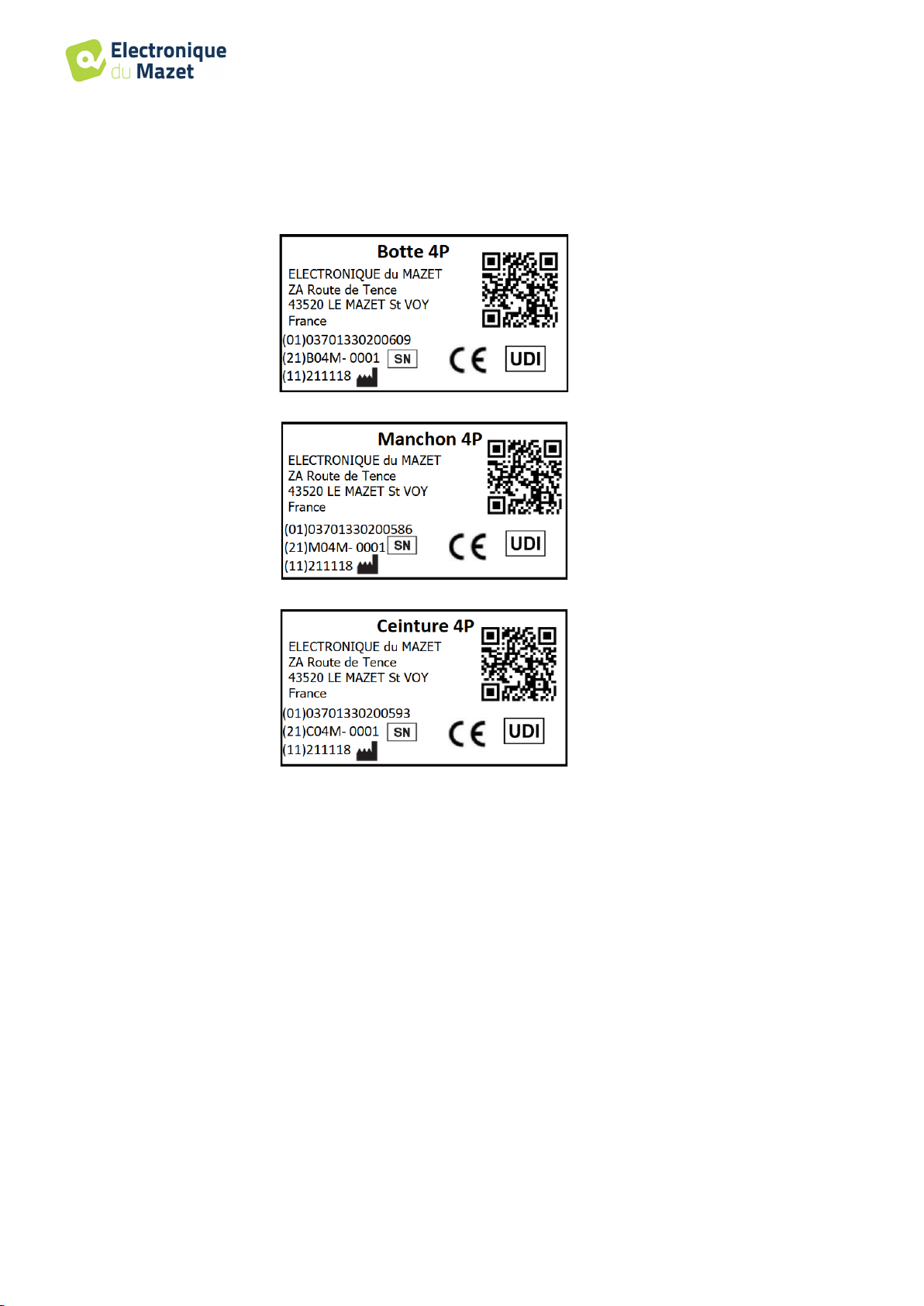

2.3.2 Accessory nameplate label

Page 10 on 19 27/07/2022
MEG017XN111-A0
3Warnings
CAUTION: Install the appliance on a flat, stable surface . Do not block
the rear ventilation openings (no objects closer than 4 cm).
CAUTION: Power strips must not be placed on the floor. No other
electrical appliance or power strip should be connected to the power
strip.
CAUTION: The appliance must be connected to an outlet with a
grounding terminal (Class I electrical appliance).
CAUTION: The unit must be positioned so that the mains cable is freely
accessible in case of emergency.
CAUTION: In case of emergency, disconnect the mains cable directly
from the unit.
CAUTION: No modifications to the device are permitted. It is strictly
forbidden to open the housing of the device.
CAUTION: The device complies with applicable electromagnetic
compatibility standards. If you experience interference or other
problems with another device, contact Électronique du Mazet or the
distributor for advice on how to avoid or minimize the problem.
CAUTION: Operating altitude below 2000m.
The performance of the aircraft decreases with altitude.
CAUTION: The appliance must be used with the accessories supplied
by the manufacturer

Page 11 on 19 27/07/2022
MEG017XN111-A0
4Precautions
4.1 Risks residual
4.1.1 Mains failure
In the event of a power failure during treatment, it is advisable to disconnect the
pneumatic connectors from the back of the device to relieve pressure on the limbs.
4.1.2 Treated areas
The areas treated by the device are the lower or upper limbs.
5Installation of the appliance
Open the carton, remove the accessories and the appliance.
Remove the lightweight plastic wrappings covering the unit.
Check the contents of the box against the packing list included with the
documentation.
Check that the contents of the box are not damaged; if you have any doubts about
the integrity of the appliance or its accessories and that the correct operation of the
appliance could be questioned, contact Électronique du Mazet
If the appliance was stored in a cold place and there was a risk of condensation, let
the appliance stand for at least 2 hours at room temperature before switching on.
Before using the appliance for the first time, it is advisable to clean it and its accessories
(see § Maintenance).
Install the device on a stable stand at working height and out of the patient's
environment.

Page 12 on 19 27/07/2022
MEG017XN111-A0
5.1 Functions and connections of the device :
1- Mains socket
2- On / Off switch
3- USB output 5V - 0.5 A
4- Accessory connectors
5- Play/Pause button
6- Bluetooth connection button
6User's manual
6.1 Handling the device
6.1.1 Powering up / starting up
Connect the mains cable and switch on the appliance using the switch located at the
back of the appliance (Position I: On / Position 0: Off) (See § Installing the appliance).
The device lights up.
6.1.2 Stand-alone mode of operation
Connect the accessories to the unit. Press the 'On' button to start the pre-recorded
treatment, duration 20min. (factory default 'Aesthetic Drainage'). During the treatment
the green light is steady. When the treatment is finished it will flash and the logo will
be turned off.
During processing, a short press on 'On' will pause (flashing green) and a long press
will stop (logo and buttons off).
REAR FACE
FRONT FACE
1
2
3
5
6
4

Page 13 on 19 27/07/2022
MEG017XN111-A0
6.1.3 Operating mode with Activ'PRESS application
6.1.3.1 Installation of the application
Go to the store to install the application: Activ'Press
Warning: only works with android 8.0 and above
6.1.3.2 Use
-Launch the application on the tablet
-On the device press the Bluetooth button.
-While this is flashing, make the association with the tablet.
-Once the association is made, choose the appropriate programme.
6.2 Contraindications
This appliance must not be used in the following cases:
•When the treatment area has cancerous lesions.
•When the treatment area has open wounds.
•When the treatment area is acutely inflamed.
•Haemarthrosis and acute trauma with haematoma.
•Deep vein thrombosis
•Infections (erysipelas, lymphangitis)
•Severe arterial disease (stages 3 & 4)
•Untreated heart failure
•Hemophilia
•Hair fragility
•Dermatosis
The contraindications are not exhaustive and we advise
the user to seek advice in case of doubt.
7Maintenance, servicing
The device is designed to last for 5 years.
To ensure that the performance of the device is maintained throughout its life, it is
necessary to have the device checked by Electronique du Mazet technicians every
2 years.
7.1 Housing
The enclosure only requires normal, periodic cleaning of its external surface, which
may become dirty. The same applies to cords, hoses, ....
Be sure to unplug the power cord before cleaning.

Page 14 on 19 27/07/2022
MEG017XN111-A0
7.2 Accessories
In order to ensure perfect hygiene, it is essential to systematically clean all material
and equipment in direct contact with the patient.
7.3 Sterilization:
This device is not sterile,
Accessories are / are not sterile
8Malfunction
If you notice a malfunction that is not commented on in the documents accompanying
the appliance (see below), please inform your dealer or the manufacturer.
In the case of shipping the device, please observe the following instructions:
▪Decontaminate and clean the unit and its accessories.
▪Use the original packaging, including the retaining flanges.
▪Attach all accessories to the appliance.
▪Set up the various elements.
▪Ensure that the packaging is properly sealed.
Shipping address :
Electronique du Mazet
ZA Route de Tence
43520 Le Mazet St Voy
Tel: [phone]
Fax: [phone]
E-mail: [email protected]
Possible malfunctions :
Description of the
anomaly
Possible causes
Actions
Device switched off
Problem with the electricity
network
Check the mains connection
Fuses out of order
Check and change fuses
Accessory inflation problem
Wrong connection
Check the connection of the accessories
If only one used, cap missing
Check that the plug and the accessory are
properly connected
If the device is dropped or if water penetrates, it is imperative to have the device
checked by Électronique du Mazet to exclude any risk (patient and user) related to the
use of the device

Page 15 on 19 27/07/2022
MEG017XN111-A0
9After-sales service and warranty
This appliance is guaranteed by your supplier under the conditions specified in this
document, provided that :
◼Only accessories supplied by Électronique du Mazet or its distributors should be used.
◼Any modification, repair, extension, adaptation and adjustment of the appliance must
be carried out by Électronique du Mazet or its authorised distributors for these
operations.
◼The working environment meets all regulatory and legal requirements.
◼The appliance may only be used by competent and qualified personnel. Use must be
in accordance with the instructions in this user's manual.
◼Treatments should only be used for the applications for which they are intended and
which are described in this manual.
◼The appliance must be regularly maintained according to the manufacturer's
instructions.
◼All legal requirements for the use of this device are met.
◼The appliance uses only consumables or semi-consumables supplied or specified by
the manufacturer.
◼Machine parts and spare parts must not be replaced by the user.
Inappropriate use of this appliance or neglect of maintenance relieves Électronique du Mazet
and its authorised distributors of all responsibility for defects, breakdowns, malfunctions,
damage, injuries and the like.
The warranty is void if the operating instructions in this manual are not strictly followed.
The warranty period is 24 months from the date of delivery of the
device.
Accessories are guaranteed for 6 months from the date of delivery of
the appliance.
Consumables and semi-consumables are not guaranteed.
Transport and packaging costs are not included in the guarantee.
Électronique du Mazet, or its distributor, undertakes to provide the
drawings, spare parts list, instructions and tools necessary to repair the
appliance on the sole condition that qualified technical personnel have
been trained on this specific product.

Page 16 on 19 27/07/2022
MEG017XN111-A0
10 Disposal
10.1 Accessories
As soon as any damage to an accessory is detected, the product must be cleaned with
a broad spectrum disinfectant and returned to the manufacturer.
10.2 Electronics
If the appliance no longer functions or is unusable, it should be returned to the
manufacturer or taken to a Récylum collection point.
As part of its commitment to the environment, Électronique du Mazet finances the
Récylum recycling network dedicated to WEEE Pro, which takes back free of charge
electrical lighting equipment, control and monitoring equipment, and used medical
devices (more information on www.recylum. com ).
11 Transport and storage
The appliance must be transported and stored in its original packaging or in packaging
that protects it from external damage.
Store in a clean, dry place at room temperature

Page 17 on 19 27/07/2022
MEG017XN111-A0
12 Manufacturer
Électronique du Mazet is a company located in the heart of the Massif Central.
Originally a simple manufacturer of electronic cards, over the years it has developed
its own brand of medical equipment, mainly for physiotherapy.
Today, EDM studies, develops, manufactures and markets pressotherapy,
depressotherapy and electrotherapy (pelvic floor rehabilitation) equipment.
For further information, please do not hesitate to contact us.
SAS Électronique du Mazet
ZA Route de Tence
43520 Le Mazet St Voy
Tel: [phone]
Fax: [phone]
facebook.com/electroniquedumazet www.electroniquedumazet.com

Page 18 on 19 27/07/2022
MEG017XN111-A0
Your dealer / distributor :
ELECTRONIQUEDU MAZET
ZA ROUTE DE TENCE
43520 LE MAZET SAINT VOY
Tél : [phone]
Mail: [e-mail]

Page 19 on 19 27/07/2022
MEG017XN111-A0
13 Certificate of guarantee
Certificate of Guarantee
This form must be returned to Electronique du Mazet within 15 days of
installation or receipt of the equipment.
I, .......................................
Organization: ........................................
Address: ........................................
.........................................
.........................................
Declares that it has received the device ......... n° ............. in working order.
I have received all the necessary instructions for its use, maintenance, care, etc...
I have read the instruction manual and noted the warranty and service conditions.
In the event that Electronique du Mazet or its distributors do not receive this form duly
completed and signed within one month of delivery, Electronique du Mazet will be
relieved of all responsibility with regard to the guarantee and after-sales service, or
any other consequence due to misuse of the appliance.
Done at .............................. on .............
Signature
User :
To be returned to :
Electronique du Mazet
Z.A. Route de Tence
43520 Le Mazet St Voy
Your distributor :
