Lectrosonics CHSIFBR1C User manual
CHSIFBR1C
IFBR1C Receiver Battery Charging Station
INSTRUCTION MANUAL
Fill in for your records:
Serial Number:
Purchase Date:

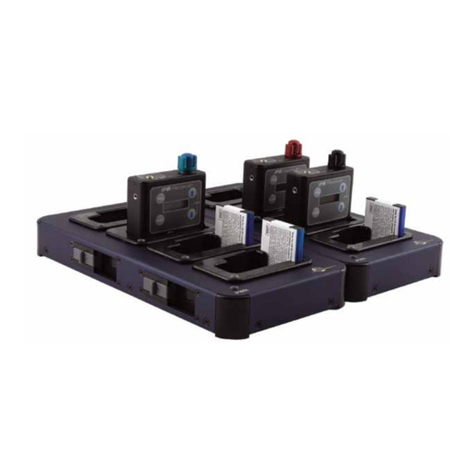

• Each module charges up
to 4 IFBR1C receivers (with
rechargeable NiMH batteries)
• Connect multiple CHSIFBR1Cs
mechanically for convenience
• Individual charging circuits and
status indicators
Designed and Distributed by Lectrosonics, Inc.
CHSIFBR1C
IFBlue
2
Table of Contents
Safety Instructions ............................................................. 3
Warnings and Cautions...................................................... 4
Specifications ..................................................................... 5
Power Supply Side Panel and Charger Connections ...... 6
Operating Instructions....................................................... 7
Service and Repair ............................................................. 8
Returning Units for Repair ................................................ 8
Warranty .............................................................................. 12
IFBR1C Receiver Charger
Rio Rancho, NM 3
This symbol, wherever it appears, alerts
you to the presence of uninsulated danger-
ous voltage inside the enclosure -- voltage
that may be sufficient to constitute a risk of
shock
This symbol, wherever it appears, alerts
you to important operating and mainte-
nance instructions in the accompanying
literature. Please read the manual.
When using your equipment, basic safety precautions
should always be followed to reduce the risk of fire,
electric shock and injury to persons, including the fol-
lowing:
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with a dry cloth.
7) Do not block any ventilation openings. Install in
accordance with the manufacturer’s instructions.
8) Do not install near any heat sources such as ra-
diators, heat registers, stoves, or other apparatus
(including amplifiers) that produce heat.
9) Do not defeat the safety purpose of the polarized
or grounding-type plug. A polarized plug has two
blades with one wider than the other. A ground-
ing type plug has two blades and third ground-
ing prong. The wider blade or the third prong are
provided for your safety. If the provided plug does
not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.
10) Protect the power cord from being walked on or
pinched particularly at plugs, convenience re-
ceptacles, and the point where they exit from the
apparatus.
11) Only use attachments/accessories specified by
the manufacturer.
Important
Safety Instructions
12) Use only with the cart, stand, tripod, bracket, or
table specified by the manufacturer, or sold with
the apparatus. When a cart is used, use caution
when moving the cart/apparatus combination to
avoid injury from tip-over.
13) Unplug this apparatus during lightning storms or
when unused for long periods of time.
14) Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has
been damaged in any way, such as power-supply
cord or plug is damaged, liquid has been spilled
or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture,
does not operate normally, or has been dropped.
15) WARNING -- TO REDUCE THE RISK OF FIRE
OR ELECTRIC SHOCK, DO NOT EXPOSE THIS
APPARATUS TO RAIN OR MOISTURE.
16) Unit shall be connected to a MAINS socket outlet
with a protective earthing connection.
17) Do not use this product near water for example,
near a bathtub, washbowl, kitchen sink or laundry
tub, in a wet basement or near a swimming pool.
18) Use only the power cord indicated in this manual.
SAVE THESE INSTRUCTIONS
CHSIFBR1C
IFBlue
4
Warnings and Cautions - Please Observe
This battery charger is intended to be used only with
the IFBR1C. Attempting to charge other receivers
could cause a serious fault.
CAUTION: The IFBR1C may present a fire or chemical
burn hazard if mistreated. Do not disassemble, heat
above 140°F, crush, puncture, short external contacts
or incinerate.Do not tear or peel off the outer label.
WARNINGS AND CAUTIONS (PLEASE OBSERVE)
• Please read the operating instructions in this
Instruction Manual, especially the warnings and
cautions, as well as the operating instructions in
the transmitter Instruction Manual in order to oper-
ate this charger correctly.
• After reading, be sure to keep this manual in a
safe and accessible place for future reference.
• In order to ensure that this product is used safely
and correctly, and to prevent danger to yourself
and other persons or damage to property, various
icons are used in this Instruction Manual and on
the product. Please read the explanations and get
a good understanding of the meaning of each one
before you read the main text of this manual.
This icon indicates a situation which
could result in death or severe injury
to persons who disregard these
instructions and handle the product
incorrectly.
WARNING
This icon indicates a situation which
could result in injury to persons or
physical damage to objects, if these
instructions are disregarded and the
product is handled incorrectly.
CAUTION
The contents of this
icon constitute a warn-
ing (including cautions).
The actual content of the
caution is drawn inside
the icon.
Danger of
Electric Shock
The contents of this icon
constitute a prohibited
action. The actual content
of the prohibition is drawn
inside, or next to the icon.
Disassembly
Prohibited
The contents of this icon
constitute a prohibited
action. The actual content
of the prohibition is drawn
inside, or next to the icon.
Pull the plug out
of the electrical
outlet.
WARNING
This battery charger is only for use with
Lectrosonics NiMH rechargeable batteries.
Do not attempt to use this charger to charge
other rechargeable battery packs as this
could result in fluid leakage, overheating or damage to
the battery or charger.
If the power supply or charger emits smoke,
smell or makes noise, it may cause fire or
electric shock. If this happens, turn off the
power switch immediately and pull the
power plug out of the outlet and contact your
dealer or the factory. Do not try to repair
either unit yourself, as the repair work can be
dangerous.
If the battery charger has been dropped and
the housing is damaged in any way, unplug
the charger from the power source and
contact your dealer. Do not continue to use
the charger as this could result in a fire or
electric shock.
If the unit has been exposed to water such
as rain or spray, turn off the power switch,
disconnect the charger from the power
source and contact your dealer or the
factory. Operation under such conditions may
cause fire or electrical shock.
IFBR1C Receiver Charger
Rio Rancho, NM 5
Do not allow water or other liquids to enter
the battery trays or other openings in this
charger, as this could cause fire or electrical
shock. Take extra precautions if you are
using the unit in a rainy or snowy location, or other wet
area.
Do not modify or disassemble this charger,
as there is a risk of fire or electrical shock.
Do not use this charger with a power source
other than the specified 100-240VAC (3A
minimum capacity). Using a supply outside of
the specified range may cause fire or electri-
cal shock.
Do not store the rechargeable battery in a
case, drawer, cabinet, etc. where small metal
objects such as coins, paper clips or tools
could contact the poles on the battery. This
could cause the battery to split or leak, resulting in fire
or personal injury.
Do not expose the rechargeable battery to
heat or attempt to disassemble it. Do not
place the battery in water or fire. Any of
these can cause fire or personal injury.
CAUTION
Keep this charger out of the reach of chil-
dren.
Do not leave this charger in a damp or dusty
environment. Doing so could case fire or
electrical shock.
Specifications
Dimensions: 4.77 in. wide (121.16 mm)
(including connectors)
2.00 in. deep (50.08 mm)
10.00 in. high (254.00 mm)
Weight: 1.04 lbs. (471.74 grams)
Battery charging time: 2.5 hours
Power supply: DCR5/9AU
Power requirements:
100-240VAC, 50-60Hz, 2A max
Operating temperature: -4 to +122F (-20 to +50C)
Accessories
The Lectrosonics DCR5/9AU (included) power supply
is required for use with the charger.
Use only rechargeable NiMH batteries with the
CHSIFBR1C charger.
CHSIFBR1C
IFBlue
6
Power Supply Side Panel
Charger Connectors
Power Supply Input
Mechanical Connectors
Power Supply
Input
Power LED
Battery
Charging LED
IFBR1C Receiver Charger
Rio Rancho, NM 7
Operating Instructions
1) If connecting more than one module together, line
up the connectors as shown. Connect the mod-
ules together and slide the connectors in an up
and down direction until the chargers are level.
2) Connect one power supply to each unit.
3) Place up to four IFBR1Cs per charger in the
charging slots.You will know that your connection
is correct on either IFBR1C when the LED illumi-
nates on the charger.
NOTE: IFBR1C units must be OFF when charging.
4) Use only rechargeable NiMH batteries and set the
battery selector switch in the IFBR1C to NiMH, as
shown.
When a battery or IFBR1C is being charged,
the LED next to it will glow GREEN. When
the battery is fully charged, the LED will be
OFF. If a fault occurs, the power to the slot will
be disabled and the LED will blink GREEN.
STATE CHARGER LED COLOR
Charging GREEN
Fully charged OFF
Timer fault* OFF
No battery/IFBR1B
present OFF
Fault conditions BLINK GREEN
*A timer keeps track of the charging activity and turns
the LED off if the battery cannot be charged after a
period of approximately 2.5 hours.
5) To disconnect the modules, remove the
IFBR1C(s), disconnect power and then slide the
modules in an up and down direction.
R
CHSIFBR1C
IFBlue
8
Service and Repair
If your system malfunctions, you should attempt to correct or isolate the trouble before concluding that the equip-
ment needs repair. Make sure you have followed the setup procedure and operating instructions. Check the inter-
connecting cables.
We strongly recommend that you do not try to repair the equipment yourself and do not have the local repair shop
attempt anything other than the simplest repair. If the repair is more complicated than a broken wire or loose con-
nection, send the unit to the factory for repair and service. Don’t attempt to adjust any controls inside the units.
Once set at the factory, the various controls and trimmers do not drift with age or vibration and never require read-
justment. There are no adjustments inside that will make a malfunctioning unit start working.
LECTROSONICS’ Service Department is equipped and staffed to quickly repair your equipment. In warranty repairs
are made at no charge in accordance with the terms of the warranty. Out-of-warranty repairs are charged at a mod-
est flat rate plus parts and shipping. Since it takes almost as much time and effort to determine what is wrong as it
does to make the repair, there is a charge for an exact quotation. We will be happy to quote approximate charges by
phone for out-of-warranty repairs.
Returning Units for Repair
For timely service, please follow the steps below:
A. DO NOT return equipment for repair without first contacting us by e-mail or by phone. We need to know the na-
ture of the problem, the model number and the serial number of the equipment. We also need a phone number
where you can be reached 8 A.M. to 4 P.M. (U.S. Mountain Standard Time).
B. After receiving your request, we will issue you a return authorization number (R.A.). This number will help
speed your repair through our receiving and repair departments. The return authorization number must be
clearly shown on the outside of the shipping container.
C. Pack the equipment carefully and ship to us, shipping costs prepaid. If necessary, we can provide you with
the proper packing materials. UPS or FEDEX is usually the best way to ship the units. Heavy units should be
“double-boxed” for safe transport.
D. We also strongly recommend that you insure the equipment, since we cannot be responsible for loss of or dam-
age to equipment that you ship. Of course, we insure the equipment when we ship it back to you.
Lectrosonics USA (Distributer):
Mailing address: Shipping address: Telephone:
Lectrosonics, Inc. Lectrosonics, Inc. +1 (505) 892-4501
PO Box 15900 561 Laser Rd., Suite 102 (800) 821-1121 Toll-free US and Canada
Rio Rancho, NM 87174 Rio Rancho, NM 87124 Fax +1 (505) 892-6243
USA USA
Web: E-mail:
www.IFBlue.com service.repair@lectrosonics.com
Lectrosonics Canada (Distributer):
Mailing Address: Telephone: E-mail:
Toronto, Ontario M5S 2T9 (877) 7LECTRO
Fax (416) 596-6648
IFBR1C Receiver Charger
Rio Rancho, NM 9
CHSIFBR1C
IFBlue
10
IFBR1C Receiver Charger
Rio Rancho, NM 11
CHSIFBR1C
IFBlue
12
23 September 2021
LIMITED ONE YEAR WARRANTY
The equipment is warranted for one year from date of purchase against defects in
materials or workmanship provided it was purchased from an authorized dealer. This
warranty does not cover equipment which has been abused or damaged by careless
handling or shipping. This warranty does not apply to used or demonstrator equipment.
Should any defect develop, Lectrosonics, Inc. will, at our option, repair or replace any
defective parts without charge for either parts or labor. If Lectrosonics, Inc. cannot
correct the defect in your equipment, it will be replaced at no charge with a similar new
item. Lectrosonics, Inc. will pay for the cost of returning your equipment to you.
This warranty applies only to items returned to Lectrosonics, Inc. or an authorized
dealer, shipping costs prepaid, within one year from the date of purchase.
This Limited Warranty is governed by the laws of the State of New Mexico. It states the
entire liablility of Lectrosonics Inc. and the entire remedy of the purchaser for any
breach of warranty as outlined above. NEITHER LECTROSONICS, INC. NOR
ANYONE INVOLVED IN THE PRODUCTION OR DELIVERY OF THE EQUIPMENT
SHALL BE LIABLE FOR ANY INDIRECT, SPECIAL, PUNITIVE, CONSEQUENTIAL,
OR INCIDENTAL DAMAGES ARISING OUT OF THE USE OR INABILITY TO USE
THIS EQUIPMENT EVEN IF LECTROSONICS, INC. HAS BEEN ADVISED OF THE
POSSIBILITY OF SUCH DAMAGES. IN NO EVENT SHALL THE LIABILITY OF
LECTROSONICS, INC. EXCEED THE PURCHASE PRICE OF ANY DEFECTIVE
EQUIPMENT.
This warranty gives you specific legal rights. You may have additional legal rights which
vary from state to state.
Designed and Distributed by Lectrosonics, Inc.
581 Laser Road NE • Rio Rancho, NM 87124 USA • www.lectrosonics.com
This manual suits for next models
2
Table of contents
Other Lectrosonics Batteries Charger manuals
