LED World HH-SCOB 528-24 Series User manual

No Spot COB Lighting LED Flex Strip
Model: HH-SCOBX-528-24 (X = COLOR WW: Warm White / NW: Neutral White )
LISTED
use only with
Class 2 Type
power units
24V
DC Power
4.6
WATTS
FOOT

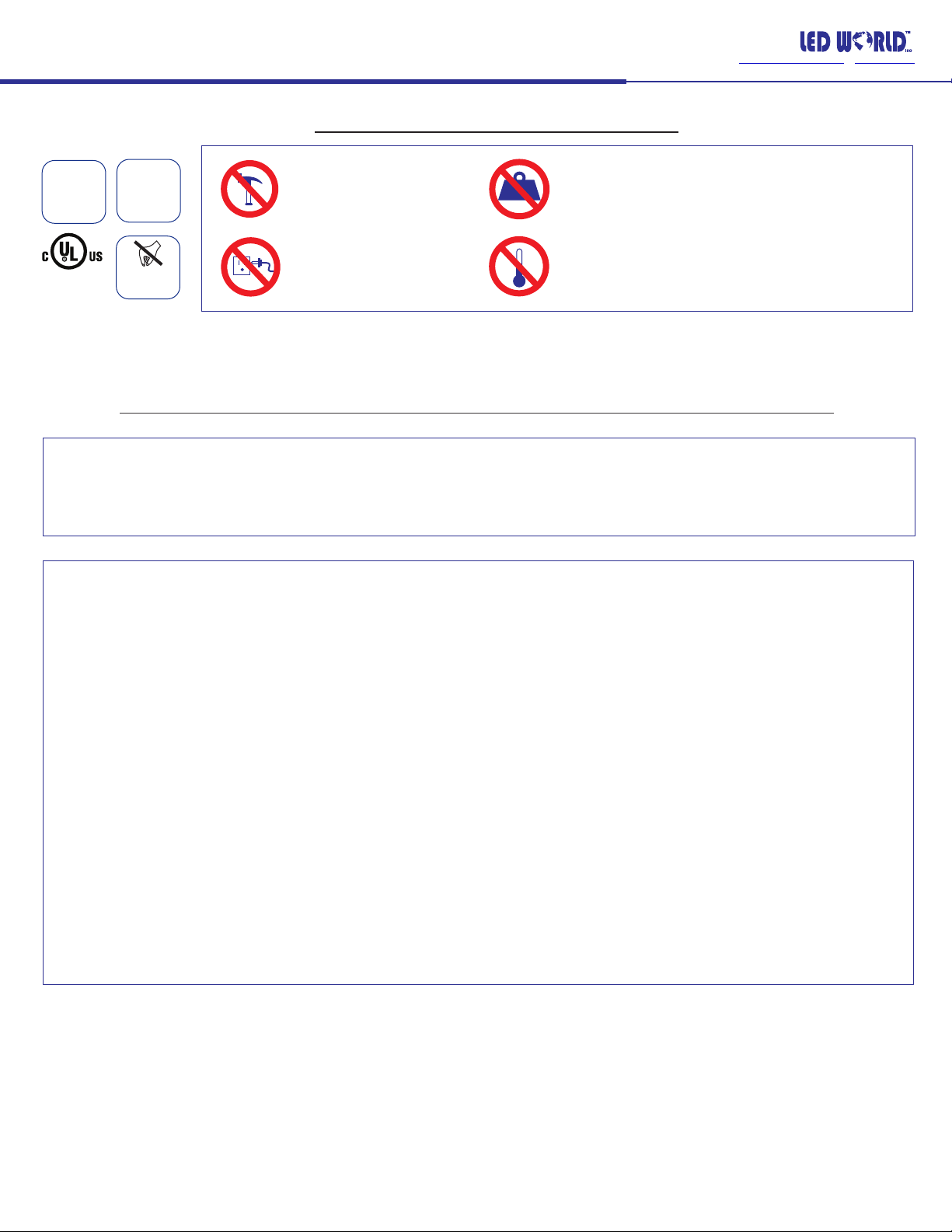

SAFETY & WARNINGS
Never plug into 120V AC. The product requires a optional class 2 Transformer (Power Supply).
Indoor use, Dry locations. Do not expose LED Flex Strip to moisture.
Use only with LED World’s Class 2 Type power supply.
This product is intended to be installed and serviced by a qualified licensed electrician. Install in accordance with the National Electric Code, and local regulations. Only power
with a (listed) constant voltage Class 2 power supply (24V DC).
Disconnect power before installing or servicing (at breaker point).
THREE YEAR LIMITED LIGHTING WARRANTY
LED World Inc. And its providers will never be liable to you or any other person for any indirect, incidental, consequential, special, punitive or exemplary loss or damage arising from, connected with, the purchase
of products, including but not limited to loss of data, business, markets, cost of labour, savings, income, profits, use, production, reputation or goodwill, anticipated or otherwise, or economic loss, under any theory
of liability (whether in contract, tort, strict liability or any other theory or law or equity), regardless of any negligence or other fault or wrongdoing (including without limitation gross negligence and fundamental
breach) by led world inc or any person for whom led world inc is responsible, and even if led world inc has been advised of the possibility of such loss or damage being incurred.
If a product is defective, we will replace the product with similar or identical product or at our option a credit towards a future purchase. To make a claim under this warranty, obtain a return authorization number.
LED WORLD INC. warranties this product for three year (some exceptions may apply) from the date of shipping unless otherwise noted in writing. This warranty is expressly in lieu of all other warranties expressed or
implied. Under this Limited Warranty, the obligation of the company is limited to replacing on a prorated basis, at its option, any component found to be defective. This Limited Warranty does not apply to damage
caused by buyer or alteration to the product or incorrect power supply. Factory warrantees are covered by the original manufacturer and claims must be submitted to them. This product must be used with LED
World’s class 2 power supply. Failure to do so will void limited warranty.
ŸMax. Soldering temperature cannot exceed 250°C (482°F) for a max of 4 seconds. Use 22~20 AWG wire to connect.
ŸCable lighting systems not be installed in bathrooms.
ŸDo not stare directly into the LED Light. Install LED lighting out of direct sight.
ŸUse correct wiring as required by local electrical code. Use a 20 gauge wire to attach to strip by solder (2464 type of wire). Connection to power source may use Wago™ 222-413
in hardwire applications.
ŸConductors not be installed in contact with combustible materials and not run through walls, ceilings, floors or partitions, and; Uninsulated conductors not be installed less than
2.2 m (86”) from the floor.
ŸConductors of extra-low-voltage circuits be rigidly supported.
ŸNot for in-wall use.
ŸThe light and all its components cannot be mechanically pressed. Never apply to surface above 40c (104F).
ŸDo not power when rolled. Lighting must be installed in a straight line on a flat surface. Do not curl or twist and roll out completely straight before applying power.
ŸProduct is sold in the maximum length. Do not exceed or extend the length of the roll.
ŸOnly install on smooth flat surfaces free of burrows that are fire retardant.
ŸOnly qualified electrician or engineer can perform installation familiar with low voltage wiring techniques. Correct polarity is imperative (+/- is marked on printed circuit). Parallel
connection only.
ŸVoltage must not exceed 24VDC and must be regulated. The Voltage is printed at cutmarks. Check that it is the correct voltage before applying power.
ŸLED Flex Strip is bendable on one flat widest plane. Maximum bend radius is 4 inches (100mm) on one plane (flat).
ŸNot for use in mission critical, aircraft, emergency signs or lifesaving equipment.
ŸKeep Flex strip spaced ¾” apart if placing next to each other.
ŸStatic electricity can damage LED(s). Handle with care.
ŸThis is not a toy. Keep out of children's reach.
ŸInspect installation after one hour and thereafter regularly.
ŸTo reduce the risk of fire and overheating, make sure all connections are tight.
ŸFor stationary use only and not subjected to possible pressure or movement (or in the future).
ŸDuring installation, do not damage the printed circuit. Exposed wires can cause short circuit damaging product and creating a serious hazard. Do not mount in a manner or
support LED Strip light in a manner that can damage the outer jacket or cord insulation. Do not install this lighting system where the exposed bare conductors can be shorted or
contact any conductive materials. Carefully check that there is no wire cross-over or possibility in the future in area of installation.
ŸDO NOT install on flammable material or possibility of in the future. Do not install any luminaire closer than 6 inches (15.25 cm) from any curtain, or similar combustible
materials.
ŸProduct has an adhesive tape on back. Adhesion can only be made once and the LED strip must fully adhere to surface (flush). Failure to do this step will damage product. Rigidly
support wires with wire clamps.
1/4
KG
Never Nail or use Staples
Only power with 24VDC
Class 2 Power Source
Never apply weights or walk on strips
Apply to surface at room temperature. Keep
away from flammable materials. Surface
temperature MAX 40°C (104°F). Don’t install under,
above or near heat sources (i.e. stoves, fireplaces) etc.
IMPORTANT INSTRUCTIONS
Use only with Class 2 Type power supply. Using with any other type of power supply will void the limited warranty.
Please read instructions before using product and SAVE THESE INSTRUCTIONS. Before using this product make sure you have right color, product (item
number) and voltage (printed on product). Check for possibility of damage during shipping. If damaged, or wrong product, do not use. Disconnect power before
installing or using.
STATIC ELECTRICITY
CAN DAMAGE
PRODUCT
1-800-387-4081
ledworldlighting.com ledworld.ca |
Copyright © 2022 LED WORLD INC™. All Rights Reserved. We are not responsible for errors or omissions. Product and specications subject to change without notice. Registered trademarks are owned by their respective registers, or licensee(s).
LED World Inc. | #130 10615 48 ST SE | CALGARY, AB T2C 2B7 | CANADA | Version 1.3 08/22/22

2/4
FLEX STRIP CONNECTION
Wire connection using WAGO block connectors
Class 2 Power Source
AC120V
LED Flex Strip
WAGO
Cut instructions Solder Connection Points
Solder connection points are at marked intervals.
Note Polarity Marks
45.4mm(1.78”)
+ + + +
- - - -
Polarity marks must match
((+) to(+) and (-) to (-))
otherwise strip will not work
INSTALLATION PLANNING
ŸWhat is the best layout configuration for your installation with wiring consideration?
ŸHow will you switch your LED lighting ON and OFF?
ŸHow will you run your wiring to your LED strip lighting?
LED Flexstrip is a versatile lighting product that can provide a superior lighting solution in a variety of applications.
Recommend design steps before starting the installation process:
General questions based on lighting requirements:
ŸWhere will your power supply be located
WATTAGE CALCULATION
Never Extend the Length of rolls. Rolls are sold in there max length.
For example : 10 feet of HH-SCOBX-528-24 x 4.6W = 46 Watts
The LED Flex Strips have a label on each roll that indicates the voltage and wattage. You must have the correct Class 2 Power Supply (Transformer) for
LED Strip model. To calculate the wattage, measure the total length of LED Strip in your run multiplied by the wattage of the LED Strip. Remember that
a power source should only operate at a maximum 80% of it rated capacity.
IMPORTANT INSTRUCTIONS
WIRING FOR VOLTAGE DROP
Voltage drop is normal loss of voltage that occurs as power flows along a wire connection in a low voltage systems, and increases as the length of a
wire connection is increased. Wire length and thickness as well as total light wattage influence the amount of voltage drop.
LED Strip is equipped with 3M self-adhesive tape. Mount strips on clean (no wax/oil), dry, smooth, burrows free surface. Adhesion can be
made once and LED Strip must fully adhere to surface.
Use Aluminum profile or aluminum heat sink tape to avoid overheating ,
ensure proper heat dissipation and extend the life of the LED
MOUNTING NOTE
-
-
-
-
°C
Download Magnitude app for voltage drop calculations:
Android App IOS App
Recommended maximum wire lengths - 24VDC
Wire Guage (AWG)
20 AWG
18 AWG
16 AWG
20W 30W 50W 60W 90W 100W
27 FEET
42 FEET
67 FEET 45 FEET
28 FEET
18 FEET 11 FEET 9 FEET 6 FEET 5 FEET
8 FEET9 FEET14 FEET17 FEET
27 FEET 22 FEET 15 FEET 13 FEET
1-800-387-4081
ledworldlighting.com ledworld.ca |
-
-
--
No Spot COB Lighting LED Flex Strip
Model: HH-SCOBX-528-24 (X = COLOR WW: Warm White / NW: Neutral White )
Copyright © 2022 LED WORLD INC™. All Rights Reserved. We are not responsible for errors or omissions. Product and specications subject to change without notice. Registered trademarks are owned by their respective registers, or licensee(s).
LED World Inc. | #130 10615 48 ST SE | CALGARY, AB T2C 2B7 | CANADA | Version 1.3 08/22/22

3/4
LED STRIP CUTTING
Our strips comes with cut mark sign. Cut marks lying between set of soldering
points.
-
-
--
LAYOUT OPTIONS
Note: Always check the Wattage of your LED Strip or Fixture.
Power Supply Wattage x 0.8 = Available Wattage
CONNECT WITH QUICK CONNECTORS/SOLDERING
-
Soldered Contacts
Class 2 Power Supply
Layout 2
40W18W
Available 80W
18W
Class 2 Power Supply
Layout 3
40W18W
Available 80W
18W
24VDC (100W) 24VDC (100W)
Class 2 Power Supply
24VDC (100W)
Class 2 Power Supply
Layout 1
38W38W 50W 50W
Available 80W Available 80W
24VDC (100W)
Layout with Overload
!
Do Not Use
Securely mount wires
using wire clamps
Note: Peel 3M tape before using with Quick Connectors
INPUT
120V AC 60Hz
Regulated Class 2 Power Supply
24VDC LED Flexstrip
+
-
Figure shows LED Flexstrip
connected to a Regulated Class 2
Power Supply
POWERING OPTION
1-800-387-4081
ledworldlighting.com ledworld.ca |
No Spot COB Lighting LED Flex Strip
Model: HH-SCOBX-528-24 (X = COLOR WW: Warm White / NW: Neutral White )
Connect LED light strips with our optional strip connectors. Please refer to our quick
connector instruction sheet included with the connector bag. However, it is
strongly recommended to solder the connection.
Copyright © 2022 LED WORLD INC™. All Rights Reserved. We are not responsible for errors or omissions. Product and specications subject to change without notice. Registered trademarks are owned by their respective registers, or licensee(s).
LED World Inc. | #130 10615 48 ST SE | CALGARY, AB T2C 2B7 | CANADA | Version 1.3 08/22/22

4/4
MAXIMUM FLEXSTRIP LENGTH SUPPORTED BY LED WORLD’s CLASS 2 POWER SUPPLY
Power Supply Max Feet of LED Flexstrips Power Supply Max Feet of LED Flexstrips
21.3 Feet (Continuous 77 Watts)
Apply 1 ½” long electrical heat shrink over all connection points. Secure connection wire with wire clamp.
IMPORTANT !
Wrong!
0.78"
(20mm)
On widest one flat plane (only)
Do not bend sideways.
Flexible on one axis
maximum band radius 4”
Tape light strip does not light
ŸMake sure your power supply is turned on and has the correct voltage.
ŸConfirm you have the correct polarity (+ to + and - and -) throughout the run of LED Lighting.
ŸHave a electrician check all connections and any switch or dimmer connections from the power supply to the LED Light Strips.
ŸThis is the result of voltage drop. Decrease the length of the 24V power feed or use thicker power feed wires between the 24V power supply
and the lighting strips.
ŸConsider testing with a multimeter to ensure light strip is receiving 24V power.
LEDs farthest from the power supply are noticeably dimmer
LED Flex Strip lights blink on, then go off
ŸThe power supply is not adequate for the length of LED Light Strips you are powering. Install a adequate Class 2 power supply.
IMPORTANT INSTRUCTIONS
MD-024-096VTDHV2 MD-024-060VTDHV2 13.3 Feet (Continuous 48 Watts)
MD-024-192VTHD52JV2 2 X 21.3 Feet (Continuous 77 Watts
each channel)
1-800-387-4081
ledworldlighting.com ledworld.ca |
No Spot COB Lighting LED Flex Strip
Model: HH-SCOBX-528-24 (X = COLOR WW: Warm White / NW: Neutral White )
MD-024-288VTHD52JV2 3 X 21.3 Feet (Continuous 77 Watts
each channel)
Copyright © 2022 LED WORLD INC™. All Rights Reserved. We are not responsible for errors or omissions. Product and specications subject to change without notice. Registered trademarks are owned by their respective registers, or licensee(s).
LED World Inc. | #130 10615 48 ST SE | CALGARY, AB T2C 2B7 | CANADA | Version 1.3 08/22/22
