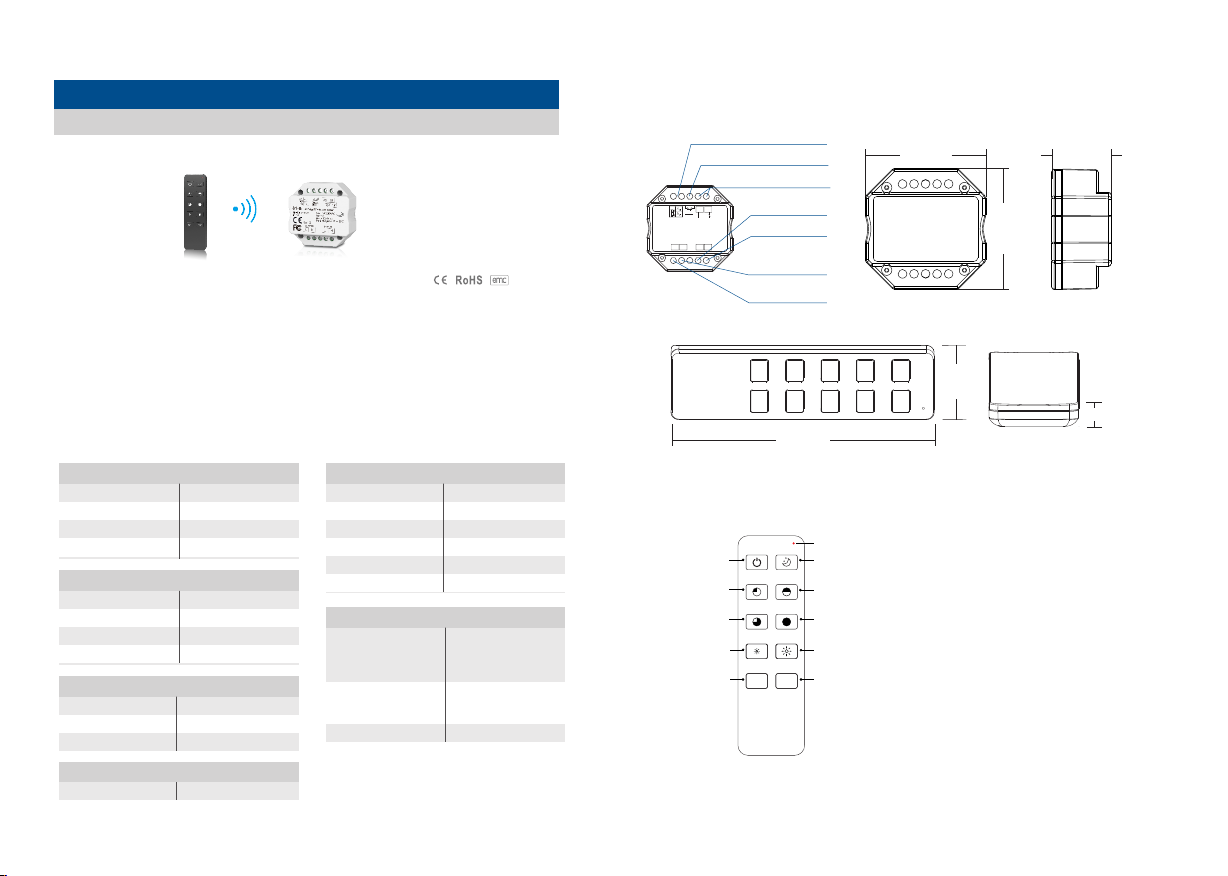

Ledco S1-B+R1 User manual

User Manual Ver 1.0.2
Model No.: S1-B+R1
AC Triac RF Dimmer Kit
RF dimming/Leading edge or trailing edge/Min brightness settable/Push Dim/Wall box inserted
Features LVD
● RF + Push AC phase-cut dimmer, 1 channel output.
● To dim and switch single color dimmable LED lamps, traditional incandescent and halogen lights.
● Leading edge dimming or trailing edge dimming set by dip switch.
● Min brightness can be set by key.
Skydance’s 2.4G dimming remote control● Compatibility with .
● Connect with external push switch to achieve on/off and dimming function.
● Easy to be inserted into standard 86*86mm wall box.
Technical Parameters
Operation temperature
Case temperature (Max.)
Environment
IP20
IP rating
Triac Dimmer’s Input and Output
Warranty and Protection
5 years
Warranty
Ta: -30
O
C ~ +55
O
C
T c: +85
O
C
LED Remote’s Input and Output
Output signal RF 2.4GHz( )
Working voltage 3VDC CR2032( )
Working current ＜5mA
Standby current ＜2μA
Standby time 2 years
Remote distance 30m
Output current Max 1A
Input voltage AC100-240V
Output voltage AC100-240V
Dimming data
Dimming range
RF 2.4GHz + Push Dim
30m
256 levels
0 -100%
Safety and EMC
EMC standard (EMC)
EN 55015:2013
EN 61547:2009
EN 61000-3-2:2014
EN 61000-3-3:2013
Certification CE,EMC,LVD
EN 61347-2-11:2002
EN 61347-1:2015
EN 62493:2015
Safety standard(LVD)
Input signal
RF Control distance
Dimming level
Output power 100-240W
Mechanical Structures and Installations
OUTPUT INPU T
L N L N
ON
Matc h
Min se t
AC L input
AC N input
AC N output
AC L output
DIP switch for Leading edge
or trailing edge phase-cut select
Match / Min brightness set key
A2 A1
Push
Swit ch
100-240
VAC
AC Push switch
52.00 mm
52.00 mm
26.00 mm
11mm
135mm
40mm
Remote function
Brightness+/-:
Short press 10 levels,
long press 1-6s for continuous 256 levels adjustment.
Scene 1/2:
brightness memory.
,Short press recall the scene
long press 2s save the current brightness into the scene.
S1 S 2
Small Night light
Brightness+
Scene2
Brightness 50％
Brightness 100％
On/Off
Brightness 25％
Brightness-
Scene1
Brightness 75％
LED indicator
S1-B+R1 AC Triac RF Dimmer Kit
Page 1

Wiring diagram
LED light
Triac Dimmable
LED Driver
Push Switch Push Switch
A2
S1-B
OUTPUTI NPUT
L N L N
A1
Pus h
Swi tch
ON
100-240
VAC
Mat ch
Min s et
Push Switch Push Switch
Dimmable LED light
A2
S1-B
OUTPUTI NPUT
L N L N
A1
Pus h
Swi tch
ON
100-240
VAC
Mat ch
Min s et
Connect with Triac dimmable LED driver
Connect with dimmable LED light
Note: When calculating the maximum number of load lamps or drivers, the input power or input current
parameters of a single lamp or driver must be used, the output power parameters can not be used,
otherwise, the product will be overloaded and damaged.
Caution: Please carefully ensure all wire connections and polarities are correct and secure before applying power,
otherwise this controller will be damaged.
Leading edge or trailing edge dimming setting
Reverse-phase
Forward-phase
Select leading edge(forward-phase) dimmer or trailing edge(reverse-phase) dimmer according to dimmable
LED light or driver.
Caution: before power on, you must confirm the selection of dip switch.
ON
Long press Min set key for 2s, the light blink 2 times, ready for min brightness set,
then short press Min set key 1-6 times, to get 6 min brightness: 5%, 10%, 15%, 20%, 25% or 30%,
the light will output the current min brightness immediately,
Long press Min set key for 2s or wait 8s, quit min brightness set, the light will output 100% brightness automatically.
Min brightness setting
Match Remote Control (two match ways)
Use the controller’s Match key
Match:
Short press match key, immediately press on/off
key (single zone remote) or zone key (multiple zone
remote) of the remote.
Use Power Restart
Match:
Switch off the power, then switch on power again,
immediately short press on/off key (single zone remote)
or zone key (multiple zone remote) 3 times on the remote.
The light blinks 3 times means match is successful.
.
Delete:
Switch off the power, then switch on power again,
immediately short press on/off key (single zone remote)
or zone key (multiple zone remote) 5 times on the remote.
The light blinks 5 times means all matched remotes were
deleted.
Delete:
Press and hold match key for 5s to delete all match,
The light blinks 5 times means all matched remotes
were deleted.
End user can choose the suitable match/delete ways. Two options are offered for selection:
Application notes
All the receivers are matched with one RF remote.
RF remote
30m 30m
Auto-transmitting: One receiver can transmit the signals from the remote to another receiver within 30m,
as long as there is a receiver within 30m, the remote control distance can be limitless.
Auto-synchronization: Multiple receivers within 30m distance can work synchronously when they are controlled
by the same remote.
Receiver placement may offer up to 30m communication distance. However, we recommend for indoor applications
that receiver placements should be no further apart than15m.
30m
