CiTik Solar Slim
30 - 120W
RENOUVELABLE - Area Lighting
All-in-one sun-
powered luminaire
with clever slim
design for outdoor
general lighting
• Fully integrated system (panel, battery,
sensor and control) in a very slim design
• Mono-crystalline panel: higher eciency
• Easy to install and control with
dedicated phone app
• Special optics for area lighting and
outdoor treatment
5YEARS
IP66
50.000hrs
S
U
N
-
P
O
W
E
R
E
D
P
U
B
L
I
C
A
R
E
A
P
P
A
R
K
I
N
G
L
O
T
L
I
G
H
T
I
N
G

CITIK_SOLAR_SLIM-DS-UK-2102-v1
Subject to change without notice. 2
IP66 70x145° 11.1V FOR BATTERY
18V FOR SOLAR PANEL
-25°/+65°C
Code Designation Color temperature /
Wavelength
System
power (W)
Lumen
output (lm)
Eciency
(lm/W) CRI Charge time (hrs)
Discharge
time (hrs)
Switch
threshold
(LUX)
Net weight
(kg / lb)
21850004 CiTik Solar Slim 30W 4200lm WW with Sensor Grey IP66 WW 2800-3300K 30 4200 140 >70 6-8 >36 15 13,2 / 29,1
21850005 CiTik Solar Slim 40W 5600lm WW with Sensor Grey IP66 WW 2800-3300K 40 5600 140 >70 6-8 >36 15 14,7 / 32,4
21850006 CiTik Solar Slim 50W 7000lm WW with Sensor Grey IP66 WW 2800-3300K 50 7000 140 >70 6-8 >36 15 15,9 / 35,1
21850007 CiTik Solar Slim 60W 8400lm WW with Sensor Grey IP66 WW 2800-3300K 60 8400 140 >70 6-8 >36 15 18,3 / 40,3
21850008 CiTik Solar Slim 80W 11200lm WW with Sensor Grey IP66 WW 2800-3300K 80 11200 140 >70 6-8 >36 15 20 / 44,1
21850009 CiTik Solar Slim 100W 14000lm WW with Sensor Grey IP66 WW 2800-3300K 100 14000 140 >70 6-8 >36 15 22,8 / 50,3
21850010 CiTik Solar Slim 120W 16800lm WW with Sensor Grey IP66 WW 2800-3300K 120 16800 140 >70 6-8 >36 15 23,8 / 52,5
DIMENSIONS
TECHNICAL DATA
5YEARS
50.000hrs
IP66
CiTik Solar
Slim 30W:
CiTik Solar
Slim 80W:
CiTik Solar
Slim 40W:
CiTik Solar
Slim 100W:
CiTik Solar
Slim 50W:
CiTik Solar
Slim 120W:
CiTik Solar
Slim 60W:
General:
Pole ø60 to 80mm
RENEWABLE - Area Lighting 30 - 120W
CiTik Solar Slim

CITIK_SOLAR_SLIM-DS-UK-2102-v1
Subject to change without notice. 3

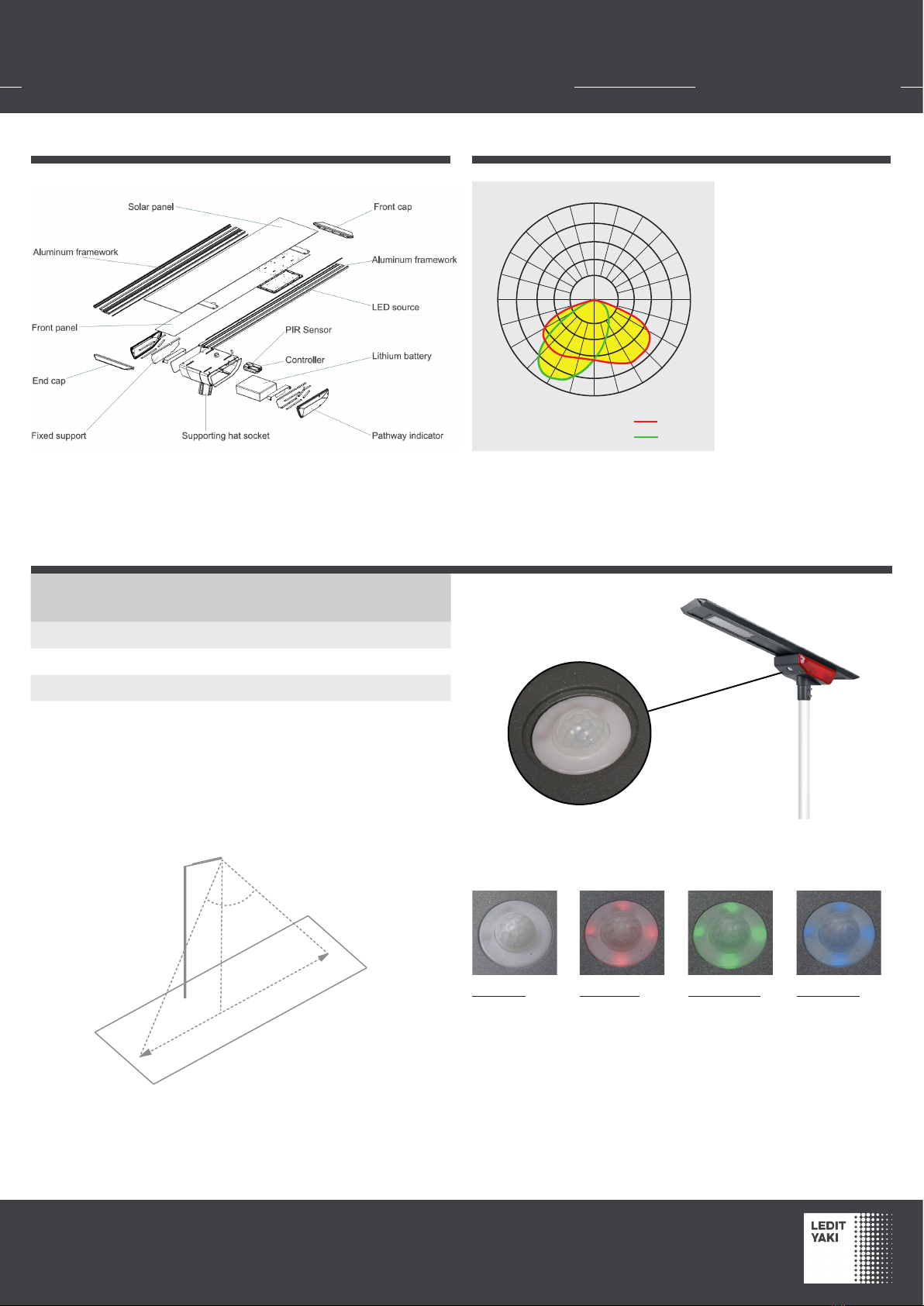

DETAILED VIEW
Red light:
Discharged
No light:
Light off
Blue light:
When the light
is weak and/
or it cannot be
charged
ex: dusk time.
Green light:
Steady: fully
charged
Flashes:
charging
Installation height (m) Detection angle (°) Detection distance (m)
3 150 23,2
4 140 22,6
5 130 21,8
6 120 20,8
MOTION SENSOR
*The sensor is infrared sensor.
Light turns on when people enter the detection area and goes off, or restored
to its brightness level, 30 seconds after they leave.
6
5
4
3
2
98765432110
Installation height (m)
Detection area (r/m)
Detection distance (m)
Installation height (m)
Detection angle (°)
LIGHT DISTRIBUTION
c0/180
c90/270
Units: cd
180°
90°
0°
30°
60°
120°
150°-150°
-120°
-90°
-60°
-30°
RENEWABLE - Area Lighting 30 - 120W
CiTik Solar Slim

CITIK_SOLAR_SLIM-DS-UK-2102-v1
Subject to change without notice. 4

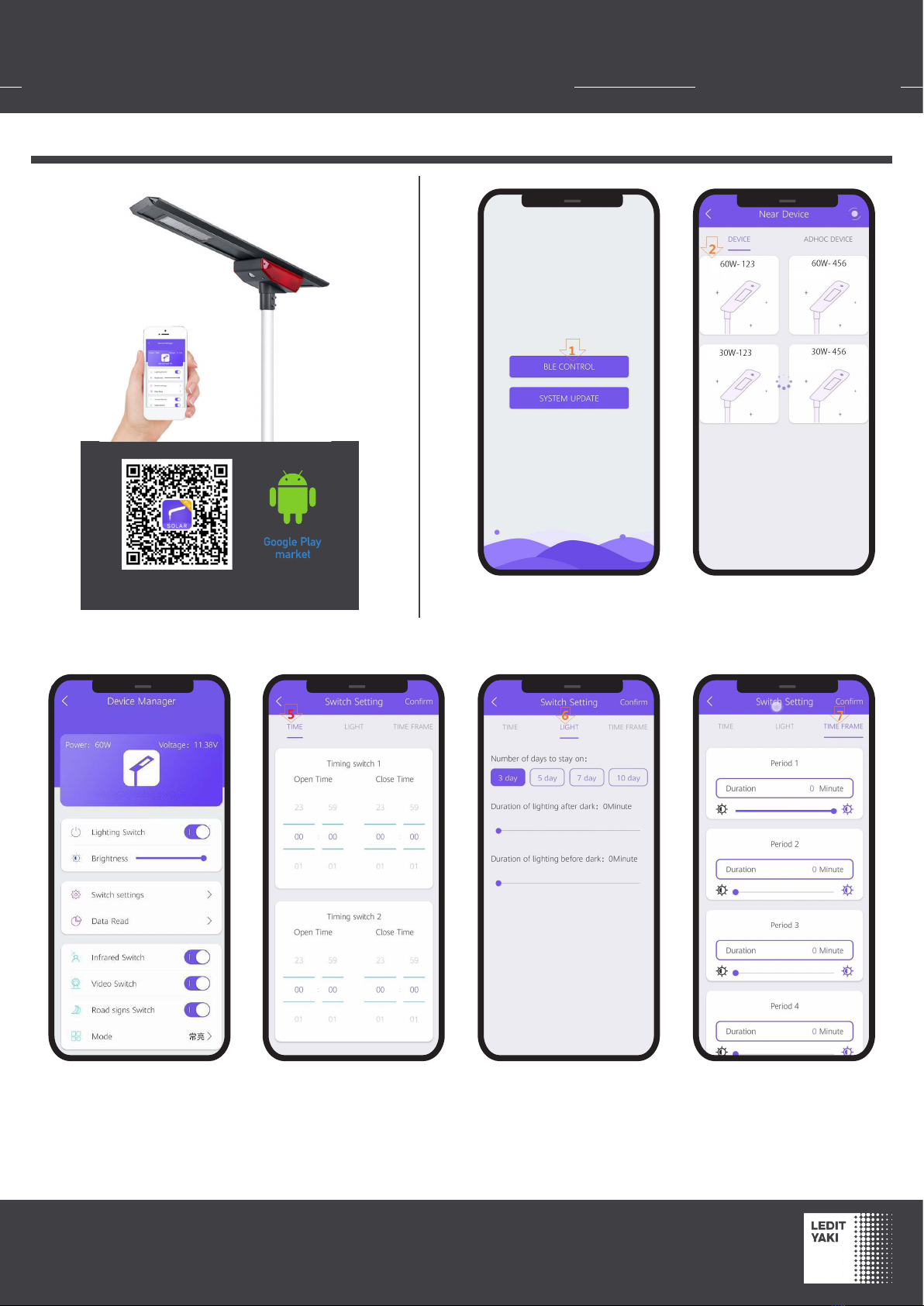

APP INSTRUCTION
Scan code to download APP 1. Open the APP and enter
the homepage.
2. Search the equipment and
connect to the corresponding
solar street lamp.
6. Set overcast rainy/cloudy
days(3/5/7/10 backup days)
, to adjust corresponding
brightness.
7. According to the needs of
the project, set the lighting
time and corresponding
lighting mode arbitrarily.
5 through 7, you can choose
any one of them as final mode
of use.
3. Cellphone Bluetooth APP
connect with street lamp
build-in controller, exchange
data mutually.
4. Click Lighting switch ON/
OFF.
5. Timing Settings
Time control, controller
synchronize local time,
allow set light on/off time
randomly.
RENEWABLE - Area Lighting 30 - 120W
CiTik Solar Slim

CITIK_SOLAR_SLIM-DS-UK-2102-v1
Subject to change without notice. 5
8 and 9:
Can see the real-time status of the solar panels and batteries,
as well as historical data.

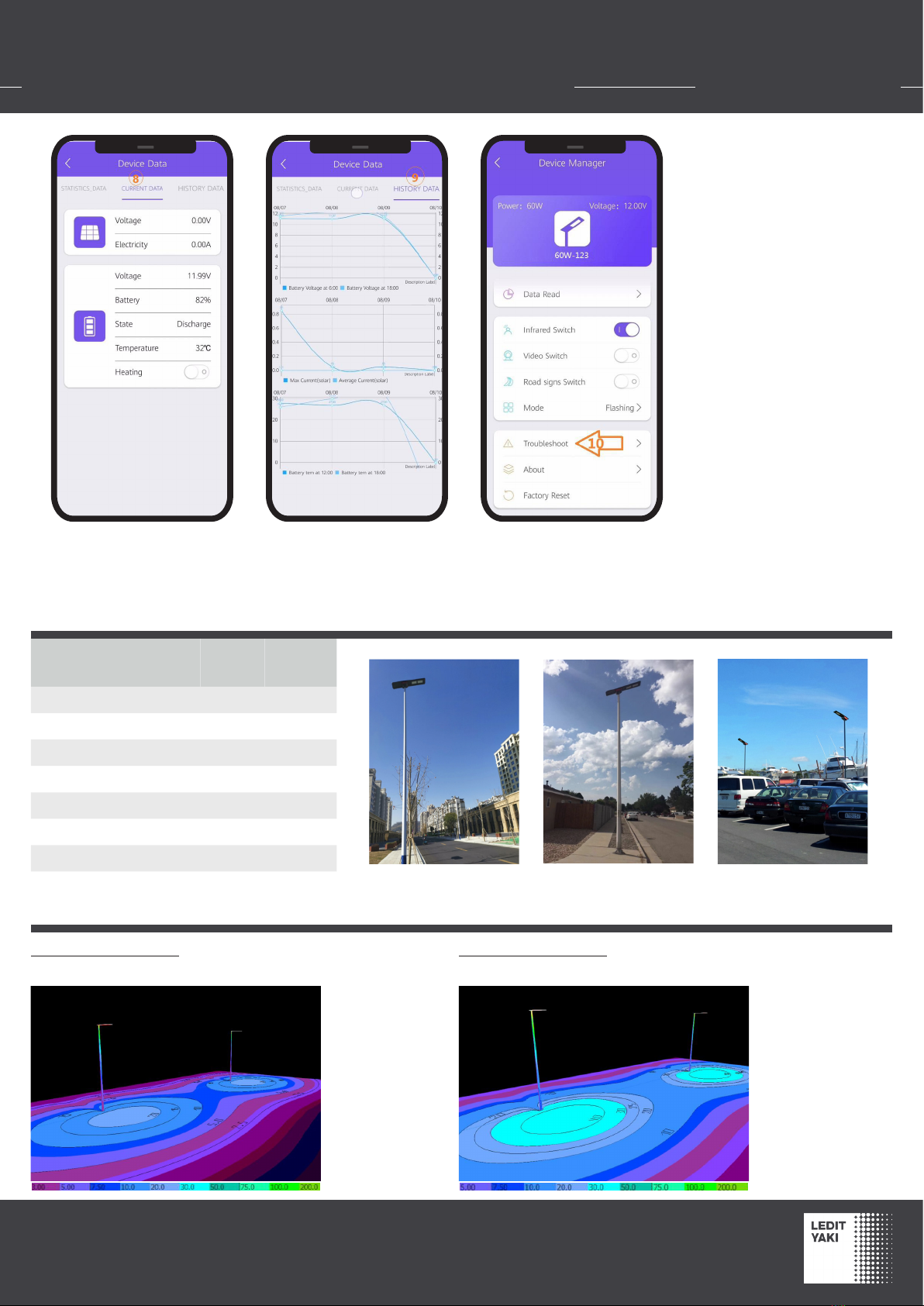

10. Malfunctioning: Problem
identified to make pertinent
maintenance..
DIALUX SIMULATION
Type Max Sensing
Distance
Installation
Height
Installation
Distance
CiTik Solar Slim 30W ≤12m 4-6m 12-18m
CiTik Solar Slim 40W ≤12m 5-7m 15-21m
CiTik Solar Slim 50W ≤12m 6-8m 18-24m
CiTik Solar Slim 60W ≤12m 7-9m 21-27m
CiTik Solar Slim 80W ≤12m 8-10m 24-30m
CiTik Solar Slim 100W ≤12m 9-11m 27-33m
CiTik Solar Slim 120W ≤12m 10-12m 30-36m
INSTALLATION
CiTik Solar Slim 50W
Height: 6m Distance: 18m Brightness : 50%
CiTik Solar Slim 50W
Height: 6m Distance: 18m Brightness : 100%
RENEWABLE - Area Lighting 30 - 120W
CiTik Solar Slim

CITIK_SOLAR_SLIM-DS-UK-2102-v1
Subject to change without notice. 6
Type Size
L x W x H (cm)
Size
L x W x H (ft)
Weight
(kg)
Weight
(lb)
Units
(pcs)
CiTik Solar Slim 30W 98,5 x 42,5 x 38 3,2 x 1,4 x 1,2 30,8 67, 9 2
CiTik Solar Slim 40W 116 x 42,5 x 38 3,8x 1,4 x 1,2 34,3 75,6 2
CiTik Solar Slim 50W 131 x 44 x 40 4,3 x 1,4 x 1,3 35,9 79,2 2
CiTik Solar Slim 60W 149 x 42,5 x 38 4,9x 1,4 x 1,2 43,2 95,2 2
CiTik Solar Slim 80W 163 x 42,5 x 38 5,4 x 1,4 x 1,2 46,1 101,6 2
CiTik Solar Slim 100W 181,5 x 42,5 x 38 6 x 1,4 x 1,2 52,4 115,5 2
CiTik Solar Slim 120W 202,5 x 42,5 x 38 6,6 x 1,4 x 1,2 54 119 2
PACKAGING
NORMS & CERTIFICATES
THERMAL BEHAVIOUR
▶EN 55015: 2013+A1:2015
▶EN 61547: 2009
▶IEC 62321-3-1:2013
▶IEC 62321-5:2013
▶IEC 62321-4:2013+AMD1:2017 CSV
▶IEC 62321-6:2015
▶IEC 62321-7:2015
▶IEC 62321-7-2:2017
▶IEC 62321-8:2017
The temperature limits indicated below are expressed in ºC, at full load, after 3h of operation conditions, with natural
convection:
▶Operation temperature: Ta -25°C to +65°C
The life of the product will decrease when the maximum temperature limits are exceeded.
If operating for a continuous extended time at temperatures exceeding the maximum limits, the product can fail and our
warranty will be voided.
WARRANTY
The warranty in the datasheet is for the entire product. The battery also has the same warranty.
(When the min and max values are not indicated, the tolerance range for optical and electrical data is ±15 %.)
SOLAR PANEL
Solar panel (W) Lithium battery (WH)
45 230
55 288
65 346
75 404
85 519
95 692
105 808
MAINTENANCE
▶Regularly clean the solar panel from dirt spots, dust or other kinds of soiled is suggested to assure the charging
efficiency.
▶Regular maintenance is suggested to keep the locking screws of pole are secured to the ground, and keep the pole
clear from rust or corrosion.
RENEWABLE - Area Lighting 30 - 120W
CiTik Solar Slim
