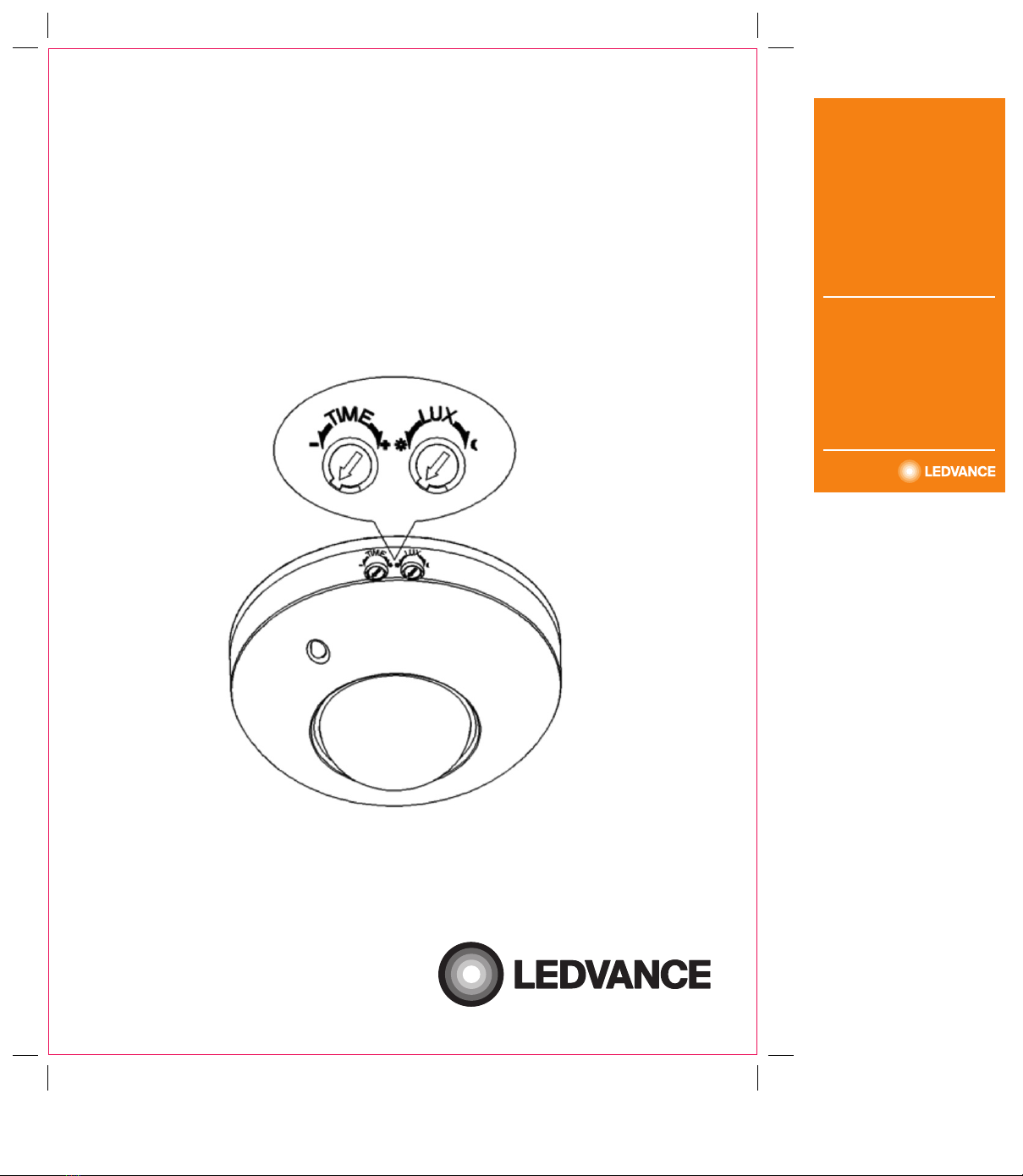

LEDVANCE LMS Sensor Value Infrared
3
black
score dimension 148 x 210 mm
How to Install:
a. Switch off the power.
b. Turn the bottom-cover anti-clockwise and unload it.
c. The power wire goes across the hole in the middle of bottom-stand.
Connect the power wire into connectors according to the wire connection diagram.
d. Fix the bottom-stand on the selected position with inflated screw.
e. The sensor should be aimed at the mouth of bottom-stand and turned clockwise.
f. Switch on the power and test it according to the testing guide.
Wire Connection diagram:
(See the right figure)
Connect L, N with power;
Connect N, A with load.
SENSOR INFORMATION
Testing Before Using:
a. Turn the TIME knob anti-clockwise to the minimum (-) and turn the LUX knob clockwise to the maximum (sun).
b. When you switch on the power, the sensor and its connected load will have no signal at the beginning. After
warm-up for 30sec, the sensor can start to work. If the sensor receives the induction signal, the lamp will turn
on. While there is no other induction signal any more, the load should stop working within 10sec±3sec and the
lamp would turn off.
c. When the sensor receives the second induction signals within the first induction, it will restart to time from that
moment.
d. Turn LUX knob anti-clockwise to the minimum (-). If the ambient light is less than 10LUX (darkest), the inductor
load could work when it receives induction signal.
Note: When testing in daylight, please turn LUX knob to (SUN) position, otherwise the sensor lamp could not
work! If the load is >60W, the distance between lamp and sensor should be longer than 60cm.
Product Features:
a. Infrared motion sensor with integrated photocell sensing function can help to save power consumption via turn
on and turn off the power according to its setting; It detects human motion within its detection range.
b. Selectable time delay period from 10 seconds to 15 minutes via knob switch;
c. Selectable daylight sensing level from 10 lux to 2000 lux via knob switch.
Product Specification:
a. Detection method: Infrared motion sensor with photocell integrated
b. Power Input: 220-240V/AC
c. Input Frequency: 50/60Hz
d. Detection Range: 360°
e. Installing Height: 2.2~4m
f. Ambient Light (Selectable): <10-2000LUX
g. Time-Delay (Selectable):
• Min.:10sec±3sec;
• Max.: 7min±2min;
h. Nominal Power Consumption: 0.9W
i. Transmission Power: <10mW
j. Maximum Rated Load:
• 1200W (incandescent lamp)
• 300W (energy-saving / led-lamp)
k. Detection Motion Speed: 0.6~1.5m/s
l. Detection Distance (selectable): 6m (<24°C)
Selectable Functions via Knob:
a. Selectable daylight luminance level: Sensing luminance level can work both in the daytime and at night when
you select the “sun” position (max) via knob. It can work in the environment that the luminance is less than
10LUX when it is adjusted to the “moon” position (min). As for the adjustment pattern, please refer to the testing
pattern.
b. Time-Delay is added continually: When sensor receives the second induction signal after the first induction, it
will perform the time delay period again according to the 2nd induction.
c. Selective time delay period length: It can be set according to the consumer’s desire. The minimum delay period
is 10sec±3sec. The maximum delay period is 7min±2min.
Installation Guide and product diagram
INSTALLATION ADVICE:
As the detector responds to changes of temperature, please avoid the following situations:
a. Avoid directing the detector towards objects with highly reflective surfaces, such as mirrors etc.
b. Avoid mounting the detector near heat sources, such as heating vents, air conditioning units, light etc.
c. Avoid directing the detector towards objects that may move in the wind, such as curtains, tall plants etc.
3m 3m
Max:3m Max:3m
360°
