LeeBoy 7000 User manual

PARTS MANUAL
7000 Conveyor Paver
Manual No. 7000102

USER'S REFERENCE INFORMATION
DELIVER DATE _
TYPE
ENGJNE~ _
DEALER'S NAME &ADDRESS
EQUIPMENT
SERIAL NO. _
ENGINE NO
•. _
EQUIPMENT HOURS
---------
SAFETY NOTICE
All danger points about the 7000 are explained and labeled by decals to the best of our knowledqe, If
anyone in
the field discovers anything omitted, please notify your closest dealer or factory.

£ •• '-,
ONE YEAR
LIMITED WARRANTY
EFFECTIVE FOR UNITS SHIPPED AFTER DECEMBER 1, 2001
LeeBoy
688 North
Highway 16
Denver,
North Carolina 28037
www.LeeBoy.com
, WARRANTY
1. If a defect in material or workmanship is found and the
authorized dealer is notified during the warranty period, LeeBoy
will repair or replace any part or component
of the unit or part
that fails to conform to the warranty during the warranty period.
2. The warranty date
will begin upon the completion of the
warranty form by the initial customer and
will expire after
twelve (12) months have passed. The Warranty Card should
be filled out
within (10) days of delivery of the unit.
3. Engines are warranted by their manufacturers and
may have
warranty coverage that differs
from that of LeeBoy.
4. Replacement parts furnished by LeeBoy are covered
for the
remainder of the warranty period applicable to the
unit or
component in which such parts are installed.
5. LeeBoy has the right to repair any component or part before
replacing it with a new part.
6. All
new replacement parts purchased by a LeeBoy dealer will
carry a six (6) month warranty. Remanufactured parts purchased
by a LeeBoy dealer will carry a ninety (90) day warranty.
LIMITATIONS
LeeBoy has no obligation under this warranty for:
1. Any defects caused by misuse, misapplication, negligence,
accident or failure to maintain or use in accordance
with the
most current operating instructions.
2. Unauthorized alterations.
3. Defects or failures caused by any replacement parts or
attachments
not manufactured by or approved by LeeBoy.
4. Failure to conduct normal maintenance and operating
service, including
without limitation, providing lubricants,
coolant, fuel, tune-ups, inspections or adjustments.
5. Unreasonable delay, as established by LeeBoy, in making
- the applicable units or parts available upon notification of
a service notice ordered by LeeBoy.
6. The warranty responsibility on all engines rests with the
respective manufacturer.
7. LeeBoy
may have support agreements with some engine
manufacturers
for warranty and parts support.
ITEMS NOT COVERED
LeeBoy is not responsible for the following:
1. Charges
for travel time, mileage, or overtime.
2. Charges related to transporting the product to and
from the
place at which warranty work is performed.
3. Airfreight charges related to transporting repair parts to
the
place at which warranty work is performed.
4. All used units or used parts
of any kind.
5. Repairs due to normal wear and tear,or brought about by abuse
or lack
of maintenance of the equipment, except for premature
failures, conveyor chains, polytrack pads, and track rails.
6. Attachments
not manufactured or installed by LeeBoy.
7. Liability
for incidental or consequential damages of any type,
including, but not limited to lost profits or expenses of acquiring
replacement equipment.
8. Miscellaneous charges.
OTHER WARRANTIES
THE FOREGOING WARRANTY IS EXCLUSIVE AND IN LIEU OFALL OTHER
EXPRESSED, STATUATORY AND IMPLIED WARRANTIES APPLICABLE TO UNITS,
ENGINES, OR PARTS WITHOUT LIMITATION, ALL IMPLIED WARRANTIES OF
MERCHANTABILITY OR FITNESS FOR ANY PARTICULAR USEOR PURPOSE.
IN NO EVENT, WHETHER AS A RESULT OF BREACH OF CONTRACT OR
WARRAN~ OR ALLEGED NEGLIGENCE OR LIABILITY WITHOUT FAULT, SHALL
LEEBOY BE LIABLE FOR SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES,
INCLUDING WITHOUT LIMITATION, LOSSOF PROFIT OR REVENUE, COSTOF
CAPITAL, COSTOF SUBTITUTED EQUIPMENT, FACILITIES OR SERVICES,
DOWNTIME COSTS, LABOR COSTS ORCLAIMSOF CUSTOMERS, PURCHASERS
OR LESSEES FOR SUCH DAMAGES.

Index
GENERAL STATEMENT.•.......................................................................................................1
IMPORTANT SAFETY INSTRUCTIONS ...........................................•....................................2
SAFETY PRECAUTIONS ..................................................................•....................................3
SPECIFICATIONS..................................................•.............................•..................................4
SAFETY PRECAUTIONS AND GENERAL INFORMATION 5
PRE-START INSPECTION........................................................•.........•........•.................5
OPERATING SAFETY ..•......................................•.•.................•..•......•........•.................5
STOPPING SAFETY ....•...........................................................•...................................5
MAINTENANCE SAFETY ..................................•.........................................................5

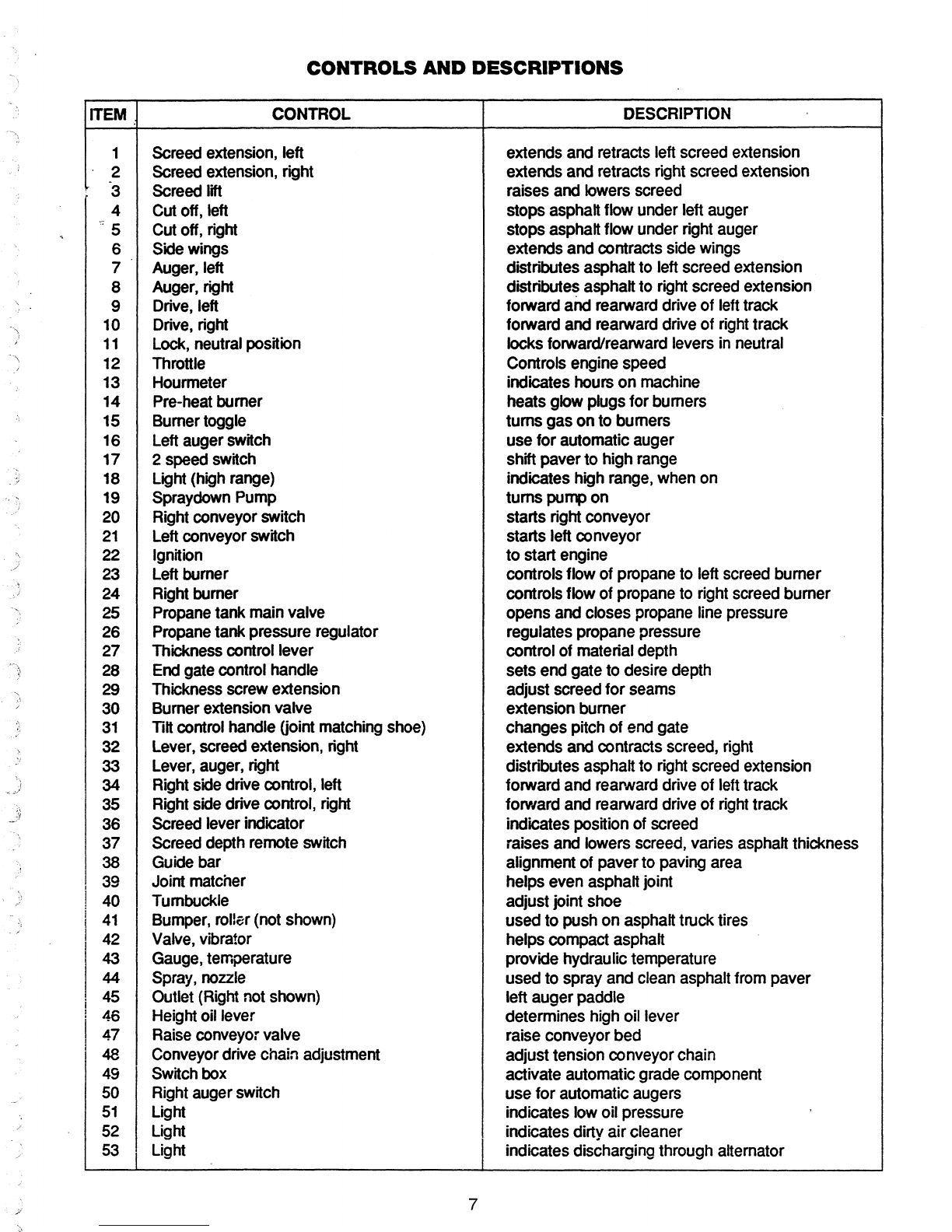

CONTROLS AND DESCRIPTIONS 6&7
STARTING THE ENGINE ..•.....................................................•..........•..........•........................8
PRELIMINARY .•......•....................................................••...................•..........................8
ENGINE/START-UP ....•..............................................•.................................................8
STOPPING THE ENGINE (Diesel Engine) 8
PAVER DRIVING INSTRUCTIONS 8
TRUCK HITCH ATTACHMENT (OPTIONAL) 9
PAVER PREPARATION INSTRUCTIONS 10
BURNER IGNITION PROCEDURES .........................•..•...............•............................10
IF
BURNERS DON'T IGNITE "10
MANUAL LIGHTING OF BURNERS...............................................................•..........11
OPERATING FEEDER ••................•........................•.................•.................................12
OPERATION OF ELECTRIC
FLIGHT SCREW 13
USE OF AUGER EXTENSIONS...................................•.............................................13

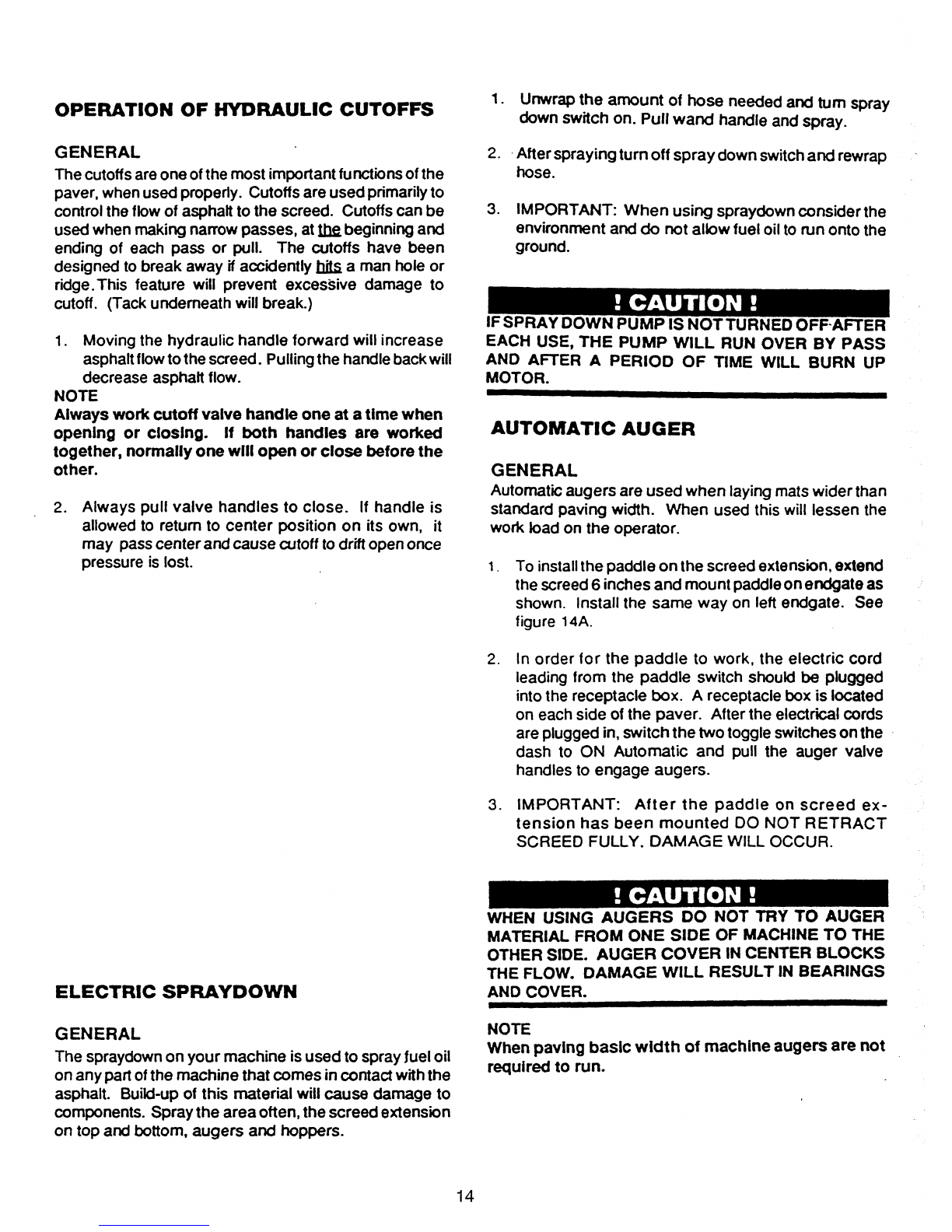

OPERATION OF HYDRAULIC CUTOFFS 14
ELECTRIC SPRAYDOWN 14
AUTOMATIC AUGER 14
AUTOMATIC AUGER: NEW STYLE (Tied in with Conveyors) 15
HOW TO OPERATE 15
LOADING AND UNLOADING 16
TIE DOWN PROCEDURES 17
PAVER PREPARATION INSTRUCTIONS 18
STARTING TO PAVE 18
SETTING SCREE·D TO PAVE 19
SETTING SCREED ENDGATES 20
SETTING SCREED EXTENSIONS (Used
When Paving Over 8 Feet) 21
PAVER OPERATION 21
ROUTINE MAINTENANCE
10 -
HOUR OR DAILY ROUTINE MAINTENANCE 22
50 -
HOUR OR WEEKLY ROUTINE MAINTENANCE .: 22
100 -HOUR OR MONTHLY ROUTINE MAINTENANCE 23
250 HOUR OR QUARTERLY ROUTINE MAINTENANCE 24
500 -HOUR OR SEMI-ANNUAL ROUTINE MAINTENANCE 24
1000 -HOUR OR ANNUAL ROUTINE MAINTENANCE 24
i

Index (Continued)
LUBRICATION CHART •..•••••...•.....................•..•..............•.•••..•.........•................••.•••....••.•.....25
MAINTENANCE ADJUSTMENTS .....................•.........•........................................................26
TO RAISE FEEDERS ...•.......•......................•.........•....................................•...............26
LOWERING FEEDERS •.............................................................................................27
FEEDER
FLIGHT CHAIN ADJUSTMENT 27
AUTOMATIC
TRACK ADJ USTMENT...................•....................................................27
DIRECTIONAL CONTROL ADJUSTMENTS 28
FORWARD OR REARWARD (CABLE CORRECTION) 28
FEEDER DRIVE CHAIN ........................................•..............................................•.....28
AUGER DRIVE CHAIN..........................................•.........•...•......................................28
CONVEYOR LIMIT SWITCH 29 &30
ELECTRIC
DIAGRAM FOR 7000 PAVER .........•.•.••.•......•..•.•.•..•....•.•.....•......•....•..•..............31
HYDRAULIC
DIAGRAM FOR 7000 PAVER ....................•.•.••.•.......•..............•.•..•••..........•.•..32
TROUBLE SHOOTING GUiDE 33 &34
Ii

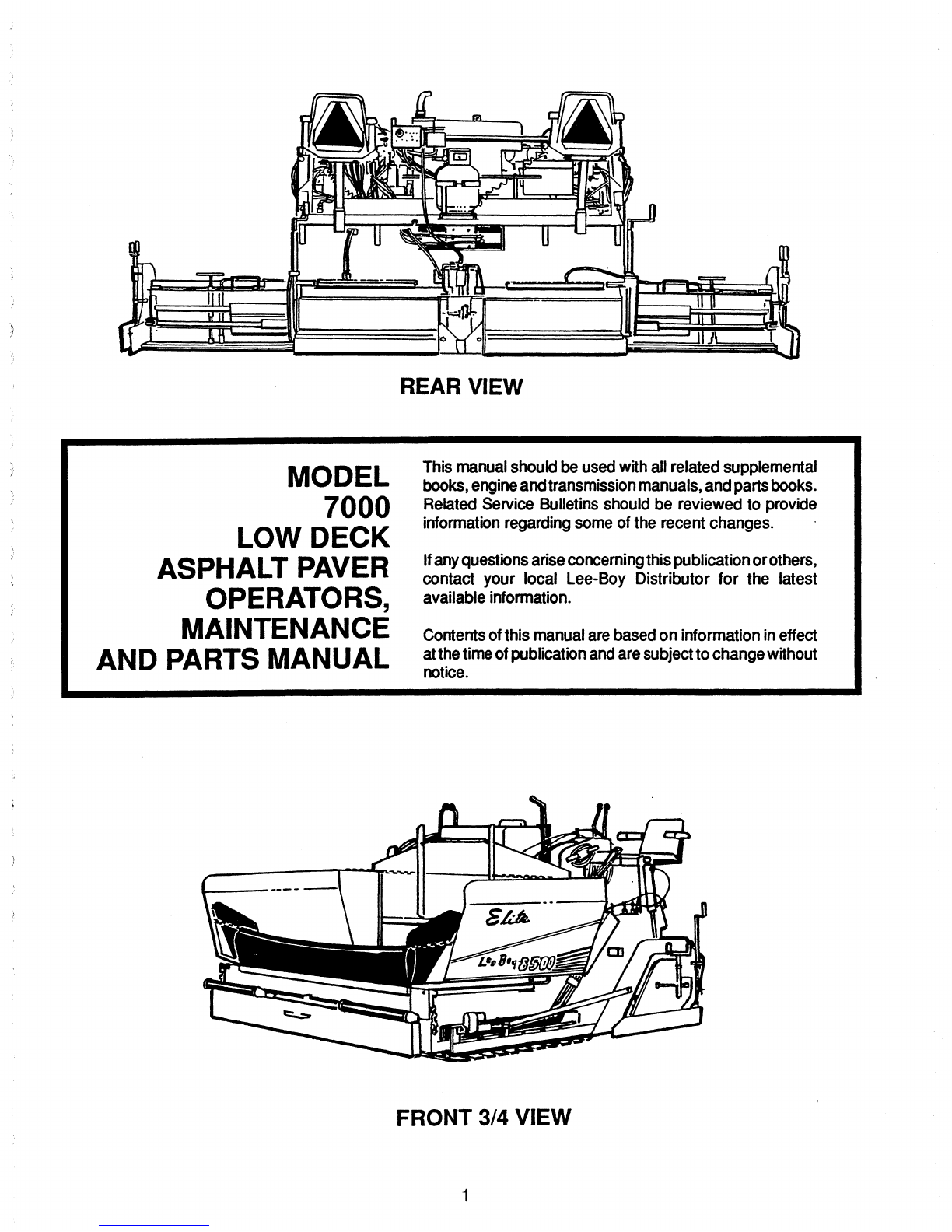

REAR VIEW
MODEL
7000
LOW DECK
ASPHALT PAVER
OPERATORS,
MAINTENANCE
AND PARTS MANUAL
This manual shouldbe usedwithallrelatedsupplemental
books, engine and transmission manuals, andparts books.
Related service Bulletins should be reviewed to provide
information regarding some oftherecent changes.
Ifanyquestionsarise concerning thispublicationor others,
contact your local Lee-Boy Distributor for the latest
available information.
Contents ofthis manual are based oninformation in effect
atthetimeofpublication andaresublecttochangewithout
notice.
FRONT 3/4 VIEW
1

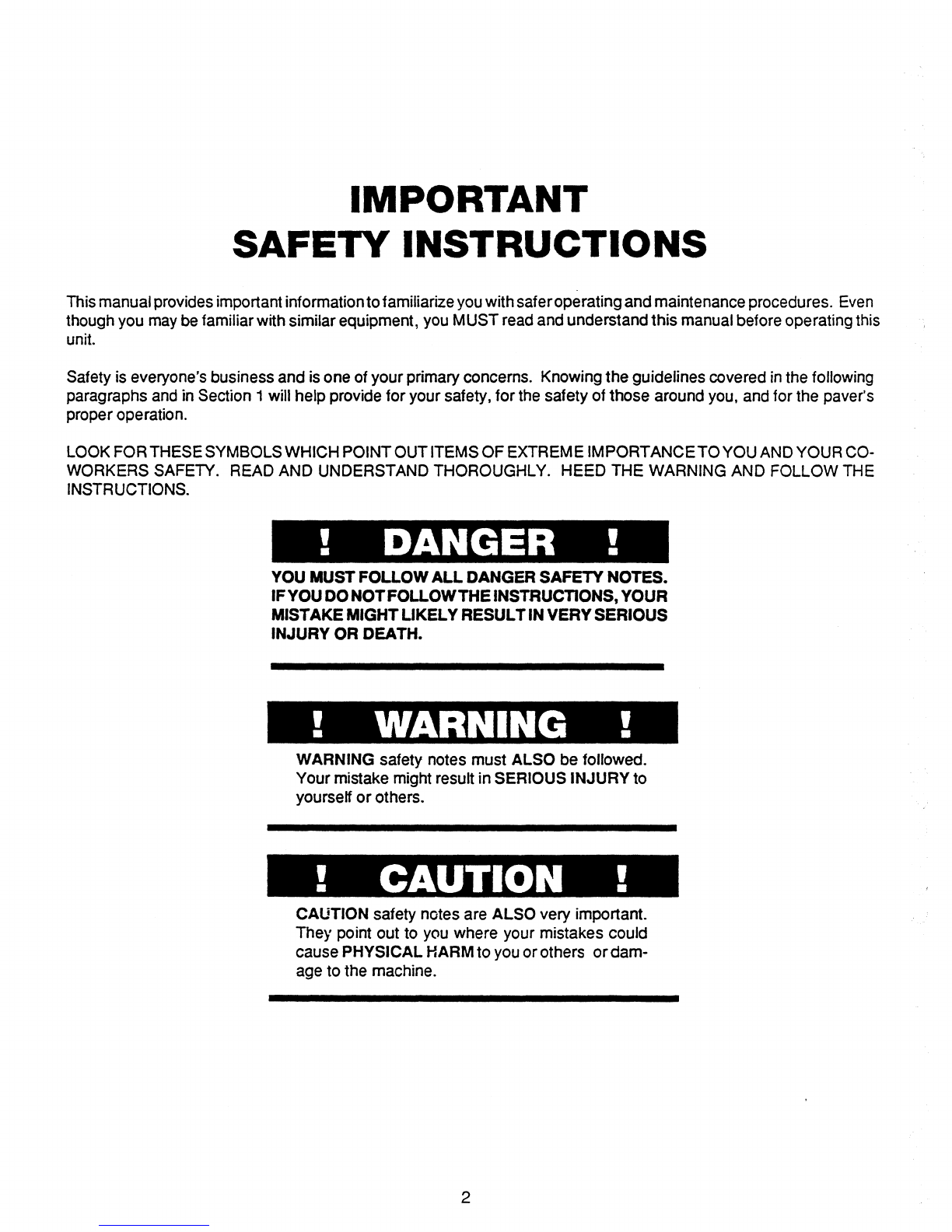

IMPORTANT
SAFETY INSTRUCTIONS
Thismanualprovidesimportantinformationtofamiliarizeyouwithsaferoperating andmaintenanceprocedures. Even
though you may be familiarwith similarequipment, you MUST read and understandthis manual before operatingthis
unit.
Safety is everyone's business and is one of yourprimary concerns. Knowing the guidelines covered in the following
paragraphs and in Section 1will help provide for your safety, for the safety of those around you, and for the paver's
proper operation.
LOOKFORTHESESYMBOLSWHICH POINTOUTITEMSOF EXTREMEIMPORTANCETOYOUANDYOUR CO-
WORKERS SAFETY. READ AND UNDERSTAND THOROUGHLY. HEED THE WARNING AND FOLLOW THE
INSTRUCTIONS.
! DANGER !
YOU MUST FOLLOW ALL DANGER SAFETY NOTES.
IFYOUDONOTFOLLOWTHE
INSTRUCnONS, YOUR
MISTAKEMIGHT LIKELYRESULT INVERY SERIOUS
INJURY OR DEATH.
!WARNING !
WARNING safety notes must ALSO be followed.
Your mistake might result in SERIOUS INJURY to
yourself or others.
!CAUTION !
CAUTION safety notes are ALSO very important.
They point out to you where your mistakes could
cause PHYSICAL HARM to you or others or dam-
ageto the machine.
2

SAFETY PRECAUTIONS
If your paver has been repainted, itis extremelyimportantthatall the decalsreferringto cautions,warningsand danger
be replaced in their proper locations. The illustrations on this page will aid you in determining the proper locations,
however, for additional help, you should refer to the part listing in the parts section of this manual and note the
description column. Underthis column adescription on location is provided for each decal. If you still need more
explicit instructions, contact your dealer.
! IMPORTANT !!
IMPORTANT !
ItIs the responsibility of the owner and operatorto make sure that all decals are readable and locatedon paver
as designated by manufacturer.
WARNING
IIYDRAULIC OIL
!lliLX
KEEP CLEAN
8
4
9
6
2
6
DANGER
PINCH POINT
34
1-15
7
CAUTION
fLIGHTSCREW HANDLE
rJUST DE IN LOCKED
POSITION WHEN RAISING
SCREED.
DAr."~GE COULD OCCUR
TO HAND.
SEAT on
5CRE\.v IF NOT LOCKED.
Al\VAVS REr.10VE HAND
WHEN RAISING·SCFlE£O.
WARNING: .l.
tlOI ELAr.1M~BL~
HE.'\T cor.~lIiG OUT eJD ~
or scner 0 COULO nunr.
011 c.ncil CLOTHIr~G orJ
finE rr NOTCAREfUL.
fJEVEn SPRAY Furl ou
mJscnrro WHEtJ
sunurns ARE on. W'
A-. RNI NG· ALWAYS FOLD SIDEWINGS
~ ON HOPPER OUT BEFORE
.. RAISING CONVEYOR.
8
DANGER
Keep Hands&
Clothing Clear-of
Augers & Con\l9Yors
9
6
DO NOT OPERATE OR TO\V THIS
MACHINE VIITHOUT FIRST
FULLY UNDERSTAiJDlrJG
THE CONTENTS OF THE
OPERATORS r.1ANUAL.
10
II
GREASE TO
ADJUST TRACKS
---.-.
CAUTION
USE HAND GREASE PUMP ONLY
00 NOT OVERGREASE., STOP PUIFINO
ATFIRST SKiN OF BACK PRESSUR£
12
3
13
14

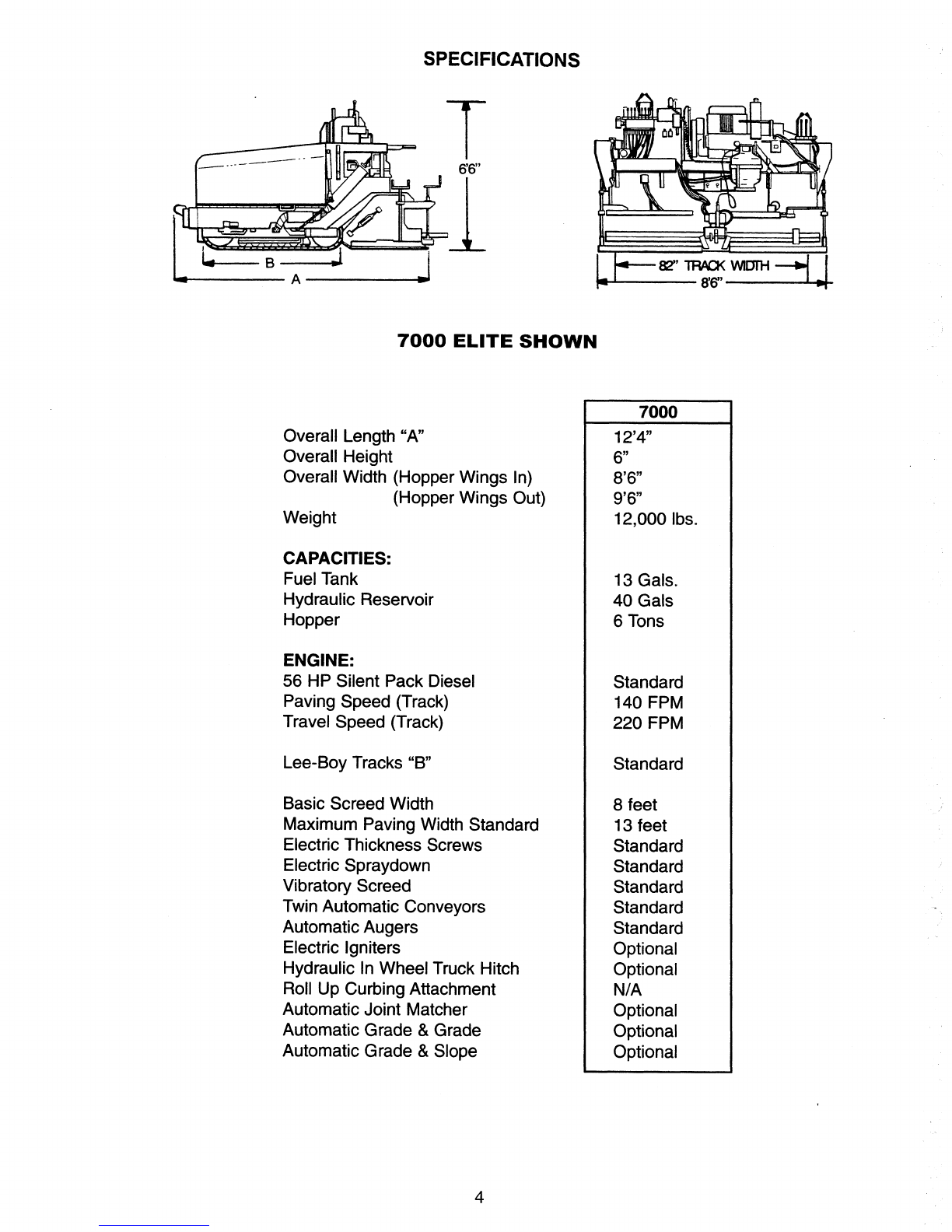

SPECIFICATIONS
-------A--------.
T
6'6"
82" lRACK VVI(JTH ~ I
-.....---- 8'6"--~
7000 ELITE SHOWN
7000
Overall Length "A"
Overall Height
Overall Width (Hopper Wings In)
(Hopper
Wings Out)
Weight
CAPACITIES:
Fuel Tank
Hydraulic Reservoir
Hopper
ENGINE:
56 HP Silent Pack Diesel
Paving Speed (Track)
Travel Speed (Track)
Lee-Boy Tracks "B"
Basic Screed Width
Maximum Paving Width Standard
Electric Thickness Screws
Electric Spraydown
Vibratory Screed
Twin Automatic Conveyors
Automatic Augers
Electric Igniters
Hydraulic In Wheel Truck Hitch
Roll Up Curbing Attachment
Automatic Joint Matcher
Automatic Grade &Grade
Automatic Grade &Slope
4
12'4"
6"
8'6"
9'6"
12,000Ibs.
13 Gals.
40 Gals
6Tons
Standard
140 FPM
220 FPM
Standard
8feet
13 feet
Standard
Standard
Standard
Standard
Standard
Optional
Optional
N/A
Optional
Optional
Optional

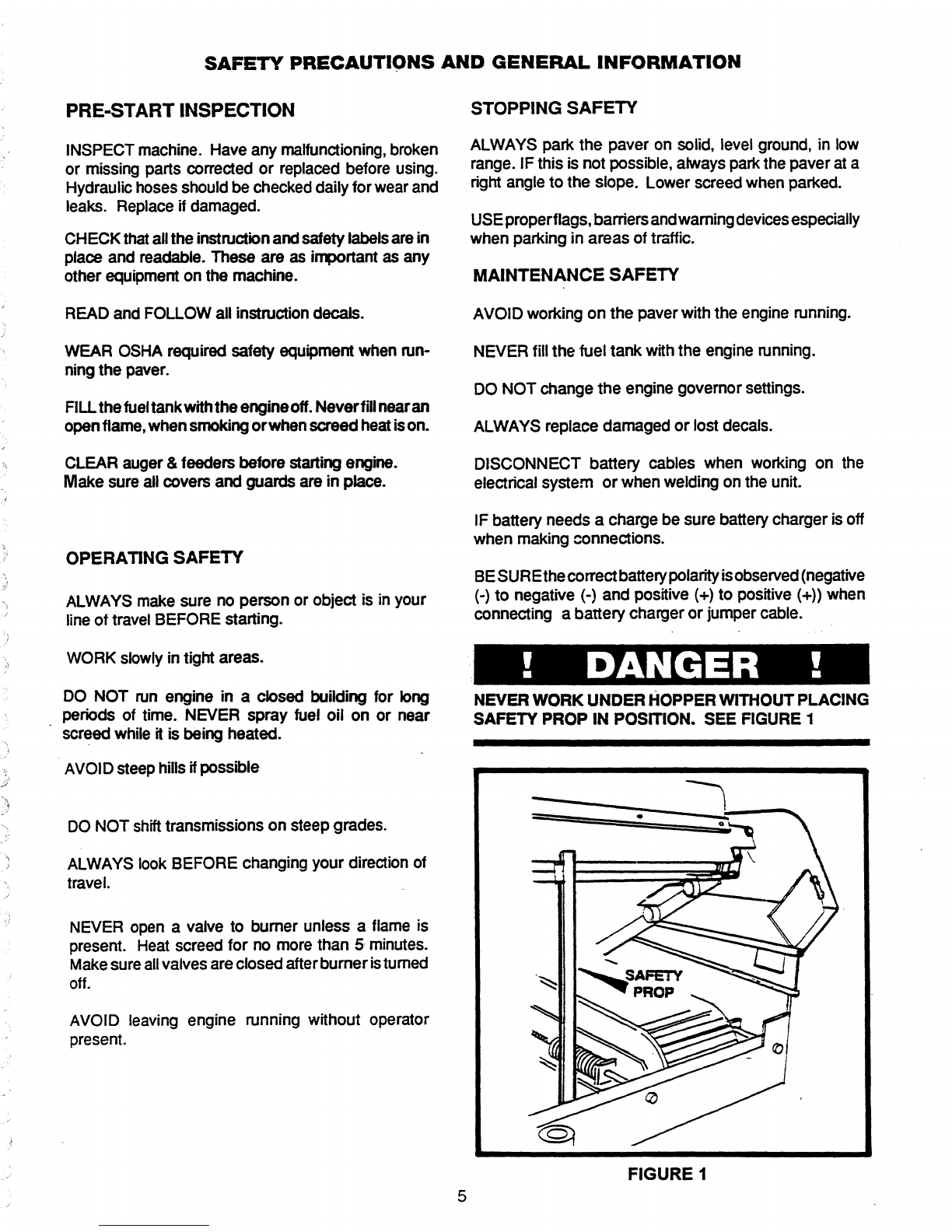

SAFETY PRECAUTIQNS AND GENERAL INFORMATION
PRE-START INSPECTION
INSPECTmachine. Haveany malfunctioning, broken
or missing parts corrected or replaced before using.
Hydraulichosesshouldbe checkeddaily forwearand
leaks. Replaceifdamaged.
CHECKthatallthe instructionandsafetylabelsarein
place and readable. These are as important as any
other equipmenton the machine.
READand FOLLOWall instructiondecals.
WEAR OSHA required safety equipment when run-
ningthe paver.
FILLthefueltankwiththeengineoff.Neverfillnearan
openflame,whensmokingorwhenscreedheatison.
CLEAR auger&feeders before startingengine.
Make sure allcoversandguardsarein place.
OPERATING
SAFETY
ALWAYS make sure no person or object is in your
lineof travel BEFORE starting.
WORK slowlyin tight areas.
DO NOT run engine in a closed building for long
perio°ds of time. NEVER spray fuel oil on or near
screedwhile it is being heated.
AVOIDsteephillsifpossible
DONOT shifttransmissions on steepgrades.
ALWAYS look BEFORE changing your direction of
travel.
NEVER open a valve to burner unless a flame is
present. Heat screed for no more than 5· minutes.
Makesureallvalvesareclosedafterburneristurned
off.
AVOID leaving engine running without operator
present.
5
STOPPING SAFETY
ALWAYS park the paver on solid, level ground, in low
range. IFthis is not possible, alwaysparkthe paverata
right angle to the slope. Lower screedwhen parked.
USEproperflags,barriersandwamingdevicesespecially
when parking in areas of traffic.
MAINTENANCE SAFETY
AVOIDworking on the paverwith the engine running.
NEVERfill the fuel tank with the engine running.
DO NOT change the engine governor settings.
ALWAYS replace damaged or lost decals.
DISCONNECT battery cables when working on the
electrical system or when weldingon the unit.
IF battery needs a charge be sure batterycharger is off
when making connections.
BESUREthecorreetbatterypolarityisobserved(negative
(-) to negative (-) and positive (+) to positive
(+» when
connecting abattery charger or jumper cable.
! DANGER !
NEVERWORK UNDER HOPPERWITHOUTPLACING
SAFETY PROP IN POSITION. SEE FIGURE 1
FIGURE 1

~B
.. .....
VIEW IN BOX D
VIEW IN BOX F
6
25
~ .... --F ...... ---
VIEW IN ~OX C
21 20 19 18 1752'53
43 VIEW IN' DIRECTION OF ARROW A ... ------ ....
~ 26
45

CONTROLS AND DESCRIPTIONS
ITEM CONTROL DESCRIPTION
1
SCreed extension, left
extends and retracts left screed extension
2
SCreed extension, right extends andretracts right
screed extension
3
Screed lift raisesandlowers
screed
4Cutoff, left stopsasphalt flowunderleftauger
".:: 5Cutoff,right stopsasphaltflow underrightauger
6Sidewings extends andcontracts sidewings
7 Auger, left distributes asphaltto left
screed extension
8
Auger, right distributes asphaltto right
screed extension
9
Drive, left forwardand
rearward driveof lefttrack
10
Drive, right forwardand
rearward driveof righttrack
11
Lock, neutral position locksforward/rearward
levers inneutral
12 Throttle Controls
engine speed
13 Hourmeter
indicates hourson machine
14
Pre-heat burner heatsglowplugsfor burners
15 Burner toggle
tums gasonto bumers
16 Leftauger switch
usefor automatic auger
17 2 speed switch
shiftpaverto high range
18 Light(high
range)
indicates high range, whenon
19
Spraydown Pump
tumspumpon
20
Right conveyor switch startsrightconveyor
21 Left
conveyor switch startsleftconveyor
22 Ignition
to start engine
23 Leftburner controlsflowof
propane to left screed burner
24 Right burner controlsflowof
propane to right screed bumer
25
Propane tankmainvalve opensandcloses propane line pressure
26
Propane tankpressure regulator regulates propane
pressure
27
Thickness control lever controlof material depth
28 Endgatecontrol handle setsendgateto desiredepth
29
Thickness screwextension adjust screed for seams
30 Burner
extension valve extension burner
31
Tin control handle (joint matching shoe)
changespitchof endgate
32 lever,
screed extension, right extendsandcontracts
screed, right
33
Lever, auger, right distributes asphaltto right
screed extension
34
Right sidedrivecontrol, left forwardand
rearward driveof lefttrack
35
Right sidedrivecontrol, right
torwardand rearward driveof right track
36
Screed leverindicator indicatesposition of
screed
37
SCreed depth remote switch
raisesandlowers screed, varies asphalt thickness
38
Guide bar alignment of paverto pavingarea
I39 Joint
matcher
helpsevenasphaltjoint
I40
Turnbuckle
adjustjointshoe
i41
Bumper, roller(not shown)
usedto pushon asphalttrucktires
I42
Valve, vibrator helpscompact asphalt
43
Gauge, temperature
providehydraulic temperature
44 Spray, nozzle
usedto sprayand clean asphalt frompaver
i45 Outlet
(Right not shown)
leftaugerpaddle
I46
Height oillever determines highoil lever
47 Raise conveyor valve raiseconveyor bed
48
Conveyor drivechain adjustment
adjusttensionconveyorchain
49 Switch box activateautomatic grade
component
50 Right auger switch
usefor automatic augers
51 Light indicateslowoil
pressure
52 Light indicatesdirtyair cleaner
53 Light indicatesdischarging through alternator
7

STARTING THE ENGINE
PRELIMINARY
Before you start the engine:
A. Check fuel level and check lines and tank
for
leaks.
B. Check crankcase oil level.
! CAUTION· !
FAILURE TO MAINTAIN CORRECT OIL LEVEL IS
GREATEST SINGLE CAUSE OF ENGINE FAILURES.
c. Check hydraulic oil level. Oil level is
determined by petecek on hydraulic oil tank.
D. Make sure steering control levers are in
the neutral position. To start, the safety latch
lever must be in the latch position.
E. Refer to engine operators manual for
instructions when starting engine for first
time. Follow engine manufacturer's
recommendationsforfuelandoil.
ENGINE/START-UP
Theforward/reverselevers haveasafetylatch leverthat
needsto be latched in position before it will be possible
to start engine.
see figure 2.
1. Openthrottle full.
2. Positiondriveleversto neutral. Putsafety latchlever
in latch position.
3. Insertkey and turn clockwise to start position.
4. Whenengine starts and is running smooth, throttle
back to idle. Allow engine to warm up for several
minutesbeforemoving paver. Thewarm upwill give
the hydraulic oil time to wann, providing for more
efficient operation. In cold weather let hydraulic oil
warm to 500or 600before moving.
NOTE
For your convenience, there is an extra key inside the
switch box in case the original key is lost.
8
FORWARD/REVERSE
LEVERS
~~ '.
SAFETY LATCH LEVER
SHOWNIN UNL6.TCH POSITION
FIGURE 2
NOTE
The use of starting additives, such as ether, is not
recommended.
STOPPING THE ENGINE
DIESEL ENGINE
1. Throttleengine down.
2. Turn ignition key counter-clockwise (CCW) to the
"off" Position and remove.
3. Iffor
any reason the engine does not shutdown
whenkey isturnedto "off",. take pin out 01 clevis on
throttle, backof engine and push throttlecontrol off.
! CAUTION !
DO NOTOPERATETHESTAATER LONGER THAN
30 SECONDS. IF THE ENGINE DOES NOT START,
ALLOW THE STARTER TO COOL 2-3 MINUTES
BEFORE TRYING AGAIN.
PAVER DRIVING INSTRUCTIONS
GENERAL
The forward/reverse plus turning will require exact
movement. The steering levers along with the inter-
connected hydraulic components make possible the
positive control necessary. The following procedures,
plus illustrations in figures 3, 4 and 5,will provide a
working knowledge of operating the paver through
forward/rearward and turning requirements.

1. After the paver has been started and the motor is
warmedup, paver movements maybe made. 5. When making forward/rearward or turns, always
makethese moves
sloWly. Movethesteering levers
slowlyandsmoothlyinthedirectionofintendedtravel.
FIGURE4
FIGURES
6. When stopping, moveboth steering levers to the
neutralposition. Seefigure5.
7. Whenpaving,a constant speedis necessary to lay
an even asphalt mat. Usethe speed lock controlto
holdand retain steering leversin afixed position.
Seefigure5.
8. To makea counterrotation movement, the steering
leversaremovedinopposite directions.
1. Toconnecttruckhitchtorearofasphalttruck,extend
the arm extensionsof the truck hitchby pulling on
armextensoruever. Seefigure 6.
2. Drivepaverslowlytowardrearof truckuntil. roll on
hitchmakescontactwithreartiresoftruck.
TRUCK HITCH ATTACHMENT
(OPTIONAL)
GENERAL
The truck hitch is an optional attachment to several
"Lee-Boy" pavers. It was designed to improve the
asphaltlayingprocess. Thisis mainlyaccomplished by
keepingthetruckdriveroffhisbrakes,preventing exces-
sive and uneven braking. See operating instruction
below.
ct-.
REVERSE
FIGURE3
FORWARD~
3. Depending on the direction of travel, turning the
pavercanbeaccomplishedbypushingorpullingthe
steeringleveron the inside of the turn toward the
neutral position. Referto figure 4.
4. Thetraveling speed of the paver can vary greatly,
bypushingorpullingtheforward/reverse leversfrom
neutraltothefullforwardorreverseposition.
2. Todrivethepaverforward,pushthesteering levers
togetherfromtheneutralpositionforward,likewiseto
driveto the rear,pull the steeringleverstowardthe
rearfrom theneutralposition.Referto figure3.
9

FIGURE 6
3. Retract
the arm extensions until both guide rollers
are fully locked into
truck wheel rims.
4. May be necessaryto adjust the roller guides to the
inside of the wheel rims, initially. See figure 7.
FIGURE 7 10
PAVING PREPARATION INSTRUCTIONS
BURNER IGNITION PROCEDURES:
GENERAL
The heating of the screed will require extreme care. The
propane
gas used to heat the screed is avolublecombus-
tible
that if treated with respect will not present aproblem.
Follow
the procedures below and refer to the illustration
figure 8 as required.
1. Make sure extension burners are turned off.
2. Fill propane bottle.
GAUGE
FIGURE 8
3. Set regulator at 15 Ibs.
4. Tum main burner valve on.
5. Start engine
and set throttle to about 1/4 R.P.M.
IF BURNERS DON'T IGNITE:
Ifburners don't igniteafterrepeating the proceduresabove,
follow these procedures below.
1. Tum main burner valves off. See figure 11.
, ! CAUTION!
NEVER OPEN A VALVE TO BURNER UNLESS FLAME
IS PRESEtjT. A BUILD UP OF UNBURNED GAS COULD
RESULT IN A GAS EXPLOSION!

2. Flipburnertoggletotheonposition.This allowsflowof
propaneto the valves. Seefigure 10.
3. Useextensionbumerto lightmainbumers manually.
Hold extensionbumerat end of mainburnerandtum
valveon. Repeatthisprocedureforoppositeside.see
figure9 .
4. Extensionburners arelit manuallyby removingfrom
quickcoupling connector. Turn valve'on extension
burner and use lighter to light. Place burner back
into holding socket and repeat this process for
oppositeside. See figure 12.
5. Afterscreedhasheatedfor about10 minutes,turnthe
burnersoff. Dothis byturningburnertoggleondashto
offposition. See figure 10.
..... ',",.
FIGURE9
11
NOTE
Heatingthe screedhelps prevent hotmixfrom sticking to
the cold screed plate and produces a
smooth, tight mat
surface. Heating should not only be performed at the
beginningofthejob,butalsoifthe
machine isidleforalong
timebetweenloads(allowingscreedplateto cool).
NOTE
If paving on a 0001 windy day it may be necessary to
maintain low heat on the screed. To accomplish this,
reduce thepressureonthepropanetankfrom6-8 pounds
to 2pounds. Thiswill providea lowevenheatthatwill not·
harmthescreed.Donotattempttoregulatetheburnerwith
the burnervalve.
! CAUTION!
IFFLAMECOMESFROM END OF SCREED, SLOWLY
TURN PETCOCK TO OFF. ALLOW FLAME TO GO
OUT AND TURN PETCOCK BACK ON FULL.
! CAUTION!
TOO MUCH HEAT FOR TOO LONG CAN WARP
SCREED PLATE AND CAUSE MAT TEXTURE
PROBLEMS. WARP SCREED SHOULD BE RE-
PLACED.
MANUAL LIGHTING OF BURNERS
Theprocessforlightingtheburnersmanuallyisnotdifficult.
Thefollowingprocedurewill providethenecessarystepsin
lighting the burners. It is important to remember that
propaneisa voluble gas andfor this
reason safetyshould
be amajorconsideration.
CAUTION! CAUTIONI CAUTION!
1. Tumoffallburnervalves. See Figure 11.
. 2. Tum mainpropanevalveonandsetregulatorat 15
Ibs. Referto figure 8.
3. Jghite burnerwith strikeror lighter. Seefigure9.
4. Hold ignitorburner at endof mainburner. To light
main burner
turn burner valve on. See figure 11.
(NEVERTURNBURNERVALVEON UNLESS FLAME
IS PRESENT.)
5. Repeatprocedure in step4 for opposite side.
a. The extension burners are held in position to the
screed with a quick coupling
connection. Remove the
extension burnerfrom quickcouplingconnectorand
light. Seefigure 12.

7. Replace extension burner back into hole and on to
quick coupling connector.
FIGURE 11
FIGURE 12
OPERATING FEEDER
GENERAL
The feeder is a very important part of the paver and for
thisreason close attention should begivenon intergrading
its operation into the total operation of the paver. Follow
the procedure below.
1. Before rasing or lowering feeders, fold sides in and
out by hand. (The side rails have a double action
motioncausing
the in and out movement.) Never use
cylinder pressure to
lower sides into place after
loweringfeeder. This
may bend sides or break the
chains on the sides.
2. Whenloweringfeeder,
do not lower under pressure.
Let the feeder down with engine shut off.
3. Do not let the paver set running with feeder on
automatic any length of time. This may cause the
hydraulic
oil to over heat.
4. Spray the feeder drive chains periodically several
times a day with diesel fuel.
5. When reedersare runningand cutoffsare shut, there
will
~ spillage the full width of the paver. This is
normal
and to help prevent this spillage, work feed-
ers manually,
when loading hopper and not paving.
6. Irregular movement of the feeder conveyor indicates
that aproblem may exist with the feeder chain. To
eliminate this probleman adjustmentto the feeder chain
may be necessary. Refer to page 28 under FEEDER
FLIGHT CHAIN ADJUSTMENT, procedure no. 3.
! CAUTION!
NEVER RAISE FEEDER WITH ASPHALT IN· THE·
HOPPER.
~
! DAN ,'ER !
NEVERWORK UNDER FEEDER WITH OUT MAKING
SURE THAT FEEDER IS BEING SUPPORTED BY
SAFETY PROP AND
THAT ALL UNAUTHORIZED
PERSONNEL ARE CLEAR OF THE AREA.
! CAUTION!
NEVER OVER HEAT SCREED. ABOUT 10 MINUTES
·BEFORE STARTING TO PAVE IS ENOUGH TIME FOR
PREHEAT. ON COOL DAYS TURN PROPANE
REGULATOR DOWN TO 2 LBS. THIS SHOULD
PREVENT SCREED FROM WARPING.
! CAUTION!
NEVER LET PAVER SET WHILE CONVEYORS ARE
TURNING. IT IS POSSIBLE, IF PAVER SETS LONG
ENOUGH, ASPHALT FROM
CONVEYORS CAN FILL
TRACKS AND CAUSE FAILURE TO THE BEARINGS
OR IDLER.
! CAUTION ! .
TO PREVENT FLIGHT CHAINS FROM S"TICKING IN-"
SIDE OF CONVEYOR PANS, LUBRICATE THEM
SUFFICIENTLY AT THE END OF THE DAY.
12

OPERATION OF ELECTRIC
FLIGHT SCREWS
GENERAL
The electric flight screw is an added convenience to the
operator. Agauge is located on both sides of the paver.
These gauges will provide the
operator with quick refer-
ence to the height of the screed. Refer to figure 13 and
follow procedures below.
1. Before paving, center the electric flight screws by
referringto the screedelevation gauge on eachside of
the paver. Raise or
lower until cable end is on cO'.
2. While paving. refer to both gauges and make minor
adjustment to the screed by using the electric flight
screws.
ELECTRIC SCREW
IN CENTER POSITION
FIGURE 13
13

OPERATION OF HYDRAULIC CUTOFFS
GENERAL
The cutoffsare one of the most importantfunctions of the
paver. whenusedproperly. Cutoffsare used primarilyto
control the flow of asphalt to the screed. Cutoffs can be
used when makingnarrow passes, at Ulilbeginning and
ending of each pass or pull. The cutoffs have been
designed to break away if accidently bitS a man hole or
ridge.This feature will prevent excessive damage to
cutoff. (Tack underneath will break.)
1. Moving the hydraulic handle forward will increase
asphaltflow to the screed. Pulling the handlebackwill
decrease asphalt flow.
NOTE
Always work cutoff valve handle one at a time when
opening or closing. If both handles are worked
together, normallyone will open or close before the
other.
2. Always pull valve handles to close. If handle is
allowed to return to center position on its own, it
may pass center and causecutoff to driftopenonce
pressure is lost.
ELECTRIC SPRAYDOWN
GENERAL
The spraydown on your machine is used to sprayfuel oil
on any part of the machine that comes in contact with the
asphalt. Build-up of this material will cause damage to
components.
Spray the area often, the screed extension
on
top and bottom, augers and hoppers.
14
1. Unwrap the amount of hose needed and tum spray
down switch on. Pull wand handle and spray.
2. .
After spraying turn off spray down switch and rewrap
hose.
3. IMPORTANT: When using spraydown consider the
environment and do not allow fuel oil to run onto the
ground.
! CAUTION!
IF SPRAY DOWN PUMP IS NOT TURNED OFF'AFTER
EACH USE, THE PUMP WILL RUN OVER BY PASS
AND AFTER A PERIOD OF TIME WILL BURN UP
MOTOR.
AUTOMATIC AUGER
GENERAL
Automatic augers are used when laying mats wider than
standard paving width. When used this will lessen the
work load on the operator.
1. To install the paddle on the screedextension, extend
the screed6 inches and mount paddleon endgate as
shown. Install the same way on left endgate. See
figure
14A.
2. In order for the paddle to work, the electric cord
leading from the paddle switch should be plugged
into the receptacle box. Areceptacle box is located
on each side of the paver. After the electrical cords
are plugged in, switch the two toggle switches on the .
dash to ON Automatic and pull the auger valve
handles to engage augers.
3. IMPORTANT: After the paddle on screed ex-
tension has been mounted 00 NOT RETRACT
SCREED FULLY. DAMAGE WILL OCCUR.
! CAUTION!
WHEN USING AUGERS DO NOT TRY TO AUGER
MATERIAL FROM ONE SIDE OF MACHINE TO THE
OTHER SIDE. AUGER COVER IN CENTER BLOCKS
THE FLOW. DAMAGE WILL RESULT IN BEARINGS
AND COVER.
NOTE
WhenpaVing basic width of machineaugersare not
required to run.

AUTOMATIC AUGERS: NEW STYLE
(TIED IN
WITH CONVEYORS)
Automatic augers are mostly used when paving 9' or
10' . where'augers are capable of running material over
top of endgates, causing extra hand work.
! CAUTION !
NEVER RUN AUGERS WHEN PAVING 81WIDE.
NEVER RUN AUGERS IN REVERSE TO PUSH
MATERIAL FROM LEFT TO RIGHT OR RIGHT TO
LEFT. Center chain guard prohibits material from
croSsing from one side to the other. (Damage will
occur).
HOW TO OPERATE:
1. Pull auger control handles on valve to "on" for
augers to feed extensions.
2Tum left &right auger toggles on dash "on",
Now the augers will come on and off with the
conveyors.
3. When paving wider widths, and augers do not
provide sufficient asphalt flow, refer to the
following step that identifies to
the corresponding
machine.
15
