LeeBoy L150 User manual

Tack Distributor
Model No. L150,L250, L500
Manual No. 125201
OPERATIONS
SERVICESAND
PARTSMANUAL

Table of Contents
Page
User's Reference Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Warranty Certificate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
General Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Warning Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Safety and Informative Decals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Tack Distributor L150 Trailer Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Tack Distributor L150 Skid Mount Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
TackDistributor L250 Trailer Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Tack Distributor L250 Skid Mount Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Tack Distributor L500 Trailer Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Tack Distributor L500 Skid Mount Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

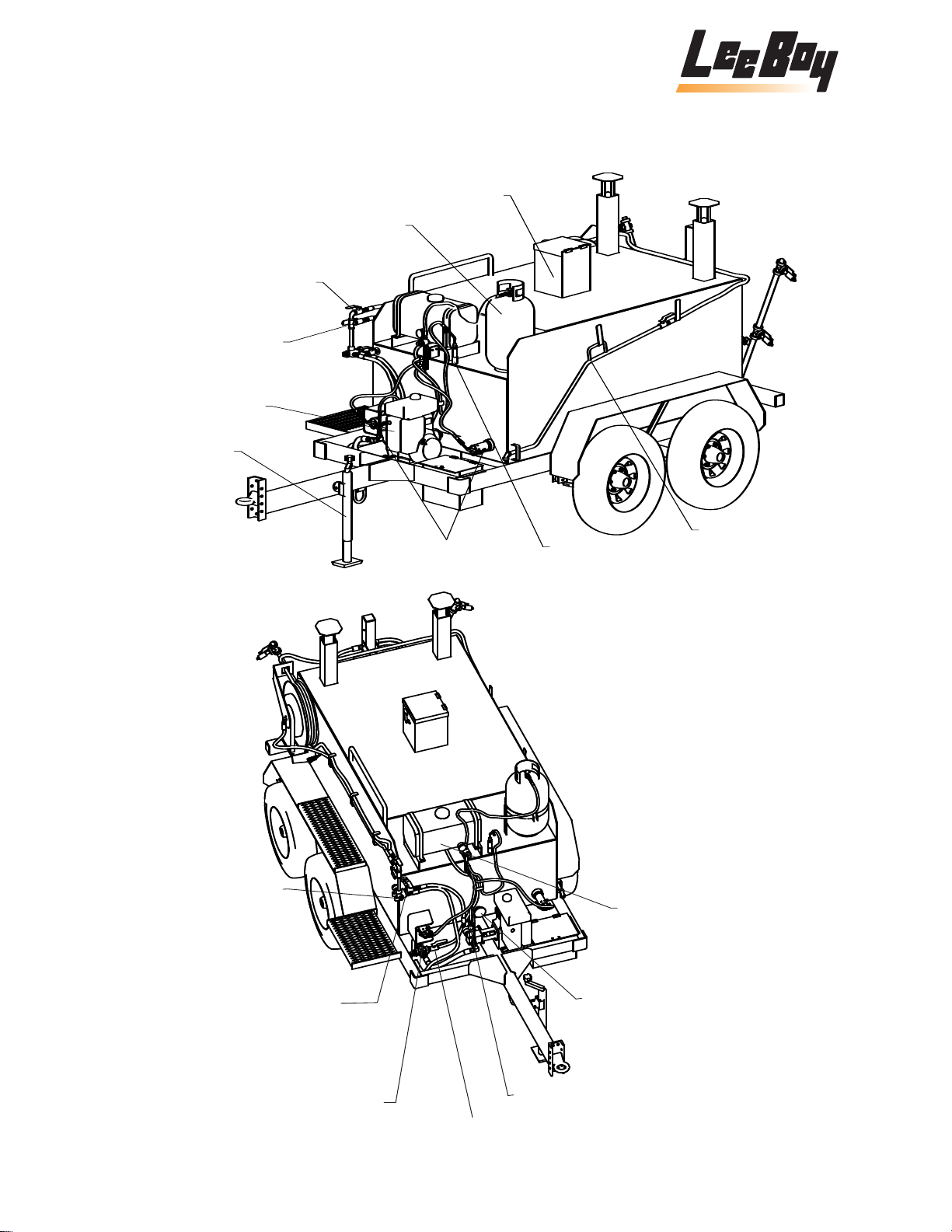

Major Components Illustration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Major Components Explanation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Major Components Explanation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Pre-startInformation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Operation of Tack Distributor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Operation of Spray Wand and Spray Bar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
Parts Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
Major Wear Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
TACK DISTRIBUTOR
TACK DISTRIBUTOR

Parts [List of Illustrations]
Page
L150 Trailer Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
L150 Skid Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
L250 Trailer Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
L250 Skid Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
L500 Trailer Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
L500 Skid Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
L150 Hoses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
L250/L500 Hoses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Propane Tank Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Engine and Pump Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Lower Liquid Asphalt Valve Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Selector Valve Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
SpraySelect Valve Assembly, Trailer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Spray Select Valve Assembly, Skid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
SprayBar Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
L150 Idler Axle Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
L150 Axle & Brake Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
L500 Idler Axle Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
L250/L500 Axle & Brake Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
TACK DISTRIBUTOR
TACK DISTRIBUTOR

TACK DISTRIBUTOR
3
TACK DISTRIBUTOR
DELIVERY DATE______________________________________
UNIT SERIAL NUMBER_________________________________
ENGINE TYPE________________________________________
ENGINE NUMBER_____________________________________
DEALER'S NAME AND ADDRESS
_____________________________________________________
_____________________________________________________
PHONE NUMBER_______________________________________
EQUIPMENT HOURS____________________________________
SERVICE MANAGER ____________________________________
688 North Highway 16 • Denver, North Carolina 28037 • www.LeeBoy.com • [phone]
USER'S REFERENCE GUIDE

TACK DISTRIBUTOR
4TACK DISTRIBUTOR
One Year or 1000 Hour
LIMITED WARRANTY
WARRANTY
1. If a defect in material or workmanship is
found and the authorized dealer is notified
during the warranty period, LeeBoy will
repair or replace any part or component of
the unit or part that fails to conform to the
warranty during the warranty period.
2. The warranty date will begin upon the
completion of the warranty form by the initial
customer and will expire after twelve (12)
months have passed. The Warranty Card
should be filled out within (10) days of
delivery of the unit.
3. Engines are warranted bytheir
manufacturers and mayhave warranty
coverage that differs from that of LeeBoy.
4. Replacement parts furnished by LeeBoy are
covered for the remainder of the warranty
period applicable to the unit or component in
which such parts are installed.
5. LeeBoy has the right to repair any
component or part before replacing it with a
new part.
6. All new replacement parts purchased by a
LeeBoy dealer will carry a six (6) month
warranty. Remanufactured parts purchased
by a LeeBoy dealer will carry a ninety (90)
day warranty.
ITEMS NOTCOVERED
LeeBoy is not responsible for the following:
1. Charges for travel time, mileage, or
overtime.
2. Charges related to transporting the product
to and from the place at which warranty
work is performed.
3. Airfreight charges related to transporting
repair parts to the place at which warranty
work is performed.
4. All used units or used parts of any kind.
5. Repairs due to normal wear and tear, or
brought about by abuse or lack of
maintenance of the equipment, except for
premature failures, conveyor chains,
polytrack pads, and track rails.
6. Attachments not manufactured or installed
by LeeBoy.
7. Liability for incidental or consequential
damages of any type including, but not
limited to lost profits or expenses of acquiring
replacement equipment.
8. Miscellaneous charges.
LIMITATIONS
LeeBoy has no obligation under this warranty for:
1. Any defects caused by misuse,
misapplication, negligence, accident or failure
to maintain or use in accordance with the
most current operating instructions.
2. Unauthorized alterations.
3. Defects or failures caused by any
replacement parts or attachments not
manufactured by or approved by LeeBoy.
4. Failure to conduct normal maintenance and
operating service, including without limitation,
providing lubricants, coolant, fuel, tune-ups,
inspections or adjustments.
5. Unreasonable delay,as established by
LeeBoy,in making the applicable units or
parts available upon notification of a service
notice ordered byLeeBoy.
6. The warranty responsibility on all engines
rests with the respectivemanufacturer.
7. LeeBoy may have support agreements with
some engine manufacturers for warranty and
parts support.
OTHER WARRANTIES
THE FOREGOING WARRANTY IS EXCLUSIVE AND
IN LIEU OF ALL OTHER EXPRESSED STATUTORY
AND IMPLIED WARRANTIES APPLICABLE TO
UNITS ENGINES,OR PARTS WITHOUT LIMITATION,
ALL IMPLIED WARRANTIES OF MERCHANTABILITY
OR FITNESS FOR ANY PARTICULAR USE OR
PURPOSE. IN NO EVENT, WHETHER AS A RESULT
OF BREACH OF CONTRACT OR WARRANTY, OR
ALLEGED NEGLIGENCE OR LIABILITY WITHOUT
FAULT, SHALL LEEBOY BE LIABLE FOR SPECIAL,
INCIDENTAL OR CONSEQUENTIAL DAMAGES,
INCLUDING WITHOUT LIMITATION, LOSS OF
PROFIT OR REVENUE, COST OF CAPITAL, COST
OF SUBSTITUTED EQUIPMENT, FACILITIES OR
SERVICES DOWNTIME COSTS, LABOR COSTS OR
CLAIMS OF CUSTOMERS, PURCHASERS OR
LESSEES FOR SUCH DAMAGES.

TACK DISTRIBUTOR
5
TACK DISTRIBUTOR
688 North Highway 16 • Denver, North Carolina 28037 • www.LeeBoy.com • [phone]
General Information
Congratulations on your purchase of a LeeBoy Tack Distributor. This manual is designed to help with the
operation and service of your new unit. This unit was carefully designed and manufactured to provide years
of dependable service. To keep your tack distributor operating efficiently and safely, carefully read the
instructions in this manual.
If any questions arise concerning this publication or other manuals in regards to the operation and mainte-
nance of this unit, contact our local LeeBoy dealer for the latest available information.
Contents of this manual are based on information in effect at the time of publications and are subject to
change without notice.

TACK DISTRIBUTOR
6TACK DISTRIBUTOR
WARNINGS
ALL WARNING DECALS MUST BE FOLLOWED. IF YOU DO NOT FOLLOW THE INSTRUCTIONS, ANY
MISTAKE YOU MAKE COULD RESULT IN SERIOUS INJURY AND/OR PHYSICAL HARM TO YOU OR
OTHERS. DAMAGE TO THE MACHINE IS ALSO POSSIBLE.
• NEVER DO ANY MAINTENANCE WHILE
BURNERS ARE ON OR ENGINE IS RUNNING.
• NEVER LIGHT TACK BURNERS WITH
ANYTHING BUT LIGHTER PROVIDED.
• NEVER USE SEAL COATING UNLESS FIRST
CONTACTING DISTRIBUTOR FOR CORRECT
SPECIFICATIONS. NEVER USE FIBER BASE
SEAL COAT; THIS COULD DAMAGE THE PUMP
AND CLOG THE SPRAY WAND.
• ALWAYS MAINTAIN TACK LEVEL AT LEAST 3
INCHES ABOVE BURNER FLUE.
• NEVER EXCEED TOWING SPEED SET BY
CITY, STATE, AND FEDERAL LAWS. FURTHER-
MORE, USE LOWER SPEED WHEN TOWING
OVER SLIPPERYOR UNEVEN SURFACES.
•NEVER ALLOW EXCESSIVE TACK TO BUILD
UP ON TACK TANK. THE TACK MAY BE
ACCIDENTALLY IGNITED.
•NEVER FILL FUEL TANK OR TACK WHILE
ENGINE IS RUNNING OR PROPANE
BURNERS ARE LIGHTED.
•ALWAYS SCOTCH/CHOCK TACK DISTRIBUTOR
WHEN LEFT UNATTENDED.
•ALWAYS BE EXTREMELY CAREFUL WHEN
IGNITING BURNERS WITH THE LIGHTER
PROVIDED. MAKE SURE THE LIGHTER IS KEPT
AWAY FROM THE FUEL TANK AND OTHER
FLAMMABLE MATERIAL.
•ALWAYS MAINTAIN DECALS ON MACHINE
AND REPLACE IF MISSING OR BADLYWORN.
• ALWAYS KEEP ALL UNAUTHORIZED
PERSONNEL AWAY FROM WORKING TACK
DISTRIBUTOR. ANY AUTHORIZED PERSONS
SHOULD WEAR PROTECTIVE CLOTHING AND
GLASSES.
•ALWAYS USE A VEHICLE OF ADEQUATE SIZE
WHEN TOWING A TACK DISTRIBUTOR.
QUICK STOPS MAY NOT BE POSSIBLE
WHEN USING AN UNDERSIZED TOWING
VEHICLE.
•NEVER LEAVE TACK DISTRIBUTOR
UNATTENDED WHILE HEATING.
• NEVER REMOVE SPRAY WAND NOZZLE
WHILE ENGINE IS RUNNING.

TACK DISTRIBUTOR
7

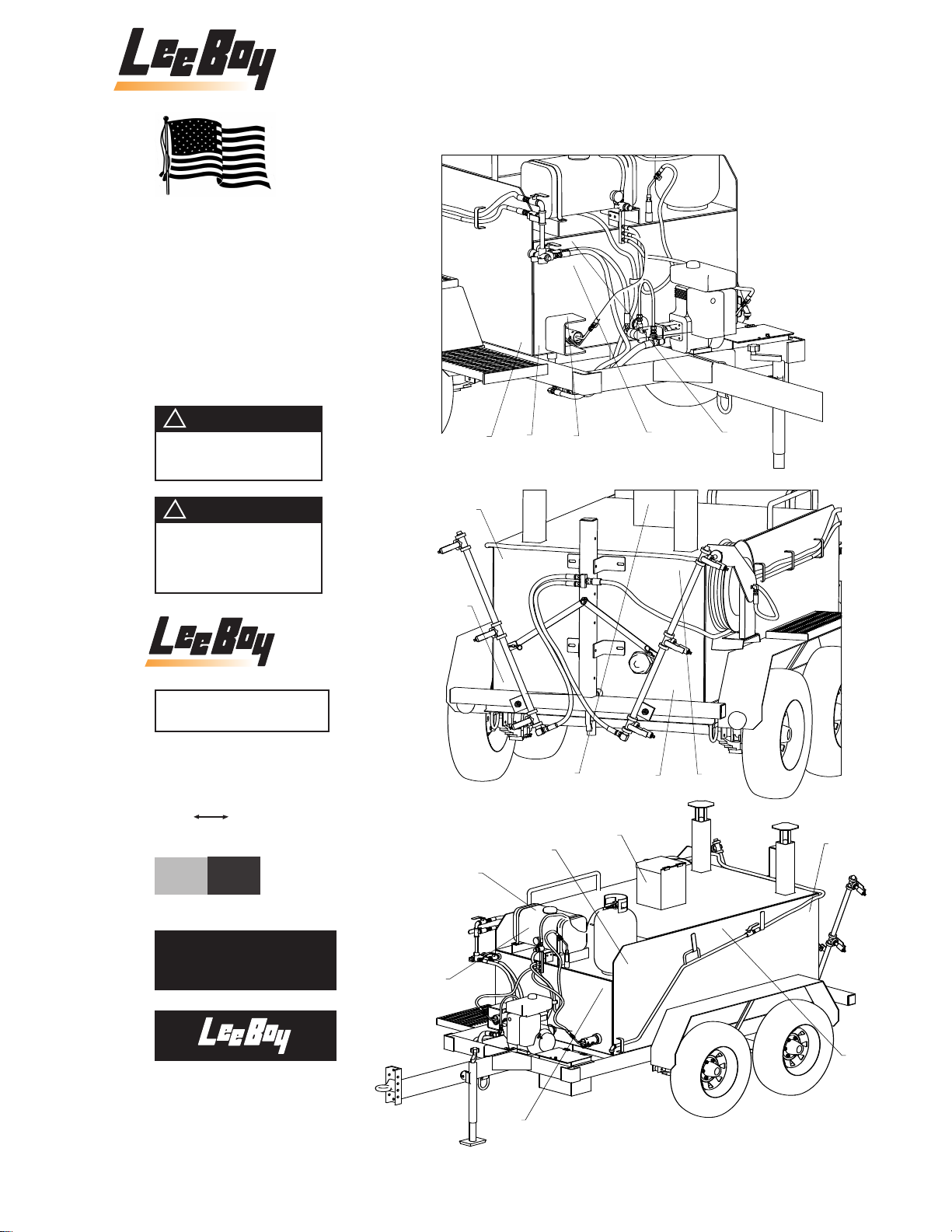

TACK DISTRIBUTOR
93511 8
7
10
12 10 13
2
1
2
7
6
7
4
1
2
3
4
5
FLAMMABLE
TACK PUMP
FLUSH
DO NOT REMOVE NOZZLE
FROM SPRAY WAND WHILE
ENGINE IS RUNNING
KEEP TAR LEVEL
3” ABOVE BURNER
IN USE
WARNING
!
6
7
8
9
10
11
12
13
USE ONLY
EMULSIFIED ASPHALT
THAT WILL SPRAY
BELOW190OF
TURN FLUSH VALVE ON
BEFORE STARTING ENGINE
LIQUID
ASPHALT
OFF ON
IMPORTANT
DO NOT OPERATE OR TOW THIS
MACHINE WITHOUT FIRST FULLY
UNDERSTANDING THE CONTENTS
OF THE OPERATIONS MANUAL
!
L500

TACK DISTRIBUTOR
8TACK DISTRIBUTOR
LeeBoy Model L150 Track Distributor
(Trailer Specifications)
Engine: 5HPHonda gas engine
Asphalt Pump: Specially designed .308 CI Pump
Heat System: Two (2) 54,000 BTU Propane
burners, one (1) starter burner
and a 30 lb. fuel tank
Temperature
Gauge: 0-300 degrees Fahrenheit
Tank
Dimensions: Length: 42 1/4"
Width: 34 1/2"
Height: 30 1/2"
Flush Tank: Seven (7) gallon
Hose & Reel: 1/2" x 40' heavy duty hose with a
heavy duty re-coil reel
Wand: Six (6) foot wand with on/off valve
and removable spraytip
Fill Spout: 10" x 10"
Clean Out: 4"
Access Valve: 1”
Dimensions: Length: 113 1 /2"
Width: 69 3/4"
Height: 86 3/4"
Shipping Weight: 1,260 lbs.
Loaded Weight: 2,520 lbs.
Optional
Equipment: Eight (8) foot spray bar that
folds to a lockable position.
Separate cut-off valves to
control each spray nozzle.
5HP Briggs & Stratton
71"
42 1/4"
21 1/2"
65 1/4"
11 7/8" 69 3/4"

TACK DISTRIBUTOR
9
TACK DISTRIBUTOR

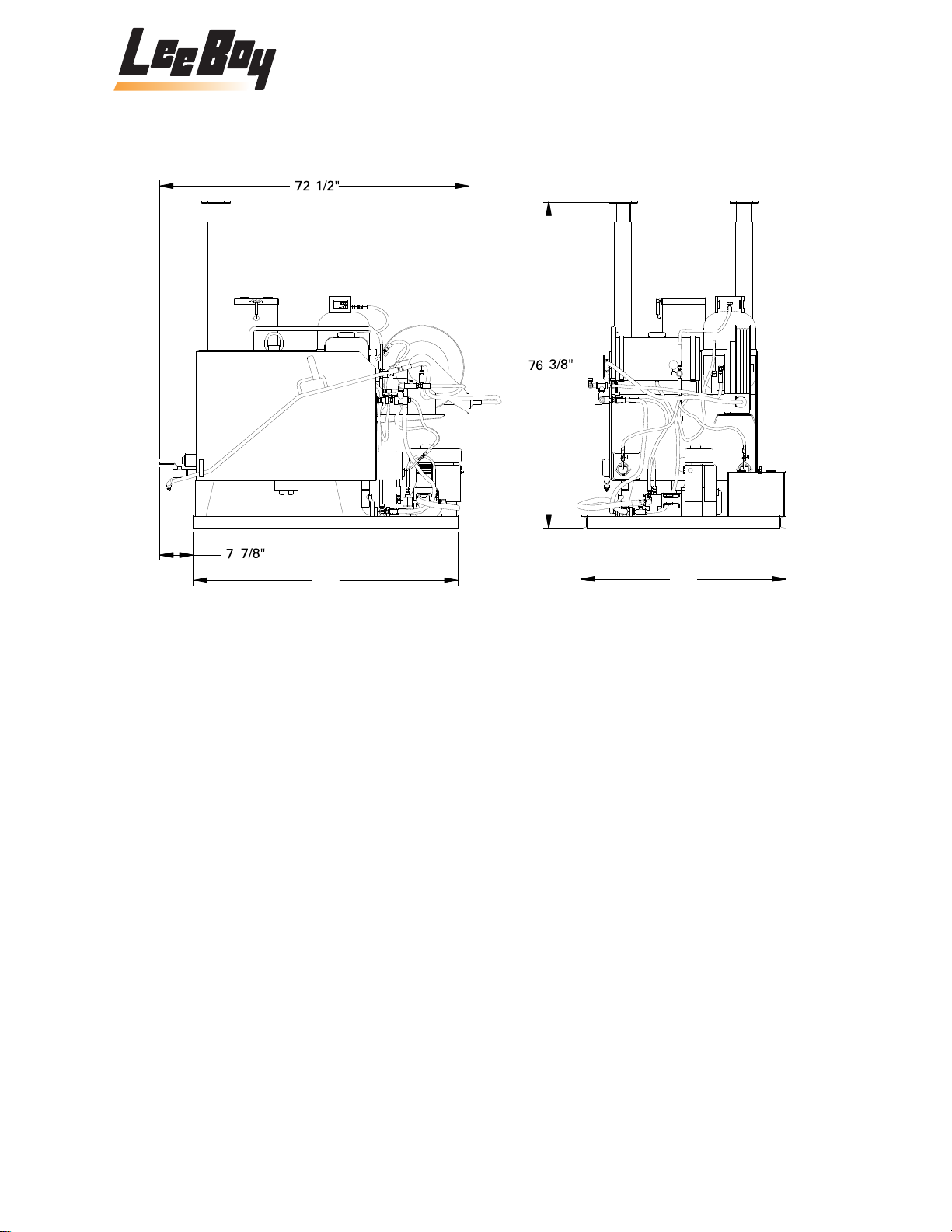

LeeBoy Model L150 Track Distributor
(Skid Mount Specifications)
Engine: 5HP Honda gas engine
Asphalt Pump: Specially designed .308 CI Pump
Heat System: Two(2) 54,000 BTU Propane
burners, one (1) starter burner
and a 30 lb. fuel tank
Temperature
Gauge: 0-300 degrees Fahrenheit
Tank
Dimensions: Length: 42 1/4"
Width: 34 1/2"
Height: 30 1/2"
Flush Tank: Seven (7) gallon
Hose & Reel: 1/2" x 40' heavy duty hose with a
heavy duty re-coil reel
Wand: Six (6) foot wand with on/off valve
and removable spray tip
Fill Spout: 10" x 10"
Clean Out: 4"
Access Valve: 1”
Dimensions: Length: 62"
Width: 48"
Height: 76 3/8"
Shipping Weight: 900 lbs.
Loaded Weight: 2,160 lbs.
Optional
Equipment: Eight (8) foot spray bar that
folds to a lockable position.
Separate cut-off valves to
control each spray nozzle.
5HP Briggs & Stratton
62" 48"

TACK DISTRIBUTOR
10 TACK DISTRIBUTOR
LeeBoy Model L250 Track Distributor
(Trailer Specifications)
Engine: 5HPHonda gas engine
Asphalt Pump: Specially designed .308 CI Pump
Heat System: Two(2) 54,000 BTU Propane
burners, one (1) starter burner
and a 30 lb. fuel tank
Temperature
Gauge: 0-300 degrees Fahrenheit
Tank
Dimensions: Length: 48 1/2"
Width: 42 1/2"
Height: 32 1/2"
Flush Tank: Seven (7) gallon
Hose & Reel: 1/2" x 40' heavy duty hose with a
heavy duty re-coil reel
Wand: Six (6) foot wand with on/off valve
and removable spray tip
Fill Spout: 10" x 10"
Clean Out: 4"
Access Valve: 1”
Dimensions: Length: 120 1/2"
Width: 72"
Height: 91 1/4"
Shipping Weight: 1,400 lbs.
Loaded Weight: 3,500 lbs.
Optional
Equipment: Eight (8) foot spray bar that
folds to a lockable position.
Separate cut-off valves to
control each spray nozzle.
5HP Briggs & Stratton
69 3/8
21 7/8"
48 1/2" 72"
11 7/8"
72"

TACK DISTRIBUTOR
11
TACK DISTRIBUTOR
LeeBoy Model L250 Track Distributor
(Skid Mount Specifications)
Engine: 5HP Honda gas engine
Asphalt Pump: Specially designed .308 CI Pump
Heat System: Two (2) 54,000 BTU Propane
burners, one (1) starter burner
and a 30 lb. fuel tank
Temperature
Gauge: 0-300 degrees Fahrenheit
Tank
Dimensions: Length: 48 1/2"
Width: 42 1/2"
Height: 32 1/2"
Flush Tank: Seven (7) gallon
Hose & Reel: 1/2" x 40' heavy duty hose with a
heavy duty re-coil reel
Wand: Six (6) foot wand with on/off valve
and removable spray tip
Fill Spout: 10" x 10"
Clean Out: 4"
Access Valve: 1”
Dimensions: Length: 62"
Width: 48"
Height: 80 5/8"
Shipping Weight: 1,260 lbs.
Loaded Weight: 3,250 lbs.
Optional
Equipment: Eight (8) foot spray bar that
folds to a lockable position.
Separate cut-off valves to
control each spray nozzle.
5HP Briggs & Stratton
62"
78 13/16"
7 13/16"
48"
80 5/8"

TACK DISTRIBUTOR
12 TACK DISTRIBUTOR
LeeBoy Model L500 Track Distributor
(Trailer Specifications)
Engine: 5HPHonda gas engine
Asphalt Pump: Specially designed .308 CI Pump
Heat System: Two (2) 54,000 BTU Propane
burners, one (1) starter burner
and a 30 lb. fuel tank
Temperature
Gauge: 0-300 degrees Fahrenheit
Tank
Dimensions: Length: 83 7/8"
Width: 48 1/2"
Height: 32"
Flush Tank: Seven (7) gallon
Hose & Reel: 1/2" x 40' heavy duty hose with a
heavy duty re-coil reel
Wand: Six (6) foot wand with on/off valve
and removable spray tip
Fill Spout: 10" x 10"
Clean Out: 4"
Access Valve: 1”
Dimensions: Length: 154"
Width: 73 1/8"
Height: 74 5/8"
Shipping Weight: 2,700 lbs.
Loaded Weight: 6,700 lbs.
Optional
Equipment: Eight (8) foot spray bar that
folds to a lockable position.
Separate cut-off valves to
control each spray nozzle.
5HP Briggs & Stratton
70 1/4
83 7/8
12 1/8
56 3/8
73 1/8

TACK DISTRIBUTOR
13
TACK DISTRIBUTOR
LeeBoy Model L250 Track Distributor
(Skid Mount Specifications)
Engine: 5HP Honda gas engine
Asphalt Pump: Specially designed .308 CI Pump
Heat System: Two(2) 54,000 BTU Propane
burners, one (1) starter burner
and a 30 lb. fuel tank
Temperature
Gauge: 0-300 degrees Fahrenheit
Tank
Dimensions: Length: 83 7/8"
Width: 48 1/2"
Height: 32"
Flush Tank: Seven (7) gallon
Hose & Reel: 1/2" x 40' heavy duty hose with a
heavy duty re-coil reel
Wand: Six (6) foot wand with on/off valve
and removable spray tip
Fill Spout: 10" x 10"
Clean Out: 4"
Access Valve: 1”
Dimensions: Length: 103"
Width: 48 1/2"
Height: 64 5/8"
Shipping Weight: 2,700 lbs.
Loaded Weight: 6,700 lbs.
Optional
Equipment: Eight (8) foot spray bar that
folds to a lockable position.
Separate cut-off valves to
control each spray nozzle.
5HP Briggs & Stratton
57/8"
48 1/2"
5 1/8"
64 5/8"
112 3/8"
103"

TACK DISTRIBUTOR
14 TACK DISTRIBUTOR
Major Components
15. SPRAY WAND SELECT
7. PROPANETANK
6. FILL NECK
16. SPRAY BAR SELECT
3. ENGINE
4. JACK STAND
8. BURNERS 2. IGNITER 9. SPRAY WAND
11. DISTRIBUTOR
VALVE
12. CIRCULATING
TANK VALVE
10. LIQUID
ASPHALT VALVE 14. FLUSH VALVE
5. RELIEF VALVE
13.THERMOMETER
1. FLUSHTANK

MAJOR COMPONENTS
1. Flush Tank
Flush tank contains the fluids used to flush and clean out the pump and system.
2. Igniter
Igniter is used to light the burners for heating. Caution should be
used with this because of the gas engine and the fuel in the flush
tank. Also, make sure there are no gas flames in the exhaust
stacks.
3. Engine
Engines available on the tack distributor are either Honda or Briggs & Stratton. These are gas engines
and clean gas should be used at all times.
4. Jack Stand
Jack stand is used to hook and unhook the unit from the truck. Caution should be used when unhooking
unit to make sure wheels are scotched so unit will not roll.
5. Relief Valve
Relief valve adjusts pressure of the pump. It is recommended to have the least amount of pressure on
the valve to prolong the pump life. Set relief valve pressure on initial start-up.
6. Fill Neck
Fill neckis where you fill tacktank. Makesure splash plate is in place.
7. Propane Tank
Propane is used to heat tack. The tank pressure should range from eight (8) to ten (10) lbs. of pressure.
8. Burners
Right and left burners heat the tack. Before lighting, make sure valves to burners are off. They should be
lit with igniter only. Make sure tack level is three (3) inches above burner and unit is sitting level.
9. Spray Wand
Spray wand is used to spray tack. It has an on/off ball valve that lets you spray small areas and pave-
ment edges. Care and caution must be used to keep the nozzle clean and the line flushed after each
use. WARNING: You should never attempt to clean nozzle out or remove nozzle while machine is
running. The line can become pressurized and spray tack on an individual. Hot tack causes harm
and/or injury.
10. Liquid Asphalt Valve
Liquid asphalt valve allows liquid asphalt to be pumped out of the tank and into the spray wand or spray
bar. It must be turned off to flush out the system. The only function of this valve is to retrieve tack from
the tank and should be off at all other times.
11. Distributor Valve
Distributor Valve is used to retrieve tack from lines and spraybar.
12. Circulating Tank Valve
Tank valve is used to circulate the tack back into the tank. It must be closed off to force the tack to the
spray bars and wand. It must be off while flushing the system.
13. Thermometer
Thermometer is used to measure temperature inside the tack tank.
Temperature should not exceed 190 deg. (F).
TACK DISTRIBUTOR
15
TACK DISTRIBUTOR
WHEN IGNITING BURNERS WITH LIGHTER
BE EXTREMELY CAREFUL THAT THE
LIGHTER IS KEPT AWAY FROM THE FUEL
TANK AND OTHER FLAMMABLE MATERIALS.
!WARNING !

MAJOR COMPONENTS
(cont'd)
14.Flush Valve
Flush valve is used to allow the flush material to flow out of the flush tank and into pump system.
15.Spray Wand Select Valve
Spraywand select valve allows the tack material to flow to spraywand.
16. Spray Bar Select Valve
Spraybar select valve allows the flow of material to the spraybar.
TACK DISTRIBUTOR
16 TACK DISTRIBUTOR

PRE START-UP INSPECTION
GENERAL OPERATION
To assure that the tack distributor provides the best possible service before use, a pre-
start up inspection should be performed.
1. Engine
(A) Check oil level.
(B) Check fuel tank level.
(C) Check for any cracked, broken or worn parts.
2. Tack Tank and Attaching Components
(A) Check tack level, fill if needed.
(B) Remove contamination on surface.
(C) Check spray wand valve to make sure it works freely.
(D) Check propane level.
(E) Check flow valves to make sure they are working freely.
(F) Checkflush tank level.
(G) Check for cracked, broken or worn parts.
(H) Check wheel lugs.
(I) Check tire pressure.
START-UP
GENERAL OPERATION
An engine manual is provided with the tackdistributor and should be used whenever start-
ing, operating, and servicing engine.
TACK DISTRIBUTOR
17
TACK DISTRIBUTOR
TURN FLUSH VALVE ON
BEFORE STARTING ENGINE

OPERATION OF TACK DISTRIBUTOR
Before putting the tack distributor into operation, make sure it has been secured so the unit does not roll or
move unintentionally during operation. Follow the procedures below and use good safe operating practices
when involved in the operation of the tack distributor.
1. Make sure all valves are off.
2. Check asphalt level in tank. It must be at least 3” above flue before lighting burners.
3. Open the valve on the propane tank. Remove the igniter from its stowed position. Open valve on
igniter and light.
4. Regulate the propane pressure to 8 to 10 psi. (max) by adjusting knob on regulator.
5. To light burner, hold igniter flame in front of burner before opening gas valve. Now, light the other
burner in the same manner.
6. After burner is lit, bring the liquid asphalt temperature to material specifications. (This should not
exceed 190 deg. For 88 deg. C).
7. Monitor temperature byreferring to temperature gauge.
8. Turn flush valve on before starting engine.
9. After asphalt is at specified temperature start engine according to engine manual.
10. Turn off flush valve after engine is running.
11. Turn liquid asphalt tack on.
12. Unroll spray wand and spray tack.
13. While spraying, set relief for desired pressure (the least amount of pressure on relief, the longer the
life of pump).
14. Spraying Tack:
Tack valve should be on. Circulating valve should be closed.
Distributor valve knob should be pulled out.
Select spray bar or spray wand to use while spraying tack.
15. Spraywand selected:
Open wand select valve to spray tack.
Open valve on wand to spray.
16. Spray bar selected:
Open nozzles desired on spraybar.
Open and close spraybar select valvefor spraying of tack .
NOTE: When allowing machine to run for short periods of time without spraying, open
circulating valve to relieve excessive pump pressure.
TACK DISTRIBUTOR
18 TACK DISTRIBUTOR
Spray Wand Select
Spray Bar Select
