LEGRAND Mallia Senses User manual

Cat. No(s): 2 815 03DS/MB/MW - 2 815 05DS/MB/MW
2 815 07DS/MB/MW
Technical data sheet: F03692EN/00 Updated: Created: 14/04/2022
1/2
MalliaTM Senses
Connected switches without neutral
128, av. du Maréchal-de-Lattre-de-Tassigny - 87045 LIMOGES Cedex
Tel: [phone] - Fax: [phone]
www.legrand.com
3. DIMENSIONS (mm)
4. CONNECTION
Terminal type : with screws
Terminal capacity: 2 x 1.5 mm2 - 2 x 2.5 mm2- 1 x 4 mm2
Stripping length: 8 mm
1. USE
Wired single, double and triple switches without neutral for 1, 2 or 3 ON/OFF light functions.
For local or remote control of lighting devices and other controls.
Can be combined with one or more wireless lighting controls.
Supplied with an active power bleeder (Cat. No. 0 401 49), mandatory to ensure optimum operation with commercially-available lamps.
Can be installed in place of an existing switch in a flush-mounting box 25 mm deep (minimum).
Not compatible with Home + Control OFF. For system integration only (Zigbee integration).
2. RANGE
A B C D
86 86 34.5 12
B
A
C
D
5. OPERATION
LED indicator:
- useful during installation
- illumination function
EZ/RESET button
used to return to factory settings
ON/OFF
when press
5 746 17 5 746 21 5 746 25
1-gang: 2 815 03DS/MB/MW
Description Silver Black White
With LED indicator (conguration) and RESET button (hidden) used to return
to factory settings.
Locator and indicator modes can be activated from system integration OFF.
Complete delivered with protection lm and 2 screws M3.5 for BS boxes.
2 815 03DS
1-gang
2 815 03MB
1-gang
2 815 03MW
1-gang
2 815 05DS
2-gang
2 815 05MB
2-gang
2 815 05MW
2-gang
2 815 07DS
3-gang
2 815 07MB
3-gang
2 815 07MW
3-gang

2/2
Cat. No(s): 2 815 03DS/MB/MW - 2 815 05DS/MB/MW
2 815 07DS/MB/MW
MalliaTM Senses
Connected switches without neutral
Technical data sheet: F03692EN/00 Updated: Created: 14/04/2022
Caution: Always test before using special cleaning products.
6. TECHNICAL CHARACTERISTICS
6.1 Mechanical characteristics
Protection against impacts: IK 04
Protection against solid bodies and liquids: IP 20
IP 40 mounted product
6.2 Material characteristics
Cover plate: PC
Mechanism casing: PC
Halogen-free
UV-resistant
Self-extinguishing:
850°C/30 s for insulating components holding live parts in place.
650°C/30 s for other insulating components.
6.3 Electrical characteristics
Voltage: 110/240 V~
Frequency: 50/60 Hz
Note:
LED: or 10 lamps max. For comfortable lighting, we recommended using
bulbs of the same type and brand.
Use only with transformers designed to work with electronic switches.
Take account of transformer losses when calculating power.
Transformers must be loaded at more than 60% of their power.
Zigbee technology
Frequency: 2.4 GHz to 2.4835 GHz
Power level: < 100 mW
Range: 200 m of unobstructed space
10 m between products indoors
6.4 Climate characteristics
Storage temperature: 0°C to + 45°C
Usage temperature: +5°C to + 35°C
7. CARE
Clean the surface with a cloth.
Do not use acetone, tar-removing cleaning agents or trichloroethylene.
Resistant to the following products: Hexane, methylated spirit, soapy
water, diluted ammonia, bleach diluted to 10%, window-cleaning
products, pre-impregnated wipes.
8. STANDARDS AND APPROVALS
Compliant with installation and manufacturing standards.
See e-catalogue.
The undersigned, LEGRAND, declares that the radio-electric equipment
type (2 815 03DS/MB/MW - 2 815 05DS/MB/MW - 2 815 07DS/MB/MW)
complies with directive 2014/53/EU.
The full text of the EU declaration of conformity is available on the
following website: www.legrandoc.com

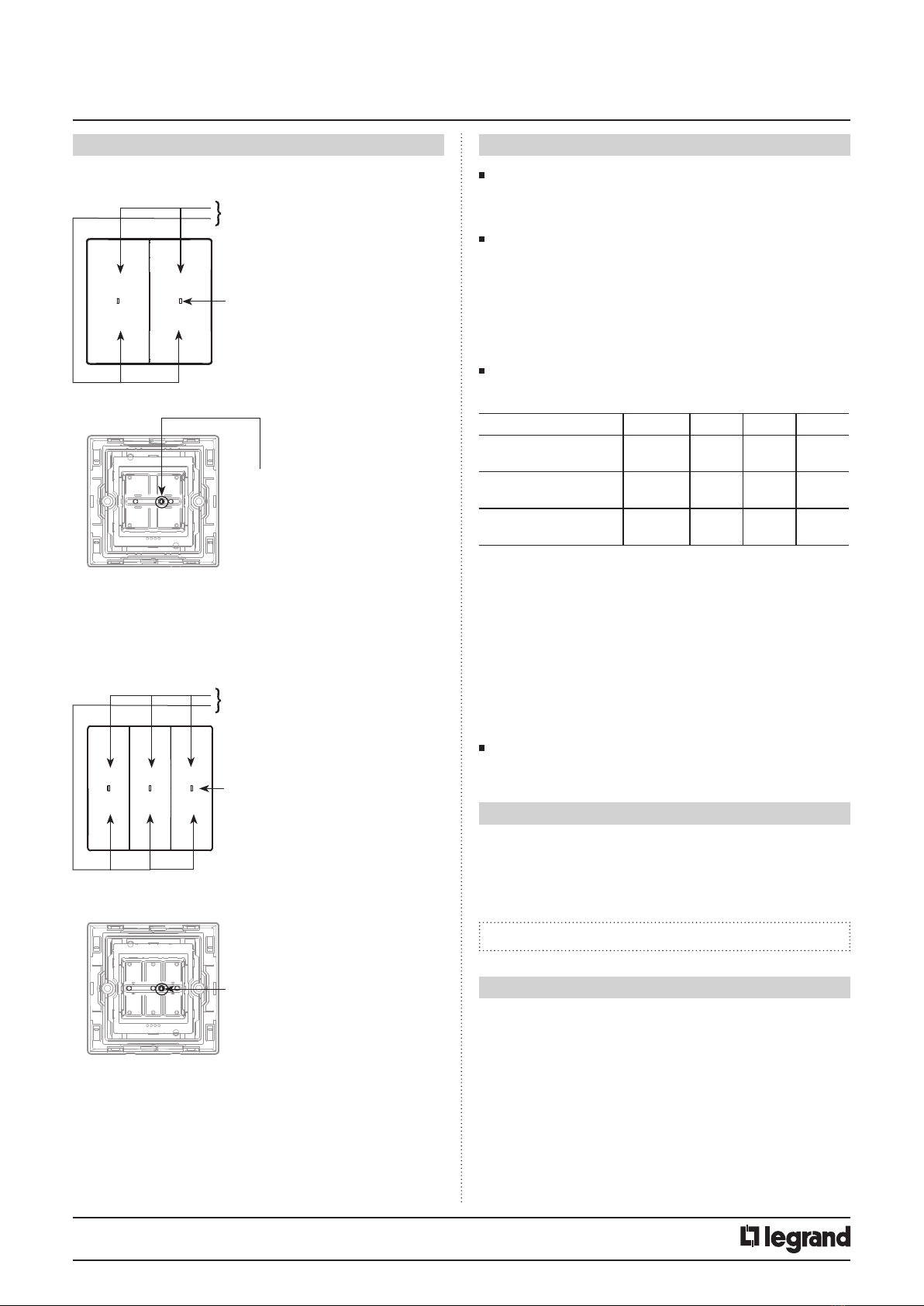

5. OPERATION (continued)
LED indicator:
- useful during installation
- illumination function
EZ/RESET button
used to return to factory settings
ON/OFF
when press
LED indicator:
- useful during installation
- illumination function
EZ/RESET button
used to return to factory settings
ON/OFF
when press
2-gang: 2 815 05DS/MB/MW
3-gang: 2 815 07DS/MB/MW
Compatible with all loads: Min. Power 1-gang 2-gang 3-gang
LEDs and CFL lamps 15 VA 300 VA 150 VA 100 VA
Incandescent and halogen lamps 15 W 600 W 300 W 100 W
ELV halogen and CFL lamps with
separate ballast 15 VA 600 VA 300 VA 200 VA
