LEGRAND MIDDLE ATLANTIC NEXSYS UPX-EXPANRUN-10-15 User manual

NEXSYSTM
Line Interactive UPS Expandable Runtime Battery
User Manual
100-00071 Rev A
22
PAP

ii
©2022 | Legrand AV, Inc. All rights reserved.
©2021 | Legrand AV, Inc. All rights reserved.
Information in this document is subject to change without notice. The AV equipment described in this document is
furnished under a license agreement or nondisclosure agreement. The equipment may be used or copied only in
accordance with the terms of those agreements. No part of this publication may be reproduced, stored in a retrieval
system, or transmitted in any form or any means electronic or mechanical, including photocopying and recording for any
purpose other than the purchaser's personal use without the written permission of Legrand AV.
Middle Atlantic Products is a brand of Legrand AV
legrandav.com | Phone: [phone] | Fax: [phone] | Email: [e-mail]
Visit us at legrandav.com for firmware updates, specifications, drawings, manuals, technical support information, and
more.
Middle Atlantic Products is a registered trademark of Legrand AV, Inc.
All other brand names or marks are used for identification purposes and are trademarks of their respective owners.
All patents are protected under existing designations. Other patents pending.
Legrand AV Inc. Brands: Chief | Da-Lite | Middle Atlantic Products | Projecta | Sanus | Vaddio

UPS Expandable Runtime Battery User Manual
Important Safety Instructions
iii
©2022 | Legrand AV, Inc. All rights reserved.
Table of Contents
Important Safety Instructions..............................................................................................................4
Instructions de Sécurité Importantes ..................................................................................................7
Supplied Components and Hardware...............................................................................................11
Required Tools .................................................................................................................................12
Introduction.......................................................................................................................................12
Charging Your Expandable Runtime Battery the First Time.............................................................12
Understanding UPS and Expandable Runtime Battery Installation Requirements...........................13
Installing the Expandable Battery Inside of Your Enclosure .............................................................13

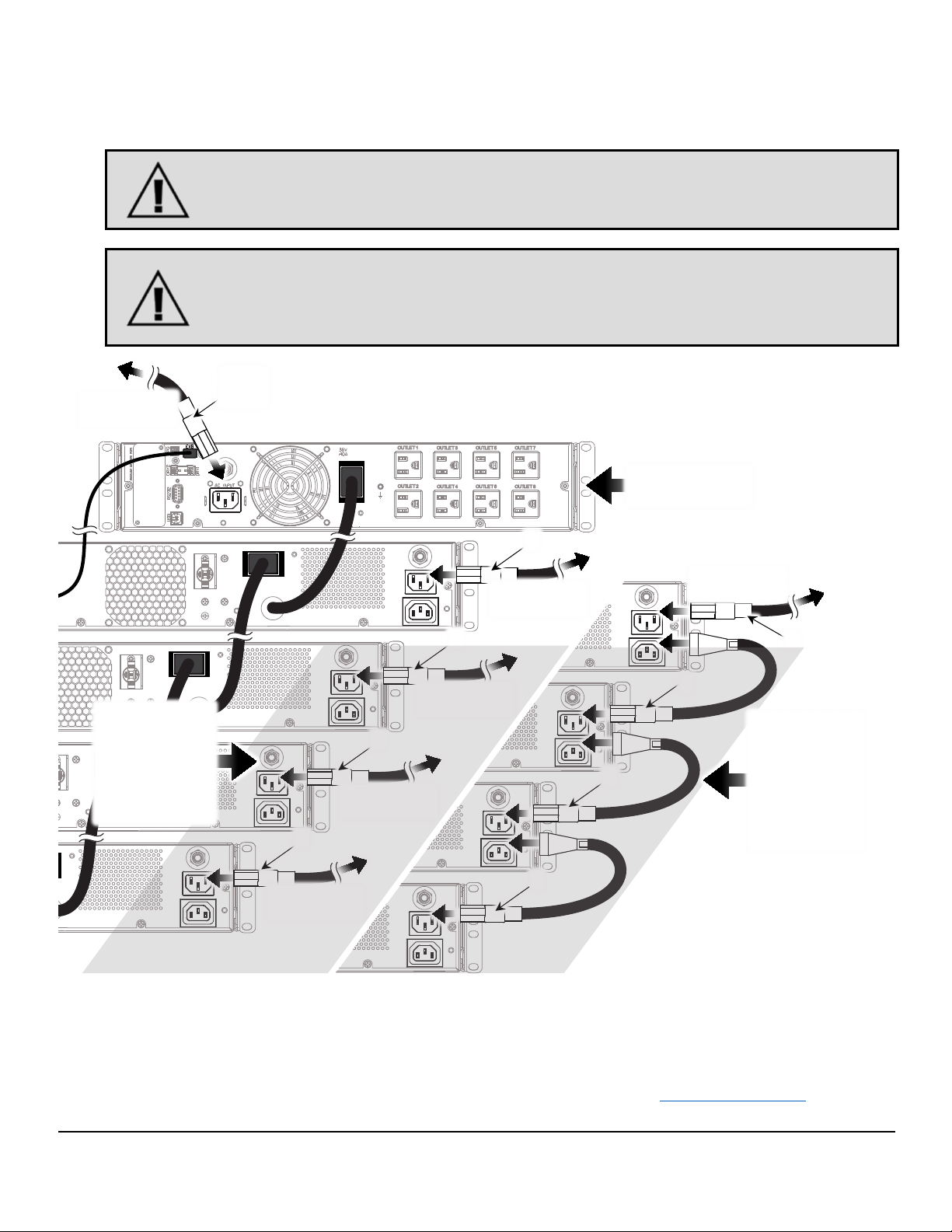

Connecting the Expandable Runtime Battery Option to Your UPS...................................................16
Basic Operation and Feature Set .....................................................................................................20
Replacing the Battery .......................................................................................................................21
Replacing the Power Cord (if Necessary).........................................................................................23
Specifications ...................................................................................................................................24
Warranty...........................................................................................................................................27

UPS Expandable Runtime Battery User Manual
Important Safety Instructions
iv
©2022 | Legrand AV, Inc. All rights reserved.
Important Safety Instructions
Comply with all warnings and operating instructions in this manual and save it for future reference. Do not operate this
unit before carefully reading through all safety information and operating instructions.
Understanding Safety Symbols
DANGER
HAZARDOUS
VOLTAGE
The lightning flash with the arrowhead symbol, within an equilateral triangle is
intended to alert the user to the presence of uninsulated dangerous voltage
within the product’s enclosure that may be of sufficient magnitude to constitute a
risk of electric shock to persons.
WARNING A warning alerts you to a situation that could result in serious personal injury or
death.
CAUTION A caution alerts you to a situation that may result in minor personal injury or damage
to the product and/or property.
NOTE A note is used to highlight procedures pertaining to the installation, operation, or
maintenance of the product.
Transportation and Storage
Transport the UPS system only in the original package to protect against shock and impact.
The UPS must be stored in a ventilated and dry room.
Preparation
Condensation may occur if the UPS system is moved directly from cold to warm environments. The UPS system
must be absolutely dry before being installed. Please allow at least two hours for the UPS system to adjust to the
environment.
Do not install the UPS system near water or in damp environments.
Do not install the UPS system where it would be exposed to direct sunlight or near a heater.
Do not block ventilation holes on the UPS housing.
Installation
Do not connect appliances or devices to the UPS output sockets or terminal that would over load the UPS.
Place cables in such a way that no one can step on or trip over them.

UPS Expandable Runtime Battery User Manual
Important Safety Instructions
v
©2022 | Legrand AV, Inc. All rights reserved.
Do not connect domestic appliances such as hair dryers to UPS output sockets.
Connect the UPS system only to a grounded, shockproof outlet, which must be easily accessible and close to the
UPS system.
Use only a VDE-tested, CE-marked (or UL-marked for 100/110/115/120/127 Vac models) mains cable (e.g., the
mains cable of your computer) to connect the UPS system to the building wiring outlet (shockproof outlet).
Use only VDE-tested, CE-marked (or UL-marked for 100/110/115/120/127 Vac models) power cables to connect
the loads to the UPS system.
When installing the equipment, ensure that the sum of the leakage current of the UPS and the connected devices
does not exceed 3.5mA.
Temperature Rating: Units are considered acceptable for use in a maximum ambient environment of 104°F (40°C).
For Pluggable Equipment: The socket-outlet shall be installed near the equipment and shall be easily accessible.
The unit is heavy. Lifting the unit requires a minimum of two people.
Operation
Do not disconnect the ground conductor cable on the UPS or the building wiring terminals at any time since this
would cancel the protective earth of the UPS system and of all connected loads.
The UPS system features its own, internal current source (batteries), therefore, the UPS output sockets or output
terminal blocks may be electrically live even if the UPS system is not connected to the building wiring outlet.
In order to fully disconnect the UPS system, first press the “OFF” button, and then disconnect the mains.
Ensure that no liquid or other foreign objects can enter into the UPS system.
The EPO, RS-232 and USB circuits are an IEC 60950-1 safety extra low voltage (SELV) circuit. This circuit must
be separated from any hazardous voltage circuits by reinforced insulation.
Maintenance, Service and Faults
The UPS system operates with hazardous voltages. Repairs may be carried out only by qualified maintenance
personnel.
Risk of electric shock. Even after the unit is disconnected from the mains (building wiring outlet); components
inside the UPS system are still connected to the battery and are electrically live and dangerous.

UPS Expandable Runtime Battery User Manual
Important Safety Instructions
vi
©2022 | Legrand AV, Inc. All rights reserved.
Before performing any service and/or maintenance, disconnect the batteries and verify that no current is present
and no hazardous voltage exists on the terminals of the high capability capacitor, such as BUS-capacitors.
Only persons are adequately familiar with batteries and with the required precautionary measures may replace
batteries and supervise operations. Unauthorized persons must be kept well away from the batteries.
Risk of electric shock. The battery circuit is not isolated from the input voltage. Hazardous voltages may occur
between the battery terminals and the ground. Before touching, please verify that no voltage is present.
Do not dispose of batteries in a fire. The batteries may explode.
Do not open or mutilate batteries. Released electrolyte is harmful to the skin and eyes. It may be toxic.
Batteries may cause electric shock and have a high short-circuit current. Please take the precautionary measures
specified below and any other measures necessary when working with batteries:
•Remove watches, rings, or other metal objects.
•Use tools with insulated handles.
•Wear rubber gloves and boots.
•Do not lay tools or metal parts on top of batteries.
•Disconnect charging source and load prior to installing or maintaining the battery.
•Remove battery grounds during installation and maintenance to reduce likelihood of shock. Remove the connection
from ground if any part of the battery is determined to be grounded.
When changing batteries, install the same number and same type of batteries or battery packs.
For UPS with internally mounted battery:
•Instructions shall have sufficient information to enable the replacement of the battery with a suitable manufacturer and
catalogue number.
•Safety instructions to allow access by Service Personnel shall be stated in the installation/service handbook.
•If batteries are to be installed by Service Personnel, instructions for interconnections, including terminal torque, shall
be provided.
Do not attempt to dispose of batteries by burning them. This could cause an explosion.
Do not open or destroy batteries. Escaping electrolyte can cause injury to the skin and eyes. It may be toxic.
Only replace the fuse with the same type and amperage to avoid fire hazards.
Do not disassemble the UPS system.

UPS Expandable Runtime Battery User Manual
Industry Canada (IC)
vii
©2022 | Legrand AV, Inc. All rights reserved.
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15
of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the
equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the
user will be required to correct the interference at his own expense.
Changes or modifications not expressly approved by the party responsible for compliance could void the user's
authority to operate the equipment.
This is a product for commercial and industrial applications. In second environment installations, restrictions or
additional measures may be needed to prevent disturbances.
Industry Canada (IC)
ICES-003 Class A Notice. This Class A digital apparatus complies with Canadian ICES-003.

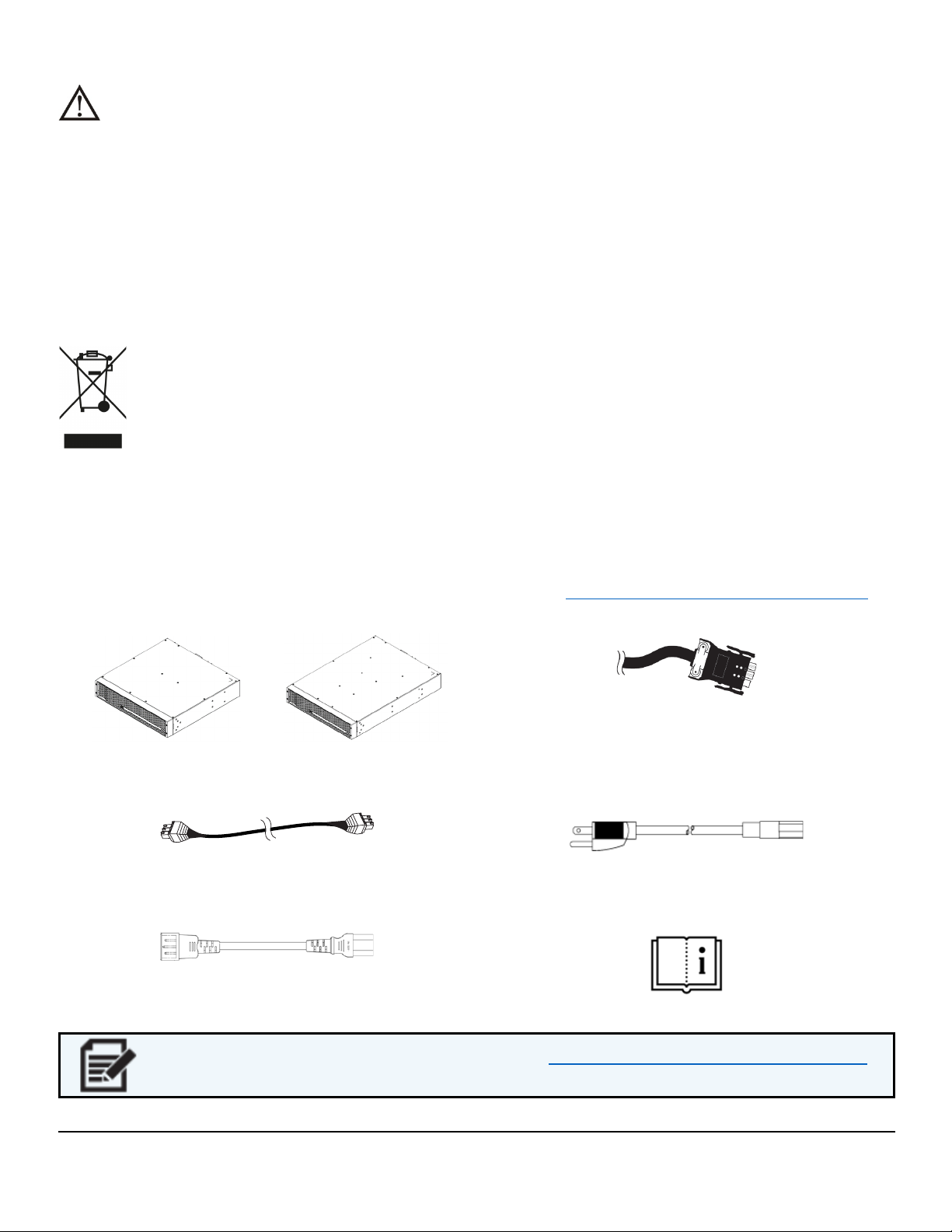

Waste Electrical and Electronic Equipment (WEEE)
Directive
Correct disposal of this product: This symbol indicates that this product must not be disposed of with
household waste, according to the WEEE Directive (2012/19/EU) and your national law. This product
should be taken to a collection center licensed for the recycling of waste electrical and electronic
equipment (EEE). The mishandling of this type of waste could have a possible negative impact on the
environment and human health due to potentially hazardous substances that are generally associated
with EEE. At the same time, your cooperation in the correct disposal of this product will contribute to
the efficient use of natural resources. For more information about where you can take your waste
equipment for recycling, please contact your local city office or your household waste collection
service.
Instructions Importantes Sur La Sécurité
Respectez tous les avertissements et consignes d'utilisation de ce manuel et conservez-le pour référence ultérieure. Ne
faites pas fonctionner cet appareil avant de lire attentivement toutes les informations de sécurité et les instructions
d'utilisation.
Comprendre Les Symboles De Sécurité
DANGER TENSION
DANGEREUSE
Le symbole de la pointe de flèche, dans un triangle équilatéral, est destiné à alerter
l'utilisateur sur la présence de tension dangereuse non isolée dans l'enceinte du
produit qui peut être d'une ampleur suffisante pour constituer un risque
d'électrocution.
AVERTISSEMENT Un avertissement vous avertit d'une situation pouvant entraîner des blessures
graves ou la mort.

UPS Expandable Runtime Battery User Manual
Instructions Importantes Sur La Sécurité
viii
©2022 | Legrand AV, Inc. All rights reserved.
ATTENTION Une attention vous avertit d'une situation pouvant entraîner des blessures mineures ou
des dommages au produit et/ou à la propriété.
REMARQUE Une remarque est utilisée pour mettre en évidence les procédures relatives à
l'installation, au fonctionnement ou à l'entretien du produit.
Transport et stockage
Transportez le système UPS uniquement dans son emballage d'origine pour le protéger contre les chocs.
L'onduleur doit être stocké dans une pièce ventilée et sèche.
Préparation
De la condensation peut se produire si le système UPS est directement déplacé d'un environnement froid à un
environnement chaud. Le système UPS doit être absolument sec avant d'être installé. Veuillez prévoir au moins deux
heures pour que le système d'ASI s'adapte à l'environnement.
N'installez pas l'onduleur à proximité d'eau ou dans un environnement humide.
N'installez pas le système UPS à un endroit exposé à la lumière directe du soleil ou à proximité d'un appareil de
chauffage.
Ne bloquez pas les trous de ventilation sur le boîtier de l'onduleur.
Installation
Ne connectez pas de périphériques à la sortie de l'onduleur ou à un terminal susceptible de surcharger l'onduleur.
Placez les câbles de manière à ce que personne ne puisse marcher dessus ou trébucher dessus.
Ne connectez pas d'appareils domestiques tels que des sèche-cheveux aux prises de sortie de l'ASI.
Ne connectez le système ASI qu'à une prise de terre protégée contre les chocs, qui doit être facilement accessible
et proche du système ASI.
Utilisez uniquement un câble d'alimentation certifié VDE, marqué CE (par exemple, le câble d'alimentation de votre
ordinateur) pour connecter le système UPS au câblage du bâtiment sortie (sortie antichoc).
Utilisez uniquement des câbles d'alimentation VDE, marqués CE pour connecter les charges au système UPS.
Lors de l'installation de l'équipement, assurez-vous que la somme du courant de fuite de l'onduleur et des
périphériques connectés ne dépasse pas 3.5 mA.
Température nominale: Les unités sont considérées acceptables pour une utilisation dans un environnement
ambiant maximal de 40°C (104°F).

UPS Expandable Runtime Battery User Manual
Instructions Importantes Sur La Sécurité
ix
©2022 | Legrand AV, Inc. All rights reserved.
Pour les équipements enfichables: La prise de courant doit être installée près de l'équipement et doit être
facilement accessible.
L'unité est lourde. Le levage de l'unité nécessite un minimum de deux personnes.
Fonctionnement
Ne déconnectez pas le câble du conducteur de mise à la terre de l'onduleur ou des bornes de câblage du bâtiment
car cela annulerait la mise à la terre de protection de l'onduleur et de toutes les charges connectées.
Le système ASI dispose de sa propre source de courant interne (batteries). Par conséquent, les prises de sortie ou
les borniers de sortie de l'ASI peuvent être sous tension même si le système ASI n'est pas connecté à la sortie du
bâtiment.
Pour déconnecter complètement le système UPS, appuyez d'abord sur le bouton "OFF", puis débranchez le
secteur.
Assurez-vous qu'aucun liquide ou autre corps étranger ne puisse pénétrer dans le système ASI.
Les circuits EPO, RS-232 et USB sont des circuits de très basse tension de sécurité (TBTS) CEI 60950-1. Ce
circuit doit être séparé de tout circuit de tension dangereux par une isolation renforcée.
Maintenance, Service et Défauts
Le système UPS fonctionne avec des tensions dangereuses. Les réparations ne peuvent être effectuées que par
du personnel de maintenance qualifié.
Risque de choc electrique. Même après que l'appareil est déconnecté du secteur (prise de câblage du bâtiment);
les composants à l'intérieur du système UPS sont toujours connectés à la batterie et sont sous tension et dangereux.
Avant d'effectuer toute opération de maintenance, déconnectez les batteries et vérifiez qu'il n'y a pas de courant et
qu'aucune tension dangereuse n'existe sur les bornes du condensateur haute capacité, telles que les condensateurs
BUS.
Seules des personnes connaissent bien les batteries et, avec les mesures de précaution requises, peuvent les
remplacer et superviser les opérations. Les personnes non autorisées doivent être tenues à l'écart des batteries.
Risque de choc electrique. Le circuit de la batterie n'est pas isolé de la tension d'entrée. Des tensions
dangereuses peuvent se produire entre les bornes de la batterie et le sol. Avant de toucher, vérifiez s'il n'y a pas de
tension.
Ne jetez pas les piles dans un feu. Les piles peuvent exploser.

UPS Expandable Runtime Battery User Manual
Instructions Importantes Sur La Sécurité
x
©2022 | Legrand AV, Inc. All rights reserved.
N'ouvrez pas et ne mutilez pas les piles. L'électrolyte libéré est nocif pour la peau et les yeux. Cela peut être
toxique.
Les batteries peuvent provoquer un choc électrique et un courant de court-circuit élevé. Veuillez prendre les
mesures de précaution suivantes et toutes les autres mesures nécessaires lorsque vous travaillez avec des batteries:
•Retirez les montres, bagues ou autres objets métalliques.
•Utilisez des outils avec des poignées isolées.
•Portez des gants et des bottes en caoutchouc.
•Ne posez pas d'outils ou de pièces métalliques sur les batteries.
•Débranchez la source de charge avant d'installer ou de maintenir la batterie.
•Retirez les masses de la batterie pendant l'installation et la maintenance afin de réduire les risques de choc. Retirez
la connexion de la masse si une partie de la batterie est déterminée pour être mise à la terre.
Lorsque vous changez les piles, installez le même numéro et le même type de piles ou de batteries.
Pour onduleur avec batterie interne:
•Les instructions doivent contenir suffisamment d'informations pour permettre le remplacement de la batterie par un
fabricant et un numéro de catalogue appropriés.
•Les instructions de sécurité pour permettre l'accès au personnel de service doivent être indiquées dans le manuel
d'installation/d'entretien.
•Si des batteries doivent être installées par le personnel de service, des instructions pour les interconnexions, y
compris le couple aux bornes, doivent être fournies.
N'essayez pas de vous débarrasser des piles en les brûlant. Cela pourrait provoquer une explosion.
Ne pas ouvrir ou détruire les piles. L'électrolyte qui s'échappe peut causer des blessures à la peau et aux yeux.
Cela peut être toxique.
Ne remplacez le fusible que par le même type et le même ampérage pour éviter les risques d'incendie.
Ne démontez pas le système UPS.
Cet équipement a été testé et déclaré conforme aux limites d'un appareil numérique de classe A, conformément à
la partie 15 des règles de la FCC. Ces limites sont conçues pour fournir une protection raisonnable contre les
interférences nuisibles lorsque l'équipement est utilisé dans un environnement commercial. Cet équipement génère,
utilise et peut émettre de l'énergie radiofréquence et, s'il n'est pas installé et utilisé conformément au manuel
d'instructions, peut causer des interférences nuisibles aux communications radio. L'utilisation de cet équipement dans
une zone résidentielle est susceptible de provoquer des interférences nuisibles, auquel cas l'utilisateur devra corriger les
interférences à ses propres frais.
Les changements ou modifications non expressément approuvés par la partie responsable de la conformité
pourraient annuler l'autorité de l'utilisateur à utiliser l'équipement.

UPS Expandable Runtime Battery User Manual
Industrie Canada (IC)
xi
©2022 | Legrand AV, Inc. All rights reserved.
Ceci est un produit pour les applications commerciales et industrielles. Dans les installations du deuxième
environnement, des restrictions ou des mesures supplémentaires peuvent être nécessaires pour éviter les perturbations.
Industrie Canada (IC)
ICES-003 Avis NMB-003, Classe B. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du
Canada.
Directive sur les déchets d'équipements électriques et
électroniques (WEEE)
Elimination correcte de ce produit: Ce symbole indique que ce produit ne doit pas être éliminé avec les ordures
ménagères, conformément à la directive WEEE (2012/19/EU) et à votre législation nationale. Ce produit doit être déposé
dans un centre de collecte agréé pour le recyclage des déchets d'équipements électriques et électroniques (EEE). La
mauvaise manipulation de ce type de déchets pourrait avoir un impact négatif possible sur l'environnement et la santé
humaine en raison de substances potentiellement dangereuses généralement associées aux EEE. Dans le même
temps, votre coopération dans l'élimination correcte de ce produit contribuera à une utilisation efficace des ressources
naturelles. Pour plus d'informations sur les lieux de recyclage de vos équipements usagés, veuillez contacter votre
mairie ou votre service de collecte des ordures ménagères.
Supplied Components and Hardware
After carefully opening all product packaging, identify the supplied components and hardware shown. If any pieces are
missing or damaged, please report it immediately to Technical Support at [e-mail] or
[phone]. Keep the original box in a safe place for future use.
1, 1.5, or 2KVA Expandable Runtime Battery Unit
A
Expandable Battery Main Connector
NOTE: Cord hard wired into back of battery.
B
Expandable Battery Communication Cable
C
Power Cord
D
IEC to IEC Short Cord
E
User Manual
NOTE
To order more hardware, contact support at
[e-mail]
or
(866) 977
-3901.

UPS Expandable Runtime Battery User Manual
Required Tools
xii
©2022 | Legrand AV, Inc. All rights reserved.
Required Tools
•
#2 Phillips Screwdriver
•
Electric Drill and #2 Phillips Bit (if Preferred)
WARNING Use tools with caution and follow all safety protocols.
AVERTISSEMENT Utiliser des outils avec prudence et suivre tous les protocoles de sécurité.
Introduction
This User Manual provides information about your NEXSYS UPS Expandable Runtime Battery option (A), part of the
NEXSYS power devices offered by Middle Atlantic Products. You may have purchased additional items (some sold
separately) for your NEXSYS UPS configuration.
For information about additional products that are part of the NEXSYS series, refer to respective documents available on
the NEXSYS product page at www.legrandav.com or contact support at [e-mail] or
[phone].
Some General Model and Compatibility Specifications
For more specification details see “Specifications” on page 24.
Model UPX-EXPANRUN-10-15 UPX-EXPANRUN-20
Compatible with UPS Topology
Line Interactive
Compatible with UPS sized VA
1000VA
1500VA
2000VA
Charging Your Expandable Runtime Battery, the First
Time
You must first charge your expandable runtime battery (A) for at least eight hours before connecting it to your UPS and
providing direct backup power to connected devices.
After configuring your entire UPS system to include an expandable runtime battery, the UPS auto charge feature
automatically charges all pre-installed, internal batteries whenever the UPS is plugged directly into an appropriately rated
AC power receptacle using the supplied power cord (D), whether the UPS is turned on or off.
NOTE
First, use the
supplied power cord (D) and directly plug your expandable runtime battery
into AC power and allow it to charge for
eight hours before connecting it to your UPS and
providing direct backup power to connected devices.

UPS Expandable Runtime Battery User Manual
Understanding UPS and Expandable Runtime Battery Installation
Requirements
13
©2022 | Legrand AV, Inc. All rights reserved.
Understanding UPS and Expandable Runtime Battery
Installation Requirements
NOTE
Before installing your
expandable runtime battery (A), carefully review the following
considerations to select a proper location.
Most considerations apply to your UPS as well.
1. The battery should be placed on a flat, clean surface. Place it in an area away from vibration, dust, humidity,
high temperature, flammable liquids, gases, corrosive, and conductive contaminants. Install the battery
indoors in a clean environment, where it is away from windows and doors. Maintain a minimum clearance of
3.94” (100mm) on the bottom of the battery to avoid dust and high temperatures.
2. Maintain an ambient temperature range of 32ºF (0ºC) to 104ºF (40ºC) for optimal operation.
3. Maintain a maximum altitude of 1093.61yd. (1000m) to keep the connected UPS within normal operation at
full load. If used in high altitudes, please reduce the connected load from the UPS. Altitude derating power
with connected loads for normal operation is listed as follows:
Altitude (Feet and Meters)
Derating Factor
3280.84
1000
1.0
4921.26
1500
0.95
6561.68
2000
0.91
8202.1
2500
0.86
9842.52
3000
0.82
NOTE
Derating factor values are
based on density of dry air = 1.225 kg/m3at sea level, + 59˚F
(15˚C).
4. Your battery chassis has ventilation openings for thermal management. Place the battery in a well-ventilated
area and maintain a minimum clearance of 4” (100mm) in the front of the battery, and 12” (300mm) at the
back and two sides of the battery, for heat dissipation and maintenance access.
Installing the Expandable Battery Inside of Your
Enclosure
WARNING This procedure requires at least one additional person.
AVERTISSEMENT Cette procédure nécessite au moins une personne supplémentaire.
1. Carefully team lift your expandable runtime battery (A), remove it from the packaging, and place it on an
appropriate work surface.

UPS Expandable Runtime Battery User Manual
Installing the Expandable Battery Inside of Your Enclosure
14
©2022 | Legrand AV, Inc. All rights reserved.

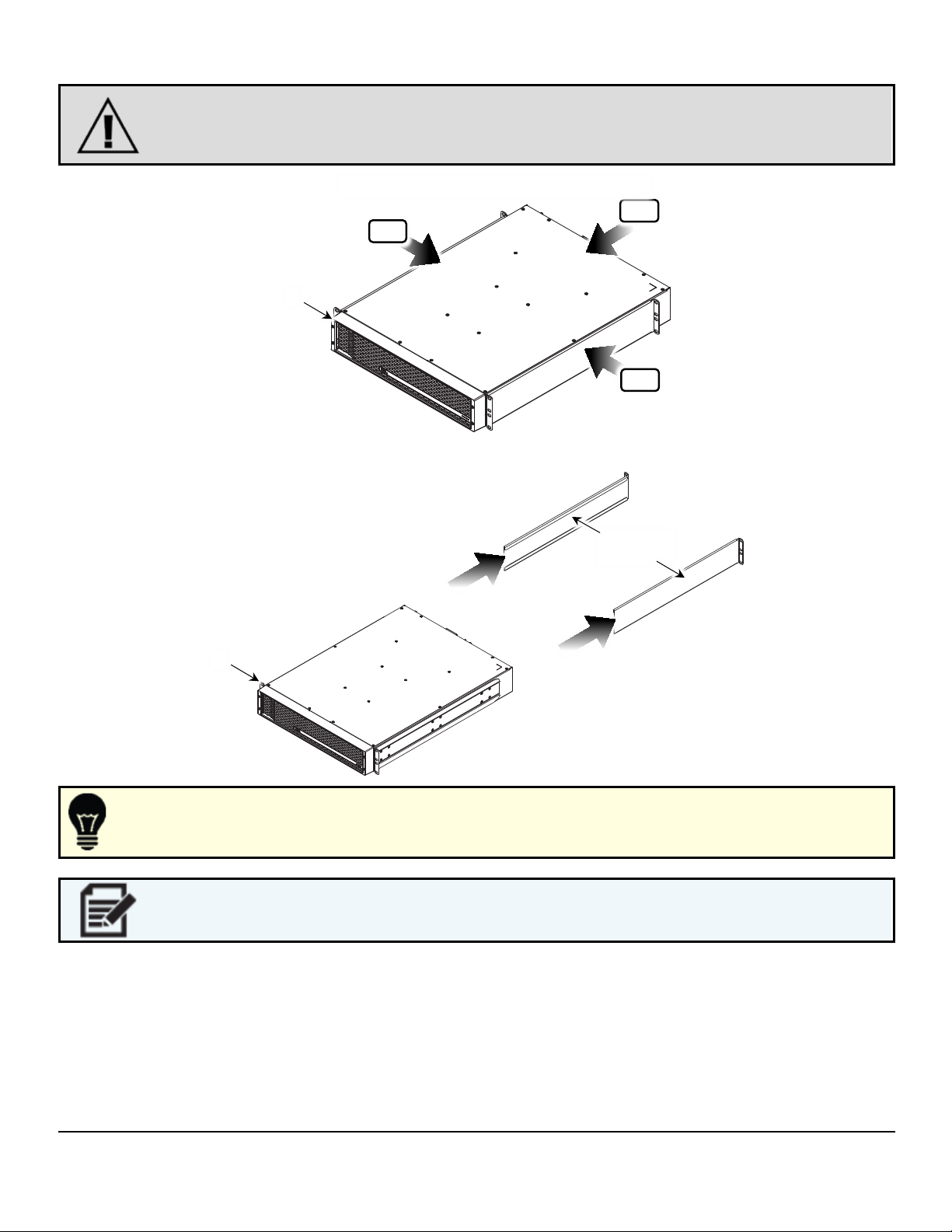

CAUTION Only lift from the sides and back of the unit and not by the front or rail sliders.
ATTENTION Soulevez uniquement par les côtés et l'arrière de l'unité et non par le avant ou
les rails.
2. Slide the back of each rail slider completely off the assembly.
TIP
Take a moment to consider where you plan to install your expandable battery inside your enclosure
and the distance from its corresponding UPS. Installing the expandable battery above or below the
UPS (or close to it) will simplify connectivity and cable management.
NOTE
If
using power driver, verify the torque is on the lightest setting and only increase as
necessary.
3. Use power driver, #2 Phillips bit, and (8x) rackscrews (not provided) to attach the ears on the back rail
sliders to rear rackrails at the desired height inside of your enclosure.
YES
YES
Acceptable Lifting Points on Your Expandable Battery
YES
A
Back of Rail
Sliders
A

UPS Expandable Runtime Battery User Manual
Installing the Expandable Battery Inside of Your Enclosure
15
©2022 | Legrand AV, Inc. All rights reserved.

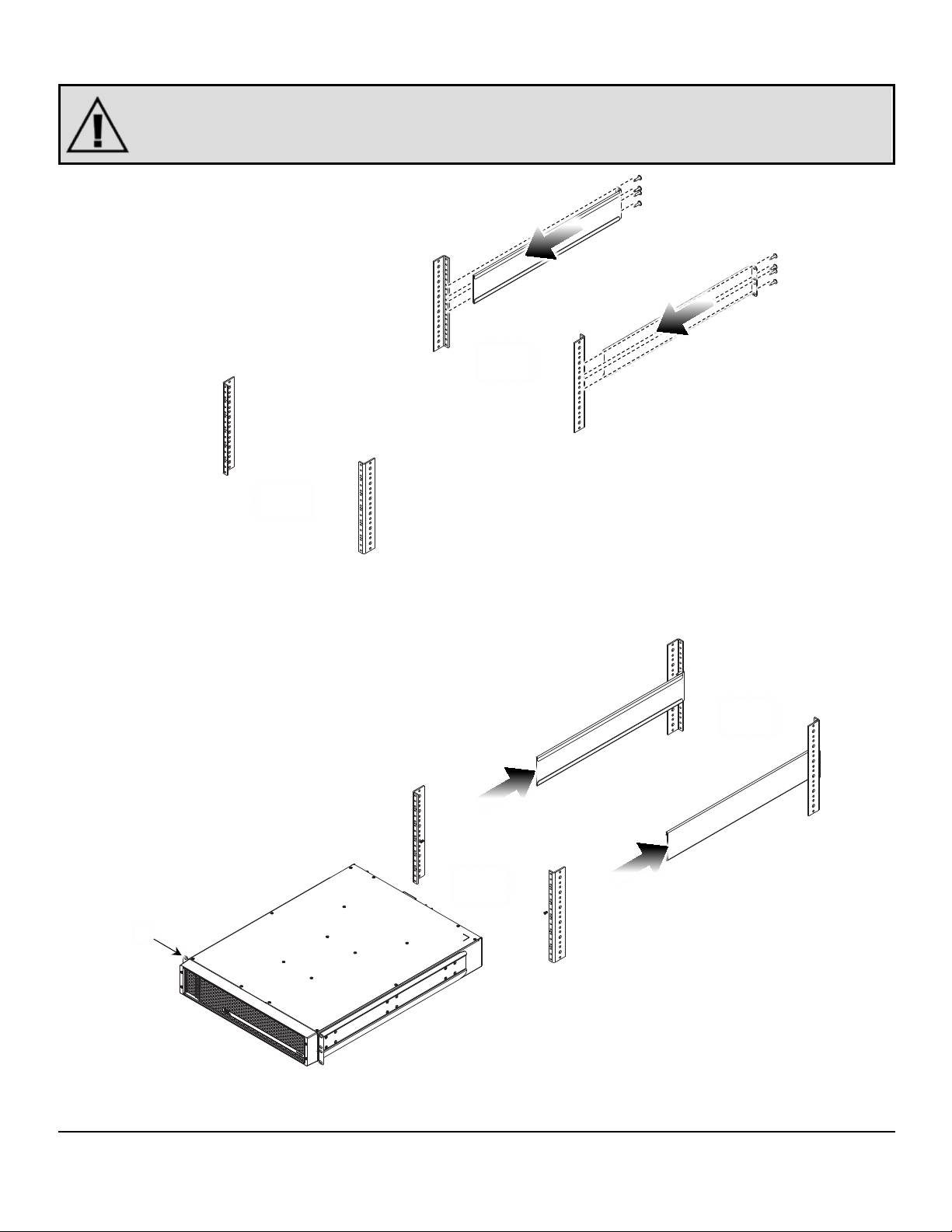

WARNING Every hole on each rail slider ear must be secured with a rackscrew (not provided).
AVERTISSEMENT Cette procédure nécessite au moins une personne supplémentaire.
4. Team lift your expandable runtime battery (A) and carefully slide the front of each rail slider over the back
sliders until the ears on the front rail sliders are flush with the front rackrails on your enclosure.
5. Use power driver and (8x) rackscrews (not provided) to attach the ears on the front rail sliders to the front
rackrails on your enclosure.
Front
Rackrails
Rear
Rackrails
NOTE:
•
Rackscrews not provided.
•Front and rear rackrails on enclosure isolated for clarity.
Front
Rackrails
Rear
Rackrails
A

UPS Expandable Runtime Battery User Manual
Connecting the Expandable Runtime Battery Option to Your UPS
16
©2022 | Legrand AV, Inc. All rights reserved.
WARNING
Every hole on the ear of each rail slider must be secured with a rackscrew (not
provided).
AVERTISSEMENT
Cette procédure nécessite au moins une personne supplémentaire.
6. With your expandable battery now secured inside of your enclosure, use the next topic to properly connect it
to your UPS.
Connecting the Expandable Runtime Battery Option to
Your UPS
This topic explains how to connect up to four expandable runtime battery options (A) to your UPS system.
NOTE
•Up to four expandable runtime batteries (A) may be added to your UPS system.

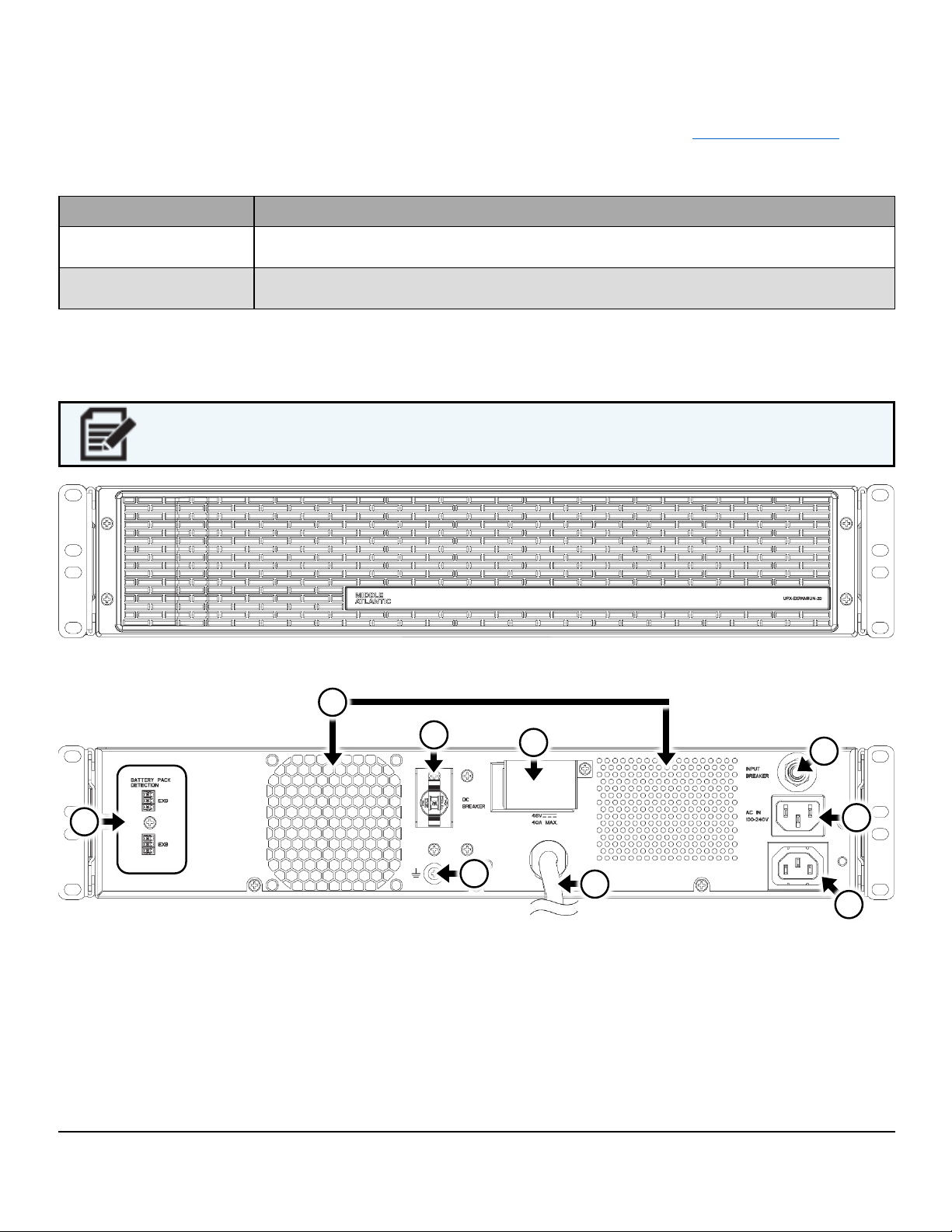

•Images in this manual typically use UPX-1000R-2 and UPX-EXPANRUN-10-15
models to show the location of connectors, buttons, and LED’s. The locations of
these items are similar on all available NEXSYS™ Line Interactive UPS models and
corresponding options.
For information about battery replacement, see “Replacing the Battery” on page 21.
1. Use a #2 Phillips screwdriver to remove the screw and plate covering the expandable battery main connector
ports on the back of both your UPS and expandable runtime battery (A).
Carefully set aside the screws and plates for future use.
NOTE
If you are adding exactly one expandable runtime battery to your UPS system, you may
decide to leave the main connector port screw and plate intact on your expandable runtime
battery, if desired.
Rear
Rackrails
Front
Rackrails
A

UPS Expandable Runtime Battery User Manual
Connecting the Expandable Runtime Battery Option to Your UPS
17
©2022 | Legrand AV, Inc. All rights reserved.
2. Connect the end of the expandable battery main connector cord (B) into the corresponding port on the back
of your model UPS as shown.
NOTE
•Applicable cords, cables, and ports shown in black for clarity.
•
After connecting the battery or batteries, the entire system must be charged
for eight hours before providing direct backup power to connected devices.
For more information, see “Charging Your Expandable Runtime Battery, the
First Time” on page 12.
3. Connect one side of the expandable battery communication cable (C) into the lower left port labeled EXB on
the back of your expandable runtime battery as shown.
15A UPS
Model Shown
EXB
EXB
BATTERY PACK
DETECTION
INPUT
BREAKER
DC
BREAKER
Expandable Battery
Main Connector Cord (B)
Expandable
Runtime
Battery Option
(A)
15A UPS
Model Shown
EXB
EXB
BATTERY PACK
DETECTION
INPUT
BREAKER
DC
BREAKER
Expandable Battery
Main Connector Cord (B)
Expandable
Runtime
Battery Option
(A)
Expandable Battery
Communication Cable (C)

UPS Expandable Runtime Battery User Manual
Connecting the Expandable Runtime Battery Option to Your UPS
18
©2022 | Legrand AV, Inc. All rights reserved.
4. Connect the other side of the expandable battery communication cable (C) into the port labeled EXB on the
back of your UPS.
NOTE
Up to f
our expandable runtime battery options may be added to your UPS system and
should
only be connected as shown.
5. Install the power cord provided with your UPS and use the cord retainer clip provided with it by pressing
inward on its sides and hooking the ends through the input post holes on the back of your UPS as shown.
EXB
EXB
BATTERY PACK
DETECTION
EXB
EXB
BATTERY PACK
DETECTION
EXB
EXB
BATTERY PACK
DETECTION
EXB
EXB
BATTERY PACK
DETECTION
DC
BREAKER
DC
BREAKER
DC
BREAKER
DC
BREAKER
INPUT
BREAKER
INPUT
BREAKER
INPUT
BREAKER
INPUT
BREAKER
Expandable
Battery
Communication
Cables (C)
Expandable
Battery
Main
Connector
Cords (B)
15A UPS
Model Shown
Connect Up
to Four
Expandable
Runtime
Battery
Options (A)
Press inward on
retainer sides.
Hook ends of retainer
through input post holes.
Cord
Retainer

UPS Expandable Runtime Battery User Manual
Connecting the Expandable Runtime Battery Option to Your UPS
19
©2022 | Legrand AV, Inc. All rights reserved.
6. Use the power cord (D) provided with your expandable runtime battery or batteries and either directly
connect them to appropriately rated receptacles, or daisy-chain the power to multiple batteries (where
applicable) using IEC-to-IEC short cord(s) (E) as shown.
CAUTION
Plug the devices into a two-pole, three-wire, grounded receptacle only.
Avoid using extension cords.
ATTENTION
Brancher l'appareils dans une prise bipolaire, trois fils et mise à la terre
uniquement. Évitez d'utiliser des rallonges.
CAUTION
The receptacle should be protected by a fuse or circuit breaker. The circuit
should not be servicing other equipment with large electrical demands.
ATTENTION
La prise doit être protégée par un fusible ou un disjoncteur. Le circuit ne
doit pas entretenir d'autres équipements avec de grandes exigences
électriques.
7. After making all expandable battery connections to your UPS, the entire system must first be charged for at
least eight hours before it can provide direct backup power to connected devices. For more information, see
“Charging Your Expandable Runtime Battery, the First Time” on page 12.
8. Press the power button on the UPS to turn on the system. For more information, refer to “Understanding the
UPS Power Button” in the Line Interactive UPS User Manual (100-00072) at www.legrandav.com.
To appropriately
rated receptacle.
To appropriately
rated receptacle.
To appropriately
rated receptacle.
To appropriately
rated receptacle.
To appropriately
rated receptacle.
To appropriately
rated receptacle.
D
E
E
E
D
D
D
D
Direct Power
Connecting
Additional
Batteries
(A)
UPS
Power
Cord
Daisy-
Chain
Power
Connecting
Additional
Batteries
(A)
15A UPS
Model Shown

UPS Expandable Runtime Battery User Manual
Basic Operation and Feature Set
20
©2022 | Legrand AV, Inc. All rights reserved.
9. Use the LCD front panel on your UPS and navigate to Main Menu > Configuration Functions > External
Battery and verify the system is detecting connections in the manner you prefer. For more information, refer
to “Front Panel Buttons” in the Line Interactive UPS User Manual (100-00072) at www.legrandav.com.
The default setting is Auto, but you might prefer specifying the number of external runtime batteries on your
system instead.
Option
Description
External Battery 0 – 4
Set the number of external battery pack(s) attached to your UPS.
Auto
Automatically detect the number of external battery pack(s) attached to your UPS.
Basic Operation and Feature Set
NOTE
Front and back of a 2K model
expandable runtime battery is shown. Called out items
are in
the same locations on
2K, 1K, and 1.5K units.
Labels on the back of the expandable runtime battery correspond with the following explanations.
A. Passive Ventilation Openings
B. DC Breaker
C. External Battery Port: Port where the main connector from any additional expandable battery is inserted.
D. Input Circuit Breaker: Located next to the AC input, the input circuit breaker trips when the load exceeds
power rating of your UPS system.
E. External Battery Unit Detection and Signal Ports (EXB): Connect one end of the expandable runtime
battery communication cable (C) in either of these ports and connect the other end into the EXB port on your
UPS or another expandable runtime battery option (if purchased) to transmit data between the units.
D
C
I
G
A
B
H
F
E
