LEGRAND PREMIUS 7.5kVA User manual

PREMIUS
7.5 kVA - 20 kVA UPS
User Manual

2PREMIUS 7.5 KVA - 20 KVA UPS USER MANUAL
FOREWORD
Summary
Thank you for choosing Numeric UPS.
This document gives a description of the PREMIUS UPS,
including the features, performance, appearance, structure,
working principles, installation, operation, and maintenance,
etc.
Please save the manual after reading, for future references.
NOTE
The figures in this manual are just for reference, for details
please see the actual product.

3
PREMIUS 7.5 KVA - 20 KVA UPS USER MANUAL
Symbol Conventions
The manual quotes the safety symbols, used to prompt users to comply with safety matters during installation,
operation, and maintenance. Safety symbol meaning as follows,.
Symbol Description
DANGER Alerts you to a high-risk hazard that could, if not avoided, result in serious
injury or death.
WARNING Alerts you to a medium or low risk hazard that could, if not avoided, result in
moderate or minor injury.
CAUTION
Alerts you to a potentially hazardous situation that could, if not avoided, result
in equipment damage, data loss, performance deterioration, or unanticipated
results.
Anti-static prompting.
Be careful of electric shock prompting.
TIP Provides a tip that may help you solve a problem or save time.
NOTE Provides additional information to emphasize or supplement important points
in the main text.

4PREMIUS 7.5 KVA - 20 KVA UPS USER MANUAL

5
PREMIUS 7.5 KVA - 20 KVA UPS USER MANUAL
1 Safety Description 6
1.1 Safety Announcements 6
1.1.1 Safety Instructions 6
1.1.2 User Instructions for Battery 6
1.1.3 Anti-Static Protection 7
1.2 Operation and Maintenance Requirements 7
1.3 Environment Requirements 7
2 Overview 8
2.1 Product Introduction 8
2.1.1 Model Configuration 8
2.1.2 Appearance 8
2.1.3 Operation panel 8
2.1.4 Fittings Illustration 10
2.2 Optionals 11
2.2.1 Distribution Module 11
3 Installation 13
3.1 Unpacking and Checking 13
3.2 Installation Preparation 13
3.2.1 Select Breaker & Wires 13
3.2.2 Select Input Breaker 13
3.2.3 Select Wires 14
3.3 Mechanical Installation 16
3.3.1 Tower-mounting 16
3.3.2 Rack-mounting 16
3.4 Electrical Connection 17
3.4.1 Wiring Operation of PREMIUS
Series (7.5kVA-20kVA) UPS 18
3.4.2 Wiring Between UPS and Battery Box 18
3.4.3 Wiring Between UPS and Distribution
Module of PREMIUS Series
(7.5kVA-20kVA) UPS 19
3.4.4 Wiring of Parallel System 20
4 Screen Operation 22
4.1 Menu Hierarchy 22
4.2 Main Page 23
4.3 System Working Status Display 23
4.4 Monitoring Page 24
4.5 Setting Page 24
4.6 Management Setting 25
4.6.1 Parameter Setting 25
4.6.2 Function Setting 26
4.6.3 Screen Setting 27
5 Use and Operation 29
5.1 Check Before Startup 29
5.2 Startup Operation 29
5.3 Shutdown Operation 29
5.4 Periodic Preventative Maintenance 29
5.5 Battery Maintenance 30
5.6 Troubleshooting 30
5.6.1 Common Fault 30
6 Package, Transportation and Storage 34
6.1 Package 34
6.2 Transportation 34
6.3 Storage 34
CONTENTS
Index

6PREMIUS 7.5 KVA - 20 KVA UPS USER MANUAL
1 Safety Description
This chapter introduces the safety announcements. Prior to performing any work on the UPS, please read the
user manual carefully to avoid human injury and device damage by irregular operations.
1.1 Safety Announcements
This section introduces the safety announcements that must be complied with and pay special attention while
installing, using, maintenance and other relative operations.
CAUTION!
Before operating, please read the announcements and operation instructions in this
section carefully to avoid accident.
The DANGER, WARNING, CAUTION, etc. in the manual are not all the safety announcements
that you must abide by, they are just the supplements for the safety announcements
during operating.
NOTE!
Our company does not undertake the responsibility caused by violating common safety
operation requirements or the safety standard of design, manufacture, and use.
1.1.1 Safety Instructions
CAUTION!
There exists high temperature and high voltage inside the UPS. During usage, strictly
comply with all warnings and operation instructions on the UPS and in the user manual.
CAUTION!
The UPS is class C3 device. If it is used in residential purpose, it may cause wireless
interference. User should take actions to avoid the interference.
• No liquid or other objects should be allowed to enter the UPS.
• UPS must be well grounded.
• In case of fire, please use dry powder fire extinguisher. If liquid fire extinguisher is used, it may cause
electric shock.
1.1.2 User Instructions for Battery
CAUTION!
Please use specified battery. Non-specified battery will damage the UPS.
• Only authorized professional can replace battery. Do not wear conductive objects, such as watches,
bracelets, and rings while handling. Wear rubber shoes and gloves and use tools with insulated
handle.
• Don't put tools or other conductive objects on the battery.
• Shorting the positive and negative poles of the battery or connecting them in reverse is prohibited.
This is done to prevent the risk of fire or electric shock.

7
PREMIUS 7.5 KVA - 20 KVA UPS USER MANUAL
• Before connecting or disconnecting the battery terminals, disconnect the charger first.
• The battery must be of the same type, model and manufacturer.
• Battery should be kept away from fire source or other electrical equipment that may easily cause
spark to avoid human injury.
• Don't open or destroy the battery. The electrolyte in the battery includes strong acid, which will be
harmful to skin and eyes. If you come in contact with the acid, clean it by running water immediately
and visit the hospital.
• The waste battery should be disposed according to the local regulations.
1.1.3 Anti-Static Protection
CAUTION!
The static electricity generated by human bodies may damage the electrostatic-
sensitive components on PCB. Before touching the sensitive component, please wear
anti-static device and connect the other end of the anti-static device to the ground.
1.2 Operation and Maintenance Requirements
CAUTION!
Only authorized professionals are allowed to open the UPS chassis, or it may cause
electric shock and failure of the UPS. This will make it out of warranty.
• If the UPS needs to be moved, rewired, or maintained, disconnect all electrical connections, including
AC power, battery power, etc., to isolate the power input. Do not work on the UPS until it has been
completely powered off (wait for at least 10 minutes). Otherwise, there may still be electricity present
in the output, which could lead to an electric shock.
• When dismantling the fan, avoid placing your fingers or tools into the rotating fan to prevent damage
to the device or injury to yourself.
1.3 Environment Requirements
DANGER
Do not place the UPS in an environment where there is inflammable, explosive gas,
or smog. Avoid conducting any operations in such an environment.
• Avoid using the UPS in places with direct sunlight, rain, or moisture.
• The normal operating temperature range for the UPS is 0ºC to 40ºC, with a relative humidity of 0%
to 95%, and without condensation (the recommended operating temperature is 20ºC to 25ºC with a
humidity of about 50%).
• Place the UPS on a flat, vibration-free surface with a vertical gradient of less than 5°. Ensure there
is good ventilation around the UPS. Maintain a clearance of at least 300mm to 500mm between the
rear or sides of the UPS and adjacent devices or walls. Insufficient ventilation can lead to increased
temperatures inside the UPS, potentially reducing the lifespan of internal components and affecting
the overall UPS lifespan.
• The UPS must be operated at altitudes below 2000m. If the altitude exceeds 2000m, it is necessary to
reduce the rated power in accordance with IEC62040-3:2011 before usage.

8PREMIUS 7.5 KVA - 20 KVA UPS USER MANUAL
2. Overview
This chapter primarily introduces the UPS, explaining its model significance, features, structure, working
principle, and more.
2.1 Product Introduction
The PREMIUS series UPS is a high-frequency, pure online, double-conversion, intelligent product. This
comprehensive power solution offers exceptional security for file servers, enterprise servers, central servers,
microcomputers, concentrators, telecom systems, data centers, and other applications that demand high-
quality power protection. Its usage spans various critical business sectors, including postal services, finance,
networking, stock exchanges, railways, and more.
2.1.1 Model Configuration
The PREMIUS series UPS, available in capacities ranging from 7.5kVA to 20kVA, provides support for both three-
phase input single-phase output (3:1) mode, designated as 31 mode UPS, and single-phase input single-phase
output (1:1) mode, referred to as 11 mode UPS.

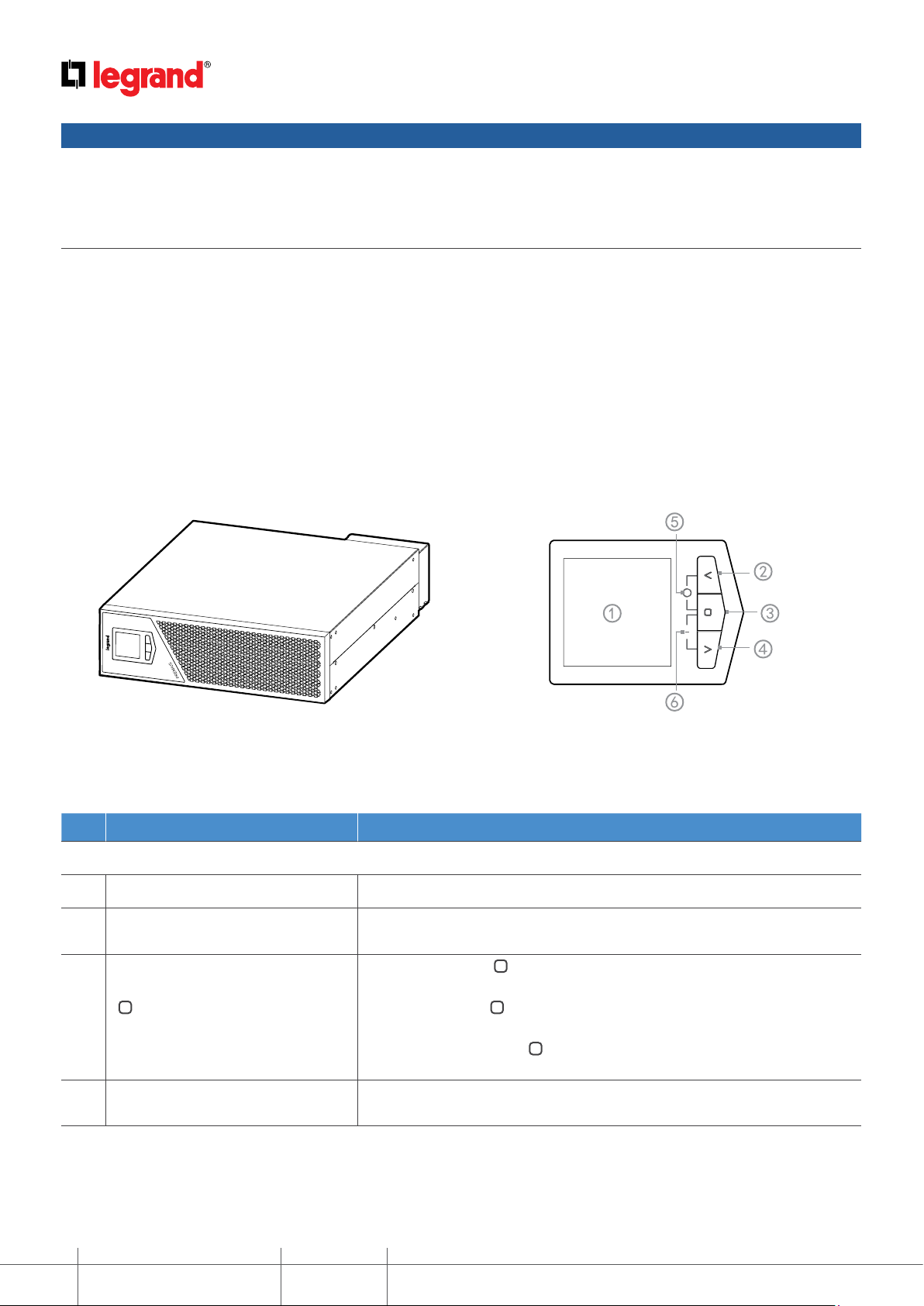

2.1.2 Appearance 2.1.3 Operation panel
Figure1-1 Appearance Figure1-2 Operation panel
Table 1-1 Illustration for operation panel
No. Name Illustration
Illustration for operation panel
LCD display Shows the working status and system setting.
"<" page up button and power off
LED indicator
Short press "<" button, the LCD will enter previous page or previous
option.
" " function button and
breathing light
• Short press " " button to confirm the command of the current
LCD page.
• Long press " " button for 3s, will entry the parameter and
function setting page.
• When UPS is on, " " button will be in a cycle of light up to fade
out.
">" page up button and power on
LED indicator Short press ">" button, the LCD will enter next setting page.

9
PREMIUS 7.5 KVA - 20 KVA UPS USER MANUAL
Combination buttons operation instructions
Power off Press the "<" and " " button at the same time, the UPS off and the
corresponding indicate LED is on.
Power on Press the ">" and " " button at the same time, the UPS on and the
corresponding indicate LED is on.
Rear panel – PREMIUS series (7.5kVA-20kVA)
Parallel port (Optional)
RS485
Intelligent slot
EPO input dry contact
Maintenance bypass switch status
detection
Wiring terminal
Figure1-3 Rear panel of PREMIUS series (7.5 kVA – 20 kVA)
NOTE!
• The wiring terminals for the 31 mode exhibit slight differences. For specific
information regarding the wiring terminals for each mode, please refer to Section
3.4.1 Wiring Operations.
• The intelligent slot is an optional feature and includes the following components:
a built-in SNMP card, an RS485 + dry contact card, and a communication protocol
transfer card.
• If the BMD (Bypass Maintenance Device) and EPO (Emergency Power Off) detection
functions are not required, kindly short the ports using the provided 4P terminal.
When these functions need to be activated, remove the short wire from the BMD or
EPO port and connect it to the corresponding status signal input on the maintenance
bypass breaker or EPO system.
CAUTION!
• The UPS can operate normally only when both the bypass maintenance switch state
detection (BMD) and the EPO port are separately shorted.
• If the BMD port is disconnected, the UPS will switch to bypass power supply mode,
and simultaneously, the LCD will display a BMD fault notification. Upon reconnecting
the port with a short connection, the fault will automatically clear.
• In the case of the EPO port being disconnected, the UPS will initiate a shutdown
of both the inverter and bypass output. Simultaneously, the LCD will indicate an
EPO fault. To rectify this, the UPS must be completely powered down, and the EPO
port should be short-circuited. Following this action, the fault will be automatically
cleared.

10 PREMIUS 7.5 KVA - 20 KVA UPS USER MANUAL
2.1.4 Fittings Illustration
• PREMIUS series (7.5 kVA – 20 kVA)
The PREMIUS series UPS (7.5 kVA – 20 kVA) and distribution module are equipped with four types of copper bars,
detailed in Table 1-2. Users have the flexibility to connect the appropriate copper bar to the corresponding wiring
arrangement following the installation of the UPS or distribution module. This configuration can be adjusted to
the 31 mode based on the user's requirements.

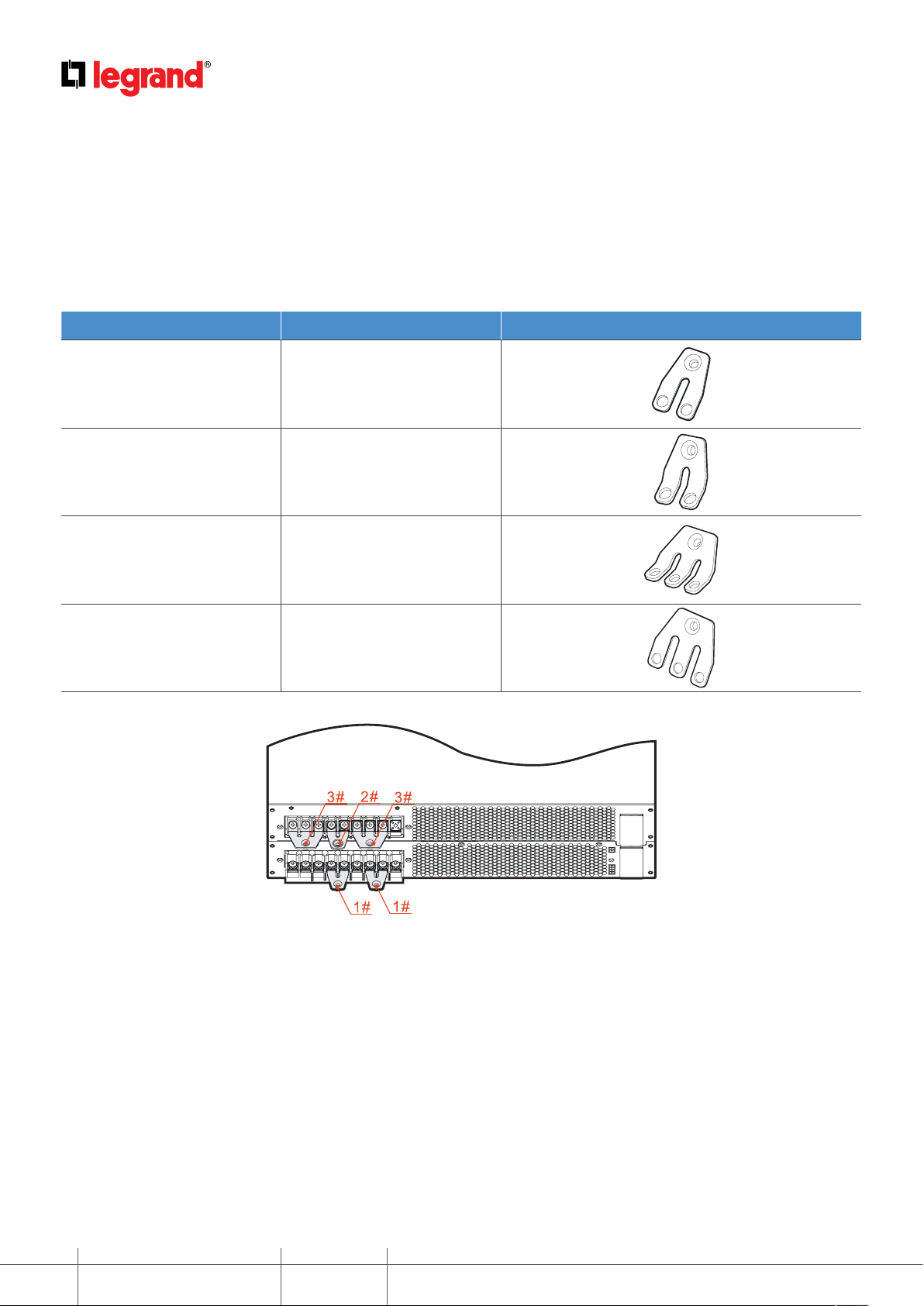

Table1-2 Copper bar illustration
Copper bar No. Illustration Sketch map
1# 2PIN copper bar
2# 2PIN copper bar
3# 3PIN copper bar
4# 3PIN copper bar
Figure1-4 Installation 31 mode copper bar position of PREMIUS series (7.5kVA-20kVA)

11
PREMIUS 7.5 KVA - 20 KVA UPS USER MANUAL
2.2 Optionals
The PREMIUS series UPS can be equipped with a distribution module, as an optional accessory.

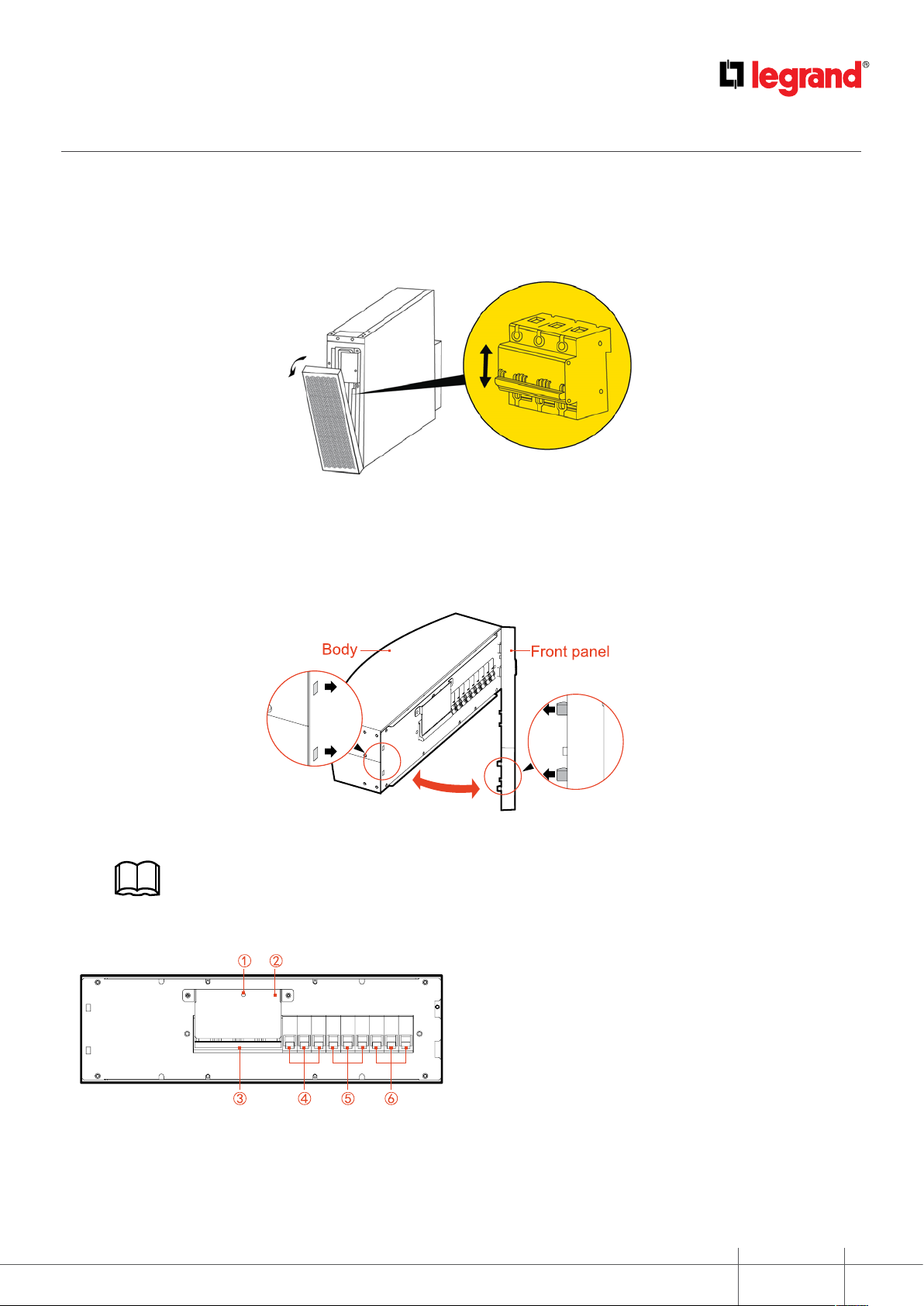

2.2.1 Distribution Module
Appearance
Figure1-5 Appearance of distribution module
Front panel of PREMIUS series (7.5kVA-20kVA)
The operation breakers of the distribution module are located inside the front panel. To access them, you must
first open the front panel. The procedure for opening the front panel is illustrated in Figure 1-5.
Figure1-6 Open the front panel of PREMIUS (7.5kVA-20kVA) distribution module
NOTE!
When installing the front panel, begin by inserting the buttons on the right side into
the body, followed by inserting the buttons on the left side into the body.
Maintenance bypass status detection switch
Protection plate of maintenance bypass breaker
Maintenance bypass breaker
AC output breaker
AC input breaker
Bypass breaker
Figure1-7 Distribution module illustration (dismantle front panel) of PREMIUS series (7.5kVA-20kVA)

12 PREMIUS 7.5 KVA - 20 KVA UPS USER MANUAL
UPS bypass terminals
UPS input terminals
UPS output terminals
User bypass terminals
User input terminals
User output terminals
PE
Bypass maintain detection
Figure1-8 Distribution module illustration (dismantle rear panel) of PREMIUS series (7.5kVA-20kVA) UPS
NOTE!
Maintenance Bypass Mode Operation:
1. Begin by removing the protection plate from the maintenance bypass breaker. This
action will cause the detection switch of the maintenance bypass status to pop up
automatically.
2. The UPS will subsequently deactivate the inverter and transition to bypass mode to
provide power.
3. Proceed to close the maintenance bypass breaker, and then turn off the AC input
breaker, bypass breaker, and AC output breaker.
4. At this point, the power supply for the load switches to maintenance bypass mode,
disconnecting the UPS input and output. This is the ideal time for maintenance
activities.
Reverting from Maintenance Bypass Power Supply to Inverter Power Supply:
1. Reconnect the wires of both the UPS and distribution module, which includes the
bypass maintenance detection signal wire.
2. Proceed to close the AC input breaker, bypass breaker, and AC output breaker.
3. Once the UPS work power is confirmed to be normal and the LCD indicates bypass
output voltage, proceed to turn off the maintenance bypass breaker and secure the
protection plate of the maintenance bypass breaker.
4. Finally, press the power-on button to initiate the inverter and restore power supply.
External Isolation transformer
PREMIUS UPS comes with an external Isolation transformer
as an optional accessory. Refer the below image.

13
PREMIUS 7.5 KVA - 20 KVA UPS USER MANUAL
3. Installation
This chapter primarily focuses on the installation of the UPS, covering various aspects such as unpacking and
inspection, cable selection, installation procedures, and electrical connections.
3.1 Unpacking and Checking
When unpacking the UPS, follow these steps:
• Examine the exterior for signs of shipping damage. If any damage is detected, promptly inform the carrier.
• Reviewthedeliverylisttoensure thatall accessoriesarepresent andaccurate.Ifthereareany inconsistencies,
contact the distributor without delay.
3.2 Installation Preparation
3.2.1 Select Breaker & Wires
When choosing AC input and output wires, DC input wires, and the appropriate breakers, it's crucial to base your
decisions on the maximum steady-state phase current of the UPS. For guidance, refer to the following tables:
• Table3-1 presents the maximum steady-state phase current for each operational mode.
• Table3-2 provides the rated current for recommended breakers.
• Table3-3 outlines the minimum recommended wire cross-sectional area.
To make your selections accurately, ensure to consult and match the specifications from Table3-1, Table3-2, and
Table3-3.
Table 3-1 UPS max. steady state phase current
Type 7.5kVA 10kVA 15kVA 20kVA
Mode type 31 11 31 11 31 11 31 11
AC input (A) 14 43 18 54 26 78 35 105
Bypass input (A) 35 35 46 46 68 68 91 91
DC input (A) 22 22 29 29 44 44 58 58
AC output (A) 35 35 46 46 68 68 91 91
3.2.2 Select Input Breaker
We recommend incorporating a breaker (ideally with a feedback double pole disconnection mechanism) or a
distribution cabinet that aligns with the UPS power rating in front of the UPS input. This serves to isolate the
mains. In consideration of the UPS charging power and the initial power-on current surge, the chosen breaker
must have a current rating 1.5 to 2 times that of the maximum UPS input current. Importantly, this breaker
should not include leakage protection to prevent erroneous tripping.
When selecting the appropriate breaker, ensure it is rated for more than 250Vdc for the DC input. For precise
guidance, consult Table3-2 for breaker rated current recommendations.
Moreover, if opting for a distribution box, it's advisable to source one from Numeric, to have a seamless experience.
This will help ensure the reliability and safety of the setup.

14 PREMIUS 7.5 KVA - 20 KVA UPS USER MANUAL
Table 3-2 Recommended input breaker list
Type 7.5kVA 10kVA 15kVA 20kVA
Mode type 31 11 31 11 31 11 31 11
AC input (A) 32*3P 63*1P 32*3P 63*1P 50*3P 100*1P 63*3P 125*1P
Bypass input (A) 63*1P 63*1P 63*1P 63*1P 100*1P 100*1P 125*1P 125*1P
DC input (A) 50*3P 50*3P 50*3P 50*3P 63*3P 63*3P 80*3P 80*3P
AC output (A) 63*1P 63*1P 63*1P 63*1P 100*1P 100*1P 125*1P 125*1P
3.2.3 Select Wires
To determine the appropriate wire cross-sectional area for AC input, output, and battery connections, refer to
the recommended values provided in Table3-3, Table3-4, and Table3-5. Please note that the suggested cross-
sectional areas are intended for use when the user is connecting wires for a length of approximately 5 meters.
If the length of the lead wire surpasses 20 meters, it's important to increase the cross-sectional area of the
conductor wire accordingly. This adjustment helps account for potential voltage drop and ensures efficient and
safe performance of the connections.
NOTE!
For the PREMIUS series UPS with capacities ranging from 7.5kVA to 20kVA, the UPS can
be configured in either 31 mode or 11 mode.
• In 31 mode, since the UPS is equipped with input and output three-phase connectors,
it's recommended to utilize single wires for bypass input and output connections.
• In 11 mode, the UPS doesn't feature input and output three-phase connectors.
Therefore, for AC input connections, it's recommended to use three wires. Please
be aware that when the UPS is operating with a single-phase input, the three phase
wires should be connected to the same phase of the power input. This helps ensure
proper functioning and safety.
Table 3-3 Recommended cross-sectional area of wire (unit: mm2, environment temperature: 25°C)
Type 7.5kVA / 10kVA 15kVA 20kVA
Mode type 31 11 31 11 31 11
AC input live wire (R/Y/B) 4*3 10*1 6*3 16*1 10*3 25*1
AC input neutral wire (N) 10*1 10*1 16*1 16*1 16*1 25*1
Bypass input live wire 10*1 10*1 16*1 16*1 16*1 16*1
AC output live wire 10*1 10*1 16*1 16*1 16*1 16*1
AC output neutral wire (N) 10*1 10*1 16*1 16*1 16*1 16*1
DC input (+/BATN/-) 6*3 6*3 10*3 10*3 10*3 10*3
Grounding wire (PE) 6*1 6*1 10*1 10*1 10*1 10*1

15
PREMIUS 7.5 KVA - 20 KVA UPS USER MANUAL
PREMIUS series (7.5kVA-20kVA)
For the wiring terminals of the PREMIUS series UPS with capacities ranging from 7.5kVA to 20kVA, it's advisable
to follow the recommended types as specified in Table3-1. If users find the need for additional terminals beyond
those specified, it's essential to verify the dimensions carefully. This verification ensures that the chosen terminals
align correctly and appropriately with the UPS's requirements.
Figure1-9 Wiring terminal dimensions of PREMIUS series (7.5kVA-20kVA) UPS
Table 3-4 Dimensions limit of wiring terminal
Dimensions (unit: mm) 7.5kVA / 10kVA 15kVA 20kVA
A≤12.1 ≤12.1 ≤12.1
B≥6.2 ≥6.2 ≥6.2
C≤6.2 ≤6.2 ≤6.2
D≤7.2 ≤9.0 ≤9.0
NOTE!
The wires provided by our company are in compliance with national standards or UL
certification. They meet stringent safety standards and are of impeccable quality. The
cross-sectional area of the cables mentioned earlier is a reference value, applicable when
users are connecting cables up to 5 meters in length.
However, if the cable length surpasses 20 meters, it's crucial to adjust the cross-sectional
area of the wires accordingly. This adjustment compensates for potential voltage drop
and ensures that the wires can efficiently transmit power over longer distances while
maintaining safety and performance standards.

16 PREMIUS 7.5 KVA - 20 KVA UPS USER MANUAL
3.3 Mechanical Installation
The UPS installation can be carried out using either tower-mounting or rack-mounting methods. Users have the
flexibility to choose the most suitable installation approach based on their specific requirements and the actual
conditions of their setup.
3.3.1 Tower-mounting
Single UPS installation
Step 1 Begin by retrieving a pair of support base clamps. Place the UPS onto the support base as demonstrated
in Figure 1-10. Repeat this process for the distribution module, positioning it onto the support base in
a similar manner.
Step 2 BNow, take out the provided combination parts and screws. Attach them securely to the top of both the
UPS and the distribution module, following the guidelines shown in Figure 1-11.
Combination
part
Figure1-10 Install the UPS Figure1-11 Install combination units
3.3.2 Rack-mounting
The PREMIUS series UPS, along with any optional components, can also be installed within a
19-inch standard cabinet for utilization. This provides an additional installation option for users
who prefer or require this type of setup.
Step1 The process of rack-mounting the UPS, EBM & distribution module is identical. In this section, we'll
use the installation of the UPS as an example for illustration.

17
PREMIUS 7.5 KVA - 20 KVA UPS USER MANUAL
Step 2 Secure the two angle irons to the sides of the UPS using four M4×8 sunk screws. Refer to Figure 1-12
for visual guidance during this step.
Figure1-12 Install angle iron
WARNING
• Avoid transporting the UPS or power distribution module using the angle irons.
• While transporting, do not subject the front panel to any force. It's advisable to dismantle it before transportation.
• When moving the device, ensure that it is handled by two or more people to prevent damage or accidents..
Step2 Push the UPS into the cabinet, and fasten it by screws, as shown in Figure below.
Figure1-13 Fasten the UPS
3.4 Electrical Connection
WARNING
Before making any connections, make sure that the external breakers connected to
the mains and battery are all switched off. DO NOT attempt to connect wires while
there is electricity present.
CAUTION!
When wiring, take care to position the power wires in areas where they are less likely
to be stepped on or cause tripping hazards.
NOTE!
If you are using an optional distribution module, ensure that the wiring for the
PREMIUS series UPS and the distribution module is connected in the following
sequence: First, connect the wires for the distribution module, and then proceed
to connect the wires for the UPS.

18 PREMIUS 7.5 KVA - 20 KVA UPS USER MANUAL
3.4.1 Wiring Operation of PREMIUS Series (7.5kVA-20kVA) UPS
The input and output wiring of 31 mode UPS is shown in Figure 1-14
31 mode
Figure1-14 The 31 mode wiring of PREMIUS series (7.5kVA-20kVA) UPS
3.4.2 Wiring Between UPS and Battery Box
CAUTION!
DC battery switch must be provided between the battery and UPS.
WARNING
When wiring between the UPS and parallel-connected battery boxes, it is essential
to follow the wiring diagram provided in Figure 1-15 precisely. Take care to avoid
incorrect connections or short circuits during this process. Adhering to the provided
diagram will ensure proper and safe connectivity.

19
PREMIUS 7.5 KVA - 20 KVA UPS USER MANUAL
Wiring of external batteries
If user needs to connect batteries externally, please connect the wires as follows.
The UPS in this series is designed to accommodate both positive and negative battery groups for its battery
input. For a wiring reference, consult Figure 1-16. Each battery cabinet consists of 32 individual batteries and a
3P breaker. External wiring involves connecting BATT.+ (positive), BATT.- (negative), and the battery neutral wire.
Also, an external battery cabinet is available with 7.5AH/ 9AH in rack form.
For selecting the appropriate battery wires and breaker specifications, refer to Table3-2, Table3-3, and Table3-4.
These tables provide essential information to ensure correct and safe battery wiring and breaker selection.
+
-
+
-
+
-
NO.16
Battery
cabinet
NO.15NO.1
+
-
NO.14
UPS
+
-
+
-
+
-
+
-
BATT.+
BATT.N
BATT.-
NO.32 NO.31NO.17
NO.30
Figure1-15 Wiring diagram of external batteries
3.4.3 Wiring Between UPS and Distribution Module of PREMIUS Series (7.5kVA-20kVA) UPS
Wiring of each standard UPS and distribution module is shown in Figure3-8.
31 mode
The copper bars listed in Table2-2 should be connected through short connections with the 3P terminal bar of both
the bypass and output. When connecting the UPS and distribution wires, ensure a one-to-one correspondence
according to the wire information provided. This approach will help establish the appropriate and secure
connections between the supporting UPS and the distribution wires.
CAUTION!
Ensure that
the wires are
connected
properly and
firmly, and
then install
the wiring
protection
plate to the
device (the
installation
procedure is
as follows).
Figure1-16 Wiring between 31 mode UPS and distribution module of
PREMIUS series (7.5kVA-20kVA) UPS

20 PREMIUS 7.5 KVA - 20 KVA UPS USER MANUAL
Install wiring plates
Step 1 Remove the flat-head screws from the protective cover before wiring, as shown in Figure 1-17.
Step 2 Connect the wires in accordance with 3.4.1 Wiring Operation as shown in Figure 1-18.
Figure 1-17
Remove the screws from the protective cover Figure 1-18 Connect the wires
Step 3 Reinstall the wiring protective cover in the corresponding position of the chassis, as shown in
Figure 1-19.
Step 4 Fix with the flat head screws, as shown in Figure 1-20.
Figure1-19 Reinstall the wiring protective cover Figure1-20 Fix with the flat head screws
3.4.4 Wiring of Parallel System
Step 5 Install the battery and UPS of parallel system separately as given in ‘Mechanical Installation’.
Step 6 Connect the wires of input, output, battery and grounding in parallel system on the basis of Figure 1-21.
