Lehner Lifttechnik Liftboy 1 User manual

Liftboy 1/2/3 Handbook Stand 01/2019
Liftboy 1/2/3 Plattform Lift Seite 1 of 10
Handbook
Liftboy 1/2/3
Vertical Platform Lift

Liftboy 1/2/3 Handbook Stand 01/2019
Liftboy 1/2/3 Plattform Lift Seite 2 of 10
Table of content
PRODUCER ......................................................................................................................... 3
UTILISATION ....................................................................................................................... 3
IMPORTANT / WARNINGS ................................................................................................. 4
UNPACKING AND PREPARATION .................................................................................... 4
ASSEMBLY BEFORE STARTING UP ................................................................................ 4
DESCRIBTION OF OPERATION ........................................................................................ 7
SAFETY FUNCTION ............................................................................................................ 8
DISASSAMBLY & TRANSPORT ........................................................................................ 8
MAINTENANCE ................................................................................................................... 9
ERROR SEARCH .............................................................................................................. 10
TECHNICAL DATA ............................................................................................................ 10

Liftboy 1/2/3 Handbook Stand 01/2019
Liftboy 1/2/3 Plattform Lift Seite 3 of 10
Producer
Lehner Lifttechnik GmbH
A – 4724 Neulirchen am Walde, Salling 8
Tel: [phone], Fax: [phone]
E-mail: [email protected]
Web: www.lehner-lifttechnik.at
Utilisation
This manual provides information on the technical properties, installation methods,
usage of the device and maintenance procedures for the Liftboy models type 1, 2
and 3.
The Liftboys type 1,2 and 3 are designed for permanent or temporary installation in
indoor or outdoor location. The lifting platform may be used in temperatures from -
10 to +40°C.
The lifting platform can be used by persons with impaired mobility who have to
overcome height differences of up to 97cm.
The lifting intervals can be adjusted between heights of 100-970mm, depending on
model and on site conditions.
It is possible to drive in and drive out of the platform on every side. In order to
protect the user of the platform from falling of the platform the platform is equipped
with a safety rail on both sides.
It is necessary to instruct the users and the assistants carefully.

Liftboy 1/2/3 Handbook Stand 01/2019
Liftboy 1/2/3 Plattform Lift Seite 4 of 10
Important / Warnings
- Please read the whole manual, before the platform is operated
- The installation of the platform is only allowed by Lehner Lifttechnik or a qualified
staff recommended by Lehner Lifttechnik.
- The maximum load capacity of each model must not be exceeded.
- The platform is made for the transport of persons, it is only allowed to use the
platform as how it is described in the manual.
- A simple and serviceable “Emergency Procedure” must be agreed between the
user and a helper. This is to ensure that the user does not get trapped on the
platform in the event of electrical or mechanical failure.

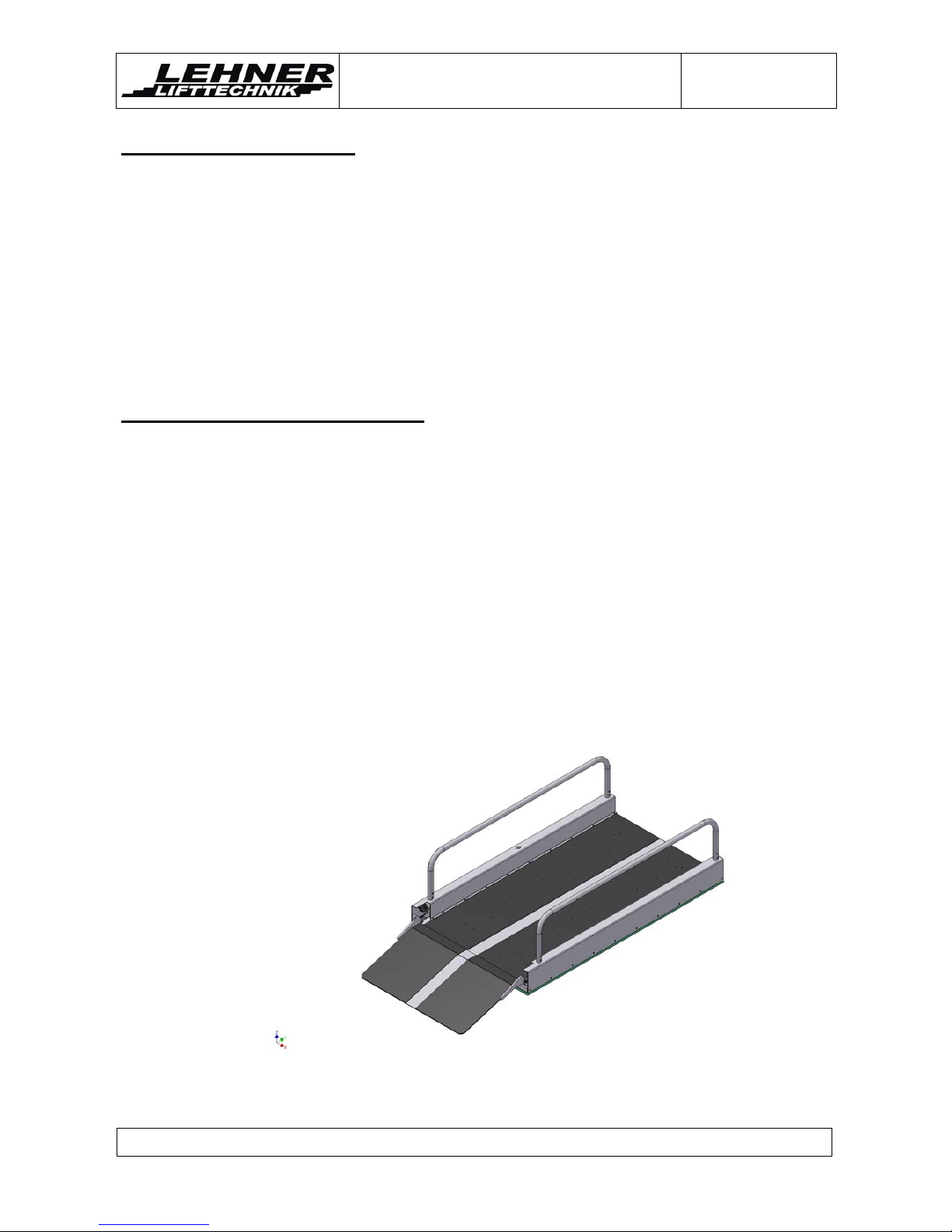

Unpacking and preparation
Visual controlI:
If the packing is damaged at the receipt of the platform, the parts of the platform have to be
examined exactly, if there are apparent damages or defects. If there is suspect of
damages, the platform must not be used! The platform has to be examined by the
company Lehner Lifttechnik or qualified staff authorized by Lehner Lifttechnik.
Standard content:
1. Platform and safety curtain
2. Access ramp (manual or automatic folding)
3. Rail / safety curb
4. Electric power supply (transformer or charger)
5. Handheld controller

Liftboy 1/2/3 Handbook Stand 01/2019
Liftboy 1/2/3 Plattform Lift Seite 5 of 10

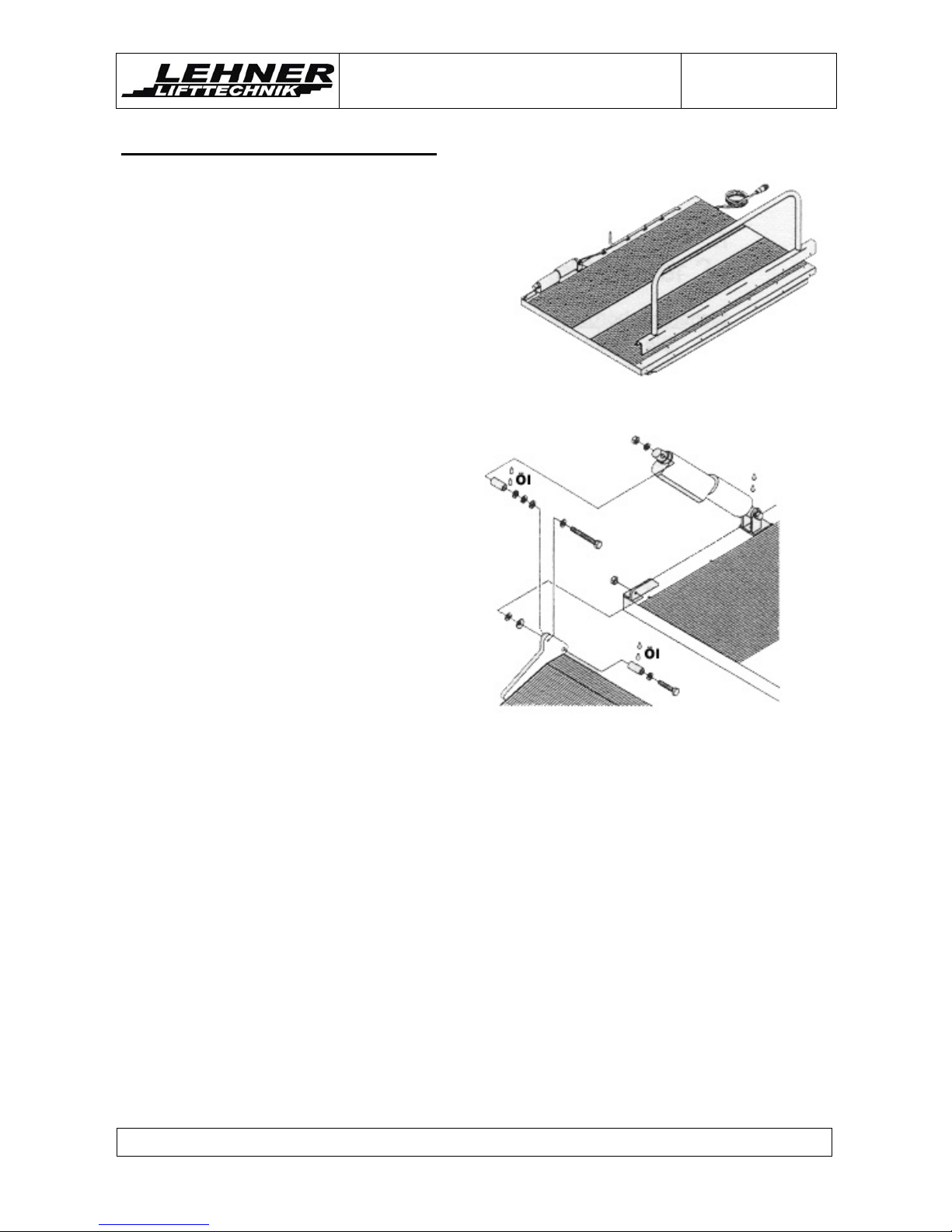

Assembly before starting up
Fixing on safety edge on side opposite
actuator
The assembly screws are pre-assembled on
the platform. They will be screwed off.
The safety rail will be mounted on the
platform surface. The screws need to be
tightened.
Fixing of the access ramp on the platform
1. Screws, disks, bush, screw nuts
which are on the swivel joint of the
side access ramp will be removed.
2. A washer and a lubricated bushing
will be mounted on the left hinge.
3. The disk washer will be mounted on
the bush. It must not join firmly.
4. The second disk washer will be
mounted on the screw.
5. The nut will be mounted and screwed
down, but not too tight.
6. A disk washer and a lubricated
bushing will be mounted on the
screw, which are mounted on the right swivel joint.
7. The disk will be mounted on the bush,
She must not be clamped.
8. The second disk will be mounted on the screw, which will be mounted on the
angle profile
9. The nuts will be mounted and screwed down tight.
Assembly of the access ramp of the actuator
1. The bushing will be lubricated and placed on the actuator.
2. The disk washer will be mounted on the screw, which will be mounted from the
middle of the platform through the eye of the access ramp.
3. The 3 disk washers will be placed on the screw. The access ramp will be lifted
up in a position, in which the screw can be put through the bushing of the
actuator.
4. A disk washer will be mounted on the screw.
5. The nut will be screwed on and tightened.
6. Lubricate the the fittings with oil or another lubricant.

Liftboy 1/2/3 Handbook Stand 01/2019
Liftboy 1/2/3 Plattform Lift Seite 6 of 10
Fixing of the rail on actuator side
1. The assembly screws are pre-assembled on the upper board. They will be
screwed off.
2. The safety rail will be mounted on the upper board. The screws will be tightened.
End caps
1. Have to be mounted on the ends of the small safety rails.
Handheld controller
1. The handheld will be put on the rail.
2. The connector will be mounted in the connector bushing in the safety rail.
3. The connector is waterproof.
Transformer
1. The connector of the transformer will be connected to the connector at the
platform.
2. The power plug has to be connected to the supply network system. Put on the
current.

Liftboy 1/2/3 Handbook Stand 01/2019
Liftboy 1/2/3 Plattform Lift Seite 7 of 10
Describtion of Operation
The handheld controller or the fixed control button on a column can be mounted at
the platform by the user of the platform. Operation buttons and the symbols are
easy to understand.
IMPORTANT: The user must be positioned in the center of the platform, in the
middle between entry and exit position. Only 1 person shall be using the platform at
a given time. It is not allowed to be used by more persons at the same time.
Up - function, from the bottom level
1. When the platform is on the bottom level and the access ramp is down, the
wheelchair user can drive on the platform.
2. When you press the button „Up“, the access ramp drives upwards and takes
over the function of the safety barrier. “Up” is not active as long as the button
won´t be pressed.
3. If the access ramp is in the upper position and “Up” will be continuously pressed,
the platform starts to move upstairs.
4. When the platform has reached the upper level the wheelchair user can drive off
the platform onto the upper landing.
Down – function, from the top level
1. The platform must be located in the upper level. The wheelchair user drives on
the platform.
2. When you press the button "Down" the platform drives down. As long as the
button is pressed this function is active.
3. When the platform has reached the lower level and the button is still pressed,
the access ramp will be lowered and the wheelchair user can leave the platform.

Liftboy 1/2/3 Handbook Stand 01/2019
Liftboy 1/2/3 Plattform Lift Seite 8 of 10
Safety function
Safety curtains
The pre-assembled safety curtains ensure that nobody will be jammed, if the
platform is in the highest position and drives down.
Safety contact bar for downward movement
This function is generally recommended but absolutely necessary in case the
platform is located in a pit or next to a shearing edge. If a person or an object will be
jammed during the downward stroke of the platform, the downward movement
stops immediately if the contact bars will be activated.
In order to switch off the safety function the “UP” button has to be pressed. Now the
object can be removed, which has activated the contact bar.
Overload protection
The platform motor is set to a certain overload current that will detect overload
during the upward movement and switch of the lift. Then only downward movement
will be possible.
Emergency exit – opening of access ramp
The access ramp is mounted with a bolt on the actuator. This bolt will be screwed
off and the access ramp opens. Then the person on the platform can be helped to
get out of the lift. This will require the help of various assisting persons.
Fuses
If a fuse drops out, the cause has to be examined by qualified staff. The exchange
of the fuse is only allowed by qualified staff, before the platform is operating again.
User / emergency assistant – emergency backup
One or more responsible person/s have to be educated in operating the platform
right. The responsible person has to be available in every emergency situation and
thus must be reachable by calling or over the phone.
The name of the responsible person must be known to the user.
We recommend a battery backup for the user, which depend on the platform,
in case there can be power losses.
Disassambly & Transport
It is possible to deconstruct the platfform for the transport and the storage; platform,
rails and access ramp.
The company Lehner Lifttechnik recommends to transport the platform in the
original packing.

Liftboy 1/2/3 Handbook Stand 01/2019
Liftboy 1/2/3 Plattform Lift Seite 9 of 10
Maintenance
The platform has to be undergone an attendance at least once a year due to the
national law. Maintenance has to be done through dealers authorized by Lehner
Lifttechnik.
The platform has a durability of about 10 years with regular, daily use. After this
period the lifting platform has to be assessed by specialized staff in order to
evaluate the further application.
Cleaning
The lifting platform can be cleaned with a sponge or a brush and soap water. The
lifting platform can be hosed down with a normal water pressure, but not with a
pressure washer. Acid, base or solvent may not be used for cleaning.
Visual and acoustic control of the product and product functions
- Control, if abrasion can be diagnosed.
- Control if the product has deformations or other forms of damages.
- Control if it makes unusual noise
Examination of the product during the normal utilization
- All functions of the products with our without full load
- Control all proper functions.
- Control voltage index on proper function.
Control of the electrical situation of the product.
- Control cable bushing.
- Control ramp function
- Control connection and plug.
- Control controler units.
- Control safety curtain and contact bar function
Control of the mechanic condition of the product
- Remove dirt and other uncleanliness.
- Maintenance and assessment of the vital parts of the product.
- Lubricate the product.
Control again that everything is working properly.
- If no problems were discovered; you can finish the maintenance procedure.

Liftboy 1/2/3 Handbook Stand 01/2019
Liftboy 1/2/3 Plattform Lift Seite 10 of 10
Error search
1. Is the connector from the electric power supply put into the electrical socket?
2. Does the socket have electricity?
3. Electric power supply there? Maybe the fuse is damaged?
4. Is the connector connection between the electric power supply and the platform
made correctly?
5. The platform can´t drive upwards but not downwards?
- Check if the contact bar is pressed.
6. The platform can´t drive upwards and is on lower stop?
- Check if the ramp is folding fully upwards.
7. The platform can´t drive upwards or downward?
- Check if the ramp is folded fully upwards.
Technical data
Platform Typ 1
maximum height of stroke .................................................................................. 600 mm
load capacity ........................................................................................................ 180 kg
lifting speed ...................................................................................................... 10 mm/s
minimum height (headroom) .............................................................................. 110 mm
weight .................................................................................................................. 52,5 kg
electric power supply ........................................ 24 V through transformer on 230 V grid
Inside dimension (length) ................................................................................ 1170 mm
Inside dimension (breadth) ............................................................................... 710 mm
outside dimension (length) .............................................................................. 1180 mm
outside dimesnion (breadth) ............................................................................. 810 mm
Platform Typ 2 and 3
maximum height of stroke ......................................................................... 830 / 970 mm
load capacity .............................................................................................. 300 / 240 kg
lifting speed ....................................................................................................... 10 mm/s
minimum height (headroom) .................................................................... 120 / 135 mm
weight .................................................................................................................. 100 kg
electric power supply ........................................ 24 V through transformer on 230 V grid
inside dimension (length) ................................................................................ 1495 mm
inside dimension (breadth) ............................................................................... 785 mm
outside dimension (length) .............................................................................. 1505 mm
outside dimension (breadth) ............................................................................. 890 mm
