Leica Geosystems GS14 User manual

Leica GS14/GS16
User Manual
Version 5.0
English

Introduction
Congratulations on the purchase of the Leica GS14/GS16.
This manual contains important safety directions as well as instructions for set-
ting up the product and operating it. Refer to "1 Safety Directions" for further
information.
Read carefully through the User Manual before you switch on the product.
The model and serial number of your product are indicated on the type plate.
Always refer to this information when you need to contact your agency or
Leica Geosystems authorised service centre.
•Windows is a registered trademark of Microsoft Corporation in the United
States and other countries
•
Bluetooth
®is a registered trademark of Bluetooth SIG, Inc.
•microSD Logo is a trademark of SD-3C, LLC.
All other trademarks are the property of their respective owners.
This manual applies to all models of the Leica GS14/GS16 GNSS instrument.
Where there are differences between the various instruments they are clearly
described.
Name Description/Format
GS14/GS16
Quick Guide
Provides an overview of the product
together with technical data and
safety directions. Intended as a quick
reference guide.
ü ü
GS14/GS16
User Manual
All instructions required in order to
operate the product to a basic level
are contained in the User Manual.
Provides an overview of the product
together with technical data and
safety directions.
-ü
Name Description/Format
Viva Series Technical
Reference Manual
and
Captivate Technical
Reference Manual
Overall comprehensive guide to the
product and application functions.
Included are detailed descriptions of
special software/hardware settings
and software/hardware functions
intended for technical specialists.
-ü
Refer to the following resources for all GS14/GS16 documentation/soft-
ware:
•the Leica USB documentation card
•https://myworld.leica-geosystems.com
Purchase
Product identification
Trademarks
Validity of this
manual
Available
documentation
2

On the last page of this manual, you can find the address of Leica Geosystems
headquarters. For a list of regional contacts, please visit
http://leica-geosystems.com/contact-us/sales_support.
myWorld@Leica Geosystems (https://myworld.leica-geosystems.com) offers
a wide range of services, information and training material.
With direct access to myWorld, you are able to access all relevant services
whenever it is convenient for you.
Service Description
myProducts Add all products that you and your company own
and explore your world of Leica Geosystems: View
detailed information on your products and update
your products with the latest software and keep up-
to-date with the latest documentation.
myService View the current service status and full service his-
tory of your products in Leica Geosystems service
centres. Access detailed information on the services
performed and download your latest calibration cer-
tificates and service reports.
mySupport Create new support requests for your products that
will be answered by your local Leica Geosystems
Support Team. View the complete history of your
support requests and view detailed information on
each request in case you want to refer to previous
support requests.
myTraining Enhance your product knowledge with Leica Geosys-
tems Campus - Information, Knowledge, Training.
Study the latest online training material on your
products and register for seminars or courses in your
country.
myTrustedServices Add your subscriptions and manage users for Leica
Geosystems Trusted Services, the secure software
services, that assist you to optimise your workflow
and increase your efficiency.
Leica Geosystems
address book
3

Table of Contents
1 Safety Directions 5
1.1 General Introduction 5
1.2 Definition of Use 6
1.3 Limits of Use 6
1.4 Responsibilities 7
1.5 Hazards of Use 7
1.6 Electromagnetic Compatibility EMC 12
1.7 FCC Statement, Applicable in U.S. 14
1.8 ICES-003 Statement, Applicable in Canada 16
2 Description of the System 17
2.1 System Components 17
2.2 System Concept 17
2.2.1 Software Concept 17
2.2.2 Power Concept 18
2.2.3 Data Storage Concept 18
2.3 Container Contents 19
2.4 Instrument Components 20
3 User Interface 21
3.1 Keyboard 21
3.2 Operating Principles 22
4 Operation 24
4.1 Equipment Setup 24
4.1.1 Setting up as a Post-Processing Base 24
4.1.2 Setting up as a Real-Time Base 25
4.1.3 Setting up as a Real-Time Rover 29
4.1.4 Fixing the Field Controller to a Holder and Pole 32
4.1.5 Connecting to a Personal Computer 33
4.1.6 Connecting to the Web Server 36
4.2 Batteries 38
4.2.1 Operating Principles 38
4.2.2 Battery for GS14/GS16 38
4.3 Working with the Memory Device 39
4.4 Working with the RTK Device 39
4.5 LED Indicators on GS14/GS16 40
4.6 Guidelines for Correct Results with GNSS Surveys 42
5 Care and Transport 43
5.1 Transport 43
5.2 Storage 43
5.3 Cleaning and Drying 43
6 Technical Data 45
6.1 GS14/GS16 Technical Data 45
6.1.1 Tracking Characteristics GS14 45
6.1.2 Tracking Characteristics GS16 45
6.1.3 Accuracy 45
6.1.4 Technical Data 46
6.2 Conformity to National Regulations 49
6.2.1 GS14/GS16 49
6.2.2 Dangerous Goods Regulations 50
7 Software Licence Agreement 51
Appendix A Pin Assignments and Sockets 52
4 Table of Contents

1 Safety Directions
1.1 General Introduction
The following directions enable the person responsible for the product, and the
person who actually uses the equipment, to anticipate and avoid operational
hazards.
The person responsible for the product must ensure that all users understand
these directions and adhere to them.
Warning messages are an essential part of the safety concept of the instru-
ment. They appear wherever hazards or hazardous situations can occur.
Warning messages...
•make the user alert about direct and indirect hazards concerning the use
of the product.
•contain general rules of behaviour.
For the users‘ safety, all safety instructions and safety messages shall be
strictly observed and followed! Therefore, the manual must always be available
to all persons performing any tasks described here.
DANGER, WARNING, CAUTION and NOTICE are standardised signal words for
identifying levels of hazards and risks related to personal injury and property
damage. For your safety, it is important to read and fully understand the fol-
lowing table with the different signal words and their definitions! Supplemen-
tary safety information symbols may be placed within a warning message as
well as supplementary text.
Type Description
DANGER Indicates an imminently hazardous situation
which, if not avoided, will result in death or
serious injury.
WARNING Indicates a potentially hazardous situation or
an unintended use which, if not avoided,
could result in death or serious injury.
CAUTION Indicates a potentially hazardous situation or
an unintended use which, if not avoided,
may result in minor or moderate injury.
NOTICE
Indicates a potentially hazardous situation or
an unintended use which, if not avoided,
may result in appreciable material, financial
and environmental damage.
☞Important paragraphs which must be adhered
to in practice as they enable the product to
be used in a technically correct and efficient
manner.
Description
About warning
messages
Safety Directions 5

1.2 Definition of Use
•Computing with software.
•Recording measurements.
•Carrying out measurement tasks using various GNSS measuring techni-
ques.
•Recording GNSS and point related data.
•Remote control of product.
•Data communication with external appliances.
•Measuring raw data and computing coordinates using carrier phase and
code signal from GNSS satellites.
•Use of the product without instruction.
•Use outside of the intended use and limits.
•Disabling safety systems.
•Removal of hazard notices.
•Opening the product using tools, for example screwdriver, unless this is
permitted for certain functions.
•Modification or conversion of the product.
•Use after misappropriation.
•Use of products with recognisable damages or defects.
•Use with accessories from other manufacturers without the prior explicit
approval of Leica Geosystems.
•Inadequate safeguards at the working site.
•Controlling of machines, moving objects or similar monitoring application
without additional control and safety installations.
1.3 Limits of Use
Suitable for use in an atmosphere appropriate for permanent human habita-
tion: not suitable for use in aggressive or explosive environments.
WARNING
Working in hazardous areas, or close to electrical installations or simi-
lar situations.
Life Risk.
Precautions:
▶Local safety authorities and safety experts must be contacted by the per-
son responsible for the product before working in such conditions.
The following advice is only valid for battery charger, power adapter and car
adapter.
Suitable for use in dry environments only and not under adverse conditions.
Intended use
Reasonably
foreseeable misuse
Environment
☞
Environment
6 Safety Directions

1.4 Responsibilities
Leica Geosystems AG, CH-9435 Heerbrugg, hereinafter referred to as Leica
Geosystems, is responsible for supplying the product, including the user man-
ual and original accessories, in a safe condition.
The person responsible for the product has the following duties:
•To understand the safety instructions on the product and the instructions
in the user manual.
•To ensure that it is used in accordance with the instructions.
•To be familiar with local regulations relating to safety and accident preven-
tion.
•To inform Leica Geosystems immediately if the product and the application
becomes unsafe.
•To ensure that the national laws, regulations and conditions for the opera-
tion of the product are respected.
•To ensure that the radio modem is not operated without the permission of
the local authorities on frequencies and/or output power levels other than
those specifically reserved and intended for use without a specific permit.
The internal and external radio modems have been designed to operate on
frequency ranges and output power ranges, the exact use of which differs
from one region and/or country to another.
1.5 Hazards of Use
NOTICE
Dropping, misusing, modifying, storing the product for long periods or
transporting the product
Watch out for erroneous measurement results.
Precautions:
▶Periodically carry out test measurements and perform the field adjust-
ments indicated in the User Manual, particularly after the product has been
subjected to abnormal use as well as before and after important measure-
ments.
DANGER
Risk of electrocution
Because of the risk of electrocution, it is dangerous to use poles, levelling
staffs and extensions in the vicinity of electrical installations such as power
cables or electrical railways.
Precautions:
▶Keep at a safe distance from electrical installations. If it is essential to
work in this environment, first contact the safety authorities responsible
for the electrical installations and follow their instructions.
Manufacturer of the
product
Person responsible
for the product
Safety Directions 7

WARNING
Distraction/loss of attention
During dynamic applications, for example stakeout procedures, there is a dan-
ger of accidents occurring if the user does not pay attention to the environ-
mental conditions around, for example obstacles, excavations or traffic.
Precautions:
▶The person responsible for the product must make all users fully aware of
the existing dangers.
WARNING
Inadequate securing of the working site.
This can lead to dangerous situations, for example in traffic, on building sites
and at industrial installations.
Precautions:
▶Always ensure that the working site is adequately secured.
▶Adhere to the regulations governing safety, accident prevention and road
traffic.
CAUTION
Not properly secured accessories.
If the accessories used with the product are not properly secured and the
product is subjected to mechanical shock, for example blows or falling, the
product may be damaged or people can sustain injury.
Precautions:
▶When setting up the product, make sure that the accessories are correctly
adapted, fitted, secured, and locked in position.
▶Avoid subjecting the product to mechanical stress.
WARNING
Lightning strike
If the product is used with accessories, for example masts, staffs, poles, you
may increase the risk of being struck by lightning.
Precautions:
▶Do not use the product in a thunderstorm.
8 Safety Directions

DANGER
Risk of being struck by lightning
If the product is used with accessories, for example on masts, staffs, poles,
you may increase the risk of being struck by lightning. Danger from high vol-
tages also exists near power lines. Lightning, voltage peaks, or the touching of
power lines can cause damage, injury and death.
Precautions:
▶Do not use the product in a thunderstorm as you can increase the risk of
being struck by lightning.
▶Be sure to remain at a safe distance from electrical installations. Do not
use the product directly under or close to power lines. If it is essential to
work in such an environment contact the safety authorities responsible for
electrical installations and follow their instructions.
▶If the product has to be permanently mounted in an exposed location, it is
advisable to provide a lightning conductor system. A suggestion on how to
design a lightning conductor for the product is given below. Always follow
the regulations in force in your country regarding grounding antennas and
masts. These installations must be carried out by an authorised specialist.
▶To prevent damages due to indirect lightning strikes (voltage spikes)
cables, for example for antenna, power source or modem should be pro-
tected with appropriate protection elements, like a lightning arrester. These
installations must be carried out by an authorised specialist.
▶If there is a risk of a thunderstorm, or if the equipment is to remain
unused and unattended for a long period, protect your product additionally
by unplugging all systems components and disconnecting all connecting
cables and supply cables, for example, instrument - antenna.
Suggestion for design of a lightning conductor for a GNSS system:
1.On non-metallic structures
Protection by air terminals is recommended. An air terminal is a pointed
solid or tubular rod of conducting material with proper mounting and con-
nection to a conductor. The position of four air terminals can be uniformly
distributed around the antenna at a distance equal to the height of the air
terminal.
The air terminal diameter should be 12 mm for copper or 15 mm for alumi-
nium. The height of the air terminals should be 25 cm to 50 cm. All air ter-
minals should be connected to the down conductors. The diameter of the
air terminal should be kept to a minimum to reduce GNSS signal shading.
2.On metallic structures
Protection is as described for non-metallic structures, but the air terminals
can be connected directly to the conducting structure without the need for
down conductors.
GS_039
a
b
c
a Antenna
bSupport structure
c Air terminal
Lightning conductors
Air terminal
arrangement, plan
view
Safety Directions 9

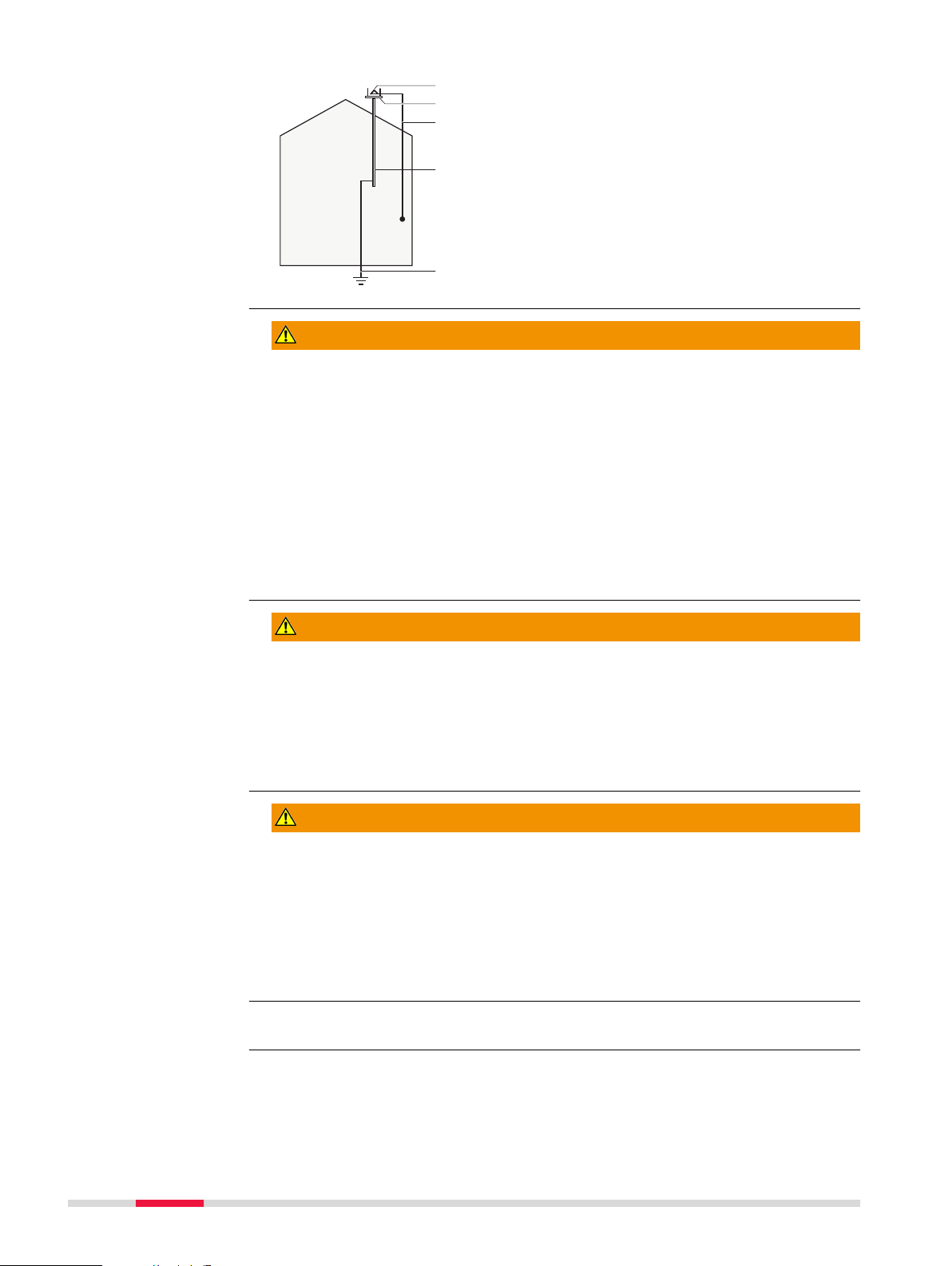

GS_040 e
d
c
a
b
a Antenna
bLightning conductor array
c Antenna/instrument connec-
tion
d Metallic mast
e Connection to earth
WARNING
Inappropriate mechanical influences to batteries
During the transport, shipping or disposal of batteries it is possible for inappro-
priate mechanical influences to constitute a fire hazard.
Precautions:
▶Before shipping the product or disposing it, discharge the batteries by the
product until they are flat.
▶When transporting or shipping batteries, the person in charge of the prod-
uct must ensure that the applicable national and international rules and
regulations are observed.
▶Before transportation or shipping, contact your local passenger or freight
transport company.
WARNING
Exposure of batteries to high mechanical stress, high ambient tempera-
tures or immersion into fluids
This can cause leakage, fire or explosion of the batteries.
Precautions:
▶Protect the batteries from mechanical influences and high ambient temper-
atures. Do not drop or immerse batteries into fluids.
WARNING
Short circuit of battery terminals
If battery terminals are short circuited e.g. by coming in contact with jewellery,
keys, metallised paper or other metals, the battery can overheat and cause
injury or fire, for example by storing or transporting in pockets.
Precautions:
▶Make sure that the battery terminals do not come into contact with metal-
lic objects.
The following advice is only valid for power adapter and car adapter.
Grounding the
instrument/antenna
☞
10 Safety Directions

WARNING
Electric shock due to missing ground connection
If unit is not connected to ground, death or serious injury can occur.
Precautions:
▶The power cable and power outlet must be grounded!
The following advice is only valid for power adapter and car adapter.
WARNING
Electric shock due to use under wet and severe conditions
If unit becomes wet it may cause you to receive an electric shock.
Precautions:
▶If the product becomes humid, it must not be used!
▶Use the product only in dry environments, for example in buildings or vehi-
cles.
▶Protect the product against humidity.
WARNING
Incorrect fastening of the external antenna
Incorrect fastening of the external antenna to vehicles or transporters poses
the risk of the equipment being broken by mechanical influence, vibration or
airstream. This may result in accident and physical injury.
Precautions:
▶Attach the external antenna professionally. The external antenna must be
secured additionally, for example by use of a safety cord. Ensure that the
mounting device is correctly mounted and able to carry the weight of the
external antenna (>1 kg) safely.
☞
Safety Directions 11

WARNING
Improper disposal
If the product is improperly disposed of, the following can happen:
•If polymer parts are burnt, poisonous gases are produced which may
impair health.
•If batteries are damaged or are heated strongly, they can explode and
cause poisoning, burning, corrosion or environmental contamination.
•By disposing of the product irresponsibly you may enable unauthorised
persons to use it in contravention of the regulations, exposing themselves
and third parties to the risk of severe injury and rendering the environment
liable to contamination.
Precautions:
▶The product must not be disposed with household waste.
Dispose of the product appropriately in accordance with
the national regulations in force in your country.
Always prevent access to the product by unauthorised
personnel.
Product-specific treatment and waste management information can be
received from your Leica Geosystems distributor.
WARNING
Improperly repaired equipment
Risk of injuries to users and equipment destruction due to lack of repair knowl-
edge.
Precautions:
▶Only Leica Geosystems authorised service centres are entitled to repair
these products.
1.6 Electromagnetic Compatibility EMC
The term Electromagnetic Compatibility is taken to mean the capability of the
product to function smoothly in an environment where electromagnetic radia-
tion and electrostatic discharges are present, and without causing electromag-
netic disturbances to other equipment.
WARNING
Electromagnetic radiation
Electromagnetic radiation can cause disturbances in other equipment.
Precautions:
▶Although the product meets the strict regulations and standards which are
in force in this respect, Leica Geosystems cannot completely exclude the
possibility that other equipment may be disturbed.
Description
12 Safety Directions

CAUTION
Use of the product with accessories from other manufacturers. For
example field computers, personal computers or other electronic equip-
ment, non-standard cables or external batteries
This may cause disturbances in other equipment.
Precautions:
▶Use only the equipment and accessories recommended by Leica Geosys-
tems.
▶When combined with the product, they meet the strict requirements stipu-
lated by the guidelines and standards.
▶When using computers, two-way radios or other electronic equipment, pay
attention to the information about electromagnetic compatibility provided
by the manufacturer.
CAUTION
Intense electromagnetic radiation. For example, near radio transmit-
ters, transponders, two-way radios or diesel generators
Although the product meets the strict regulations and standards which are in
force in this respect, Leica Geosystems cannot completely exclude the possibil-
ity that function of the product may be disturbed in such an electromagnetic
environment.
Precautions:
▶Check the plausibility of results obtained under these conditions.
CAUTION
Electromagnetic radiation due to improper connection of cables
If the product is operated with connecting cables attached at only one of their
two ends, for example external supply cables, interface cables, the permitted
level of electromagnetic radiation may be exceeded and the correct functioning
of other products may be impaired.
Precautions:
▶While the product is in use, connecting cables, for example product to
external battery, product to computer, must be connected at both ends.
Safety Directions 13

WARNING
Use of product with radio or digital cellular phone devices
Electromagnetic fields can cause disturbances in other equipment, in installa-
tions, in medical devices, for example pacemakers or hearing aids and in air-
craft. It can also affect humans and animals.
Precautions:
▶Although the product meets the strict regulations and standards which are
in force in this respect, Leica Geosystems cannot completely exclude the
possibility that other equipment can be disturbed or that humans or ani-
mals can be affected.
▶Do not operate the product with radio or digital cellular phone devices in
the vicinity of filling stations or chemical installations, or in other areas
where an explosion hazard exists.
▶Do not operate the product with radio or digital cellular phone devices
near to medical equipment.
▶Do not operate the product with radio or digital cellular phone devices in
aircraft.
1.7 FCC Statement, Applicable in U.S.
☞The greyed paragraph below is only applicable for products without
radio.
WARNING
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC rules.
These limits are designed to provide reasonable protection against harmful
interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and,
if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guaran-
tee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one or more of
the following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and the receiver.
•Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
•Consult the dealer or an experienced radio/TV technician for help.
CAUTION
Changes or modifications not expressly approved by Leica Geosystems for
compliance could void the user's authority to operate the equipment.
14 Safety Directions

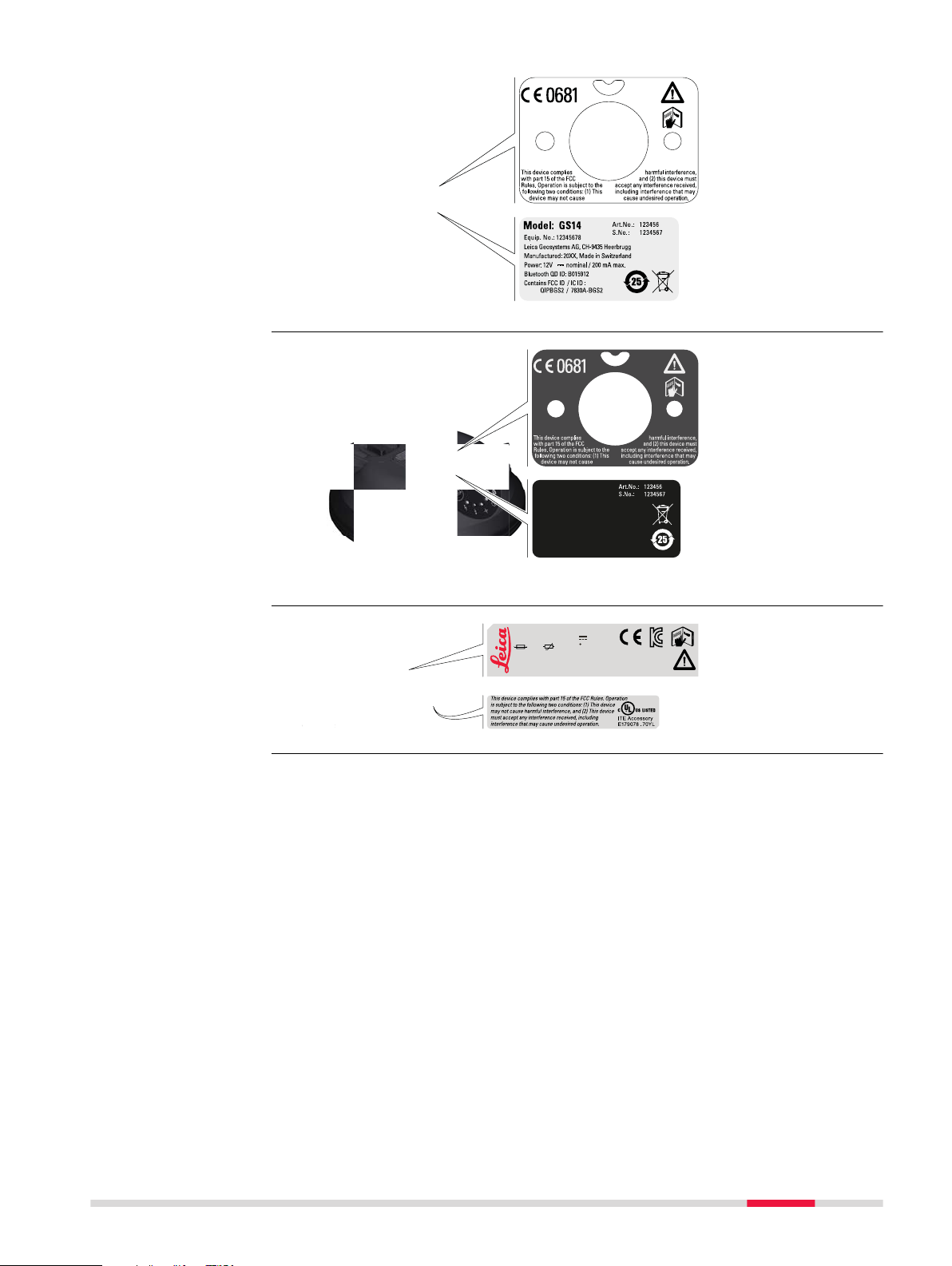

008606_002
Model: GS16
Equip. No.:12345678
Leica Geosystems AG, CH-9435 Heerbrugg
Manufactured: 20XX, Made in Switzerland
Power: 12V nominal / 700 mA max.
Contains: FCC ID IC
Q2331308 / 6850A-31308
QIPPHS8-P / 7830A-PHS8P
0012204_001
005044_002
005044
_002
Made in China
Type: GEB212
2ICR19/66
Art. No.: 772806
7.4V /2.6Ah
10A 19Wh XXXXXXXX-XXXXXX
A/S:[phone]
Leica Geosystems AG, CH-9435 Heerbrugg
Li-Ion Battery
5A/130 C
S. No.:10412 전지
Manufactured by Huizhou Longji Electronics Co., Ltd.
Labelling GS14
Labelling GS16
Labelling internal
battery GEB212
Safety Directions 15

1.8 ICES-003 Statement, Applicable in Canada
WARNING
This Class (B) digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe (B) est conforme à la norme NMB-003
du Canada.
Canada Compliance Statement
This device complies with Industry Canada’s license-exempt RSSs. Operation
is subject to the following two conditions:
1.This device may not cause interference; and
2.This device must accept any interference, including interference that
may cause undesired operation of the device.
Canada Déclaration de Conformité
Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux
appareils radio exempts de licence. L’exploitation est autorisée aux deux con-
ditions suivantes:
1.l’appareil ne doit pas produire de brouillage;
2.l’appareil doit accepter tout brouillage radioélectrique subi, même si le
brouillage est susceptible d’en compromettre le fonctionnement.
16 Safety Directions

2 Description of the System
2.1 System Components
Component Description
Instrument To calculate a position from the computed ranges to all visi-
ble GNSS (Global Navigation Satellite System) satellites.
Web server Web-based tool to preprogram the GNSS instrument.
Antenna To receive the satellite signals from the GNSS satellites.
Leica Geo
Office,
Leica Infinity
The office software including a series of help programs which
support working with Leica instruments.
Instrument Description
GS14 GPS, GLONASS, BeiDou and Galileo GNSS receiver, dual fre-
quency, SBAS (EGNOS, WAAS, MSAS, GAGAN), code and
phase, real-time capable
GS16 GPS, GLONASS, BeiDou and Galileo GNSS receiver, multi-fre-
quency, SBAS (EGNOS, WAAS, MSAS, GAGAN), code and
phase, real-time capable
2.2 System Concept
2.2.1 Software Concept
All instruments use the same software concept.
Software type Description
GS firmware
(GS_xx.fw)
This software covers all functions of the instrument.
The Web server application is integrated into the firm-
ware and cannot be deleted.
The English language is integrated into the firmware and
cannot be deleted.
Language soft-
ware
(WEB_LANG.sxx)
Numerous languages are available for the Web server
application.
The English language is the default language. One lan-
guage is chosen as the active language.
☞Uploading GS firmware can take some time. Ensure that the battery is
at least 75% full before beginning the upload, and do not remove the
battery during the upload process.
Software
for
Description
All GS models The software can be uploaded using the Leica Web server
application or myWorld@Leica Geosystems.
Main components
Instrument
Description
Software for all GS
GNSS instruments
Software upload
Description of the System 17

Software
for
Description
☞Ensure that a Leica microSD card is inserted into
the GS instrument before starting the upload.
Refer to "4.3 Working with the Memory Device".
2.2.2 Power Concept
Use the batteries, chargers and accessories recommended by Leica Geosystems
to ensure the correct functionality of the instrument.
Power for the instrument can be supplied either internally or externally.
Model Power supply
Internally One battery (GEB331) fits into the instrument.
Externally GEB371 battery connected via a cable, or
Car battery connected via a converter cable supplied by Leica
Geosystems, or
10.5 V‑28 V DC power supply via a converter cable supplied
by Leica Geosystems, or
110 V/240 V AC to 12 V DC power supply unit, supplied by
Leica Geosystems.
For permanent operations use Uninterruptible Power Supply units as a back-up
in a main power failure.
2.2.3 Data Storage Concept
Data (Leica GNSS raw data and RINEX data) can be recorded on the microSD
card.
Device Description
microSD card The GS14/GS16 GNSS instrument has a microSD card slot fit-
ted as standard. A microSD card can be inserted and
removed. Available capacity: 1 GB
☞While other microSD cards can be used, Leica Geosystems recom-
mends to only use Leica microSD cards and is not responsible for data
loss or any other error that can occur while using a non-Leica card.
Unplugging connecting cables, removing the data storage device or interrupting
the power supply during the measurement can cause loss of data. Only remove
the data storage device, unplug connecting cables or interrupt the power sup-
ply when the GS GNSS instrument is switched off.
microSD cards can, with the supplied adaptor, also be used in an OMNI drive as
supplied by Leica Geosystems. Other PC card drives can require an adaptor.
General
Power options
☞
Description
Memory device
☞
☞
18 Description of the System

2.3 Container Contents

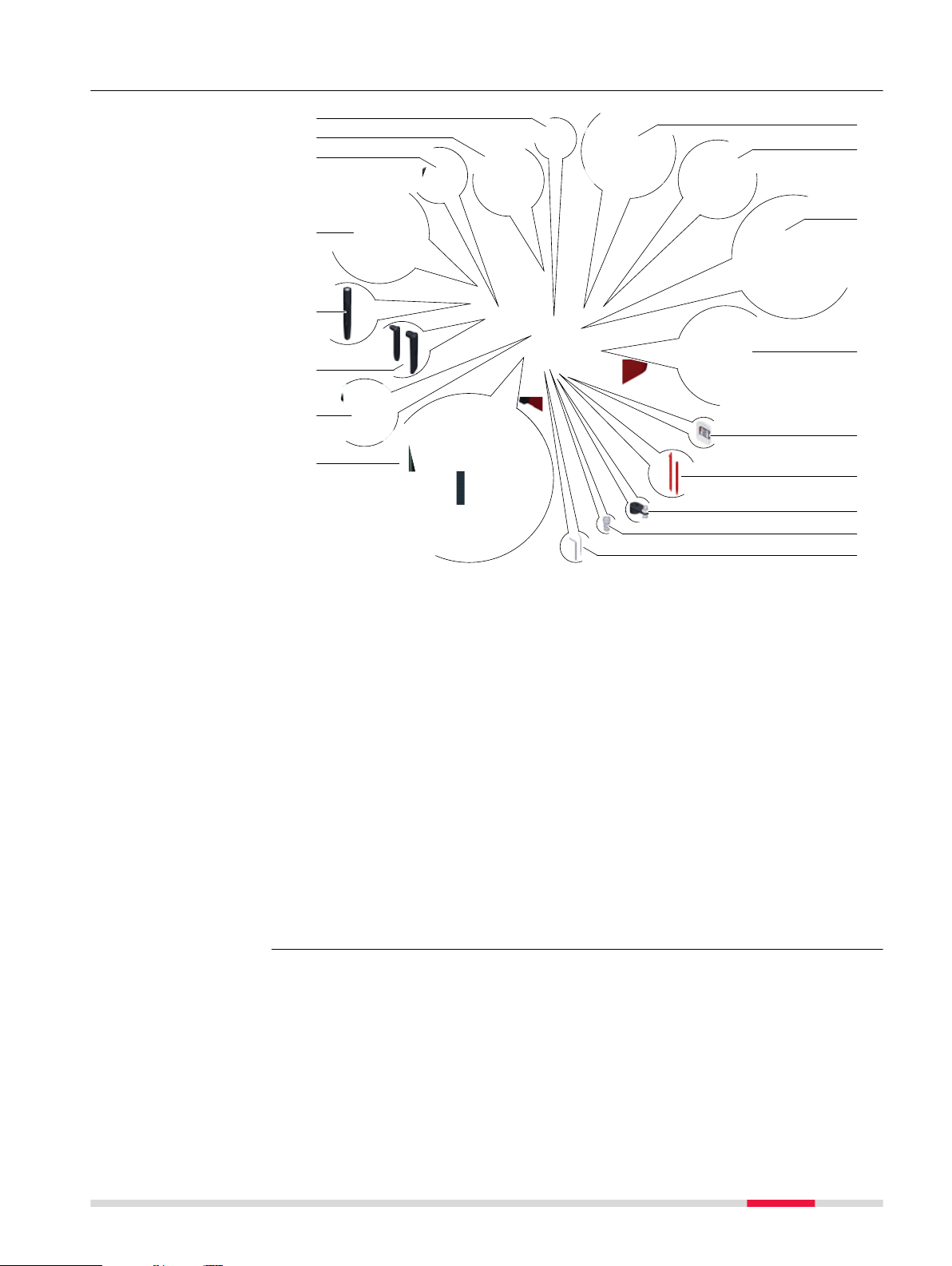

009340_001
a
b
c
i
j
l
m
k
d
d
e
f
g
h
n
o
p
a GHT63 clamp
bManuals and USB documentation card
c GEB212 or GEB311 batteries
d Antenna
e GAT18 mobile antenna
f GAT21, GAT25 or GAT26 radio antenna
g Tribrach
h CS15 field controller with GHT62_only holder or CS20 field controller
with GHT66 holder or CS35 tablet
i Height hook
j Cables
k GDC221 car adapter
l SD cards
m Stylus
n GAD34 arm 3 cm
o TNC QN-adapter
p Allen key and adjustment tool
Container for GS
instrument and
accessories 1/2
Description of the System 19

009308_001
a
b
c
j
i
d
e
h
f
g
a GHT36 base for telescopic rod
bGAD108 arm
c GFU RTK modem
d GAD32 telescopic rod
e GAT1 or GAT2 radio antennas
f GEB212 or GEB311 batteries
g GRT146 carrier
h GAD33 arm
i GHT58 tripod bracket for GFU
j External battery
2.4 Instrument Components
The instrument can be preprogrammed using the Web server application run-
ning from the instrument on a web browser of a Windows device. Connect the
instrument to a computer using a cable. Turn on the instrument by holding
down the Power key for 2 s. A green blinking light at both power LEDs indi-
cates that the instrument powers up.
004107_002
a
b
c
d
e
a QN-connector for external
UHF antenna, only for models
with UHF radio
b Battery compartment with
microSD and SIM card slot
c LEDs, ON/OFF button and
Function button
d LEMO port, serial and USB
e Antenna Reference Plane
(ARP)
A Bluetooth port is included inside all GS GNSS instruments to enable connec-
tivity to the field controller.
Container for GS
instrument and
accessories 2/2
☞
GS14/GS16
components
☞
20 Description of the System
