Leica HD C100 User manual

MEDICAL DIVISION
User Manual
10 733 205 - Version 01
Leica HD C

II Leica HD C100 / Ref. 10 733 205 / Version 01
Thank you for purchasing a Leica surgical microscope system.
In developing our systems, we have placed great emphasis on simple, self-
explanatory operation. Nevertheless, we suggest studying this user manual in
detail in order to utilize all the benefits of your new surgical microscope.
For valuable information about Leica Microsystems products and services, and the
address of your nearest Leica representative, please visit our website:
www.leica-microsystems.com
Thank you for choosing our products. We hope that you will enjoy the quality and
performance of your Leica Microsystems surgical microscope.
Leica Microsystems (Schweiz) AG Medical Division
Max-Schmidheiny-Strasse 201 CH-9435 Heerbrugg
Tel.: [phone]
Fax: [phone]
Legal disclaimer
All specifications are subject to change without notice.
The information provided by this manual is directly related to the operation of the
equipment. Medical decision remains the responsibility of the clinician.
Leica Microsystems has made every effort to provide a complete and clear user
manual highlighting the key areas of product use. Should additional information
regarding the use of the product be required, please contact your local Leica
representative.
You should never use a medical product of Leica Microsystems without the full
understanding of the use and the performance of the product.
Liability
For our liability, please see our standard sales terms and conditions. Nothing in this
disclaimer will limit any of our liabilities in any way that is not permitted under
applicable law, or exclude any of our liabilities that may not be excluded under
applicable law.

Leica HD C100 / Ref. 10 733 205 / Version 01 1
Contents
1 Introduction 2
1.1 About this user manual 2
1.2 Symbols in this user manual 2
2 Product identification 2
3 Safety notes 3
3.1 Intended use 3
3.2 Indication for Use 3
3.3 Contraindications 3
3.4 Information for the person responsible for the
instrument 3
3.5 User qualifications 3
3.6 Directions for the user of the instrument 3
3.7 Dangers of use 4
3.8 Signs and labels 4
4 Design and function 5
4.1 Components 5
4.2 Accessories provided 5
4.3 Function 5
5 Controls 6
5.1 Control unit 6
5.2 Remote control 6
5.3 Configuration example 7
6 Assembly 8
6.1 Installing the camera 8
6.2 Installing the control unit 8
6.3 Select video format and operating mode 8
6.4 Wiring 9
6.5 Switching the Leica HD C100 on/off 9
7 System Configuration 10
7.1 Menu overview 10
7.2 Menu operation 11
7.3 Description of the menu items 11
8 Preparation before surgery 14
8.1 Choosing scene data 14
8.2 Carrying out a white balance 15
8.3 Preparing photos/videos 15
8.4 Preparing the documentation system 15
8.5 Checking the camera connection 15
9 Operation 16
9.1 Freeze image 16
9.2 Taking photos 16
9.3 Recording videos 16
9.4 Playing back photos 16
9.5 Playing back videos 16
10 Care and maintenance 17
10.1 Maintenance instructions 17
10.2 Maintenance 17
10.3 Disposal 17
11 What to do if…? 18
12 Technical Data 19
12.1 Mechanical data 19
12.2 Electrical data 19
12.3 Optical data 19
12.4 Ambient conditions 19
12.5 Electromagnetic compatibility (EMC) 19
12.6 Standards fulfilled 21
12.7 Limitations of use 21
12.8 Control Unit Drill Pattern 21

Introduction
2 Leica HD C100 / Ref. 10 733 205 / Version 01
1 Introduction
1.1 About this user manual
In this user manual the Leica HD C100 camera system is described.
In addition to notes on the use of the instruments
this user manual gives important safety information
(see chapter "Safety notes").
 Read this user manual carefully before operating the
product.
1.2 Symbols in this user manual
The symbols used in this user manual have the following meaning:
Symbol Warning
word
Meaning
Warning
Indicates a potentially hazardous situation
or improper use that could result in serious
personal injuries or death.
Caution
Indicates a potentially hazardous situation
or improper use which, if not avoided,
may result in minor or moderate injury.
Note
Indicates a potentially hazardous situation
or improper use which, if not avoided, may
result in appreciable material, financial
and environmental damage.
Information about use that helps the user
to employ the product in a technically
correct and efficient way.
 Action required; this symbol indicates that
you need to perform a specific action or
series of actions.
2 Product identification
The model code and serial number of the camera and the control
unit are located on the identification labels on the rear side.
 Enter this data in your user manual and always refer to it when
you contact us or the service workshop regarding any questions
you may have.
Camera Type Serial no.
... ...
Control unit type Serial no.
... ...

Safety notes
Leica HD C100 / Ref. 10 733 205 / Version 01 3
3 Safety notes
The Leica HD C100 camera system is state-of-the-art technology.
Nevertheless, hazards can arise during operation.
 Always follow the instructions in this user manual, and in
particular the safety notes.
3.1 Intended use
• The Leica HD C100 camera system is an optical instrument for
observation and documentation that works together with a
Leica surgical microscope.
• The Leica HD C100 camera system may be used in enclosed
rooms only.
• The Leica HD C100 camera system is subject to special
precautionary measures for electromagnetic compatibility. It
must be installed and put into operation in accordance with the
guidelines, manufacturer's declarations, and recommended
safety distances (Table 201, 202, 204, 206 in accordance with
EN 60601-1-2:2001, 2nd / 3rd edition).
• Portable and mobile RF communication equipment as well as
fixed communication equipment can have a negative influence
on the proper functioning of the Leica HD C100 camera system.
3.2 Indication for Use
• The HD C100 camera is used to display surgeon‘s field of view,
captures still image and records video.
• These Instructions for Use are intended for physicians, nurses
and other medical and technical staff who prepare, operate or
maintain the device. It is the duty of the device owner/operator
to train and brief all the operating personnel.
3.3 Contraindications
No known contraindications for Use.
3.4 Information for the person
responsible for the instrument
 Make sure that the camera system is used by qualified
personnel only.
 Ensure that this User Manual is always available at the place
where the camera system is used.
 Carry out regular inspections to make certain that the
authorized users are adhering to safety requirements.
 When instructing new users, do so thoroughly and explain the
meanings of the warning signs and messages.
 Allocate responsibilities for commissioning, operation and
maintenance. Monitor compliance with this.
 Do not use the camera system unless it is in proper condition.
 Inform your Leica representative or Leica Microsystems
(Switzerland) AG, 9435 Heerbrugg, immediately if you detect a
product defect that could potentially cause injury or harm.
 If you use accessories from other manufacturers with the
surgical microscope system, make sure that these
manufacturers confirm that the combination is safe to use.
Follow the instructions in the user manual for those accessories.
 Modifications and maintenance work on the camera system
may only be performed by professionals expressly authorized by
Leica.
 Only original Leica replacement parts may be used in servicing
the product.
 After service work or technical modifications, the device must
be readjusted in accordance with our technical specifications.
 If the instrument is modified or serviced by unauthorized
persons, is improperly maintained (as long as maintenance was
not carried out by us), or is handled improperly, Leica will not
accept any liability.
 The effect of the Leica HD C100 camera system on other
instruments has been tested as specified in EN 60601-1-2. The
system passed the emission and immunity test. Comply with
the usual precautionary and safety measures relating to
electromagnetic and other forms of radiation.
 Portable RF communications equipment (including peripherals
such as antenna cables and external antennas) should be used
no closer than 30 cm (12 inches) to any part of the Leica HD
C100, including cables specified by the manufacturer.
Otherwise, degradation of the performance of this equipment
could result.
3.5 User qualifications
The Leica HD C100 camera system may be used only by physicians
and medical assistance personnel with appropriate qualifications
who have been instructed in the use of the instrument. Specific
training is not required.
3.6 Directions for the user of the
instrument
 Follow the instructions described here.
 Follow the instructions given by your employer regarding the
organization of work and safety at work.

Safety notes
4 Leica HD C100 / Ref. 10 733 205 / Version 01
3.7 Dangers of use
WARNING
Risk of injury from damaged components or accessories
 Do not use the camera system, surgical microscope, and
accessories unless they are in proper condition.
 Read the following pages thoroughly.
WARNING
Danger of fatal electric shock
 Operate the system only with all equipment in its proper
position (all covers fitted, doors closed).
 Only power supply supplied by Leica can be used.
 To avoid the risk of electric shock, device must only be
connected on Supply network with protective
conductor.
WARNING
Risk of injury from downward movement of surgical
microscope
 Complete all preparations and adjustments to the stand
before the operation.
 Never change the accessories or attempt to rebalance
the microscope while it is above the field of operation.
 Before re-equipping, always lock the swing arm.
 After re-equipping, always rebalance the microscope on
the swing arm.
 Before re-equipping during the operation, first swing
the microscope away from the operating field.
WARNING
Risk of injury from parts falling down
 Complete all preparations and adjustments to the optics
carrier before the operation.
 Never rebalance or re-equip the optical components and
accessories with the instrument while it is above the
field of operation.
 Before the operation, make sure that the optical
components and accessories are installed properly.
 Before re-equipping during the operation, first swing
the microscope away from the operating field.
CAUTION
For Stand-alone camera setup
 Do not touch accessible connectors and the patients
simultaneously.
3.8 Signs and labels
 
 

Type plate on the camera
 
 

Type plate on the control
unit
The camera and the control unit have to have the same
serial number (SN)
Leica Microsystems (Schweiz) AG
Max Schmidheiny-Strasse 201
CH-9435 Heerbrugg
MODEL LEICA HD C100
12V 2A
24W
Nameplate

Design and function
Leica HD C100 / Ref. 10 733 205 / Version 01 5
4 Design and function
4.1 Components
The Leica HD C100 camera system consists of the following
components:
•Camera
•Control unit
•Remote control
4.2 Accessories provided
•Camera connection cable,
5 m long 10 733 923
•USB 3.0 Thumb Drive
•User Manual / Installation
Manual 10 733 205
Medicaldivision
UserManual
10733 205 - Version xx
Leica HD C100
4.3 Function
The camera, mounted on a video adapter, takes images from a
surgical microscope.
The control unit both configures the camera settings and provides
the interface to the monitoring and documentation systems, e.g.
computer, recorder, etc.
The signals are simultaneously output to the different peripheral
devices.
The camera can be operated by the control unit or by remote
control.
4.3.1 Supported Video Signals
The control unit can simultaneously output the following video
signals:
•HDMI (High Definition Multimedia Interface) – for fully digital
transmission of video signals
•3G HD-SDI (High Definition Serial Digital Interface) – for
transmission of uncompressed video signals for HD, according
to the SMPTE 424M standard
•VIDEO / BNC – analog video signal, particularly suitable for
environments susceptible to faults
4.3.2 Connections
Connections to the camera
2
1
1 C-mount interface for mounting on a microscope
2 Camera connecting cable plug connector
Connections on the rear side of the control unit



1 DC IN power supply
2 HD-SGI OUT video output
3 Serial port RS232-C
4 HDMI video output
5 LAN network connection – for service purposes
6 VIDEO OUT video output
7 DIP switch to select PAL/NTSC
8 CAMERA input

Controls
6 Leica HD C100 / Ref. 10 733 205 / Version 01

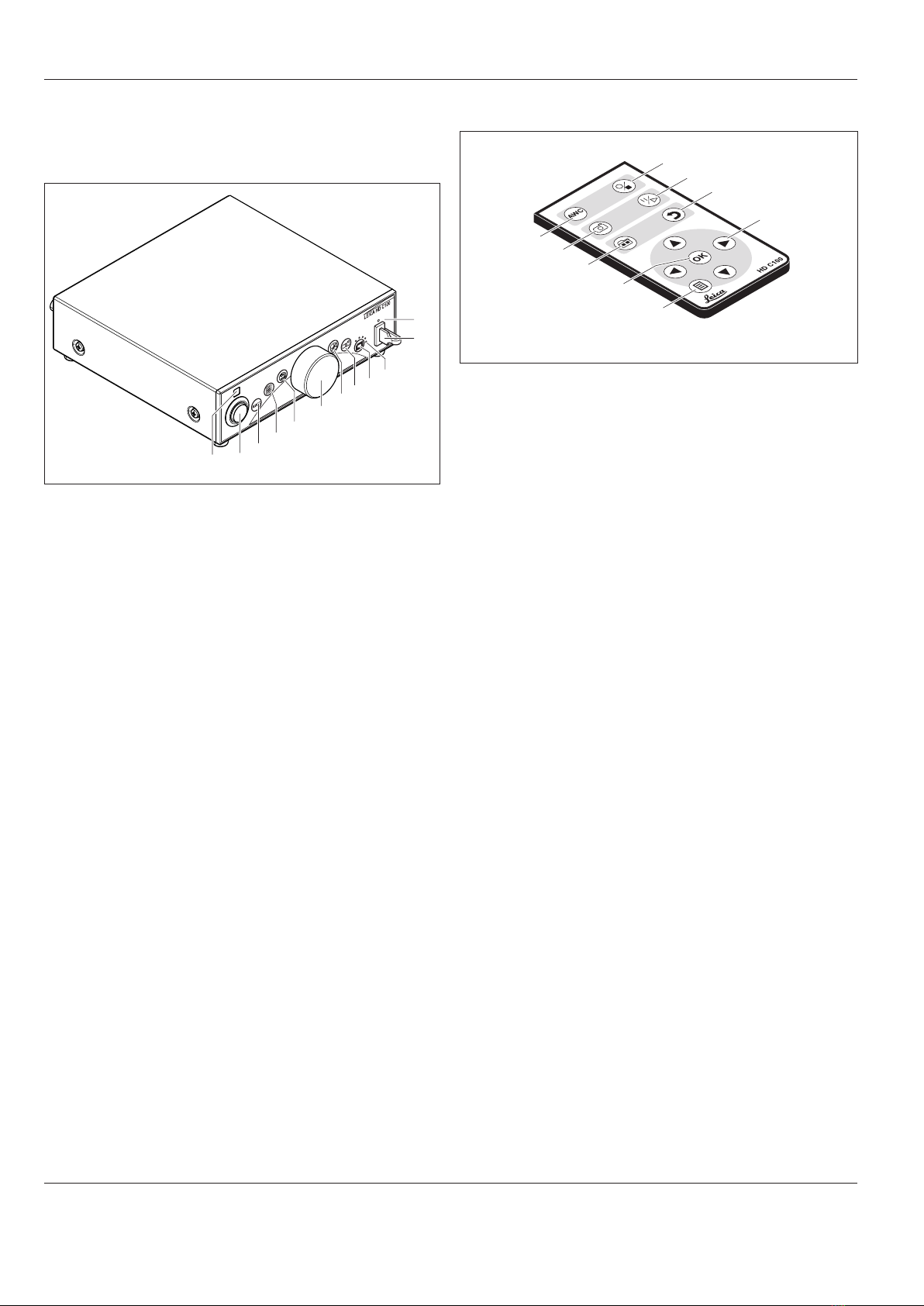

5 Controls
5.1 Control unit






1 Infrared remote control receiver
2 On/off button with LED ring
3 "Automatic white balance" button
4 "Menu" button
5 "Back" button
6 Adjusting knob to navigate in the menu/ press to select
7 "Start/ stop video recording" button
8 "Capture still image" button
9 "Scene data" button
10 LEDs for indicating the selected scene data
11 USB port
12 USB LED; lights if USB thumb drive/ portable hard disk is
inserted
5.2 Remote control








1 "Start/ stop video recording" button
2 "Freeze live view/ play or pause video" button
3 "Back" button
4 Buttons for navigating in the menu
5 "Menu" button
6 "OK/confirm" button
7 "Gallery/live view" button
8 "Capture still image" button
9 "Automatic white balance" button

Controls
Leica HD C100 / Ref. 10 733 205 / Version 01 7
5.3 Configuration example
2
3
1
4
5
6
74
1 Serial connection to stand (remote control)
2 12V-DC-supply with ferrite (3) over the connected stand
3 Ferrite (10 744 200)
4 Additional video signals available
5 Documentation system
6 Monitor
7 Network connection (service)

Assembly
8 Leica HD C100 / Ref. 10 733 205 / Version 01
6 Assembly
6.1 Installing the camera
The camera C-mount interface is screwed on to the C-mount
interface of the video adapter.
6.2 Installing the control unit
The control unit can be installed or set up as follows:
• In or on a stand
• Permanently screwed into place on an assembly plate
• On a drawer or a device cart
 Set up the control unit on a suitable surface, for example in a
drawer or on a device cart.
Assembly in or on a stand
 See Installation Manual for the respective stand
Fixed assembly with assembly plate
 Screw assembly plate to stand or similar item.
 Remove the 4 rubber feet on the bottom of the control unit.
 Screw control unit to the assembly plate.
Install on a device cart or similar
 Set up control unit on a suitable level surface, for example on a
device cart.
6.3 Select video format and operating
mode



Switch Position Assignment
1ON Service mode
OFF Operating mode
2ON Service mode
OFF Operating mode
3ON NTSC (60 Hz)
OFF PAL (50 Hz)
4ON Service mode
OFF Operating mode

Assembly
Leica HD C100 / Ref. 10 733 205 / Version 01 9
6.4 Wiring



Connect camera and control unit
 Attach camera connection cable to the camera and to socket (8)
"CAMERA" on the control unit.
Connect peripheral devices to the control unit
The control unit has 3 different video outputs to connect monitor(s)
and documentation systems.
The control unit must have at least one monitor connected in order
to be operated.
The following connections are available:
• HDMI (4)
• 3G HD-SDI (2)
• VIDEO (BNC) (6)
 Plug peripheral device connecting cable into the respective
socket (2), (4) and (6) of the control unit.
Connect power supply
The Leica HD C100 can be supplied with power over the 12 V supply
of the microscope.
 Connect 12 V power supply to the socket (1) ("DC IN").
 Turn on the microscope.
The control unit is connected to the power supply.
6.5 Switching the LeicaHD C100 on/
off
Leica HD C100
 Switch on the Leica HD C100 with the on/off switch.
The ring LED around the on/off button lights up and the camera
image is shown on the connected monitor.
The system is ready to operate.
 Switch on peripheral devices.
 To switch off, follow the reverse sequence of steps.
The LED ring goes out, and no image is shown on the connected
monitor.
Leica HD C100 with power supply from the surgical microscope
 Switch on the Leica HD C100 with the on/off button once.
The ring LED around the on/off button lights up and the camera
image is shown on the connected monitor.
The system is ready to operate.
In the following operation phase, the camera system is
switched on and off by the surgical microscope.

System Configuration
10 Leica HD C100 / Ref. 10 733 205 / Version 01
7 System Configuration
7.1 Menu overview
Factory default settings are printed in bold.
COLOR AUTO-WHITE CONTROL PRESS OK [To select]
WB MODE AUTO, MANUAL
RED LVL 0% - 99%
BLUE LVL 0% - 99%
BLACK LVL 0% - 99%
CHROMA GAIN 0 … 21 … 99
EXPOSURE EXP MODE AUTO, MANUAL
EXPOSURE 1/8000 sec., 1/1024 sec., 1/960 sec., 1/480 sec., 1/240 sec., 1/120 sec., 1/100 sec., 1/60 sec.,1/50 sec.,
1/40 sec., 1/33 sec., 1/30 sec., 1/25 sec., 1/24 sec., 1/20 sec.
GAIN 0 - 36 dB
ALC LEVEL 0% … 8% … 99%
ALC MASK AREA NO MASK, S CIRCLE, M CIRCLE, L CIRCLE, MANUAL (without mask)
GAMMA 0.35, 0.40, 0.45, 0.50, 0.55, Red-Reflex, FL400, FL560
ENHANCEMENT 0 … 6 … 11
ALC Limit SHUTTER TIME MAX 1/16000 sec., 1/8000 sec., 1/1024 sec., 1/960 sec., 1/480 sec., 1/240 sec.,
1/120 sec., 1/100 sec., 1/60 sec.
SHUTTER TIME MIN 1/16000 sec., 1/8000 sec., 1/1024 sec., 1/960 sec., 1/480 sec.,
1/240 sec., 1/120 sec., 1/100 sec., 1/60 sec.
SENSOR GAIN MAX 0 - 35 dB
RESOLUTION LIVE HD1080p, HD1080i
VIDEO OUTPUT PATTERN LIVE, COLOR BAR, GRAY SCALE, CROSS LINE
HDMI OUTPUT RGB, YUV
SETUP
CAMERA
FLIP IMAGE 0, FLIP, MIRROR, MIRROR+FLIP
IMG ON SCREEN SHOW DATE ON, OFF
SHOW LOGO ON, OFF
LOGO WATERMARK 25%, 50%, 100%
LOGO POSITION LEFT UPPER, RIGHT UPPER, LEFT LOWER, RIGHT LOWER-1, RIGHT LOWER-2
SHOW SCENE ON, OFF
SHOW MESSAGE ON, OFF
USER SET-UP LANGUAGE ENGLISH, GERMAN, FRENCH, SPANISH, ITALIAN, SWEDISH, JAPANSE
SHOW MENU 5 sec, 10 sec, 15 sec, 20 sec, 25 sec, 30 sec, INFINITY
REMOTE CONTROL EXT, IR
SET TIME & DATE DMY [dd mm yyyy hh:mm]
MDY [mm dd yyyy hh:mm]
DNR ON, OFF
SET PREFIX Press OK [To select]
FACTORY RESET Press OK [To select]
SCENE FILES SAVE SCENE FILE Scene File 1, Scene File 2, Scene File 3, Scene File 4,Scene File 5
SELECT SCENE FILE Scene File 1, Scene File 2, Scene File 3,Scene File 4, Scene File 5
INFO Model No., Serial No., hardware version, software version, Scene File, Video Format, Shutter Time, Sensor Gain, Date & Time,
Camera Head status
EJECT USB Press OK [To select]

System Configuration
Leica HD C100 / Ref. 10 733 205 / Version 01 11
7.2 Menu operation
Calling up the menu
 Press the button on the control unit or the remote control.
The main menu will be displayed on the connected monitor.
The first menu item, "COLOR", is displayed inversely.
LEICA HD C100 MENU Vx.xx
COLOR
EXPOSURE
RESOLUTION
SETUP CAMERA
SCENE FILES
INFO
EJECT USB
Selecting the menu item and configure changes
 Select the desired menu item, for example, "resolution", with
the rotary knob or the
/  cursor buttons.
 Select it by pressing the rotary knob or confirm with the
button.
 Select the desired submenu, for example “LIVE", with the rotary
knob or the
/  cursor buttons.
The available settings are displayed.
LEICA HD C100 MENU Vx.xx
LIVE HD1080p 
VIDEO OUTPUT PATTERN LIVE
HDMI OUTPUT RGB
Select the desired settings, for example "HD1080p", with the rotary
knob or the
/  cursor buttons.
 Confirm settings by pressing the rotary knob or the button.
The selected submenu is displayed again.
Settings are not applied until you press the rotary knob or
the button. When leaving the settings menu by means of
the button, the existing settings are retained.
Back to the next higher menu level
 Press the button to go from a submenu to the next higher
menu level.
Exit menu
 Press the button on the control unit or the remote control.
The menu field is no longer displayed on the monitor.
7.3 Description of the menu items
7.3.1 "COLOR" Menu
Auto-White Control (AWC)
The color white is shown differently according to light source
(fluorescent or halogen lamps or daylight).
If you carry out the white balance with a fluorescent lamp but
switch to a halogen lamp, the image gets a red coloration. In the
opposite situation, the picture gets a blue coloration.
The white balance serves to compensate for this effect.
Sequence:
 Select "Auto white balance".
The message "AWC done" will appear after completion.
 Exit Auto-White control by pressing the rotary knob or the
button.
White balance mode
Manual:
 Actuate the white balance with the menu item "Auto-White
control".
AUTO:
The camera system carries out a white balance automatically in the
case of modified light conditions.
If the "Auto" setting is selected, no individual color settings
are possible.
Red level
This menu item is only available in the white balance mode =
manual setting.
The higher the value, the more red coloration
The lower the value, the more blue coloration (cyan)
Setting range: 0 % ... 99 %
Blue level
This menu item is only available in the white balance mode =
manual setting.
The higher the value, the more blue coloration
The lower the value, the more yellow coloration
Setting range: 0 % ... 99 %
With high values for the red level and blue level, the picture
gets a red coloration (magenta). With low values for the red
level and blue level, the picture gets a green coloration.

System Configuration
12 Leica HD C100 / Ref. 10 733 205 / Version 01
Black level
The higher the value, the brighter the black is displayed.
The lower the value, the darker the black is displayed.
Setting range: 0 % ... 99 %
Chroma Gain
The higher the value, the more intense the coloration.
The lower the value, the more dull the coloration.
Setting range: 0 ... 99
Chroma Gain = 0: Monochrome image
7.3.2 "Exposure" menu
EXP Mode
• Auto Automatic setting of the exposure parameters
• Manual Manual setting of the exposure parameters
Exposure
This menu item is only available in the mode = manual setting.
The possible shutter speeds are :
1/8000 s, 1/1024 s, 1/960 s, 1/480 s, 1/240 s, 1/120 s, 1/100 s, 1/60 s,
1/50 s, 1/40 s, 1/33 s, 1/30 s, 1/25 s, 1/24 s, 1/20 s.
Gain
This menu item is only available in the mode = manual setting.
The brighter the image, the less gain.
The darker the image, the more gain.
Setting range: 0 ... 36 dB
With a high gain, the noise is also increased.
ALC Level (Auto Light Control Level, automatic brightness
adjustment)
This menu item is only available in the mode = auto setting.
The higher the value, the brighter the image appears.
Setting range: 0 % ... 99 %
ALC Mask area
This menu item is only available in the mode = auto setting.
The ALC mask area defines the image section to which the
automatic brightness adjustment should be applied.
Possible settings:
No mask, S Circle, M Circle, L Circle, Manual
Procedure for mask area = manual
After selecting "Manual", the screen appears divided into
10 × 6 fields.
The cursor is in the upper left field.
 Select the desired field with the rotary knob or the cursor
buttons
/  and confirm by pressing the rotary knob or the
OK button.
 Use the same procedure for other fields.
Gamma (color depth)
The higher the value, the higher the color contrast, and the darker
the black is displayed.
The lower the value, the lower the color contrast, and the brighter
the black is displayed.
Setting range: 0.35, 0.40, 0.45, 0.50, 0.55, Red-Reflex, FL400, FL560
Enhancement (contrast gain)
The more high-contrast the image, the less gain.
The more low-contrast the image, the more gain.
Possible settings: 0 ... 11
ALC Limit
This menu item is only available in the mode = auto setting.
Set the limit for exposure and gain.
• Shutter time max
Possible setting range : 1/16000 s, 1/8000 s, 1/1024 s, 1/960 s,
1/480 s, 1/240 s, 1/120 s, 1/100 s, 1/60 s.
• Shutter time min
Possible setting range: 1/16000 s, 1/8000 s, 1/1024 s, 1/960 s,
1/480 s, 1/240 s, 1/120 s, 1/100 s, 1/60 s.
• Sensor gain max
Possible setting range : 0 ... 35 dB

System Configuration
Leica HD C100 / Ref. 10 733 205 / Version 01 13
7.3.3 "Resolution" menu
Live
Change live view resolution
Possible setting : HD1080p, HD1080i
Video output pattern
Selection of a sample to test the camera and the monitor
Possible setting : Live, Color bar, Gray scale, Cross line
HDMI output
Switch output for HDMI
Possible setting : RGB, YUV
7.3.4 "Setup camera" menu
Flip image
0Original orientation
Flip Image is mirrored horizontally
Mirror Image is mirrored vertically
Mirror + Flip Image is rotated 180°
Image on screen
Show date Show current date on the lower right edge.
Possible settings: on, off
Show logo Show Leica logo.
Possible settings: on, off
Logo watermark Depiction of the Leica logo as a watermark.
Possible settings: 25%, 50%, 100%
Logo position Select position of the Leica logo.
Possible settings: Left upper, Right upper, Left
Lower, Right Lower-1 (date and time are also
shown at this position), Right Lower-2S
Show scene Show current scene file on the lower right.
Possible settings: on, off
Show message Show system message on the lower right.
Possible settings: on, off
User Set-up
Language Set menu language.
Possible settings: English, German, French,
Spanish, Italian, Swedish, Japanese
Show menu The menu is automatically closed if no
operation is completed within the set time.
Possible settings: 5 sec, 10 sec, 15 sec, 20 sec,
25 sec, 30 sec, INFINITY
Remote control Set control via RS232 or Infrared
Possible settings: Ext, IR
Set time and date
 Select date format: DMY (Day-Month-Year) or MDY (Month-Day-
Year.
 Enter date and time in the selected format.
DNR (Digital noise reduction)
This function reduces the noise of an image. With it, the resolution
is also slightly reduced.
Possible settings: on, off
Set prefix
The function is to change the first 5 characters of the file name.
The prefix (first 5 characters) of the file name is shown by pressing
the button on the remote control.
LEICA HD C100 MENU V1.0
LE I C A
 Select the character that needs to be set with the cursor
buttons
/  and confirmed by pressing the button.
A keyboard appears.
 Select the new character from the keyboard using the cursor
buttons
/  and confirmed by pressing the button.
1234567890
Q W E R T Y U I O P
A S D F G H J K L -
Z X C V B N M < > +
Factory reset
After selecting "Reset Settings to factory", a confirmation prompt,
"Proceed to reset?" appears.
 Select OK / cancel with the rotary knob or the cursor buttons
/  and confirm by pressing the rotary knob or the
button.
The system resets all settings to factory settings and undergoes a
restart.
7.3.5 "Scene Files" menu
The previously configured menu settings for certain users, locations
or tasks can be saved as "Scene data" and later be recalled.
Leica HD C100 provides 5 memory locations ("Scene Files") for scene
data.
Save scene file
Assign the current settings to Scene Files 1 to Scene Files 5.
If the memory location was already assigned, it can be overwritten
with the new settings.
The saved settings can be recalled at any time with the assigned
memory location ("Scene Files").

Preparation before surgery
14 Leica HD C100 / Ref. 10 733 205 / Version 01
The Scene data are assigned at the factory as follows:
Scene Files Department
1Neurosurgery
2FL400
3Cataract
4Vitrectomy
5FL560
Select scene file
 Select Scene Files 1 to Scene Files 5 with the button on the
control unit or the cursor buttons
/  and confirmed by
pressing the button.
When you select the memory location ("Scene Files"), the stored
scene data is active.
7.3.6 "Info" menu
The following information is shown by pressing the button on
the remote control (example):
MODEL : HDC100
SERIAL NO.: DDMMYYXXX
HW VERSION : V1.0
SW VERSION : V1.0
SCENE FILE : 1
VIDEO FORMAT : 1080p59.94
SHUTTER TIME : Jan-60
SENSOR GAIN : 14 dB
DATE & TIME : 01/01/2018 0:02
CAMERA HEAD : CONNECTED
7.3.7 "Eject USB" menu
The function is to remove USB storage device safely form the
control unit.
• Select EJECT USB before removing the USB storage
device.
• Remove the USB storage device after the message “ USB
EJECTED SUCCESSFULLY” appears.
8 Preparation before surgery
8.1 Choosing scene data
Leica HD C100 can save 5 configurations for certain tasks or
environments as scene data.
The currently selected scene data is shown by the LEDs by means of
the "Scene data" button and on the monitor (if enabled).
1
 Press the "Scene data" button (1) until the LED for the desired
scene data lights up on the control unit.
With the factory settings, the selected scene data appear on the
monitor.
Leica HD C100 immediately works with the stored settings.
Scene data can only be selected on the control unit.
The scene data are assigned at the factory as follows:
Scene Files Department
1Neurosurgery
2FL400
3Cataract
4Vitrectomy
5FL560
If working without scene data
 Configure the menu settings for the current environment and
task.

Preparation before surgery
Leica HD C100 / Ref. 10 733 205 / Version 01 15
8.2 Carrying out a white balance
A white balance is recommended before every operation for
optimum image quality.
If "White balance mode" = "Auto" is selected in the menu
and in the selected scene data, the camera system
automatically carries out a white balance when light
conditions change.
White balance in "White balance mode" = "Manual"
 Press the "AWC" button on the control unit or the remote
control.
The system carries out an automatic white balance.
After completion, the message "AWC done" appears.
 Exit Auto-White control by pressing the rotary knob or the
button.
8.3 Preparing photos/videos
A USB storage device has to be plugged into the control unit so that
photos/videos can be captured/recorded with the Leica HD C100
camera system.
1
2
 Take off the USB port protective cap (1) on the front side of the
control unit and insert the USB storage device.
The LED (2) above the port will light.
Leica HD C100 is ready to preparing photos/videos.
• If the USB storage device inserted does not have any
capacity left, the message "Storage device is full"
appears on the monitor.
• After removing the USB storage device, put the
protective cap (1) back on the socket.
• The USB storage device needs to be formatted to FAT32/
exFAT file system.
• Do not unplug the USB storage device during recording/
capturing.
NOTE
USB 3.0 and above storage device with writing speed of
minimum 150MB/s must be used.
8.4 Preparing the documentation
system
 Make sure that the documentation devices are connected to the
control unit.
 Turn on documentation device(s).
 Check the settings on the documentation devices and, where
appropriate, adapt them; see the user manuals for the
documentation devices.
8.5 Checking the camera connection
 Press the "Info" key on the control unit or the remote control.
The following information is shown on the monitor (example):
MODEL : HDC100
SERIAL NO. : DDMMYYXXX
HW VERSION : V1.0
SW VERSION : V1.0
SCENE FILE : 1
VIDEO FORMAT : 1080p59.94
SHUTTER TIME : Jan-60
SENSOR GAIN : 14 dB
DATE & TIME : 01/01/2018 0:02
CAMERA HEAD : CONNECTED
If CAMERA HEAD status is NOT CONNECTED
 Check the connection between the camera head and the control
unit.

Operation
16 Leica HD C100 / Ref. 10 733 205 / Version 01
9 Operation
9.1 Freeze image
 Press button on the remote control.
The current image is shown frozen on the monitor.
 To clear the frozen image, press button again on the remote
control.
The live image is shown on the monitor.
• The "Freeze " function is only possible using the remote
control.
• The frozen image can be captured by pressing the
button.
9.2 Taking photos
 Press the button on the control unit or on the remote
control.
The current image is saved to the USB storage device in the .jpg
data format.
If the button is pressed and no USB storage device is
plugged into the control unit, the message "No storage
device is found" appears on the monitor.
9.3 Recording videos
 Press the button on the control unit or on the remote control
to start video recording.
 Press the button again to end video recording.
The video is saved to the USB storage device in MP4 data format.
9.4 Playing back photos
 Press the button on the remote control or the rotary knob.
The list of the photos taken appears.
 Select the desired photo with the rotary knob or the cursor
buttons
/  and confirm by pressing the rotary knob or the
button.
The photo selected is displaying on the monitor.
Do not use the playback function in combination with the
Autofocus or with IGS systems.
9.5 Playing back videos
 Press the button on the remote control or the rotary knob.
The list of the videos recorded appears.
 Select the desired video with the rotary knob or the cursor
buttons
/  and confirm by pressing the rotary knob or the
button.
The video selected is playing on the monitor.
 Press the button on the remote control to pause or resume
the video.

Care and maintenance
Leica HD C100 / Ref. 10 733 205 / Version 01 17
10 Care and maintenance
10.1 Maintenance instructions
 Keep accessories in a dust-free place when not in use.
 Remove dust with bellows and a soft brush.
 Protect the camera system from moisture, vapors, acids, alkalis,
and corrosive substances.
 Do not store any chemicals near the instruments.
 Protect the camera system from improper handling.
 Do not assemble other plugs, or unscrew optical systems and
mechanical parts, unless explicitly instructed to do so in these
instructions.
 Protect the camera system from oil and grease.
 Never oil or grease the guide surfaces or mechanical parts.
 Remove coarse debris with a moistened disposable cloth.
 To disinfect the camera system, use compounds from the
surface disinfectant group based on the following active
ingredients:
• Aldehydes
• Alcohols
• Quaternary ammonium compounds
Due to potential damage to the materials, never use
products based on:
• Halogen-donating compounds
• Strong organic acids
• Oxygen-donating compounds
• Follow the disinfectant manufacturer's instructions.
• We recommend concluding a service contract with Leica
Service.
10.2 Maintenance
10.2.1 Camera and control unit
The camera and control unit are basically maintenance-free.
10.2.2 Remote control
If the control unit is no longer responding to or has only limited
response to the remote control, changing the battery is necessary.
 Open the battery compartment cover on the rear side of the
remote control and remove the old battery.
 Insert new Type CR2025, 3V lithium battery and re-close the
battery compartment cover.
Dispose of old empty batteries in accordance with the
applicable federal guidelines.
10.3 Disposal
Observe the relevant federal regulations when disposing of
the device.
Suitable waste disposal companies are to be used.
The unit packaging is to be recycled

What to do if…?
18 Leica HD C100 / Ref. 10 733 205 / Version 01
11 What to do if…?
If electrically operated functions do not work properly, always check these points first:
• Is the supply voltage properly connected and switched on?
• Are all connecting cables attached correctly?
Fault: No image on the monitor or documentation system
Cause:
Failure of or damage to camera and/or control unit.
Fault remedy:
 Check ambient conditions.
 Check for mechanical damage.
 Operate the camera system in accordance with this User
Manual.
 Check the compatibility of the connected devices.
 Check wiring.
Fault: Date and time display missing or incorrect
Cause:
Buffer battery in the control unit is empty.
Fault remedy:
 Contact your Leica representative.
Fault: No or insufficient remote control reaction
Cause 1:
IR receiver on the front side of the control unit is dirty.
Fault remedy:
 Clean control unit with a moistened disposable cloth.
Cause 2:
The remote control unit battery is empty
Fault remedy:
 Change the remote control unit battery.
Fault: No or insufficient operating button function on the control
unit
Cause:
DIP switch on the rear side of the control unit is not in
operating mode.
Fault remedy:
 Check the DIP switch, see section „6.3 Select video
format and operating mode“, page 8.
 Contact your Leica representative.
Fault: The camera only shows the color bar
Cause:
Control unit and camera are incorrectly connected.
Fault remedy:
 Check the wiring.
 Check the plug connection.
 Contact your Leica representative.
Fault: Blurry image
Cause:
De-focused video adapter.
Fault remedy:
 Check compatibility of the connected devices.
 Contact your Leica representative.
Fault: White balance not possible
Cause:
Image too bright.
Fault remedy:
 Activate the ALC.
 Select a smaller diaphragm.
