LENCO MES-210 User manual

1
This symbol indicates that
dangerous voltage instituting a
risk of electric shock is present
within this unit.
This symbol i ndicates that there are
i mportant operation and
maintenance instructions in the
literature accompanying the
appliance.
C AUTIO N: Laser radiation
when open. Do not stare
into beam.
CAUTION : use of any controls, adjustments,
or procedures other than those specified
herein may result in hazardous radiation
exposure .
CAUTION
1. The product contains a low - power device. In
order to ensure the safety of the laser device,
do not remove any cover and attempt to repair
the unit. If any service needed, please contact
the distributor or its authorized service center.
2. To reduce the risk of electric shock, do not
remove the cover (back). No user- serviceable
parts inside. Refer serving to qualified service
personnel. Unplug the product from the wall
outlet before serving or when it is unused for a
long period of time.
3. The manufacturer should not hold
responsibility for the damage caused by any
substitutions and modification of the product
without authorization from the manufacturer s
or authorized unit.
WARNING
The apparatus shall not be exposed to dripping
or splashing and that no objects filled with
liquids, such as vases, shall be placed on the
apparatus.
NOTES
1. Read these instructions
2. Keep these instruc tions
3. Heed all warnings.
4. Following all instructions.
5. Do not use this apparatus near water
6. Clean only with dry cloth.
7. Do not block any ventilation openings.
8. Install according to the manufacturer
instructions. Do not install near any heat
sources s uch as ra diators, heat registers,
stoves or other apparatus (including
amplifiers) that produce heat.
9. Read, heed and follow all instructions to
ensure correct and safe installation and
interconnection of the apparatus;
10. The apparatus shall not be exposed to
dripping or splashing and that no objects
filled with liquids, such as vases, shall be
placed on the apparatus.
11. The mains socket - outlet shall be installed
near the apparatus and the mains plug
shall remain readily operable.
12. Protect the power cord from being
walked on or pinched particularly at plugs,
convenience receptacles, and the point
where they exit from the apparatus.
13. Only use attachments/accessories
specified by the manufacturer.
14. Use only with the cart, stand, tripod,
bracket, or table specified by the
manu facturer, or sold with the apparatus.
When a cart is used, use caution when
moving the cart/apparatus combination
to avoid injury from tip - over.
15. Unplug the apparatus during lightning
storms or when unused for long periods
of time.
16. Refer all servicing to qualified service
personnel. Servicing is required when the
apparatus has been damaged in any way,
such as power - supply cord or plug is
damaged, liquid has been spilled or
objects have fallen into the apparatus,
the apparatus has been exposed to rain
or mois ture, does not operate normally,
or has been dropped.
17. The apparatus shall be connected to a
mains socket outlet with a protective
earthing connection .
Note: D o not touch the color TFT LCD
screen by hand directly.
Important Safety Instructions

2
Advanced Playing Functions
Features
On -screen Display:
You can
choose form English, Spanish,
French, German or Italian for the
On - screen Display language.
Compatibility: Co
mpatible with
DVD, CD and Picture CD.
Particular Performance:
Multi -speed, fast forward,
fast
backward
and slow forward.
Search by Time:
Search for a
certain track of a disk
by selected
time.
Last Memory Playback:
Memorize the stopped
playback
track and continue playing disk
from this spot
when power is
restored if the disc tray is not
opened.
Special Functions:
Supports
screen
aspect ratio changing,
multi - language s caption ,
and
multi
-
angles.
Region code information :
DVD players and discs are coded by region. If the region
number described on
the DVD disc does not correspond to the region number of this
product, this
product cannot play the disc. The region code of this unit is 2.

3
Accessories List
ITEM NAME QTY
Remote Control with battery
1
Car Adapter 1
Audio/Video Cable 2
Power Supply Cord 1
Strap 4
Owner s Manual 1
NOTE
Accessories and their parts numbers are subject to modification without prior notice due
to improvements.
Accessories

4
DVD Playback . . .18
CD Playback . . ..23
Picture CD Playback .. .. ..24
Contents
..1
...2
...3
...5
.. .7
9
..10
.. 12
..13
..15
..16
..17
..26
..30
..32
.. 33
..35
Safety Instructions
Features
Definitions
Troubleshooting
System Setup
View of Side Panels
View of Main Unit Bottom
Power Supply Preparation
Notes on Discs
Playback Operation
View of Remote Control
Battery Installation for RC
System Connections
Accessories
View of M ain Unit
Specifications
Use of Straps

5
1. - /+ button
Press to adjust the value of brightness and color.
2. AUDIO button
Press to select different languages when a DVD disc which contains multiple audio
languages is played. Press to select different audio track when a CD disc is played.
3. FUNC button
Press to change the brightness and color level. Press and hold for 1-2 seconds to
change the aspect ratio.
4. SLOW button
Press to activate the slow playback function.
5. A- B Repeat button
Press to play a certain selected segment repeatedly.

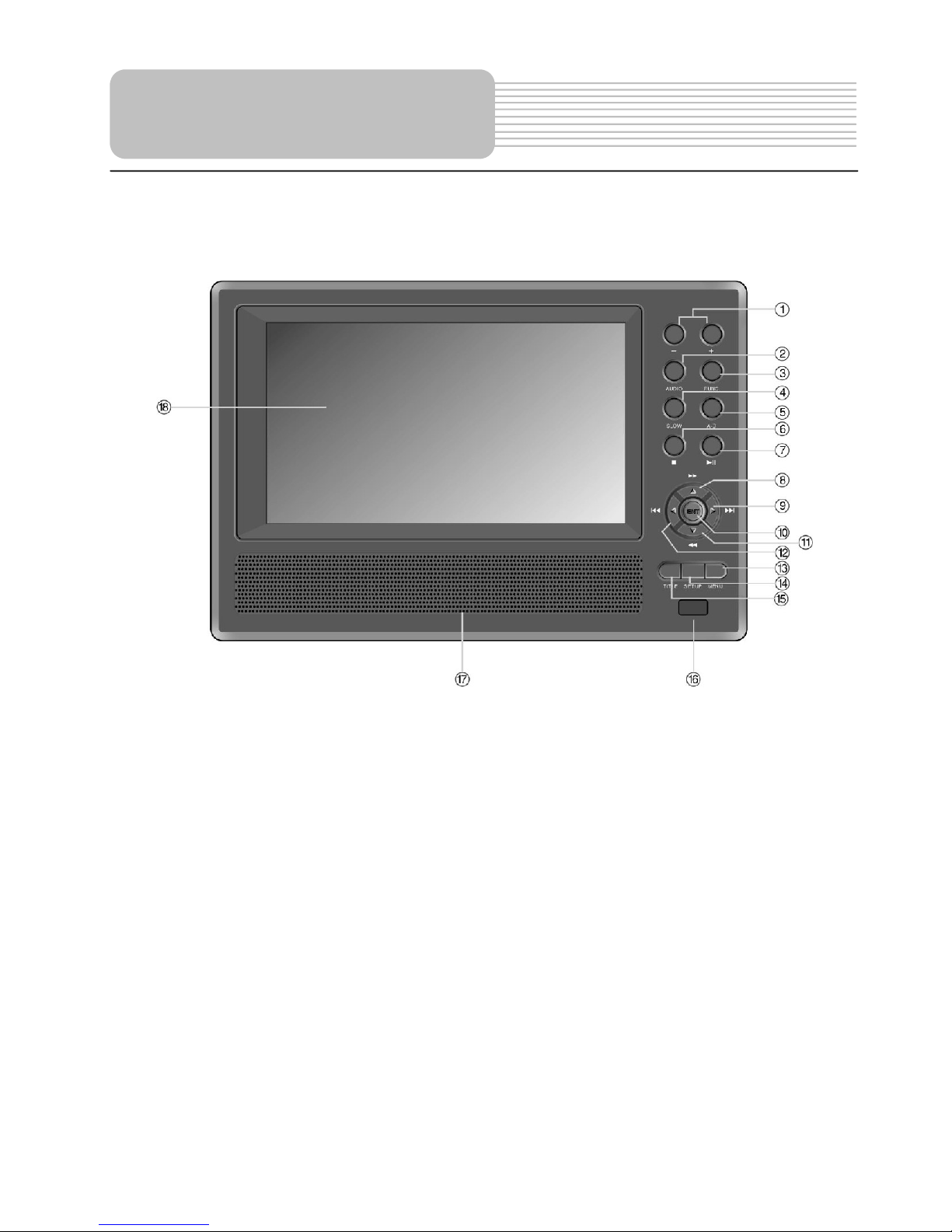

View of Front Panel

6
6. (Stop ) button
Press to stop playback. Then press the button to resume playback from the
stopped spot. Press this button twice to stop playback completely.
7. ( PLAY/ PAUSE ) button
Press once to pause the playback and press it again to resume the playback.
8. / button
Press to select different options or to search forward fast.
9. / button
Press to select different options or to skip to the next list, track or chapter.
10. ENT but ton
Press to access playback or confirm your selection.
11. / button
Press to select different options or to search backward fast.
12. / button
Press to select different options or to return to the previous list or the previous track
or chapter.
13. MENU button
Press to display or cancel the menu.
14. Setup button
Press to enter the player s system setup.
15. TITLE button
Press to display the title menu if it exists in the disc.
16. Remote Control Sensor
17. Speaker
18. LCD Screen
View of Front Panel

7
Right Side View
1. Volume Control
Used to adjust the volume of the headphone and speaker.
2. Headphone Jack
Used to connect headphones for private listening. When the headphones are
connected to this jack, the speaker will be turned o ff automatically.
3. Audio Output Jack
Used for audio output.
4. Video Output Jack
Use for connecting to an external monitor.
5. DC 9.5V Input Jack
Used to connect the car power adapter.
6. OPEN Switch
Push to open the disc tray cover.
7. Disc tray cover
When t he disc is loaded gent ly, press the cover to close it.
View of Side Panels

8
Left Side View
1. Headphone Jack
Used to connect headphones for private listening. When the headphones are
connected to this jack, the speaker will be turned off automatically.
2. Power Switch
Used to turn the power on or off.
View of Side Panels

9
1. Rechargeable Battery Contacts
For connecting a rechargeable battery pack. (not included)
View of Main Unit Bottom

10
1. MUTE button
Press to turn on/off the speaker output.
2. INFO button
Press to display the detailed information of the disc during playing. Press this button
again to exit from the information display.
3. TITLE button
Press to display title menu if it exists in the dis c.
4. Direction buttons
Press to select different options.
5. ENTER button
Press to access playback, or confirm your selection
6. SETUP button
Press to enter the player s system setup.
View of Remote Control

11
7. 0- 9 Number buttons
Press to select an option in the menu.
8. PREV b utton
P ress to return to the previous list or the previous track or chapter.
9. NEXT b utton
Press to skip to the next list, track or chapter.
10. SUBT button
Press to select different subtitle languages if there are multiple subtitle languages
existing in the disc.
16. ANGLE button
Press to access various camera angles playback if the DVD disc contains multiple
camera angles.
17. A- B Repeat button
Press to play a certain selected segment repeatedly.
18. ZOOM button
Press to realize various zoom effects.
19. REP button
Press to repea t a chapter, a title, a track or the whole disc.
20. MENU button
Press to display or cancel the menu.
21. PAUSE button
Press to pause the playback.
22. STOP button
Press to stop the playback. Then press the PLAY button to resume playback from
the stopped spot. Press t his button twice to stop playback completely.
23. PLAY button
Press to begin to play.
24. GOTO button
Press to select the desired disc starting time, track or title.
25. +10 button
Press this button and the additional number buttons to select item numbers which
are g reater than 9.
26. FWD SCAN button
Press to search forward fast.
27. REV SCAN button
Press to search backward fast.
28. SLOW button
Press to activate slow playback function.
29. AUDIO button
Press to select different languages
when a DVD disc which contains multiple audio languages is played. Press to
select different audio track when a CD disc is played.
View of Remote Control

12
Installation Steps
F ollow the steps below to install the battery .
Step1: Pull the battery holder out from the remote
control in the direction of the ar row.
Step 2: Load a new battery properly with
the (+) side up.
Step3: Insert the battery holder back into
the remote control .
Battery Property
Battery Type: CR2025 3V
Battery Life: Approximately 1 year under normal use (at room temper ature) .
Caution
1. Improper use of the battery may cause overheating, explosion or ignition, which
can result in an injury or fire. Battery leakage may damage the remote control .
2. Do not expose the remote control unit to direct sunlight.
3. Do not re charge, disassemble, deform or heat the battery.
4. Do not put the battery in fire or water.
5. Immediately replace the exhausted battery.
Battery Installation for
Remote Contr ol

13
Always ensure that the DVD player, TV and any other electrical equipment to be
connected with are switched off and unplugged from the power supply.
Ensure that you observe the color coding when connecting audio and video
cables.
Connecting to TV
Audio/Video connections
Follow the drawings below to connect the DVD player to TV's Audio/Video inputs with
Audio/Video cables.
System Connections

14
Connecting to Amplifier
R efer to your Audio equipment's manual before connection.
F ollow the drawings below to connect the DVD player to AV amplifier.
Connecting to Headphones
Connect the headphones to the right side of the player for private listening.
When headphone is connected, the speakers will automatically turn off.
System Connections

15
Using of Car Adapter
The player is supplied with a Car Adapter for powering the unit while in a v ehicle.
Attention
Do not operate the unit or view video software while driving a vehicle.
Place the unit in a proper position for viewing.
D isconnect the player from the Car Adapter when starting the vehicle .
Power Supply Preparation
Connect the Car Adapter Power Plug to
the unit
s power jack and plug the other
end to the vehicle
s cigarette socket, as
shown on the right figure.

16
Compatible Disc Forma ts
DISC LOGO DIAMETER
PLAYBACK TIME/
PLAYABLE SIDES
133 min (SS-SL)
242 min (SS-DL)
266 min (DS-SL)
12cm
484 min (DS-DL)
41 min (SS - SL)
75 min (SS - DL)
82 min (DS - SL)
DVD
8cm
150 min (DS - DL)
12cm 74 min
CD
8cm 20 min
JPEG 12cm
Operation methods of some DVD discs are specified by the software manufacturer.
Please follow the instructions of those disc s.
Care of Discs
Holding Discs
Cleaning
When loading or removing discs,
do
not touch their playing surfaces
as the right figure.
Fingerprints or stain on t
he disc may affect the quality of sound and
picture. To clean your discs, use a soft clean cloth to wipe them. If
necessary, moisten a soft cloth with diluted neutral detergent to remove
heave dirt or fingerprints.
Do not wipe in a circular direction as t
he figure in the right middle
(concentric scratches on the disc groove tend to cause noise).
Gently
wipe from the center of the disc to the outer edge as the right figure.
Notes on Discs

17
READ THE FOLLOWING INSTRUCTIONS CAREFULLY BEFORE USING YOUR DVD
PLAYER FOR THE FIRST TIME.
WARNING: Do not play poor - quality discs to avoid damaging the lens.
Pre - operation
1. Connect the unit to power supply through the provided DC adaptor .
2. S witch POWER ON/OFF to ON on the left panel to turn o n the DVD player.
3. Press the OPEN button on the unit to open the disc tray cover and then put a disc in
the disc tray with printed side facing up . C lose the disc cover. (See below)
4. The player will search disc and play it automatically.
5. A djust the volume with the VOLUME control on the right panel to the desired level.
6. To turn the player off, switch the POWER ON/OFF on the left panel to OFF .
Using of General Button
Playback Operation
FUNC
button
Press the FUNC button to change the brightness
and
color level . Adjust these values with the + and -
buttons
on the front panel. Press and hold the FUNC button
for
about 1 or 2 seconds to
change the aspect ration
between 16:9 and 4:3. See the below for details:

18
DVD Playback
Buttons Operation
Playback Operation
Zoom button
Press the ZOOM button repeatedly to shift among
1X, 2X, 3X ,
4X zooming effect and normal
playback.
ENTER/ENT
button
Press
the
ENTER/ENT
button to start playing
or
the b uttons or the 0-9 buttons
to select
a Title and Chapter directly.
Pause /
button
Press the PAUSE/ button
to pause during
play back and then press the PLAY/ button
to
resume normal play back .
Stop/
button
During play
back
,
press
the
STOP/
button
o
nce to
stop playback and then press the PLAY/
button
to resume normal playback from the
stopped point.
Press the STOP/ button twice continuously
to
stop playback completely.
Then when you press
the PLAY/
button, the player will play from the
beginning.
A
- B Button
Press the A
-
B button once to set the starting point
A and press it again to set the end point B. Then
the player will play the segment between A and B
continuously.
Press this button a third time to stop
the A - B repeat.

19
DVD Playback (continued)
Playback Operation
TITLE button
Press the TITLE button during play
back and
t
he
title menu will appear on the screen.
Press the butto
ns to select the title or disc
menu item you wish to play and then press
the
ENTER /ENT
button to confirm your selection. Or
press the 0-
9 buttons to select the item you prefer
directly .
&
bu
ttons
Press the button to go to the previous chapter.
Press the button to play the next chapter.
MENU button
Press
the MENU
button during playback and
t
he
root menu will appear on the screen.
Press the buttons to select the item
you
want
to play and then press the ENTER /ENT
button to confirm your selection. Or press the 0-
9
buttons to select the item you prefer directly .
&
buttons
Press the button to start fast forward playback
.
Press it repe atedly to
fast forward at the speed of
2 X, 4 X, 8X, 16X and normal playback
in sequence.
Press the button to fast reverse
. Press it
repeatedly to fast re verse at the speed of 2 X, 4
X,
8 X, 16X and normal playback in sequence.
Press the PLAY/ button to resu me
normal
play back .
SLOW button
Press
the SLOW button repeatedly and the slow
playback will be undergoing at the speed of 1/2,
1/4, 1/8, 1/16 and normal playback in
sequence.
Press the PLAY/
button to resume normal
playback.

20
DVD Playback (continued)
Playback Operation
When a DVD disc is playing, press the
SUBT button
to select a subtitle language or to turn the
subtitle off.
A DVD disc can be recorded with
up to 32 subtitles.
Press the
SUBT button repeatedly and the mode of
subtit les will recycle as f ollows:
SUBTITLE 1/N: Subtitle 1 appears on the screen.
SUBTITLE 2/N: Subtitle 2 appears on the screen.
SUBTITLE */N: Subtitle * appears on the screen
SUBTITLE OFF: No subtitle.
N refers to the total number of subtitles that the
current
disc contains.
NOTE: This function is only
available for DVD discs
recorded with multi - subtitles .
SUBT button
REP button
Press the REP button to repeat a Chapter, Title
or
cancel the repeat in sequence.
INFO button
Press the INFO button repeatedly for
different
detailed information about the disc during
the disc
play back and to cancel the information.
AUDIO
button
DVD discs can contain up to 8 audio bit streams.
For example: English, French etc.
To select the audio bit stream you prefer, press
the
AUDIO button during
play back
. The DVD player
will play the next audio bit stream
if exists
every
time you press the AUDIO button in succession.
NOTE: This function is available for DVD discs
recorded wi th multi - audio language s.
