Introduction
Introduction Introduction
Introduction
Congratulations on your purchase of 15
15 15
15 inch Digital Picture Frame, model DP-1520
Before operating the unit, please read this manual thoroughly, and retain it for future reference.
This manual will help you use many of the exciting and useful features that will make your
Digital Picture Frame viewing more enjoyable.
This Digital Picture Frame lets you view digital pictures directly from your camera's memory
cards. You will be able to create a slideshow using multiple transition effects or display one
picture at a time. No computer, digital camera or Internet connection is required.
This Digital Picture Frame is compatible with the following popular memory card formats:
CompactFlash®, SD™, XD, MultiMediaCard™, and Memory Stick®.
It can also read files stored on a USB Flash drive using the USB host port.
Main Features
Main Features Main Features
Main Features
•Displays digital pictures (JPEG) without a computer
•Simply insert a compatible memory card into the Digital Picture Frame to show
photos, play MP3 music or supported video files (memory card not included).
•Compatible memory cards include Secure Digital Card (SD), MultiMedia Card
(MMC), Memory Stick (MS), XD Cards & Compact Flash
•Able to read files located on a USB Flash drive
•Instantly plays MP3 music with the integrated speakers.
•Instantly plays MPEG1，2，4 files stored on supported memory cards*.
•Supports up to 12 Mega Pixels image files (JPEG format).
•Compatible with most digital cameras’ stored JPEG images and motion JPEG files.
•Includes a credit card style remote control
•Bright 15” TFT active matrix LCD screen.
•Automatic slide show with multiple transition effects.
•Plays slide show with MP3 music on the background.
•User-friendly on-screen display lets you access all controls easily.
*Video files may not play properly if stored on a low speed card.

For information and support; www.lenco.eu
- 2 -
Getting Started
Getting Started Getting Started
Getting Started
Package Contents
Digital Picture Frame and stand
User Guide
AC/DC Adapter
Remote
USB cable

For information and support; www.lenco.eu
- 3 -
Installing your unit
•Open the package and remove the protective foam. Remove the protective sleeve from
the unit.
•Install the Digital Picture Frame stand as the back of the unit.
•Plug in the AC adapter into power outlet. Plug the other end into the unit.
•After the content is stored on the target flash media; insert the media into the correct
slot.
•Turn power to ON position via the ON/OFF switch.
Connecting to a PC
The Digital Picture Frame has a USB port for connection to a PC (USB Slave) and a second USB
port for connection to other devices such as a Flash Drive, USB card reader, or a camera (USB
Host). When connected to the PC you can drag-and-drop content from the PC to the internal
memory or memory card. You can also delete content from the internal memory.
NOTE: USB Slave and USB Host can not be used at the same time.

For information and support; www.lenco.eu
- 4 -
Operation
This Digital Frame is extremely easy to operate:
1. Remove memory card from camera:
2. Insert memory card into the frame with face away from the unit:
3. when power on the frame,the picture would displayed automatically.

For information and support; www.lenco.eu
- 5 -
Controls
ControlsControls
Controls

For information and support; www.lenco.eu
- 6 -
Using your Remote Control
Using your Remote ControlUsing your Remote Control
Using your Remote Control
The following table briefly describes the remote control functions
Button Description
On/Off Switch on/off the frame
Mode Photo/Audio/Video Mode
Switch
Vol - Decrease volume
Vol + Increase Volume
Slideshow Start the slideshow
OSD Display the picture menu
Menu Display the main menu
Rotate Rotate the current picture
Enter Confirm
Zoom Zoom the current picture
Play/Pause
Stop
Arrows Navigate on screen

For information and support; www.lenco.eu
- 7 -
Inserting Memory Cards
Inserting Memory Cards Inserting Memory Cards
Inserting Memory Cards
The Digital Picture Frame is compatible with the following memory cards:
•Secure Digital TM Card (SD)
•MultiMedia TM Card (MMC)
•Memory Stick TM
•CompactFlash TM (CF) Card
•XD Picture Cards
Insert the memory card with the front label facing AWAY from you. Do not force the memory
card into the memory slot. If you are not able to easily insert the memory card completely, you
may have inserted it the wrong way.
Note:
The Digital Picture Frame will ONLY recognize digital pictures stored in JPEG format. Digital
pictures stored in other formats will be ignored by the device.
Make sure you have at least one picture stored on the memory card. The frame will not function
properly without a stored picture.
You also can use a USB flash drive in the exact same way as you would use a memory card.
Simply copy files on the flash drive and insert it at the right side of the unit in the USB Host plug.

For information and support; www.lenco.eu
- 8 -
Main menu
Main menuMain menu
Main menu
Upon turning on the Digital Picture Frame, you will go straight to the MENU screen. To set the
Auto Start feature Choose the SETUP screen. Use the left/right arrow to go to the “Set up”. Press
the Enter button to enter the options screen. Use the Up / down arrows to choose your auto start
option. Press the “MENU” button to show the following menu:

For information and support; www.lenco.eu
- 9 -
Use the left and right arrows to move inside the menu and then press “Enter” to continue
Note: In all menus, pressing the “Menu” button will bring you back to the main menu
Function Description
Nand Play files in internal memory
Setup Set system menu
Calendar Display calendar, clock, alarm
SD/MMC/MS/xD Play files on SD/MMC/MS/xD memory card
CF Play files on CF memory card
USB Play files on USB flash drive
NOTE: Icons of above functions shall appear automatically on MENU screen when certain
memory card is inserted. Icons shall disappear when correspondent card is removed from card
slot.

For information and support; www.lenco.eu
- 10 -
Viewing Pictures
Make sure you have at least one picture on your memory card or your USB flash drive. When this
is done:

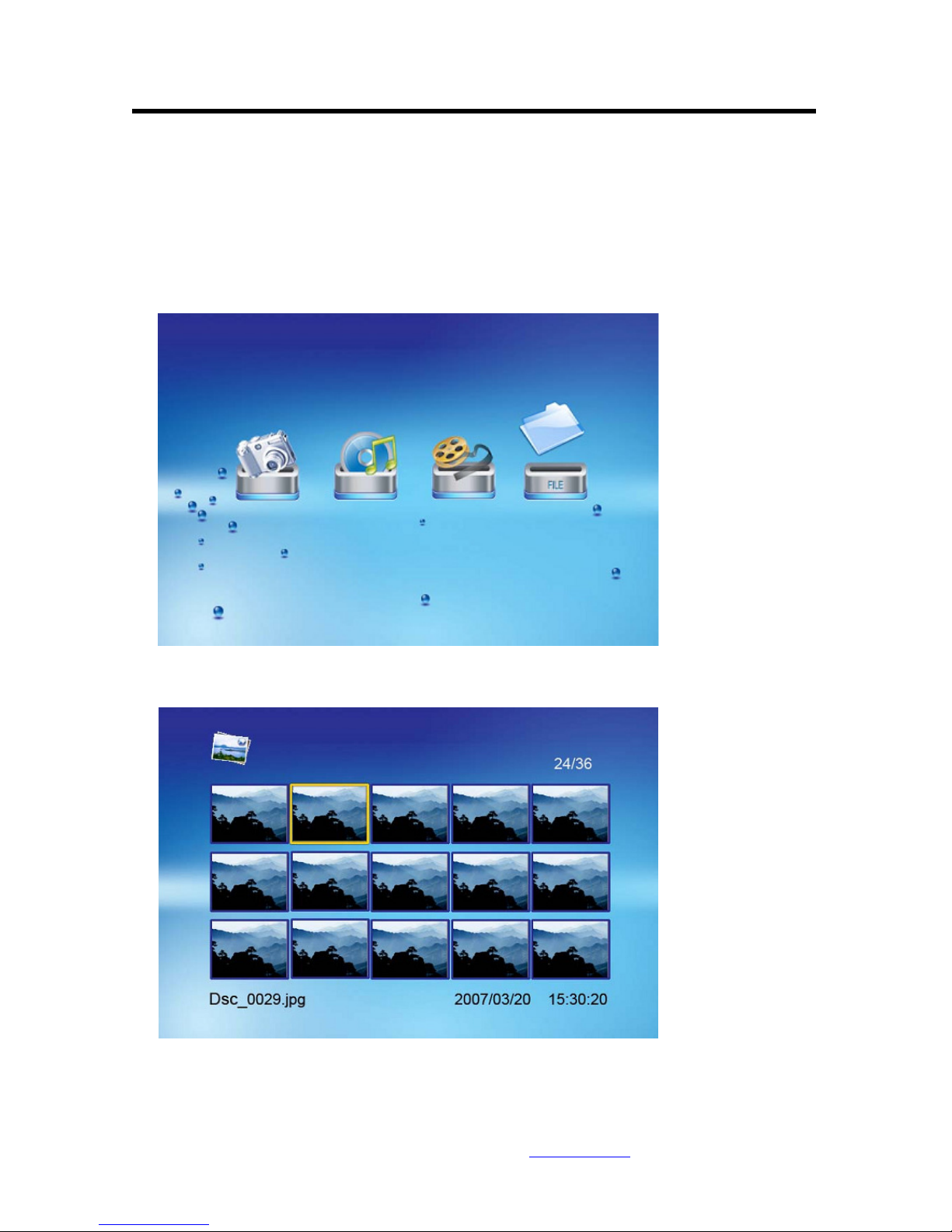

•Select the desired flash media on main menu. (SD/xD/CF/MS/USB/NAND-Internal
Memory)
•Select the “PHOTO” option from the menu and press “ENTER”
•A Photo thumbnail will appear. User UP/DOWN/LEFT/RIGHT arrows can move the
highlight. If the highlighted is a folder, press Enter to enter the folder.

For information and support; www.lenco.eu
- 11 -
•Otherwise press Enter to enter the full screen photo (pause mode) and press Play to enter
into slideshow mode.
•Once a slideshow is playing or a picture is being shown, press the OSD button. The
following menu will appear:
Previous
Play previous picture in the picture list
Play or Pause
Play or pause the current slideshow.
Next
Play next picture in the picture list
Rotate
Use the rotate function to change the picture orientation to either portrait or landscape.
Stop
Stop slideshow and return to photo thumbnail.
Zoom
Choose the Zoom function to magnify the iamge,Repeat this operation several times to further
zoom in.

For information and support; www.lenco.eu
- 12 -
Watching video
The Digital Picture Frame supports the following video formats:
•Motion JPEG (*avi): video format used by most digital cameras
MPEG-I &MPEG-2 –w/layer I,II,III(*MPG,*MPEG,*DAT)
•MPEG 4-W/MP3 audio (*avi)
Make sure you have at least one video on your memory card or your USB flash drive. When this
is done:
•Select the desired flash media on main menu. (SD/xD/CF/MS/USB/NAND-Internal
Memory)
•Select the “MOVIE” option from the menu and press “ENTER”
•A list of all movie files will be listed on the left side of the screen. The right side consists
of the movie preview window and information display of the current movie. Use
Up/Down arrows to select the movie and press Enter to play.
Once a movie is playing, press the OSD button on the remote control. The following menu will
appear:

For information and support; www.lenco.eu
- 13 -
Previous
Play previous movie in the play list
Fast Forward
Play forward the movie by 2/3/4 times speed.
Play or Pause
Play or Pause the movie.
Fast Backward
Play backward the movie by 2/3/4 times speed.
Next
Play next movie in the play list
Stop
Stop the movie and return to the play list
Zoom
Increase the size of the picture by 2/3/4/1 times.

For information and support; www.lenco.eu
- 14 -
Listening to MP3 music
Make sure you have at least one MP3 file on your memory card or your USB flash drive. When
this is done:
•Select the desired flash media on main menu. (SD/xD/CF/MS/USB/NAND-Internal
Memory)
•Select the “MUSIC” option from the menu and press “ENTER”
•
•A list of music files will be listed on the left side of the screen. The right side consists of
the frequency chart and information status bar. The song information area is below the
status bar. Use the Up/Down arrows to select the music file and press Enter to play.

For information and support; www.lenco.eu
- 15 -
•Press VOL+ to increase the volume or VOL- to decrease the volume.
•Press the Play/Pause button on remote control to play or pause the music file.
•Press the Stop button on the remote control to return to the list of music files.
File Option
Playing a slideshow with music
Ensure you have at least one picture on your memory card or your USB flash drive. Additionally,
you must have one MP3 file saved on the selected memory card/USB/Internal Memory. When
this is done:
•Select the desired flash media on main menu. (SD/xD/CF/MS/USB/NAND-Internal
Memory)
•Select the “FILE” option from the menu and press “ENTER”
•A list of all files on the selected memory card or internal memory will be listed on the left
side of the screen. The right side consists of the file information. Use Up/Down arrows to
select a picture file and press Enter to enter a full screen photo (pause mode). Press Play
button on the remote control, an audio slideshow will begin automatically.
Once an audio-slideshow is playing, press the OSD button. The following menu will appear:

For information and support; www.lenco.eu
- 16 -
Previous
Play previous picture in the picture list
Play or Pause
Play or pause the current slideshow.
Next
Play next picture in the picture list
Rotate
Use the rotate function to change the picture orientation to either portrait or landscape.
Stop
Stop slideshow and return to photo thumbnail.
Zoom
Increase the size of the picture by 2/4/8/16/1 times.
VOL
Press VOL+ or VOL- on remote control to increase or decrease the volume
