L-175
Direct drive glass turntable
User Manual
www.lenco.com

2
Table of content
Table of content ---------------------------------------------------------------------- 2
Description ---------------------------------------------------------------------------4-5
Initial starting-up ---------------------------------------------------------------------- 6
Mount and adjust --------------------------------------------------------------------- 6
Mains connection --------------------------------------------------------------------- 7
Amplifier connection ----------------------------------------------------------------- 7
Playing a record ---------------------------------------------------------------------- 8
Record to PC -------------------------------------------------------------------------- 8
Maintenance --------------------------------------------------------------------------- 9
To replace the stylus ---------------------------------------------------------------- 9
To disassemble the cartridge ----------------------------------------------------- 9
Important recommendations ------------------------------------------------------- 9
Audacity quick guide ---------------------------------------------------------- 10-25

3
Dear customer,
Thank you for buying this Lenco product. Quality and usability is our top
priority. In order to let you fully enjoy this turntable, we have manufactured
this product using high quality standards, materials, components, and care.
Please read all safety instructions and national restrictions, before
you use this turntable.
Note:
This user manual was printed prior to the development of this product.
When operability or other functions needed improvement, priority went to
the product specification itself, and not to this manual.
In such instances, the instruction manual may not entirely match all the
functions of the actual product. Therefore, the actual product and
packaging, as well as the name and illustration, may differ from the manual.
The screen shown as an example in this manual may differ from the actual
screen display.
Lenco is not liable for any consequential damage.

4
Description
1. Counterweight
The counterweight is used for precise adjustment of the stylus
pressure on the vinyl, to properly balance the tone arm.
2. Anti-Skating Control
Use this to set the anti-skating function of the tone arm.
3. Tone arm Lever
Use this lever to lower and raise the tone arm.
4. Tone arm Lock (arm rest)
Use this to lock the tone arm in place when not in use.
5. Headshell
This holds the stylus (“needle”) in place and provides protection by
means of its removable stylus protection cap (not shown)
6. Platter:

5
Place the record here when playing.
7. 33/45 RPM Switch (33/STOP/45):
Select 33 or 45 rpm for playing a vinyl, switch to “STOP” to pause the
playing. Switch to 33 or 45 again, to continue the playing from the
pause point.
8. Signal Connectors
Plug in the RCA cable, and connect the cable to audio amplifier.
9. Pre-Amp ON/OFF selector
*ON: Connect the RCA cable to LINE-IN terminal of amplifier.
*OFF: Connect the RCA cable to PHONO-IN terminal of amplifier.
10. USB port
Connecting to PC for recording the music from vinyl to PC.
- With Full-Speed Transceivers
- Fully Compliant With USB 1.1 Specification
11. Auto Stop Switch
While the tone arm playing to the end of the record, it will automatically
stop. The records have various ending points, if the record is auto-stop
before playing to the end, please switch off the auto-stop function.
12. Power supply jack:
To plug-in DC24V/1A switching adaptor for power supply.
13. Power Switch:
During PAUSE mode (33/STOP/45 switch is on “STOP” position), the
motor is still activated, switch off the player after use to save energy.
When installing the L-175 please make sure not to place it directly on top
of your Amplifier. (Amplifiers are known to cause hum noise on turntables.)

6
Initial starting-up
Mount and adjust
1) Place the aluminum turntable platter.
2) Insert the counterweight on the end of the tone arm, lock it into place.
3) Adjusting the stylus pressure
Turn the anti-skating knob counter-clockwise to “0”.
Pull down the protective cover of the stylus.
Place the lever for the tone arm lift in the front position.
Open the tone arm lock. Seize the handle of the tone arm and lead it
to just before the turntable platter so that it can be moved upwards
and downwards. (Be careful not to hit the stylus against anything.)
4) Turn the counterweight until the tone arm remains in a horizontal
position and does not move upwards or downwards. If the tone arm
moves upwards: Turn the counterweight counter-clockwise. If the tone
arm moves downwards: Turn the counterweight clockwise.
5) Put the tone arm back onto the arm rest and lock it.
6) The counterweight is with a rotary ring with a scale. The white line on
the tone arm points to a value on this scale. Without turning the
counterweight, only turn the ring to “0”
7) The scale indicates the stylus pressure in grams. The pressure of the
stylus supplied with this turntable is 3 g, turn the counterweight
counter-clockwise to “2.5”. If another stylus is used, adjust the stylus
pressure indicated in the corresponding specifications of the stylus.
8) Adjusting the anti-skating facility
When playing a record, forces occur on the stylus which are
compensated by the anti-skating facility. For this purpose, adjust the
anti-skating knob from “0” to the value equals to the stylus pressure,
with for the supplied stylus system , it’s “2.5”.

7
Mains Connection
An external switching power adaptor (DC24V/1A) is supplied with this
turntable. Your unit is ready to be connected to a main voltage of
110V/60Hz or 230V/50Hz.
Amplifier Connection
There is a Phono/Line selector next to the RCA jack on the rear panel of
the turntable.
If your amplifier has “PHONO” input, switch the selector to “PHONO”,
and connect the RCA plug to the PHONO INPUT of your amplifier.
If your amplifier hasn’t “PHONO” input, switch the selector to “LINE”,
and connect the RCA plug to the “LINE” input of your amplifier.
Red plug into R channel input, White plug into L channel input.
With the PRE-AMP switch at ON never connect to a Phono input.
Audio will be strongly distorted then and there is a risk that
Amplifier and/or speakers will be damaged.

8
Playing a record
1) Place the record on the turntable. If it is a 45 rpm, you need to place
the adaptor on the record spindle.
2) Choose the playing speed, record
3) Release the pick-up arm clip.
4) Place the cartridge vertically over the first track of the record the
turntable.
5) When it play to the end of the record, the platter is auto-stop, push the
lift button to lift the tone arm and lead it back to the arm rest.
6) When the auto stop system is activated, the platter will stop in a few
seconds, if you want to repeat playing the same side of the vinyl, need
to release the auto-stop as following:
i) Move the tonearm to arm rest, and them put it on the track you to
play. Or,
ii) Switch the 33/STOP/45 knob to “STOP” , then switch to 33 or 45.
7) If you want to pause the playing, switch the knob on the left side to
“STOP”, and switch it to 33 or 45 to continue the playing.
8) After finish the playing, please switch off the power to save energy.
Record to PC
Connect USB to PC for editing the music with your favorite digital editing
software.
With this unit, we offer you a disc with a PC music editing program, please
refer to the instructions attached to this manual for the operation.

9
Maintenance
TO REPLACE THE STYLUS (FIG.A)
-Put the rest (11) clip on the pick-up arm.
-Remove the protective cap from the stylus.
-Pull the stylus in the direction of arrow (A) and remove it.
-Put in the new stylus following the reverse procedure.
-Replace the protective cap on the stylus.
TO DISASSEMBLE THE CARTRIDGE (FIG.B)
-Put the rest clip into the pick-up arm.
-Remove the stylus (see section above).
-Release the pick-up head, push the cartridge in the direction of
arrow.
-Disconnect the four link wires at the level of the pick-up head.
TO INSTALL NEW CARTRIDGE
-Connect the four link wires as shown in figure.
-Push the cartridge into head shell
-Re-position the stylus
-Replace the protective cap on the stylus.
Important Recommendations
We advise you to clean your records using a rag impregnate with an
antistatic product for maximum enjoyment of your records and also to
make them last.
We would also point out that for the same reason your stylus should be
replaced periodically (approximately every 250 hours)
Dust the stylus from time to time using a very soft brush dipped in alcohol
(brushing from back to front of the cartridge)
WHEN TRANSPORTING YOUR RECORD PLAYER DO NOT FORGET
TO:
Replace the protective cap on the stylus.
Put the rest clip into the pick-up arm.

10
AUDACITY QUICK GUIDE (PC editing program)
Before Starting the Software
Make sure that your USB turntable is plugged into the computer and both
the computer and the turntable are plugged in and switched on.
To Install Software (PC)
1. Plug in your turntable to an AC outlet and connect the USB port
on the Turntable to the USB port of your computer.
2. Turn on the power switch to your turntable.
3. Windows system will detects a new device and that it is available
to use.
4. Insert the CD that came with your USB turntable.
5. Run the file “install audacity-win-1.2.4b.exe” to install Audacity
software. Once installed, run the Audacity program.
To Install Software (MAC)
1. Insert the included CD
2. Open the CD icon on the desktop.
3. Drag the installation folder for audacity to your hard drive. We
recommend that you move the folder to your “Applications” folder.
4. A window will come up which shows the files copying.
5. EJECT the CD.
6. Open “Audacity” from where you moved it to on your hard drive.
Software Configuration
1. Click on Microphone in the drop down menu and select “Stereo Mix”
Figure 1: Select Stereo Mix
2. Select the “Edit” menu and then “Preferences”

11

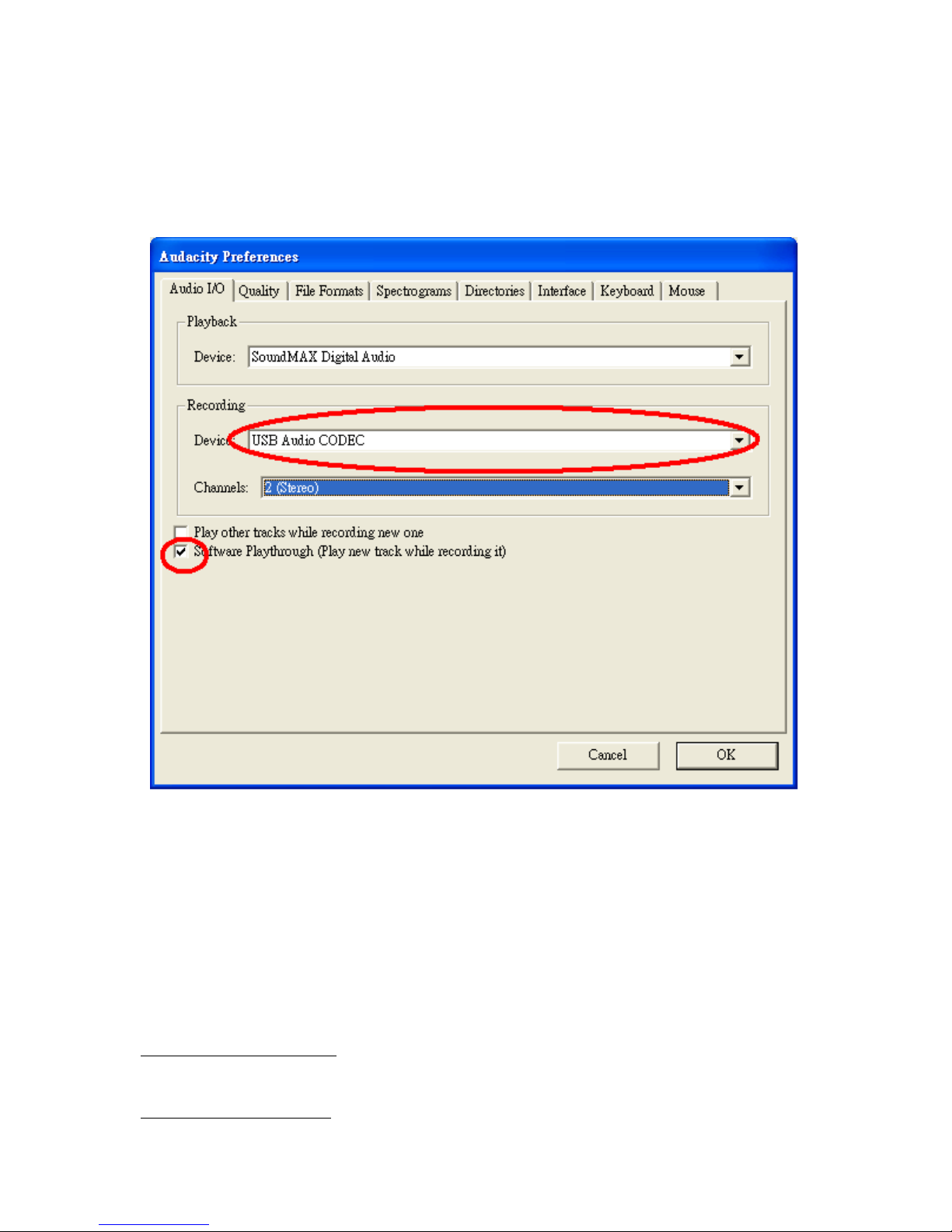

Select the USB audio device under the “Recording” selection as shown.
Select “Software Playthrough” to hear the audio while recording.
Note: The USB Turntable may show up with a different name in Windows
system.. This may depend on your computer model and operating system.
99% of the time it will contain “USB” in the Name.
Figure 2: Select USB Audio Device from Preferences
After completed the above settings, you are ready for recording.
If you are still having difficulties finding the USB Turntable, try to check
your system settings or control panel to adjust audio input settings from the
sound control panel. .
Note:
The attached Audacity software is for reference only. Please download the latest
version from the following website:
http://www.audacity.com
Please check the following website and download the trial software for more sound
editing software.
http://www.bias-inc.com

12
Toolbars
Selection tool - for selecting the range of audio you want to edit or
listen to.
Envelope tool - for changing the volume over time.
Draw tool - for modifying individual samples.
Zoom tool - for zooming in and out.
Time shift tool - for sliding tracks left or right.
Multi tool -
lets you access all of these tools at once depending on the
location of the mouse and the keys you are holding down.
Audio Control Buttons
Skip to Start - moves the cursor to time 0. If you press Play at this
point, your project will play from the beginning.
Play - starts playing audio at the cursor position. If some audio is
selected, only the selection is played.
Loop - if you hold down the Shift key, the Play button changes to
a Loop button, which lets you keep playing the selection over and
over again.
Record - starts recording audio at the project sample rate (the
sample rate in the lower-left corner of the window). The new track
will begin at the current cursor position, so click the "Skip to Start"
button first if you want the track to begin at time 0.
Pause - temporarily stops playback or recording until you press
pause again.
Stop - stops recording or playing. You must do this before
applying effects, saving or exporting.

13
Skip to End - moves the cursor to the end of the last track.
Edit Toolbar
All of the buttons on this toolbar perform actions - and with a couple of
exceptions, they're all just shortcuts of existing menu items to save you
time. Holding the mouse over a tool will show a "tooltip" in case you forget
which one is which.
Cut
Copy
Paste
Trim away the audio outside the selection
Silence the selected audio
Undo
Redo (repeat last command).
Zoom In
Zoom Out
Fit selection in window - zooms until the selection just fits inside the
window.
Fit project in window - zooms until all of the audio just fits inside the
window.

14
Track Pop-Down Menu
The Track Pop-Down Menu appears when you click in a track's title. This
lets you access a few special commands that apply to individual tracks.
Name... - lets you change the name of the track.
Move Track Up - exchange places with the track above this one.
Move Track Down - exchange places with the track below this one.
Waveform - sets the display to Waveform - this is the default way of
visualizing audio.
Waveform (dB) - similar to Waveform, but on a logarithmic scale,
measured in decibels (dB).
Spectrum - display the track as a spectrogram, showing the amount of
energy in different frequency bands.
Pitch (EAC) - highlights the contour of the fundamental frequency (musical
pitch) of the audio, using the Enhanced Autocorrelation (EAC) algorithm.
Mono - makes this track a mono track, meaning it is played out of just one
speaker, or played out of the left and right speakers equally.
Left Channel - makes this track come out of only the left speaker.
Right Channel - makes this track come out of only the right speaker.
Make Stereo Track - if there is another track below this one, joins them to
make a single stereo track, with the top track representing the left speaker,
and the bottom track representing the right speaker. When tracks are
joined into a stereo pair, all edits automatically apply to both the left and
right channel.

15
Split Stereo Track - if the selected track is a stereo track (a pair of left and
right tracks joined together as a single track), this operation splits them into
two separate tracks that you can modify and edit independently.
Set Sample Format - this determines the quality of the audio data and the
amount of space it takes up. 16-bit is the quality used by audio CD's and is
the minimum quality that Audacity uses internally (8-bit audio files are
automatically converted when you open them). 24-bit is used in higher-end
audio hardware. 32-bit float is the highest quality that Audacity supports,
and it is recommended that you use 32-bit float unless you have a slow
computer or are running out of disk space.
Set Rate - sets the number of samples per second of the track. 44100 Hz
is used by audio CDs. Tracks can have different sample rates in Audacity;
they are automatically resampled to the project sample rate (in the lower-
left corner of the window).
File Menu
New - creates a new empty window
Open... - opens an audio file or an Audacity project in a new window
(unless the current window is empty). To add audio files to an existing
project window, use one of the Import commands in the Project menu.
Close - closes the current window, asking you if you want to save changes.
On Windows and Unix, closing the last window will quit Audacity, unless
you modify this behavior in the Interface Preferences.
Save Project - saves everything in the window into an Audacity-specific
format so that you can save and quickly continue your work later. An
Audacity project consists of a project file, ending in ".aup", and a project
data folder, ending in "_data". For example, if you name your project
"Composition", then Audacity will create a file called "Composition.aup"
and a folder called Composition_data. Audacity project files are not meant
to be shared with other programs - use one of the Export commands
(below) when you are finished editing a file.
Save Project As... - same as Save Project (above), but lets you save a
project as a new name.
Recent Files ... - brings up a list of files you have recently opened in
audacity to be re-opened quickly.

16
Export As WAV... - exports all of the audio in your project as a WAV file,
an industry-standard format for uncompressed audio. You can change the
standard file format used for exporting from Audacity by opening the File
Format Preferences . Note that exporting will automatically mix and
resample if you have more than one track, or varying sample rates. See
also File Formats.
Export Selection As WAV... - same as above, but only exports the current
selection.
Export as MP3... - exports all of the audio as an MP3 file. MP3 files are
compressed and therefore take up much less disk space, but they lose
some audio quality. Another compressed alternative is Ogg Vorbis (below).
You can set the quality of MP3 compression in the File Format Preferences.
See alsoMP3 Exporting.
Export Selection As MP3... - same as above, but only exports the current
selection.
Export as Ogg Vorbis... - exports all of the audio as an Ogg Vorbis file.
Ogg Vorbis files are compressed and therefore take up much less disk
space, but they lose some audio quality. Ogg Vorbis files tend to take up a
little less disk space than MP3 for similar compression quality, and Ogg
Vorbis is free from patents and licensing restrictions, but Ogg Vorbis files
are not as widespread. You can set the quality of Ogg compression in the
File Format Preferences.
Export Selection As Ogg Vorbis... - same as above, but only exports the
current selection.
Export Labels... - if you have a Label Track in your project, this lets you
export the labels as a text file. You can import labels in the same text
format using the "Import Labels..." command in the Project Menu.
Export Multiple... - lets you split your project into multiple files all in one
step. You can either split them vertically (one new file per track), or
horizontally (using labels in a Label Track to indicate the breaks between
exported files.
Page Setup - configure how Audacity will print out the track waveforms
using the Print option, and what printer to use.

17
Print - Print out the main window view from audacity showing the tracks
and waveforms.
Exit (Quit) - closes all windows and exits Audacity, prompting you to save
any unsaved changes first.
Edit Menu
Undo - This will undo the last editing operation you performed to your
project. Audacity supports full unlimited undo - meaning you can undo
every editing operation back to when you opened the window.
Redo - This will redo any editing operations that were just undone. After
you perform a new editing operation, you can no longer redo the
operations that were undone.
Cut - Removes the selected audio data and places it on the clipboard.
Only one "thing" can be on the clipboard at a time, but it may contain
multiple tracks.
Copy - Copies the selected audio data to the clipboard without removing it
from the project.
Paste - Inserts whatever is on the clipboard at the position of the selection
or cursor in the project, replacing whatever audio data is currently selected,
if any.
Trim - Removes everything to the left and right of the selection.
Delete - Removes the audio data that is currently selected without copying
it to the clipboard.
Silence - Erases the audio data currently selected, replacing it with silence
instead of removing it.
Split - Moves the selected region into its own track or tracks, replacing the
affected portion of the original track with silence. See the figure below:

18
Duplicate - Makes a copy of all or a part of a track or set of tracks into new
tracks. See the figure below:
Select ... > All - Selects all of the audio in all of the tracks in the project.
Select ... > Start to Cursor - Selects from the beginning of the selected
tracks to the cursor position.
Select ... > Cursor to End - Selects from the cursor position to the end of
the selected tracks.
Find Zero Crossings - Modifies the selection slightly so that both the left
and right edge of the selection appear on a positive-slope zero crossing.
This makes it easier to cut and paste audio without resulting in an audible
clicking sound.
Selection Save - Remembers the current selection (or cursor position),
allowing you to restore it later.
Selection Restore - Restores the cursor position to the last position saved
by "Selection Save".
Move Cursor ... > to Track Start - Moves the cursor to the start of the
current track.
Move Cursor ... > to Track End - Move the cursor to the end of the
currently selected track.
Move Cursor ... > to Selection Start - Moves the cursor to the start of the
current selection.
Move Cursor ... > to Selection End - Moves the cursor to the end of the
current selection.
Snap-To ... > Snap On - Enable Snap-To mode. When Snap-To mode is
enabled, the selection will be constrained to the nearest interval on the
time scale, by default the nearest second. So if you click and drag from 4.2
seconds to 9.8 seconds, it will result in a selection from 4 seconds to 10

19
seconds, exactly. You can change the units that are snapped to using the
"Set Selection Format" option in the View Menu .
Snap-To ... > Snap Off - Turns Snap-To mode off letting you select
arbitrary ranges of time
Preferences... - Opens the preferences dialog.
View Menu
Zoom In - Zooms in on the horizontal axis of the audio, displaying more
detail about less time. You can also use the zoom tool to zoom in on a
particular part of the window.
Zoom Normal - Zooms to the default view, which displays about one inch
per second.
Zoom Out - Zooms out, displaying less detail about more time.
Fit in Window - Zooms out until the entire project just fits in the window.
Fit Vertically - Resizes all of the tracks vertically so they all fit inside of the
window (if possible).
Zoom to Selection - Zooms in or out so that the selection fills the window.
Set Selection Format - lets you choose the formatting that is displayed at
the bottom of the window indicating the current selection time. Options
include film, video, and audio CD frames, seconds + samples, or pure time.
If you turn on Snap-To mode in the Edit Menu, the selection will snap to
the frames or other quantization you have selected in this menu.
History... - Brings up the history window. It shows all the actions you have
performed during the current session, including importing. The right-hand
column shows the amount of hard disk space your operations used. You
can jump back and forth between editing steps quite easily by simply
clicking on the entries in the window, the same as selecting Undo or Redo
many times in a row. You can also discard Undo history to save disk space.
The history window can be kept open while you work.
Float Control Toolbar - moves the Control Toolbar out of the window and
into its own floating window, so you can position it wherever you want. The

20
menu item changes to Dock Control Toolbar, which you can use to put
the toolbar back into the main window.
Float Edit Toolbar - moves the Edit Toolbar out of the window and into its
own floating window, so you can position it wherever you want. The menu
item changes to Dock Edit Toolbar, which you can use to put the toolbar
back into the main window.
Float Meter Toolbar - does the same thing for audacity's VU meters which
you use to set recording levels and adjust playback.
Float Mixer Toolbar - moves the Mixer Toolbar out of the window and into
its own floating window as above.
Project Menu
Import Audio... - This command is used to import audio from a standard
audio format into your project. Use this command if you already have a
couple of tracks and you want to add another track to the same project,
maybe to mix them together. You cannot use this option to import Audacity
Projects. The only way to combine two Audacity Projects is to open them in
separate windows, then copy and paste the tracks.
Import Labels... - This command takes a text file which contains time
codes and labels, and turns them into a Label Track.
Import MIDI... - This menu command imports MIDI files and puts them into
a MIDI Track. Audacity can display MIDI files, but cannot play, edit, or save
them yet.
Import Raw Data... - This menu command allows you to open a file in
virtually any uncompressed format. When you select the file, Audacity will
analyze it and try to guess its format. It will guess correctly about 90% of
the time, so you can try just pressing "OK" and listen to the result. If it is
not correct, however, you can use the options in the dialog to try some
other possible encodings.
At the beginning of your imported track(s), you may notice a little bit of
noise. This is probably the file's header, which Audacity was not able to
parse. Just zoom in and select the noise with the Selection Tool, and then
choose Delete from the Edit Menu.
Edit ID3 Tags... - Opens a dialog allowing you to edit the ID3 tags
associated with a project, for MP3 exporting.
