LENCO Classic Phono TCD-2570 User manual

1
Model: TCD-2570
USER MANUAL- Wooden Turntable with FM/DAB+ radio,
USB-encoding, CD and cassette player
GEBRUIKSHANDLEIDING- Houten Platenspeler met FM-/DAB+-radio,
USB-codering, cd- en cassettespeler
BEDIENUNGSANLEITUNG –Holzplattenspieler mit FM/DAB+-Radio,
USB-Kodierung, CD-Player und Kassettenspieler
MODE D’EMPLOI- Platine en bois avec radio FM/DAB+,
encodage USB, lecteur de CD et de cassette
MANUAL DE USUARIO - Tocadiscos de madera con radio FM/DAB+,
codificación USB, CD y reproductor de casete

2
Index:
ENGLISH ............................................................................................................................... 3
NEDERLANDS...................................................................................................................... 16
DEUTSCH............................................................................................................................ 32
FRANÇAIS ........................................................................................................................... 49
ESPAÑOL............................................................................................................................. 65
Version: 1.0

3
ENGLISH
TCD-2570
CAUTION:
Usage of controls or adjustments or performance of procedures other than those specified herein may
result in hazardous radiation exposure.
PRECAUTIONS BEFORE USE
KEEP THESE INSTRUCTIONS IN MIND:
1. Do not cover or block any ventilation openings. When placing the device on a shelf, leave 5 cm (2”)
free space around the whole device.
2. Install in accordance with the supplied user manual.
3. Keep the device away from heat sources such as radiators, heaters, stoves, candlesand other
heat-generating products or naked flame. The apparatus can only be used in moderate climates.
Extremely cold or warm environments should be avoided. Working temperature between 0° and 35°C.
4. Avoid using the device near strong magnetic fields.
5. Electrostatic discharge can disturb normal usage of this device. If so, simply reset and restart the
device following the instruction manual. During file transmission, please handle with care and
operate in a static-free environment.
6. Warning! Never insert an object into the product through the vents or openings. High voltage flows
through the product and inserting an object can cause electric shock and/or short circuit internal
parts. For the same reason, do not spill water or liquid on the product.
7. Do not use in wet or moist areas such as bathrooms, steamy kitchens or near swimming pools.
8. The apparatus shall not be exposed to dripping or splashing and make sure that no objects filled
with liquids, such as vases, are placed on or near the apparatus.
9. Do not use this device when condensation may occur. When the unit is used in a warm wet room
with damp, water droplets or condensation may occur inside the unit and the unit could maybe not
work properly; let the unit stand in power OFF for 1 or 2 hours before turning on the power: the
unit should be dry before getting any power.
10. Although this device is manufactured with the utmost care and checked several times before leaving
the factory, it is still possible that problems may occur, as with all electrical appliances. If you notice
smoke, an excessive build-up of heat or any other unexpected phenomena, you should disconnect
the plug from the main power socket immediately.
11. This device must operate on a power source as specified on the specification label. If you are not
sure of the type of power supply used in your home, consult your dealer or local power company.
12. Keep away from rodents. Rodents enjoy biting on power cords.
13. To clean the device, use a soft dry cloth. Do not use solvents or petrol based fluids. To remove
severe stains, you may use a damp cloth with dilute detergent.
14. The supplier is not responsible for damage or lost data caused by malfunction, misuse, modification
of the device or battery replacement.
15. Do not interrupt the connection when the device is formatting or transferring files. Otherwise, data
may be corrupted or lost.
16. If the unit has USB playback function, the usb memory stick should be plugged into the unit directly.
Don’t use an usb extension cable because it can cause interference resulting in failing of data.
17. The rating label has been marked on the bottom or back panel of the apparatus.
18. This device is not intended for use by people (including children) with physical, sensory or mental
disabilities, or a lack of experience and knowledge, unless they’re under supervision or have received
instructions about the correct use of the device by the person who is responsible for their safety.
19. This product is intended for non professional use only and not for commercial or industrial use.
20. Make sure the unit is adjusted to a stable position. Damage caused by using this product in an
unstable position vibrations or shocks or by failure to follow any other warning or precaution
contained within this user manual will not be covered by warranty.
21. Never remove the casing of this apparatus.
22. Never place this apparatus on other electrical equipment.
23. Do not allow children access to plastic bags.
24. Only use attachments/accessories specified by the manufacturer.

4
25. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been
damaged in any way, such as the power supply cord or the plug, when liquid has been spilled or
objects have fallen into the apparatus, when the apparatus has been exposed to rain or moisture,
does not operate normally, or has been dropped.
26. Prolonged exposure to loud sounds from personal music players may lead to temporary or
permanent hearing loss.
27. If the product is delivered with power cable or AC power adaptor:
⚫If any trouble occur, disconnect the AC power card and refer servicing to qualified personnel.
⚫To completely disconnect the power input, the mains plug of the apparatus shall be
disconnected from the mains, as the disconnect device is the mains plug of apparatus.
⚫Don’t step on or pinch the power adaptor. Be very careful, particularly near the plugs and the
cable’s exit point. Do not place heavy items on the power adaptor, which may damage it.
Keep the entire device out of children’s reach! When playing with the power cable, they can
seriously injure themselves.
⚫Unplug this device during lightning storms or when unused for a long period.
⚫The socket outlet must be installed near the equipment and must be easily accessible.
⚫Do not overload ac outlets or extension cords. Overloading can cause fire or electric shock.
⚫Devices with class 1 construction should be connected to a main socket outlet with a
protective earthed connection.
⚫Devices with class 2 construction do not require a earthed connection.
⚫Always hold the plug when pulling it out of the main supply socket. Do not pull the power cord.
This can cause a short circuit.
⚫Do not use a damaged power cord or plug or a loose outlet. Doing so may result in fire or
electric shock.
28. If the product contains or is delivered with a remote control containing coin/cell batteries:
Warning:
⚫“Do not ingest battery, Chemical Burn Hazard” or equivalent working.
⚫[The remote control supplied with] This product contains a coin/button cell battery is
swallowed, it can cause severe internal burns in just 2 hours and can lead to death.
⚫Keep new and used batteries away from children.
⚫If the battery compartment does not close securely, stop using the product and keep it away
from children.
⚫If you think batteries might have been swallowed or placed inside any part of the body, seek
immediate medical attention.
29. Caution about the use of Batteries:
⚫Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent
type.
⚫Battery cannot be subjected to high or low extreme temperatures, low air pressure at high
altitude during use, storage or transportation.
⚫Replacement of a battery with an incorrect type that can result in an explosion or the leakage
of flammable liquid or gas.
⚫Disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery,
that can result in an explosion.
⚫Leaving a battery in an extremely high temperature surrounding environment that can result in
an explosion or that leakage of flammable liquid or gas.
⚫A battery subjected to extremely low air pressure that may result in an explosion or the
leakage of flammable liquid or gas.
⚫Attention should be drawn to the environmental aspects of battery disposal.
INSTALLATION
•Unpack all parts and remove protective material.
•Do not connect the unit to the mains before checking the mains voltage and before all other
connections have been made.

5
WARNING
Class 1 Laser Product
Warning: Do not touch the lens.

6

7

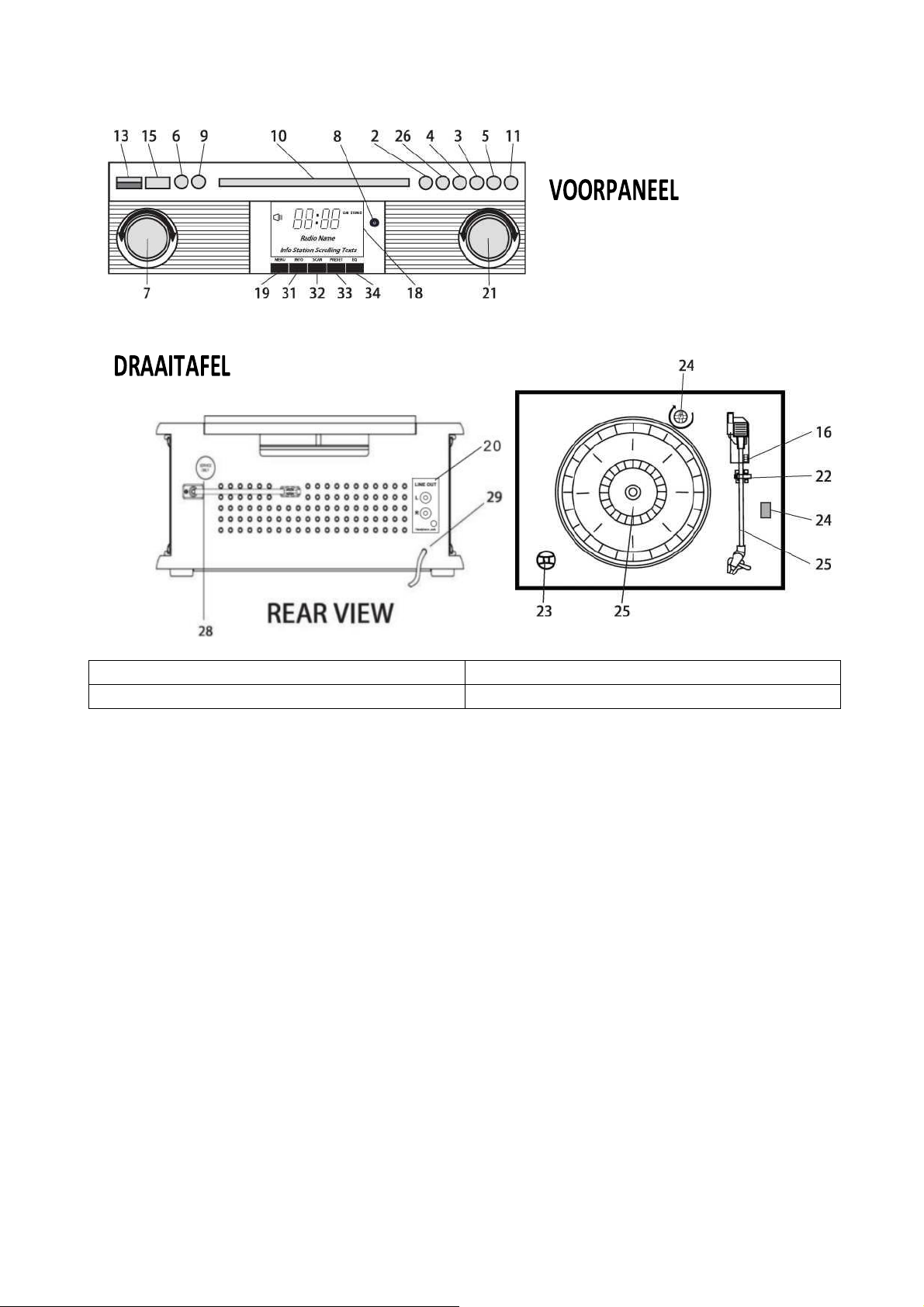

LOCATION OF CONTROLS
1. DUST COVER
2. CD PLAY/PAUSE BUTTON
3. CD SKIP UP BUTTON
4. CD SKIP DOWN BUTTON
5. PLAY MODE BUTTON
6. FUNCTION BUTTON (FM/BLUETOOTH/CD/USB/PHONO/TAPE)
7. VOLUME KNOB
8. REMOTE SENSOR
9. RECORD BUTTON
10. CD DOOR
11. CD DOOR OPEN/CLOSE BUTTON
12. COVER MECHANISM
13. USB SOCKET
14. TURNTABLE
15. POWER ON/OFF
16. CUE LEVER
17. CASSETTE MECHANISM
18. LCD DISPLAY
19. MENU BUTTON
20. Line out/Headphone jack
21. TUNING/ENTER KNOB
22. ARM LOCK
23. SPINDLE ADAPTOR
24. 33/45/78 RPM SPEED SELECTOR
25. PICK-UP HOLDER
26. STOP BUTTON
27. SPEAKERS
28. FM/DAB ANTENNA
29. AC CORD
30. TAPE STOP/EJECT BUTTON
31. INFO BUTTON
32. SCAN BUTTON
33. PRESET BUTTON
34. EQUALIZER BUTTON

8
REMOTE CONTROL
35. OPEN/CLOSE CD DOOR
36. REC: in CD/RADIO/PHONO/CASSETTE mode, press to active recording function.
37. PLAYBACK MODE BUTTON
38. PLAY/PAUSE: in CD/USB mode, press once to start playback. Press again to enter pause mode.
39. SKIP/SEARCHBACKWARD: press once to skip to previous track. press & hold for search backward.
40. SKIP/SEARCHFORWARD: press once to skip to next track, press & hold for search forward.
41. STOP BUTTON
42. 10+ Track Button
43. 10- Track Button
44. FUNCTION BUTTON to select CD/USB/DAB/FM/TAPE/PHONO.
45. DELETE BUTTON
46. PROGRAM: in CD/USB mode, press to active programming function.
47. VOLUME + BUTTON
48. VOLUME - BUTTON
49. MUTE BUTTON
50. EQUALISER BUTTON
51. PRESET BUTTON
52. INFO BUTTON
53. SCAN
REMOTE BATTERY INSTALLATION
The infrared remote control requires 1 pc CR-2025 (3V) Lithium Battery size battery for operation.
CONNECTING TO POWER
Press the POWER button (15) 1 second to turn ON the unit. Press and hold the POWER button during
3 seconds to turn OFF the unit. When no sound is produced, the unit will switch OFF automatically after
15 minutes.
MAINS (AC) OPERATION
This unit is designed to operate on AC 230-240V ~ 50Hz.
Connect the plug to a mains power outlet. Other
power sources may damage the unit. To prevent
electric shock disconnect from the mains before
opening cabinet No user serviceable parts inside. Refer
servicing to qualified service personal.

9
SETTING THE DISPLAY MENU LANGUAGE
Operation
1. Switch ON the POWER ON/OFF BUTTON (15). The Display (18) will light up.
2. Press the MENU BUTTON (19) to select FM or DAB. Turn the TUNING/ENTER KNOB (21) to select
"SYSTEM”, then press confirm.
3. Turn the TUNING/ENTER KNOB (21) to select LANGUAGE, then press the TUNING/ENTER KNOB (21)
to confirm.
4. Turn the TUNING/ENTER KNOB (21) to select the desired languages, then press the same
TUNING/ENTER KNOB (21) to confirm.
SETTING THE DISPLAY TIME AND DATE
Operation
1. Switch ON the POWER ON/OFF BUTTON (15). The Display (18) will light up.
2. Press the MENU BUTTON (19) and turn the TUNING/ENTER KNOB (21) to select SYSTEM".
3. Turn the TUNING/ENTER KNOB (21) to select TIME, then press the TUNING/ENTER KNOB (21) to
confirm.
4. Turn the TUNING/ENTER KNOB (21) and select SET 12/24 HOURS. Press the TUNING/ENTER KNOB
(21) to confirm.
5. Repeat the above operation 2-4 and select one of the following options: SET TIME/DATE or AUTO
UPDATE.
6. lf selected SET TIME/DATE, use the TUNING/ENTER KNOB (21) to set Hour & Minutes, then press the
TUNING/ENTER KNOB (21) to confirm the operation.
7. To set the Auto-Updating, follow the above procedure 2-6 and select AUTO UPDATE. From this
menu, turn the TUNING/ENTER KNOB (21) to select one of the following options: FROM ANY/FROM
DAB/FROM FM/NO UPDATE.

10
FM RADIO OPERATION
ANTENNA
For FM and DAB reception there is a built-in rod antenna (28) at the rear of the unit. Extend the antenna
and move around to obtain the best reception signal.
Operation
1. Switch ON the POWER ON/OFF BUTTON (15). The Display (18) will light up.
2. Press sequentially the FUNCTION BUTTON (6) to select the FM radio manual tuning and look for the
desired radio station by turning the TUNING/ENTER KNOB (21).
AUTOMATIC TUNING
1. During FM working mode, press the MENU BUTTON (19), then turn the TUNING/ENTER KNOB (21) to
select the "SCAN SETTING".
2. Turn again TUNING/ENTER KNOB (21) and select the option between ALL STATIONS and STRONG
STATIONS ONLY. Press the TUNING/ENTER KNOB (21) to confirm.
3. Press the SCAN BUTTON (32) and the unit will scan all of the FM stations.
RADIO DATA SYSTEM INFORMATIONS
During FM working mode, press the INFO BUTTON (31) to display the following informations: PROGRAM
TYPE/PROGRAM NO/AUDIO BITRATE/TIME/DATE.
FM & FM-Stereo Reception
•Stereo reception is possible when the tuned FM station is broadcasting in stereo.
•Press the MENU BUTTON (19) until select "'AUDIO SETTING", then press the TUNING/ENTER KNOB
(21) and turn again the TUNING/ENTER KNOB (21) to select between FORCED MONO or STEREO
ALLOWED.
DAB OPERATION
1. Press sequencially the FUNCTION BUTTON (6) to select DAB mode.
2. Extend the DAB antenna at the back of the unit.
AUTOMATIC TUNING
1. Press the MENU BUTTON (19), then move the TUNING/ENTER KNOB (21) to select FULL SCAN.
2. Press the TUNING/ENTER KNOB (21) to start searching the DAB/DAB+ station.
MANUAL TUNING
1. Press the MENU BUTTON (19), then move the TUNING/ENTER KNOB (21) to select MANUAL TUNE.
2. Turn the TUNING/ENTER KNOB (21) to tune manually the desired station.
3. When tuned a DAB stereo station, the “stereo”will show on the LCD.
4. During DAB reception, press the INFO BUTTON (31) to see the information of the playing DAB station
on the display, i.e Program Type/Program No./Frenquency Range/Signal Strength/Time/Date.

11
PRESET MEMORY DAB/DAB+
1. When selected the desired station, press and hold the PRESET BUTTON (33) for 2 seconds.
2. The display show, "Preset Store 1: (Empty)". Turn the TUNING/ENTER KNOB (21) to select the desired
preset number, then press the TUNING/ENTER KNOB (21) to store the station.
TURNTABLE OPERATION
VERY IMPORTANT!
To prevent damages during transportation, a transit screw is located at the upper right side of the
turntable platform.
Before start playing, use a screwdriver and turn the transit screw in clockwise direction (screw going down)
completely. In case of transportation, remember to turn again this screw in counter-clockwise direction
to prevent damages.
Preparation
1. Open the Record Player Cover.
2. Release the Tonearm Clamp, and remove the stylus protector.
Listening to Records
1. Press the FUNCTION BUTTON (6) to select the TURNTABLE function.
2. Place a record on the turntable, over the central spindle. Place the EP adapter over the central
spindle when playing 17cm EP 45 RPM smaller records.
3. Set the Speed Selector (24) to 33/45 or 78 rpm according to the record.
4. Release the tonearm clamp, and remove the protective cap from the stylus.
5. Lift the Tonearm with the Tonearm Lift Lever.
6. Move the tonearm to the beginning of the record, or to the start of a particular track.
7. Gently lower the tone arm onto the record with the Tonearm Lift lever to start playing.
8. When the record is finished the tonearm will automatically stop and return automatically to the rest.
To stop manually, lift the tonearm from the record and return it to the rest.
Notes: Do not stopor turn the platter manually. Moving or jarring the turntable without securing the Tonearm
clamp could result in damage to the Tonearm. Put the protective cap on the stylus when not in use.
TRANSIT SCREW
Lock Lever
Stylus Cover

12
PLAYING COMPACT DISC
To start
1. Press FUNCTION BUTTON (6) to select “CD” model.
2. Press “open/close” button (11) to open the CD door (10).
3. Place a CD with the printed side facing up inside the tray & then close the CD door.
1. Focus search is performing, the first track will start playback.
2. To interrupt, press the STOP BUTTON (26) once, the total number of tracks appears on the led
display (18). Press again PLAY/PAUSE BUTTON (2) to resume normal playback.
Skip/search mode (skip/search up/skip/search down)
•During play or pause mode, if SKIP UP BUTTON (3) is pressed, it will go to next track and display the
track no. and then keep the play or pause mode.
•During play or pause mode, if SKIP DOWN BUTTON (4) is pressed, it will go back to the beginning of the
track, original track number is displayed and keep the play or pause mode.
•After step 2, press SKIP DOWN BUTTON (4) again will go to the previous track and keep the play or
pause mode.
•If press and hold the SKIP UP BUTTON (3)/SKIP DOWN BUTTON (4) during cd/mp3 playback the playing
track will go fast forward or backward until the button is released.
•To skip 10 tracks UP or DOWN press the TRACK +10 or TRACK -10 button on Remote Control
REPEAT/RANDOM MODE
Press the PLAY MODE BUTTON (5) to activate this function. All the tracks can be played in difference
mode as follow:
•Repeat play: you can listen the desired tracks or folder repeatedly by this function.
•Random play: you can listen all the tracks or folder in a random order by this function
CD DISC PROGRAMMING
Up to 99 tacks can be programmed for mp3 (20 in CD) and play in any order, before use, be sure the
system is at stop mode before programming:
1. In cd mode and stop the cd playback.
2. Press the PROGRAM BUTTON (46), “P” will appear on led display (18). Moreover, it will indicate
program no. and digits for track no. to be programmed.
3. Select a desired track by pressing SKIP UP/DOWN BUTTONS (3)/(4).
4. Press the PROGRAM BUTTON (46) to store the track into memory.
5. Repeat steps 3 and 4 to enter additional tracks into the memory if necessary.
6. When all the desired tracks have been programmed, press PLAY/PAUSE BUTTON (2) to play the disc
in assigned order.
7. To cancel the programmed file, press STOP BUTTON (26).
PLAYBACK OF MP3/WMA SONG VIA USB STORAGE MEDIA
The system is able to decode and playback all mp3/wma file which stored in the memory media with USB
connecting port.
1. Press FUNCTION BUTTON (6) to select “USB”mode.
2. Plug-in the USB plug with the face up & make sure the plug is completely going into the USB port.
3. The system will start reading the storage media automatically after connecting, and the LED display
(18) will show the total number of mp3/wma files
4. Repeat the same playback procedure as playing cd/mp3 disc as above

13
REMARKS:
・The system can detect and read the file under mp3 and wma format only through the USB port.
・If connect the system to mp3 player via the USB socket, due to variances in mp3 encoding format
some mp3 player may not be able to play via the USB socket, this is not a malfunction of the system.
・Connecting the USB upside down or backwards could damage the audio system or the storage media
Check to be sure the direction is correct before connection.
CASSETTE TAPE OPERATION
1. Set the FUNCTION BUTTON (6) to “TAPE”mode. The system will start playback automatically after
inserting the cassette tape.
2. Press CASSETTE STOP/EJ BUTTON (30) half inwards during playback mode. The tape will wind
forward.
3. Slightly press the CASSETTE STOP/EJ BUTTON (30) again to resume playback.
4. Press the CASSETTE STOP/EJ BUTTON (30) completely inwards and the cassette tape will be ejected
through the CASSETTE DOOR (17).
BLUETOOTH OPERATION
1. Press the MENU button, the BT indicator will light up.
2. Select from your portable device (Smartphone, Tablet...) the ID Bluetooth tagged as “TCD-2570” then
confirm connection.
3. Now you can stream the music to the TCD-2570 and all operations can only be operated from your
mobile device.
ENCODING FROM CD
Plug USB Disk into USB socket. During CD playing mode, press the RECORD BUTTON (9) one time, “REC-T'
will show on the display: press the RECORD BUTTON (9) secondly to record the playing track; or press the
SKIP UP BUTTON (3) one time to choose to record whole file in the CD and "REC-A" will show on the display.
ENCODING FROM CD-MP3
Plug USB Disk into USB socket. During MP3 playing mode press the RECORD BUTTON (9) one time,
“REC-T' will show on the display; then press the RECORD BUTTON (9) secondly to confirm “REC” will flash
and start to record after 5 seconds; or press the SKIP UP BUTTON (3) one time to choose to record all the
file in the playing folder and “REC-F”will show on the display; or press the SKIP UP BUTTON (3) twice to
record the file in the whole playing MP3 disc and “REC-A”will show on the display.
ENCODING FROM CASSETTE
Plug USB Disk into USB socket. During TAPE playing mode, press the RECORD BUTTON (9) one time, “USB”
will show on the display, then press the RECORD BUTTON (9) secondly to confirm, “USB”will flash and
start to record after 5 seconds; press PLAY/PAUSE BUTTON (2) one time to stop the recording and “USB”
will not flash; press PLAY/PAUSE BUTTON (2) button again to resume to record and “USB”will flash again.
ENCODING FROM PHONO
Plug USB Disk into USB socket. During PHONO playing mode, press RECORD BUTTON (9) one time, “USB”
will show on the display, then press the RECORD BUTTON (9) twice to confirm “USB” will flash and start to
record after 5 seconds; press PLAY/PAUSE BUTTON (2) one time to stop the recording and “USB”will not
flash; press PLAY/PAUSE BUTTON (2) again to resume to record and “USB”will flash again.

14
ENCODING FROM A BLUETOOTH SOURCE
Plug an USB Disk into the USB socket. While BLUETOOTH playmode is active, press the RECORD BUTTON (9)
one time, “USB" symbol will show on the display, then press the RECORD BUTTON (9) again to start
recording the Bluetooth sound source. The “USB” symbol will flash and record will start after 5 seconds.
Press the PLAY/PAUSE BUTTON (2) one time to pause the recording (the “USB” symbol will stop flashing).
Press the PLAY/PAUSE BUTTON (2) again to resume recording (the “USB” symbol will flash again).
Press the STOP button to stop recording when you want to finish recording.
NOTE: Be sure to turn the volume of your Bluetooth device to maximum. (If the Bluetooth device’s
volume level is 0, nothing will be recorded).
DELETE USB
1. During USB mode, press DELETE BUTTON (45) one time/“DEL-1”will show on the display. You can
delete the playing track.
2. Press SKIP UP BUTTON (3). The playing file and “DEL-F”will show on the display. You can delete the
current playing folder.
3. Press SKIP UP BUTTON (3). “DEL-A”will show on the display. You can delete all of the tracks into the
playing USB.
4. Finally press DELETE BUTTON (45) again once confirmed to choose “DEL-1”, “DEL-F”or “DEL-A”.
MUTE/EQ OPERATION
During playing mode, press the MUTE BUTTON (49) one time, the sound will not be heard from the speakers
and “MUTE ON”will show on the display; press the MUTEBUTTON (49) or rotate the VOLUMEKNOB (7) to
cancel mute function and the sound can be heard again from the speakers. During playing mode, press theEQ
BUTTON (34) to choose from different sound effect among FLAT/POP/CLASSIC/ROCK/JAZZ.
SPECIFICATIONS
AC:
230 - 240V ~ 50Hz
FM:
87.5- 108MHz
DAB Band:
BAND III

15
Design and specifications are subject to change without notice.
Guarantee
Lenco offers service and warranty in accordance to European law, which means that in case of repairs
(both during and after the warranty period) you should contact your local dealer.
Important note: It is not possible to send products that need repairs to Lenco directly.
Important note: If this unit is opened or accessed by a non-official service center in any way, the warranty
expires.
This device is not suitable for professional use. In case of professional use, all warranty obligations of the
manufacturer will be voided.
Disclaimer
Updates to Firmware and/or hardware components are made regularly. Therefore some of the
instruction, specifications and pictures in this documentation may differ slightly from your
particular situation. All items described in this guide for illustration purposes only and may not
apply to particular situation. No legal right or entitlements may be obtained from the description
made in this manual.
Disposal of the Old Device
This symbol indicates that the relevant electrical product or battery should not
be disposed of as general household waste in Europe. To ensure the correct
waste treatment of the product and battery, please dispose them in accordance
to any applicable local laws of requirement for disposal of electrical equipment
or batteries. In so doing, you will help to conserve natural resources and
improve standards of environmental protection in treatment and disposal of
electrical waste (Waste Electrical and Electronic Equipment Directive).
CE Marking
Hereby, Lenco Benelux B.V., Thermiekstraat 1a, 6361 HB Nuth, The Netherlands, declares that this product is in
compliance with the essential EU directive requirements.
The declaration of conformity may be consulted via [e-mail]
Service
For more information and helpdesk support, please visit www.lenco.com
Lenco Benelux BV, Thermiekstraat 1a, 6361 HB, The Netherlands.

16
NEDERLANDS
TCD-2570
LET OP:
Gebruik van bedieningen of afstellingen of uitvoer van procedures anders dan gespecificeerd in deze
documentatie kan leiden tot blootstelling aan schadelijke straling.
VOORZORGSMAATREGELEN VOOR GEBRUIK
ONTHOUD DE VOLGENDE INSTRUCTIES:
1. Bedek of blokkeer de ventilatieopeningen niet. Wanneer u het apparaat op een schap plaatst,
dient u 5 cm (2”) vrije ruimte rondom het gehele apparaat te behouden.
2. Installeer het product volgens de meegeleverde gebruikershandleiding.
3. Houd het apparaat uit de buurt van hittebronnen, zoals radiatoren, verwarmingen, kachels, kaarsen
en andere hittegenererende producten of open vuur. Het apparaat kan alleen worden gebruikt in
gematigde klimaten. Extreem koude of warme omgevingen dienen te worden vermeden.
Bedrijfstemperatuur tussen 0° en 35° C.
4. Gebruik dit apparaat niet in de buurt van krachtige magnetische velden.
5. Elektrostatische ontlading kan normaal gebruik van dit apparaat verstoren. U hoeft het apparaat in
dit geval slechts te resetten en opnieuw op te starten volgens de gebruikershandleiding.
Wees voorzichtig tijdens bestandsoverdracht en gebruik het product in een omgeving zonder
statische interferentie.
6. Waarschuwing! Steek nooit een voorwerp via de ventilatie- of andere openingen in het product.
Er is hoogspanning in het product aanwezig en als u er een object insteekt, kan dat een elektrische
schok veroorzaken en/of kortsluiting in de interne onderdelen. Mors om dezelfde reden geen water
of vloeistof op het product.
7. Gebruik het toestel niet in vochtige ruimtes, zoals badkamers, stomende keukens of in de buurt van
zwembaden.
8. Het apparaat mag niet worden blootgesteld aan druppels of spatten en zorg ervoor dat er geen met
vloeistof gevulde voorwerpen, zoals vazen, op of nabij het apparaat zijn geplaatst.
9. Gebruik dit apparaat niet wanneer condensatie kan optreden. Wanneer het apparaat in een warme
en vochtige kamer wordt gebruikt, dan kunnen er waterdruppeltjes of condensatie binnenin het
apparaat worden gevormd waardoor het apparaat mogelijk niet meer goed werkt; houd en
apparaat 1 of 2 uur op UIT staan voordat u de voeding weer inschakelt: het apparaat dient droog te
zijn voordat deze stroom ontvangt.
10. Alhoewel dit apparaat met grote zorg gefabriceerd en verschillende keren geïnspecteerd is voordat
het de fabriek verlaat, is het nog steeds mogelijk dat er problemen optreden, zoals met alle
elektrische apparaten. Als u rook, een overmatige hitteontwikkeling of enig ander onverwacht
verschijnsel opmerkt, moet u onmiddellijk de stekker van het netsnoer uit het stopcontact halen.
11. Dit apparaat moet werken op een voedingsbron, zoals aangegeven op het specificatieplaatje.
Als u twijfelt over het type voeding dat gebruikt wordt in uw huis, raadpleeg dan uw dealer of
plaatselijk energiebedrijf.
12. Houd het uit de buurt van knaagdieren. Knaagdieren knauwen graag aan voedingskabels.
13. Gebruik een zacht, droog doekje om het apparaat te reinigen. Gebruik geen oplosmiddelen of op
benzine gebaseerde vloeistoffen. U kunt een vochtig doekje met verdund schoonmaakmiddel
gebruiken om hardnekkige vlekken te verwijderen.
14. De leverancier is niet verantwoordelijk voor schade of verloren gegevens veroorzaakt door storing,
misbruik, modificatie van het apparaat of batterijvervanging.
15. Onderbreek nooit de verbinding wanneer het apparaat formatteert of bestanden overdraagt.
De gegevens kunnen anders corrupt of verloren raken.
16. Indien het apparaat een USB-afspeelfunctie heeft, moet de USB-geheugenstick rechtstreeks op het
apparaat worden aangesloten. Gebruik geen USB-verlengkabel, omdat die kan leiden tot storingen
met foutieve gegevens als gevolg.
17. Het nominale specificatielabel is te vindenop het paneel aan de onder- of achterkant van het apparaat.
18. Dit apparaat is niet bestemd voor gebruik door mensen (inclusief kinderen) met fysieke, zintuiglijke
of geestelijke gebreken of gebrek aan kennis en ervaring, tenzij zij onder toezicht staan of instructies
hebben over het juiste gebruik van het apparaat hebben gekregen van de persoon die
verantwoordelijk is voor hun veiligheid.

17
19. Dit product is alleen voor niet-professioneel gebruik bedoeld en niet voor commercieel of
industrieel gebruik.
20. Verzeker u ervan dat het apparaat in een stabiele positie staat opgesteld. Beschadigingen
veroorzaakt door het gebruik van dit apparaat in een onstabiele positie, trillingen of schokken of
door het niet opvolgen van andere waarschuwingen of voorzorgsmaatregelen beschreven in deze
gebruikshandleiding worden niet gedekt door de garantie.
21. Verwijder nooit de behuizing van dit apparaat.
22. Plaats dit apparaat nooit op andere elektrische apparatuur.
23. Geef kinderen geen gelegenheid in aanraking met plastic zakken te komen.
24. Gebruik uitsluitend uitbreidingen/accessoires gespecificeerd door de fabrikant.
25. Laat alle reparaties over aan gekwalificeerd onderhoudspersoneel. Onderhoud is vereist als het
toestel hoe dan ook is beschadigd, zoals bijvoorbeeld het netsnoer of de stekker, wanneer er
vloeistof of een voorwerp in het apparaat is terechtgekomen, wanneer het apparaat is blootgesteld
aan regen of vocht, als het niet normaal werkt of is gevallen.
26. Langdurige blootstelling aan luid geluid van persoonlijke muziekspelers kan leiden tot tijdelijke of
permanente gehoorbeschadiging.
27. Als het product wordt geleverd met voedingskabel of AC-stroomadapter:
⚫ Als er problemen optreden, koppel de AC-voedingskaart dan los en laat reparaties over aan
bevoegd personeel.
⚫ Om de verbinding met de stroomaansluiting volledig te verbreken, moet de stekker van het
apparaat uit het stopcontact worden gehaald, omdat de stekker van het apparaat de
hoofdschakelaar is.
⚫ Nooit op de stroomadapter stappen of deze indrukken. Wees voornamelijk voorzichtig in de
buurt van de stekkers en het punt waar de kabel uit het apparaat komt. Plaats geen zware
voorwerpen op de stroomadapter, om beschadiging ervan te voorkomen. Houd het gehele
apparaat buiten bereik van kinderen! Wanneer kinderen met de voedingskabel spelen,
kunnen zij ernstig letsel oplopen.
⚫ Haal de stekker uit het stopcontact tijdens onweer of wanneer u deze langere tijd niet
gebruikt.
⚫ Het stopcontact moet in de buurt van de apparatuur zijn geïnstalleerd en eenvoudig te
bereiken zijn.
⚫ Overbelast stopcontacten of verlengsnoeren niet. Overbelasting kan brand of een elektrische
schok veroorzaken.
⚫ Apparaten met een Klasse 1 structuur dienen te worden aangesloten op een stopcontact met
een beschermende aardverbinding.
⚫ Apparaten met een Klasse 2 structuur vereisen geen aardverbinding.
⚫ Houd altijd de stekker vast wanneer u deze uit het stopcontact trekt. Trek nooit aan de
voedingskabel. Dit kan tot een kortsluiting leiden.
⚫ Gebruik nooit een beschadigde voedingskabel of stekker of een los stopcontact. Dit vormt
namelijk een risico op brand of elektrische schokken.
28. Indien het product knoopcelbatterijen bevat of wordt geleverd met een afstandsbediening die
knoopcelbatterijen bevat:
Waarschuwing:
⚫ "Batterij niet inslikken, chemisch brandgevaar” of gelijkwaardige werking.
⚫[De meegeleverd afstandsbediening] Dit product bevat een knoopcelbatterij. Bij inslikking van de
batterij kan dit inminder dan2 uur tijd tot ernstige interne brandwonden en de dood leiden.
⚫Houd nieuwe en gebruikte batterijen buiten bereik van kinderen.
⚫Als de batterijhouder niet goed kan worden gesloten, dient u het product niet meer te
gebruiken en buiten bereik van kinderen te houden.
⚫Als u denkt dat batterijen zijn ingeslikt of binnenin een willekeurig lichaamsdeel terecht zijn
gekomen, dient u onmiddellijk medische hulp te zoeken.

18
29. Waarschuwing m.b.t. het gebruik van batterijen:
⚫ Als de batterij onjuist wordt geplaatst, bestaat er explosiegevaar. Vervang de batterij alleen
door een zelfde of vergelijkbare soort batterij.
⚫Stel de batterij niet bloot aan extreem hoge of lage temperaturen of een lage luchtdruk op
grote hoogte tijdens gebruik, opslag of transport.
⚫Vervanging van een batterij door een incorrect type kan leiden tot een ontploffing of de
lekkage van ontvlambare vloeistoffen of gas.
⚫Verwijdering van een batterij in vuur of een hete oven of het mechanisch verpletteren of
snijden van een batterij kan leiden tot een ontploffing.
⚫Laat een batterij nooit achter in omgevingen met extreem hoge temperaturen, anders kan dit
leiden tot een ontploffing of de lekkage van ontvlambare vloeistoffen of gas.
⚫Stel een batterij nooit bloot aan een extreem lage luchtdruk, anders kan dit leiden tot een
ontploffing of de lekkage van ontvlambare vloeistoffen of gas.
⚫Aandacht voor het milieu is nodig bij het verwijderen van de batterijen.
INSTALLATIE
•Pak alle onderdelen uit en verwijder de beschermende materialen.
•Sluit het apparaat niet aan op het stopcontact, voordat u de netspanning hebt gecontroleerd en
voordat alle andere aansluitingen zijn gemaakt.

19
WAARSCHUWING
Klasse 1 Laserproduct
EN
NL
CAUTION
LET OP
INVISIBLE LASER RADIATION WHEN OPEN AND
INTERLOCKS DEFEATED.
ONZICHTBARE STRALING WANNEER OPEN EN
BEVEILIGING NIET INTACT.
AVOID EXPOSURE TO BEAM
VERMIJD BLOOTSTELLING AAN DE BUNDEL
This product contains a low power laser device.
Dit product bevat een laser met laag
vermogen.
Waarschuwing: Raak de lens niet aan.
EN
NL
REMOTE CONTROL
AFSTANDSBEDIENING

20
EN
NL
REAR VIEW
ACHTERAANZICHT
