LenelS2 5000 Series User manual
Quick Installation Guide
LenelS2 Readers - 5000
Series Supervised F/2F
UTC Fire & Security BV
UTC Fire & Security EMEA
Carrier Fire & Security EMEA
Kelvinstraat 7 6003 DH – Weert,
The Netherlands
Tel: +31 (0)495 58 30 00
Fax: +31 (0)495 55 00 42
Email: cs.edc@carrier.com
For all local contact details, please consult
the Carrier Fire & Security webpage:
https://resecurityproducts.com/en/contact.php
Contact info
Carrier Fire & Security EMEA
Kelvinstraat 7 6003 DH – Weert,
The Netherlands
Tel: +31 (0)495 58 30 00
Fax: +31 (0)495 55 00 42
Email: cs.edc@carrier.com
For all local contact details, please consult
the Carrier Fire & Security webpage:
https://resecurityproducts.com/en/contact.php
Contact info

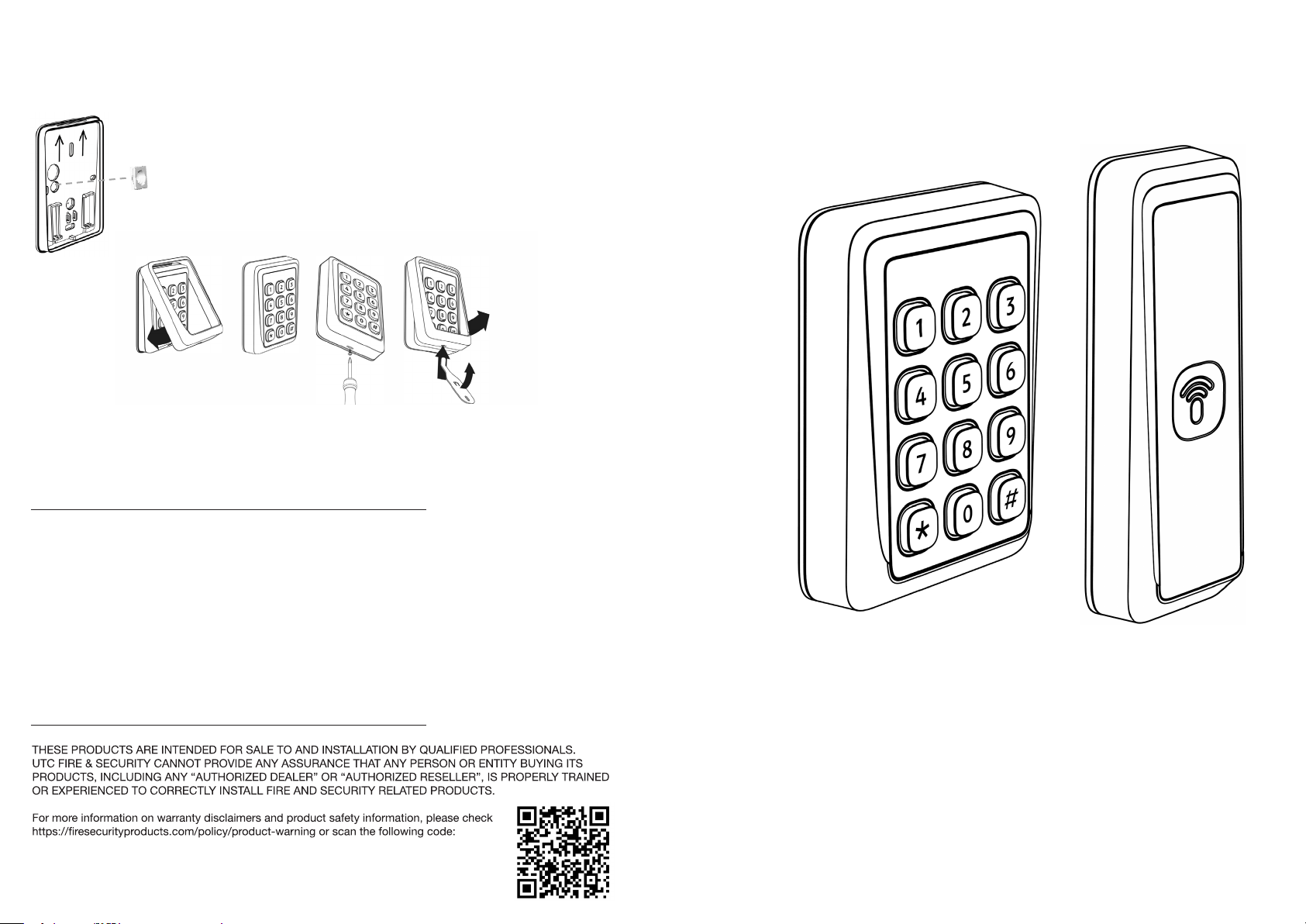

Options for the tamper alarm
The reader has a tamper alarm support for both break off from a wall and opening protection. To disable
the tamper alarm when dismounted from the wall, the red tray in the accessories bag has to be mounted
on the base plate.
To open the reader: Use the reader opening tool (LNL-RS0000-OT) to avoid any damage to the front
cover and/or mounting plate, remove the front cover from the mounting plate as shown on the picture
to the right.
1. Mount the base plate on the wall using supplied screws.
2. Insert the tamper alarm red tray as shown in the picture.
3. Remove the spring from the reader tamper alarm switch.
4. Close the reader. The Tamper alarm will be in a normal
state as long as the reader is closed. If the reader is opened
the tamper alarm is activated.
Contact info
For all local contact details, please consult the
UTC Fire Security webpage:
Product Warnings and Disclaimers
Quick Installation Guide
LenelS2 Readers - 5000 Series
UTC Fire & Security BV
UTC Fire & Security EMEA
Carrier Fire & Security EMEA
Kelvinstraat 7 6003 DH – Weert,
The Netherlands
Tel: +31 (0)495 58 30 00
Fax: +31 (0)495 55 00 42
Email: cs.edc@carrier.com
For all local contact details, please consult
the Carrier Fire & Security webpage:
https://resecurityproducts.com/en/contact.php
Contact info
T/GPIO3
GPIO1
GPI/O2
GND
B/RX
A/TX
GND
DC+
D+/RX
D1
D0
D-/TX
G-LED
R-LED
BZ CTRL
K-LED
Tamper output / General purpose I/O
General purpose I/O
General purpose I/O
Ground
RS485 - / OSDP
RS485 + / OSDP
Power supply
Power supply 9 to 30 VDC
Secondary RS485 +
Wiegand Data1
Wiegand Data0
Secondary RS485 -
External Green LED control
External Red LED control
External Buzzer control
External keypad LED control
PIN Description
Description
Wiegand
Wiegand
x
-
-
-
-
-
x
x
-
x
x
-
x
x
x
x

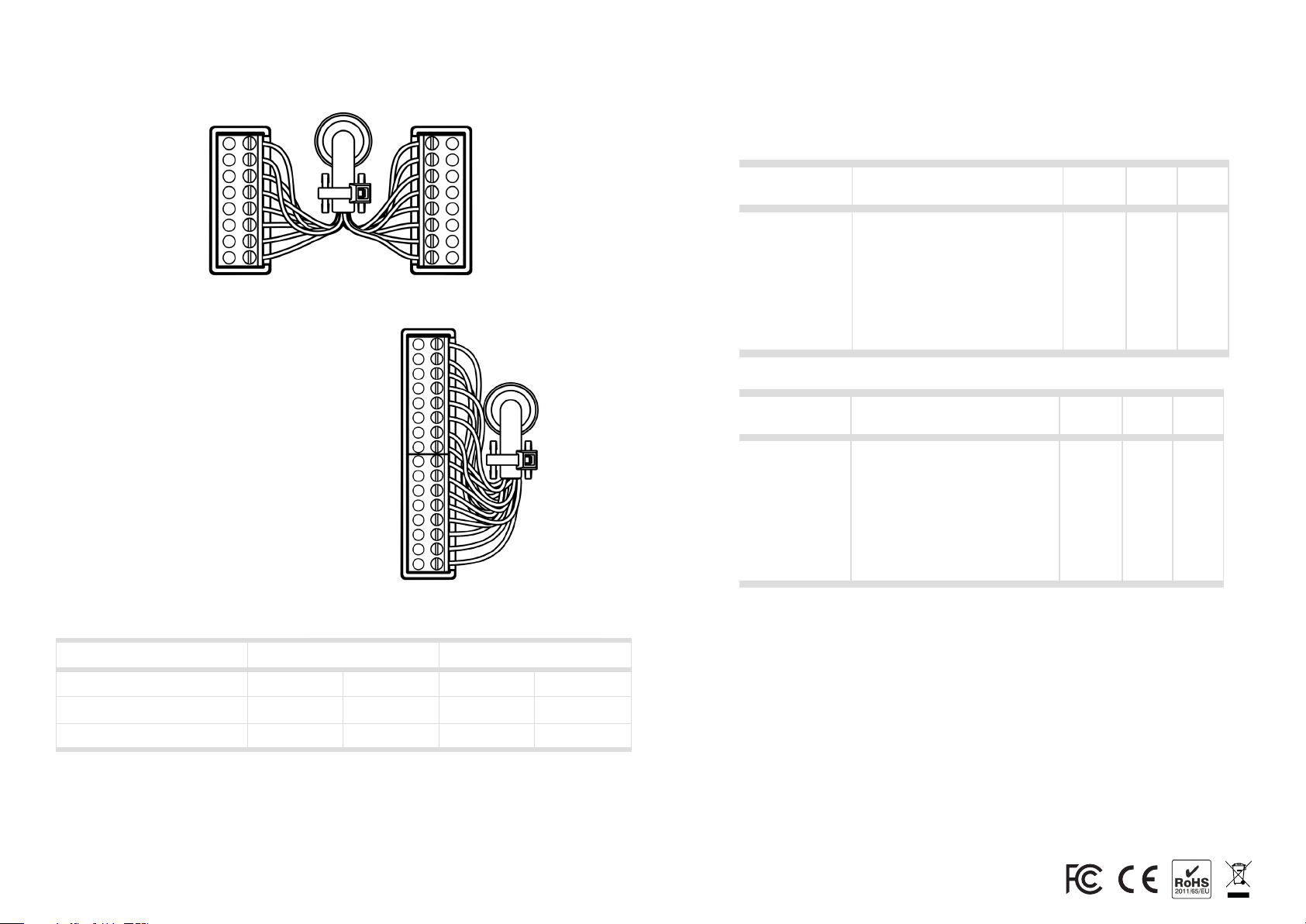

Terminal description
RS485/
OSDP
RS485/
OSDP
F/2F
F/2F
-
-
-
-
x
x
x
x
-
-
-
-
-
-
-
-
-
-
-
-
-
-
x
x
-
x
-
-
x
-
-
-
P5
P4
PIN
K-LED
BZ CTRL
R-LED
G-LED
D-/TX
D0
D1
D+/RX
T/GPIO3
GPIO1
GPIO2
GND
B/RX
A/TX
GND
DC+
P4
P5
T/GPIO3
GPIO1
GPIO2
GND
B/RX
A/TX
GND
DC+
P4 P5
D+/RX
D1
D0
D-/TX
G-LED
R-LED
BZ CTRL
K-LED
Quick Installation Guide
LenelS2 Readers - 5000 Series Standard 13.56 MHz/125 kHz
Supervised F/2F
Quick Installation Guide
LenelS2 Readers - 5000
Series Slimline 13.56 MHz
Supervised F/2F
Please note that this is only a quick installation guide.
Information regarding recommendations, measurements and accessories are
available in the full version of the LenelS2 Readers - 5000 Series installation
guide.
1 Current draw does not include heater nor BLE antenna consumption.
2 LED settings; LED Bar = Low, Back Light = Low
Please consult table in full installation manual for more information on heater
consumption settings and how the LED-settings will aect current draw.
Power consumption: Notes
1. Maximum Wiegand cable length is 150 meters and requires a high quality shielded cable with
minimum AWG18 dimension (=0.8231 mm2) in an environment free from electrical noise. A cable
with smaller dimension or an installation environment with electrical disturbances will reduce the
maximum cable length.
2. Wiegand requires dedicated wires for external control of Green LED, Red LED, Buzzer and
Keypad backlight.
3. When utilizing the GPI/O’s, each respective GPI/O1, GPI/O2 or GPI/O3 must be connected to
each respective pin and also to GND. The general purpose input/output will only be activated if so
applied in the reader configuration.
4. RS485/OSDP requires twisted pair cable.
5. Maximum Supervised F2/F cable length is 915 meters and requires a high quality shielded cable
with minimum AWG20 dimension (=0.5176 mm2) in an environment free from electrical noise with
12 VDC signal amplitude from controller.
6. 4-state Supervised F/2F requires 2 pcs 1kΩresistors, Exit button must be connected to
K-LED and GND and Door sensor must be connected to BZ CTRL and GND. See full version of the
installation guide for wiring diagram.
Model Current draw (idle1) Current draw (peak1,2)
12 V 24 V 12 V 24 V
Standard 13.56MHz/125kHz 90 mA 45 mA 159 mA 89 mA
Slimline 13.56 MHz T.B.C. mA T.B.C. mA T.B.C. mA T.B.C. mA
Please note that this is only a quick installation guide.
Information regarding recommendations, measurements and QR code modules and other
accessories are available in the full version of the LenelS2 Readers - 5000 Series installation
guide.
12 VDC 12 VDC24 VDC 24 VDC
Please consult table in the full installation manual for more information on heater
consumption settings and how the LED-settings will affect current draw.
T/GPIO3
GPIO1
GPI/O2
GND
B/RX
A/TX
GND
DC+
D+/RX
D1
D0
D-/TX
G-LED
R-LED
BZ CTRL
K-LED
Tamper output / General purpose I/O
General purpose I/O
General purpose I/O
Ground
RS485 - / OSDP
RS485 + / OSDP
Power supply
Power supply 9 to 30 VDC
Secondary RS485 +
Wiegand Data1
Wiegand Data0
Secondary RS485 -
External Green LED control
External Red LED control
External Buzzer control
External keypad LED control
PIN Description
Description
Wiegand
Wiegand
x
-
-
-
-
-
x
x
-
x
x
-
x
x
x
x
Terminal description
RS485/
OSDP
RS485/
OSDP
F/2F
F/2F
-
-
-
-
x
x
x
x
-
-
-
-
-
-
-
-
-
-
-
-
-
-
x
x
-
x
-
-
x
-
-
-
P5
P4
PIN
K-LED
BZ CTRL
R-LED
G-LED
D-/TX
D0
D1
D+/RX
T/GPIO3
GPIO1
GPIO2
GND
B/RX
A/TX
GND
DC+
P4
P5
T/GPIO3
GPIO1
GPIO2
GND
B/RX
A/TX
GND
DC+
P4 P5
D+/RX
D1
D0
D-/TX
G-LED
R-LED
BZ CTRL
K-LED
Quick Installation Guide
LenelS2 Readers - 5000 Series Standard 13.56 MHz/125 kHz
Supervised F/2F
Quick Installation Guide
LenelS2 Readers - 5000
Series Slimline 13.56 MHz
Supervised F/2F
Please note that this is only a quick installation guide.
Information regarding recommendations, measurements and accessories are
available in the full version of the LenelS2 Readers - 5000 Series installation
guide.
1 Current draw does not include heater nor BLE antenna consumption.
2 LED settings; LED Bar = Low, Back Light = Low
Please consult table in full installation manual for more information on heater
consumption settings and how the LED-settings will aect current draw.
Power consumption: Notes
1. Maximum Wiegand cable length is 150 meters and requires a high quality shielded cable with
minimum AWG18 dimension (=0.8231 mm2) in an environment free from electrical noise. A cable
with smaller dimension or an installation environment with electrical disturbances will reduce the
maximum cable length.
2. Wiegand requires dedicated wires for external control of Green LED, Red LED, Buzzer and
Keypad backlight.
3. When utilizing the GPI/O’s, each respective GPI/O1, GPI/O2 or GPI/O3 must be connected to
each respective pin and also to GND. The general purpose input/output will only be activated if so
applied in the reader configuration.
4. RS485/OSDP requires twisted pair cable.
5. Maximum Supervised F2/F cable length is 915 meters and requires a high quality shielded cable
with minimum AWG20 dimension (=0.5176 mm2) in an environment free from electrical noise with
12 VDC signal amplitude from controller.
6. 4-state Supervised F/2F requires 2 pcs 1kΩresistors, Exit button must be connected to
K-LED and GND and Door sensor must be connected to BZ CTRL and GND. See full version of the
installation guide for wiring diagram.
Model Current draw (idle1) Current draw (peak1,2)
12 V 24 V 12 V 24 V
Standard 13.56MHz/125kHz 90 mA 45 mA 159 mA 89 mA
Slimline 13.56 MHz T.B.C. mA T.B.C. mA T.B.C. mA T.B.C. mA
