Lenkeng LKV376 User manual

HDMI NET SHARESTATION / PC TO HDMI OVER LAN
User Manual
P1 SHENZHEN LENKENG TECHNOLOGY CO.,LTD
www.lenkeng.biz s[email protected]om
HDMI net share station
HDMI NET Share Station is an idea
networking display solution,it allows
multiple users in the same Ethemet
network to access the display without
physically connect their computer
directly to the display! The product
supports ONLY one(Laptop) connection
at a time. users can now enjoy their
favorite multimedia content stored on
their computer from anywhere in their
home or office. HDMI NET ShareStation
also act as a display extender that
supports up to 1920*1080 resolutions
with primary display,mirror destop and
e x t e n d e d d e s k t o p v i d e o m o d e s!
Supply High Quality Products With Reasonable Price
Package Contents
Package Contents
Features
FAQ
Package Contents
Technical Specifications
Installation Guide
Interface Specification
P1 P1 P1 P1 P1 P1 P1 P1 P1 P1 P1 P1 P1 P1 P1
P12
P11
P10P9 P8 P7 P6 P5 P4 P3 P2 P1
IMPORTANT SAFETY INSTRUCTIONS
Make sure all the devices are disconnected via software before power off.
Some hardware-acceleration player are not supported when the product is playing big video files.
When USB port is connected,don’t plug or unplug the mouse,keyboard or other storage devices until the control software find the devices.
This product only works on the same Local Area Network
This product doesn’t support simultaneous output of HDMI and VGA, please select either one of them before power on the product..
Introduction
System requirement
Installation Guide
Installation Guide
Installation Guide
Installation Guide
Installation Guide
Application
Application
Important Safety Instructions

P1 SHENZHEN LENKENG TECHNOLOGY CO.,LTD
www.lenkeng.biz s[email protected]om
Features
Supported protocols:TCP/IP,LPR,DHCP,UPnP
Ethernet IEEE 802 3 10Base IEEE Standards:802.3
10Base-T;802.3U 100Base-T
Network Interface:10/100/1000Mbps RJ45
Supports the resolution up to 1080p
Allows multiple users to share a Multi-Function
Print (MFP) over a network to print,scan,and fax
from any networked computer;
Supports 500mA electric current for every USB
port;
Supports Windows 7,Vista and XP
Extend or Mirror Video through a network to a
HDMI &VGA display
Share HDMI&VGA displays with multiple users
through your exiting office or home IP network
Supply High Quality Products With Reasonable Price
Package Contents
Package Contents
Package Contents
PC to HDMI over Lan User Manual DC 5V/1A Power Adapter CD Driver

www.lenkeng.biz s[email protected]om
Supply High Quality Products With Reasonable Price
Features
System requirements
HDTV/SDTV with HDMI input ,VGA monitor
PC with WIFI or 100M/1000M Network Card
Supports system: Windows XP,Windows 7
Interface Specification
P2 SHENZHEN LENKENG TECHNOLOGY CO.,LTD

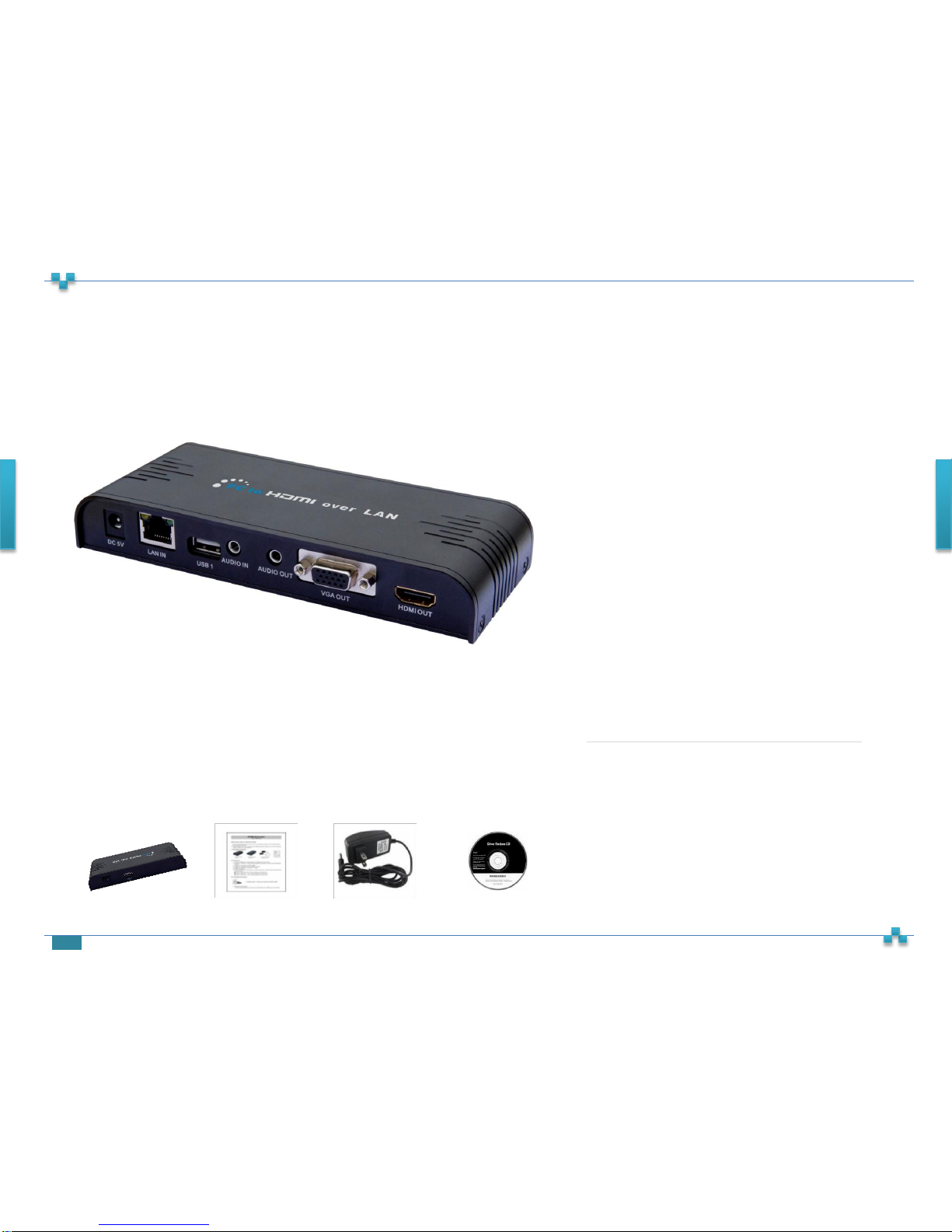

Interface Specification
DC5V Power supply
HDMI output
RJ45 input
USB input
VGA output /Audio out
Audio in

www.lenkeng.biz s[email protected]om
Supply High Quality Products With Reasonable Price
Installation Guide
Installation Guide
Install Driver: Double click Driver.exe
P3 SHENZHEN LENKENG TECHNOLOGY CO.,LTD
Installation Guide
Agree the statement Select Language Installation Completed
Install the Control software: Double-click Software.exe

www.lenkeng.biz s[email protected]om
Supply High Quality Products With Reasonable Price
Installation Guide
Installation Guide

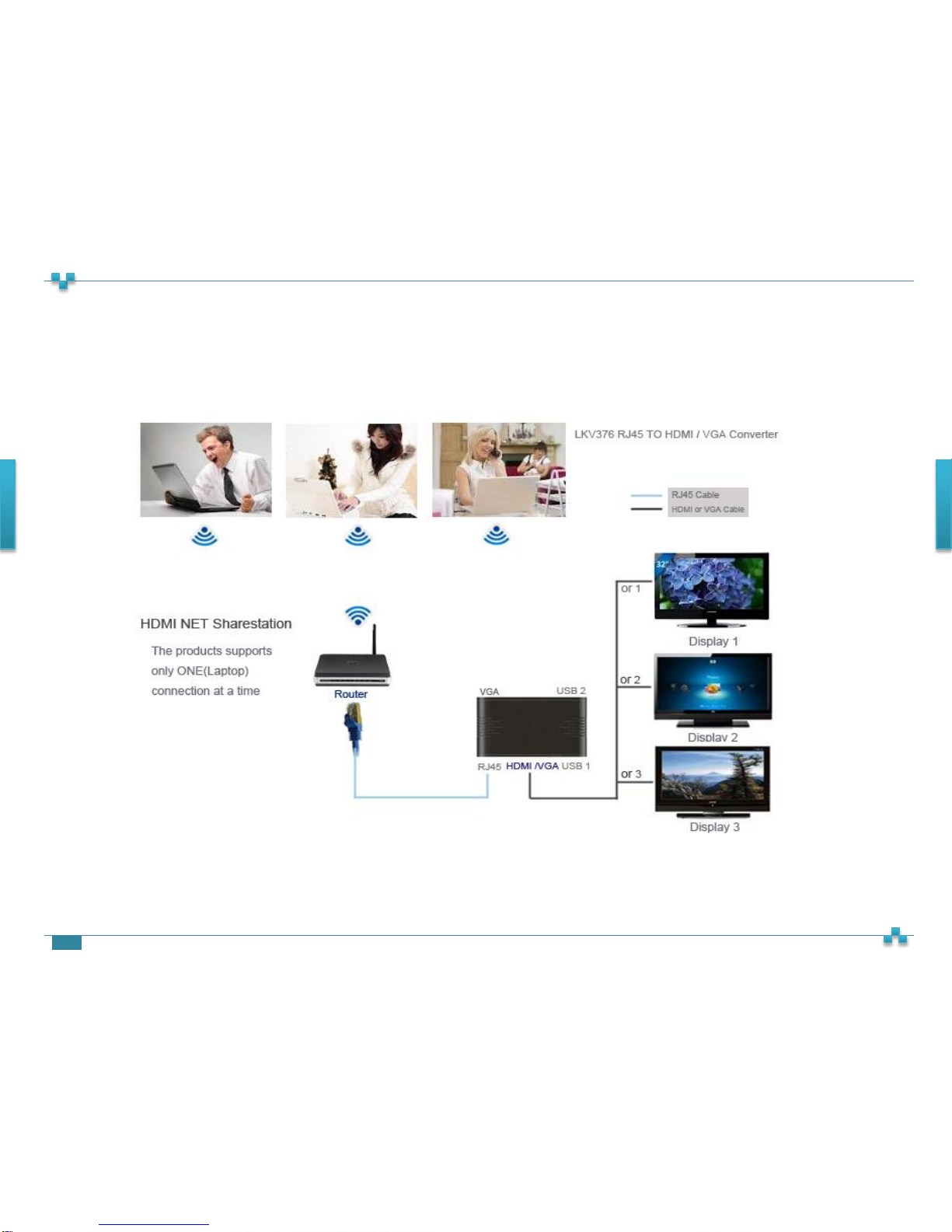

Connection Diagram
P4 SHENZHEN LENKENG TECHNOLOGY CO.,LTD
Directly Connection
Connect Converter to Computer with RJ45 Network cable
Connect TV or VGA monitor to the converter with HDMI cable or VGA
cable.after connecting all power adapters ,the converter start to work!

www.lenkeng.biz s[email protected]om
Supply High Quality Products With Reasonable Price
Installation Guide
Installation Guide
P4 SHENZHEN LENKENG TECHNOLOGY CO.,LTD
Router Connection
Connect router to computer with RJ45 Network cable or WIFI
Connect router to the converter with RJ45 Network cable
Choose output signal,connect HDTV or VGA monitor to the converter
with HDMI cable or VGA cable. Power on the product,the converter
start to work!

www.lenkeng.biz s[email protected]om
Supply High Quality Products With Reasonable Price
Installation Guide
Installation Guide
P4 SHENZHEN LENKENG TECHNOLOGY CO.,LTD
How to work?
Double-click USB Server file:

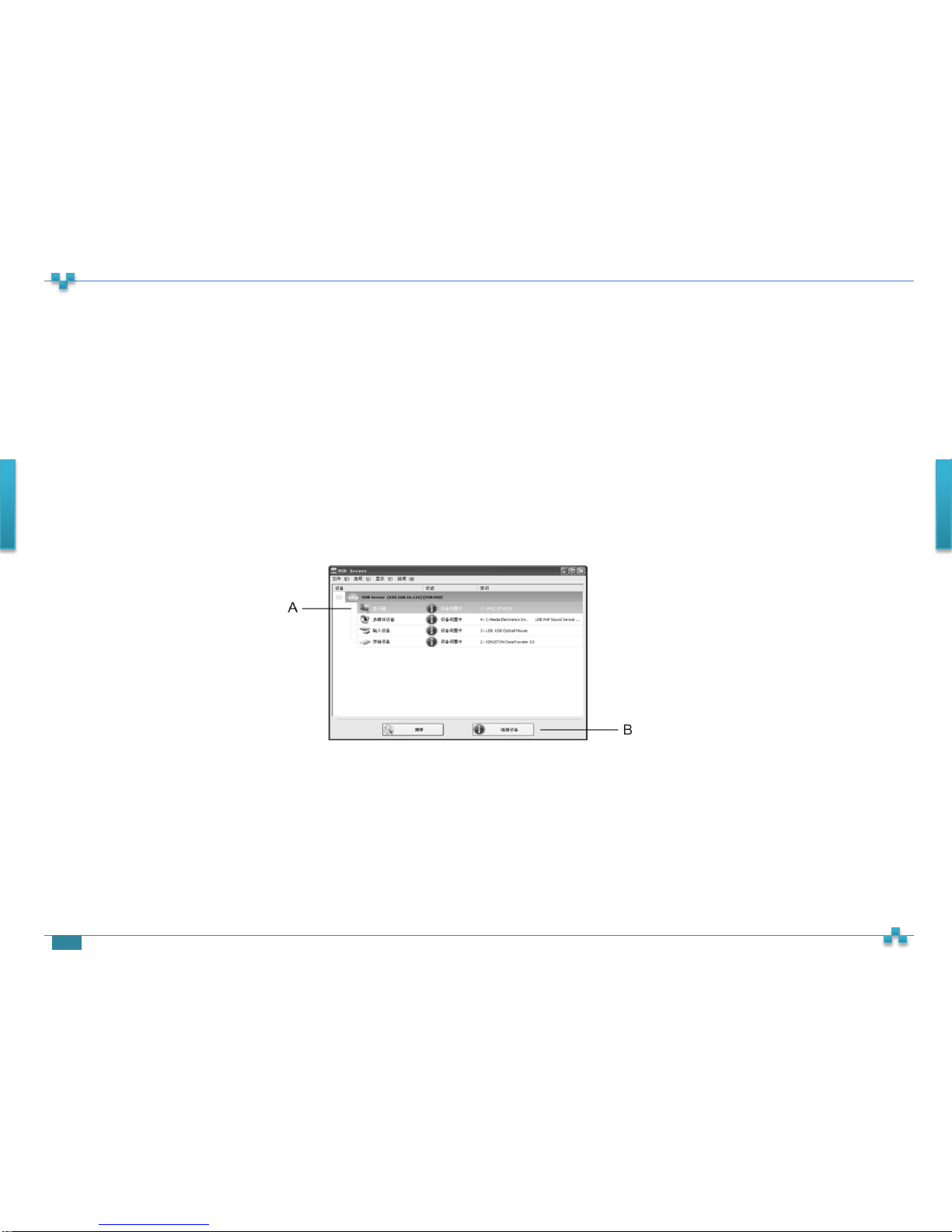

On first use, click search and then the software will search the converter automatically.
System will display video converter searched out
Click A(device to be connected)and then click B(connect the device),the converter will be automatically connected.(system
will set up thedriver automatically for the first connection) connect the required one by one.(It is normal if the display is
black for seconds in this process.)
From left to right,Computer only,Duplicate,Extend and Projector only. You can easily switch display mode.
Select language as following
Connect the device

www.lenkeng.biz s[email protected]om
Supply High Quality Products With Reasonable Price
Installation Guide
Installation Guide
P4 SHENZHEN LENKENG TECHNOLOGY CO.,LTD
Open Control Panel/All of the control panel/Display/Screen Resolution,the HDMI output resolution can be set. Take Win7 as example
A. Select the display that needs to adapt. 1 Display is input computer and 2 Display is output device by default.
B. Set up the resolution
C. Set up the display direction
D. Set up the display mode
Short-cut Function: Press ”Win+P” to see the following images.
From left to right,Computer only,Duplicate,Extend and Projector only.You can easily switch display mode.
Note: Short-cut function can not be applied by some computers due to compatibility.

www.lenkeng.biz s[email protected]om
Supply High Quality Products With Reasonable Price
Installation Guide
Installation Guide
P4 SHENZHEN LENKENG TECHNOLOGY CO.,LTD
Disconnected the converter
A. Select the device
B. Click the button to disconnect the chose device.
Note: If the software refuses to disconnect, please power off the converter.Make sure to store all files before power off.

www.lenkeng.biz s[email protected]om
Supply High Quality Products With Reasonable Price
Installation Guide
Installation Guide
Application
P4 SHENZHEN LENKENG TECHNOLOGY CO.,LTD

www.lenkeng.biz s[email protected]om
Supply High Quality Products With Reasonable Price
FAQ
Technical Specifications
FAQ
Q: No video output
A: Please make sure that all cables are well connected.If still no
video,please disconnect the connectivity in software and re-
connect or re-install the driver.
Q: No sound or mouse no response
A: The connectivity will be always disturbed by unstable
network.In this case, please disconnect the connection of audio
and mouse in soft ware.
Q: Display will show “Be sure to disconnect the device
and exit ? ” when USB server is closed.
A: Power off the converter or re-boot the computer
Q: Connect VGA and HDMI output simultaneously,but
VGA no display.
A: Please select VGA or HDMI output before the converter is
powered on.
Power Supply
D/C 5V/1A
Resolutions
Up to 1920*1080 (widescreen)
Input 1
USB x 2
Input 2
3.5mm Stereo Audio
Output 1
HDMI
Output 2
VGA+3.5 mm Stereo Audio
System support
Windows 2000/XP/VISTA/7
Relative Humidity
20%~90%
Dimensions
160x 70 x 25.5mm
Technical Specifications
Disclaimer
The product name and brand name may be registered
trademark of related manufacturers.TM and ® may be omitted on
the user manual.
Design and specifications of this unit are subject to change
without prior notice.
Pictures are for reference only. Products may differ slightly
from images shown.
