Lennox Hearth Products LENNOX MPE-33R User manual

NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE. 1
33" Electric Fireplace
P/N 850,032M REV. A 02/2006
MODEL:
SAVE THESE INSTRUCTIONS
FOR FUTURE REFERENCE
MERIT PLUS SERIES
This manual will enable you to obtain a safe, efficient and dependable
installation and operation of your electric fireplace. Please read and
understand these instructions before beginning your installation.
Do not alter or modify this fireplace or its components under any circum-
stances. Any modification or alteration of the fireplace system, including
but not limited to the fireplace and accessories, may void the warranty,
listings and approvals of this system and could result in an unsafe and
potentially dangerous installation.
IMPORTANT! IF OPTIONAL GLASS DOORS ARE PURCHASED, TO
ASSURE PROPER ALIGNMENT, INSTALL THIS FIREPLACE IN A
SQUARE AND PLUMBCONDITION, USING SHIMSAS NECESSARY
AT SIDES. THIS APPLIANCE IS MOUNTED ON RUBBER FEET TO
ENSURE ADEQUATE AIR CIRCULATION BENEATH FIREPLACE.
DO NOT BLOCK AIRFLOW AT THE BOTTOM AIR INTAKES.
INSTALLER: DO NOT DISCARD THIS MANUAL
PLEASE LEAVE FOR THE HOMEOWNER
FOR YOUR SAFETY
DO NOT STORE OR USE GASOLINE OR OTHER FLAMMABLE
VAPORS AND LIQUIDS IN THE VICINITY OF THIS OR ANY OTHER
APPLIANCE.
INSTALLATION AND
OPERATING INSTRUCTIONS
LENNOX HEARTH PRODUCTS
Report # C1482763
MPE-33R
®
CUS
®
A French manual is available upon request. Order P/N 850,032CF
Ce manuel d’installation est disponible en francais, simplement en
faire la demande. Numéro de la pièce 850,032CF.

NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.
2
INTRODUCTION
This Electric Fireplace is designed for
residential applications to be framed in
as a fireplace.
This appliance has been tested in accor-
dance with UL 2021 and CSA C22.2 No.
46-M198 standards for fixed and location
dedicated electric room heaters.
Installation must conform to local codes.
In the absence of local codes, electrical
wiring and grounding must comply with
the National Electrical Code ANSI/ NFPA
70 - latest edition. In Canada, the cur-
rent CSA C22-1 Canadian Electrical Code
- latest edition.
CONGRATULATIONS!
In selecting this DAVE LENNOX Merit Plus electric fireplace, you have chosen the finest
and most dependable fireplace found anywhere. A beautiful and prestigious addition to
the finest homes. Welcome to a Family of hundreds of thousands of satisfied LENNOX
Fireplace Owners.
Please read and carefully follow all of the instructions found in this manual. Please
pay special attention to the safety instructions provided in this manual. The instruc-
tions included here will assure that you have many years of dependable and enjoyable
service from your LENNOX product.
TO PREVENT A POSSIBLE FIRE, DO NOT
BLOCK AIR INTAKES OR EXHAUSTS IN
ANY WAY. DO NOT USE NEAR SOFT
SURFACES, LIKE A PILLOW, WHERE
OPENINGS MAY BECOME BLOCKED.
THIS APPLIANCE MAY BECOME HOT
WHEN IN USE. TO AVOID BURNS, DO NOT
LET BARE SKIN TOUCH HOT SURFACES.
KEEP COMBUSTIBLE MATERIALS, SUCH
AS FURNITURE, PILLOWS, BEDDING,
PAPERS, CLOTHES AND CURTAINS AT
LEAST 3 FEET (1 METER) FROM THE
FRONT OF THIS APPLIANCE.
DO NOT OPERATE ANY HEATER WITH
DAMAGED WIRING OR CONNECTORS,
OR AFTER THE APPLIANCE MALFUNC-
TIONS, OR IF IT HAS BEEN DROPPED OR
DAMAGED IN ANY WAY.
ANY REPAIRS TO THIS FIREPLACE
SHOULDBE PERFORMEDBY AQUALIFIED
SERVICE TECHNICIAN.
UNDER NO CIRCUMSTANCES SHOULD
THIS FIREPLACE BE MODIFIED. PARTS
HAVING TO BEREMOVED FOR SERVICING
MUST BE REPLACED PRIOR TO OPERAT-
ING THE FIREPLACE AGAIN.
TABLE OF CONTENTS
Packaging List...................................Page
2
Introduction ......................................Page
2
General Information ..........................Page
3
Locating Fireplace.............................Page
3
Tools/Supplies Required .................. Page 3
Framing Specifications..................... Page 4
Fireplace Specifications.................... Page 4
Clearances ....................................... Page 5
Pre-installation................................. Page 5
Installation Steps ............................. Page 5
Electrical Connections...................... Page 5
Final Finishing.................................. Page 6
Break-In Period................................ Page 6
Control Panel Operation................... Page 6
Remote Control Operation ............... Page 7
Maintenance..................................... Page 8
PACKAGING LIST
This assembled Electric Room Heater is
packaged with:
• One accessory package located in the
firebox, containing;
1. One Installation and Operation Manual.
2. One Warranty Certificate.
3. One Remote Control.
• Two spare Light Bulbs are located in a
recess on the back of the log assembly.
WARNING
If the information in this manual
is not followed exactly, an elec-
trical shock or fire may result
causing property damage, per-
sonal injury or loss of life.
IMPORTANT
Please read and understand
these instructions before begin-
ning your installation.
IMPORTANT
Before starting your fireplace
installation, read this instal-
lation and operation manual
very carefully to ensure you
understand it completely and in
entirety. Failure to follow these
instructions may result in a pos-
sible electric shock, fire hazard
and/or injury or property damage
and will void the warranty.
CAUTION
This appliance is mounted on
rubber feet. The purposeof these
feet is to ensure adequate air
circulationbeneaththe fireplace.
Do not remove these feet. Do not
install the fireplace directly onto
a carpet, rug, furniture or similar
surfaces, which could hinder or
block the airflow.
CAUTION
Extreme caution is necessary
when any heater is used by or
near children or invalids and
whenever the heater is left oper-
ating and unattended.

NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE. 3
Figure 1
TOOLS AND BUILDING SUPPLIES
NORMALLY REQUIRED
Tools:
Phillips Screwdriver
7/16" Socket Drive
Hammer
Saw And/or Saber Saw
Level
Measuring Tape
Plumb Line
Electric Drill And Bits
Pliers
Square
Gloves
Building Supplies:
Framing Materials
Wall Finishing Materials
Caulking Materials
(noncombustible)
IMPORTANT NOTE: This fireplace system
is not difficult to install. However, in the
interest of safety, it is recommended that
the installer be a qualified or certified
“tradesman” familiar with commonly
accepted fireplace installation and safety
techniques as well as prevailing local
codes.
LOCATING YOUR MERIT PLUS ELECTRIC
FIREPLACE
Your newfireplace maybe installed into existing
framing or built into a wall (see Figure 1), or
set in a freestanding mantel cabinet available
from your dealer (see Page 17).
When choosing a location for your new fire-
place, ensure that the general instructions are
followed. Also, for the best effect, install the
fireplace out of direct sunlight and away from
overhead lighting. See Figure 1.
Top View Showing Approved
Room Locations of Fireplace
fireplace shown in gray.
GENERAL INFORMATION
Power Supply Wire Specifications
120 Volt, 60 Hz, 1600 Watts:
(ref. Page 10)
Use two conductor, non-metallic sheath cable
with ground wire for the incoming power
supply. The wire used must conform to local
and national electrical codes for the specified
power consumption rating. See Table 1.
240 Volt, 60 Hz, 3000 Watt:
(ref. Page 11)
Use three conductor, non-metallic sheath
cable with ground wire for the incoming power
supply. The wire used must conform to local
and national electrical codes for the specified
power consumption rating. See Table 1.

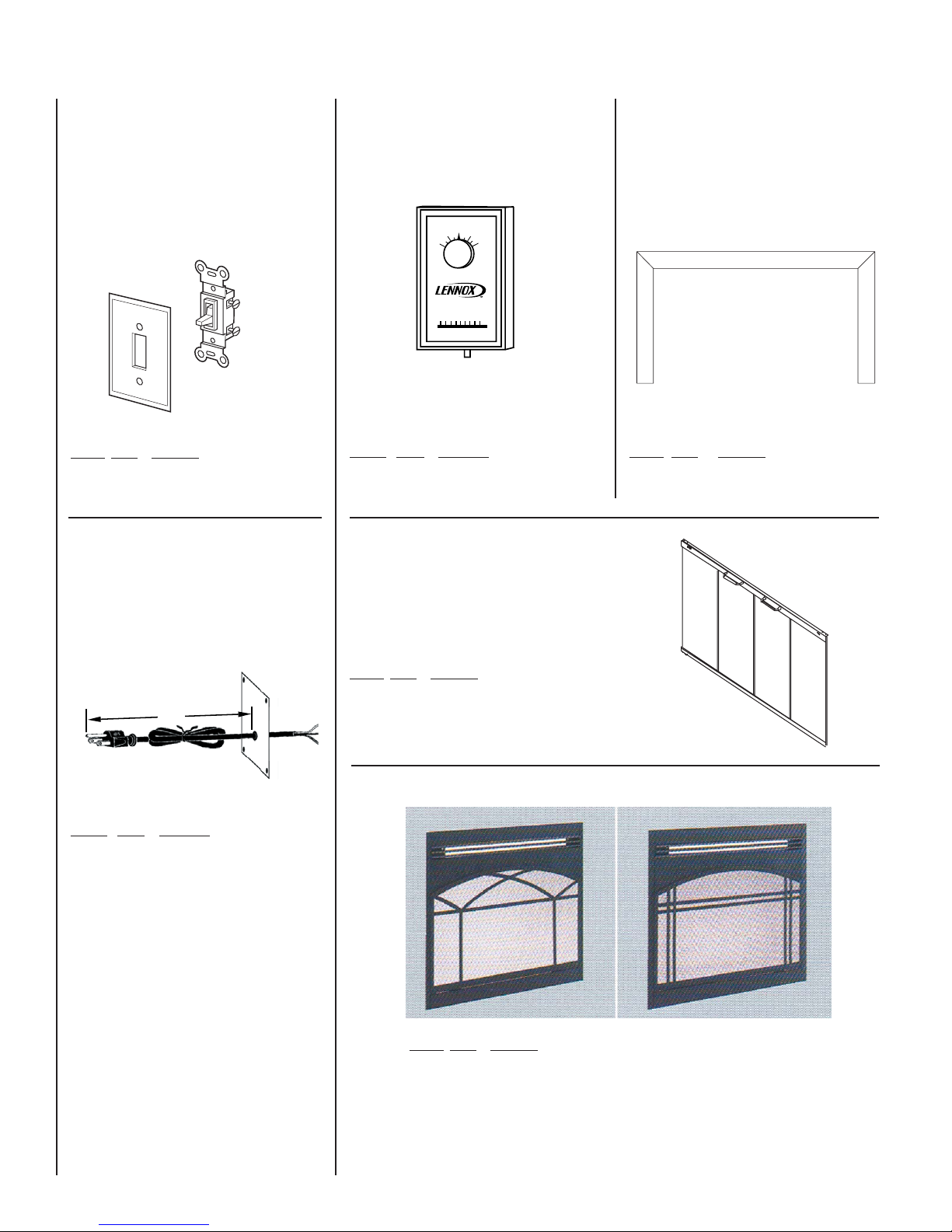

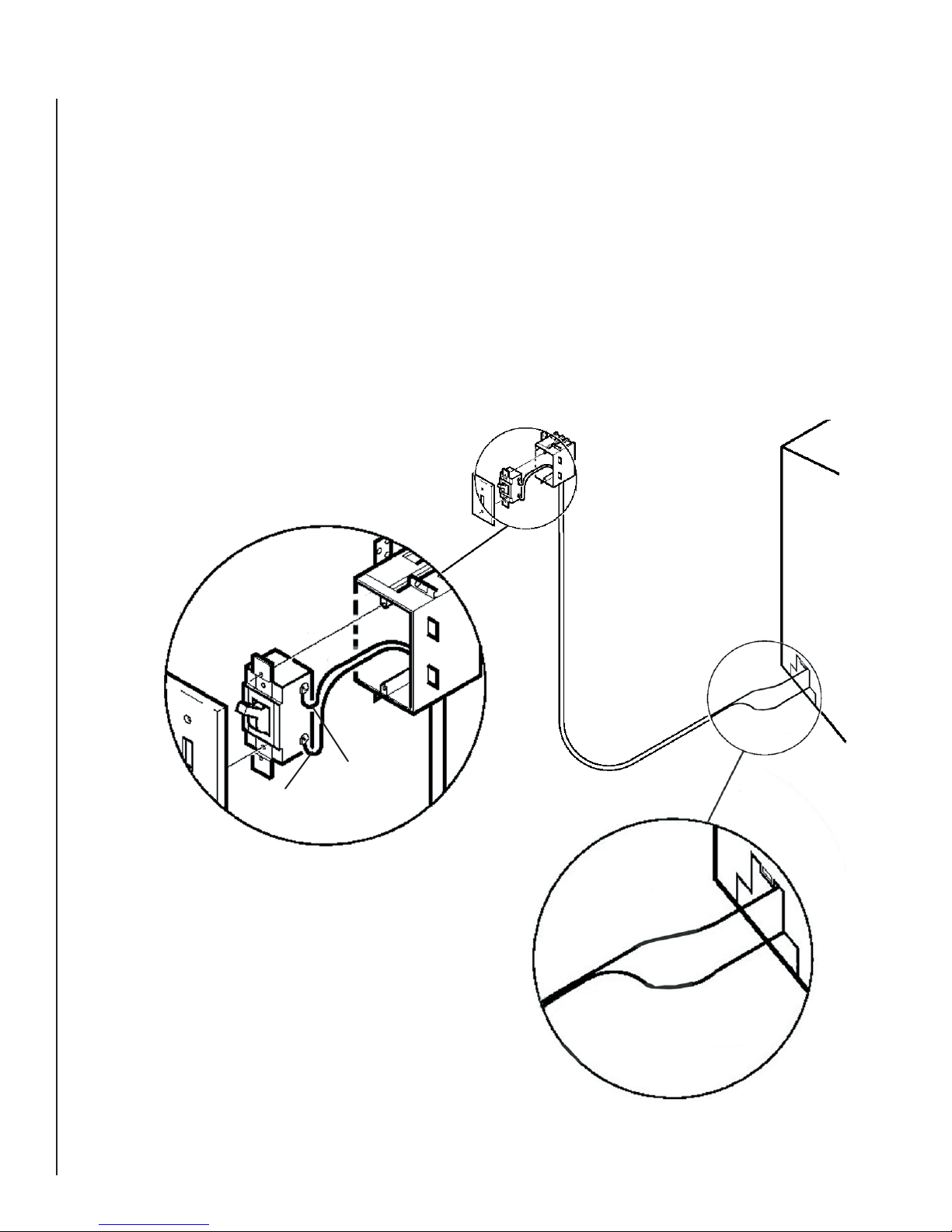

Wall Switch or Wall Thermostat Kits
(optional kits, see Page 17)
Low voltage wire is provided for the wall switch
connection. The wires gage requirements are
shown on Table 1.
DO NOT USE THIS APPLIANCE OUT-
DOORS. DO NOT EXPOSE FIREPLACE TO
THE ELEMENTS (SUCH AS RAIN, ETC.).
THIS APPLIANCE IS NOT INTENDED FOR
USE IN BATHROOMS, LAUNDRY AREAS
OR SIMILAR INDOORLOCATIONS. NEVER
LOCATE THIS APPLIANCE WHERE IT
COULD FALL INTO A BATHTUB OR OTHER
WATER CONTAINER.
DO NOT RUN ELECTRICAL WIRING OR
POWER CORD (OPTIONAL) UNDER CAR-
PETING. OR COVER WITH THROW RUGS,
RUNNERS OR SIMILAR MATERIALS.
(FOR 120 V W/OPTIONAL POWER CORD)
AVOID THE USE OF AN EXTENSION CORD
BECAUSE THE EXTENSION CORD MAY
OVERHEAT AND CAUSE A RISK OF FIRE.
HOWEVER, IF YOU HAVE TO USE AN
EXTENSION CORD, THE CORD SHALL BE
NO. 14 AWG MINIMUM SIZE AND RATED
NOT LESS THAN 1800 WATTS, 15 AMPS.
THE EXTENSION CORD MUST BE A THREE
WIRE CORD WITH GROUNDING TYPE
PLUG AND CORD CONNECTION.
THIS APPLIANCE HAS HOT AND ARCING
OR SPARKING PARTS INSIDE. DO NOT
USE IT IN AREAS WHERE GASOLINE,
PAINT OR FLAMMABLE LIQUIDS ARE
USED OR STORED.
THIS FIREPLACE SHOULD NOT BE USED
AS A DRYING RACK FOR CLOTHING,
NOR SHOULD CHRISTMAS STOCKINGS
OR OTHER DECORATIONS BE HUNG
NEAR IT.
USETHISAPPLIANCEONLYAS DESCRIBED
IN THIS MANUAL. ANY OTHER USE IS NOT
RECOMMENDEDBY THE MANUFACTURER
ANDMAYCAUSE AFIRE, ELECTRIC SHOCK
OR INJURY TO PERSONS.
IF APPLIANCE IS TO BE DISCONNECTED,
TURN OFF CONTROLS FIRST.
DO NOT INSERT OR ALLOW FOREIGN
OBJECTS TO ENTER ANY VENTILATION
OR EXHAUST OPENING, AS THIS MAY
CAUSE AN ELECTRIC SHOCK, FIRE, OR
DAMAGE TO THE APPLIANCE.
SAVE THESE INSTRUCTIONS.
WARNING
Do not install or operate this fire-
placethroughaswitchwiredinthe
120V ACor 240 VAC circuits. The
only approved wiring for a switch
is through the low voltage circuit
(24 V AC) as shown on Page 14.
Table 1
Power Supply Wire Gage
Voltage Wire Gage Fuse
Rating
120 V 14 GA. 15 AMP
240 V 14 GA. 20 AMP
Wall Switch / Thermostat Wire Gage
Voltage Wire Gage
5 VOLTS 18 GAGE

NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.
4
FRAMING SPECIFICATIONS
34 1/2"
(876 mm)
21 1/8 "
(537 mm)
14 7/8"
(32 mm)
5 1/8 "
(130 mm)
33 "
(838 mm)
2 1/4 "
(55 mm)
29 3/4 "
(754 mm)
32 "
(812 mm)
Front View
Top View
Right Side
Left Side
Electrical Access
13 3/4"
(350 mm)
5 1/4 "
(134 mm)
24 1/2"
( 622 mm )
27 1/2 "
(700 mm)
21 1/8 "
(537 mm)
FIREPLACE SPECIFICATIONS
Front View
Side View
36 1/4 "
(921 mm)
25 5/8 "
35 1/4 "
(651 mm)
(895 mm)
51 1/4 "
(1302 mm)
32 "
(812 mm)
4 "
(102 mm) 15 1/8 "
(384 mm)
Corner View
Electrical
(left side)
Junction
Box
Electrical
Junction
Box
35 1/4 "
(895 mm)
Figure 2
Figure 3
Note: Framing dimensions are calculated for a nailing flange depth of 1/2"

NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE. 5
MINIMUM CLEARANCES TO COMBUS-
TIBLES
Mantel Clearance: Combustibleand Non-com-
bustible mantels may be installed at any height
above the top of the face of fireplace.
Cat. No. H3427
Model: MPE-33R
Description: Merit Plus Electric Fireplace,
33” Radiant
Shipping Weight: 81 lb.'s (36.75 KG)
Packaging:
41” x 17 3/4” x 33 1/2”
(1040 mm x 451 mm x 850 mm)
14.1 cu. ft.
Power Requirements:
(120 Volt, 60 Hz.)
Rated Wattage - 1600 Watts
Amperage - 13.33 Amps
(240 Volt, 60 Hz.)
Rated Wattage - 3000 Watts
Amperage - 12.5 Amps
Blower CFM: 83 CFM
(120 V): 5,461 BTU/HR
(240 V): 10,239 BTU/HR
FIREPLACE SPECIFICATIONS
Sides: 0 mm - 0 inches
Floor: 0 mm - 0 inches
Top: 0 mm - 0 inches
PRE-INSTALLATION
Before You Start
Check appliance for any concealed damage.
DETAILED INSTALLATION STEPS
1. Complete the framing opening to the dimen-
sions specified in Figure 2.
2. Ensure that there is a minimum of 8" of
service cable for connection to the junction
boxon the fireplace. Remove theouter jacket
and strip the individual wires 1/2" from the
end.
3. Loosen the screw securing the junction box
cover and remove the cover.
4. Position the fireplace into the framed-in
opening. Attach fireplace to frame using
nailing flanges provided.
5. Complete the wiring to the fireplace for the
appropriate voltage (120 V or 240 V), as
shown on Pages 10 & 11. Wires L1, L2, N
& G are attached to the rear of the junction
box cable clamp for easy access.
Table 2
ELECTRICAL CONNECTIONS

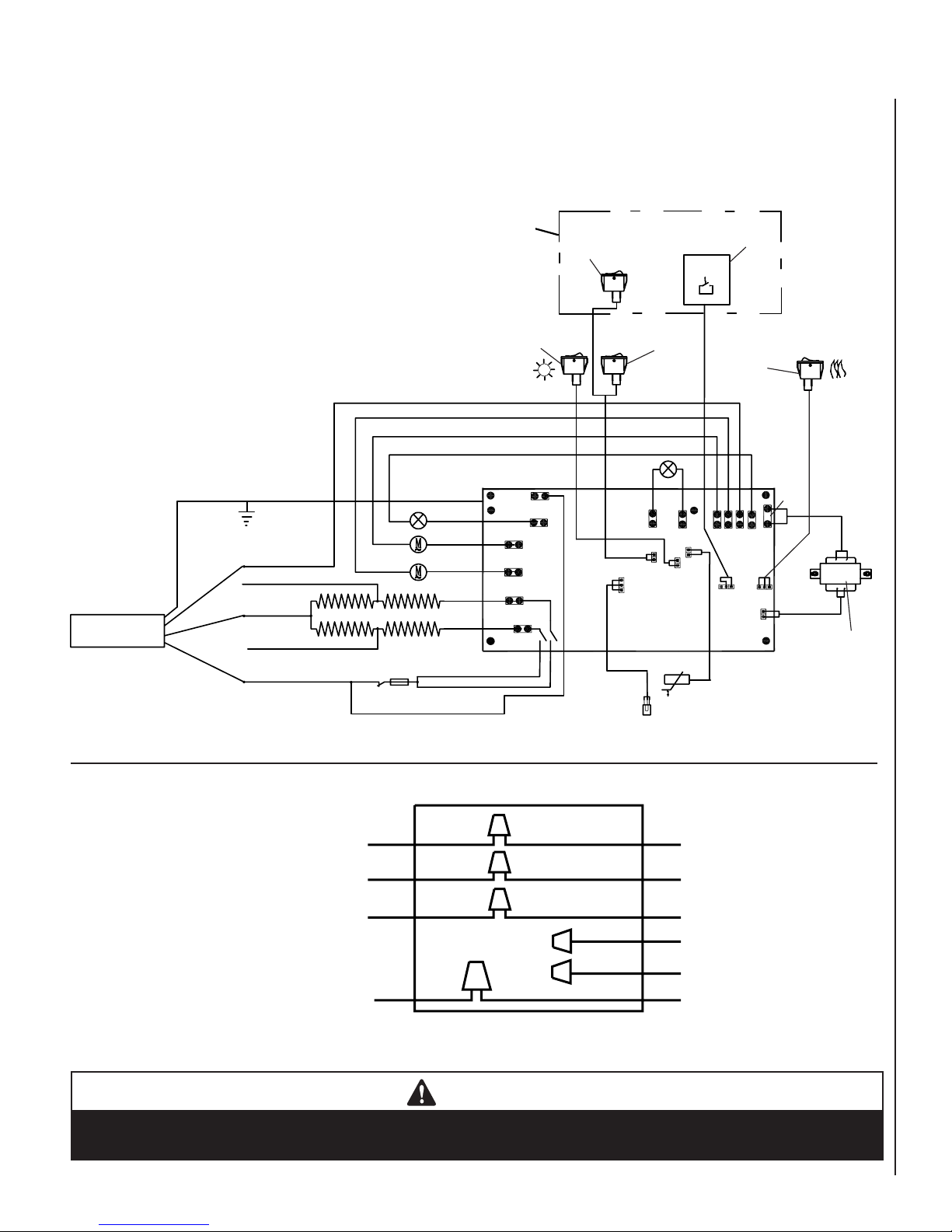

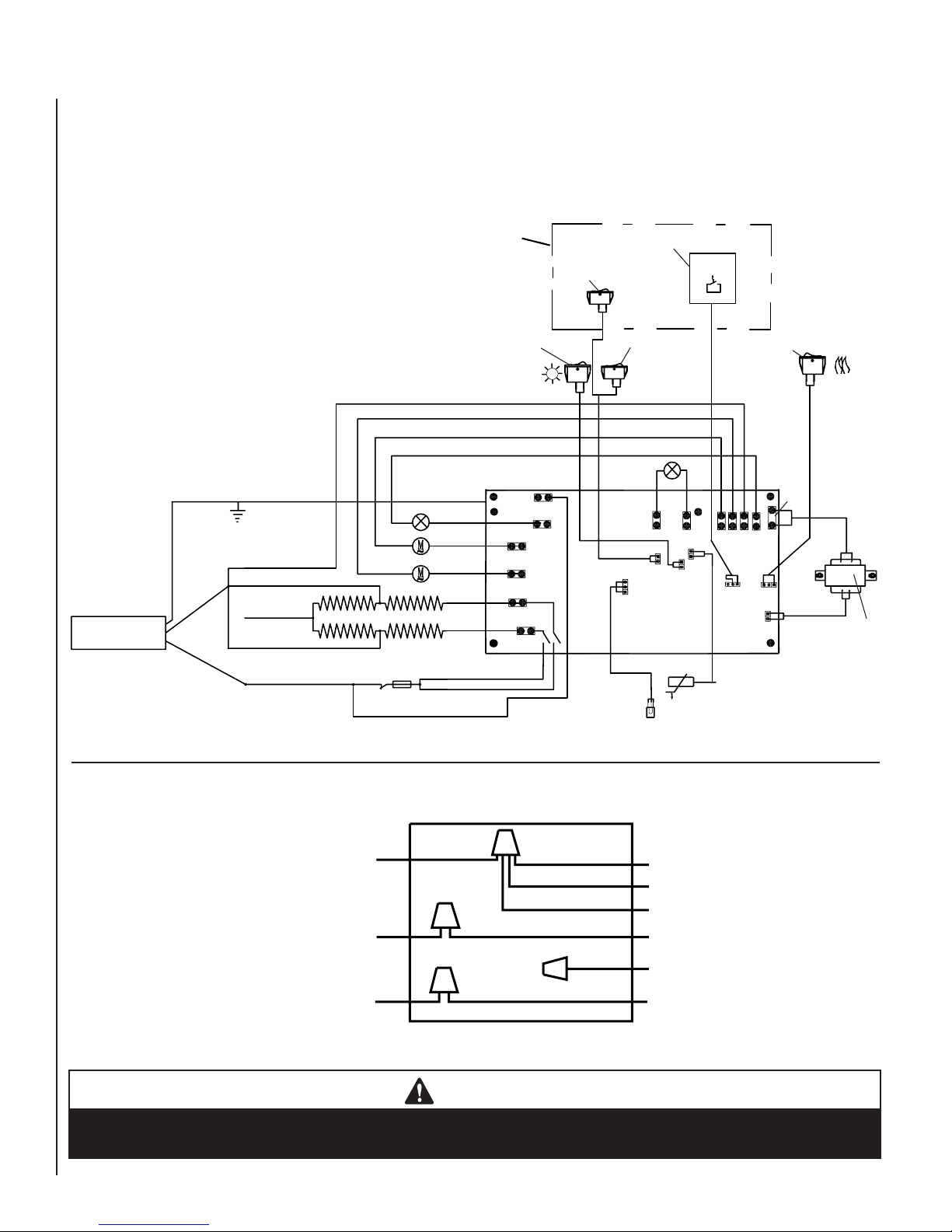

Refer to the electrical diagrams on Pages 10
to 14.
This appliance is an electric fireplace designed
to be framed in with combustible materials (up
to the edge of the appliance). A drywall lip at
the top of the fireplace and 4 nailing flanges
on the sides of the appliance is provided to
facilitate installation.
6. Wire a dedicated, properly fused circuit with
an Amp rating for the appropriate voltage
(120 V - 15 Amps or 240 V - 20 Amps). A
dedicated circuit is required to prevent over-
loading a house circuit in cases of having
multiple appliances on the same circuit.
Use an outlet that is protected by a ground
fault circuit interrupter where required by
electrical code.

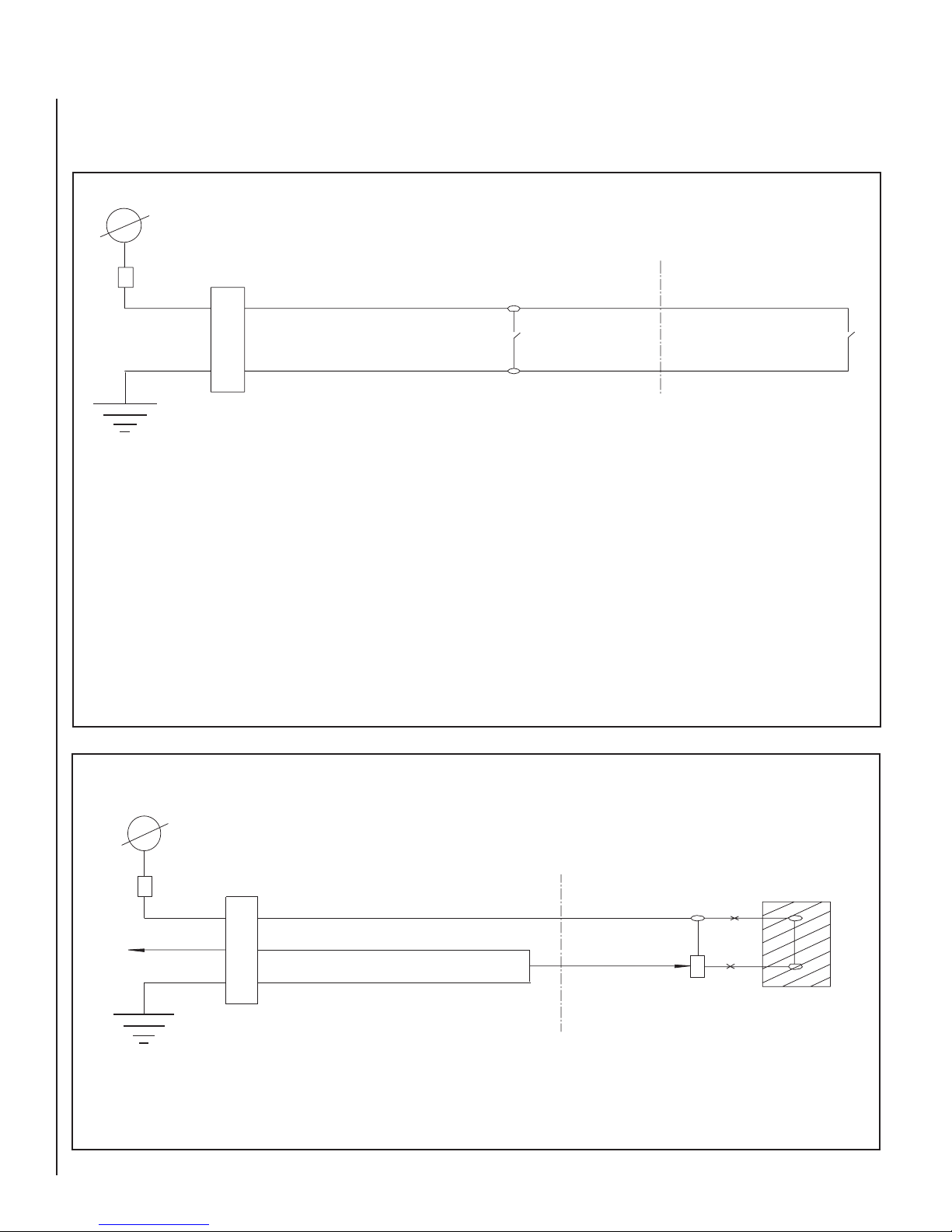

7. (If applicable) Make wall mount wall switch
or wall thermostat connections as outlined
on Pages 11 & 12.
8. Place all connectors inside the fireplace and
replace the junction box cover, ensuring
that the cable clamp grips only the jacket
of service, and if applicable, wall switch or
thermostat lines.
9. Perform a function test. See Manual Control
Panel Operation on Page 6 and Remote
Control Operation on Page 7.
Hearth Protection: A hearth is not mandatory,
but it is recommended for aesthetic purposes.
Secure the hearth extension to the floor to
prevent possible shifting. Do no block the air-
flow beneath the appliance (read the following
WARNING).
WARNING
To prevent contact with sag-
ging or loose insulation, the
appliance must not be installed
againstvaporbarriersorexposed
insulation. Localized overheat-
ing could occur and a fire coudld
result. Insulation and a vapor
barrier should be placed a
minimum of 2 inches from the
appliance.
WARNING
This appliance is mounted on
rubber feet to ensure adequate
aircirculation beneathfireplace.
Donot block airflow at the bottom
air intakes.
IMPORTANT
Cold climate installation recom-
mendation: when installing this
fireplace againsta non-insulated
exterior wall or chase, it is
mandatory that the outer walls
be insulated to conform to appli-
cable insulation codes.
WARNING
Electrical wiring must comply
with local building codes and
other applicable regulations to
reduce the risk of fire, electrical
shock and injury to individuals.
IMPORTANT
Any electrical re-wiring of this
appliance must be done by a
qualified electrician.
WARNING
Do not use this fireplace if any
part of it has been underwater.
Immediately call a qualified
service technician to inspect the
fireplace and replace any part of
the electrical system which has
been under water.

NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.
6
MANUAL CONTROL PANEL
Main Power On/Off (rear most switch)
Figure 4
FINAL FINISHING
Materials such as brick and tile can be extended
down to the top of the fireplace. Do not extend
down, covering the outlet or glass enclosure
panel (optional kit).
There are a wide variety of “finished looks” for
these fireplaces, from formal wall decor with
elaborate mantels to rustic wood paneling or
warm brick facings.
Mantel Cabinet or Accent Trim Installations
An optional mantel cabinet kit or an accent trim
kit is available from your dealer (see Page 18).
These options give the appliance an attractive
finished look.
Hearth
An aesthetically pleasing fireplace hearth can
be installed, if desired (see hearth protection
on Page 5).
BREAK-IN PERIOD:
During the first few initial uses of this heater,
theremay be arelease of a slight, harmlessodor.
This odor is a normal occurrence caused by the
initial heating of the internal heating elements
and should not reoccur.
MANUAL CONTROL PANEL OPERATION
(refer to Figures 5 & 6)
Once this appliance has been properly installed
and connected to the power supply as defined
in this manual, it is ready to operate.
Flame / Ember On/Off (front most switch)
Figure 5
On
On
On Off
Off
Off
• When using the main power on/off
switch inside the body, the power on/off
switch outside the body (optional wall
switch kit) must be in the OFF posi-
tion.
• Whenusing power on/offswitch outside
the body (optional wall switch), the
power on/off switch inside the body
must be in the OFF position.
• When using the remote control, the
power on/off switch inside the body
and the wall switch (optional kit) must
be on the OFF position.
Heater On/Off (center switch)
Manual Control Switches
are located behind pull
screen on inside floor
Note: Ensure the circuit breakers for the power
supply are turned on.
This appliance can be operated either from the
manual control panel (see Figures 4 & 5)or
by using the remote control, wall switch or wall
thermostat (optional kits).
The manual controls are located on the firebox
floor on the front left (see Figure 5). If an
optional glass enclosure is installed, it must
be removed to access.
Main Power ON/OFF Switch
When the mainpower switchis turnedon, power
is supplied to the fireplace. This switch must be
on for all other switches to operate.
Heater ON/OFF Switch
When this switch is turned on, the heater will
emitheat inthe temperature range selected (see
Figure 6; G, H & I). The fireplace can operate
with or without heat.
Flame / Ember On/Off Switch:
Turns lights on inside ember bed and flame
cylinder.

NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE. 7
• When using the remote control, the power
on/off switch inside the body and the wall
switch (optional kit) must be on the OFF
position.
REMOTE CONTROL OPERATION:
Figure 6
The Merit Plus Electric Fireplace is provided
with an Infrared light Remote Control.
All functions of the fireplace can be con-
trolled through the remote control. Note:
The Effective range of the remote control
is up to approximately 26 feet (8 meters).
The functions identified on the remote (see
Figure 6)are as follows:
A. POWER BUTTON
Press once to turn on power to fireplace.
B. INDICATING LIGHT
Illuminates when signal is sent.
C. LIGHT BUTTON
On/off switch for flame and ember light.
D. LIGHT ADJUSTING BUTTON (DIM)
Reduces brightness of embers.
E. LIGHT ADJUSTING BUTTON (BRIGHTEN)
Increases brightness of embers.
F. HEATER ON/OFF
This button will turn the heater ON and OFF
independent of the main button.
G.TEMPERATURE ADJUSTMENT BUTTON
(HIGH)
Highest heat output, up to 86° F.
H.TEMPERATURE ADJUSTMENT BUTTON
(MED.)
Medium heat output, up to 75° F.
I. TEMPERATURE ADJUSTMENT BUTTON
(LOW)
Lowest heat output, up to 64° F.
J. FLAME ADJUSTING BUTTON (LOWER)
Reduces flame intensity.
K. FLAME ADJUSTING BUTTON (HIGHER)
Increases flame intensity.
Remote Control Operation Steps:
1. To control the electric fireplace by remote
control, the main power on/off switch
should be in the off position. This switch is
located on the front left floor of firebox (see
Figures 4 & 5).
2. When operating the remote control, it must
be pointed at the logs inside the electric
fireplace and a beep must be heard each time
you press a function button. The beep lets
you know the remote control is operating the
function button you are pressing.
3. Remote On & Off Button - The button on the
top left (see A) is the on/off power button.
When pressing this button you will hear a
beep, this will activates the power to the
fireplace. You must then press the display
button (B) to activate the lights.
Note: If the flame does not come on immedi-
ately, adjust brightness and intensity (buttons
E & K).
4. To increase thebrightness,press andrelease
the light brighten button (see E). Each time
you press this button you will hear a beep,
and the brightness will increase by a small
amount, until the maximum brightness
is achieved. To decrease the brightness,
press and release the light dimming button
(see D). Each time you press this button
you will hear a beep, and the brightness
will decrease by a small amount, until the
minimum brightness is achieved.
5. Heater Button,Toactivatetheheater,pressthe
heater button (see F), then press HI (G),
MED (H), or LO (I). The heater is preset to
the following temperatures:
• HIGH will shut off when room reaches
approximately 86° F (30° C).
• MED. will shut off when room reaches
approximately 75° F (24° C).
• LO. (Low) will shut of when room reaches
approximately 64° F (18° C).
6. Flame Button - Press the Flame Adjusting
Buttons to achieve a higher or lower flame
intensity (see J & K).
7. To Increase Flame Brightness press and
release the (K) button. Each time you press
this button you will hear a beep and the
brightnessof the flame will increase slightly,
until the maximum setting is reached. To
Decrease Flame Brightness press and
release the (J) button. Each time you press
this button you will hear a beep and the
brightnessofthe flame will decrease slightly,
until the minimum setting is reached.
8. To turn the electric fireplace off, Press the off
button once (A), when you hear the beep the
fireplace will be completely off. When you
restart your fireplace with the remote control,
all settings will restart at the high settings pro-
grammed at the factory. You may also simply
press the (B) button to turn off the flame and
still use the heater.
POWER
ON/OFF
ON/OFF
DISPLAY
Dimmer Brighter
EMBERS
HEATER ON/OFF
TEMP. CONTROL
HIGH MED. LOW
FLAME
LOWER HIGHER
AC
B
E
F
D
H
GI
JK
REMOTE CONTROL
CAUTIONS
• Do Not Use Old Batteries With
New Ones.
• Do Not Use Batteries Other That
The Type Specified (2 Ea. AA).
• Ensure Batteries Are Correctly
Installed In Remote Control.

NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.
8
Figure 9
MAINTENANCE
This appliance has been designed to provide
many years of trouble-free service. The com-
ponents that will need to be serviced have been
kept to a minimum. Periodic dusting of the
fireplace is all that should be required.

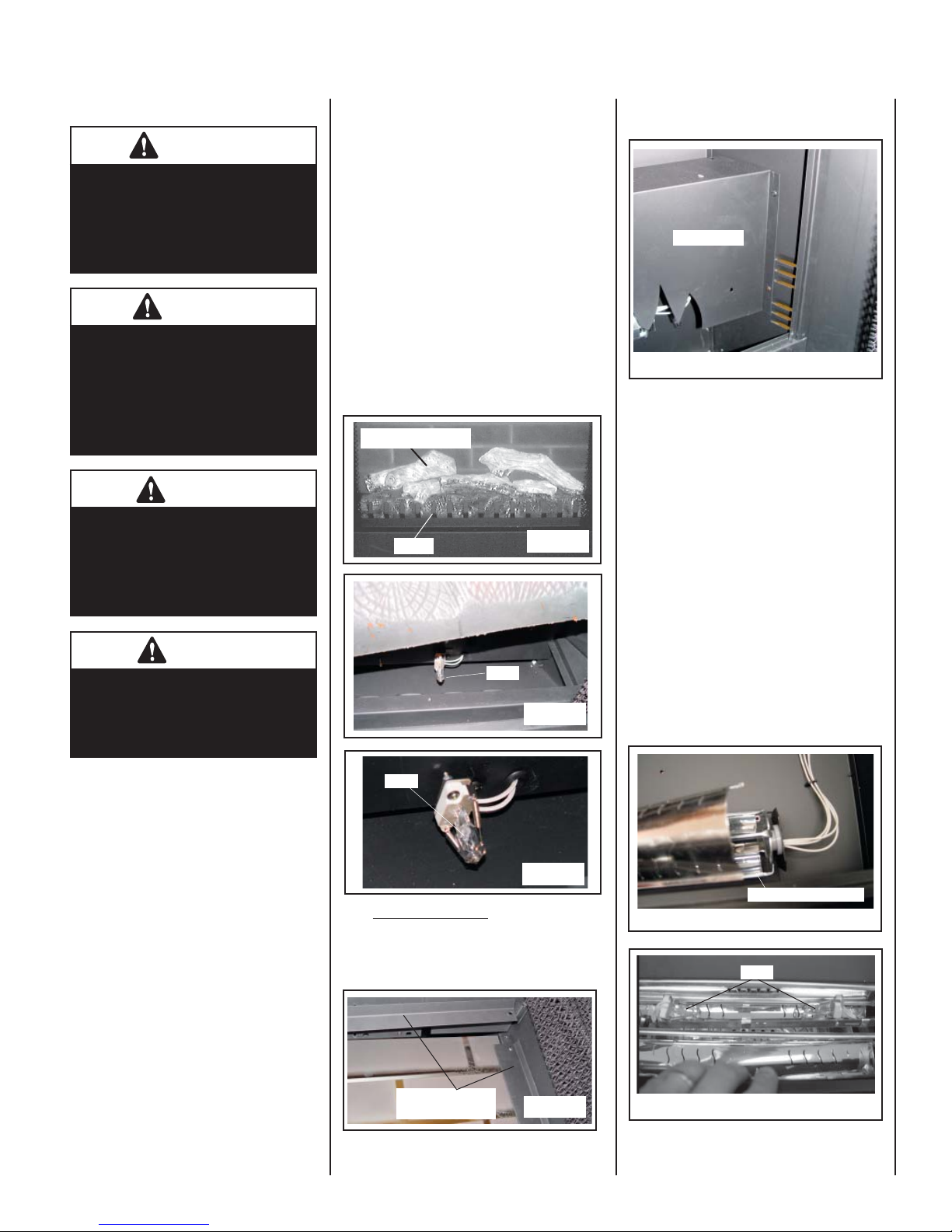

HEATER/BLOWER REPLACEMENT PROCE-
DURE
1. Turn off power to the fireplace.
2. Let the fireplace completely cool, if it has
been operating.
3. Open the steel curtains (remove glass panel
enclosure, if applicable).
Blower / Heater
Figure 11
Figure 10
Figure 8

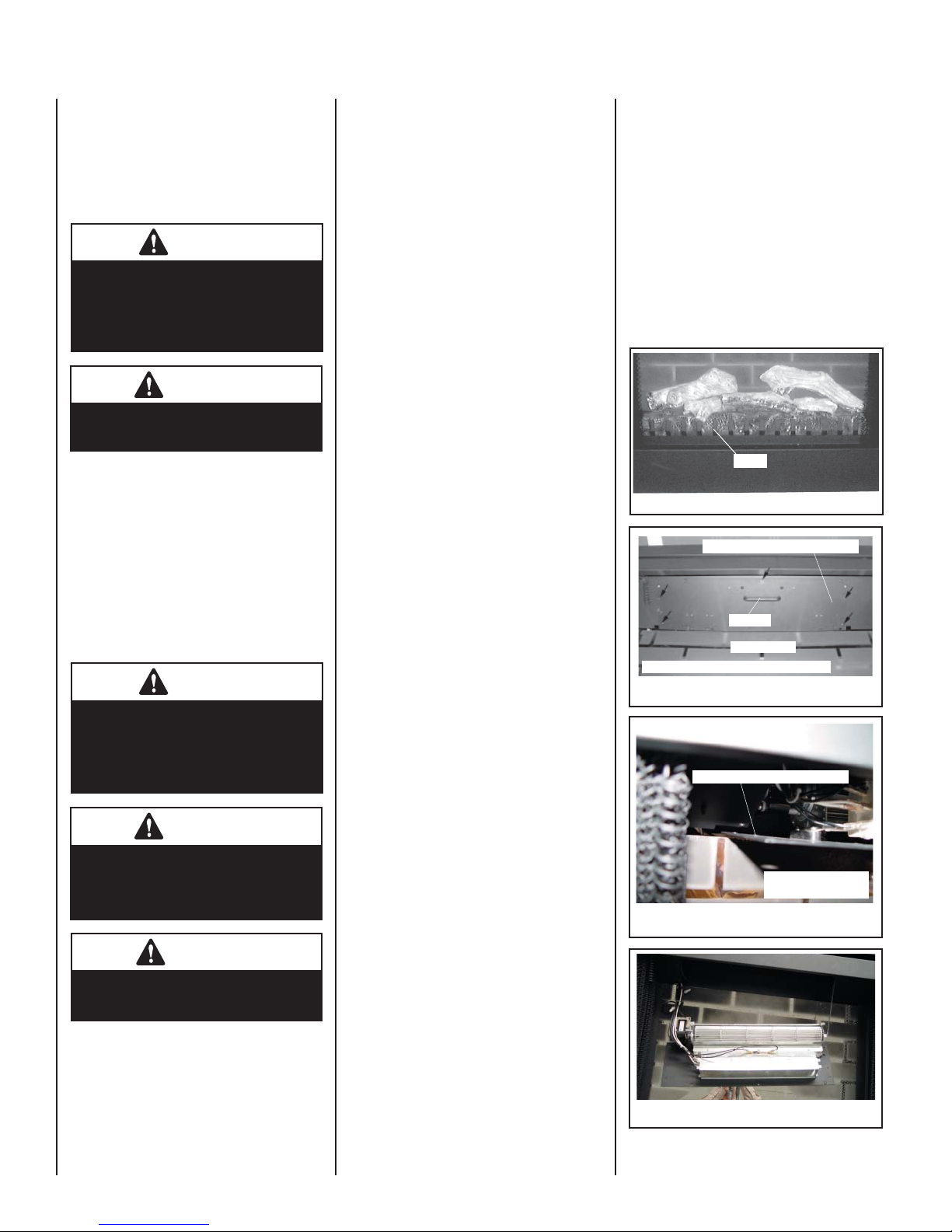

4. OPTIONAL: To ensure that the brick panel
isn't accidentally scratched, you may wish
to remove it before proceeding:
Brick Panel Removal Procedure:
a. Remove the 2 screws on the front of the
grate. Remove Grate (see Figure 8).
b. Lift out Log / Ember assembly and set
aside. Caution: Be careful not to scratch
the finish.
c. Remove the top brick panel retaining
bracket (see Figure 15). Be very careful
to hold the bracket when removing the
2 screws to ensure the bracket doesn't
fall.
d. Remove the left and right side brick panel
retaining brackets (see Figure 15). Be
very careful to hold the bracket when
removing.Remove the bottomscrew first
to avoid the frame falling down after both
screws are removed.
TAKE CARE TO HOLD BRICK PANEL
IN PLACE TO PREVENT POSSIBLE
DAMAGE.
Suggestion: Slide thescreens towardthe
middle of the fireplace for easier access
to the screws on the sides. Return the
screens to the sides before proceeding
to instruction f.
e. Tip brick panel forward from the top,
just enough to clear screens. Carefully
remove brick panel from firebox and set
aside in a safe place.
5. Remove the screws which secure the heater
blowermounting plate using aphillipsscrew-
driver as follows (see Figures 9 & 10):
a. While using one hand to hold the handle
oftheheater/blower assembly (see Figure
9), remove the 5 screws which secure
the mounting plate. Remove the 4 side
screws first (2 on each side). Remove
the middle screw that is on the top of
the handle last.
b. Slowly lower the heater/blower assembly
and let it rest on the 2 support chains (1
on each side).
IMPORTANT NOTE: Label all wire loca-
tions prior to disconnecting to ensure
that wires are reconnected in thecorrect
positions.
6. Replace the heater/blower as follows:
a. Replace the old heater/blower with the
new one. Note: when replacing the
heater/blower, ensure that all the wires
on the heater are correct, otherwise the
heater will not function properly.
b. Turn the power and heater switches on
and check for proper operation.
c. Turn off power to the fireplace.
d. Using one hand to hold the handle of the
heater/blower assembly, slowly push it
back up and line up the holes for the 5
screws. Install the 5 screws to secure
the new heater/blower assembly to the
mounting plate.
7. (If brick panel was removed) Reverse
instructions on Step 4.
8. Reinstall glass panel enclosure, if appli-
cable.
Handle
Heater/blower Mounting Plate
Brick Panel
Remove screws indicated by arrows
Heater/blower Mounting Plate
Be careful not to
damage brick panel
Grate
WARNING
An authorized service represen-
tative should perform any other
servicing.
CAUTION
Handle glass very carefully to
prevent accidental breakage.
CAUTION
Do not use abrasive cleaners on
the glass panel. Do not spray
liquids directly onto any surface
of the fireplace.
CAUTION
Disconnectpowerbeforeattempt-
ing any maintenance or cleaning
to reduce the risk of fire, electri-
cal shock or personal injury.
WARNING
When cleaning the fireplace, the
fireplace must be cool.
CLEANINGTHEGLASSENCLOSUREPANEL
(OPTIONAL KIT)
Over time the front glass panel may become
dirty or dusty. Dust can be removed by lightly
rubbing the glass surface with a clean, lint free
cloth or paper towel. To remove fingerprints
or other marks, use a damp cloth with a good
quality household glass cleaner. The front glass
panel should be completely dried with a clean,
lint free cloth or paper towel.

NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE. 9
Replacing Light Bulbs
b. Flame Cylinder Bulbs
i. Remove Brick panel, following proce-
dureonPage 8 (see Brick panel Removal
Procedure).
Figure 12
Ember Bed
Ember Bed
Figure 16
Figure 17
Figure 18
Brick Panel
Retaining brackets
iii. Locateflame cylinder drum (seeFigure
17). Squeeze one half of drum cylinder
until its top edge clears the top drum
track. Remove the bottom edge of
the cylinder drum from the bottom
drum track. Once you have removed
one half of the drum cylinder, you will
have access to the 2 light bulbs (see
Figure 18). Note: do not exert exces-
sive pressure on the drum cylinder as
this may cause damage.
v. Lift off spring from bulb tips, then hold
socket and pull bulb out to remove.
Install new bulbs into sockets by
pressing them in (while holding the
socket), Install retaining spring over
each bulb tip.
7. Reinstall all components that were removed
(reverse Steps 1-5).
Bulb Replacement Procedure:
• 2 bulbs provide illumination for the ember
bed and 2 bulbs provide illumination for the
flame generation assembly (bulbs are rated at
35 Watts Max., Halogen, GX6.35).
• 2 spare bulbs are located in a recess on the
back of the log assembly.
1. Turn off power to the fireplace.
2. Let the fireplace cool, if it has been operat-
ing.
3. (If optional glass panel enclosure is
installed) Remove glass panel per instruc-
tions provided in kit.
4. Remove the 2 screws on the front of the
grate (see Figure 12. Also see item #7 on
Page 17). Remove Grate.
5. Lift out log/ember assembly by tilting for-
ward and firmly pulling on back of ember
bed assembly. It should pop out from
track and lift out. Caution: Be careful not
to scratch the finish.
ii. using a phillips screwdriver, remove
the flame panel (see Figure 16).
6. Remove spare bulbs from the recess on the
back of the log assembly.
Acess bulbs as follows:
Use gloves or cloth when handling bulbs to
prevent oils from your skin damaging bulbs
when heated.
a. Ember Bed Bulbs -
i. With the ember bed removed, the 2
ember bed light bulbs will be visible
(see Figures 13 and 14).
ii. Lift off spring from bulb tips, then hold
socket and pull out to remove. Install
new bulbs intosockets bypressing them
in (while holding the socket), Install
retaining spring over each bulb tip.
iii. Plug in power cord or connect power to
appliance. Turn on power to test bulbs.
Disconnect power.
iv. Reverse steps 3 to 5.
Bulb
Bulb
Bulbs
Flame Cylinder Drum
Flame Panel
Grate
Log/Ember Assembly
CAUTION
Do not touch the bulbs, oils from
your skin will damage them
when they heat up. Use gloves
or cloth when handling bulbs.
CAUTION
Do not exceed a 35 Watt bulb.
Use of a higher rated bulb may
result in a fire, causing property
damage, personal injury or loss
of life.
WARNING
Thefireplacemustbeunplugged/
disconnected from the power
supply prior to any maintenance
or cleaningin orderto reduce the
risk electric shock or fire.
WARNING
The halogen light bulbs in your
fireplace can become extremely
hot. Allow at least 10 minutes
between turning off the fireplace
and removing light bulbs to avoid
the accidental burning of skin.
Figure 13
Figure 14
Figure 15

NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.
10
WIRING DIAGRAM - 120 VOLT
Wiring diagrams are provided here for reference purposes only. This information is also provided on schematics attached directly to the appliance
on the left side.
CAUTION: LABEL ALL WIRES PRIOR TO DISCONNECTION WHEN SERVICING CONTROLS. WIRING ERRORS CAN CAUSE IMPROPER AND DAN-
GEROUS APPLIANCE OPERATION.
WIRING - 120 VOLT
Figure 19
Figure 20
L1 = BLACK (POWER)
L2 = BLACK (POWER)
G = GREEN (GROUND)
N = WHITE (COMMON)
N1 = WHITE (COMMON)
N2 = WHITE (COMMON)
HOME POWER
SUPPLY
120 V AC.
HOME POWER -
SUPPLY 120 V AC. FIREPLACE WIRE
HARNESS
See Power Supply Specifi-
cations on Page 3.
P
P-TRA.
N-LIGHT
POWER-N
N-FAN
N-M
SIP13
SIP11
SIP7
T-P
Transformer
Control Panel
Flame / Ember
On/Off Switch
SIP3
SIP2
SIP4
TEM.
SIP6
K-H
K-P
REMOTE
N-FLAME
L-FLAME
Circuit
Board
Remote Sensor
Temperature Sensor
Control Panel
(power on/off)
Control Panel
Heater On/Off
Switch
Relay 1
Relay 2
L-R1
L-R2
L-FAN
Heater 1 (L)
Heater 2 (L)
Fan Motor (L)
Flame Motor (L)
Light (L)
GROUND
t104° C t90°C
MAIN POWER
L1
L
L2
N1
N2
N
N
Wall Thermostat
Wall Switch
(power on/off)
Outside Switches
L-M
P-L
L-LIGHT
GROUND
SIP13
N
L1
GROUND YELLOW AND GREEN
ORANGE
BLACK
BLUE
BLUE
WHITE N
L1
N1
N2
L2
120 V 1600W
120 V AC
GROUND
WARNING
Do not install or operate this fireplace through a switch wired in the 120 V AC or 240 V AC circuits. The only approved
wiring for a switch is through the low voltage circuit (24 V AC) as shown on Page 14.

NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE. 11
WIRING DIAGRAM - 240 VOLT
Wiring diagrams are provided here for reference purposes only. This information is also provided on schematics attached directly to the appliance
on the left side.
CAUTION: LABEL ALL WIRES PRIOR TO DISCONNECTION WHEN SERVICING CONTROLS. WIRING ERRORS CAN CAUSE IMPROPER AND DAN-
GEROUS APPLIANCE OPERATION.
WIRING - 240 VOLT
Figure 21
Figure 22
HOME POWER SUPPLY
240 V AC.
120V (L1) + 120V (L2) = 240V
FIREPLACE WIRE
HARNESS
L1 = BLACK (POWER)
L2 = BLACK (POWER)
G = GREEN (GROUND)
N = WHITE (COMMON)
N1 = WHITE (COMMON)
N2 = WHITE (COMMON)
Circuit
Board
Wall Thermostat
Control Panel
Flame / Ember
On/Off Switch
Control Panel
Heater On/Off
Switch
Wall Switch
(power on/off)
MAIN POWER
L1
L1
L2 L2
N1
N2
N
N
Control Panel
(power on/off)
Outside Switches
Transformer
Remote Sensor
Temperature Sensor
P-TRA.
SIP3
SIP2
SIP4
TEM.
SIP7
SIP6
K-H
K-P
L-R1
Heater 1 (L)
Heater 2 (L)
Fan Motor (L)
Flame Motor (L)
Light (L)
L-R2
t104° C t90°C
L-FAN
L-M
P-L
L-LIGHT
N-LIGHT
N-FLAME
L-FLAME
POWER-N
REMOTE
Relay 1
Relay 2
N-FAN
N-M
T-P
SIP13
SIP11
GROUND
GROUND
HOME POWER
SUPPLY
240 V AC.
120 V AC.
120 V AC.
WHITE
BLACK
ORANGE
BLUE
BLUE
YELLOW AND GREEN
GROUND
N
L1
L2
240 V 3000W
GROUND
N
L1
L2
N1
N2
See Power Supply Specifi-
cations on Page 3.
WARNING
Do not install or operate this fireplace through a switch wired in the 120 V AC or 240 V AC circuits. The only approved
wiring for a switch is through the low voltage circuit (24 V AC) as shown on Page 14.

NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.
12
5 V
GROUND
INSIDE
POWER ON/OFF SWITCH
(ON CONTROL PANEL)
POWER ON/OFF SWITCH
(OPTIONAL WALL SWITCH)
OUTSIDE
RED
RED
GREEN
1K POTENTIOMETER
5 V
GROUND
INSIDE OUTSIDE
A#D
BLACK
Ω
WHITE
GREEN
WALL
THERMOSTAT
WALL THERMOSTAT & WALL SWITCH WIRING DIAGRAMS
(optional kits, see Page 18)
• When using the main power on/off switch inside the body, the power on/off switch outside the body (optional wall switch kit) must be in
the OFF position.
• When using power on/off switch outside the body (optional wall switch), the power on/off switch inside the body must be in the OFF
position.
• When using the remote control (optional kit), the power on/off switch inside the body and the wall switch (optional kit) must be on the
OFF position.
Figure 23
Figure 24

NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE. 13
Wall Thermostat
Black
5 V
Left Side of
Fireplace
Installing Wall Thermostat
(optional kit, see Page 18)
Wire the wall thermostat prior to installing the fireplace.
WALL THERMOSTAT WIRING (24 VAC):
Install Wall Thermostat per instructions provided with kit and per the following information:
1. Turn off circuit breaker.
2. Remove cover plate located on the left side of appliance.
3. Locate the the black and white wires and pull out the length needed to reach wall thermostat (15 feet max.).
4. Connect the wires to the wall thermostat as shown in Figure 25. Follow instructions provided with wall switch kit.
Figure 25
White
White
Black
White
Black
50 60 70 80 90
50
60 70 80
90

NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.
14
Power On/Off Wall Switch Installation
(optional kit, see Page 18)
Wire the wall switch prior to installing the fireplace.
WALL SWITCH WIRING (24 VAC):
Install Wall Switch per instructions provided with kit and per the following information:
1. Turn off circuit breaker.
2. Remove cover plate located on the left side of appliance.
3. Locate the 2 red wires and pull out the length needed to reach wall switch (15 feet max.).
4. Connect the red wires to the wall switch as shown in Figure 26. Follow instructions provided with wall switch kit.
Red
Red
Figure 26
Red
5V
Red
Red
Red

NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE. 15
TROUBLESHOOTING
SYMPTOM POSSIBLE
CAUSES
WHO PERFORMS
CORRECTIVE ACTION
CORRECTIVE ACTION
1. Fireplace turns off and
will not turn on.
Fireplace has
overheated.
Homeowner The appliance is protected with a
safety device to prevent it from
overheating. If the fireplace should
overheat, a thermal switch will
disconnect power to the unit and
will not come back on without
being reset. Reset it by turning
the main power switch off and
waiting 5 minutes then turning it
back on.
2. Flame is fixed
(unmoving).
Wiring may be loose
or the flame motor
may be defective.
Qualified Service Technician Inspect all wiring for loose
connections. If the wire
connections are good, replace the
flame motor.
3. Dim or poorly visible
flame or log set and
ember is not glowing.
Light bulb(s) burnt out
or wiring is loose.
Homeowner Inspect all wiring for loose
connections and repair or replace
if necessary. Inspect light bulbs
and replace if necessary.
4. Flame sputters. Flame motor is
defective.
Qualified Service Technician Replace flame motor.
5. Remote control does not
work.
Low batteries.
Unit switch and/or
wall switch in “ON”
position.
Homeowner Replace AA batteries in remote
control. If problem persists, there
may have been a loss of power to
the unit as a possible result from a
power failure (i.e. breaker tripped).
Turn off main power on/off switch
(see Figure 4) and/or optional wall
switch (if applicable).
6. Circuit breaker trips or
fuse blows when the unit
is turned on.
Improper circuit
current rating.
Qualified Service Technician Check the house circuit to ensure
it is on a dedicated circuit with
proper Amp. rating. If the circuit
breaker continues to trip (or blown
fuses), inspect wiring for a loose
connection or a dead short. Repair
or replace wiring and/or
connectors as necessary.

NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.
16
REPLACEMENT PARTS
ITEM
NO.
DESCRIPTION MPE-33R
CAT. NO. QTY
1Bulb Kit, (10 Each 35w Halogen) H1623 1
2Side Frames, 1 Left And 1 Right H1942 1
3Circuit Board And Remote Control Sensor H1625 1
4Nailing Flange Kit, (4 Each) H1626 1
5Glass Brick Panel H1943 1
6Glass Retaining Bracket Kit: Left, Right, & Top H1628 1
7Grate For Log Assembly H1944 1
8Blower, Heating Element, And Access Panel Assembly H1630 1
9Flame Cylinder Assembly H1631 1
10 Flame Motor H1632 1
11 Lennox Logo Kit (1 Each) 12L15 1
12 Log Assembly And Ember Bed H1945 1
13 Panel, Bottom, Front H1946 1
14 Panel, Flame Cover H1947 1
15 Panel, Louver, Upper Front H1948 1
16 Panel, Upper Frame Top H1949 1
17 Electrical Outlet Cover Plate H1639 1
18 Screen Set, Pull H1640 1
19 Switch, Toggle (1 Each) H1641 1
20 Transformer H1642 1
21 Wire Harness H1643 1
22 Remote Control, Electric, Rce H1644 1
Note: If touch-up paint is needed, use Rust-oleum®, Painter’s Touch, Flat Black (part number 1976) available at most stores which sell
aerosol touch-up paint.

NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE. 17

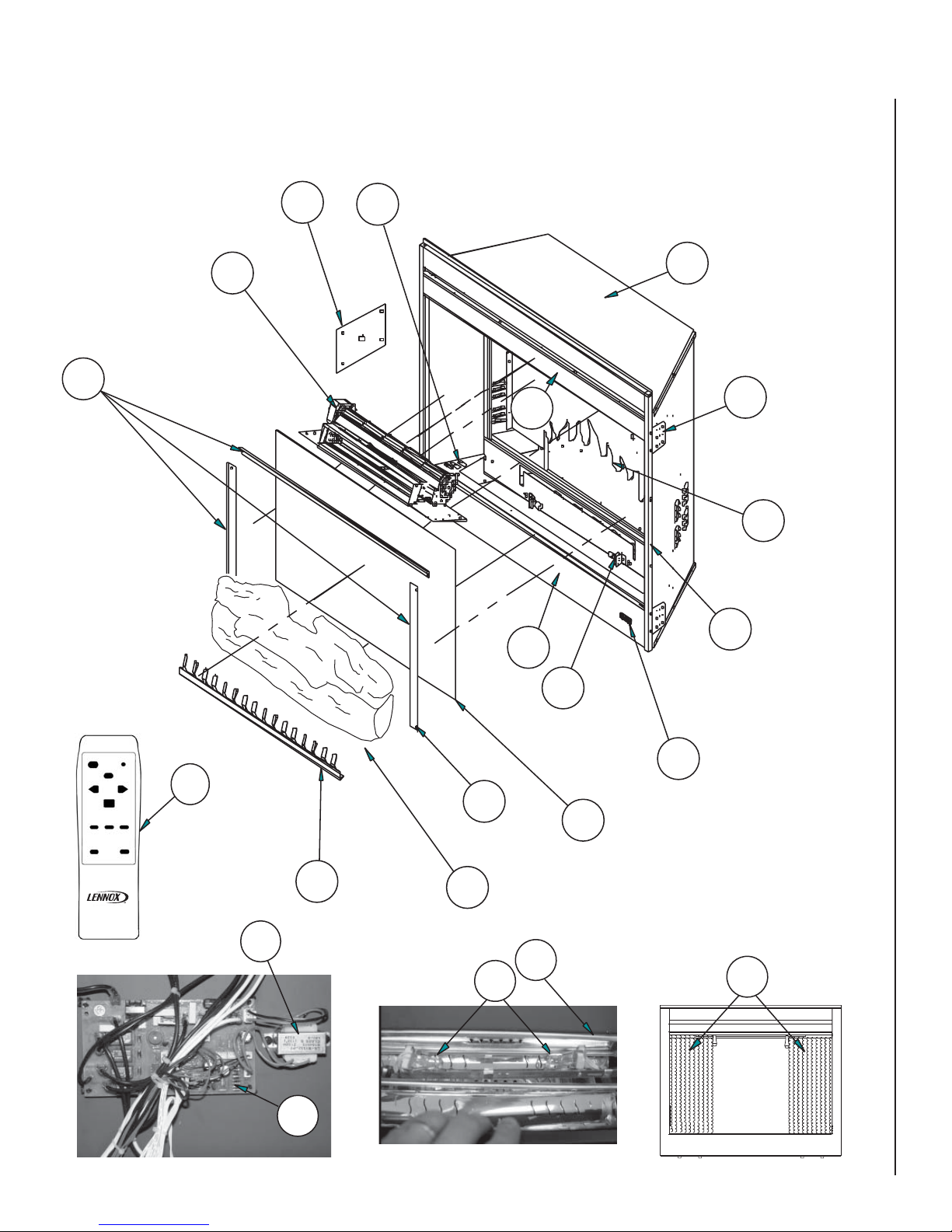

REPLACEMENT PARTS COMPONENT DIAGRAMS
17
14
16
11
1
4
2
5
6
6
7
8
12
13
15
19
3
20
1
9
Front View
18
POWER
ON/OFF
DISPLAY
ON/OFF
Dimmer
Brighter
EMBERS
HEATER
ON/OFF
TEMP. CONTROL
HIGH MED. LOW
FLAME
HIGHER
LOWER
22

NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.
18
ACCESSORY COMPONENTS
The following items are available for use with
this appliance.
Cat. No. Model Description
H3430 GEP-33BL Glass Enclosure Panel, Black on Bronze
H3433 GEP-33PB Glass Enclosure Panel, Brass on Bronze
H3434 GEP-33BS Glass Enclosure Panel, Stainless on Bronze
Cat. No. Model Description
H3435 TK3-33BL 3-pc. Black Trim Kit, MPE-33R
H3436 TK3-33PB 3-pc. Brass Trim Kit, MPE-33R
H1932 TK3-33BS 3-pc. Stainless Trim Kit, MPE-33R
Cat. No. Model Description
85L87 FWSK Wall Switch Kit, White
Wall Thermostat
The wall thermostat kit provides temperature
control for optimum comfort.
Cat. No. Model Description
89L36 WTK Wall Thermostat Kit
Wall Switch Kit
Trim Kit
Glass Enclosure Kit
This kit contains trim panels used to finish the
gaps between the wallboard or optional mantel
and the fireplace, providing the appliance a
finished built-in look.
Cat. No. Model Description
H1645 PCK Power Cord Kit, 3-Prong, 110V
Power Cord Kit, 3-Prong, 110V
~83”
If a power cord is preferred instead of hard-
wiring the power supply to the fireplace, this
optional power cord kit is available (110 Volt
installations only).
    

  

These glass enclosure panels are a one-piece
panel, which have a bi-fold “look” as shown
below.
Cat. No. Model Description
H3604 FFEP-33M 33" Decorative Complete Front Face, Mission Style
H3605 FFEP-33IA 33" Decorative Complete Front Face, Interlocking Arch

NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE. 19
NOTE: THIS PAGE LEFT BLANK INTENTIONALLY

NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.
Printed in U.S.A. © LENNOX HEARTH PRODUCTS 2005
P/N 850,032M REV. A 02/2006
The manufacturer reserves the right to make changes at any time, without notice, in design,
materials, specifications, prices and also to discontinue colors, styles and products.
Consult your local distributor for fireplace code information.
1110 West Taft Avenue
Orange, CA 92865
