Lennox Hearth Products Elite EDVI30 User manual

Report No. 116-F-14-5
CARE AND OPERATION INSTRUCTIONS
Direct-Vent Gas
Fireplace Heater Inserts
Do not store or use gasoline or other flammable
vapors or liquids in the vicinity of this or any other
appliance.
WHAT TO DO IF YOU SMELL GAS:
• Do not light any appliance.
• Do not touch any electrical switch; do not
Use any phone in your building.
• Immediately call your gas supplier from a
neighbor’s phone. Follow your gas supplier's
instructions.
• If your gas supplier cannot be reached, call
the fire department.
Installationandservicemustbeperformedbyaquali-
fied installer, service agency or the gas supplier.
POUR VOTRE SÉCURITÉ: Ne pas entreposer ni utiliser
d’essence ni d’autre vapeurs ou liquides inflammables dans
le voisinage de cet appareil ou de tout autre appareil.
POUR VOTRE SÉCURITÉ: Que faire si vous sentez une odeur
de gaz:
• Ne pas tenter d’allumer d’appareil.
• Ne touchez à aucun interrupteur. Ne pas vous servir
des téléphones se trouvant dans le batiment où vous
vous trouvez.
• Evacuez la piéce, le bâtiment ou la zone.
• Appelez immédiatement votre fournisseur de gaz depuis
un voisin. Suivez les instructions du fournisseur.
• Si vous ne pouvez rejoindre le fournisseur de gaz,
appelez le service dos incendies.
L’installationetservicedoitêtreexécutéparunqualifiéinstal-
leur, agence de service ou le fournisseur de gaz.
WARNING: If the information in this manual is not
followed exactly, a fire or explosion may result
causing property damage, personal injury or loss
of life.
AVERTISSEMENT: Assurez-vous de bien suivre les
instructions donné dans cette notice pour réduire au
minimum le risque d’incendie ou pour éviter tout dom-
mage matériel, toute blessure ou la mort.
Models: EDVI25, EDVI30 & EDVI35
US
P/N 775,157M Rev. J, 12/2007
WARNINGS
• Hot! Do not touch! The glass and surfaces of this appliance will be hot during operation and will
retain heat for a while after shutting off the appliance. Severe burns may result.
• Carefully supervise children in the same room as appliance.
• If small children are present in the home, it is recommended that this appliance be fitted with a
screen door or screen panel kit. See Page 14 for ordering information.
• Suitable for installation into masonry or factory built fireplaces.
• Lennox™ gas-burning appliances are designed for use as a supplemental heater. They are not intended for
continuous use as a primary heat source.
A French manual is available upon request. Order P/N 775,157CF.
Ce manuel d’installation est disponible en francais, simplement
en faire la demande. Numéro de la pièce 775,157CF.
Installer: Leave This Manual With The Appliance.
Consumer: Retain This Manual For Future Reference.

2
WARNING
Do not attempt to alter or modify
the construction of the appli-
ance or its components. Any
modification or alteration may
void the warranty, certification
and listings of this unit.
WARNING
Improper installation, adjust-
ment, alteration, service or
maintenance can cause injury
or property damage. Refer to
this manual. For assistance or
additional information consult
a qualified installer, service
agency or the gas supplier.
WARNING
These fireplace Inserts are
vented heaters. Do not burn
wood or other material in these
appliances.
IMPORTANT SAFETY AND
WARNING INFORMATION
READ THIS MANUAL IN ITS
ENTIRETY AND UNDER-STAND
THESE RULES TO FOLLOW FOR
SAFETY.
WARNING
Carbon Monoxide Poisoning:
Early signs of carbon monoxide
poisoning are similar to the flu
withheadaches,dizzinessand/or
nausea. If you have these signs,
obtain fresh air immediately.
Have the appliance serviced
by a qualified technician as it
may not be operating correctly.
Some people are more affected
by carbon monoxide than others.
These include pregnant women,
peoplewithheartorlungdisease
or anemia, those under the influ-
enceofalcohol,andthoseathigh
altitudes.
WARNING
Failuretocomplywiththeinstal-
lationandoperatinginstructions
provided in this document will
result in an improperly installed
andoperatingappliance,voiding
its warranty. Any change to this
appliance and/or its operating
controlsisdangerous. Improper
installation or use of this appli-
ance can cause serious injury or
deathfromfire,burns,explosion
or carbon monoxide poisoning.
WARNING
Do not place clothing or other
flammable materials on or near
this appliance.
AVERTISSEMENT
Surveillerlesenfants. Garderles
vêtements,lesmeubles,l'essence
ouautresliquidesà vapeurinflam-
mables loin de l'appareil.
WARNING
Do not use these appliances if
any part has been under water.
Immediately call a qualified,
professional service technician
to inspect the appliances and to
replace any parts of the control
system and any gas controls
which have been under water.
AVERTISSEMENT
Ne pas se servir de cet appareil
s'il a été plongé dans l'eau,
complètement ou en partie.
Appeler un technicien qualifié
pourinspecter l'appareil etrem-
placertoutepartiedusystèmede
contrôle et toute commande qui
ont été plongés dans l'leau.
WARNING
Children and adults should be
alerted to the hazards of high
surface temperatures. Use cau-
tion around the appliance to
avoid burns or clothing ignition.
Youngchildrenshouldbecarefully
supervised when they are in the
same room as the appliance.
Do not attempt to touch the front
enclosure glass with your hands
while the fireplace is in use.
Note:AnOptionalScreenPanelfor
the glass is available (see Page
14 for ordering information).
IMPORTANT
• Provide adequate clearances
around air openings and
adequate accessibility clear-
ance for service and proper
operation.
• Never obstruct the front open-
ings of the appliance.
• Due to high temperatures of
these appliances, adequate
clearances need to be main-
tained from furniture, draper-
ies and other combustibles.
Locate furniture and window
coverings accordingly. The
recommendedclearancezone
fromthefront oftheappliance
to combustibles is 36 inches
(914 mm). Maintain all other
clearances as outlined in the
Installation Manual.
• Theseappliancesaredesigned
as supplemental heaters.
Therefore, it is advisable to
have an alternate heat source
when installed in a dwell-
ing.

3
NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE
INTRODUCTION
The Insert models covered in this manual are
Direct-Vent sealed combustion gas heaters
designed for residential application for install
ion into an existing masonry or factory built
solid-fuel fireplace. The required liners for the
air intake and exhaust are as follows:
Air Intake: Use 3” diameter UL 1181 or UL
1777 listed liner only.
Exhaust: Use 3” diameter UL1777 listed
gas vent liner only. DO NOT USE UL 1181
LISTED LINER.
These vent systems must be routed through
the existing fireplace flue system to the vent
termination.
These millivolt appliances are designed to
operate on either natural or propane gas. A
millivolt gas control valve with piezo ignition
system provides safe, efficient operation.
External electrical power is required to operate
the air circulation blower.
These appliances comply with National
Safety Standards and are tested and listed
by OMNI-Test Laboratories Inc.; Beaverton,
Oregon (see report numbers on cover) to
ANSI Z21.88 (in Canada, CSA-2.33), and
CAN/CGA-2.17-M91inbothUSAandCanada,
as vented gas heaters.
Installation must conform to local codes.
In the absence of local codes, installation
must comply with the current National Fuel
Gas Code, ANSI Z223.1 / NFPA 54 - latest
edition. (In Canada, the current CAN-1 B149
installation code.) Electrical wiring must
comply with the National Electrical Code
ANSI/ NFPA 70 - latest edition. In Canada,
the current CSA C22-1 Canadian Electrical
Code - latest edition.
GENERAL INFORMATION
Installation,repairandannualserviceinspec-
tion should be performed by a qualified
service technician.
TABLE OF CONTENTS
Important Safety and
Warning Information....................Page 2
Introduction ......................................Page 3
General Information..........................Page 3
Burn-In Period ..................................Page 4
Gas Controls .....................................Page 4
Variable Flame Adjustment................Page 4
Control Compartment Access ...........Page 4
Operation/Care of Your Appliance .....Page 5
Maintenance......................................Page 5
Maintenance Schedule......................Page 7
Front Glass Enclosure Panel,
Removal and Installation.................Page 8
Burner Adjustments..........................Page 8
Flame Appearance and Sooting.........Page 8
Log/Rockwool/Vermiculite Placement Page 9
Millivolt Appliance Checkout.............Page 13
Blower Operation ..............................Page 13
Fireplace Requirements.....................Page 13
Wiring Diagrams...............................Page 13
Accessory Components ....................Page 14
Lighting Instructions – Millivolt ........Page 16
Replacement Parts List.....................Page 18
Troubleshooting Guide – Millivolt......Page 20
Product Reference Information.........Page 24
CONGRATULATIONS ON THE PURCHASE OF YOUR NEW GAS APPLIANCE MANU-
FACTURED BY LENNOX HEARTH PRODUCTS.
When you purchased your new gas-fired heater, you joined the ranks of thousands
of individuals whose answer to their home heating needs reflects their concern for
efficiency and our environment. We extend our continued support to help you achieve
the maximum benefit and enjoyment available from your new gas-fired heater. It is our
goal at Lennox Hearth Products to provide you, our valued customer, with an appliance
that will ensure years of trouble-free warmth and pleasure.
Thank you for selecting a Lennox Hearth Products gas-fired heater as the answer to
your home heating needs.
Sincerely,
All of us at Lennox Hearth Products
Millivolt Models with
MAnnually-Modulated Gas Valves
Nat. Gas Propane
Model No. Input Rate
(BTU/HR)
Input Rate
(BTU/HR)
EDVI25 17,000 to
25,000
19,000 to
25,000
EDVI30 21,500 to
30,000
22,000 to
28,000
EDVI35 25,500 to
35,000
26,000 to
34,000
Table 1
It is imperative that the control compart-
ment,burnersandcirculatingairpassage
ways of the appliance be kept clean.
S'assurerquelebrùleuretlecompartiment
des commandes sont propres. Voir les
instructions d'installation et d'utilisation
qui accompagnent l'appareil.
Inputof millivolt modelsisvariable. Theserates
are shown in the following table:
Table 2 shows the units' gas orifice size for
the elevations indicated.
Model
No.
Orifice Size Elevation
Feet
(meters)
Nat.
Gas
Prop.
Gas
EDVI25 #41
(.096”)
#53
(.0595”)
0-4500
(0-1372)
EDVI30 #37
(.104”)
1/16”
(.0625”)
0-4500
(0-1372)
EDVI35 #33
(.113”)
#51
(.067”)
0-4500
(0-1372)
Table 2
Tables 3 and 4 show the gas pressure
requirements for all models:
Inlet Gas Supply Pressure (all models)
Fuel # Minimum Maximum
Natural Gas 4.5" WC
(1.12 kPa)
10.5" WC
(2.61 kPa)
Propane 11.0" WC
(2.73 kPa)
13.0" WC
(3.23 kPa)
Table 3
Manifold Gas Supply Pressure (all models)
Fuel # Low High
Natural
Gas
(Lo) 1.6" WC
(.40 kPa)
(Hi) 3.5" WC
(.87 kPa)
Propane (Lo) 6.3" WC
(1.57 kPa)
(Hi) 10.0" WC
(2.49 kPa)
Table 4

NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE
4
IMPORTANT
Keep your house well ventilated
during the curing process. The
odor and haze emitted by the
curing process can be quite
noticeable and may set off a
smoke detector.
Lighting Millivolt Appliances
To light millivolt appliances refer to the detailed
lighting instructions found on Page 16 (Eng-
lish) and Page 17 (French). Millivolt appliance
lighting instructions may also be found on the
pull-outlightinginstructionlabelslocatedinthe
control compartment (below glass door).
Figure 4
Burner On/Off Switch and Rheostat Location
If optional surround is installed
Control Compartment Access
Pull down hinged door to access control compartment
Pull down lower
louver (hinged)
Side View of Insert
Figure 3
Burner On/Off
Switch
Rheostat
(blower
speed
control)
Left Front
surround
Panel
Units with Beveled Surround
Units with Flat Surround
Left Front
surround
Panel
Rheostat
(blower
speed
control)
Burner On/Off
Switch
CONTROL COMPARTMENT ACCESS
Pull down hinged door to access control
compartment (see Figure 3).
Test gauge connections are provided on the
front of the millivolt gas control valve (identi-
fied IN for the inlet and OUT for the manifold
side). See Figures 1 & 2.
This appliance must not be connected to a
chimney or flue serving a separate solid-fuel
appliance.
Burn-in Period
During the first few burns of these appliances
there will be some odor due to the curing of the
high temperature paint and burning off of lubri-
cants used in the manufacturing process.
Depending on your use, the burn-in period may
take a few hours or a few days. Do not turn on
blower during Burn-In period.
GAS CONTROLS
See Figure 3, showing how to access the
control compartment.
These millivoltappliancesarefittedwitha burner
ON/OFF Switch, located on the side surround
panel as shown in Figure 4 on Page 4. Once
the pilot is lit, and valve knob is in the ON posi-
tion, theON/OFFswitchwillcontroltheappliance
ON/OFF operation. To operate, toggle the switch
between its ON and OFF positions.
Variable Flame Height Adjustment
These millivolt appliances are equipped with a
variable gas control valve. Flame height may be
adjustedthrougharangebetweenfixedlowand
high settings by rotating the HI/LO knob on the
valve (see Figures 1 & 2)alternately, while the
appliances are in operation.
O
N
O
F
F
P
I
L
O
T
L
O
H
I

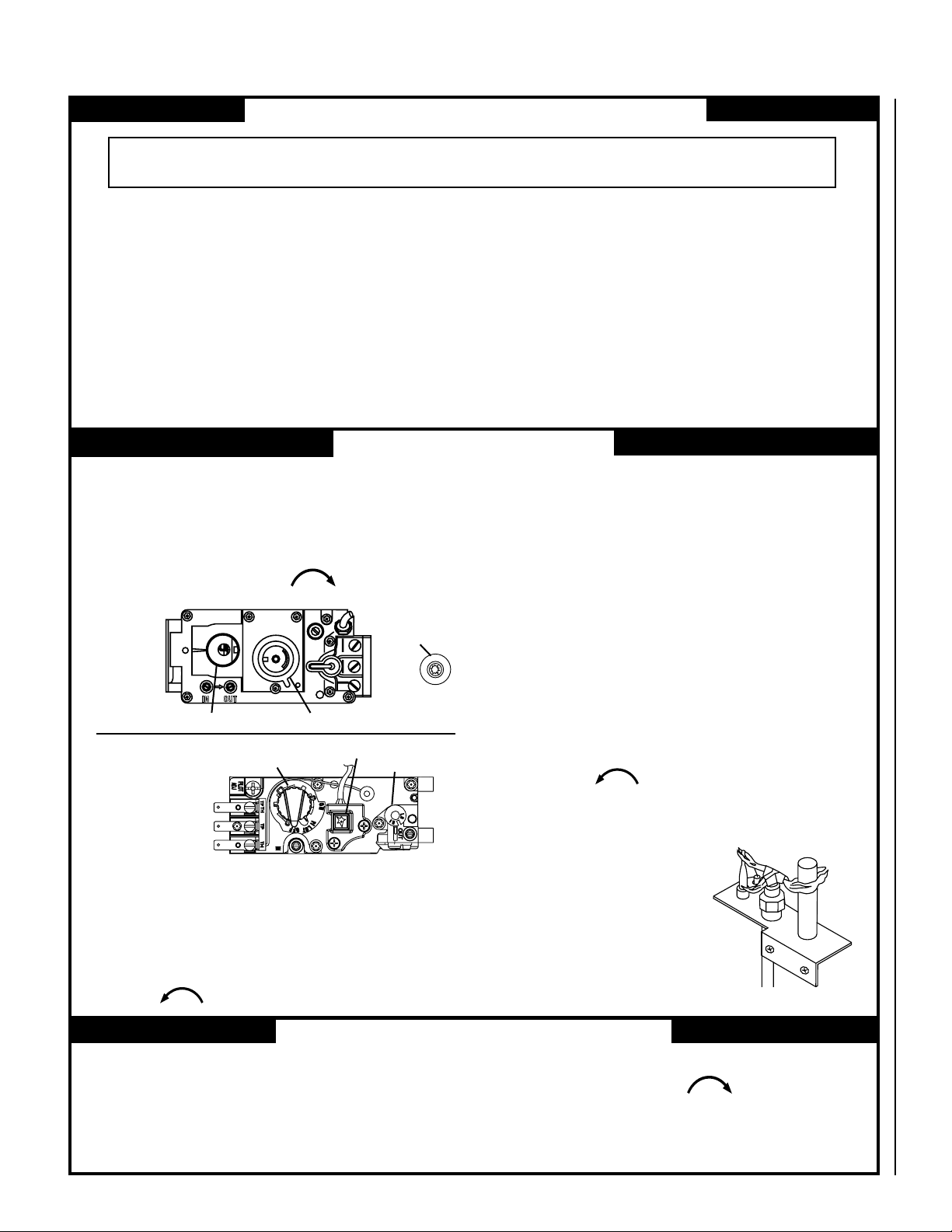

Figure 1
GAS CONTROL
KNOB
INLET
PRESSURE
TAP
PILOT
ADJUSTMENT
SCREW
WIRING
TERM-
INALS
OUTLET
PRESSURE
TAP
TP/TH
PIEZO
IGNITER
TH
TP
H
I
L
O
W
TPTH TP TH
P
I
L
O
T
P
I
L
O
T
O
N
it
O
F
F
IN OUT
Figure 2
MODEL EDVI25
SIT Millivolt Gas Valve Controls
MODELS: EDVI30 & EDVI35
Honeywell Millivolt Gas Valve Controls
CONVERTIBLE
HI/LO REGULATOR
(adjusts flame height
and heat output)
GAS CONTROL
KNOB
INLET
PRESSURE
TAP
OUTLET
PRESSURE
TAP
CONVERTIBLE
HI/LO REGULATOR
(adjusts flame height
and heat output)
PIEZO
IGNITER
This appliance must be isolated from the
gas supply piping system (by closing its
individual manual shut-off valve) during
any pressure testing of the gas supply
piping system at test pressures equal to
or less than 1/2 psig (3.5 kPa).
This appliance and its individual shut-off
valve must be disconnected from the gas
supply piping system during any pressure
testingofthat system at pressuresgreater
than 1/2 psig (3.5 kPa).

5
NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE
WARNING
Turnoff gasand electricalpower
before servicing the appliance.
IMPORTANT
Always verify proper operation
after servicing.
OPERATION AND CARE OF YOUR
APPLIANCE
Appliance operation may be controlled through
a remotely located optional wall thermostat or
remote control.
Inlieu of remote control or remotewall thermo-
stat operation, the appliance must be operated
directlythroughtheon/offswitchlocatedonthe
surround panel (see Figure 4).
If your millivolt appliance is equipped with an
optional wall thermostat kit or remote control
kit and the pilot is lit (and valve is in the On
position), the appliance main burner may be
turned on and off with the wall thermostat or
remote control.
Always keep the appliance area clear and free
fromcombustible materials,gasolineand other
flammable liquids.
Remember, Millivoltapplianceshave a continu-
ous burning pilot flame. Exercise caution when
using products with combustible vapors.
MAINTENANCE
The appliance and venting system should be
thoroughly inspected before initial use and at
least annually by a qualified service technician.
However, more frequent periodic inspections
and cleanings should be performed by the
homeowner. Homeowner must contact a quali-
fied service technician at once if any abnormal
condition is observed.
Refer to the maintenance schedule on Page
7for maintenance tasks, procedures, recom-
mended frequency and by whom they should
be performed. Always verify proper operation
of the appliance after servicing.
Always turn off the gas to the appliance before
cleaning.Beforere-lighting,refertothelighting
instructionsinthismanual.Instructionsarealso
foundonpull-outpanelslocatedbelowtheglass
door in the control compartment.
Keep lower control compartment clean by
vacuuming or brushing at least twice a year.
More frequent cleaning may be required due to
excessivelintfromcarpeting,beddingmaterials,
etc. It is important that control compartments,
burners and circulating air passageways of the
appliance be kept clean.
CAUTION
Wear gloves and safety glasses
for protection while doing
required maintenance.
Check Burner Flame Appearance
Visually check the flame of the burner periodi-
cally making sure the flames are steady and not
lifting or floating (see Figure 19 on Page 8).
Glass Cleaning
Note: Clean glass after first two weeks of opera-
tion (after Burn-In period is over).
The viewing glass should be cleaned periodi-
cally to remove any build-ups caused from the
following:
• During start-up, it is normal for condensa-
tion to form on the inside of the glass (this
condensation and fog will usually disappear
in a few minutes). This can cause lint, dust
and other airborne particles to cling to the
glass surface.
• Initial curing of the high temperature paint
and burning off of lubricants used in the
manufacturing process may result in a film
on the glass.
• A white coating may form on the glass as a
result of impurities and minerals in the fuel.
It is recommended that the glass be cleaned
two or three times during each heating season,
depending on the circumstances present.
Use one of the following to clean glass:
• Non-ammonia based household cleaner
• 50%-50% mix of white vinegar & water
• gas stove glass cleaner
Servicing Blower
Refer to blower wiring diagram on Page 13.
To access the blower assembly for mainte-
nance, adjustment or replacement, see the
following procedure:
1. Unplug 120-volt A.C. power supply to
insert.
2. Shut off gas supply to insert.
3. Remove Glass Door (see Procedure For
Removing Standard Glass Door Assembly
on Page 8).
4. Remove log set, burner and grate.
5. (EDVI25 only) Remove the two shields
shown in Figure 5.
Figure 5 EDVI25
Remove the 4 screws from back
wall (indicated by arrows).
Remove 4 Screws
Shields
IMPORTANT
Do not use abrasive cleaners
on glass. Never clean the glass
when it is hot.
WARNING
Do not attempt to touch the front
enclosure glass with your hands
while the fireplace is in use.
6. (EDVI25only)Removebloweraccesspanel
(see Figure 6).
7. (EDVI25 only) Remove the two blower
mounting screws and remove the blower
(see Figure 6).
Figure 6 EDVI25
Remove screws around parimeter of
blower access panel, then lift out.
Remove blower mounting screws.

NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE
6
Small Area Paint Touch-up
The finish of the insert body and surround
(optional) is a high-quality powdercoat. Only
use factory supplied powdercoat paint for
touch-ups, cat. no. 90L74.
Do not attempt to repaint the insert until the
finish is completely cured (see Burn-In Period
on this page). If the surface later becomes
stained or marred, it may be lightly sanded and
touched up with spray paint.
PaintisavailableatyourlocalauthorizedLennox
Hearth Products dealer. Never attempt to paint
a hot insert.
Inspect Wiring
Inspect and clean all wire connections. Ensure
that there is no melting or damage. Inspection
should include:
• Terminals at the valve
• On/Off switch
• Wall thermostat, remote control, or control
kit (optional parts)
Refer to wiring diagrams on Pages 13
& 14.
CAUTION
Label all wires prior to discon-
nection when servicing con-
trols. Wiring errors can cause
improper and dangerous appli-
ance operation.
Air Hood
Remove 2 Screws
Figure 7 EDVI30
9. ENSURETHATGASSUPPLYISSHUTOFF.
Disconnect gas line fitting at the valve (for
models EDVI30 & EDVI35). See Figure 8.
Disconnect Gas
Line Fitting
Figure 8
10.Disconnect the two burner circuit wires
from the valve terminals (see Figure 9).
Disconnect Blue
Wires From Valve
Terminals
Figure 9
TH
TP
TP
TH
8. (EDVI30 only) Remove the two screws
shown in Figure 7, then lift out air hood.
11.(EDVI30 only) Remove the screws around
the perimeter of the gas valve train, then
lift out and set aside (see Figure 11).
12.(EDVI35 only) Remove the screws around
the perimeter of the blower access panel,
then lift out and set aside (see Figure 10).
Remove Blower
Access Panel
Figure 10 EDVI35
Figure 11
14.(EDVI35 only) Remove the blower per
instruction in Figures 12 through 14.
EDVI30
14. (EDVI35 ONLY) When reinstalling the
blower (reverse steps in Figures 12
through 14),
15. To reinstall blower, reverse steps 1-14.
Remove 2 Screws To remove, tip blower
back, pull it forward,
then tip back upright.
Disconnect wires from terminals & green
ground wire after blower is pulled forward.
Blower
13.(EDVI30 only) Remove the two blower
mounting screws and remove blower per
instructions in Figure 11.
Remove 2 Screws
Blower
Figure 12 - EDVI35
Blower - RH Side View
Outlet
Rotate blower 45° clock-
wise toward the back,
then pull it forward so that
it is directly below the
blower access opening.
Rotate it so that the outlet
is again pointing upward.
Proceed to instructions in
Figure 14.
Access Opening
Figure 13 - EDVI35
Front
Back
Disconnect wires from terminals on blower (including green
ground wire). Proceed to instructions in Figure 13.
Rotate Blower 90°
counterclockwise,
while lifting blower up
at the same time. Lift
out as shown below.
Front
Back
Figure 14 - EDVI35
Blower Outlet
Front
Back

NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE 7
Maintenance Task Accomplishing Person Procedure
Inspecting/Cleaning Burner, Logs
and Controls
Qualified Service Technician Inspect valve and ensure it is properly operating. Check piping
for leaks. Vacuum the control compartment, fireplace logs and
burner area.
Check Flame Patterns and Flame
Height
Qualified Service Technician Refer to Figure 19 on Page 8 and verify the flame pattern
and height displayed by the appliance conforms to the picture.
Flames must not impinge on the logs.
Inspecting/Cleaning Pilot and Burner Qualified Service Technician Refer to Figure 19 on Page 8 and Figure 38 on Page 13.
Remove any surface build-up on pilot and burner assembly.
Wipe the pilot nozzles, igniter/flame rod and hood. Ensure the
pilot flame engulfs the flame sensor as shown.
Checking Vent System Qualified Service Technician Inspect the vent system at the top and at the base (within the
firebox) for signs of blockage or obstruction. Look for any signs
of dislocation of the vent components.
Appliance Checkout Qualified Service Technician Perform the appropriate appliance checkout procedure detailed
in this manual.
Replacing Rockwool Ember Materials Homeowner/Qualified Service
Technician
Removeoldembermaterialsandvacuumtherockwoolplacement
area. Place new rockwool as described on Pages 11 & 12.
Periodically (After the Burning Season)
Maintenance Task Accomplishing Person Procedure
Cleaning Firebox Interior Homeowner Carefullyremovelogs,rockwoolandandvermiculite. Vacuumout
interiorofthe firebox. Clean firebox walls and log grate. Replace
logs, Rockwool and vermiculite as detailed in this manual.
Check Flame Patterns and Flame
Height
Homeowner Refer to Figure 19 on Page 8 and verify the flame pattern and
heightdisplayedbytheapplianceconformstothepicture.Flames
must not impinge on the logs.
Checking Vent System Homeowner Inspect the vent system at the top and at the base (within the
firebox) for signs of blockage or obstruction. Look for any signs
of dislocation of the vent components.
Cleaning Front Door Window Homeowner Clean as necessary following the directions provided in this
manual. DO NOT TOUCH OR ATTEMPT TO CLEAN GLASS WHILE
HOT.
Annually (Before the onset of the Burning Season)
MAINTENANCE SCHEDULE

NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE
8

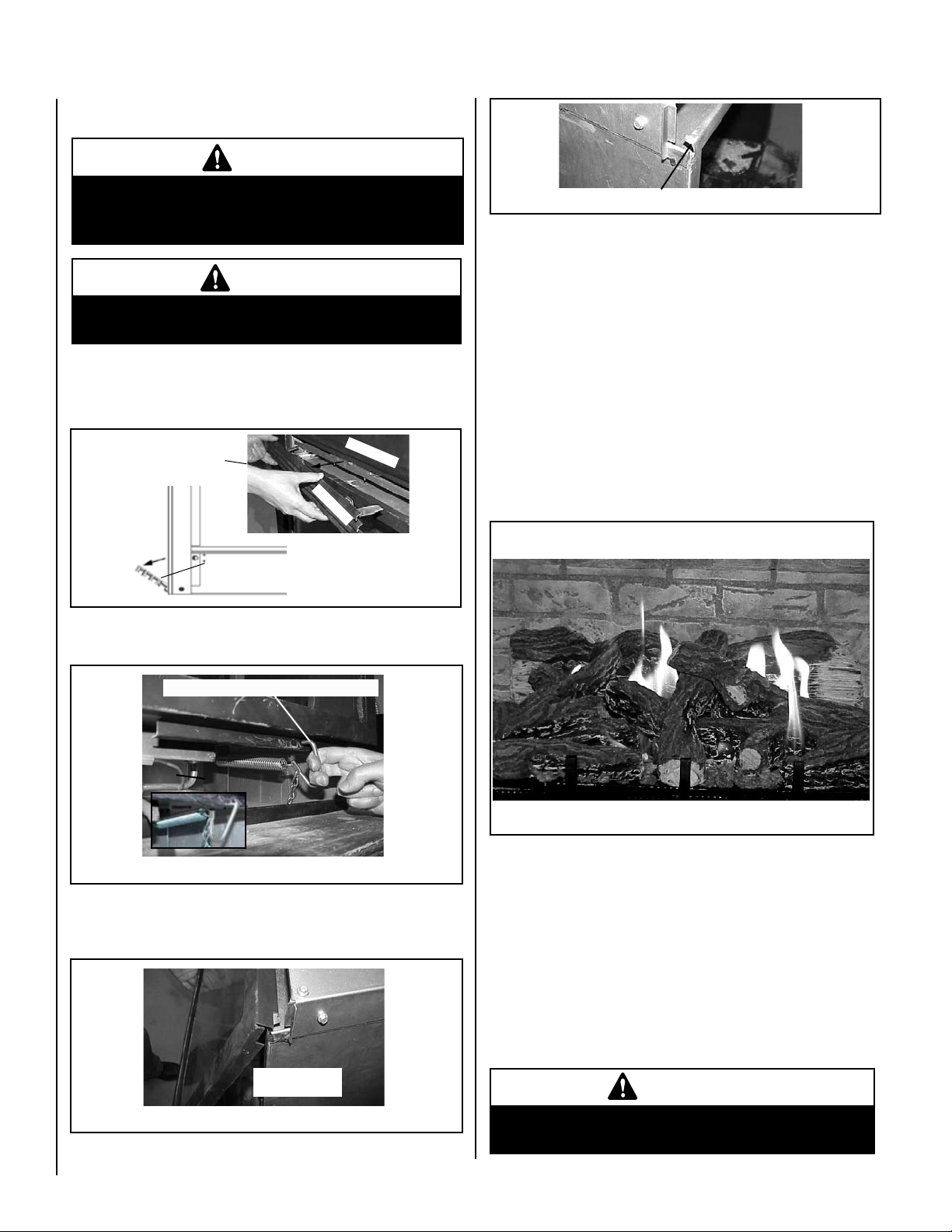

PROCEDURE FOR REMOVING THE STANDARD GLASS DOOR
ASSEMBLY
Figure 16
Remove the front door assembly from insert as follows:
1) Pull off top louver and hinge down lower louver (see Figure 15).
3) Swing the bottom of the door outward (see Figures 17 & 18) and
lift it off of the flange on unit (where door hooks onto, at top). Set
door aside in a safe place.
Pull door hook forward until it releases
Door hook is located below glass door
Figure 17
Swing bottom of
door outward
Figure 18 Lift top of door off this flange
Burner Flame Appearance
To reinstall glass door assembly panel, reverse instructions 1 - 3 on
this page.
BURNER ADJUSTMENT
Flame Appearance and Sooting
Properflameappearanceisaflamewhichisblueatthebaseandbecomes
yellow/orange in the body of the flame. When the insert is first lit, the
entire flame may be blue and will gradually turn yellow/orange during
the first 6-8 minutes of operation. If after 6-8 minutes the flame stays
blue, or if the flame is orange with evidence of sooting (black tip), the
air shutter may require adjustment.
An appliance operated with an air shutter opening that is too large will
exhibit flames that are blue and transparent. These weak, blue and
transparent flames are termed anemic. If the air shutter opening is too
small, sooting may develop.
Sooting is indicated by black puffs developing at the tips of very long
orangeflames. Sooting results in black deposits formingon the logs,
appliance inside surfaces and on exterior surfaces adjacent to the
venttermination. Sooting is caused by incomplete combustionin the
flames and lack of combustion air entering the air shutter opening.
To achieve a warm yellow-to-orange flame that does not soot, the
shutter opening must be adjusted between these two extremes.
No smoke or soot should be present. Reposition the logs if flames
impinge on any of them. If the logs are properly positioned and
sooting conditions exist, the air shutter opening on the main burner
tube should be adjusted.
Pull Off
Top Louver
Top Louver
Top Surround
Pull down lower louver (hinged)
(side view)
Glass Front
Figure 15
2)Locatethespringhookundertheglassdoorassembly(seeFigure 16).
Pull hook forward until it releases out of the bottom door frame.
EDVI35 Shown
Figure 19
WARNING
Handle glass door with extreme care! The glass
door assembly is susceptible to damage. Do not
scratch while handling or while reinstalling.
WARNING
Never operate unit without the front glass door
panel in place and secure.
IMPORTANT
Ensure that the front glass panel is in place and
sealed during adjustment.

NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE 9
Iftheburnerflameappearancediffersgreatly
from what is shown on this Page (see Burner
Flame Appearance), some adjustment from
thefactory setting fortheair shutter gap may
benecessary (to compensateforvariables in
the installation and fuel such as, BTU value
composition, gas pressure, specific gravity
of gas, altitude, etc.).
See Table 5 for Burner Air Shutter Adjust-
ment Guidelines.
Initially, always position the air shutter to the
factorysettingasshowninFigure20 (adjust-
mentrodislocatedinthelowercontrolarea).
This can be done by moving the adjustment
rodupordownaccordingly. Allowtheburner
to operate for at least 15 minutes. Observe
the flame continuously. If it appears weak
or sooty as previously described, adjust the
air shutter to a more open position until the
proper flame appearance is achieved.
Burner Adjustment Procedure
Figure 20
Burner Air Shutter Adjustment
Adjustment Rod Up
(1/8" Open Position)
Air Shutter
Burner Tube
Adjusting Set Screw
Adjustment Rod Down
(full open position)
FACTORY AIR SHUTTER OPENING SETTING
Model Gas Type Air Shutter Gap
EDVI25 Natural Gas 3/16” (4.76 mm)
Propane 3/8” (9.52 mm)
EDVI30 Natural Gas 5/16” (7.94 mm)
Propane 1/2” (12.7 mm)
EDVI35 Natural Gas 3/8” (9.52 mm)
Propane 1/2” (12.7 mm)
Ref. Air shutter Patent:
U.S. Pat. 5,553,603
WARNING
Air shutter adjustment should
only be performed by a qualified
professional service technician.
CAUTION
The adjustment rod and nearby
appliance surfaces are hot. Exer-
cise caution to avoid injury while
adjusting flame appearance.
The following chart (Table 5)is provided to aid you in achieving the correct air shutter
adjustment for your installation.
Table 5
Air Shutter Adjustment Guidelines
Amount of
Primary Air
Flame Color Air Shutter
Adjustment
If air shutter is
closed too far
Flame will be orange Airshuttergap should
be increased
If air shutter is open
too far
Flame will be blue Airshutter gapshould
be decreased
Carefully install the seven-piece log set into the firebox as shown in these instructions. All
logs should fit onto corresponding pins and/or log stoppers. This will ensure a proper flame
and safe combustion.
Note: Place some vermiculite around the burner as shown in Figure 30, if necessary, before
installing the logs (the entire bag of vermiculite will NOT be used).
LOGS, VERMICULITE AND EMBERS - Models EDVI25 & EDVI30
(For EDVI35 Log Installation Instructions, see Page 11).
Top Left Log
Front Center Log
Top Right Log
Figure 21
Rear Log
Front Right Log
Front Left Log
Center Log
Installation Instructions
CAUTION
Carbon will be produced if the air shutter is closed too much. Any
damage due to carboning resulting from improperly setting the air
shutter is not covered under the warranty.
WARNING
If logs are not installed according to the directions shown here, flame
impingement and improper combustion could occur and result in soot
and/or excessive production of carbon monoxide (CO) - a colorless,
odorless, toxic gas.

NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE
10
1. Place the rear log onto the two corresponding locating pins at the
back of the firebox as shown in Figure 22.
2. Place the Front Right Log onto the two corresponding locating pins
as shown in Figure 23.
3. Place the Center Log onto the two corresponding locating pins
as shown in Figure 24.
4. Place the Front Left Log onto the two corresponding locating pins
as shown in Figure 25.
5. Install the Top Left Log onto the corresponding locating pin and
indentation on Center Log as shown in Figure 26.
Figure 22 Rear Log
Figure 23 Front Right Log
Figure 24
Figure 25 Front Left Log
6. Install the Front Center Log over the Front Right Log . The front
of log will rest on the burner and the back of log will rest on rear log
as shown in Figure 27.
7. Install the Top Right Log into the corresponding indentations on
Front Center Log and Locating Pin as shown in Figure 28.
Figure 26 Top Left Log
Figure 27 Front Center Log
Center Log

11
8. Place the glowing embers on the burner as shown in Figure 29.
One package of ember material has been included with this log set
You will not need to use the entire bag.
IMPORTANT: The quantity and placement of the ember material can
affect insert performance therefore it is very important that it be placed
as shown in Figure 29.
a. Unpackage and divide the fine ember material (mineral wool) into
dime-sized fluffy pieces.
b. Distribute the pieces over the top of the front burner ports, filling the
area in front of the forward logs.
Figure 29 Embers
LOGS, VERMICULITE AND EMBERS - Model EDVI35
Figure 28 Top Right Log
Figure 30 Vermiculite
Rear Log
Center Left Log
Top Left Log
Front Right Log
Front Left Log Front Center Log
Top Right Log
Figure 31
WARNING
If logs are not installed according to the directions shown here, flame impingement and improper com-
bustion could occur and result in soot and/or excessive production of carbon monoxide (CO) - a colorless,
odorless, toxic gas.

NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE
12
Carefully install the seven-piece log set into the firebox as shown in
these instructions. All logs should fit onto corresponding pins and/or
log stoppers. This will ensure a proper flame and safe combustion.
1. Place some vermiculite around the burner as shown in Figure 32
(the entire bag of vermiculite will NOT be used).
2. Place the Rear Log onto the two corresponding locating pins at
the back of the firebox as shown in Figure 32.
3. Place the Front Right Log and the Center Left Log onto the two
corresponding locating pins (each) as shown in Figure 33.
Figure 33
4. Place the Front Left Log onto the two corresponding locating pins,
then place the Top Left Log onto the locating pin on the Center Left
Log (the log will rest in the corresponding indent on Rear Log). See
Figure 34.
Figure 35
Front Right Log
Front Center Log
6. Install the Top Right Log into the corresponding indentations on
Front Center Log and Front Right Log as shown in Figure 36.
7. Place the glowing embers on the burner as shown in Figure 37.
One package of ember material has been included with this log set
You will not need to use the entire bag.
IMPORTANT: The quantity and placement of the ember material can
affect insert performance, therefore, it is very important that it be
placed as shown in Figure 37.
a. Unpackage and divide the fine ember material (mineral wool) into
dime-sized fluffy pieces.
b. Distribute the pieces over the top of the front burner area in front of
the forward logs (see Figure 37).
Figure 37 Embers
Center Left Log
Figure 34
Top Left Log
5. Place the Front Center Log in place as shown in Figure 35. The
back of the log fits into the corresponding indent on Rear Log.
Figure 36 Top Right Log
Front Left Log
Figure 32 Vermiculite
Rear Log

NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE 13
To light the burner, rotate the gas valve
control knob counterclockwise to the “ON”
position then turn “ON” the on/off switch To
light the burner, rotate the gas valve control
knob counterclockwise to the “ON” position
then turn “ON” the on/off switch mounted
on the surround assembly (see Figure 4
on Page 4) or operate the burner with the
optional remote control, wall thermostat or
control switch.
Withproper careand maintenance,your appli-
ance will provide many years of enjoyment. If
you should experience any problem, first refer
to the troubleshooting guide in this manual. If
problem persists, contact your Lennox Hearth
Products Dealer.
BLOWER OPERATION
Whentheinsertheatsup,theblowerwillautomat-
ically be turned on by the fan disc located under
the firebox bottom on the front left side. It will
comeonatthespeeddeterminedbytherheostat
located on the side surround panel (see Figure
4 on Page 4). To adjust the blower speed, dial
the rheostat to the desired speed setting. Rotate
thedialdown(clockwise),justpast theclick(the
first ON position) for the highest speed setting.
Turning the knob further clockwise will provide
slowerblowerspeeds.Note:Iftherheostatisnot
turned “on,” the blower will not operate.
Proper Pilot Flame Appearance
MILLIVOLT APPLIANCE CHECKOUT
Light the pilot by following the instructions
Pages 16 or 17 of this manual.
The pilot flame should be steady, not lifting
orfloating.Flame should beblueincolorwith
tracesoforangeattheouteredge.Thetop3/8"
(10 mm) at the pilot generator (thermopile)
and the top 1/8" minimum (tip) of the quick
drop out thermocouple should be engulfed
in the pilot flame. The flame should project 1"
(25 mm) beyond the hood at all three ports
(Figure 38).
Replace logs if removed for pilot inspec-
tion.
Figure 38
¹⁄₈" Min
(3 mm)
Thermocouple
Igniter RodHood
³⁄₈" Min
(9 mm)
Thermopile
Pilot
Nozzels
FIREPLACE REQUIREMENTS
IMPORTANT: When installing these appliances
into a factory built fireplaces or heatforms, the
airflow within andaroundthe fireplace shallnot
be altered by the installation of the insert (i.e.
DO NOT BLOCK louvers or cooling air inlet or
outlet ports, circulating air chambers in a steel
fireplace liner or metal heat circulator).
CAUTION: The factory built firebox must
accept the insert without modification other
than removing bolted or screwed together
piecessuch assmokeshelf/deflectors,ash lips,
screenordoortracks, loggrates, refractoryand
damper assemblies. Any fireplace component,
which is removed, must be retained so they
can be reinstalled to restore the fireplace to
its original operating condition. The removal
of any part must not alter the integrity of the
outer shell of the pre-engineered fireplace
cabinet in any way.
Ifanycomponentsareremovedfrom(oraltered)
fromtheexistingfireplace,aWarningLabel(see
Figure 39)must be affixed inside the fireplace
firebox,sothatitshallbevisibleuponremovalof
thefireplaceinsert. Note:RTVhightemperature
silicone is an approved adhesive.
Figure 39
WIRING DIAGRAMS
Wiring diagrams are provided here for refer-
ence purposes only. This information is also
providedonschematicsattacheddirectlytothe
appliance on a pullout panel located within the
control compartment.
IMPORTANT: Blower ground wire with
power cord green wire should be attached
to the ground screw. Failure to do so will
result in a potential safety hazard. The
appliance must be electrically grounded
in accordance with local codes or, in
the absence of local codes, the National
Electrical Code, ANSI/NFPA 70 - latest
edition.(InCanada,thecurrentCSAC22-1
Canadian Electrical Code - latest edition.
WARNING: THE POWER CORD MUST BE
PLUGGED DIRECTLY INTO A PROPERLY
GROUNDED THREE-PRONG 120 VOLT,
60 HZ WALL RECEPTACLE. DO NOT CUT
OR REMOVE THE GROUNDING PRONG
FROM THIS PLUG. DO NOT ROUTE
POWER CORD UNDER OR IN FRONT OF
APPLIANCE.
Room Air Circulation Blower
Figure 40
Fan Disc
Rheostat
Blower
Assembly
Power Cord
Black
Hot (Live)
RedBlackBlack
Black
120 V AC
Blower Wiring Diagram
White
(Neutral)
Green
(Ground)
CAUTION
Label all wires prior to discon-
nection when servicing con-
trols. Wiring errors can cause
improper and dangerous appli-
ance operation.
Fireplace Warning Label
(Provided in Accessory Package)
WARNING
THIS FIREPLACE HAS BEEN ALTERED TO
ACCOMMODATE A FIREPLACE INSERT
AND SHOULD BE INSPECTED BY A QUALI-
FIED PERSON PRIOR TO RE-USE AS A
CONVENTIONAL FIREPLACE.

NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE
14
TH
TP TH
TP
Figure 41
SIT & Honeywell
Millivolt Wiring Diagram
* On/off Switch, Optional Thermostat or
Remote Control Receiver
If any of the original wire as supplied must be
replaced, it must be replaced with Type AWM
105° C - 18 Gauge wire.
Thermopile
* Switch
Screen Door Kits
These decorative screen door panels fit over
the standard glass door panels.
ACCESSORY COMPONENTS
Tall Arch Pane Screen Door Kits
These decorative screen door panels fit on the
face of the appliance surround (eliminating the
need for the top and bottom louver panels).
Cat. No. Model Description
H1501 TPSDK-25 Twin-Pane Screen Door Kit, EDVI25
H0877 TPSDK-30DVI Twin-Pane Screen Door Kit, EDVI30
H0878 TPSDK-35I Twin-Pane Screen Door Kit, EDVI35
CAT# MODEL# DESCRIPTION
H3595 TAPSDK25C 25” Charcoal, EDVI25
H3596 TAPSDK25TI 25” Textured Iron, EDVI25
H3597 TAPSDK25SP 25” Satin Pewter, EDVI25
H3840 TAPSDK25PC 25” Pewt/Charc, EDVI25
H3598 TAPSDK30C 30” Charcoal, EDVI30
H3599 TAPSDK30TI 30” Textured Iron, EDVI30
H3600 TAPSDK30SP 30” Satin Pewter, EDVI30
H3841 TAPSDK30PC 30” Pewt/Charc, EDVI30
H3601 TAPSDK35C 35” Charcoal, EDVI35
H3602 TAPSDK35TI 35” Textured Iron, EDVI35
H3603 TAPSDK35TSP 35” Satin Pewter, EDVI35
H3842 TAPSDK35TPC 35” Pewt/Charc, EDVI35
The Model RCL (Standard) Remote Control
System, features a simple On/Off control
function for the insert. This model includes a
hand-held transmitter, a remote receiver with
wall-mountcoverplateandallhardwarerequired
to install the unit. The remote receiver can be
wall or hearth mounted.
Repair of minor scratches and
discolorationoftheappliance's
charcoal powdercoated sur-
faces may be accomplished
with the use of this touch-up
paint kit.
Control Kit
If an optional surround kit is not purchased,
this kit is required to provide the on/off switch
and rheostat.
Cat. No. Model Description
H0249 RCL Remote Control System (Standard)
Cat. No. Model Description
H0251 RCL-T Remote Control System (Deluxe)
Cat. No. Model Description
90L74 TPK-C Touch-Up Powdercoat Paint Kit
Cat. No. Model Description
H0919 CK-EI Control Kit, Elite Inserts
Brickaded Liner Kits
The brickaded liner kits include panels for the
rear and side walls of the firebox. The panels
have brick-like features in relief. These kits
can be retrofitted into previously installed
Elite™ inserts.
Cat. No. Model Description
H0904 BLK-30DVI Brick Liner Kit, EDVI30
H0905 BLK-35DVI Brick Liner Kit, EDVI35
H1513 BLK-25DVI Brick Liner Kit, EDVI25
EDVI35 Brick Liner Kit Shown
P
A
I
N
T
Standard Remote Control System
Deluxe Remote Control System
The Model RCL-T (Deluxe) Remote Control
System has all of the features of the standard
system along with an added easy to read LCD
screenwhichpresentsaccesstomanyenhance-
ments, including; battery power level indicator,
timer, mode of operation, thermostatic display
including room temperature in either metric
or English units, flame indicator and clock.
Fully programmable, the Model RCL-T allows
for command over nearly all operational and
temperature variables, using the hand held
remote control transmitter.
Touch-Up Powdercoat Paint Kit

NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE 15
ACCESSORY COMPONENTS
Wall Thermostat
The wall thermostat kit provides temperature
control for optimum comfort.
H4635 DWTK Wall Thermostat Kit, Digital
Cat. No. Model Description
H0881 SKS-30 Beveled Surround, Sm, EDVI30
H0882 SKM-30 Beveled Surround, Med, EDVI30
H0883 SKL-30 Beveled Surround, Lg, EDVI30
H0884 SKM-35 Beveled Surround, Med, EDVI35
H1503 SKS-25 Beveled Surround, Sm, EDVI25
H1504 SKM-25 Beveled Surround, Med, EDVI25
SIZES
SKS-25 = 41 1/16" W X 26 1/16" H
SKM-25 = 44 1/8" W X 27 5/8" H
SKS-30 = 40 1/4" W x 27 1/2" H
SKM-30 = 45 3/4" W x 30 1/4" H
SKL-30 = 49 1/4"" W x 30" H
SKM-35 = 48 1/16" W x 34 1/16" H
Height
Width
Cat. No. Model Description
H0886 FLK-30DVI Flat Louver Kit, Charcoal, EDVI30
H0887 FLK-30DVIG Flat Louver Kit, Gold, EDVI30
H0888 FLK-30DVIBS Flat Louver Kit, Brushed Stainless, EDVI30
H0889 FLK-35 Flat Louver Kit, Charcoal, EDVI35
H0890 FLK-35G Flat Louver Kit, Gold, EDVI35
H0891 FLK-35BS Flat Louver Kit, Brushed Stainless, EDVI35
H1505 FLK-25 Flat Louver Kit, Charcoal, EDVI25
H1506 FLK-25G Flat Louver Kit, Gold, EDVI25
H1507 FLK-25BS Flat Louver Kit, Brushed Stainless, EDVI25
Surround Kits
These surround panels install around the insert
body providing an attractive finished look.
Decorative Flat Louver Kits
Thesedecorativetrimaccents,installlaboveand
belowthe glass door.They are availablein three
different finishes to enhance the beauty of the
insert and are sure to fit into any decor.
Cat. No. Model Description
EDVI25
H2042 HRKS1-25 Hearth Riser Kit, SM, E25I, 1”
H2043 HRKS3-25 Hearth Riser Kit,, SM, E25I, 3”
H2044 HRKS6-25 Hearth Riser Kit, SM, E25I, 6”
H2045 HRKM1-25 HearthRiser Kit,MED,E25I,1”
H2046 HRKM3-25 HearthRiser Kit,MED,E25I,3”
H2047 HRKM6-25 HearthRiser Kit,MED,E25I,6”
EDVI30
H2098 HRKS1-30 Hearth Riser Kit, SM, E30I, 1”
H2099 HRKS3-30 Hearth Riser Kit, SM, E30I, 3”
H2100 HRKS6-30 Hearth Riser Kit, SM, E30I, 6”
H2101 HRKM1-30 HearthRiserKit,MED, E30I,1”
H2102 HRKM3-30 HearthRiserKit,MED, E30I,3”
H2103 HRKM6-30 HearthRiserKit,MED, E30I,6”
H2104 HRKL1-30 Hearth Riser Kit, LG, E30I, 1”
H2105 HRKL3-30 Hearth Riser Kit, LG, E30I, 3”
H2106 HRKL6-30 Hearth Riser Kit, LG, E30I, 6”
EDVI35
H2107 HRKM1-35 HearthRiserKit, MED,E30I,1”
H2108 HRKM3-35 HearthRiserKit,MED, E30I,3”
H2109 HRKM6-35 HearthRiserKit,MED, E30I,6”
Panels are available in 1”, 3” & 6” heights
Hearth Riser Trim Panel
Hearth Riser Kits
The hearth riser trim kits are designed to be
used with the optional surround kits (sold
separately). It provides a finished look below
the insert face when installed into fireplaces
with a elevated firebox.
SM = used with small surround
MED = used with medium surround
LG = used with large surround
Insert
Surround
Cat. No Model Description
H3389 EFS-E35I Elite Insert Flat Surround Kit, E35I
H3390 EFS-E30I Elite Insert Flat Surround Kit, E30I
H3391 EFS-E25I Elite Insert Flat Surround Kit, E25I
Flat Surround Kits
These flat surround kits are designed to have
the outside overall dimensions cut down
when custom shaped surround trim panels
are needed.

16
H
I
L
O
W
TPTH TP TH
P
I
L
O
T
P
I
L
O
T
O
N
it
O
F
F
OUT
IN
6. Wait five (5) minutes to clear out any gas. If you then smell gas,
STOP! Follow “B” in the safety information above on this page. If you
do not smell gas, go to the next step.
7. Push in gas control knob slightly and turn counterclockwise
to “PILOT.”
8. Push in control knob all the way and hold in. Immediately light the
pilot by triggering the spark igniter (pushing the button) until pilot
lights. Continue to hold the control knob in for about 1-1/2 minutes
after the pilot is lit. Release knob and it will pop back up. Pilot should
remain lit. If it goes out, repeat steps 5 through 8.
•If knob does not pop up when released, stop
and immediately call your service technician
or gas supplier.
•If pilot will not stay lit after several tries,
turn the control knob to “OFF” and call
your service technician or gas supplier.
9. Turn gas control knob counterclockwise
to “ON.”
10. Close lower control compartment.
LIGHTING INSTRUCTIONS – MILLIVOLT GAS VALVE
WARNING: IF YOU DO NOT FOLLOW THESE INSTRUCTIONS EXACTLY, A FIRE OR EXPLOSION
MAY RESULT CAUSING PROPERTY DAMAGE, PERSONAL INJURY OR LOSS OF LIFE.
FOR YOUR SAFETY, READ BEFORE LIGHTING
A. This appliance has a pilot which must be lighted with a piezo
igniter. When lighting the pilot, follow these instructions
exactly.
B. BEFORE OPERATING, smell all around the appliance area for
gas. Be sure to smell next to the floor because some gas is
heavier than air and will settle on the floor.
WHAT TO DO IF YOU SMELL GAS
•Extinguish any open flame.
•Open windows.
•Do not light any appliance.
•Do not touch any electrical switches.
TO TURN OFF GAS TO APPLIANCE
1. Turn remote wall switch “OFF.” The pilot will remain lit for
normal service.
2. For complete shutdown, turn remote wall switch to “OFF.”
3. Access the lower control compartment.
4. Depress gas control knob slightly and turn clockwise
to “OFF.” Do not force.
5. Close lower control compartment.
LIGHTING INSTRUCTIONS
1. STOP! Read the safety information above on this page.
2. Access the lower control compartment.
3. Turn remote wall switch to “OFF.”
4. Verify main line shut-off valve is open.
5. Push in gas control knob slightly and turn clockwise
to “OFF.”
•Do not use any phone in your building.
•Immediately call your gas supplier from a neighbor’s
phone.
•If your gas supplier cannot be reached, call the fire depart-
ment.
C. Use only your hand to push in or turn the gas control knob.
Never use tools. If the knob will not push in or turn by hand,
do not try to repair it, call a qualified service technician. Force
or attempted repair may result in a fire or an explosion.
D. Do not use this appliance if any part has been under water.
Immediately call a qualified service technician to inspect the
appliance and to replace any part of the control system and
any gas control which has been under water.
Note: Knob cannot be turned from “PILOT” to “OFF”
unless the knob is pushed in slightly. Do not force.
Millivolt Pilot
SIT Millivolt
Gas Valve
PIEZO
IGNITER
- LO/HI +
GAS CONTROL
KNOB
TP/TH
TH
TP
Honeywell Millivolt
Gas Valve
O
N
O
F
F
P
I
L
O
T
L
O
H
I
GAS CONTROL
KNOB - LO/HI +
TP/TH
TH
PIEZO
IGNITER
TP

17
INSTRUCTIONS D’ALLUMAGE – VANNE GAZ MILLIVOLT
INSTRUCTIONS D'ALLUMAGE
8. Enfoncez le bouton de réglage jusqu’au fond et gardez-le enfoncé.
Allumez immédiatement la veilleuse en déclenchant l’allume-gaz
à étincelle (en poussant le bouton) jusqu’à ce que la veilleuse
s’enflamme. Continuez de tenir le bouton de réglage enfoncé
pendant environ 90 secondes après l’allumage de la veilleuse.
Relâchez le bouton et il sortira subitement. La veilleuse devrait
rester allumée. Si elle s’éteint, répétez les étapes 5 à 8 inclusive-
ment.
• Si le bouton ne sort pas automatiquement après avoir été relâché,
arrêtez immédiatement et téléphonez à votre technicien de service
ou à votre fournisseur de gaz.
• Si la veilleuse refuse de rester allumée après plusieurs tentatives,
tournez le bouton de réglage jusqu’à sa position d’arrêt “OFF” et
téléphonez à votre technicien de service ou à votre fournisseur de
gaz.
9. Tournez le bouton de réglage du gaz en sens inverse des aiguilles
d’une montre jusqu’à sa position de marche “ON”.
10. Fermez le compartiment de contrôle du bas.
11. Au besoin, rebrancher l’appareil au
courant électrique et remettre
l’interrupteur du brûleur principal
à la position “ON” ou régler le
0thermostat à la température désirée.
12. Si l’appareil ne fonctionne pas,
suivre les instructions intitulées
“Pour fermer le gaz qui alimente
l’appareil” et appeler un technicien
ou le fournisseur de gaz.
AVERTISSEMENT : SI VOUS NE SUIVEZ PAS CES INSTRUCTIONS À LA LETTRE, IL POURRAIT S’EN SUIVRE UN INCENDIE OU
UNE EXPLOSION CAUSANT DES DOMMAGES MATÉRIELS, DES BLESSURES CORPORELLES OU MÊME DES PERTES DE VIE.
POUR VOTRE SÉCURITÉ, LISEZ CES INSTRUCTIONS AVANT L’ALLUMAGE
A. Cet appareil est muni d’une veilleuse qui doit être allumée avec un
allumeur piézo-électrique. Lorsque vous allumez la veilleuse, suivre
exactement ces instructions.
B. AVANTL’ALLUMAGE:Assurez-vousquevousne détectezaucuneodeur
de gaz autour de l’apareil ainsi que près du sol; certains gaz, étant plus
lourds que l’air, descendent au niveau du sol.
VOICI CE QUE VOUS DEVEZ FAIRE SI VOUS DÉCELEZ UNE ODEUR
DE GAZ:
•Éteignez toute flamme visible.
•Ouvrez les fenêtres.
•N’allumez aucun appareil.
•Ne touchez à aucun commutateur électrique.
•Ne vous servez d’aucun téléphone dans votre édifice.
•Appelez immédiatement votre compagnie de gaz en utilisant le télé-
phone du voisin.
•S’il vous est impossible de contacter votre compagnie de gaz, appelez
le service des incendies.
C. N’utilisez que votre main pour manipuler le bouton de réglage du gaz.
N’utilisez jamais d’outils. Si le bouton refuse de tourner ou de bouger,
n’essayez pas de le réparer. Communiquez immédiatement avec un
technicien de service qualifié. Toute tentative pour le forcer ou le
réparer, risquerait de provoquer un incendie ou une explosion.
D. Ne vous servez pas de cet appareil si l’un de ses éléments a été
immergé dans l’eau. Appelez immédiatement un technicien compétent
pour faire inspecter l’appareil et remplacer toute pièce du système de
réglage ou commande du gaz qui a été sous l’eau.
1. ARRÊTEZ! Lisez les consignes de sécurité au verso de cette plaque.
2. Ouvrez le compartiment de contrôle du bas.
3. Tournez l’interrupteur mural à la position d’arrêt “OFF”.
4. Assurez-vous que la soupape d’arrêt de la canalisation principale est
ouverte.
5. Enfoncez légèrement le bouton de réglage du gaz et tournez-le dans
le sens des aiguilles d’une montre jusqu’à la position
d’arrêt “OFF”.
Remarque: Il est impossible de tourner le bouton de “PILOT” à “OFF” à
moins qu’il ne soit légèrement enfoncé. Ne le forcez pas.
6. Attendez cinq (5) minutes pour l’evacuation du gaz. Si vous décelez
une odeur de gaz, ARRÊTEZ ! Retournez au point “B” des consignes
de sécurité au verso de cette plaque. Si vous ne remarquez aucune
odeur de gaz, passez à l’étape suivante.
7. Enfoncez légèrement le bouton de réglage du gaz et tournez-le en
sens inverse des aiguilles d’une montre jusqu’à la position de veil-
leuse “PILOT”.
1. Tournez l’interrupteur mural à la position d’arrêt “OFF”. La veilleuse
restera allumée jusqu’au retour du service normal.
2. Pour une fermeture complète, tournez l’interrupteur mural à la posi-
tion d’arrêt “OFF”.
3. Ouvrez le compartiment de contrôle du bas.
POUR FERMER LE GAZ QUI ALIMENTE L’APPAREIL
4. Enfoncez légèrement le bouton de réglage du gaz et tournez-le dans
le sens des aiguilles d’une montre jusqu’à la position
d’arrêt “OFF”. Ne forcez pas le bouton.
5. Fermez le compartiment de contrôle du bas.
Millivolt Pilot
Honeywell Vanne
Gaz Millivolt
O
N
O
F
F
P
I
L
O
T
L
O
H
I
TP/TH
TH
TP
BOUTON DE RÉGLAGE DU GAZ
- LO/HI + (COMMANDE
DE TAILLE DE FLAMME)
ALLUMEUR
SIT Vanne
Gaz Millivolt
BOUTON DE RÉGLAGE DU GAZ
ALLUMEUR
- LO/HI + (COMMANDE
DE TAILLE DE FLAMME)
TP/TH
TH
TP
H
I
L
O
W
TPTH TP TH
P
I
L
O
T
P
I
L
O
T
O
N
it
O
F
F
OUT
IN

18
REPLACEMENT PARTS LIST
Gas Controls
Item # Part/Cat. No. Description Where Used
1 67L70 Pilot Assembly, NG/LP All
2 67L68 Pilot Tube All
3 67L67 Thermocouple All
4 60J79 Thermopile (pilot generator) All
10a 10K86 Piezo Igniter (wire not included) EDVI25
10b 24M89 Piezo Igniter (wire included) EDVI30 & EDVI35
7 67L87 Electrode Cable (piezo igniter wire w/ electrode) All
5a H1657 Gas Valve, NG – SIT EDVI25
5b H6196 Gas Valve, NG – Honeywell EDVI30 & EDVI35
Misc. Gas Components
6 H1127 Burner Assembly NG/LP EDVI25 & EDVI30
6 H1160 Burner Assembly NG/LP EDVI35
H0920 GCKNL-E30I, Conversion Kit, NG to LP EDVI30
H0921 GCKNL-E35I, Conversion Kit, NG to LP EDVI35
H1576 GCKNL-E25I, Conversion Kit, NG to LP EDVI25
8 93L32 Connector-Flex Gas ALL
9 21L79 Orifice, Burner, NG (.#41) EDVI25
9 24M10 Orifice, Burner, NG (.#37) EDVI30
9 99K77 Orifice, Burner, NG (#33) EDVI35
9 39L10 Orifice, Burner, LP (#53) EDVI25
9 21L01 Orifice, Burner, LP (.0625) EDVI30
9 H0922 Orifice, Burner, LP (#51) EDVI35
Miscellaneous Parts
11 H1585 Door Kit, Complete EDVI25
11 H0923 Door Kit, Complete EDVI30
11 H0924 Door Kit, Complete EDVI35
23 H1393 Gasket, Flue Adapter EDVI25
24 H6236 Gasket, Flue Adapter EDVI30 & EDVI35
12 H0928 Grate Assembly EDVI25 & EDVI30
13 H0927 Grate Assembly EDVI35
14 H0929 Lock Assembly, Door (w/spring) All
15 27K30 Switch, On/Off All
Log Sets
16 88L53 FGE Glowing Embers All
17 H6235 Log Set, 7 pc. EDVI25 & EDVI30
17 H1103 Log Set, 7 pc. EDVI35
18 H3696 Vermiculite, Bag All
Room Air Blower System
19 H1391 Blower Assembly, 7” EDVI25
19 H1141 Blower Assembly, 9" EDVI30 & EDVI35
20 H1157 Power Cord All
21a H1290 Rheostat (knob included) All
21b 527 Knob, Rheostat All
22 13M23 Switch, Temp. Control (TOD) All

19
NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE
REPLACEMENT PARTS DIAGRAMS
8
9
15
16
17
21a
3
3
4
2
11
5b
O
N
O
F
F
P
I
L
O
T
L
O
H
I
10b
1
19
18
16
14
12
20
22
13
21b
6
5a
10a
7
24
23

20
TROUBLESHOOTING THE MILLIVOLT GAS CONTROL SYSTEM
Note: Before troubleshooting the gas control system, be sure external gas shut off valve (located at gas supply inlet) is
in the “ON” position.
Important: Valve system troubleshooting should only be accomplished by a qualified service technician.
SYMPTOM POSSIBLE CAUSES CORRECTIVE ACTION
1) Spark igniter will not light
pilot after repeated triggering of
igniter button.
WARNING: IF THE PILOT WILL
NOTLIGHTAFTERONEMINUTE
OF ATTEMPTING, WAIT FOR AT
LEAST FIVE MINUTES FOR GAS
TOCLEARBEFOREATTEMPTING
AGAIN.
A. Electrode wire (at Piezo Igniter) not pushed completely
on. • Check connection
B. Piezo igniter is defective • Replace piezo igniter
C. Defective or misaligned electrode at pilot (spark at
electrode) • Using a match, light pilot. If pilot lights, turn off pilot and trigger the igniter button again. If pilot lights, an improper gas mixture caused the bad lighting
and a longer purge period is recommended. If pilot will not light – check gap at
electrodeandpilot–Itshouldbebetween1/8”and3/16.”Ifthegapisoutofthis
range, adjust the gap or replace the pilot assembly. (Page 13, Figure 38)
D. Incorrect lighting procedure • Carefully follow the lighting instructions on Pages 16 &17 or as found in
the insert control compartment.
E. Gas supply problem • Check for multiple gas shut-offs. Check gas supply lines.·Check inlet gas
pressure. It should be within the limits as marked on the rating plate.
F. Pilot orifice plugged • Clean or replace pilot orifice
2) Pilot will not stay lit after
carefully following the lighting
instructions.
A. Thermocouple is not firmly connected to control valve • Check connection at valve
B. Pilot flame is not directed to top of thermocouple • Ensurethermocoupleisfullyinsertedintopilotassembly.Cleanand/oradjust
pilot for maximum flame impingement on thermocouple if necessary.
C.Thermocoupleisdefective. Themillivoltproductionshould
be a minimum of 14 MV with pilot only. • Replace thermocouple
3) Pilot flame stays lit, but
main burner will not light. (Valve
pilot/on/offknobisinONposition,
on/off switch, wall thermostat or
remote control is set to ON).
Read important note below.
IMPORTANT NOTE: If an
optional Remote Switch*
is used for burner opera-
tion and if the standard
burner OFF/ON switch is
still installed on appli-
ance, it must be in the
"OFF" position.
A. Burner control switch (on/off switch, wall thermostat or
remotecontrol)isin“OFF”position;orthermostat(ifinstalled)
is set to a temperature setting that is too low.
• Turn burner on/off switch on and/or refer to instructions provided with
optional thermostat or remote control, if applicable.
B. Electrical wiring is damaged or poorly connected or
remote switch is defective. • Checkwallswitchandwiresforproperconnections.Refer toMillivoltWiring Diagram (Page 14, Figure 41). Jump the wire across terminals at the wall
switch,iftheburnercomeson,replacethedefectivewallswitch.Ifokay,jumper
the wires across the wall switch wires at the valve. If the burner comes on,
wires are faulty or connections are bad.
C. One of the following components may be defective:
burnercontrolswitch,thermostatorthermopile.Thermopile:
Millivolt production should be a minimum of 325 MV with
pilot only.
• Refer to Millivolt Wiring Diagram (Page 14, Figure 41). Electrically bypass
components one at a time and replace defective item.
D. Thermopile may not be generating sufficient mil-
livolts • Check thermopile with millivolt meter. Take reading at thermopile ter-
minals of gas valve. It should read 325 millivolts minimum with optional
wall switch “OFF.” Replace faulty thermopile if reading is below specified
minimum.
E. Plugged burner orifice heck burner orifice for blockage and remove.
F. OFF/ON Switch & Remote Switch* are in the "ON"
position resulting in excessive resistance When turning on the burner using a Remote Switch,* ensure that the standard OFF/ON Switch is in the "OFF" position. If both switches are in
the ON position, it may result in excessive resistance (& millivolt drainage)
and the burner may not come on.
4) Frequentpilot/burneroutage
problem A. Pilotflamemaybetoolow orblowing(high)causingthe pilot/valve safety to drop out. • Clean and/or adjust pilot flame for maximum flame impingement on ther-
mocouple (Page 13, Figure 38).
5) Smell of gas A. Pilot, gas supply system, or pilot & burner adjustment
screws on valve may be leaking. FOLLOW INSTRUCTIONS
ON THE COVER OF THIS MANUAL
• WARNING: NEVER USE AN OPEN FLAME TO CHECK FOR LEAKS.
After the gas company or fire department has given clearance to re-enter the
dwelling, have a qualified technician test all gas joints from the gas meter to
the gas heater regulator for leaks using a gas leak test solution (also referred
to as bubble leak solution).
6) A thin coating of black soot
formsonthewindow.NOTE:See
Page 5, Glass Cleaning.
A. Burner primary air inlet is restricted or blocked • Ensure all openings (fresh air inlets) in the insert are free from dust and
debris. Recheck these areas periodically.
B. Flames make contact with logs or other surfaces • Ensure ceramic logs are in their correct positions.
C. Improper venting • Check for flue blockage, disconnected flue, improper installation. Make
appropriate corrections.
7) A white coating forms on
windows, logs, and/or inside
walls of firebox.
A. Residues/impuritiesbeingburnedofforimpuritiesinthe
fuel • Follow cleaning guidelines outlined in the MAINTENANCE section of this
manual.
*Optional Remote Switch kits: wall switch, wall thermostat or remote control.
