Lenovo S60-a User manual

English/Bahasa Indonesia
Quick Start Guide
Lenovo S60-a

Getting support
For support on network service and billing, contact your wireless
network operator. For instructions on how to use Lenovo
smartphone, go to: http://support.lenovo.com/.
Downloading publications
To obtain the latest smartphone manuals, go to:
http://support.lenovo.com/
Accessing your User Guide
Read this guide carefully before using your smartphone.
English
Go to: http://support.lenovo.com and follow the
instructions on the screen.
Turn on your smartphone, and then open the User
Guide app.
Legal notices
Lenovo and the Lenovo logo are trademarks of Lenovo in the
United States, other countries, or both.
Other company, product, or service names may be trademarks or
service marks of others.
Your User Guide contains detailed information about your
smartphone. To access your User Guide, use one of the
following methods:

First glance....................................................................... 1
Installing the SIM cards and MicroSD card........................2
Charging the battery......................................................... 3
Technical specifications .................................................... 4
Important regulatory, safety, and handling information....... 5
Service, support, and warranty information.......................8
Recycling and environmental information ..........................9
Specific Absorption Rate information ...............................10
Contents

1
First glance
Front-facing camera
3
1Receiver 2
On/Off button
6
Light/Proximity sensor
4Volume buttons 5
Home button
9
Touch screen
7Back button
8
Flashlight
12
Menu button
10 Rear-facing camera 11
Speaker
15
Headset connector
13 SIM-card tray
14
16 17 Micro USB connector
Microphone
8
10 9
2
3
4
1
5
6
7
MicroSD card tray
17 13
11 12 13
16
14
15

2

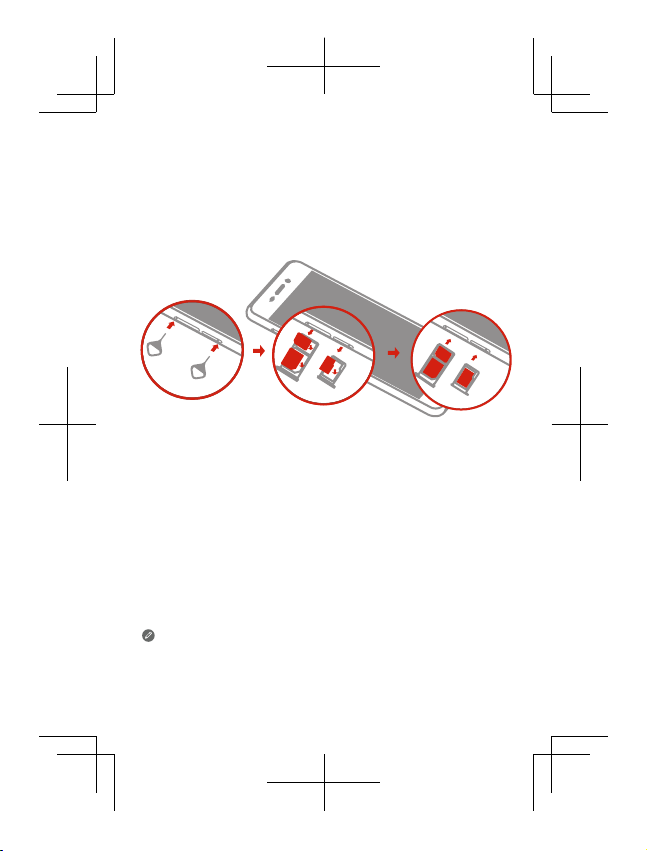

Installing the SIM cards and
MicroSD card
A SIM card provided by your carrier is required in order to use
cellular services. Install the SIM cards and MicroSD card as shown.
Step 1.
Step 2.
Step 3.
Insert the SIM eject tool that comes with your smartphone
into the hole in the SIM-card tray or MicroSD card tray.
Pull out the SIM-card tray or MicroSD card tray, position the
SIM card or MicroSD card into the tray in correct orientation.
Carefully insert the tray with the installed SIM card and
MicroSD card back into the slot.
Always turn off your smartphone first before you insert or remove a
SIM card. Insert or remove a SIM card with your smartphone on may
damage your SIM card or smartphone permanently.
Micro
SD
SIM1
SIM2
SIM1
SIM2
Micro
SD

3
Charging the battery
Low battery power Fully charged Charging
Your smartphone has a built-in rechargeable battery. For more
information about battery safety, see the “Built-in rechargeable
battery notice” section. The battery in this product cannot be easily
replaced by users themselves.
Charge the battery as shown.
Turning on or turning off your smartphone
Turn on: Press and hold the On/Off button until
the Lenovo logo appears.
Tur n of f: Press and hold the On/Off button for a
few seconds, then tap Power off.
Restart: Press and hold the On/Off button for
about 10 seconds.
Method 1.
Method 2.
Connect your smartphone to a power outlet using the
cable and USB power adapter that come with your
smartphone.
Connect your smartphone to a computer using the cable
that comes with your smartphone.
2
1

4
Technical specifications
① Depending on the measuring method, the dimensions and weight
might vary slightly.
②In some countries, LTE is not supported. To know if your
smartphone works with LTE networks in your country, contact
your carrier.
Type: CMOS
Pixels: 13 megapixels (back) + 5 megapixels (front)
Processor: Qualcomm 8916, quad-core, 1.2 GHz
Size: 5.0 inches
Resolution: 1280 × 720 pixels
System: Android
Bluetooth 4.0; WLAN 802.11 b/g/n;
②FDD-LTE/WCDMA/GSM; GPS+GLONASS
Battery: 2150 mAh
Height: 143 mm (5.63 inches)
Depth: 7.7 mm (0.31 inch)
Model and system
Display
Battery
Processor
①Dimensions and weight
Camera
Wireless communication
Model: Lenovo S60-a
Width: 72 mm (2.84 inches)
Weight: 128 g (0.28 lb)
Screen: multi-touch
LCD type: IPS

Pemberitahuan hukum
Lenovo dan logo Lenovo adalah merek dagang dari Lenovo di
Amerika Serikat, negara lain, atau keduanya.
Perusahaan, produk, atau nama layanan lainnya mungkin merek
dagang atau merek layanan dari pihak lain.
Mendapatkan dukungan
Untuk dukungan penagihan dan layanan jaringan, hubungi
operator jaringan nirkabel Anda. Untuk petunjuk tentang cara
menggunakan ponsel cerdas Lenovo, kunjungi:
http://support.lenovo.com/.
Men-download publikasi
Untuk mendapatkan manual ponsel cerdas terbaru,
kunjungi:http://support.lenovo.com/
Mengakses Panduan Pengguna
Panduan Pengguna Anda berisi informasi terperinci tentang ponsel
cerdas Anda. Untuk mengakses Panduan Pengguna, gunakan
salah satu cara berikut:
Baca panduan ini dengan saksama sebelum menggunakan
ponsel cerdas.
Bahasa Indonesia
Kunjungi: http://support.lenovo.com dan ikuti petunjuk di layar.
Nyalakan ponsel cerdas, lalu buka aplikasi Panduan Pengguna.

Tampilan sekilas................................................................1
Memasang kartu SIM dan kartu MicroSD...........................2
Mengisi daya baterai.........................................................
3
Spesifikasi teknis...............................................................4
Informasi penting tentang peraturan, keamanan, dan
penanganan......................................................................5
Informasi servis, dukungan, dan garansi............................9
Informasi daur ulang dan lingkungan...............................
10
Informasi Tingkat Penyerapan Spesifik.............................12
Daftar Isi

1
Tampilan sekilas
3
Konektor headset
1Sensor Kedekatan/
Cahaya
2
Tombol On/Off
6
Kamera depan
4Tombol volume 5
Tombol Home
9
Layar sentuh
7Tombol kembali
8
Senter
12
Tombol menu
10 Kamera belakang 11
Speaker
15
Baki kartu SIM
13 Baki kartu MicroSD
14
16 17 Konektor USB Mikro
Mikrofon
Unit penerima
8
10 9
2
3
4
1
5
6
7
17 13
11 12 13
16
14
15
