Lenovo 9686 Parts list manual

Lenovo 3000
Hardware Installation and Replacement Guide
Machine Types 9686, 9687, 9688, 9689, 9690, 9691

Lenovo 3000

Note
Before using this information and the product it supports, be sure to read and understand the Safety and Warranty Guide for
this product and “Notices,” on page 53.
Third Edition (September 2007)
©Copyright Lenovo 2005, 2007.
Portions ©Copyright International Business Machines Corporation 2005.
All rights reserved.
LENOVO products, data, computer software, and services have been developed exclusively at private expense and
are sold to governmental entities as commercial items as defined by 48 C.F.R. 2.101 with limited and restricted
rights to use, reproduction and disclosure.
LIMITED AND RESTRICTED RIGHTS NOTICE: If products, data, computer software, or services are delivered
pursuant aGeneral Services Administration ″GSA″contract, use, reproduction, or disclosure is subject to restrictions
set forth in Contract No. GS-35F-05925.

Contents
Figures ...............v
Chapter 1. Important safety information 1
Chapter 2. Overview .........3
Additional information resources .......3
Handling static-sensitive devices........4
Locations ...............5
Locating controls and connectors on the front of
your computer.............5
Locating connectors on the rear of your computer 6
Locating components ..........8
Identifying parts on the system board .....9
Chapter 3. Installing options and
replacing hardware .........13
Installing external options .........13
Removing the cover ...........13
Removing and replacing the front bezel .....14
Installing internal options .........16
Installing memory ...........16
Installing PCI adapters .........17
Installing internal drives .........20
Connecting drives ...........23
Replacing the battery ...........25
Replacing the power supply assembly .....26
Replacing the heat sink ..........27
Replacing ahard disk drive .........30
Replacing an optical drive .........33
Replacing the diskette drive .........36
Replacing amemory module ........37
Replacing aPCI adapter ..........38
Replacing the front fan assembly .......41
Replacing the rear fan assembly .......42
Replacing the keyboard ..........45
Replacing the mouse ...........46
Chapter 4. Completing the parts
replacement ............47
Obtaining device drivers ..........48
Chapter 5. Security features .....49
Integrated cable lock ...........49
Padlock Loop..............50
Password protection ...........50
Erasing alost or forgotten password (clearing
CMOS) ................50
Appendix. Notices ..........53
Television output notice ..........54
Trademarks ..............54
Index ...............55
©Lenovo 2005, 2007. Portions ©IBM Corp. 2005. iii

iv Hardware Installation and Replacement Guide

Figures
1. Controls and connectors.........5
2. Connector locations ..........6
3. Component locations..........8
4. System board parts locations .......9
5. System board parts locations .......10
6. System board parts locations .......11
7. Removing the computer cover ......14
8. Removing the front bezel ........15
9. Opening retaining clips ........16
10. Positioning the memory module .....17
11. Opening the adapter latch .......18
12. Closing the adapter latch ........19
13. Drive bay locations ..........21
14. Locating the spare retainer bracket .....22
15. Installing aretainer bracket .......23
16. Installing anew drive .........23
17. Installing the first optical drive ......24
18. Installing aparallel ATA drive ......24
19. Installing aserial ATA drive .......25
20. Battery removal ...........25
21. Battery installation ..........26
22. Removing the power-supply-retaining screws 27
23. Removing aheat sink held in place by aclamp 28
24. Removing aheat sink held in place by screws 28
25. Clamping the heat sink to the plastic retention
bracket ..............29
26. Replacing the screws to the heat sink and fan
assembly .............30
27. Removing the hard disk drive ......31
28. Installing the hard disk drive into bracket 32
29. Installing the hard disk drive and bracket 33
30. Removing the optical drive .......34
31. Retainer bracket for optical drive .....34
32. Installing anew drive .........35
33. Removing the diskette drive .......36
34. Retainer bracket for diskette drive .....37
35. Removing the memory module ......37
36. Installing the memory module ......38
37. Removing the PCI adapter .......39
38. Install anew PCI adapter ........40
39. Removing the front fan assembly .....41
40. Replacing the front fan assembly .....42
41. Removing the rear fan assembly .....43
42. Replacing the rear fan assembly......44
43. Keyboard connectors, standard and USB 45
44. Mouse connectors, standard and USB ....46
45. Replacing the computer cover ......47
46. Integrated cable lock .........49
47. Padlock Loop ............50
©Lenovo 2005, 2007. Portions ©IBM Corp. 2005. v

vi Hardware Installation and Replacement Guide

Chapter 1. Important safety information
CAUTION:
Before using this manual, it is important that you read and understand all the
related safety information for this product. Refer to the Safety and Warranty Guide
that you received with this product for the latest safety information. Reading
and understanding this safety information reduces the risk of personal injury
and or damage to your product.
If you no longer have acopy of the Safety and Warranty Guide,you can obtain one
online from the Lenovo Support Web site at:
http://www.lenovo.com/support.
©Lenovo 2005, 2007. Portions ©IBM Corp. 2005. 1

2Hardware Installation and Replacement Guide

Chapter 2. Overview
This guide provides procedures for replacing Customer Replaceable Units (CRUs).
This guide does not include procedures for all parts. Cables, switches, and certain
mechanical parts are expected to be replaced by trained service personnel who do
not need step-by-step procedures.
Note: Use only parts provided by Lenovo™.
This guide contains instructions for installing and or replacing the following parts:
vBattery
vFront Bezel
vPower supply
vHeat sink
vHard disk drive
vOptical drive
vDiskette drive
vMemory modules
vPCI adapter
vFront fan assembly
vRear fan assembly
vKeyboard
vMouse
Additional information resources
If you have Internet access, the most up-to-date information for your computer is
available from the World Wide Web.
You can find:
vCRU removal and installation information
vCRU removal and installation videos
vPublications
vTroubleshooting information
vParts information
vDownloads and drivers
vLinks to other useful sources of information
vSupport phone list
To access this information, point your browser to:
http://www.lenovo.com/support
©Lenovo 2005, 2007. Portions ©IBM Corp. 2005. 3

Handling static-sensitive devices
Do not open the static-protective package containing the new part until the
defective part has been removed from the computer and you are ready to install
the new part. Static electricity, although harmless to you, can seriously damage
computer components and parts.
When you handle parts and other computer components, take these precautions to
avoid static-electricity damage:
vLimit your movement. Movement can cause static electricity to build up around
you.
vAlways handle parts and other computer components carefully. Handle
adapters, memory modules, system boards, and microprocessors by the edges.
Never touch any exposed circuitry.
vPrevent others from touching the parts and other computer components.
vBefore you replace anew part, touch the static-protective package containing the
part to ametal expansion-slot cover or other unpainted metal surface on the
computer for at least two seconds. This reduces static electricity in the package
and your body.
vWhen possible, remove the new part from the static-protective packaging, and
install it directly in the computer without setting the part down. When this is
not possible, place the static-protective package that the part came in on a
smooth, level surface and place the part on it.
vDo not place the part on the computer cover or other metal surface.
4Hardware Installation and Replacement Guide

Locations
This chapter provides illustrations to help locate the various connectors, controls,
and components of the computer.
Locating controls and connectors on the front of your
computer

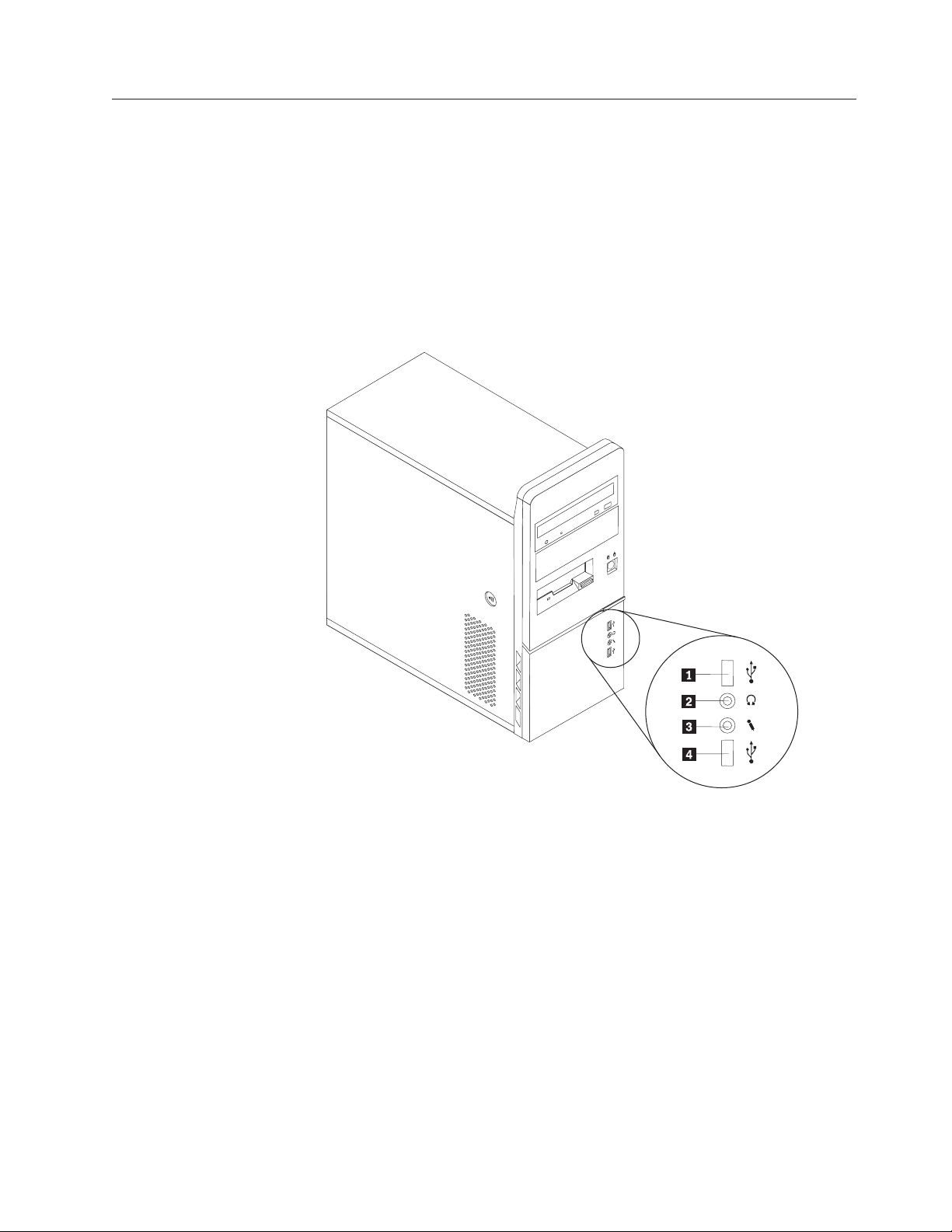

Figure 1shows the location of the controls and connectors on the front of your
computer.
Note: Not all computer models have the following controls and connections.
1 USB connector 3 Microphone connector
2 Headphone connector 4 USB connector
Figure 1. Controls and connectors
Chapter 2. Overview 5

Locating connectors on the rear of your computer

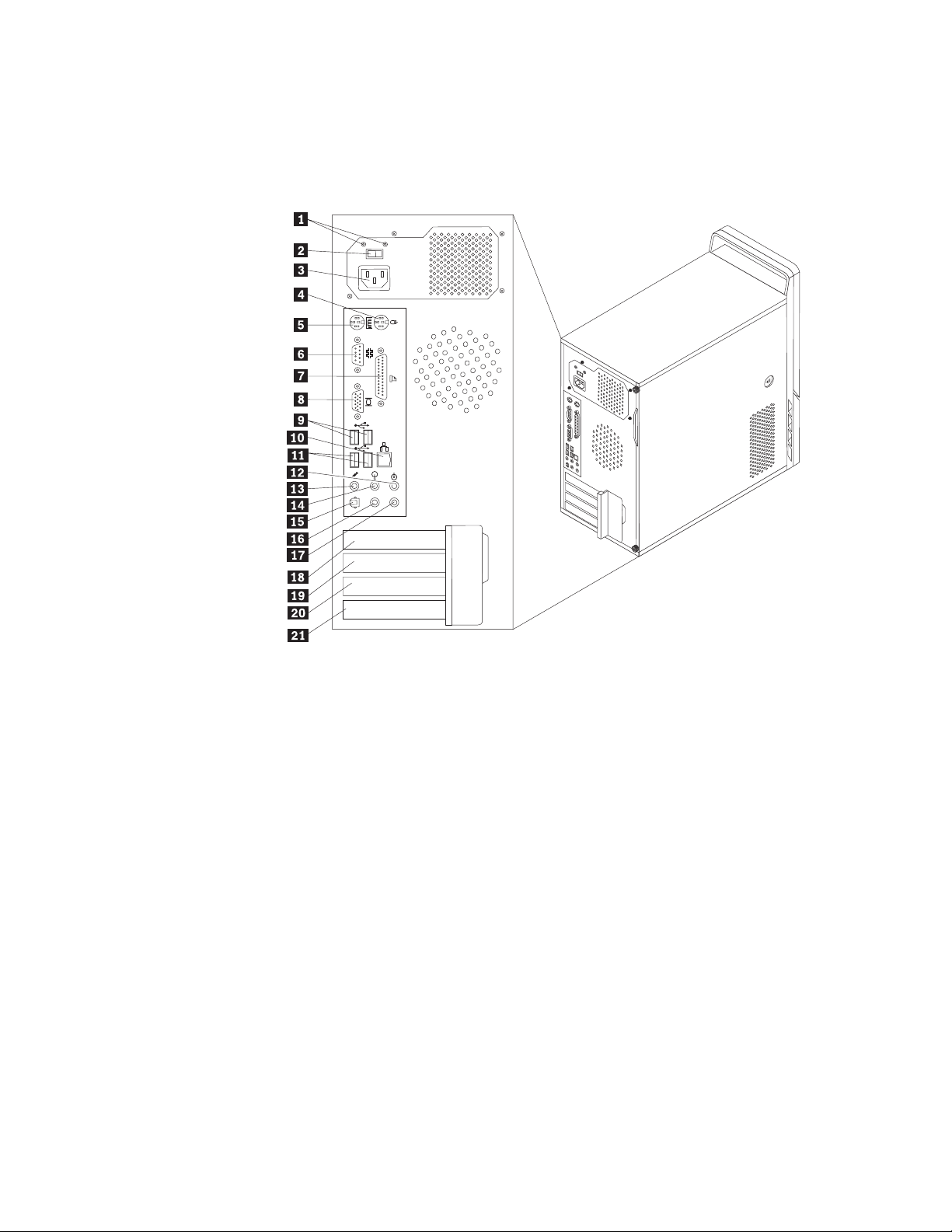

Figure 2shows the location of connectors on the rear of your computer. Some
connectors on the rear of your computer are color-coded to help you determine
where to connect the cables on your computer.
1 Power supply diagnostic
LEDs
12 Audio line in connector
2 Voltage selection switch
(some models)
13 Microphone connector
3 Power connector 14 Audio line out connector
4 Standard mouse connector 15 SPDIF out connector
5 Standard keyboard connector 16 C/LFE connector
6 Serial connector 17 Back surround connector
7 Parallel connector 18 PCI Express x1 or PCI Express x16 graphics
adapter connector
8 VGA monitor connector 19 PCI Express x1 or PCI Express x16 graphics
adapter connector
9 USB connectors (2) 20 PCI adapter or PCI Express x1 adapter
connector
10 Ethernet connector 21 PCI adapter connector
11 USB connectors (2)
Figure 2. Connector locations
6Hardware Installation and Replacement Guide

Connector Description
Standard mouse connector Used to attach amouse, trackball, or other pointing device that
uses astandard mouse connector.
Standard keyboard
connector
Used to attach akeyboard that uses astandard keyboard
connector.
USB connectors Used to attach adevice that requires aUniversal Serial Bus
(USB) connection, such as aUSB keyboard, USB mouse, USB
scanner or USB printer. If you have more than eight USB
devices, you can purchase aUSB hub, which you can use to
connect additional USB devices.
Ethernet connector Used to attach an Ethernet cable for alocal area network
(LAN).
Note: To operate the computer within FCC Class Blimits, use
aCategory 5Ethernet cable.
Serial connector Used to attach an external modem, serial printer, or other
devices that use a9-pin serial connector.
Parallel connector Used to attach aparallel printer, parallel scanner, or other
devices that use a25-pin parallel connector.
Audio-line-in connector Used to receive audio signals from an external audio device,
such as astereo system. When you attach an external audio
device, acable is connected between the audio line out
connector of the device and the audio line in connector of the
computer.
Audio-line-out connector Used to send audio signals from the computer to external
devices, such as powered stereo speakers (speakers with
built-in amplifiers), headphones, multimedia keyboards, or the
audio line in connector on astereo system or other external
recording device.
Chapter 2. Overview 7

Locating components
To open the computer cover, see “Removing the cover” on page 13.

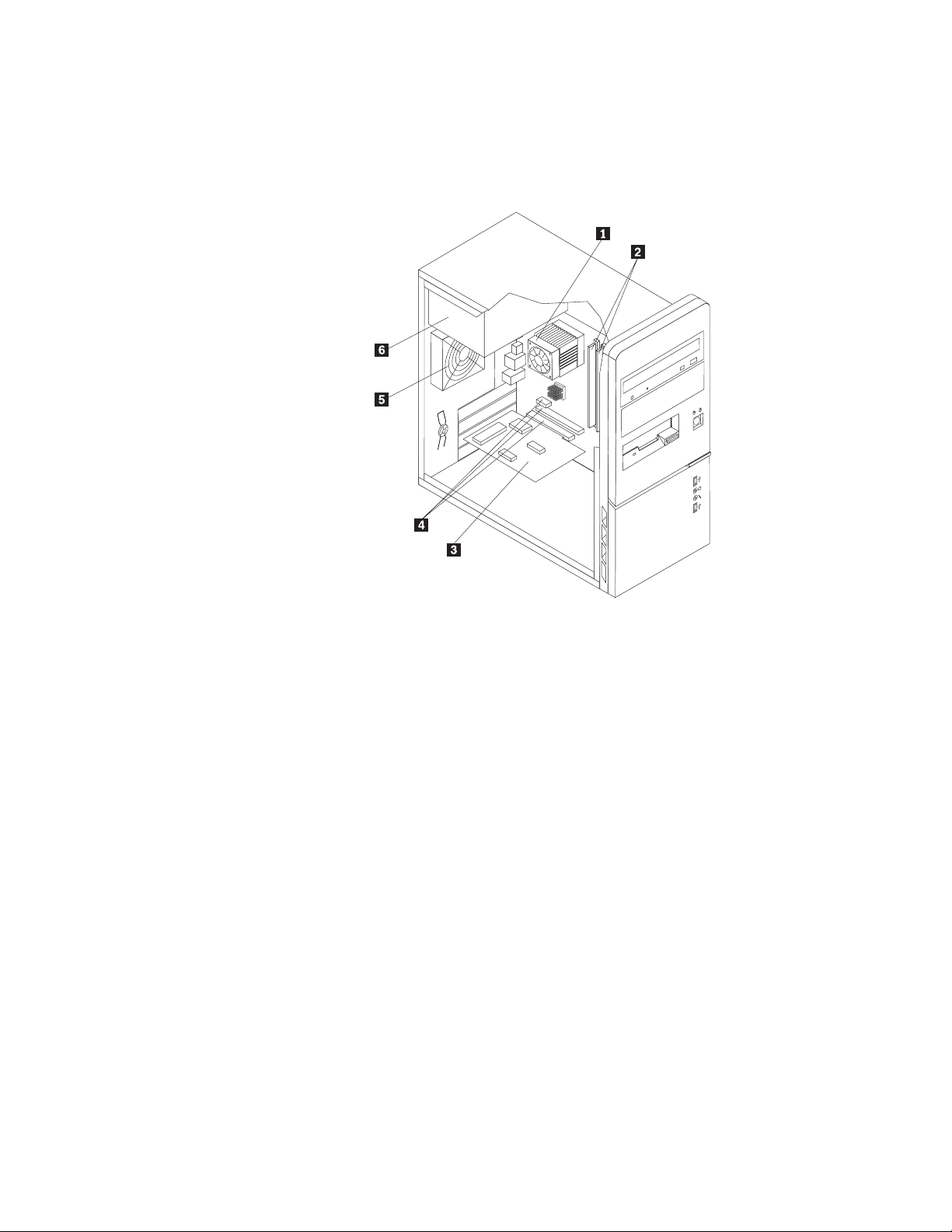

Figure 3shows the location of the various components in your computer.
1 Microprocessor fan and heat
sink
4 PCI Express and PCI adapter connectors
2 Memory modules (2) 5 Rear fan assembly
3 PCI adapter card 6 Power supply
Figure 3. Component locations
8Hardware Installation and Replacement Guide

Identifying parts on the system board

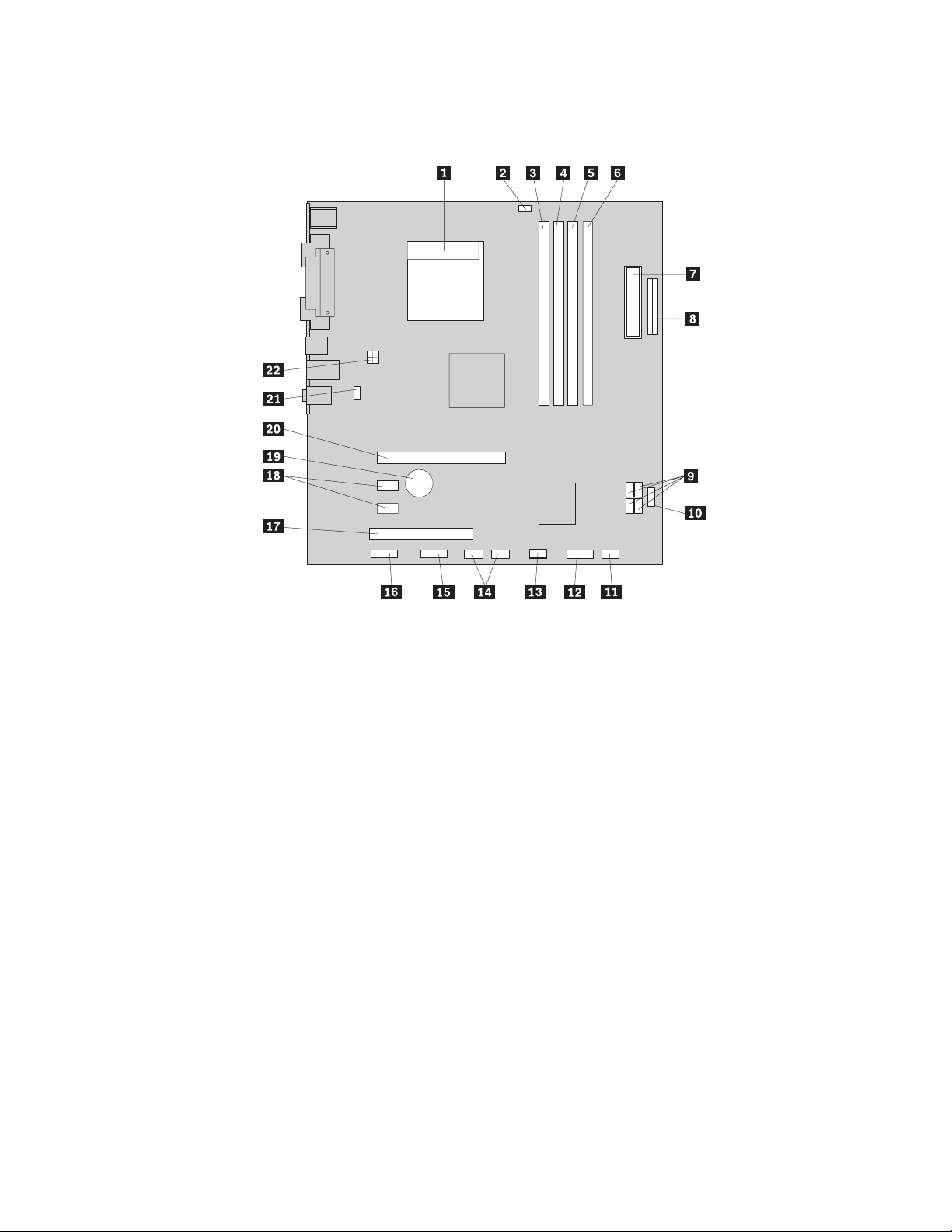

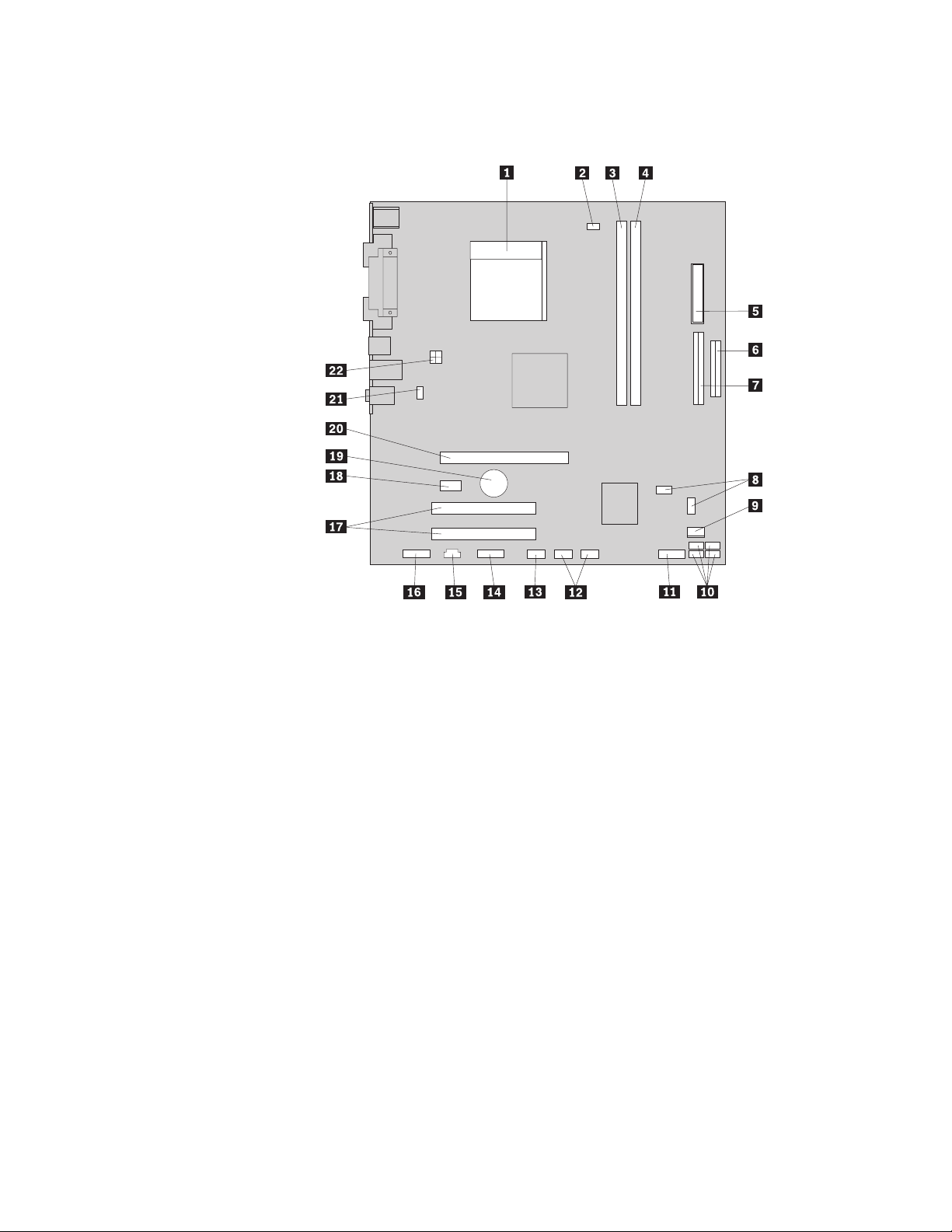

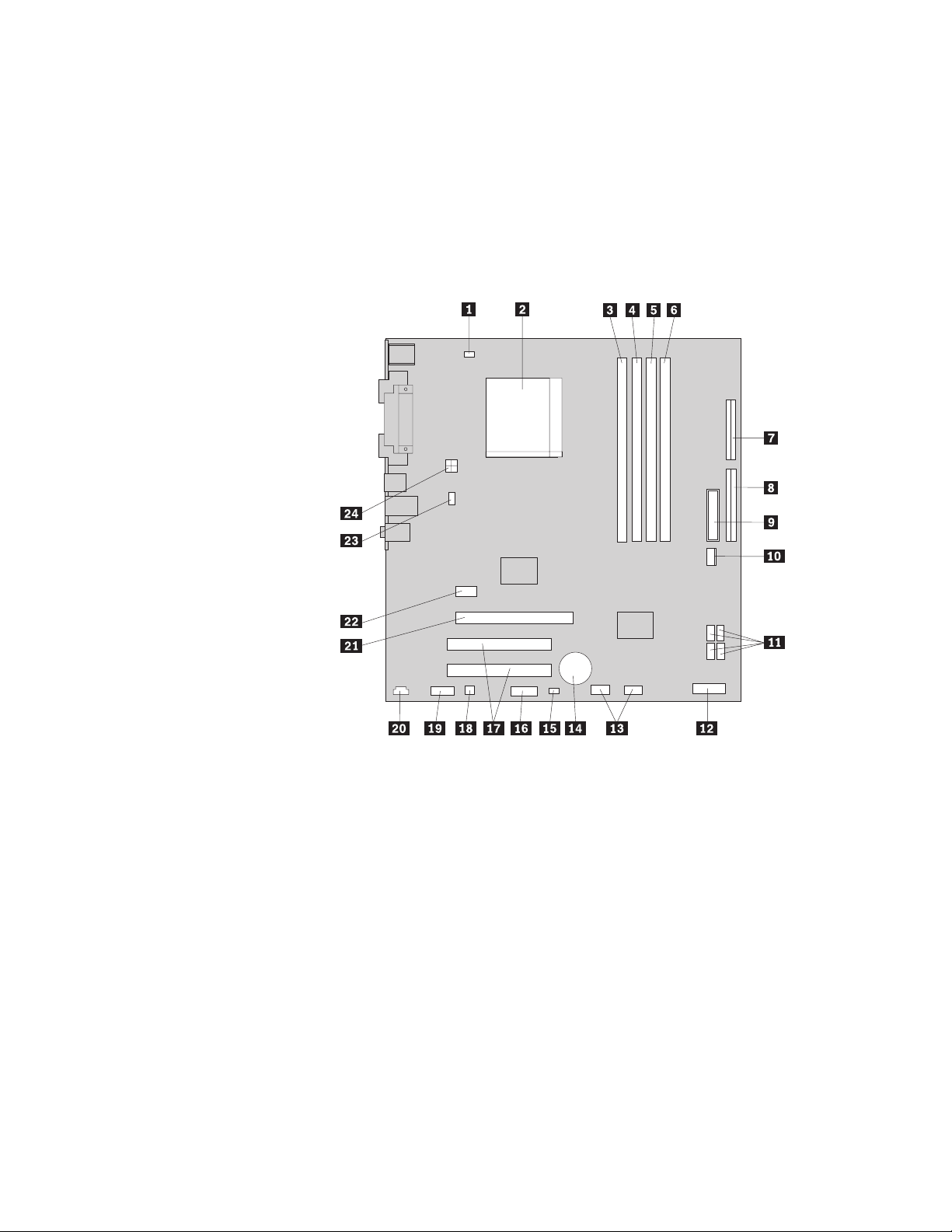

The system board (also known as the planar or motherboard) is the main circuit
board in your computer. It provides basic computer functions and supports a
variety of devices. Your computer contains one of the three system board types
shown in the following three figures.
Figure 4shows the locations of parts on the system board for some computer
models.
1 Microprocessor fan connector 13 Front USB connectors (2)
2 Microprocessor and heat sink 14 Battery
3 Memory connector 115 Clear CMOS/Recovery jumper
4 Memory connector 216 Serial (COM) connector
5 Memory connector 317 PCI adapter connectors (2)
6 Memory connector 418 Mono (speaker) connector
7 Diskette drive connector 19 Front audio connector
8 IDE connector 20 CD-IN connector
9 Power connector 21 PCI Express x16 graphics adapter
connector
10 Power fan connector 22 PCI Express x1 adapter connector
11 SATA IDE connectors (4) 23 System fan connector
12 Front panel connector 24 12 Vpower connector
Figure 4. System board parts locations
Chapter 2. Overview 9

Figure 5shows the locations of parts on the system board for some computer
models.
1 Microprocessor and heat sink 12 Front USB connectors (2)
2 Microprocessor fan connector 13 Serial (COM) connector
3 Memory connector 114 Leo connector
4 Memory connector 215 CD-IN connector
5 Power connector 16 Front audio connector
6 Diskette drive connector 17 PCI adapter connectors (2)
7 IDE connector 18 PCI Express x1 adapter connector
8 Clear CMOS/Recovery jumpers
(2)
19 Battery
9 Power fan connector 20 PCI Express x16 graphics adapter
connector
10 SATA IDE connectors (4) 21 System fan connector
11 Front panel connector 22 12 Vpower connector
Figure 5. System board parts locations
10 Hardware Installation and Replacement Guide

Figure 6shows the locations of parts on the system board for some computer
models.
1 Microprocessor and heat sink 12 Front panel connector
2 Microprocessor fan connector 13 Power fan connector
3 Memory connector 114 Front USB connectors (2)
4 Memory connector 215 Serial (COM) connector
5 Memory connector 316 Front audio connector
6 Memory connector 417 PCI adapter connector
7 Power connector 18 PCI Express x1 adapter connectors
(2)
8 Diskette drive connector 19 Battery
9 SATA IDE connectors (4) 20 PCI Express x16 graphics adapter
connector
10 Front USB connector 21 System fan connector
11 Clear CMOS/Recovery jumper 22 12 Vpower connector
Figure 6. System board parts locations
Chapter 2. Overview 11

12 Hardware Installation and Replacement Guide
