Important Safety Information
Before using this manual, it is important that you read and understand all of the
related safety information for this product. Refer to the Safety and Warranty Guide
that you received with this product for the latest safety information. Reading and
understanding this safety information reduces the risk of personal injury or damage
to your product.
Danger: Be aware of extremely hazardous or lethal situations.
Attention: Be aware of possible damage to programs, devices, or data.
Note: Pay attention to this important information.
© Copyright Lenovo 2009.
31039406_A6_UG_EN_V1.2.indd 1 2009.8.7 4:48:15 PM

31039406_A6_UG_EN_V1.2.indd 2 2009.8.7 4:48:15 PM

1
Contents
Contents
Important Safety Information
Chapter 1 Using the Computer Hardware.............................. 1
1.1 Left and right view of the computer .........................................2
1.2 Rear view of the computer.......................................................3
1.3 Connecting your computer ......................................................3
1.4 Computer instruction...............................................................9
1.5 Keyboard and Mouse (wired) .................................................11
Chapter 2 Using the Rescue System .................................... 13
2.1 OneKey Recovery..................................................................14
2.2 Driver and Application Installation ..........................................14
2.3 System Setup........................................................................15
2.4 System Backup .....................................................................16
2.5 System Recovery ..................................................................16
2.6 Create Recovery Disc ............................................................16
Chapter 3 Using the Computer Software ............................. 17
3.1 Power2Go — Burning Discs .................................................18
3.2 WinDVD.................................................................................19
3.3 Lenovo Healthcare Software..................................................20
3.4 McAfee Security Center.........................................................23
3.5 Media Show ..........................................................................24
3.6 Lenovo CamSuite..................................................................25
Chapter 4 System Maintenance and Recovery.................... 27
4.1 Restoring the System ............................................................28
4.2 Backup and Restore..............................................................28
4.3 Cleaning Up the Disk .............................................................28
31039406_A6_UG_EN_V1.2.indd 1 2009.8.7 4:48:15 PM

2Contents
4.4 Checking For, and Correcting Disk Errors ..............................29
4.5 Defragmenting the Disk(s)......................................................29
4.6 Performing Daily Maintenance Tasks......................................29
Chapter 5 Troubleshooting and Confirming Setup.............. 31
5.1 Troubleshooting Display Problems .........................................32
5.2 Troubleshooting Audio Problems............................................33
5.3 Troubleshooting Software Problems.......................................33
5.4 Troubleshooting Problems with Optical Drives and
Hard Disks.............................................................................34
5.5 Special considerations for troubleshooting Windows .............35
31039406_A6_UG_EN_V1.2.indd 2 2009.8.7 4:48:16 PM

1
2
3
4
5
Chapter
This chapter contains the following
topics:
ÿComputer hardware introduction
ÿInformation on computer connections
Note: The descriptions in this chapter might
vary from your computer, depending on
computer models and configurations.
User Guide 1
Using the Computer Hardware
31039406_A6_UG_EN_V1.2.indd 1 2009.8.7 4:48:17 PM

2User Guide
1.1 Left and right view of the computer
Attention: Be sure not to block any air vents on the computer. Blocked
air vents can cause thermal problems.
1
2
3
4
5
6
12
11
10
9
13
8
7

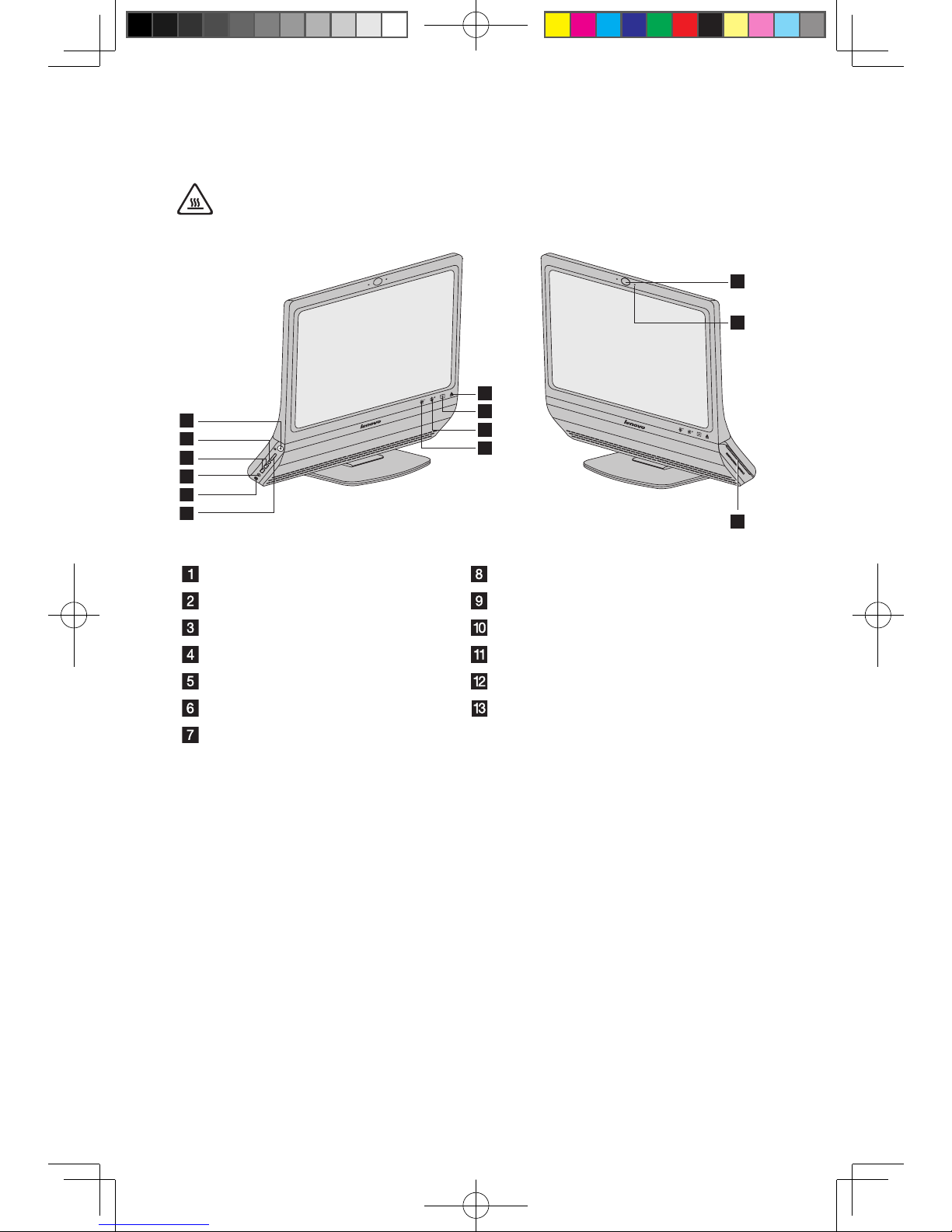

Power button Camera
IEEE 1394 connector Brightness down touch button
USB ports (2) Brightness up touch button
Headphone connector LCD On/Off
Microphone connector Optical drive eject touch button
Memory card reader Built-in microphone
Optical drive slot
31039406_A6_UG_EN_V1.2.indd 2 2009.8.7 4:48:19 PM

3
User Guide

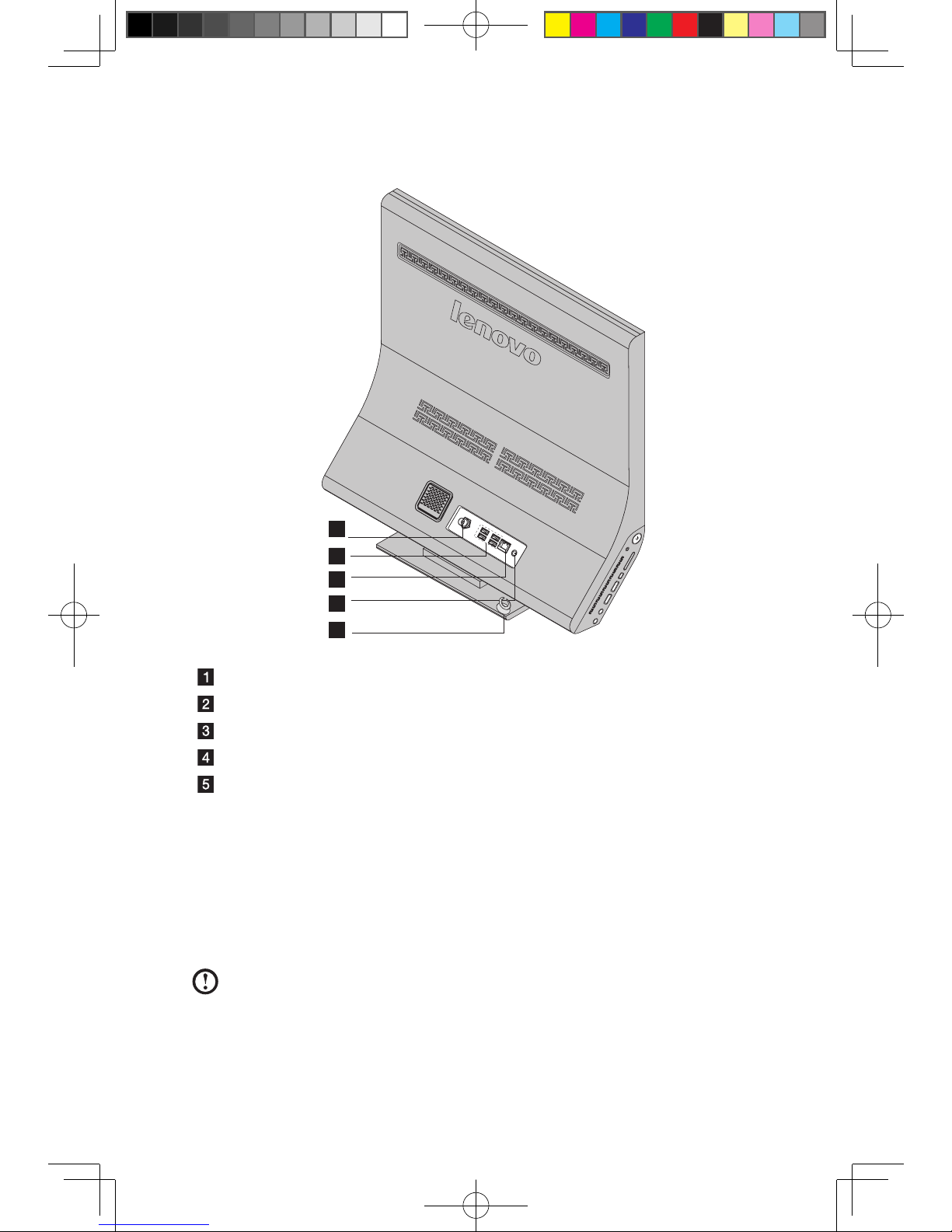

1.2 Rear view of the computer
1
2
3
4
5
TV tuner (Select models only)
USB ports (4)
Ethernet connector
Power connector
Cable routing clip
1.3 Connecting your computer
Use the following information to connect your computer:
• Look for the small connector icons on the back of your computer. Match the
connectors to the icons.
Note: Your computer might not have all of the connectors that are
described in this section.
31039406_A6_UG_EN_V1.2.indd 3 2009.8.7 4:48:20 PM

4User Guide
1.3.1 Check the voltage rating before you connect the equipment to an
electrical outlet to ensure that the required voltage and frequency
match the available power source.
If your computer uses an AC adapter:
Note: Use only the Lenovo provided AC adapter approved for use with this
device. Use of another AC adapter may cause a fire or explosion.

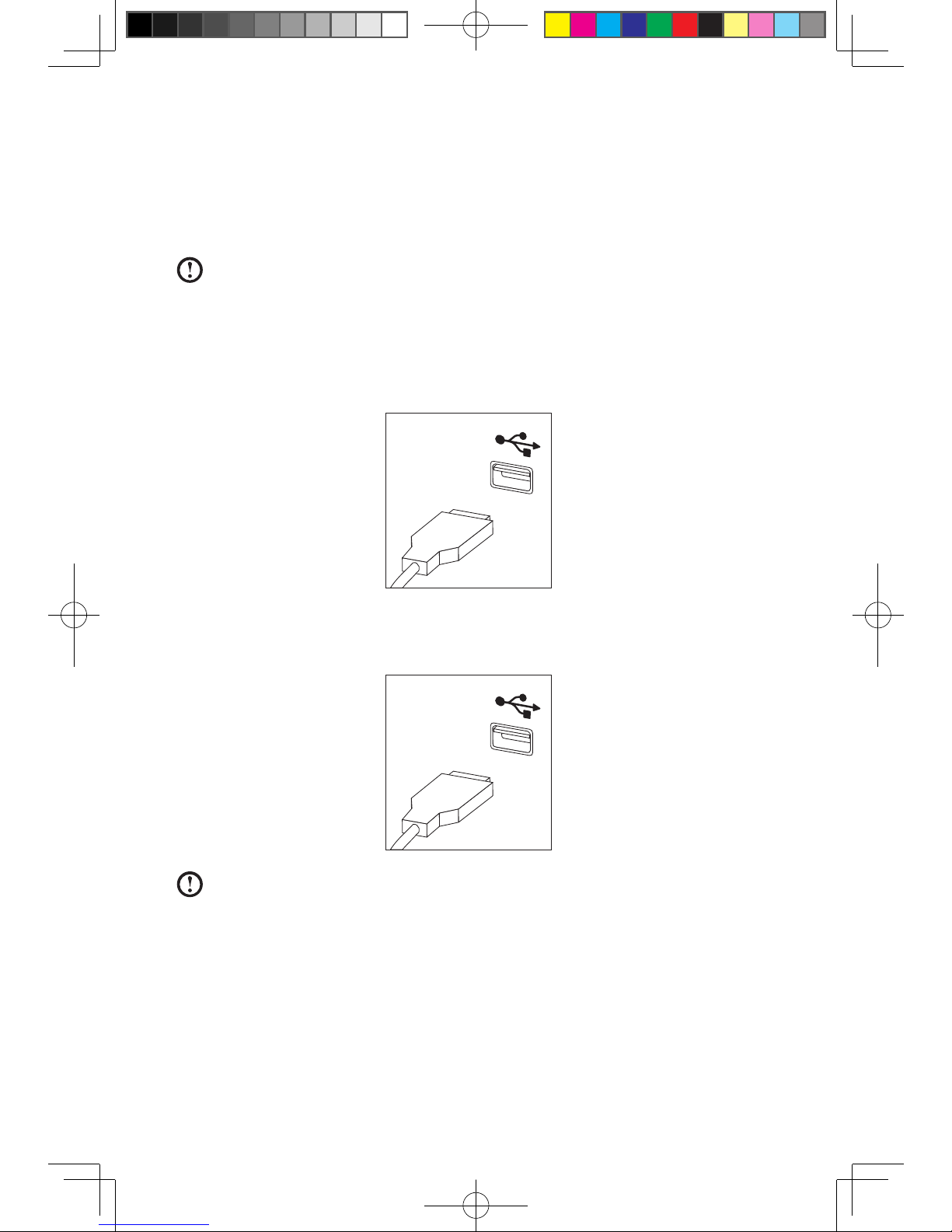

1.3.2 Connect the keyboard cable to the appropriate keyboard
connector (USB connector).
1.3.3 Connect the mouse cable to the appropriate mouse connector
(USB connector).
Note: If your computer is equipped with a wireless keyboard or mouse,
follow those installation instructions.
31039406_A6_UG_EN_V1.2.indd 4 2009.8.7 4:48:20 PM

5
User Guide
1.3.4 Computer stand

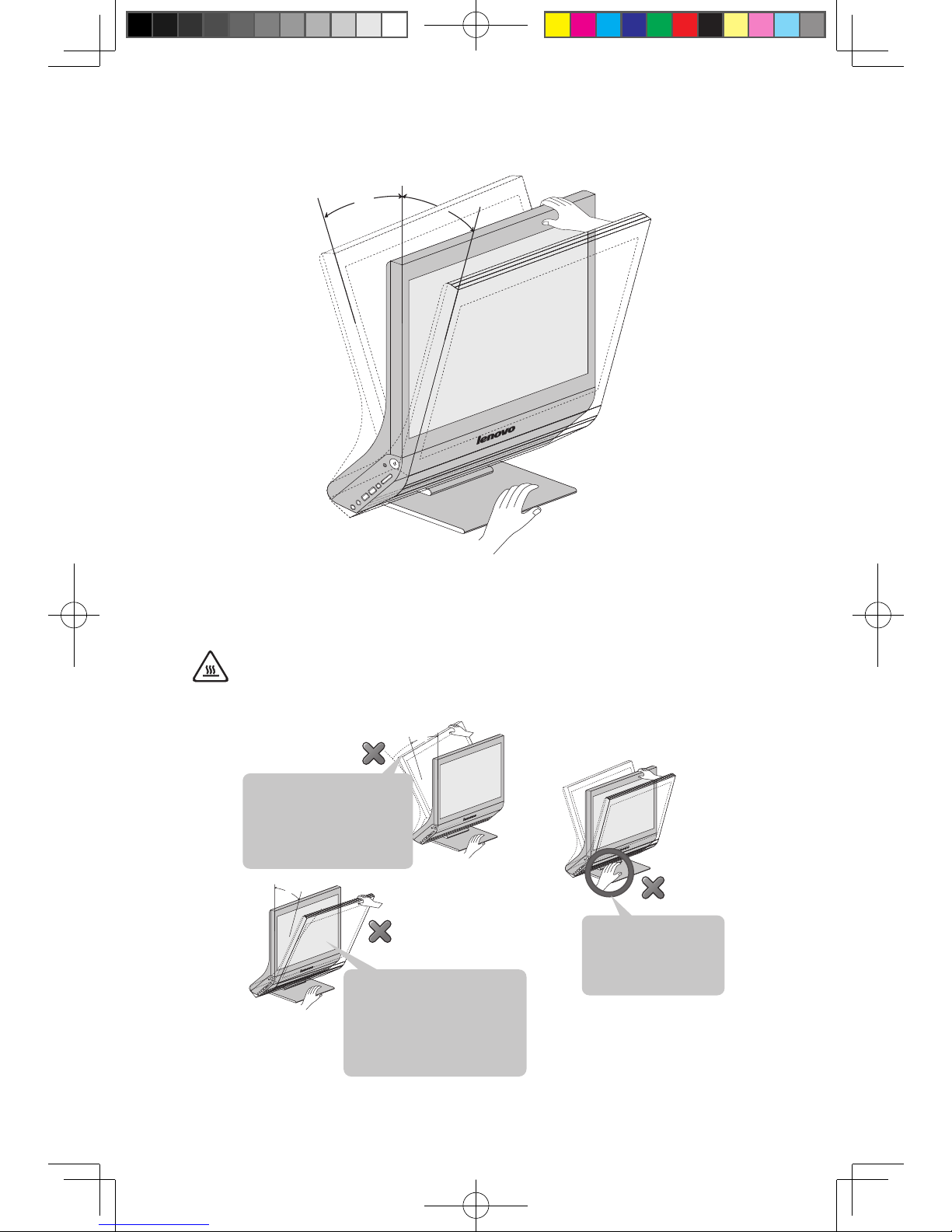

5˚
15˚
Use the stand to position the display to your preference. It can be adjusted from 5˚
forward to 15˚ backward.
The stand provides stability to the computer; it is not a removable part.
Attention: The computer stand must remain installed at all times to
ensure maximum system stability.
Do not pull the screen
forward beyond the
stand’s fixed limit of 5
degrees, or the computer
could fall over and the
screen could be damaged.
Do not push the screen
back beyond the stand’s
fixed limit of 15 degrees,
or the computer could
fall over.
Do not put your
hand on the stand
joint when adjusting
the screen.
15˚
5˚
31039406_A6_UG_EN_V1.2.indd 5 2009.8.7 4:48:22 PM

6User Guide
1.3.5 If you have audio devices, attach them using the following
instructions:
1 2
Microphone Use this connector to attach a microphone (purchased separately)
to your computer when you want to record sound or if you use
speech-recognition software.
Headphone Use this connector to attach headphones (purchased separately)
to your computer when you want to listen to music or other
sounds without disturbing anyone.

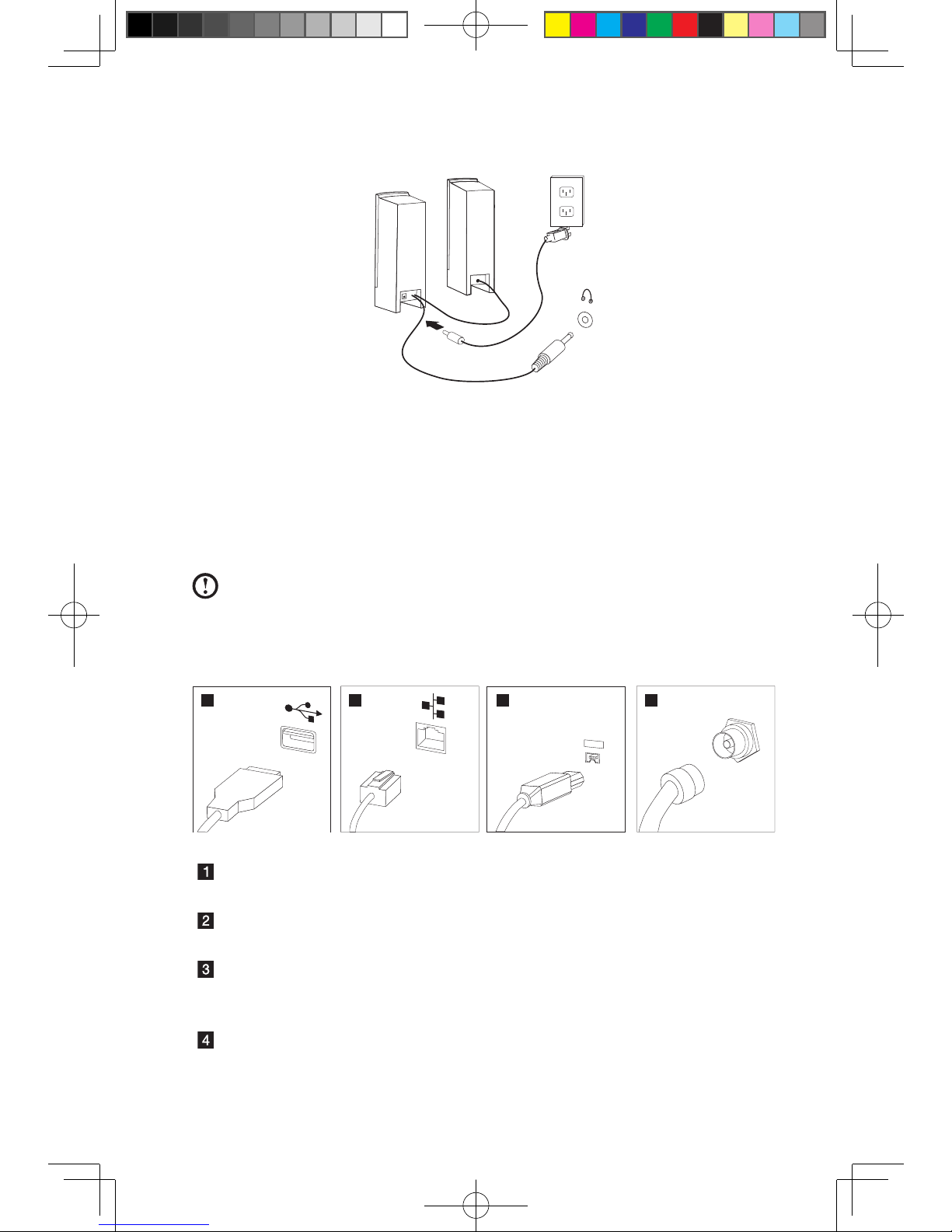

1.3.6 If you have powered speakers with an adapter:
a. Connect the cable that runs between the speakers if necessary. On some
speakers, this cable is permanently attached.
b. Connect the adapter cable to the speaker if necessary. On some speakers, this
cable is permanently attached.
c. Connect the speakers to the Headphone port on the computer.
d. Connect the adapter to the power source.
31039406_A6_UG_EN_V1.2.indd 6 2009.8.7 4:48:24 PM

7
User Guide
1.3.7 If you have powered speakers without an adapter：
a. Connect the cable between the two speakers, if necessary. On some speakers,
this cable is permanently attached.
b. Connect the cable to the speaker if necessary. On some speakers, this cable is
permanently attached.
c. Connect the speakers to the Headphone port on the computer.
d. Connect the power cord plug to the power source.
Note: Some models are not equipped with external speakers.
1.3.8 Connect any additional devices that you have. Your computer
might not have all connectors shown.
1 2 3 4
1394
USB connector Use this connector to attach a device that requires a
USB connection.
Network adapter
connector
Use this connector to attach the computer to an
ethernet-type local area network.
IEEE 1394 This connector provides connection to several types
of consumer electronics including digital audio devices
and scanners.
TV-Tuner connector Only supported on systems with optional TV tuner
card.
31039406_A6_UG_EN_V1.2.indd 7 2009.8.7 4:48:25 PM

8User Guide
1.3.9 Connect the power cords properly to grounded electrical
outlets.
1. Plug the power adapter cord into the back of the computer.
2. Plug the power cord into the AC adapter.
3. Plug the power cord into an AC power source.
1
2
3
1.3.10 If your computer is equipped with a Memory Card Reader
connector, it is able to read/write data from:
Secure Digital (SD)
MultiMediaCard (MMC)
xD
Memory Stick (MS)
Memory Stick PRO (MS pro)
31039406_A6_UG_EN_V1.2.indd 8 2009.8.7 4:48:25 PM

9
User Guide
Secure Digital PRO (SD pro)
1.4 Computer instruction
Press the power button on the side of this computer to turn it on.
Note: The buttons at the bottom of the screen are touch buttons. When
you touch these, the indicator lights turn on.
31039406_A6_UG_EN_V1.2.indd 9 2009.8.7 4:48:27 PM

10 User Guide
Important information on how to use this computer

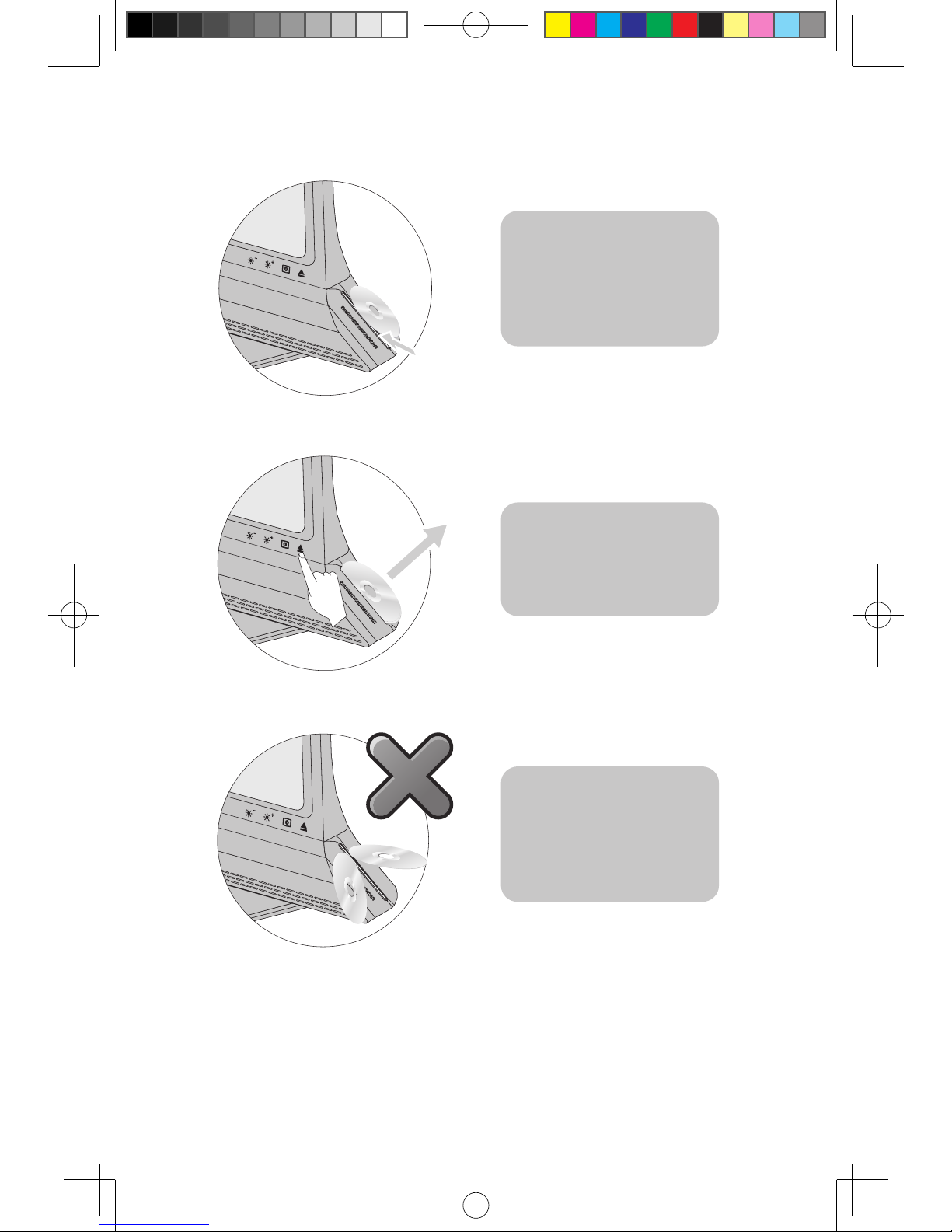

Insert a disc with the
non-label side facing the
user. The disc cannot be
read if you insert it the
other side up.
Do not obliquely insert
discs into the optical
drive slot. Doing so will
damage the drive and
scratch the discs.
To eject a disc, press
the eject button at the
bottom of the touch
screen.
Important information on how to use the optical drive
1. Do not insert 3-inch discs into the optical drive slot.
2. Insert the disc into the optical drive slot and push gently until the disc enters
automatically.
31039406_A6_UG_EN_V1.2.indd 10 2009.8.7 4:48:28 PM

11
User Guide
3. Do not force the disk when it is being inserted/ejected.
4. Do not insert damaged discs.
5. Do not insert any other objects other than discs.
Not following the above guidelines could damage the optical drive slot and
disc.

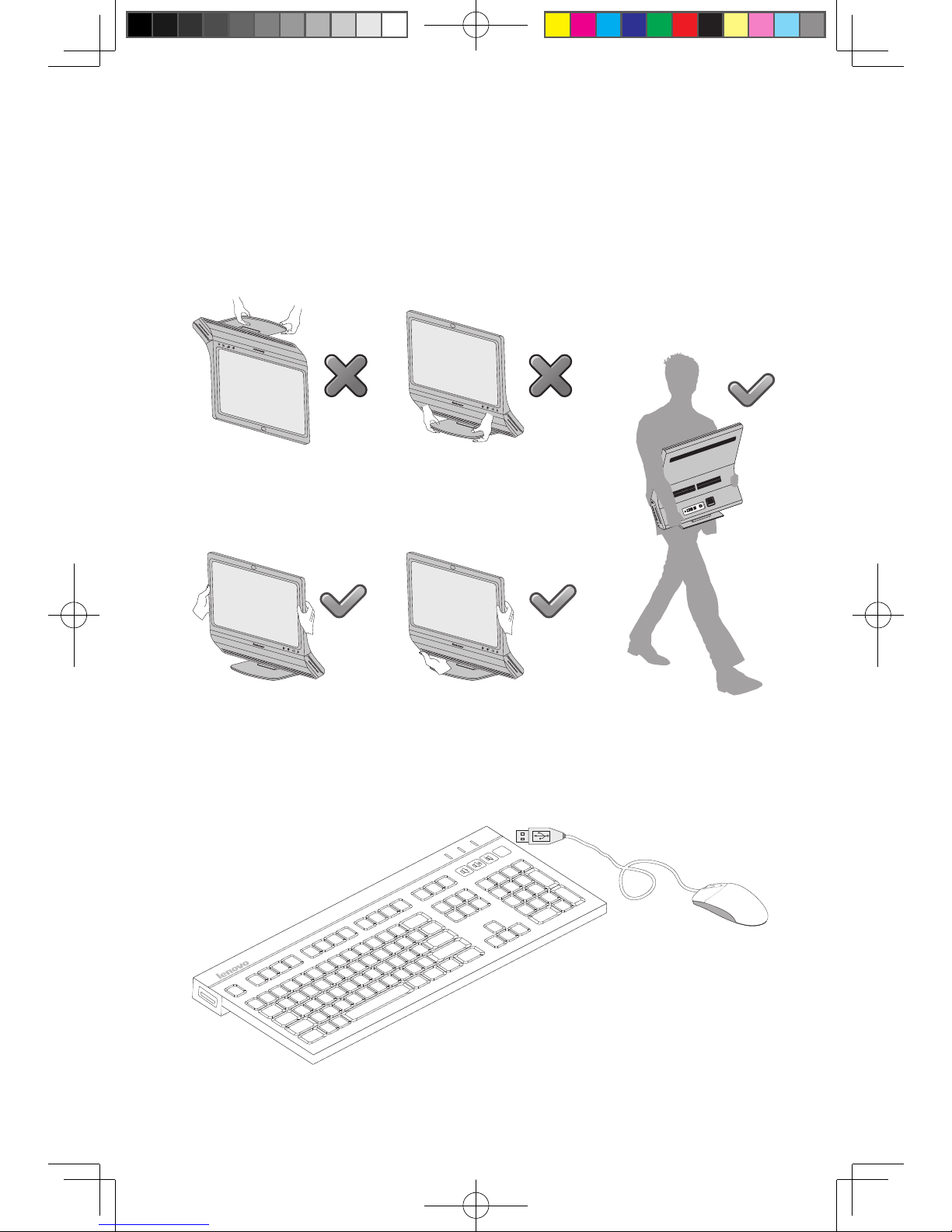

Hold the computer firmly when you carry it.
Do not hold the computer by the stand joint only.
Doing so could damage the stand joint.
1.5 Keyboard and Mouse (wired) (Only some models are
equipped with wired Keyboard and Mouse).
LVT
31039406_A6_UG_EN_V1.2.indd 11 2009.8.7 4:48:31 PM

12 User Guide
Important:
Be sure that you connect all high-power USB devices directly to the USB ports on
the computer, and not the keyboard. The USB port on the keyboard can be used
to connect some USB devices, such as a USB mouse.
Note: Not all USB devices are compatible.
—— Volume down
—— Volume up
—— Mute
LVT —— After entering Windows, press this key to launch the LVT (Lenovo
Vantage Technology) program, Lenovo’s pre-loaded Home PC software.
In addition to its own functions, the LVT program will allow you to start
other Windows compatible software, specially configured to run on this
model of computer.
F2 —— Your computer has the Lenovo Rescue System installed. To learn more
about this program, turn on the computer, and when the Lenovo logo
appears, press the F2 key and the Lenovo Rescue System will open.
Note: Only some models are equipped with the wireless keyboard
and mouse or remote control. For more information about the wireless
keyboard and mouse or remote control, refer to those installation
instructions provided with your computer.
31039406_A6_UG_EN_V1.2.indd 12 2009.8.7 4:48:32 PM

1
2
3
4
5
Chapter
Using the Rescue System
This chapter contains the following
topics:
ÿOneKey Recovery
ÿDriver and Application Installation
ÿSystem Setup
ÿSystem Backup
ÿSystem Recovery
ÿCreate Recovery Disc
Attention: Using this program will result in
a loss of data.
• You can recover the C drive of the computer
to the factory default settings or to the
last system backup status using OneKey
Recovery. With this operation, all of the
existing data on drive C will be lost, whereas
the content and format of the other partitions
of the hard disk drive will remain unchanged.
• If you want to install an operating system
with the Windows Recovery DVD and back it
up with OneKey Recovery, you must format
the C partition in NTFS format and install
the operating system on the C partition.
Otherwise, the OneKey Recovery system
cannot run.
User Guide 13
31039406_A6_UG_EN_V1.2.indd 13 2009.8.7 4:48:33 PM

14 User Guide
Note about the service partition:
The files and relevant data used by the rescue system are saved in the service
partition. Deleting this partition will make the rescue system unusable. For more
detailed information, see the following instructions:
By selecting Control Panel →Administrative Tools →Computer Management
→Disk Management, you can see the service partition, which must not be
deleted.
Note: The recovery files and relevant data used by the rescue system are
saved in the service partition. If the service partition is deleted or damaged
by someone other than authorized Lenovo servicers, Lenovo will not be
liable for any losses arising there from in any way.
2.1 OneKey Recovery
OneKey Recovery is an easy-to use application. You can use it to restore your
computer to the system default or a previously backed up state.
Detailed Operation Procedure
1. Turn on the computer. When the Lenovo logo appears, press the F2 key on the
keyboard to start the Rescue System, then you can select OneKey Recovery.
Note: System Recovery will overwrite all of the data on drive C. To prevent
loss of data, be sure to back up relevant data before performing system
recovery.
2. Follow the onscreen instructions to select the backup task you want to restore
from and disk you want to install operation system, and press Next to start
restoration.
3. Please wait during the process of system recovery. Do not interrupt the
operation during the recovery process.
4. After the system is recovered successfully, the software prompts to restart the
computer. Restart the computer and enter the system.
2.2 Driver and Application Installation
The Driver and Application Installation function in the rescue system provides a way
for the user to conveniently re-install all of the Lenovo applications and drivers that
were shipped with your Lenovo hardware.
31039406_A6_UG_EN_V1.2.indd 14 2009.8.7 4:48:34 PM

15
User Guide
Method 1: Automatic Installation
Turn on the computer. When the Lenovo logo appears, press the F2 key on the
keyboard to start the Rescue System, then select Drivers and Application
Installation.
Follow the screen prompts to install the Lenovo Drivers and Application Installation.
Click Install to start installing the Lenovo Drivers and Application Installation.
The system will restart. After the system has restarted, the installation process will
continue until completion.
Method 2: Manual Installation
In the Windows system, Click Start →All Programs →Lenovo →Lenovo
Drivers and Application Installation.
After starting the procedure, install all the drivers and software manually according
to the prompts.
Notes:
1. It is recommended not to install the software which is already on the
computer.
2. Before accessing the operating system, make sure that the Drivers and
Application installation has been installed automatically. After that, the
manual installation function can be used.
2.3 System Setup
System Setup configures the network configuration for the Lenovo Rescue
System to ensure your Rescue System can connect to internet. In addition, System
Setup sets and manages all passwords for the Lenovo Rescue system.
2.3.1 Launch
Turn on the computer. When the Lenovo logo appears, press the F2 key to launch
Rescue System. Then select System Setup.
2.3.2 Network Settings
Depending on the network access mode of the computer, select “ADSL” or “LAN
Connection” in the network connection modes.
1. If you select “ADSL,” input the username and password of the ADSL
connection.
31039406_A6_UG_EN_V1.2.indd 15 2009.8.7 4:48:34 PM
