Chapter1.AbouttheLenovoPreferredProUSBFingerprint
Keyboard
ThismanualprovidesproductdescriptionandinstructionsforinstallingandusingtheLenovo®PreferredPro
USBFingerprintKeyboard(hereaftercalledthekeyboard).
Productdescription
Thissectionprovidesageneraldescriptionofthekeyboard.
Thekeyboardisequippedwithmanyfunctionsthataddconvenienceandsecuritytoyourcomputer.Instead
ofusingapassword,thengerprintreaderonthekeyboardenablesyoutoswipeyourngerprinttoaccess
yourcomputerresources.Asmultipleuniquengerprintsareavailableatyourngertipsandarestored
securelyonyourcomputer,youcanbeassuredthatyourpersonalinformationisprotected.
Youroptionpackageincludesthefollowing:
•LenovoPreferredProUSBFingerprintKeyboard
•Warrantyposter
•SoftwareandUserGuideDisc
Frontview
1A
1A
Figure1.Frontviewofthekeyboard
1LED(light-emittingdiode)indicators
ThekeyboardhasthefollowingthreeLEDindicators:
•NumericLockLED:
©CopyrightLenovo2010,20131

WhentheNumericLockLEDisilluminated,thenumerickeypadonthekeyboardisenabled.Whenthe
LEDisnotilluminated,thecursorcontrolonthenumerickeypadisenabled.PresstheNumericLock
(NumLkorNmLk)keytoswitchbackandforthbetweenthesemodes.
•CapsLockLED:
WhentheCapsLockLEDisilluminated,theCapsLockmodeisenabled.Inthismode,youcantypeall
alphabeticcharacters(A-Z)inuppercasewithoutpressingtheShiftkey.WhentheLEDisnotilluminated,
theCapsLockmodeisdisabled.ToenableordisabletheCapsLockmode,presstheCapsLock(Caps
LockorCapsLk)key.
•ScrollLockLED:
WhentheScrollLockLEDisilluminated,theScrollLockmodeisenabled.Thearrowkeyscanbeused
asscreen-scrollfunctionkeysandthecursorcannotbemovedwiththearrowkeys.Notallapplication
programssupportthisfunction.WhentheScrollLockLEDisnotilluminated,thearrowkeyscanbeused
forcursormovement,notasscreen-scrollfunctionkeys.PresstheScrollLock(ScrLk)keytoswitch
backandforthbetweenthesemodes.
2TheThinkVantagebutton
FortheMicrosoft®Windows®XPorMicrosoftWindowsVista®operatingsystem,wheneveryouhave
aquestionaboutyourcomputerorwanttoviewLenovoWebsites,presstheThinkVantage®buttonto
opentheThinkVantageProductivityCenterortheLenovoCareSMprogramforcomprehensivehelpand
informationforyourcomputer.
Note:TheThinkVantageProductivityCenterortheLenovoCareprogramcomeswithyourcomputer.If
youdonothaveeitheroftheminstalledonyourcomputer,pressingtheThinkVantagebuttonwillopenthe
WindowsSystemInformationwindow.
FortheMicrosoftWindows7operatingsystem,presstheThinkVantagebuttontoopentheLenovo
SimpleTaporLenovoThinkVantageToolboxprogram.
TheSimpleTapprogramprovidesaquickwaytocustomizethebasicsettingsandpersonalizedfeaturesof
thecomputer.TheLenovoThinkVantageToolboxprogramisanone-stopdiagnosticsolution.Itcanquickly
identifyandresolvesystemperformanceandsecurityproblems.
FortheMicrosoftWindows8operatingsystem,presstheThinkVantagebuttontoopentheLenovoDevice
Experienceprogram.

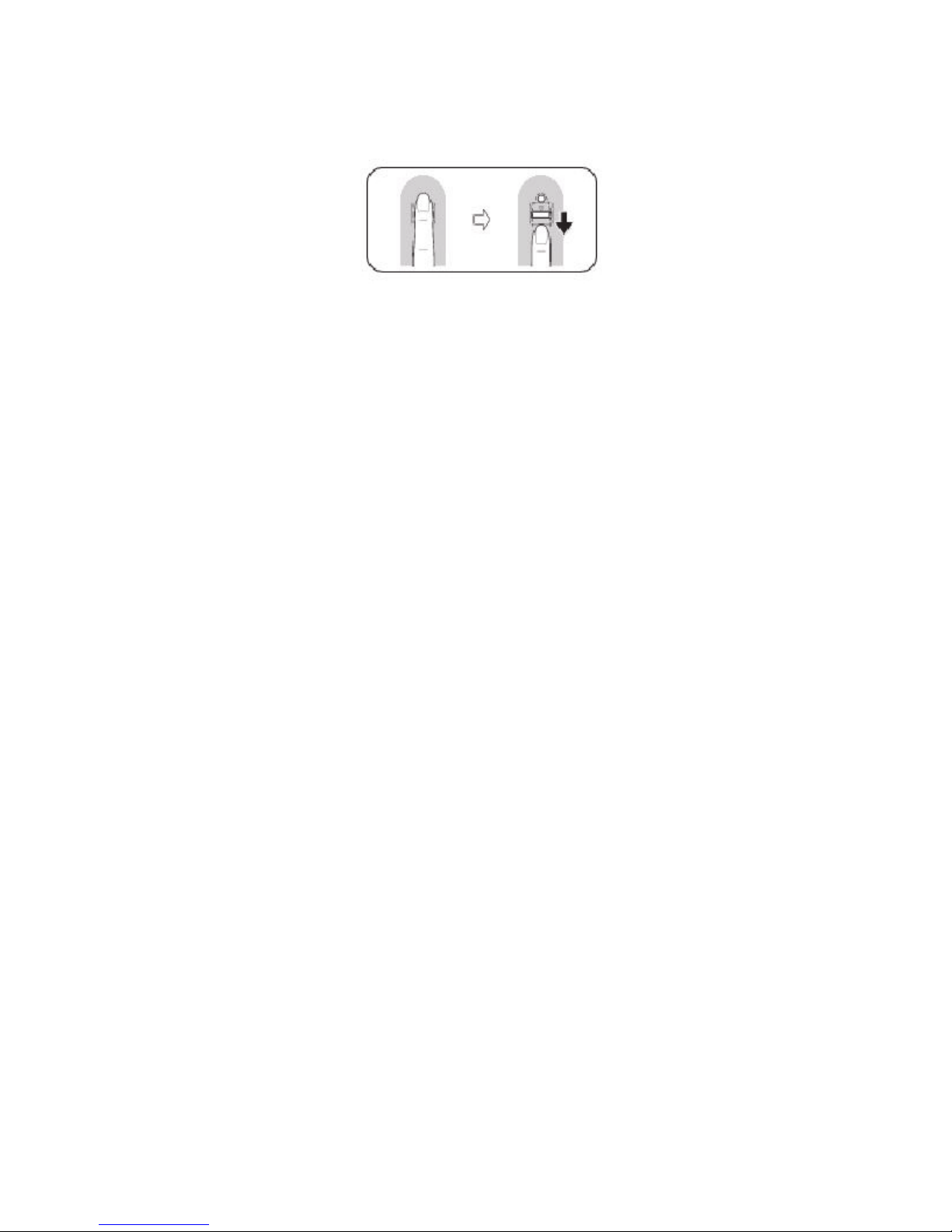

3Fingerprintreader
2LenovoPreferredProUSBFingerprintKeyboardUserGuide

Withtheintegratedngerprintreader,youcanenrollyourngerprintsandassociatethemwithapower-on
password,aharddiskdrivepassword,orbothbeforehand.Thusthengerprintauthenticationcanreplace
passwordsandenablesimpleandsecureuseraccess.
Attention:Power-onandharddiskdrivepasswordssupportrequiresthatngerprintrecognitionbe
supportedbyyourcomputerBasicInputOutputSystem(BIOS).IfyourcomputerBIOSsupportsngerprint
recognition,youcanstartthecomputer,logontothesystem,andentertheBIOSSetupUtilitybyswiping
yourngeroverthereader,withouttypingapassword.
Formoreinformationaboutsystemsthatsupportpower-onpasswordsandharddiskdrivepasswords,
seethefollowing:
•Chapter4“FingerprintreadersettingsintheBIOS”onpage9.
•“ChangingtheBIOSsettingsforthengerprintreader”onpage9.
Rearview
Figure2.Rearviewofthekeyboard
•1Adjustabletiltfeet
Thekeyboardhasthreetiltfeetpositionswithwhichyoucanadjusttheangleofthekeyboardtoprovide
maximumcomfort.Thethreekeyboardanglesareasfollows:
–3.5degrees:Whennoneofthefeetareraised,thekeyboardisata3.5-degreeangle.
–6degrees:Thesmalltiltfeetraisethekeyboardtoa6-degreeangle.
–9degrees:Thelargetiltfeetraisethekeyboardtoa9-degreeangle.
•2Cableslot
Thecableslotprovidesaconvenientwaytochangethelocationwherethecableleavesthekeyboard.You
canpressthekeyboardcableintotheleftorrightslottoreducecableclutterandoptimizedeskspace.
•3Non-skidfeet
Chapter1.AbouttheLenovoPreferredProUSBFingerprintKeyboard3

Thebottomofyourkeyboardhasthreenon-skidfeettopreventthekeyboardfrommovingwhenitis
inuse.
•4Label
Thelabelonthebottomofthekeyboardincludescountrycerticationsandprovidesimportantinformation
thatmightbenecessaryifyouneedtomakeaservicecall.
Systemrequirements
Beforeusingthekeyboard,ensurethatyourcomputermeetsthefollowingsystemrequirements:
•Oneofthefollowingoperatingsystems:
–MicrosoftWindowsXP(32-bit)
–MicrosoftWindowsVista(32-bitor64-bit)
–MicrosoftWindows7(32-bitor64-bit)
–MicrosoftWindows8(32-bitor64-bit)
•AnavailableUSBconnector
4LenovoPreferredProUSBFingerprintKeyboardUserGuide

Chapter2.InstallingtheLenovoPreferredProUSBFingerprint
Keyboard
ThissectionprovidesinformationaboutinstallingtheThinkVantageFingerprintSoftwareandthekeyboard.
InstallingtheThinkVantageFingerprintSoftware
Note:Ifakeyboarddriverisinstalledonthecomputer,uninstallthekeyboarddriverbeforeinstallingthe
ThinkVantageFingerprintSoftware.
ToinstalltheThinkVantageFingerprintSoftwareontheWindowsXP,WindowsVista,Windows7,orWindows
8operatingsystem,dothefollowing:
FortheWindowsXP ,WindowsVista,orWindows7operatingsystem:
1.Saveanyopendocumentsandexitallapplications.
2.InserttheSoftwareandUserGuideDiscintotheopticaldrive.Thediscstartsautomatically.Ifthedisc
doesnotstartautomatically,dooneofthefollowing:
•Iftheautoplaywindowopens,clickRunViewHtml.exe.
•Iftheautoplaywindowdoesnotopen,gointoMyComputerorComputer,thendouble-clickthe
CD/DVDdriveicon.
3.SelectalanguagefromtheSelectedLanguagedrop-downlistbox..
4.ClickSoftwareintheleftpaneofthewindow.
5.Followtheinstructionsonthescreentoinstallthedevicedriver.
FortheWindows8operatingsystem:
1.Saveanyopendocumentsandexitallapplications.
2.InserttheSoftwareandUserGuideDiscintotheopticaldrive.Thediscstartsautomatically.Ifthedisc
doenotstartautomatically,dooneofthefollowing:
•Iftheautoplaywindowopens,clickRunViewHtml.exe.
•Iftheautoplaywindowdoesnotopen,movethecursortothebottom-rightcornerofthescreento
displaythecharms,andclickSearch➙Computer.Thendouble-clicktheCD/DVDdriveicon.
3.SelectalanguagefromtheSelectedLanguagedrop-downlistbox.
4.ClickSoftwareintheleftpaneofthewindow.
5.Followtheinstructionsonthescreentoinstallthedevicedriver.
Note:AfteryouhavesuccessfullyinstalledtheThinkVantageFingerprintSoftware,youmustcreatea
passportandenrollyourngerprintsbeforethengerprintreaderisfunctional.See“Creatingapassportand
enrollingngerprints”onpage7formoreinformation.
InstallingtheLenovoPreferredProUSBFingerprintKeyboard
Toinstallthekeyboard,dothefollowing:
1.Adjustthetiltfeettosetthekeyboardnearyourcomputertoyourpreference.

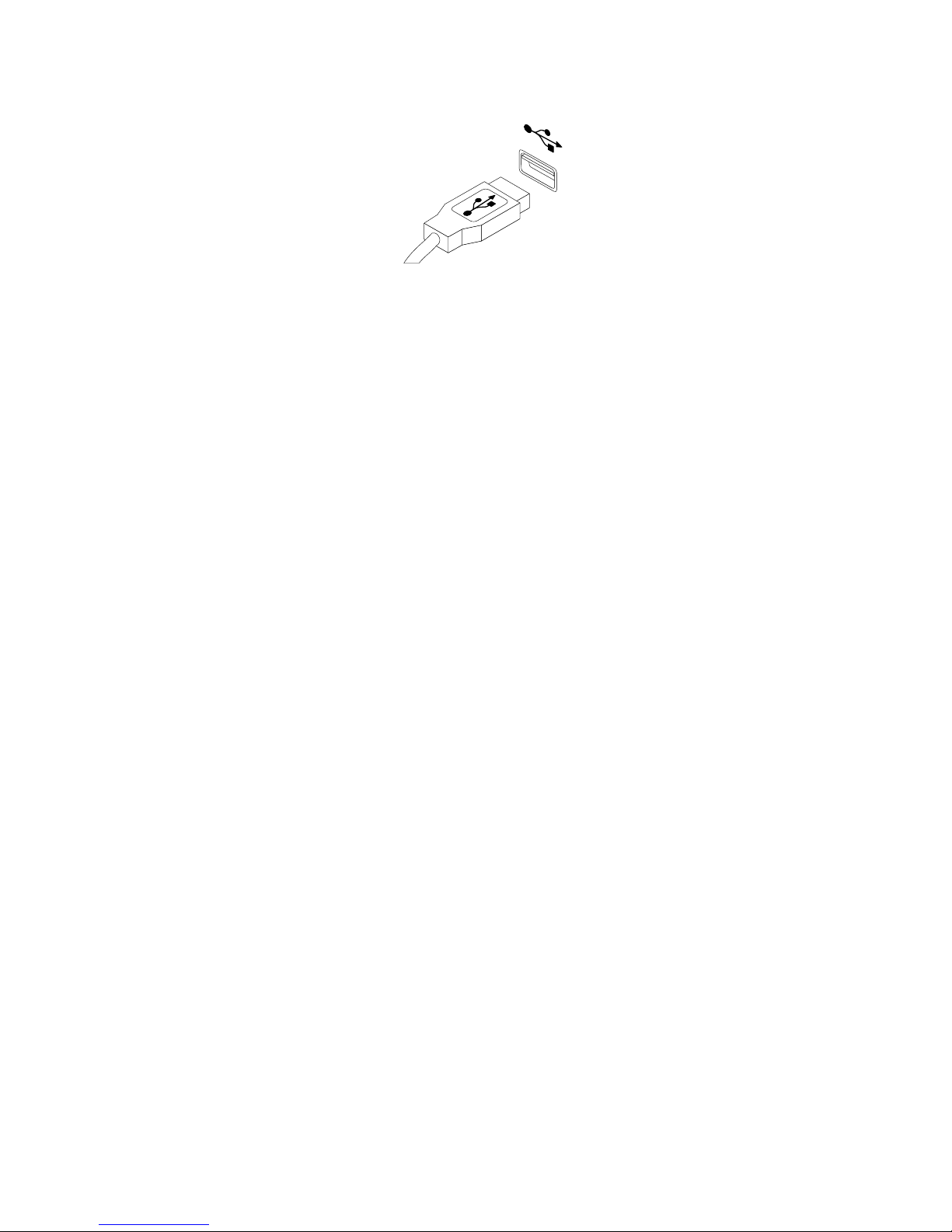

2.ConnectthekeyboardcabletoanavailableUSBconnectoronyourcomputer,asshown:
©CopyrightLenovo2010,20135

Figure3.Connectingthekeyboardcable
Note:Routethekeyboardcableintothecableslotifnecessary.
Aftertheoperatingsystemidentiesthekeyboard,thekeyboardwillbereadyforuse.
6LenovoPreferredProUSBFingerprintKeyboardUserGuide
