Chapter 1. Getting to know your computer
Top view ---------------------------------------------------------------------------------------------------------------------------
1 22
3
4
6
7
5
Note: The dashed areas indicate parts that are not visible externally.
~ Attention:
• Do not open the display panel beyond 180 degrees. When closing the display panel, be careful not to leave
pens or any other objects in between the display panel and the keyboard. Otherwise, the display panel
may be damaged.
1

Chapter 1. Getting to know your computer
aIntegrated camera Use the camera for video communication.
bBuilt-in microphone Captures sound which can be used for video conferencing, voice
narration, or audio recording.
cComputer display The computer display with LED backlight provides brilliant visual
output.
dWireless LAN antennas Connect to a wireless LAN adapter to send and receive wireless radio
signals.
eVentilation slots Dissipate internal heat.
Note: Make sure that the ventilation slots are not blocked or else the computer may overheat.
fPower key Press this Key to turn on the computer.
gTouchpad The touchpad functions as a conventional mouse.
Touchpad: To move the pointer on the screen, slide your fingertip over
the pad in the direction in which you want the pointer to move.
Touchpad buttons: The functions of the left/right side correspond to
that of the left/right mouse button on a conventional mouse.
Note: You can enable/disable the touchpad by pressing F6 ( ).
2

Chapter 1. Getting to know your computer

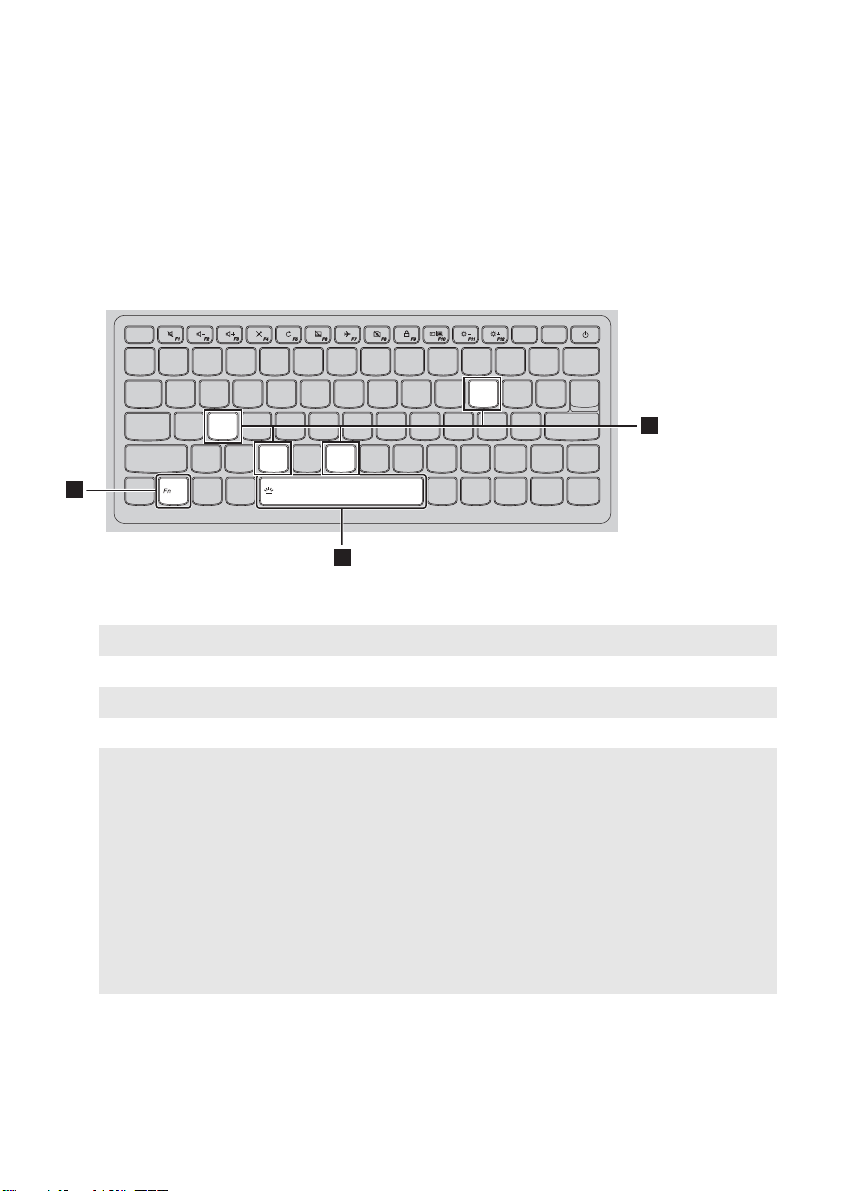

■Using the keyboard
Function key combinations
Through the use of the function keys, you can change operational features instantly. To use this
function, press and hold Fn
a
; then press one of the function keys
b
.
1
2
S
C B
P
2
The following describes the features of each function key.
Fn + B: Activates the break function.
Fn + P: Activates the pause function.
Fn + C: Enables/disables the scroll lock.
Fn + S: Activate the system request.
Fn + Space Adjusts the keyboard backlight.
(on select models): Default status: off
Operation Backlight Backlight brightness
status
The backlight brightness
Press for the first time On range reaches 50%.
The backlight brightness
Press for the second time On range reaches 100%.
Press for the third time Off
3

Chapter 1. Getting to know your computer

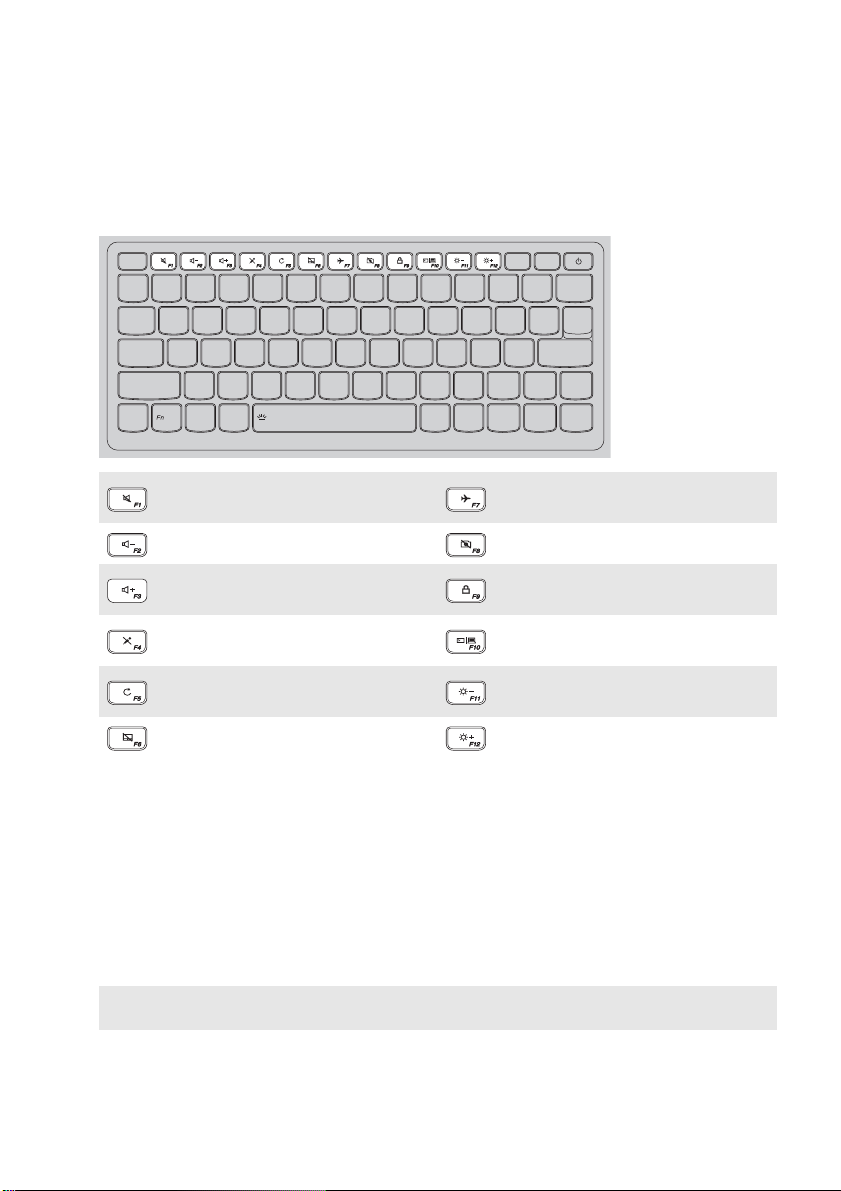

Hotkeys
You can access certain system settings quickly by pressing the appropriate hotkeys.
Enables/disables Airplane
: Mutes/unmutes the sound. : mode.
: Decreases the volume level. : Enables/disables the camera.
Locks/unlocks the currently
: Increases the volume level. : active window.
: Enables/disables the
microphone. : Toggles the display between the
computer and an external device.
: Refreshes the desktop or the
currently active window. : Decreases the display brightness.
: Enables/disables the touchpad. : Increases the display brightness.
Setting hotkey mode
By default, the hotkey functions are accessible by pressing the appropriate hotkey. However,
you can disable the hotkey mode in the BIOS setup utility.
To disable the hotkey mode:
1Shut down the computer.
2Press the Novo button and then select BIOS Setup.
3In the BIOS setup utility, open the Configuration menu, and change the setting of HotKey
Mode from Enabled to Disabled.
4Open the Exit menu, and select Exit Saving Changes.
Note: When hotkey mode is disabled, press the Fn key and the appropriate hotkey to access the
corresponding hotkey function.
4

Chapter 1. Getting to know your computer
Left-side view--------------------------------------------------------------------------------------------------------------
1 2 4 536 7
aKensington Mini Security For attaching a Kensington MiniSaver™ Mobile (or compatible) lock.
Attach a security lock (not supplied) here to help protect your computer
slot from theft and unauthorized use. You can attach a security lock to your
computer to help prevent it from being removed without your
permission. For details on installing the security lock, please refer to the
instructions shipped with the security lock that you have purchased.
Notes:
• Lock is not supplied. When purchasing a lock, choose one that utilizes the Cleat ™ locking mechanism
and verify its compatibility with the slot before purchase. A lock utilizing the T-Bar™ locking
mechanism is not compatible with the Kensington Mini Security slot.
• Before purchasing any security product, verify that it is compatible with this type of security keyhole.
• You are responsible for evaluating, selecting, and implementing the locking devices and security
features. Lenovo offers no comment, judgment, or warranty regarding the function, quality, or
performance of locking devices and security features.
bAC power adapter jack Connects to the AC power adapter.
c Battery/Charging status
indicator
AC power
adapter status
Indicator status Meaning
Disconnected
Off The computer is in sleep mode or turned off; The
battery has more than 20% charge.
Solid amber The battery has between 5% and 20% charge.
Fast blinking amber The battery has between 1% and 5% charge.
Slow blinking amber The battery is being charged. When battery charge
reaches 20%, the blinking color changes to white.
Connected
Slow blinking white The battery has between 20% and 80% charge and is
still charging. When the battery reaches 80% charge
the light will stop blinking.
Solid white The battery has more than 80% charge, charging will
continue until the battery is fully charged.
5

Chapter 1. Getting to know your computer
dUSB 2.0 port Connects to USB devices.
Notes:
• If the battery charge is more than 20%, the USB port with a mark supports charging of an external
USB device, even when the computer is not connected to power.
• For details, see “Connecting USB device” on page 9.
eCombo audio jack Connects to headsets.
Notes:
• The combo audio jack does not support conventional microphones.
• The recording function might not be supported if third-party headphones or headsets are connected,
due to different industry standards.
fMemory card slot Insert memory cards (not supplied) here.
Note: For details, see “Using memory cards (not supplied)” on page 7.
gNovo button When the computer is off, press this button to start the Lenovo OneKey
Recovery system or the BIOS setup utility, or to enter the boot menu.
Notes:
• You can use the tip of an unfolded paper clip (or similar object without a sharp tip) to gently press the
Novo button.
• For details, see “Lenovo OneKey Recovery system” on page 19.
6

Chapter 1. Getting to know your computer
■Using memory cards (not supplied)
Your computer supports the following types of memory cards:
• Secure Digital (SD) card
• Secure Digital High Capacity (SDHC) card
• Secure Digital eXtended Capacity (SDXC) card
• MultiMediaCard (MMC)
Notes:
• Insert only one card in the slot at a time.
• This card reader does not support SDIO devices (e.g., SDIO Bluetooth, etc.).
Inserting a memory card
Insert the memory card until it touches the bottom of the slot.
Removing a memory card
Gently pull the memory card out of the memory card slot.
Note: Before removing the memory card, disable it by using the Windows safely remove hardware and eject
media utility to avoid data corruption.
7

Chapter 1. Getting to know your computer

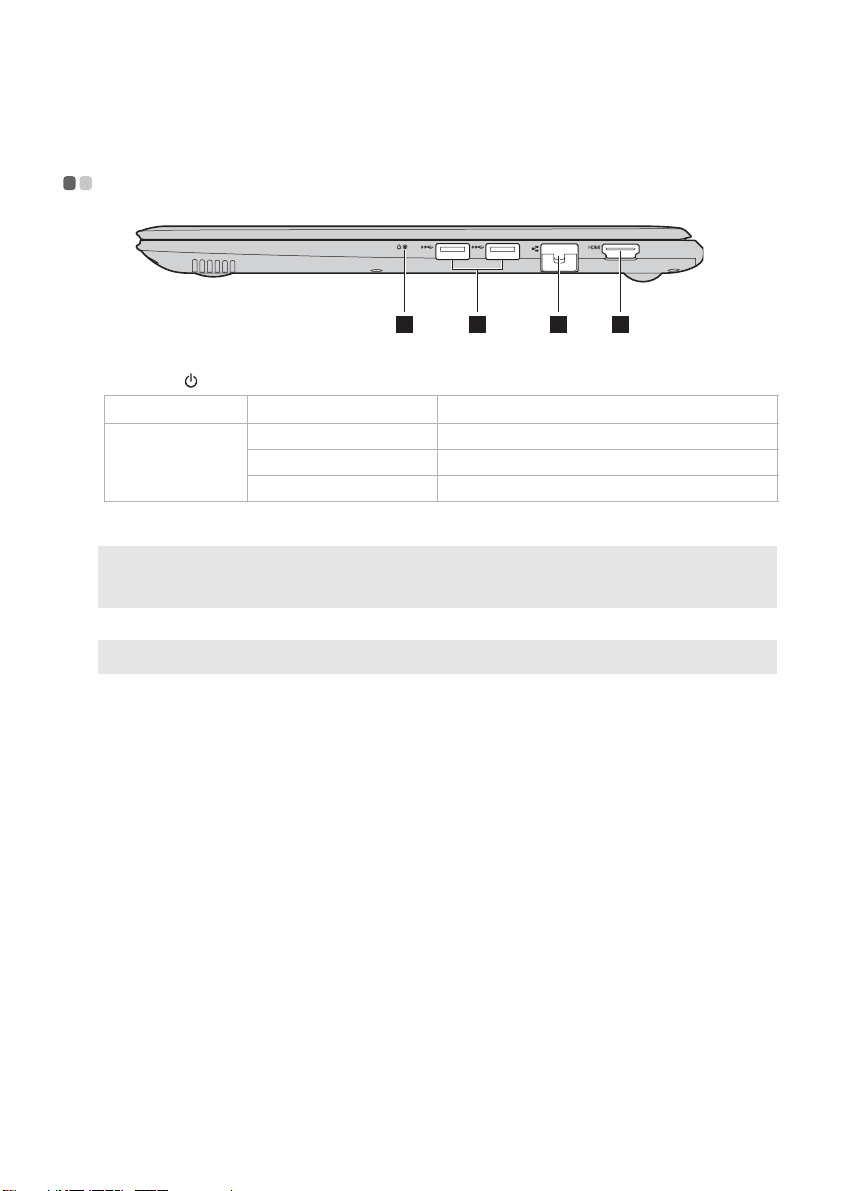

Right-side view----------------------------------------------------------------------------------------------------------
21 34
aPower status
indicator
Indicator Indicator status Meaning
Power status
indicator
On (solid white) The computer is powered on.
Blinking The computer is in sleep mode.
Off The computer is powered off.
b USB 3.0 port Connect to USB devices.
Notes:
• When the computer is on, the USB port supports charging function.
• For details, see “Connecting USB device” on page 9.
cRJ-45 port Connects the computer to an Ethernet network.
Note: For details, see “Connecting network cables” on page 10.
d HDMI port Connects to devices with HDMI input such as a TV or an external
display.
8

Chapter 1. Getting to know your computer

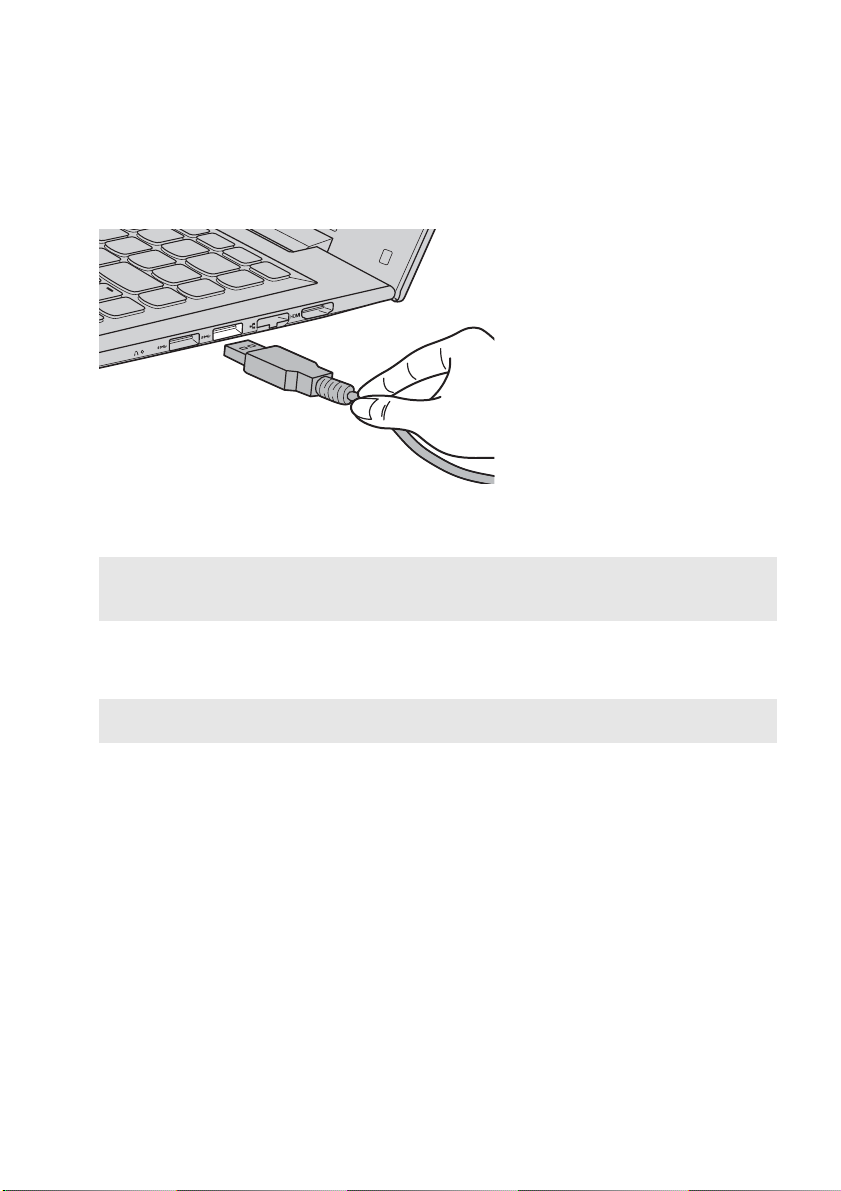

■Connecting USB device
Your computer comes with three USB ports compatible with USB devices.
The first time you plug a USB device into a particular USB port on your computer, Windows
automatically installs a driver for that device. After the driver has been installed, you can
disconnect and reconnect the device without performing any additional steps.
Note: Typically, Windows detects a new device after it has been connected, and then installs the driver
automatically. However, some devices may require you to install the driver before connecting. Check
the documentation provided by the device’s manufacturer before connecting the device.
Before disconnecting a USB storage device, make sure your computer has finished transferring
data to that device. Click the Safely Remove Hardware and Eject Media icon in the Windows
notification area to remove the device before disconnecting.
Note: If your USB device uses a power cord, connect the device to a power source before connecting it.
Otherwise, the device may not be recognized.
9

Chapter 1. Getting to know your computer
■Connecting network cables
To insert a network cable, do the following:
1Hold one connector of the network cable to press the RJ-45 cover down gently
a
.
2Insert the connector into the RJ-45 port
b
.
1
2
Software configuration
Consult your Internet Service Provider (ISP) for details on how to configure your computer.
10

Chapter 1. Getting to know your computer

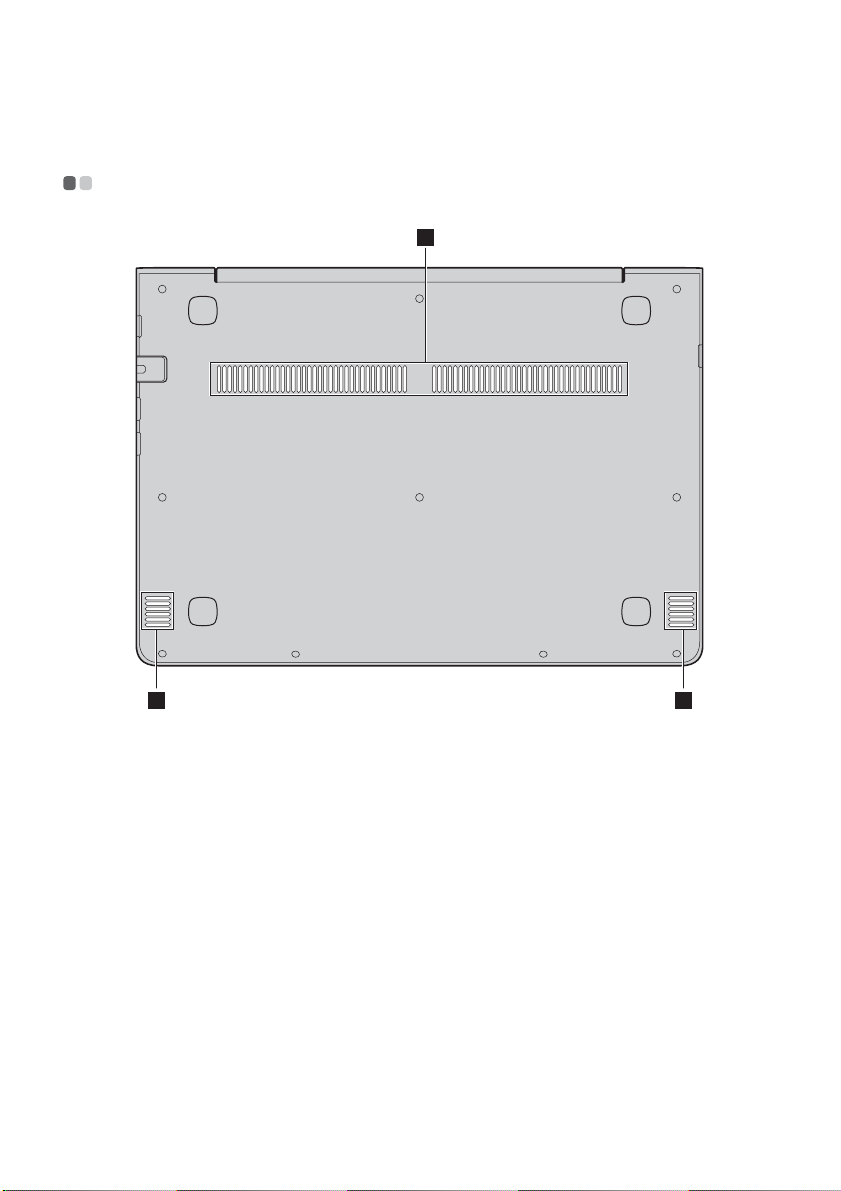

Bottom view------------------------------------------------------------------------------------------------------------------
1
22
aLouvers Allow air to enter the computer for cooling.
bSpeakers Provide audio output.
11

Chapter 2. Starting to use Windows 10
Configuring the operating system for the first time -----------------
You may need to configure the operating system when it is first used. The configuration process
may include the procedures below:
• Accepting the end user license agreement
• Configuring the Internet connection
• Registering the operating system
• Creating a user account
Operating system interfaces -------------------------------------------------------------------------
The return of the Start menu
If you click the Start button in the lower-left corner, the Start menu is displayed.
To open the start menu, do one of the following:
• Select the Start button in the lower-left corner, the Start menu is displayed.
• Press the Windows button.
• Press the Windows key on the keyboard.
The power button is on the Start menu, select it you can choose to shut down or restart the
computer, or put the computer into sleep mode.
Through the Start menu, you can locate all the installed apps or view the frequently used apps.
12

Chapter 2. Starting to use Windows 10
The ACTION CENTER
Select the ACTION CENTER icon on the taskbar and the ACTION CENTER is displayed.
From the ACTION CENTER, you can examine important notifications from Windows and your
apps. Moreover, you can change common settings quickly.
Task View in taskbar
In Windows 10, you can add a new desktop and switch between different desktops.
To add a new desktop, do the following:

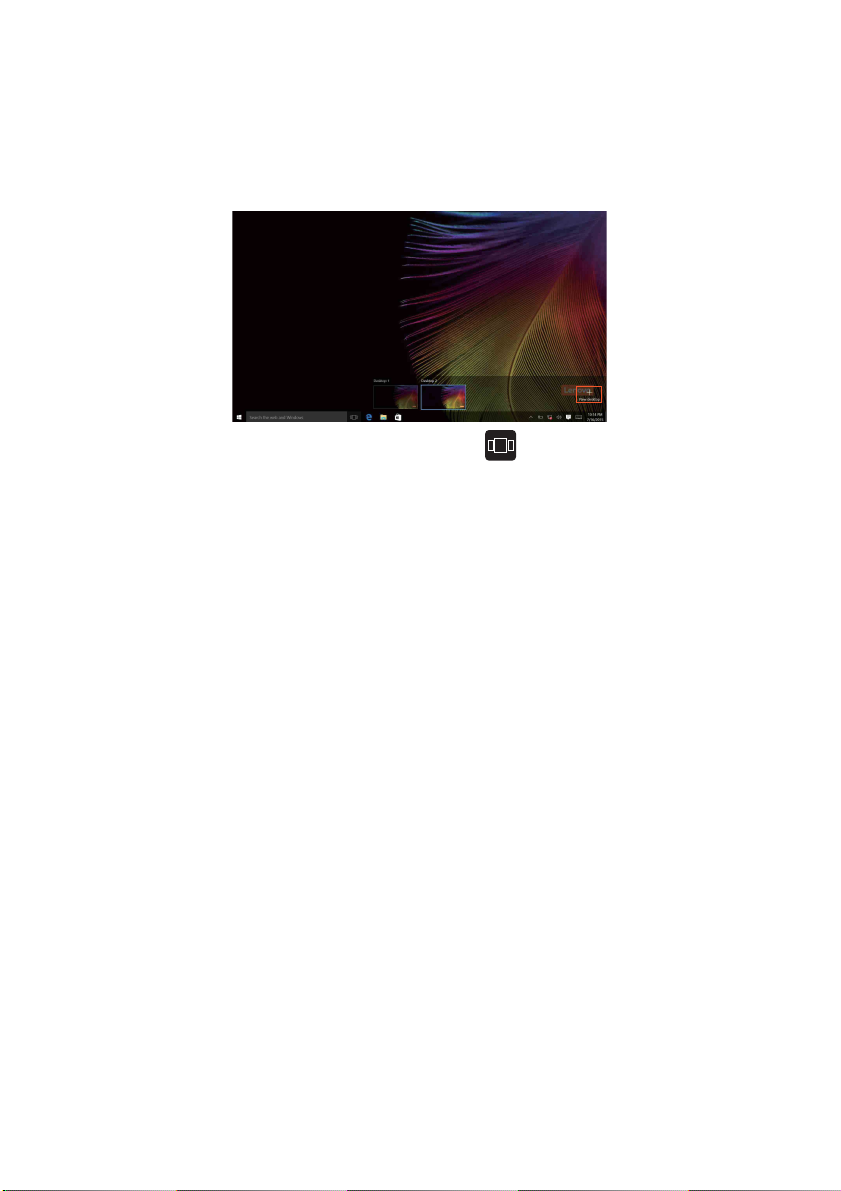

• Select the Task View icon in the taskbar area.
13

Chapter 2. Starting to use Windows 10
• Select New desktop.
To switch between desktops, select the Task View icon , then select your desired desktop.
Also, you can manage apps in the multi-tasking view:
1Select the Task View button to display all apps in use on the screen.
2Select to enter the apps or close the apps.
14

Chapter 2. Starting to use Windows 10
Putting the computer to sleep or shutting it down--------------------
When you have finished working with your computer, you can put it to sleep or shut it down.
■Putting your computer to sleep
If you will be away from your computer for only a short time, put the computer to sleep.
When the computer is in sleep mode, you can quickly wake it to resume use, bypassing the
startup process.
To put the computer to sleep, do one of the following:
• Close the display lid.
• Press the power button.
• Select the Start button, then select Power →Sleep.
Note: Put your computer to sleep before you move it. Moving your computer while the hard disk drive is
spinning can damage the hard disk, causing loss of data.
To wake the computer, do one of the following:
• Press any key on the keyboard.
• Press the power button.
• Press the Windows button.
■Shutting down the computer
If you are not going to use your computer for a long time, shut it down.
To shut down your computer, do one of the following:
• Select the Start button, then select Power →Shut down.
15

Chapter 2. Starting to use Windows 10
• Right-click or press the Start button in the lower-left corner and select Shut down or sign out
→Shut down.
16
