Lenovo M50-70 User manual

Lenovo M50-70/
M50-80
User GuideUser Guide
Read the safety notices and important tips in the
included manuals before using your computer.

First Edition (June 2014)
© Copyright Lenovo 2014.
LIMITED AND RESTRICTED RIGHTS NOTICE: If data or software is delivered pursuant a General
Services Administration “GSA” contract, use, reproduction, or disclosure is subject to restrictions set
forth in Contract No. GS-35F-05925.
For details, refer to Guides & Manuals at http://support.lenovo.com.
Regulatory Notice
Before using the product, be sure to read Lenovo Safety and General Information Guide first.
The features described in this guide are common to most models. Some features may not
be available on your computer and/or your computer may include features that are not
described in this user guide.
Some instructions in this guide may assume that you are using Windows®7 or Windows 8.1.
If you are using other Windows operating systems, some operations may be slightly different.
If you are using other operating systems, some operations may not apply to you.
Notes
•
•
•
The illustrations in this manual may differ from the actual product. Please refer to the
actual product.
•
•
The illustrations used in this manual are for Lenovo M50-70 unless otherwise stated.
•

i
Contents
Chapter 1. Getting to know your computer..................................................................................... 1
Top view......................................................................................................................................................... 1
Left-side view ................................................................................................................................................ 5
Right-side view.............................................................................................................................................. 8
Bottom view................................................................................................................................................. 10
Chapter 2. Starting to use Windows .............................................................................................. 11
Configuring the operating system for the first time.............................................................................. 11
Operating system interfaces...................................................................................................................... 11

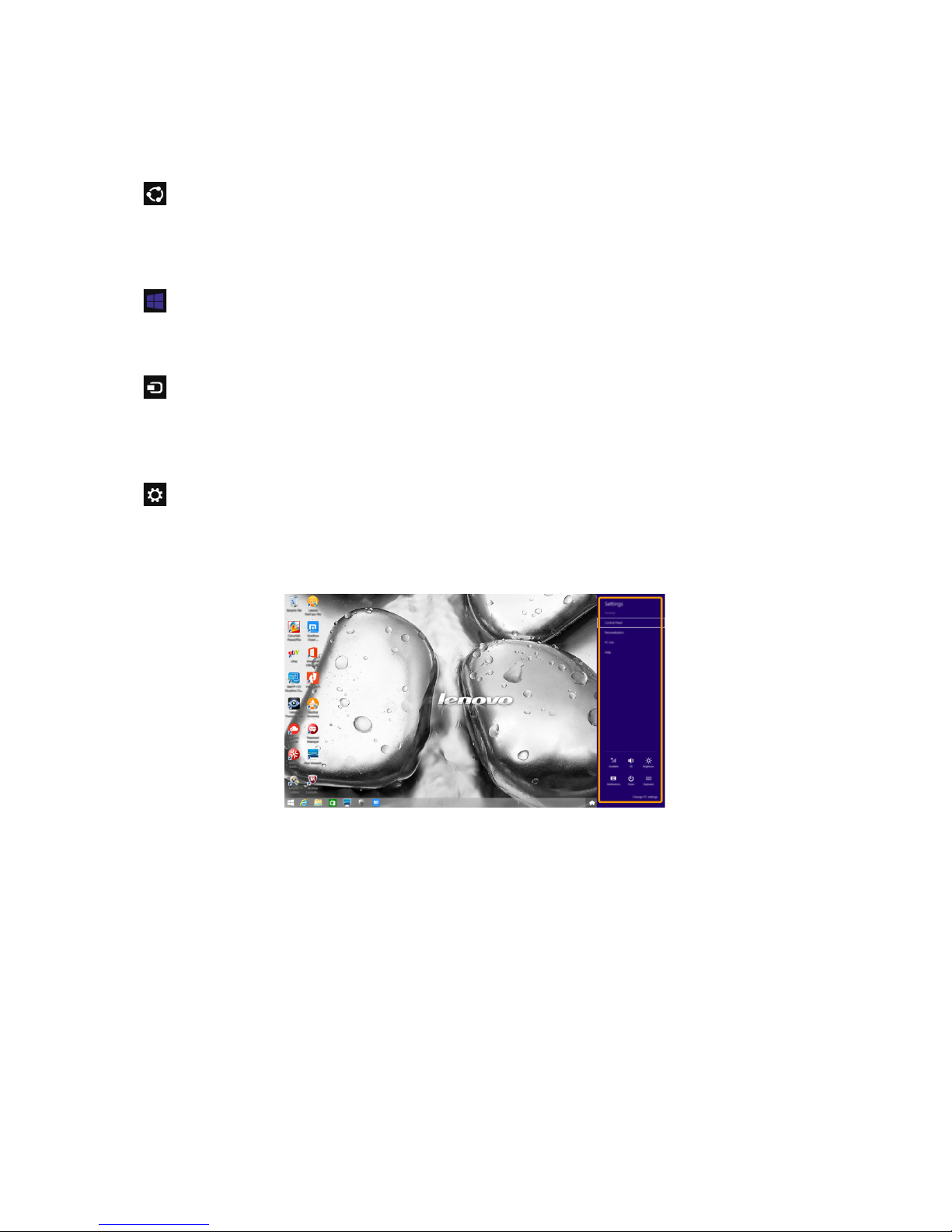

The charms................................................................................................................................................... 12

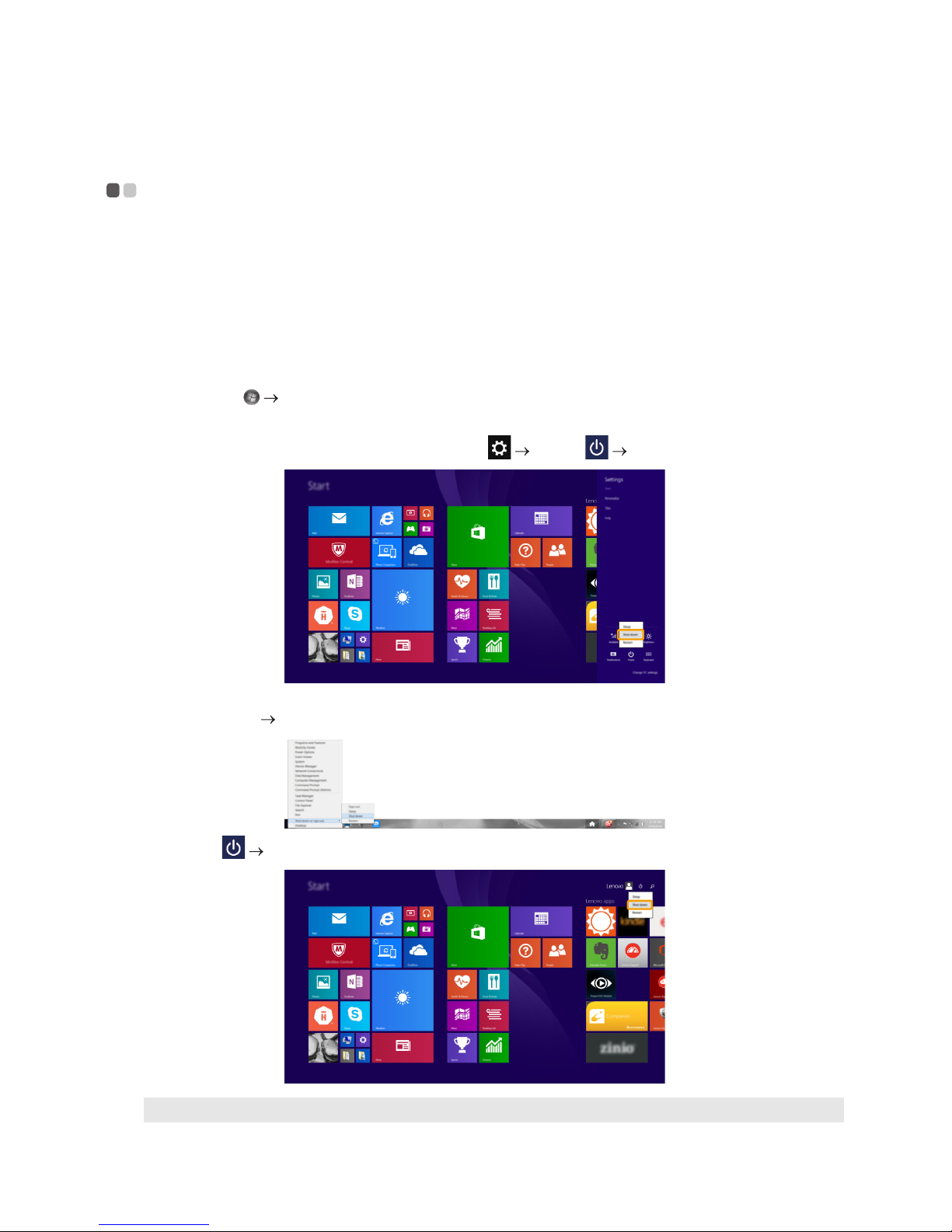

Power-saving modes.................................................................................................................................. 14
Connecting to a wireless network............................................................................................................ 16
Help and support........................................................................................................................................ 17
Chapter 3. Lenovo OneKey Recovery System.............................................................................. 18
Chapter 4. Troubleshooting............................................................................................................ 19
Frequently asked questions....................................................................................................................... 19
Troubleshooting........................................................................................................................................... 21
Appendix A. CRU (Customer Replaceable Units) instructions ................................................... 25
Removing the keyboard............................................................................................................................. 25
Removing the optical drive ....................................................................................................................... 27
Trademarks ...................................................................................................................................... 29

1
Chapter 1. Getting to know your computer

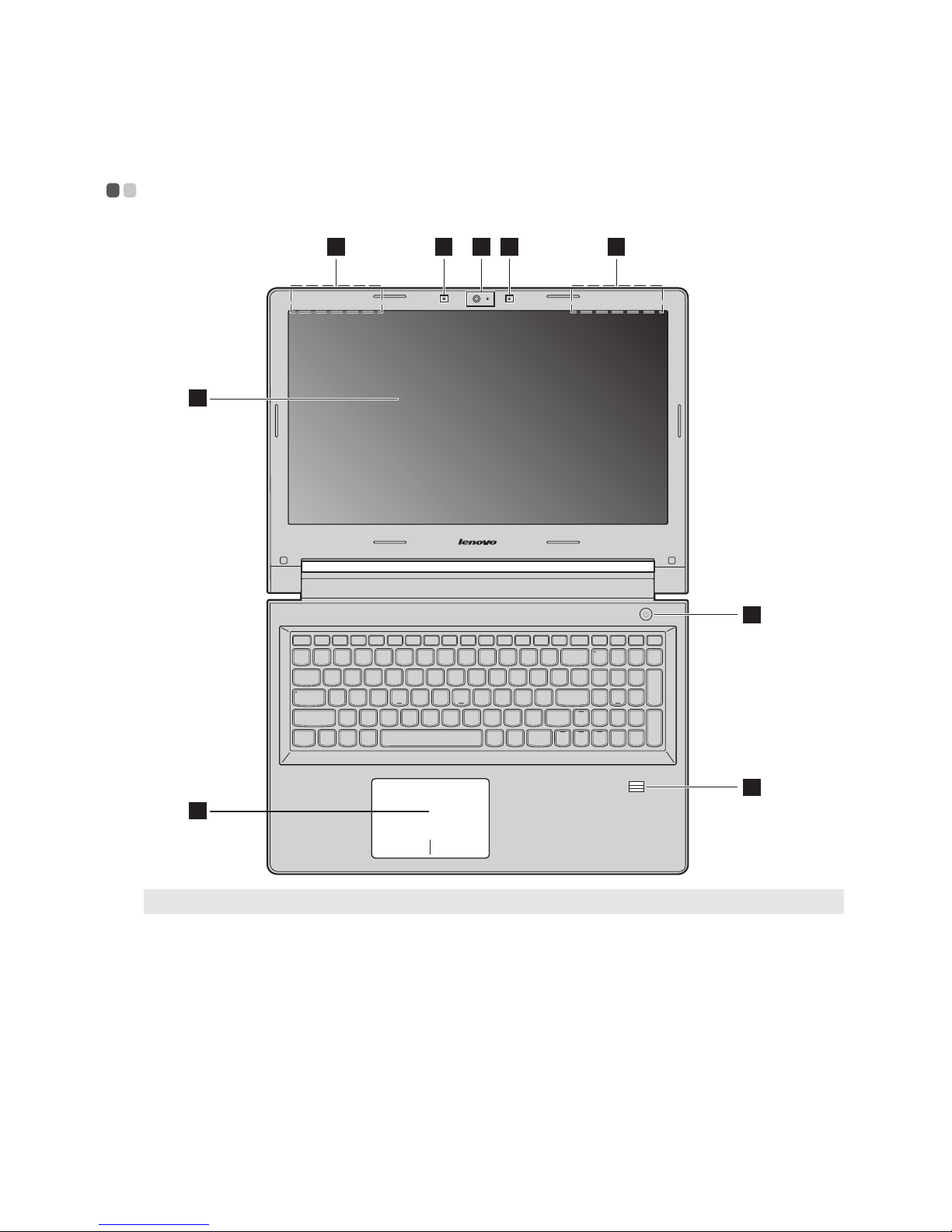

Top view --------------------------------------------------------------------------------------------------------------------------
Attention:
•Do not open the display panel beyond 130 degrees. When closing the display panel, be careful not to leave
pens or any other objects in between the display panel and the keyboard. Otherwise, the display panel
may be damaged.
Note: The dashed areas indicate parts that are not visible externally.
1 22
3 3
4
7
6
5

2
Chapter 1. Getting to know your computer
aIntegrated camera Use the camera for video communication or taking photos.
bBuilt-in microphone Captures sound which can be used for video conferencing, voice
narration, or audio recording.
cWireless module antennas The built-in antennas ensure optimal reception of wireless radio.
dComputer display The computer display with LED backlight provides brilliant visual output.
ePower button Press this button to turn on the computer.
fFingerprint reader
Registers fingerprints that can be used as passwords to secure your computer.
gTouchpad The touchpad functions as a conventional mouse.
One piece multi-touch ClickPad: To move the pointer on the screen,
slide your fingertip over the pad in the direction in which you want the
pointer to move.
Left-click area: Clicking in this area corresponds to the functions of
clicking the left button on a conventional mouse.
Right-click area: Clicking in this area corresponds to the functions of
clicking the right button on a conventional mouse.
Note: You can enable/disable the touchpad by pressing F6 ( ).

Chapter 1. Getting to know your computer
3

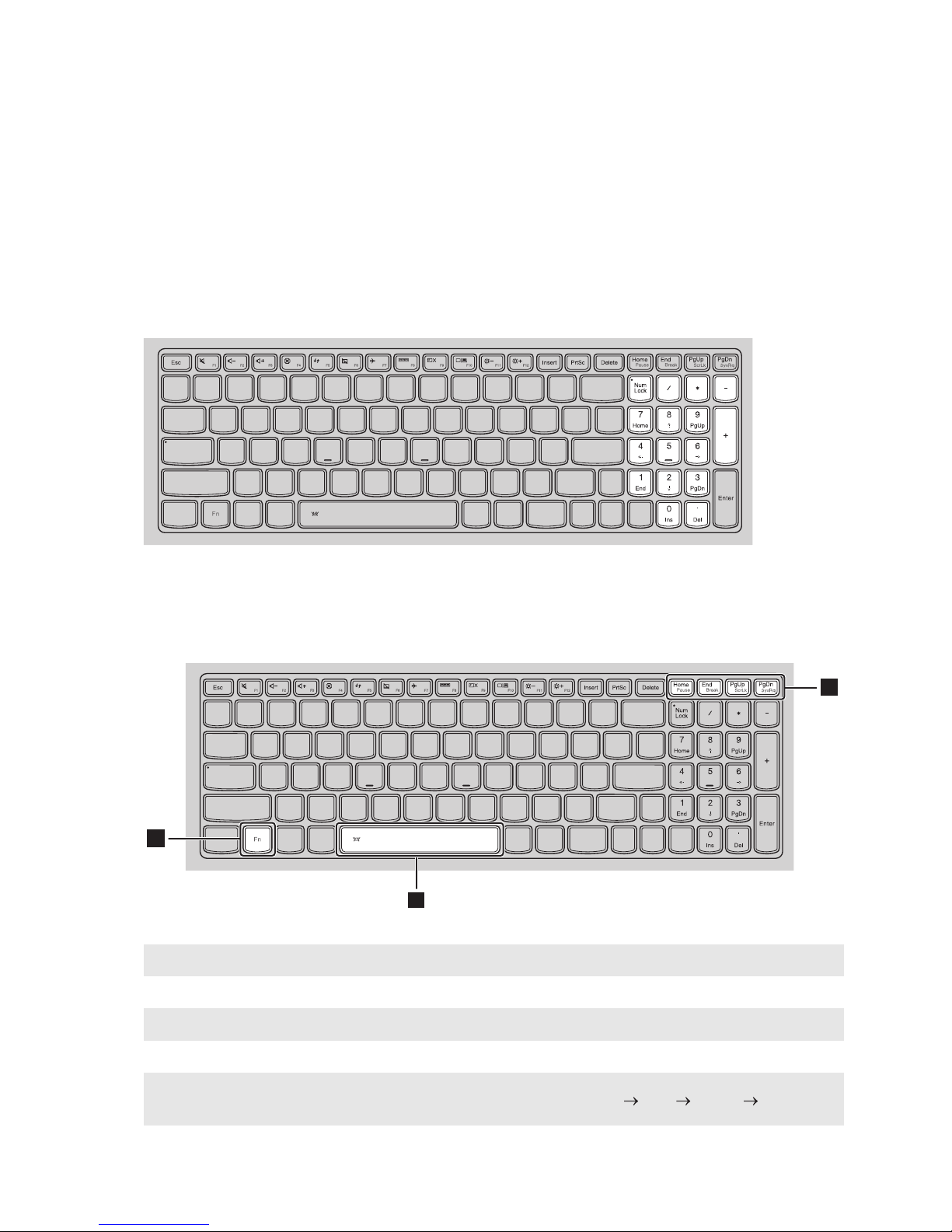

Using the keyboard
Your computer has a numeric keypad and function keys incorporated in its standard keyboard.
Numeric keypad
The keyboard has a separate numeric keypad. To enable or disable the numeric keypad, press
the Num Lock key.
Function key combinations
Through the use of the function keys, you can change operational features instantly. To use this
function, press and hold Fn ; then press one of the function keys .
The following describes the features of each function key.
Fn + Home: Activates the pause function.
Fn + End: Activates the break function.
Fn + PgUp: Enables/disables the scroll lock.
Fn + PgDn: Activates the system request.
Fn + Space (on select
models): Adjusts the keyboard backlight (off dim bright off).
a
b
1
2
2

4
Chapter 1. Getting to know your computer
Hotkeys
You can access certain system settings quickly by pressing the appropriate hotkeys.
Setting hotkey mode
By default, the hotkey functions are accessible by pressing the appropriate hotkey. However,
you can disable the hotkey mode in the BIOS setup utility.
To disable the hotkey mode:
1Shut down the computer.
2Press the Novo button and then select BIOS Setup.
3In the BIOS setup utility, open the Configuration menu, and change the setting of HotKey
Mode from Enabled to Disabled.
4Open the Exit menu, and select Exit Saving Changes.
:Mutes/unmutes the sound. :Enables/disables Airplane mode.
: Decreases the volume level. : Displays all currently active apps.
:Increases the volume level. :Turns on/off the backlight of the
LCD screen.
: Closes the currently active window. : Toggles the display between the
computer and an external device.
:Refreshes the desktop or the
currently active window. :Decreases the display brightness.
: Enables/disables the touchpad. : Increases the display brightness.
Note: When hotkey mode is disabled, press the Fn key and the appropriate hotkey to access the
corresponding hotkey function.

Chapter 1. Getting to know your computer
5
Left-side view--------------------------------------------------------------------------------------------------------------
aAC power adapter jack Connect the AC power adapter here.
bLenovo OneLink
connector
When the AC power adapter is connected to the AC power adapter jack,
it provides power to the computer and charges the battery. When a
supported ThinkPad OneLink Dock is connected to the Lenovo OneLink
connector, it can not only extend the computer capabilities, but also
provide AC power to the computer and charge the battery.
To use the Lenovo OneLink connector, you need to remove the connector
cover from the Lenovo OneLink connector first.
Note: Ensure that you keep the connector cover. Reattach it to the Lenovo OneLink connector when you are
not using the Lenovo OneLink connector.
cFan louvers Dissipate internal heat.
Note: Make sure that none of the fan louvers are blocked or else overheating of the computer may occur.
dHDMI port Connects to devices with HDMI input such as a TV or an external display.
eRJ-45 port Connects the computer to an Ethernet network.
Note: For details, see “Connecting network cables” on page 6.
fUSB 3.0 port Connects to USB devices.
Note: For details, see “Connecting USB device” on page 7.
gCombo audio jack Connects to headsets.
Notes:
•The combo audio jack does not support conventional microphones by default.
•The recording function might not be supported if third-party headphones or headsets are connected,
due to different industry standards.
hNovo button When the computer is off, press this button to start the Lenovo OneKey
Recovery System or the BIOS setup utility, or to enter the boot menu.
Note: For details, see “Lenovo OneKey Recovery System” on page 18.
2 3 4 5 6 7 81

6
Chapter 1. Getting to know your computer
Connecting network cables
To insert a network cable, do the following:
1Hold one connector of the network cable to press the RJ-45 cover down gently .
2Insert the connector into the RJ-45 port .
Software configuration
Consult your Internet Service Provider (ISP) for details on how to configure your computer.
a
b
1
2

Chapter 1. Getting to know your computer
7

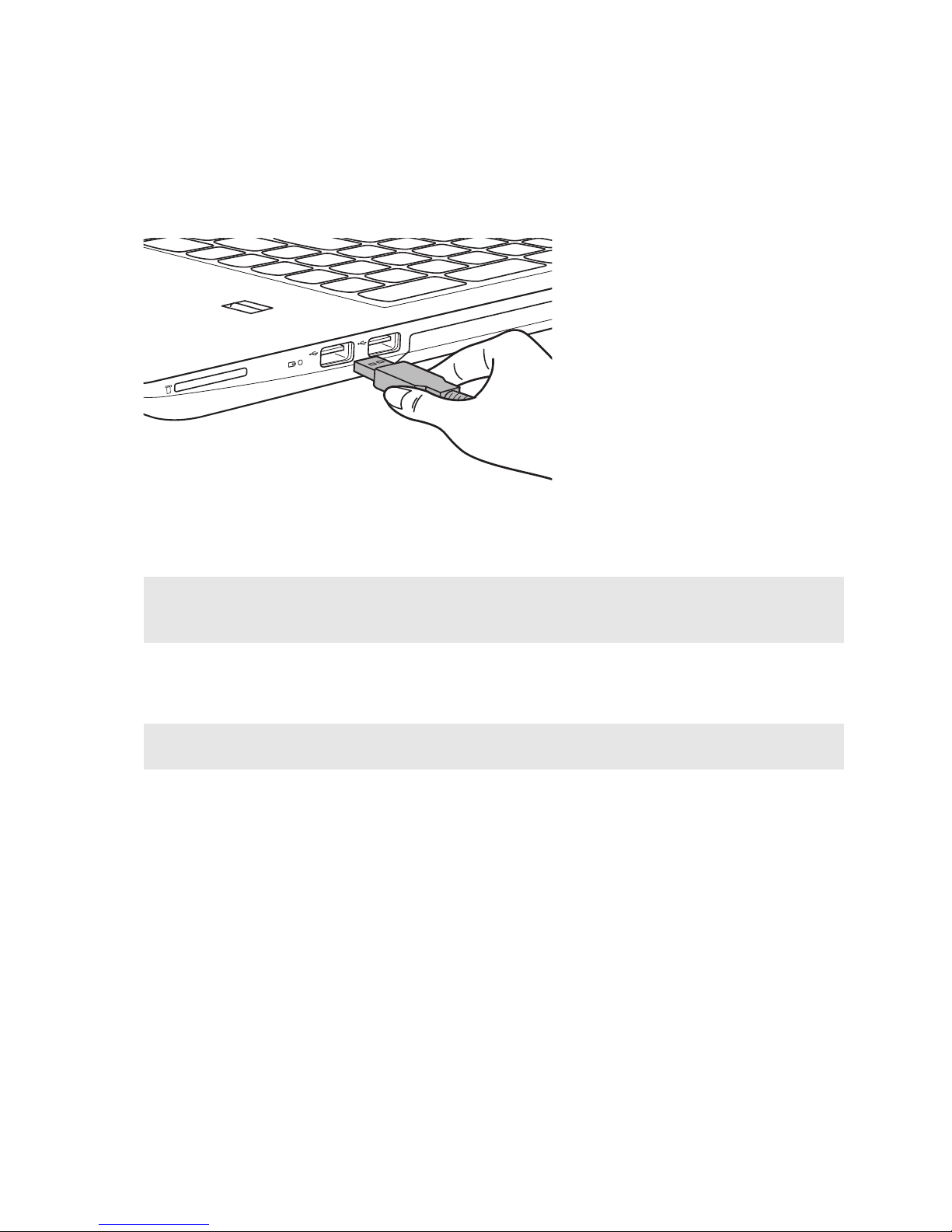

Connecting USB device
Your computer comes with three USB ports compatible with USB devices.
The first time you plug a USB device into a particular USB port on your computer, Windows
automatically installs a driver for that device. After the driver has been installed, you can
disconnect and reconnect the device without performing any additional steps.
Before disconnecting a USB storage device, make sure your computer has finished transferring
data to that device. Click the Safely Remove Hardware and Eject Media icon in the Windows
notification area to remove the device before disconnecting.
Note: Typically, Windows detects a new device after it has been connected, and then installs the driver
automatically. However, some devices may require you to install the driver before connecting. Check
the documentation provided by the device’s manufacturer before connecting the device.
Note: If your USB device uses a power cord, connect the device to a power source before connecting it.
Otherwise, the device may not be recognized.

8
Chapter 1. Getting to know your computer
Right-side view----------------------------------------------------------------------------------------------------------
aMemory card slot Insert memory cards (not supplied) here.
Note: For details, see “Using memory cards (not supplied)” on page 9.
bBattery status indicator
cUSB 2.0 port Connects to USB devices.
Note: For details, see “Connecting USB device” on page 7.
dOptical drive (on select
models)
Reads/burns optical discs.
eKensington lock slot Attach a security lock (not supplied) here to help protect your computer
from theft and unauthorized use. You can attach a security lock to your
computer to help prevent it from being removed without your
permission. For details on installing the security lock, please refer to the
instructions shipped with the security lock that you have purchased.
Notes:
•Before purchasing any security product, verify that it is compatible with this type of security keyhole.
•You are responsible for evaluating, selecting, and implementing the locking devices and security
features. Lenovo offers no comment, judgment, or warranty regarding the function, quality, or
performance of locking devices and security features.
Symbol Indicator Indicator
status Meaning
Battery
Green The battery has a charge between 20% and
100% and the computer is powered on.
Blinking green
The battery has a charge between 20% and
100% and the computer is in sleep or
hibernate mode.
Amber The battery has a charge of 20% or less and the
computer is powered on.
Blinking amber The battery has a charge of 20% or less and the
AC power adapter is connected to the computer.
Off The computer is powered off.
1
2
3 3 4 5

Chapter 1. Getting to know your computer
9
Using memory cards (not supplied)
Your computer supports the following types of memory cards:
• Secure Digital (SD) card
• MultiMediaCard (MMC)
Inserting a memory card
Slide the memory card in until it clicks into place.
Removing a memory card
Gently pull the memory card out of the memory card slot.
Notes:
•Insert only one card in the slot at a time.
•This card reader does not support SDIO devices (e.g., SDIO Bluetooth and so on.).
Note: Before removing the memory card, disable it by using the Windows safely remove hardware and eject
media utility to avoid data corruption.

10
Chapter 1. Getting to know your computer

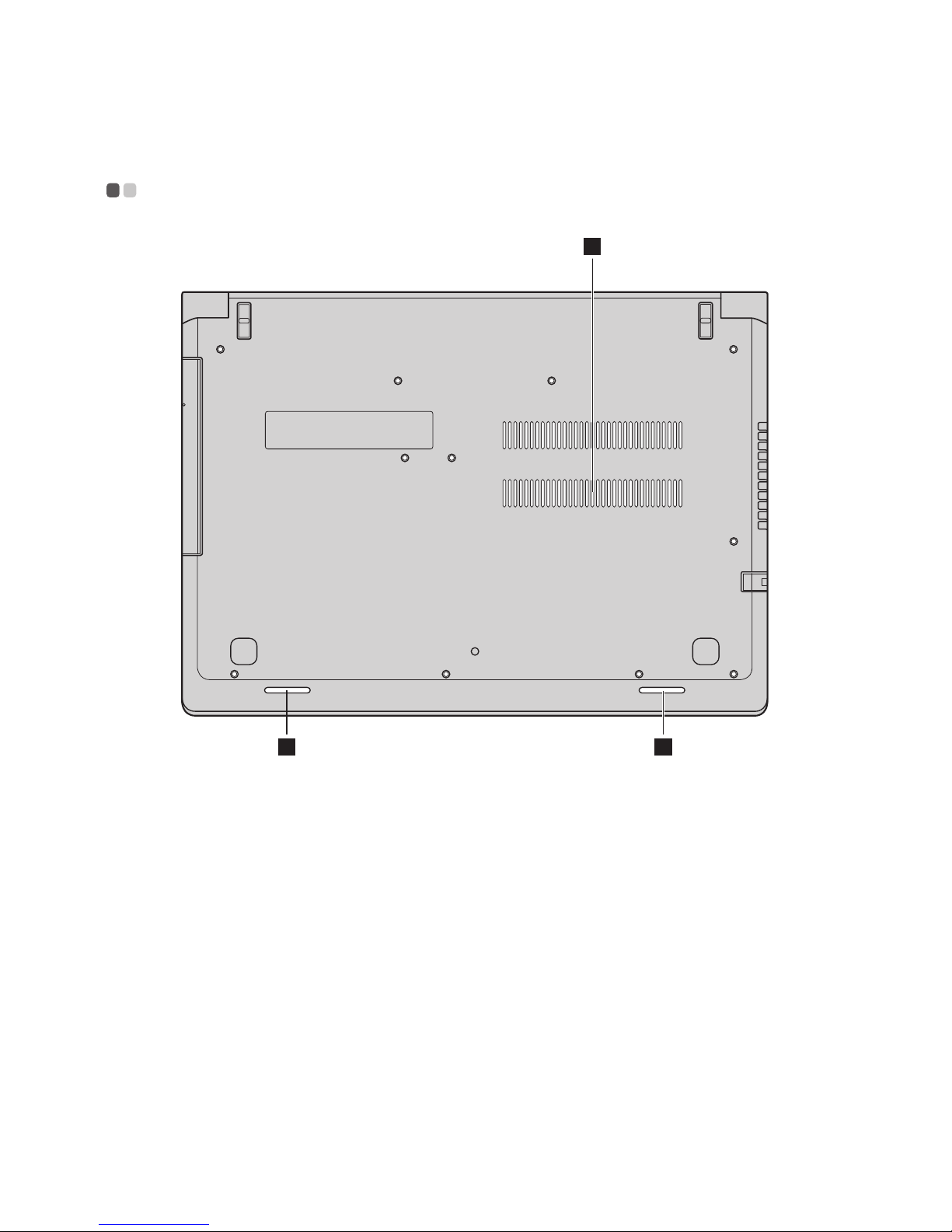

Bottom view------------------------------------------------------------------------------------------------------------------
aLouvers Allow air to enter the computer for cooling.
bSpeakers The stereo speakers provide rich and powerful sound.
1
2 2

11
Chapter 2. Starting to use Windows
Configuring the operating system for the first time-----------------
You may need to configure the operating system when it is first used.
The configuration process may include the procedures below:
• Accepting the end user license agreement
• Configuring the Internet connection
• Registering the operating system
• Creating a user account
Operating system interfaces -------------------------------------------------------------------------
Windows 8.1 comes with two main user interfaces: the Start screen and the Windows desktop.
To switch from the Start screen to the Windows desktop, do one of the following:
• Select the Windows desktop tile on the Start screen.
• Press the Windows key + D.
To switch from the desktop to the Start screen, do one of the following:
• Select Start from the charms bar.
• Press the Windows key .
• Move the cursor to the lower-left corner, and then select the Start button.
Start screen Desktop

12
Chapter 2. Starting to use Windows
The charms -------------------------------------------------------------------------------------------------------------------
Charms are navigation buttons that let you control your Windows®8.1 experience. Charms
include: Search, Share, Start, Devices, and Settings. The Charms Bar is the menu that contains
the charms.
The five charms provide new and faster ways to perform many basic tasks, and are always
available regardless of whichever app you are currently in. To display the charms, do one of
the following:
• Move the cursor to the upper-right or lower-right corner until the charms bar is displayed.
• Press the Windows key + C.
Search charm
The Search charm is a powerful new way to find what you are looking for, including settings,
files, Web images, Web videos, etc.

Chapter 2. Starting to use Windows
13
Share charm
The Share charm lets you send links, photos, and more to your friends and social networks
without leaving the app you are in.
Start charm
The Start charm is a fast way to go to the Start screen.
Devices charm
The Devices charm allows you to connect or send files to any external devices, including the
devices to play, print, and project.
Settings charm
The Settings charm lets you perform basic tasks, such as setting the volume or shutting down
the computer. Also, you can get to the Control Panel through the Settings charm when on the
Desktop screen.

14
Chapter 2. Starting to use Windows
Power-saving modes --------------------------------------------------------------------------------------------
When you have finished working with your computer, you can set it to shut down, sleep
or hibernate.
Shutting down the computer
If you are not going to use your computer for a long time, shut it down.
To shut down the computer, do one of the following:
•Windows 7:
Click Start Shut down.
•Windows 8.1:
- Open the charms, and then select Settings Power Shut down.
- Press and hold or right-click the Start button in the lower-left corner and select Shut down
or sign out Shut down.
- Select Shut down in the upper-right corner of the Start screen.
Note: The operation depends on the BIOS setup. Please refer to the actual product.

Chapter 2. Starting to use Windows
15
Putting your computer to sleep
If you will be away from your computer for only a short time, put the computer to sleep.
When the computer is in sleep mode, you can quickly wake it to resume use, bypassing the
startup process.
To put the computer to sleep, do one of the following:
• Close the display lid.
• Press the Power button.
• Do the proper operations in the operating system.
Windows 7:
Click Start Sleep.
Windows 8.1:
Open the charms, and then select Settings Power Sleep.
To wake the computer, do one of the following:
• Press any key on the keyboard.
• Press the Power button.
Putting your computer to hibernate
By using this mode, you can turn off the computer completely without saving files or exiting
from any program that is running. When the computer enters hibernation mode, all open
programs, folders, and files are saved to the hard disk drive, and then the computer turns off.
To put the computer into hibernation mode, do the following:
•Windows 7:
Click Start Hibernation.
Note: Wait until the power indicator light starts blinking (indicating that the computer is in sleep mode)
before you move your computer. Moving your computer while the hard disk is spinning can damage
the hard disk, causing loss of data.

16
Chapter 2. Starting to use Windows
Connecting to a wireless network ------------------------------------------------------------
Enabling wireless connection
To enable wireless functions, do one of the following:
•PressF7 ( ) to disable airplane mode.
• Open the charms and select Settings to open the network configuration page. Then
toggle the airplane mode switch to Off.
Connecting to a wireless network
To connect to a wireless network, do the following:
1Press F7 ( ) to turn on the wireless feature.
2View the available wireless networks.
•Windows 7:
Click the wireless network connection status icon in the Windows notification area. A list
of available wireless networks will be displayed.
•Windows 8.1:
Open the charms bar and select Settings . A list of available wireless networks
will be displayed.
3Click a network name in the list, and then click Connect.
Note: Some networks require a network security key or passphrase for connection. To connect to one of
those networks, ask the network administrator or the Internet service provider (ISP) for the security
key or passphrase.
