Lenoxx 90403B User manual

CHILDREN’S RIDE-ON QUAD,
6V, BATTERY OPERATED
Model: 90403B / 90403R
Batch no:PR4011
PLEASE READ AND RETAIN INSTRUCTIONS FOR FUTURE REFERENCE.

The illustrations used in the manual are to illustrate the operation method and structure of the
product. Where there is a small difference between the physical item and the illustrations, please
take the physical as the standard.
SPECIFICATIONS OF THE RIDE-ON:
Age range: 3 –7
Max speed: 3 km/h
Measurements: 66cm x 44cm x 45cm
Battery: Sealed and dry, 6V 4AH
Charging time: 8 hours
Loading capacity: 25kg
Fuse: 5A
WARNING:
Keep small parts and packaging out of reach of children.
Adult supervision is required. Do not drive anywhere dangerous including slopes with more than
10 degrees, streets, next to bodies of water and away from other obstacles. The driver must sit on
the seat to drive. Read the instruction manual and acknowledge it before use.
1. Adult supervision required
2. Read the instruction manual and instruct the child user
3. The weight limit is 25kg
4. Only one rider to use at the one time
5. Please wear a bike helmet when riding
6. Sit straight on the seat when riding
7. Ride only on flat surfaces
8. Ride away from other vehicles and bodies of water
9. Recharge the batteries out of reach of children
10. Do not charge the battery for more than 12 hours
11. Wear shoes when riding
12. Only use a power adaptor and battery by the manufacturer’s advice
1. SAFETY:
PREVENT INJURIES AND DEATHS: NEVER LEAVE CHILD UNATTENDED. DIRECT ADULT
SUPERVISION IS REQUIRED.
Please instruct the child on the correct way to drive the ride-on.
Make sure your child knows how to steer, how to start and stop the vehicle and knows the rules
for safe driving.
Please keep in mind the condition of the area they are riding in and the child’s driving ability.
Designed for use by children between the ages of 3 –7 years, weighing less the 25kg. This is
advisable to avoid damage to the motor, gears and to prohibit overloading.

Do not let children ride in the street, anywhere dangerous including slopes with more than 10
degrees, streets, next to bodies of water and away from other obstacles. Use during day light
hours or in an illuminated area is advised to avoid accidents in the dark.
When the ride-on is running, do not place anything on the moving parts such as the motor, gear
box, wheels or steering wheel.
Do not drive on long or wet grass, mud, soft ground, gravel or sand.
Do not drive neat anything flammable or explosive. Keep any hazardous chemicals out of the
drivers reach.
The vehicle can be driven at a maximum of 3km/h.
Always keep child in view when child is using the ride-on.
This toy should be used with caution since skill is required to avoid falls or collisions causing injury
to the user or third parties.
Protective equipment should be worn.
Never use in roadways, near cars, on or near steep inclines or steps, swimming pools or other
bodies of water.
Always wear shoes.
Always sit on the seat.
Not to be used in traffic.
This ride-on has no brake.
2. CONNECTING THE BATTERY:
The battery is located under the seat.
To access, remove the screw holding the heat down and then take the seat off the body.
* Take the gear box out of the compartment and keep it aside. *
Plug the red connector onto the red terminal of the battery. Plug the black connector onto the
black terminal of the battery.
If the battery is not connected and you charge the ride-on, the battery will not be charging.

The forward/reverse switch must not be on either mode when charging.
Charging time is 8 –12 hours. The first hour of charging can get back 60% of the battery’s energy
back. You may leave it to charge overnight, but NEVER continuously over 20 Hours. Otherwise you
will shorten the batteries life.
It is normal for the battery to be warm when charging.
The ride-on must be charged prior to its first use.
Working AC voltage is 220V (or 110V) (+/-10%).
3. CHARGING THE BATTERY:
Insert the plug of the charger into the charging socket which is on the main body of the ride-on its
underside (1).
Connect the charger to the ride-on first, and then connect the plug to power (2). Please note, the
ride-on cannot be driven when charging.
Do not insert any metal pieces into the charging hole as to avoid short circuiting and any damage
to the electro circuit.

This ride-on has a function of charging protection and while it is being charged, other functions
cannot be used.
The charger needs to be removed from the charging socket before it is used.
Once the charger is removed, put the ride-on into either forwards or reverse mode, then press on
the red acceleration button which is on the handlebars.
This ride-on also has a function of overload protection. If the ride-on is overloaded or operated
incorrectly, the overload preventer will cut off automatically. It will connect automatically in 20
minutes.
4. OPERATION:
1. Forward/backward switch:
Changes the direction that vehicle moves from forward to reverse.
● To move the ride-on forward, put the switch to the “forward” position.
● To move the ride-on backward, put the switch to “reverse” position.
2. Power switch:
Applies power (speed) to the vehicle.
● To move the ride-on, press the button down.
● To brake or slow down, release the button.
3. Music switch:
An option to have musical tunes playing.
Note the round panel above the music switch button, which is secured with a screw.
Use a screwdriver (not included) to remove the screw.
Remove the panel.
Add 3 x AA batteries (not included) into the battery compartment.
Add the panel back and fit the screw into place.
Press the music switch button for musical tones to be played.

5. PARTS LIST:
Ride-on body X 1 Wheels X 4 Handlebar X 1
Charger X 1 Cover X 4 Axle X 4
Rear axle X 1 Small Axle X 3 Nut X 4
Φ10 Washer X 7 M4x12 Machine screw x 2
*Use a screwdriver to remove the seat and locate the gear box and battery. Take the gear box out
of the compartment and keep it aside. *

6. ASSEMBLY:
Before you begin:
Warning:
KEEP THIS GUIDE FOR FUTURE REFERENCE. ADULT ASSEMBLY REQUIRED.
The product contains small parts, which are for adult assembly only.
Keep children away when assembling.
• Always remove protective material and poly bags and dispose before assembly.
•Make sure that the power switch is turned “OFF”before assembling the ride-on.
•Before first time use, charge the battery for at least 4 to 6 hours.
•Assembly tools required:
1 Vehicle Body
2 Φ10 Washer
3 Small Axle
4 Wheels
5 Axle
6 Nut
7 Cover
8 Handlebar

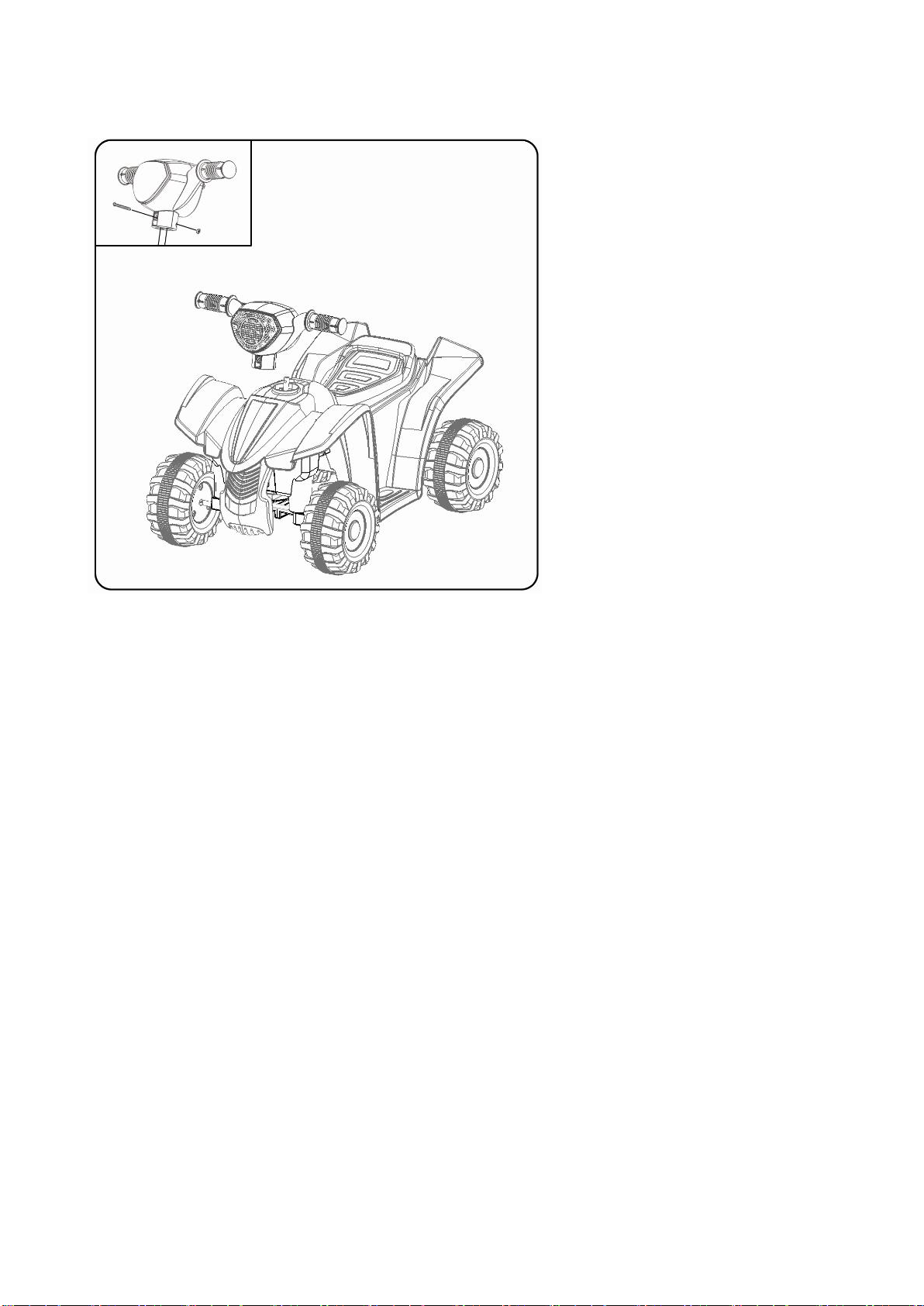

Assemble the stand of front axle.
The stand of the front axle is placed on the front axle with two screws as shown.
Identify the rear axle. Note one side on it has some ‘grooves’ on it. The side with the grooves will
go on the side where the normal wheel will be fitted. The side with no grooves will go on the side
where the gear box is fitted.

Identify the driving wheel –this one will fit onto the gear box.
Identify the normal wheel, this will go onto the other side of the box.
Add this black piece to all of the wheels.

This is what the wheel will look like when it is put in correctly.
The gear box needs to be connected to the connection from inside the ride-on.
