Leotec LEMP 409 User manual

EN
user manual

TABLE OF CONTENTS
First steps 3
Use of the player 4
Music, Video and Replays 6
FM Radio 9
Photos 9
Text 10
Record 10
Explorer 11
Settings 11
Drivers and Software 13
Safety instructions 13
More information, technical
service and support 14
2

FIRST STEPS
Welcome to the Digital Lifestyle of LEOTEC
You have acquired a LEOTEC player and with it you have opened the doors
to the world of digital audio. LEOTEC products do not only offer you the latest in
technology, but they also always offer you an unsurpassable/unbeatable qual-
ity-price relationship. LEOTEC has much to offer you. Find out about the latest
models in: www.leotec.com
Basic concepts of codication in MP3/WMA
Audio digital codication has meant a revolution in portable audio devices,
but in order to get maximum performance a computer is necessary. MP3 and
WMA les can be acquired by means of Internet or you can codify them yourself
directly from your Compact Discs.
Where are the batteries?
The LEOTEC player does not need batteries because it has a long-lasting Lithi-
um battery integrated inside. To recharge the battery, you should connect the
player by means of a mini USB/USB cable to the computer or to a transformer
(sold separately) ready for such purpose.
3
EN

Identication of the Parts
1. Screen
2. Power ON/OFF
3. MiniUSB connector
4. Micro SD card slot
5. Earphones jack
6. Hold / Power ON/OFF
7. Stylus pen
Use of the stylus pen
You can control the player by using the stylus pen and the touch screen. The
screen detects the type of pressing, that is, that pressing briey does not have
the same function as if pressure is maintained. Consult the sections dedicated to
each one of the buttons to have more information.
USE OF THE PLAYER
4
3
2
6
5
4
1
7

Micro SD Cards
The player’s memory can be extended by inserting a Micro SD memory card in
the slot that you can nd on the bottom of the unit (4).
Turning the player on and off
To turn the player on, rst slide Power (2) button to ON position, then the
button marked Hold (7) must be pressed for some seconds until it turns on. Once
turned on, to turn it off maintain the Hold (7) button pressed a few seconds.
Press this button briey to lock or unlock the player.

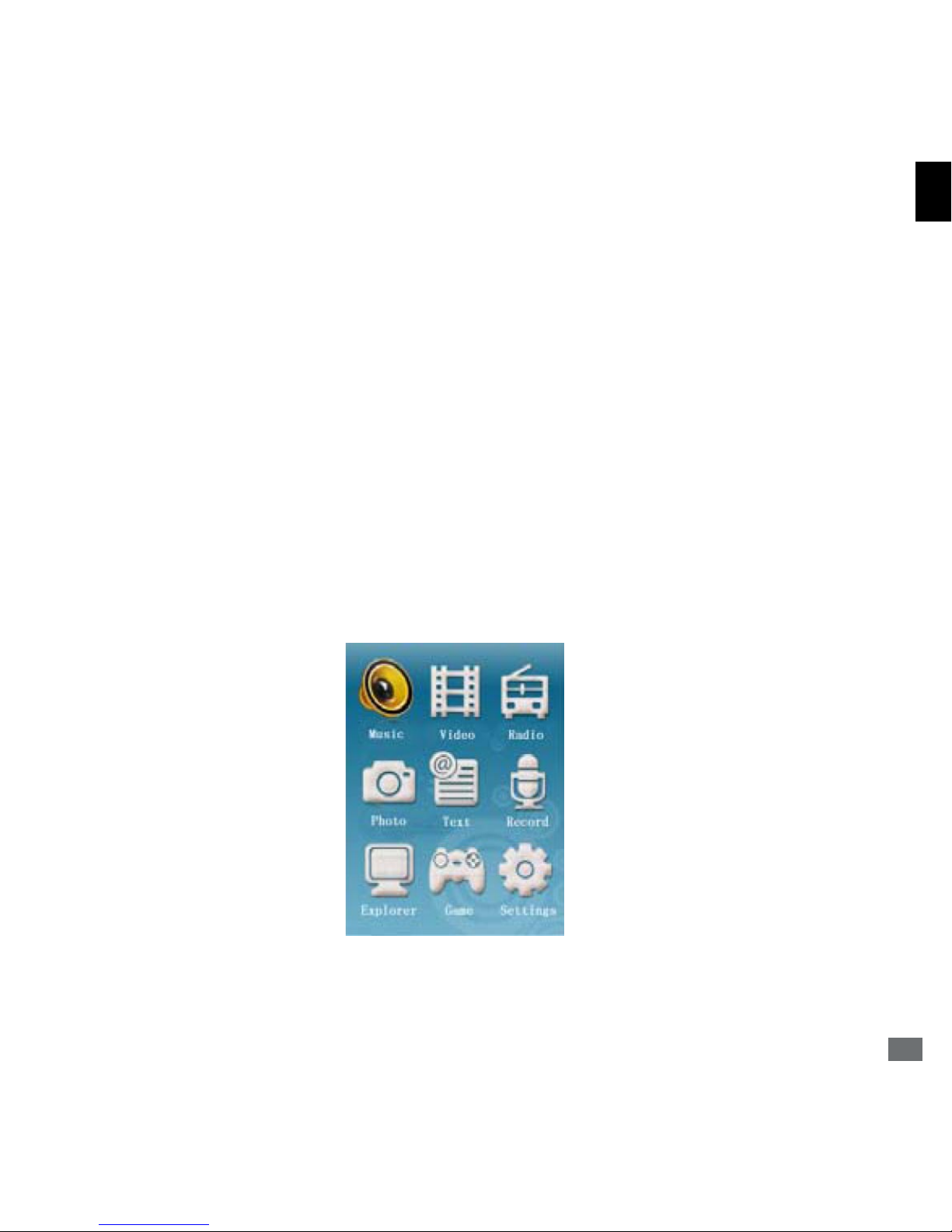

The player’s Menu
Once the player is on, the menu will appear on the Screen (1). This menu
allows you to choose the mode of operation, that is:
5
EN

Note: To select the different functions touch ith the stylus pen over the
corresponding icon. Touch twice to enter the function.
MUSIC, VIDEO AND RECORDINGS
In the music or video play mode, you can play all MP3, WMA, WAV and AMV
les, that are found in the memory, as well as the recordings previously made.
6
Text
Record
Explorer
Settings
Music
Video
FM Radio

The screen shows us the following information:
a. ID3 information (title, artist...)
b. Playing state
c. Current playing time
d. Progress bar
e. Remaining playing time
f. Repeat mode
g. Bit rate
7
EN
h. Battery charge
i. Play mode
j. Volume
k. Current le / Total les
l. Equalization type
m. A-B interval
f
i
k
d
a
e
c
g
j
h
b
l
m

On screen buttons
The screen shows different buttons while playing music and videos. These
buttons respond to touch.
1. A-B button
It allows to dene a section from the song to be played repeatedly.
2. Set Up button
Enters the set up menu directly while the music plays.
3. Browse button
Gets back to the main menu without stopping the music.
4. Back button
Gets back to previous menu without stopping the music.
7 and 9. Next and Previous buttons
Song change:
To change songs, you must press one of the buttons.
Advance or go back in the song:
If what you want is to go to a specic minute of the song that is being
played, you must maintain the button pressed.
8
1 2 3 4
6 7 8 9 10

6 and 10. Volume Button
Increase and reduce the volume.
8. Play / Pause button
FM RADIO
This mode allows you to listen to radio stations of FM frequencies.
To do a search going up the bank, you must press the Next button, or press the
Previous button to do the same by going down the band.
Select a station saved in its memory:
To enter the stations menu press the button.
Within this menu we can save presets or listen to previously saved
stations.
Radio recording
Press the button to record from the radio station.
When entering in the Photos menu, there appears the browser screen, where
we can choose the image we want to see.
Image visualization:
To visualize an image, just touch twice its name.
9
EN

Next / Previous image:
Press the Next button or the Previous button from the screen.
To go back to the main menu, press button.
The Set up button allows to change the time interval between photos.
TEXT
This mode allows to read text les stored in the player or memory card.
Select the le you want to read in the browser screen and touch it twice to
open it.
To turn the pages press the buttons.
Bookmarks
To save and load bookmarks press button .
The next menu appears a list where you can save some bookmarks and select
them to load.
RECORD
This mode converts our player into a voice recorder. To begin recording, just
press .
If you press while the recording is occurring, it will go into pause. Once the
recording is in pause, you can continue recording by pressing Pause again.
By pressing the Stop button you stop and save the recording.
10
