Leroy-Somer DIGIDRIVE SK User manual

3897 en - 10.2007 / d
DIGIDRIVE SK
Getting started guide
This manual is to be given to
the end user
T1
T2
T3
T4
0V
Remote current speed
reference input (A1)
+10V reference output
Local voltage speed
reference input (A2)
B1
B2
B3
B4
B5
B6
B7
+24V output
Drive Enable/Reset
(USA: Not stop)
Run Forward
(USA: Run)
Run Reverse
(USA: Jog)
Local (A2)/Remote (A1)
speed reference select
Remote speed
reference input
V
_+
10k
(2kmin)
+24V
0V
EUR
Analog output
(motor speed)
Digital output
(zero speed)

General Information
The manufacturer accepts no liability for any consequences resulting from inappropriate, negligent
or incorrect installation or adjustment of the optional parameters of the equipment or from
mismatching the variable speed drive with the motor.
The contents of this guide are believed to be correct at the time of printing. In the interests of
commitment to a policy of continuous development and improvement, the manufacturer reserves the
right to change the specification of the product or its performance, or the content of the guide without
notice.
All rights reserved. No parts of this guide may be reproduced or transmitted in any form or by any
means, electrical or mechanical including, photocopying, recording or by an information storage or
retrieval system, without permission in writing from the publisher.
Drive software version
This product is supplied with the latest version of user-interface and machine control software. If this
product is to be used in a new or existing system with other drives, there may be some differences
between their software and the software in this product. These differences may cause the product
to function differently. This may also apply to drives returned from the LEROY-SOMER Service
Centre.
If there is any doubt, please contact LEROY-SOMER.
Environmental Statement
LEROY-SOMER is committed to minimising the environmental impacts of its manufacturing
operations and of its products throughout their life cycle. To this end, we operate an Environmental
Management System (EMS) which is certified to the International Standard ISO 14001.
The electronic variable speed drives manufactured by LEROY-SOMER have the potential to save
energy and (through increased machine/process efficiency) reduce raw material consumption and
scrap throughout their long working lifetime. In typical applications, these positive environmental
effects far outweigh the negative impacts of product manufacture and end-of-life disposal.
Nevertheless, when the products eventually reach the end of their useful life, they can very easily be
dismantled into their major component parts for efficient recycling. Many parts snap together and can
be separated without the use of tools, while other parts are secured with conventional screws.
Virtually all parts of the product are suitable for recycling.
Product packaging is of good quality and can be re-used. Large products are packed in wooden
crates, while smaller products come in strong cardboard cartons which themselves have a high-
recycled fibre content. If not re-used, these containers can be recycled. Polythene, used on the
protective film and bags from wrapping product, can be recycled in the same way. LEROY-SOMER's
packaging strategy favours easily recyclable materials of low environmental impact, and regular
reviews identify opportunities for improvement.
When preparing to recycle or dispose of any product or packaging, please observe local legislation
and best practice.

Digidrive SK Getting Started Guide
Issue Number: d www.leroy-somer.com
Contents
1 Safety Information .............................................................. 5
1.1 Warnings, Cautions and Notes ............................................................... 5
1.2 Electrical Safety - general warning .......................................................... 5
1.3 System design and safety of personnel .................................................. 5
1.4 Environmental Limits ............................................................................... 5
1.5 Access ..................................................................................................... 6
1.6 Compliance and regulations .................................................................... 6
1.7 Motor ....................................................................................................... 6
1.8 Adjusting parameters .............................................................................. 6
1.9 Electrical installation ................................................................................ 6
2 Rating Data .......................................................................... 8
3 Mechanical Installation .................................................... 10

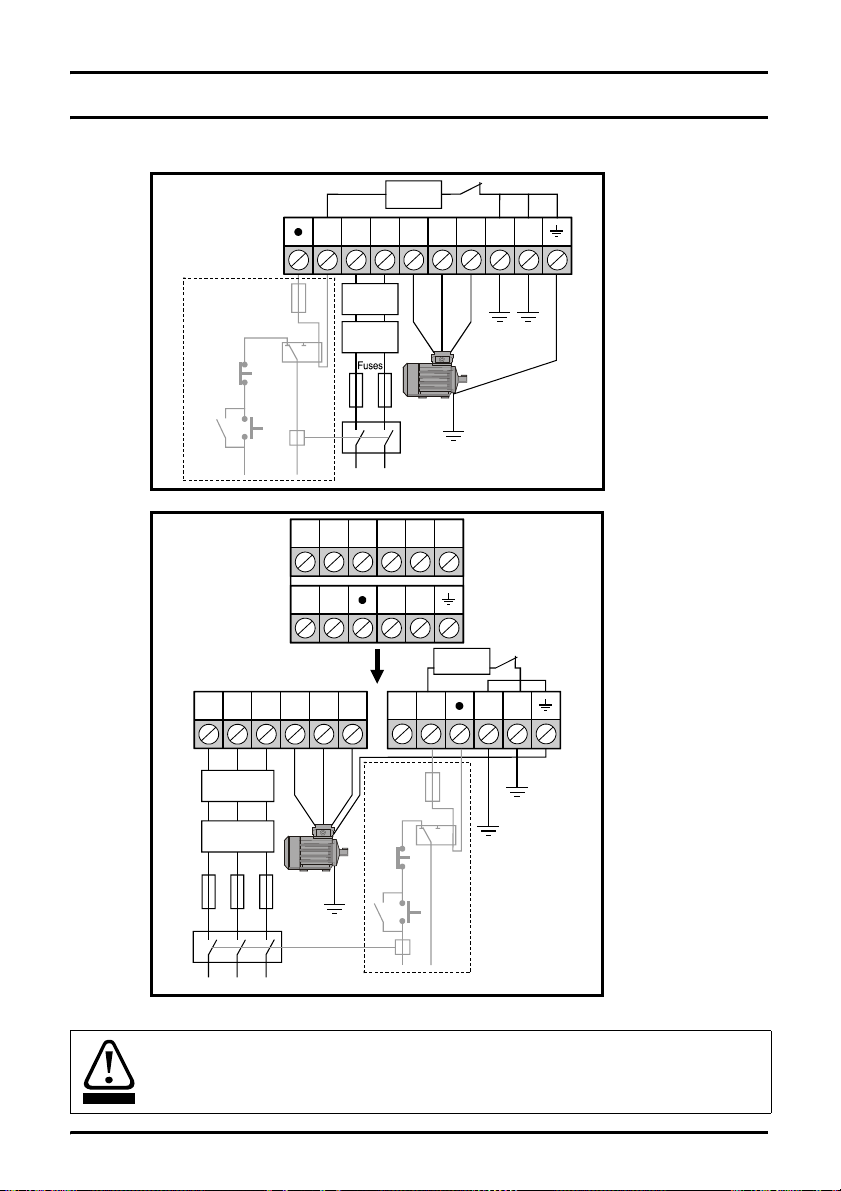

4 Electrical Installation ........................................................ 12
4.1 Power terminal connections .................................................................. 12

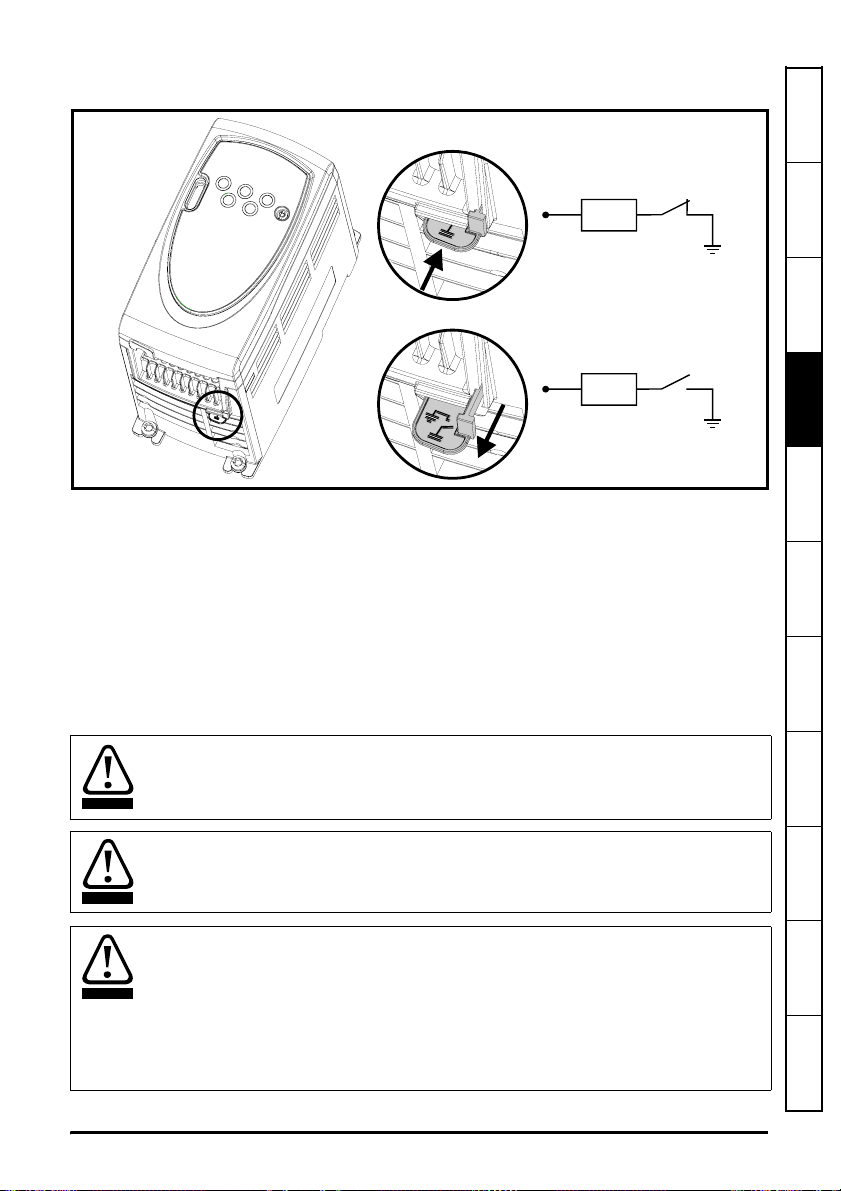

4.2 Ground leakage ..................................................................................... 13
4.3 EMC ...................................................................................................... 14
4.4 Control terminals I/O specification ........................................................ 15

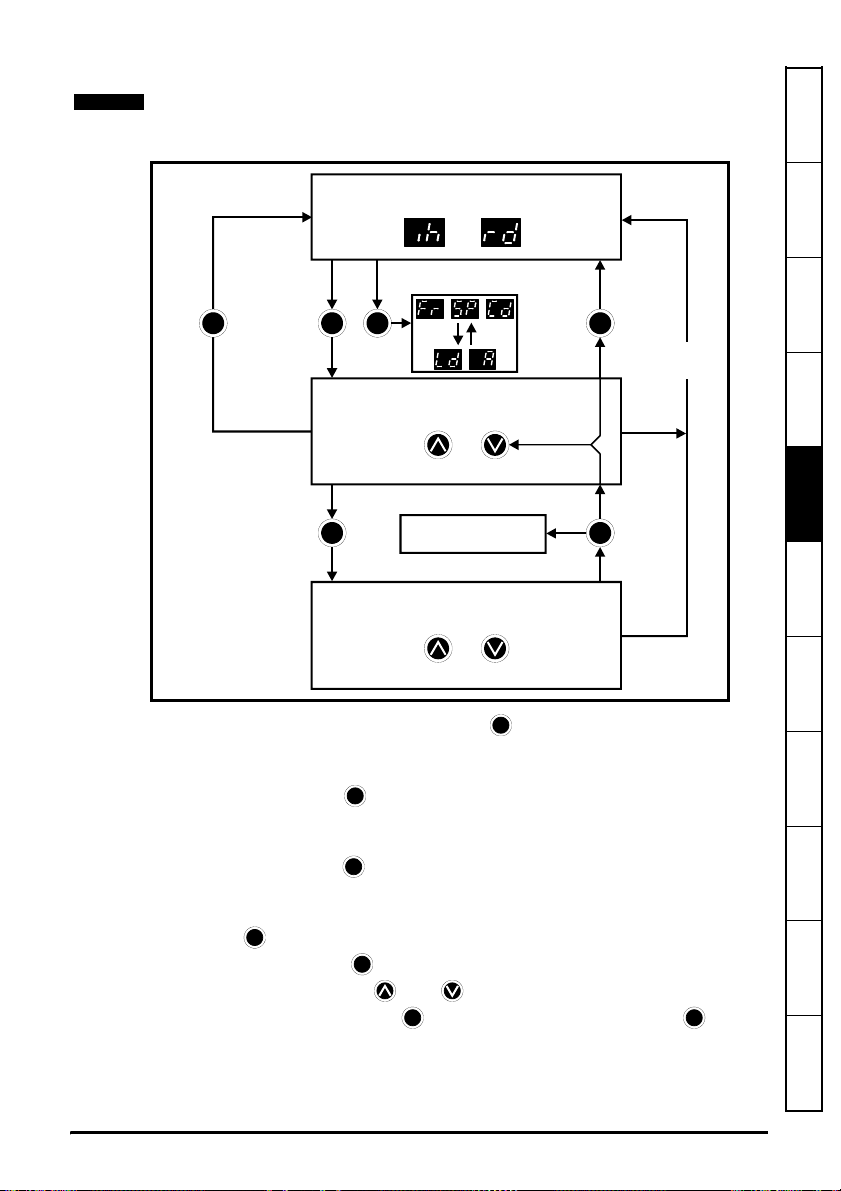

5 Keypad and Display .......................................................... 18
5.1 Programming keys ................................................................................ 18
5.2 Control keys .......................................................................................... 18
5.3 Selecting and changing parameters ...................................................... 19
5.4 Saving parameters ................................................................................ 20
5.5 Parameter access ................................................................................. 20
5.6 Security codes ....................................................................................... 21
5.7 Setting drive back to default values ...................................................... 21
6 Parameters ........................................................................ 22
6.1 Parameter descriptions - Level 1 .......................................................... 22
6.2 Parameter descriptions - Level 2 .......................................................... 28
6.3 Parameter descriptions - Level 3 .......................................................... 37
6.4 Diagnostic parameters .......................................................................... 37
7 Quick Start Commissioning ............................................. 38
7.1 Terminal control .................................................................................... 38
7.2 Keypad control ...................................................................................... 40
8 Diagnostics ....................................................................... 42
9 Options .............................................................................. 45
9.1 Documentation ...................................................................................... 46
10 Parameter List ................................................................... 47
11 UL Listing Information ..................................................... 49
11.1 Conformity ............................................................................................. 49
11.2 AC supply specification ......................................................................... 49
11.3 Motor overload protection ..................................................................... 49
11.4 Overspeed protection ............................................................................ 49

4Digidrive SK Getting Started Guide
www.leroy-somer.com Issue Number: d
Notes

Digidrive SK Getting Started Guide 5
Issue Number: d www.leroy-somer.com
Safety
Information
Rating Data Mechanical
Installation
Electrical
Installation
Keypad and
Display Parameters Quick Start
Commissioning Diagnostics Options Parameter List UL Listing
Information
1 Safety Information
1.1 Warnings, Cautions and Notes
1.2 Electrical Safety - general warning
The voltages used in the drive can cause severe electrical shock and/or burns, and
could be lethal. Extreme care is necessary at all times when working with or adjacent to
the drive.
Specific warnings are given at the relevant places in this guide.
1.3 System design and safety of personnel
The drive is intended as a component for professional incorporation into complete
equipment or system. If installed incorrectly, the drive may present a safety hazard.
The drive uses high voltages and currents, carries a high level of stored electrical
energy, and is used to control equipment which can cause injury.
System design, installation, commissioning and maintenance must be carried out by
personnel who have the necessary training and experience. They must read this safety
information and this guide carefully.
The STOP and START controls or electrical inputs of the drive must not be relied
upon to ensure safety of personnel. They do not isolate dangerous voltages from
the output of the drive or from any external option unit. The supply must be
disconnected by an approved electrical isolation device before gaining access to
the electrical connections.
The drive is not intended to be used for safety-related functions.
Careful consideration must be given to the function of the drive which might result in a
hazard, either through its intended behaviour or through incorrect operation due to a
fault. In any application where a malfunction of the drive or its control system could lead
to or allow damage, loss or injury, a risk analysis must be carried out, and where
necessary, further measures taken to reduce the risk - for example, an over-speed
protection device in case of failure of the speed control, or a fail-safe mechanical brake
in case of loss of motor braking.
1.4 Environmental Limits
Instructions within the supplied data and information within the Digidrive SK Technical
Data Guide regarding transport, storage, installation and the use of the drive must be
complied with, including the specified environmental limits. Drives must not be
subjected to excessive physical force.
A Warning contains information, which is essential for avoiding a safety hazard.
WARNING
A Caution contains information, which is necessary for avoiding a risk of damage to the
product or other equipment.
CAUT IO N
A Note contains information, which helps to ensure correct operation of the product.
NOTE

6Digidrive SK Getting Started Guide
www.leroy-somer.com Issue Number: d
1.5 Access
Access must be restricted to authorised personnel only. Safety regulations which apply
at the place of use must be complied with.
The IP (Ingress Protection) rating of the drive is installation dependant. For further
information, refer to the Digidrive SK Technical Data Guide.
1.6 Compliance and regulations
The installer is responsible for complying with all relevant regulations, such as national
wiring regulations, accident prevention regulations and electromagnetic compatibility
(EMC) regulations. Particular attention must be given to the cross-sectional areas of
conductors, the selection of fuses and other protection, and protective earth (ground)
connections.
The Digidrive SK EMC Guide contains instructions for achieving compliance with
specific EMC standards.
Within the European Union, all machinery in which this product is used must comply
with the following directives:
98/37/EC: Safety of machinery
89/336/EEC: Electromagnetic compatibility
1.7 Motor
Ensure the motor is installed in accordance with the manufacturer's recommendations.
Ensure the motor shaft is not exposed.
Standard squirrel cage induction motors are designed for single speed operation. If it is
intended to use the capability of a drive to run a motor at speeds above its designed
maximum, it is strongly recommended that the manufacturer is consulted first.
Low speeds may cause the motor to overheat because the cooling fan becomes less
effective. The motor should be fitted with a protection thermistor. If necessary, an
electric force vent fan should be used.
The values of the motor parameters set in the drive affect the protection of the motor.
The default values in the drive should not be relied upon.
It is essential that the correct value is entered into parameter 06, motor rated current.
This affects the thermal protection of the motor.
1.8 Adjusting parameters
Some parameters have a profound effect on the operation of the drive. They must not
be altered without careful consideration of the impact on the controlled system.
Measures must be taken to prevent unwanted changes due to error or tampering.
1.9 Electrical installation
1.9.1 Electric shock risk
The voltages present in the following locations can cause severe electric shock and may
be lethal:
• AC supply cables and connections
• DC bus, dynamic brake cables and connections
• Output cables and connections
• Many internal parts of the drive, and external option units
Unless otherwise indicated, control terminals are single insulated and must not be
touched.

Digidrive SK Getting Started Guide 7
Issue Number: d www.leroy-somer.com
Safety
Information
Rating Data Mechanical
Installation
Electrical
Installation
Keypad and
Display Parameters Quick Start
Commissioning Diagnostics Options Parameter List UL Listing
Information
1.9.2 Isolation device
The AC supply must be disconnected from the drive using an approved isolation device
before any cover is removed from the drive or before any servicing work is performed.
1.9.3 STOP function
The STOP function does not remove dangerous voltages from the drive, the motor or
any external option units.
1.9.4 Stored charge
The drive contains capacitors that remain charged to a potentially lethal voltage after the
AC supply has been disconnected. If the drive has been energised, the AC supply must
be isolated at least ten minutes before work may continue.
Normally, the capacitors are discharged by an internal resistor. Under certain, unusual
fault conditions, it is possible that the capacitors may fail to discharge, or be prevented
from being discharged by a voltage applied to the output terminals. If the drive has failed
in a manner that causes the display to go blank immediately, it is possible the capacitors
will not be discharged. In this case, consult LEROY-SOMER or their authorised
distributor.
1.9.5 Equipment supplied by plug and socket
Special attention must be given if the drive is installed in equipment which is connected
to the AC supply by a plug and socket. The AC supply terminals of the drive are
connected to the internal capacitors through rectifier diodes which are not intended to
give safety isolation. If the plug terminals can be touched when the plug is disconnected
from the socket, a means of automatically isolating the plug from the drive must be used
(e.g. a latching relay).
1.9.6 Ground leakage current
The drive is supplied with an internal EMC filter capacitor fitted. If the input voltage to
the drive is supplied through an ELCB or RCD, these may trip due to the ground
leakage current. See section 4.3.1 Internal EMC filter on page 14 for further information
and how to disconnect the internal EMC capacitor.

8Digidrive SK Getting Started Guide
www.leroy-somer.com Issue Number: d
2RatingData
Figure 2-1 Model code explanation
Table 2-1 Digidrive SK, 1 phase, 100 to 120VAC ±10%, 48 to 62Hz units
Table 2-2 Digidrive SK, 1 phase, 200 to 240VAC ±10%, 48 to 62Hz units
Table 2-3 Digidrive SK, 1 and 3 phase, 200 to 240VAC ±10%, 48 to 62Hz units
DIGIDRIVE SK 0,5 M
1 phase 100-120V(ML), 1 phase 200-240V(M),
200-240V(M/TL), 380-480V(T
)
1 or 3 phases 3 phases
Rating : power in kVA
Type
Variable speed drive ran
g
e with open loop control
Model Size CT reference
Nominal
motor
power
Input
fuse
rating
Typical
full load
input
current
100% RMS
output
current
150%
overload
current for
60s
Minimum
braking
resistor
value Weight
kW hp A A A AΩ
0.5ML A SKA1100025 0.25 0.33 10 7.5 1.7 2.55 1.0 kg
(2.2 Ib)
1ML A SKA1100037 0.37 0.5 15 11.0 2.2 3.3
1.5ML B SKB1100075 0.75 1.0 25 19.6 4.0 6.0 28 1.4 kg
(3.0 Ib)
2ML B SKB1100110 1.1 1.5 32 24.0 5.2 7.8 28
Model Size CT reference
Nominal
motor
power
Input
fuse
rating
Typical
full load
input
current
100% RMS
output
current
150%
overload
current
for 60s
Minimum
braking
resistor
value
Weight
kW hp A A A A Ω
0.5M A SKA1200025 0.25 0.33 6 4.3 1.7 2.55 68
1.0 kg
(2.2 Ib)
1M A SKA1200037 0.37 0.5 10 5.8 2.2 3.3 68
1.2M A SKA1200055 0.55 0.75 10 8.1 3.0 4.5 68
1.5M A SKA1200075 0.75 1.0 16 10.5 4.0 6.0 68
Model Size CT reference
Nominal
motor
power
Input
fuse
rating
A
Typical
full load
input
current
A
Maximum
continuous
input
current
A
100%
RMS
output
current
150%
overload
current
for 60s
Minimum
braking
resistor
value
Ω
Weight
kW hp 1ph 3ph 1ph 3ph 1ph 3ph A A
2M/TL B SKBD200110 1.1 1.5 16 10 14.2 6.7 9.2 5.2 7.8 28 1.3 kg
(2.9 Ib
2.5M/TL B SKBD200150 1.5 2.0 20 16 17.4 8.7 12.6 7.0 10.5 28 1.4 kg
(3.0 Ib)
3.5M/TL C SKCD200220 2.2 3.0 25 20 23.2 11.9 17.0 9.6 14.4 28 2.1 kg
(4.6 Ib)
4.5M/TL D SKDD200300 3.0 3.0 25 16 23.6 12.5 16.6 12.6 18.9 20 4.5 kg
(9.9 Ib)
5 TL D SKD3200400 4.0 5.0 20 15.7 19.5 17 25.5 20

Digidrive SK Getting Started Guide 9
Issue Number: d www.leroy-somer.com
Safety
Information
Rating Data
Mechanical
Installation
Electrical
Installation
Keypad and
Display Parameters Quick Start
Commissioning Diagnostics Options Parameter List UL Listing
Information
Table 2-4 Digidrive SK, 3 phase, 380 to 480VAC ±10%, 48 to 62Hz units
Output frequency
0 to 1500Hz
Output voltage
110V drives:
3 phase, 0 to 240Vac (240 Vac maximum set by Pr 08).
200V and 400V drives:
3 phase, 0 to drive rating (240 or 480Vac maximum set by Pr 08).
Model Size Model
Number
Nominal
motor
power
Input
fuse
rating
Typical
full load
input
current
Maximum
continuous
input
current
100%
RMS
output
current
150%
overload
current
for 60s
Minimum
braking
resistor
value Weight
kW hp A A A A AΩ
1T B SKB3400037 0.37 0.5 6 1.7 2.5 1.3 1.95 100 1.2 kg
(2.7 Ib)
1.2T B SKB3400055 0.55 0.75 6 2.5 3.1 1.7 2.55 100
1.5T B SKB3400075 0.75 1.0 6 3.1 3.75 2.1 3.15 100
2T B SKB3400110 1.1 1.5 6 4.0 4.6 2.8 4.2 100 1.3 kg
(2.9 Ib)
2.5T B SKB3400150 1.5 2.0 10 5.2 5.9 3.8 5.7 100
3.5T C SKC3400220 2.2 3.0 16 7.3 9.6 5.1 7.65 100 2.1 kg
(4.6 Ib)
4.5T C SKC3400300 3.0 3.0 16 9.5 11.2 7.2 10.8 55
5.5T C SKC3400400 4.0 5.0 16 11.9 13.4 9.0 13.5 55
7T D SKD3400550 5.5 7.5 16 12.4 14.3 13.0 19.5 53 4.7
kg(10.4Ib)
10T D SKD3400750 7.5 10 20 15.6 16.9 16.5 24.75 53
110V drives contain a voltage doubler circuit on the AC input.
NOTE
The output voltage can be increased by 20% during deceleration. See Pr 30 on page 31
NOTE
The maximum continuous current inputs are used to calculate input cable and fuse
sizing. Where no maximum continuous input currents are indicated, use the typical full
load input current values. See Digidrive SK Technical Data Guide for cable and fuse
data.
NOTE

10 Digidrive SK Getting Started Guide
www.leroy-somer.com Issue Number: d
3 Mechanical Installation
The drive complies with the requirements of IP20 as standard.
Figure 3-1 Digidrive SK dimensions
Mounting holes: 4 x M4 holes (size A to C), 4 x M5 holes (size D)
Table 3-1 Digidrive SK dimensions
*Size C and D are not DIN rail mountable.
The DIN rail used should conform to DIN46277-3
Enclosure
The drive is intended to be mounted in an enclosure which prevents access except by
trained and authorised personnel, and which prevents the ingress of contamination. It is
designed for use in an environment classified as pollution degree 2 in accordance with
IEC 60664-1. This means that only dry, non-conducting contamination is acceptable.
WARNING
ABI
G
D
C
H
E
E
F
G
D
C
Drive
size
ABCDEFGH*I
mm in mm in mm in mm in mm in mm in mm in mm in mm in
A 140 5.51 154 6.06 11 0.43 64 2.52 75 2.95 145 5.71 104 4.09 143 5.63
B 190 7.48 205 8.07 10.9 0.43 65.9 2.6 85 3.35 77 3.0 156 6.15 155.5 6.12 194 7.64
C 240 9.45 258 10.16 10.4 0.41 81.1 3.2 100 3.94 91.9 3.62 173 6.81 244 9.61
D 300 11.81 335 13.19 14.5 0.57 100.5 3.96 115 4.53 198 7.80 315 12.4
If DIN rail mounting is used in an installation where the drive is to be subjected to shock
or vibration, it is recommended that the bottom mounting screws are used to secure the
drive to the back plate.
If the installation is going to be subjected to heavy shock and vibration, then it is
recommended that the drive is surface mounted rather than DIN rail mounted.
NOTE
The DIN rail mounting mechanism has been designed so no tools are required to install
and remove the drive from a DIN rail. Please ensure the top mounting lugs are located
correctly on the DIN rail before installation is initiated.
NOTE

Digidrive SK Getting Started Guide 11
Issue Number: d www.leroy-somer.com
Safety
Information Rating Data
Mechanical
Installation
Electrical
Installation
Keypad and
Display Parameters Quick Start
Commissioning Diagnostics Options Parameter List UL Listing
Information
Figure 3-2 Minimum mounting clearances
*This is the minimum spacing between drives at the base of the drive where it is
mounted against a back plate.
Figure 3-3 Features of the drive (size B illustrated)
Drive size ABC
mm in mm in mm in
A
10 0.39
00
100 3.94
B (≤0.75kW) 10* 0.39*
B (≥1.1kW) or B (110V) 0 0
C 50* 1.97*
D00
AABC
C
Display
Smart / Logic
Stick slot
Power
terminals
Control
terminals
Serial
communications
port connector
EMC filter tab
Solutions Module
connector
protective cover
(size B and C
only)
Solutions Module
slot (size B, C
and D only)

12 Digidrive SK Getting Started Guide
www.leroy-somer.com Issue Number: d
4 Electrical Installation
4.1 Power terminal connections
Figure 4-1 Size A power terminal connections
Figure 4-2 Sizes B, C and D power terminal connections
*For further information, see section 4.3.1 Internal EMC filter on page 14.
Optional
ground
connection
+
L1 L2/N U V W PE
Supply
ground
Optional
line reactor
Braking
resistor
Mains supply
Optional
Thermal
protection
device
Stop
Start/
Reset
PE
Supply
ground
Internal
EMC filter
*
Optional
EMC filter
Optional ground
connection
Supply
ground
Optional
EMC filter
Optional
line reactor
Fuses
Mains supply
L3/N U V W
+
PE PE
L1 L2
_
L3/N U V WL1 L2
+
PE PE
_
Supply
ground
Internal
EMC filter
*
Start/
Reset
Braking
resistor
Optional
Thermal
protection
device
Stop
Fuses/MCB
The AC supply to the drive must be fitted with suitable protection against overload and
short circuits. Failure to observe this requirement will cause risk of fire.
See the Digidrive SK Technical Data Guide for fuse data.
WARNING

Digidrive SK Getting Started Guide 13
Issue Number: d www.leroy-somer.com
Safety
Information Rating Data Mechanical
Installation
Electrical
Installation
Keypad and
Display Parameters Quick Start
Commissioning Diagnostics Options Parameter List UL Listing
Information
4.2 Ground leakage
The ground leakage current depends upon the internal EMC filter being fitted. The drive
is supplied with the filter fitted. Instructions for removal of the internal EMC filter are
given in section 4.3.2 Removing the internal EMC filter .
With internal EMC filter fitted
30 µ A DC (10M Ω internal bleed resistor, relevant where DC leakage current is being measured)
Size A
1 phase 110V drives
4mA AC at 110V, 50Hz (proportional to supply voltage and frequency)
1 phase 200V drives
10mA AC at 230V, 50Hz (proportional to supply voltage and frequency)
Size B
1 phase 110V drives
10mA AC at 110V, 50Hz (proportional to supply voltage and frequency)
Size B and C
1 phase 200V drives
20mA AC at 230V, 50Hz (proportional to supply voltage and frequency)
3 phase 200V drives
8mA AC at 230V, 50Hz (proportional to supply voltage and frequency)
3 phase 400V drives
8.2mA AC at 415V, 50Hz (proportional to supply voltage and frequency)
Size D
1 phase 200V drives
20.5mA AC at 230V, 50Hz (proportional to supply voltage and frequency)
The drive must be grounded by a conductor sufficient to carry the prospective fault
current in the event of a fault. See also the warning in section 4.2 Ground leakage
relating to ground leakage current.
WARNING
To avoid a fire hazard and maintain validity of the UL listing, adhere to the specified
tightening torques for the power and ground terminals. Refer to the table below.
WARNING
Frame size Maximum power terminal screw torque
A 0.5 N m / 4.4 lb in
B, C and D 1.4 N m / 12.1 lb in
Braking resistor: High temperatures and overload protection
Braking resistors can reach high temperatures. Locate braking resistors so that damage
cannot result. Use cable having insulation capable of withstanding the high temperatures.
It is essential that the braking resistor be protected against overload caused by a failure
of the brake control. Unless the resistor has in-built protection, a circuit like those shown
in
Figure 4-1 and Figure 4-2 should be used, where the thermal protection device
disconnects the AC supply to the drive. Do not use AC relay contacts directly in series
with the braking resistor circuit, because it carries DC.
WARNING
When connecting single phase to a dual rated 200V unit, use terminals L1 and L3.
NOTE
For control terminal connections, see Pr 05 on page 23.
NOTE
For information on the internal EMC filter, see section 4.3.1 Internal EMC filter .
NOTE

14 Digidrive SK Getting Started Guide
www.leroy-somer.com Issue Number: d
3 phase 200V drives
8mA AC at 230V, 50Hz (proportional to supply voltage and frequency)
3 phase 400V drives
10.5mA AC at 415V, 50Hz (proportional to supply voltage and frequency)
With internal EMC filter removed
<1mA
4.2.1 Use of earth (ground) leakage circuit breakers (ELCB) / residual current
device (RCD)
There are three common types of ELCB/RCD:
Type AC - detects AC fault currents
Type A - detects AC and pulsating DC fault currents (provided the DC current
reaches zero at least once every half cycle)
Type B - detects AC, pulsating DC and smooth DC fault currents
• Type AC should never be used with drives
• Type A can only be used with single phase drives
• Type B must be used with three phase drives
4.3 EMC
4.3.1 Internal EMC filter
It is recommended that the internal EMC filter is kept in place unless there is a specific
reason for removing it.
If the drive is to be used on an IT supply, then the filter must be removed.
The internal EMC filter reduces radio-frequency emissions into the mains supply. Where
the motor cable is short, it permits the requirements of EN61800-3 to be met for the
second environment.
For longer motor cables, the filter continues to provide a useful reduction in emission
level, and when used with any length of shielded cable up to the limit for the drive, it is
unlikely that nearby industrial equipment will be disturbed. It is recommended that the
filter be used in all applications unless the ground leakage current is unacceptable or
the above conditions are true.
The above leakage currents are just the leakage currents of the drive with the internal EMC
filter connected and do not take into account any leakage currents of the motor or motor cable.
NOTE
In both cases, there is an internal voltage surge suppression device connected to
ground. Under normal circumstances, this carries negligible current.
NOTE
When the internal EMC filter is fitted, the leakage current is high. In this case, a
permanent fixed ground connection must be provided using two independent conductors
each with a cross-section equal to or exceeding that of the supply conductors. The drive
is provided with two ground terminals to facilitate this. The purpose is to prevent a safety
hazard occurring if a connection is lost.
WARNING

Digidrive SK Getting Started Guide 15
Issue Number: d www.leroy-somer.com
Safety
Information Rating Data Mechanical
Installation
Electrical
Installation
Keypad and
Display Parameters Quick Start
Commissioning Diagnostics Options Parameter List UL Listing
Information
4.3.2 Removing the internal EMC filter
Figure 4-3 Removal and re-fitting of internal EMC filter
4.3.3 Further EMC precautions
Further EMC precautions are required if more stringent EMC emission requirements apply:
• Operation in the first environment of EN 61800-3
• Conformity to the generic emission standards
• Equipment which is sensitive to electrical interference operating nearby
In this case it is necessary to use:
• The optional external EMC filter
• A screened motor cable, with screen clamped to the grounded metal panel
• A screened control cable, with screen clamped to the grounded metal panel
A full range of external EMC filters is also available for use with Digidrive SK.
4.4 Control terminals I/O specification
Internal
EMC filter
Tab fully inserted:
EMC filter fitted
Internal
EMC filter
B
Tab fully extended:
EMC filter disconnected
A
The control circuits are isolated from the power circuits in the drive by basic insulation
(single insulation) only. The installer must ensure that the external control circuits are
insulated from human contact by at least one layer of insulation (supplementary
insulation) rated for use at the AC supply voltage.
WARNING
If the control circuits are to be connected to other circuits classified as Safety Extra Low
Voltage (SELV) (e.g. to personal computer), an additional isolating barrier must be
included in order to maintain the SELV classification.
WARNING
The above warnings also apply to the PCB edge connector for the optional Solutions
Modules. To allow a Solutions Module to be fitted to Digidrive SK, a protective cover must
be removed to allow access to the PCB edge connector. See Figure 3-3 on page 11. This
protective cover provides protection from direct contact of the PCB edge connector by the
user. When this cover is removed and a Solutions Module fitted, the Solutions Module
provides the protection from direct contact by the user. If the Solutions Module is then
removed, this PCB edge connector becomes exposed. The user is required to provide
protection in this case, to protect against direct contact of this PCB edge connector.
WARNING

16 Digidrive SK Getting Started Guide
www.leroy-somer.com Issue Number: d
0-20: Current input 0 to 20mA (20mA full scale)
20-0: Current input 20 to 0mA (0mA full scale)
4-20: Current input 4 to 20mA with current loop loss (cL1) trip (20mA full scale)
20-4: Current input 20 to 4mA with current loop loss (cL1) trip (4mA full scale)
4-.20:Current input 4 to 20mA with no current loop loss (cL1) trip (20mA full scale)
20-.4:Current input 20 to 4mA with no current loop loss (cL1) trip (4mA full scale)
VoLt: 0 to 10V input
See Pr 05 on page 23 (Drive configuration) for terminal connection / set-up diagrams and
details.
NOTE
The digital inputs are positive logic only.
NOTE
The analogue inputs are unipolar. For information on a bipolar input, see the Digidrive
SK Advanced User Guide.
NOTE
T1 0V common
T2 Analogue input 1 (A1), either voltage or current (see Pr 16)
Voltage: Current input 0 to 10V / mA as parameter range
Parameter range 4-20, 20-4, 0-20, 20-0, 4-.20, 20-.4, VoLt
Scaling Input range automatically scaled to Pr 01 Minimum set
speed / Pr 02 Maximum set speed
Input impedance 200Ω (current) / 100kΩ(voltage)
Resolution 0.1%
T3 +10V reference output
Maximum output current 5mA
T4 Analogue input 2 (A2), either voltage or digital input
Voltage: Digital input 0 to +10V / 0 to +24V
Scaling (as voltage input) Input range automatically scaled to Pr 01 Minimum set
speed / Pr 02 Maximum set speed
Resolution 0.1%
Input impedance 100kΩ (voltage) / 6k8 (digital input)
Normal threshold voltage (as digital input) +10V (positive logic only)
T5 Status relay - Drive healthy (Normally open)
T6
Voltage rating 240Vac/30Vdc
Current rating
2Aac 240V
4Adc 30V resistive load (2A 35Vdc for UL requirements)
0.3Adc 30V inductive load (L/R = 40ms)
Contact isolation 1.5kVac (over voltage category II)
Operation of contact
OPEN
AC supply removed from drive
AC supply applied to drive with drive in tripped condition
CLOSED
AC supply applied to drive with drive in a 'ready to run' or
'running' condition (not tripped)

Digidrive SK Getting Started Guide 17
Issue Number: d www.leroy-somer.com
Safety
Information Rating Data Mechanical
Installation
Electrical
Installation
Keypad and
Display Parameters Quick Start
Commissioning Diagnostics Options Parameter List UL Listing
Information
If the enable terminal is opened, the drive’s output is disabled and the motor will coast to
a stop. The drive will not re-enable for 1.0s after the enable terminal is closed again.
*Following a drive trip, opening and closing the enable terminal will reset the drive. If the
run forward or run reverse terminal is closed, the drive will run straight away.
**Following a drive trip and a reset via the stop/reset key, the enable, run forward or run
reverse terminals will need to be opened and closed to allow the drive to run. This
ensures that the drive does not run when the stop/reset key is pressed.
The enable, run forward and run reverse terminals are level triggered apart from after a
trip where they become edge triggered. See * and ** above.
If the enable and run forward or enable and run reverse terminals are closed when the
drive is powered up, the drive will run straight away up to a set speed.
If both the run forward and run reverse terminals are closed, the drive will stop under the
control of the ramp and stopping modes set in Pr 30 and Pr 31.
Provide fuse or other over-current protection in status relay circuit.
WARNING
B1 Analogue voltage output - Factory setting = motor speed (see Pr 36)
Voltage output 0 to +10V
Scaling 0V represents 0Hz/rpm output
+10V represents the value in Pr 02 Maximum set speed
Maximum output current 5mA
Resolution 0.1%
B2 +24V output
Maximum output current 100mA
B3 Digital output - Factory setting = zero speed (see Pr 35)
Voltage range 0 to +24V
Maximum output current 50mA at +24V (current source)
The total available current from the digital output plus the +24V output is 100mA.
NOTE
B4 Digital Input - Enable/Reset*/**
B5 Digital Input - Run Forward**
B6 Digital Input - Run Reverse**
B7 Digital Input - Local/Remote speed reference select (A1/A2)
Logic Positive logic only
Voltage range 0 to +24V
Nominal threshold voltage +10V

18 Digidrive SK Getting Started Guide
www.leroy-somer.com Issue Number: d
5 Keypad and Display
The keypad and display are used for the following:
• Displaying the operating status of the drive
• Displaying a fault or trip code
• Reading and changing parameter values
• Stopping, starting and resetting the drive
Figure 5-1 Keypad and display
on the display indicates if motor map 1 or 2 is selected.
5.1 Programming keys
The MODE key is used to change the mode of operation of the drive.
The UP and DOWN keys are used to select parameters and edit their values. In
keypad mode, they are used to increase and decrease the speed of the motor.
5.2 Control keys
The START key is used to start the drive in keypad mode.
The STOP/RESET key is used to stop and reset the drive in keypad mode. It can
also be used to reset the drive in terminal mode.
M
M
It is possible to change parameter values more quickly. See Chapter 4 Keypad and
display in the Digidrive SK Advanced User Guide for details.
NOTE

Digidrive SK Getting Started Guide 19
Issue Number: d www.leroy-somer.com
Safety
Information Rating Data Mechanical
Installation
Electrical
Installation
Keypad and
Display
Parameters Quick Start
Commissioning Diagnostics Options Parameter List UL Listing
Information
5.3 Selecting and changing parameters
Figure 5-2
When in Status mode, pressing and holding the MODE key for 2 seconds will
change the display from displaying a speed indication to displaying load indication and
vice versa.
Pressing and releasing the MODE key will change the display from status mode to
parameter view mode. In parameter view mode, the left hand display flashes the
parameter number and the right hand display shows the value of that parameter.
Pressing and releasing the MODE key again will change the display from parameter
view mode to parameter edit mode. In parameter edit mode, the right hand display
flashes the value in the parameter being shown in the left hand display.
Pressing the MODE key in parameter edit mode will return the drive to the
parameter view mode. If the MODE key is pressed again then the drive will return to
status mode, but if either of the up or down keys are pressed to change the
parameter being viewed before the MODE key is pressed, pressing the MODE
key will change the display to the parameter edit mode again. This allows the user to
very easily change between parameter view and edit modes whilst commissioning the
drive.
This procedure is written from the first power up of the drive and assumes no terminals
have been connected, no parameters have been changed and no security has been set.
NOTE
M
STATUS MODE
or
PARAMETER VIEW MODE
Select parameter to view
orPress
Parameter number flashing
PARAMETER EDIT MODE
Change parameter value
orPress
Parameter value flashing
M M
Press and
hold for 2s
M M
Parameters
saved
Press and
release
M
Hold
for 2s
4 mins
timeout
/
/
/
Press and
release
Press and
release
Press and
release
M
M
M
M
M
M M

20 Digidrive SK Getting Started Guide
www.leroy-somer.com Issue Number: d
Status Modes
Speed Indications
Load indications
5.4 Saving parameters
Parameters are automatically saved when the MODE key is pressed when going
from parameter edit mode to parameter view mode.
5.5 Parameter access
There are 3 levels of parameter access controlled by Pr 10. This determines which
parameters are accessible. See Table 5-1.
The setting of the user security Pr 25 determines whether the parameter access is read
only (RO) or read write (RW).
Table 5-1
Left hand
display
Status Explanation
Drive ready The drive is enabled and ready for a start command. The
output bridge is inactive.
Drive inhibited
The drive is inhibited because there is no enable command,
or a coast to stop is in progress or the drive is inhibited during
a trip reset.
Drive has tripped The drive has tripped. The trip code will be displayed in the
right hand display.
DC injection braking DC injection braking current is being applied to the motor.
Mains loss See the Digidrive SK Advanced User Guide.
Display
Mnemonic
Explanation
Drive output frequency in Hz
Motor speed in rpm
Machine speed in customer define units
Display
Mnemonic
Explanation
Load current as a % of motor rated load current
Drive output current per phase in A
M
Parameters Pr 61 to Pr 80 are only stored by holding down the STOP/RESET key
for 2 s
NOTE
Parameter access (Pr 10) Parameters accessible
L1 Pr 01 to Pr 10
L2 Pr 01 to Pr 60
L3 Pr 01 to Pr 95
