Leroy-Somer FMV 2307 Instruction Manual

FMV 2107/FMV 2307
Digital frequency inverters
for induction motors
Installation and maintenance
Réf. 2210 - 033 / a - 2.96
A1
A2 Minimum
frequency
C3
C2
C1
C6
C7
C8
C10
C12
RP
+10V
Frequency
reference
0V
0V
External trip
Reset
Forward
Reverse
B8
B9
B10 SB4
KA1
B1 Analogue outputs
B2
M
Programming
b5 = 1
b9 = 1
b20 = 0
b50 = 1
888

3
Frequency inverters
FMV 2107
FMV 2307
NOTE
LEROY-SOMER reserves the right to modify its product characteristics at any time to incorporate the latest
technological developments. The information contained in this document may therefore be changed without prior warning.
LEROY-SOMER gives no contractual guarantee whatsoever concerning the information published in this document and
cannot be held responsible for any errors it may contain, nor for any damage arising from its use.
CAUTION
For the user's own safety, this frequency inverter must be connected to an approved earth ( B terminal).
Power electronic equipment such as speed controllers, frequency inverters, soft starters, and inverters cannot be used as
circuit-breaking or isolating devices as specified in standard EN 60204 - 1, section 5.
If an accidental start of the installation represents a risk for personnel or the machinery to be driven, it is imperative to supply the
equipment via an isolating device and a circuit-breaking device (power contactor) controllable by an external safety system
(emergency stop, fault detector).
The frequency inverter is fitted with safety devices which can stop the frequency inverter in the event of faults or even stop the
motor. The motor itself can be jammed by mechanical means. Finally, voltage fluctuations, and particularly power cuts, can also
cause the starter to switch off.
The removal of the cause of the shutdown can lead to restarting, with consequent hazard for certain machines or installations.
In such cases, it is essential that the user takes appropriate precautions against restarting when the motor makes an
unscheduled stop.
This equipment meets with existing construction standards. Nonetheless it may cause interference, and the user is responsible
for carrying out the appropriate action to eliminate such interference.
The frequency inverter is designed to power a motor over and above its rated speed (up to 19 times with some settings).
If the motor is not mechanically capable of operating at such speeds, the user risks serious damage arising from mechanical
deterioration of the motor.
Before programming a high speed, it is essential that the user ensures that the motor can tolerate it.
LEROY-SOMER declines all responsibility in the event of the above recommendations not being observed.
.....................................
DANGER
IMPORTANT
Before any intervention, whether to do with the electrics or the mechanics of the installation or machine :
- ensure that the power to the inverter has been switched off (fused isolator or circuit-breaker) and locked manually.
- wait 7 minutes before working on the associated frequency inverter,
- indicates sections in this manual relating to the safety of workers.

PREFACE
This manual describes how to commission FMV 2107 and FMV 2307 digital technology frequency inverters. It
gives details of all the procedures which should be adopted when working on the inverter and shows
extension options.
FMV 2107/ FMV 2307
Brake
parallel shaft
helical bevel
planetary
Forced
ventilation
D.C.
tachometer
COMPABLOC 2000
ORTHOBLOC 2000
PLANIBLOC 2000
Variable
voltage and
frequency
Induction motor
Gearboxes
Options
,,
,,
,,
,,
,,
,,,,,,
,,,,,,
,,,,,,
,,
,,
,
,,,,,
,
,,,
,
,,,,,
Communication 4 quadrant options
R - FMV
Hoisting options
L - FMV
L - FMV *
Parameter setting
RS 232 / RS 485
interface
+
FN 350 - FN 351
Serial link
Motor choke options
Standard extensions
888
FMV 2107
888
FMV 2307
SELF - MC
using PEGASE * PC
* Available at a later date
RS
232 RS 485
LS - RS
232/485
RFI filter options
4
Frequency inverters
FMV 2107
FMV 2307
FMV 2107 refers to frequency inverters - Power supply 200 to 240V single phase, range 1.5M to 3.5M.
FMV 2307 refers to frequency inverters - Power supply 200 to 240V 3-phase, range 1.5TL to 3.5TL,
- Power supply 380 to 480V 3-phase, range 1.5T to 5.5T.

5
Frequency inverters
FMV 2107
FMV 2307
CONTENTS
Pages
1 - GENERAL INFORMATION
1.1 - General operating principle........................................................................................................... 6
1.2 - Product designation...................................................................................................................... 7
1.3 - Characteristics.............................................................................................................................. 7 to 10
1.4 - Environmental characteristics....................................................................................................... 11
1.5 - Weight and dimensions................................................................................................................. 12
2 - MECHANICAL INSTALLATION
2.1 - Checks on receipt........................................................................................................................ 13
2.2 - Installation precautions................................................................................................................ 13
2.3 - Installing the inverter.................................................................................................................... 13
2.4 - Through-panel mounting............................................................................................................. 14
3 - CONNECTIONS
3.1 - Power terminal blocks ................................................................................................................ 15
3.2 - Control terminal blocks................................................................................................................ 16 - 17
3.3 - Electrical and electromagnetic phenomena associated with frequency inverters....................... 18 - 19
3.4 - Wiring instructions....................................................................................................................... 19 - 20
3.5 - Description of cables and protective devices.............................................................................. 21
3.6 - Special connections..................................................................................................................... 22
3.7 - Connection of the serial link......................................................................................................... 23
3.8 - Connection diagrams .................................................................................................................. 24 to 27
4 - COMISSIONING
4.1 - Procedure for using the operator panel....................................................................................... 28 to 30
4.2 - Setting up the motor-inverter....................................................................................................... 31 - 32
4.3 - Using terminal C9 : maintain ramp.............................................................................................. 32
4.4 - Regulation with integrated PI control loop................................................................................... 32
4.5 - FMV 2107 and FMV 2307 parameters........................................................................................ 33 to 45
4.6 - Guide to settings.......................................................................................................................... 46 to 48
5 - FAULTS - DIAGNOSTICS
5.1 - Display indication - error messages............................................................................................. 49
5.2 - Display indication - inverter status............................................................................................... 50
5.3 - Indication via logic outputs........................................................................................................... 50
5.4 - Flowcharts for locating malfunctions............................................................................................ 51
6 - MAINTENANCE
6.1 - Introduction and advice................................................................................................................ 52
6.2 - Care............................................................................................................................................. 52
6.3 - Measuring voltage, current and power......................................................................................... 52
6.4 - Testing the inverter power stages................................................................................................ 52 - 53
6.5 - Testing the inverter isolation and withstand voltage.................................................................... 53
6.6 - Spare parts list............................................................................................................................. 53
6.7 - Product exchange........................................................................................................................ 53
7 - OPERATING EXTENSIONS
7.1 - R - FMV braking resistances........................................................................................................ 54
7.2 - L - FMV lifting interfaces for FMV 2307T..................................................................................... 54
7.3 - Mains filters (R.F.I.)...................................................................................................................... 55
7.4 - 3-phase motor chokes for attenuation of leakage currents : SELF - MC..................................... 55
7.5 - PEGASE parameter-setting software..........................................................................................55
8 - SUMMARY OF SETTINGS................................................................................................................. 57 - 58

6
Frequency inverters
FMV 2107
FMV 2307
1 - GENERAL INFORMATION
1.1 - General operating principle
The synchronous speed (min-1) of a cage induction motor
is a function of the number of poles (P) it has and the
frequency (F) of its power supply. These values are
related by the equation :
Thus, changing the frequency (F) also changes the
synchronous speed (N) of a given motor.
However, changing the frequency without changing the
supply voltage varies the density of magnetic flux in the
motor. FMV 2107 / FMV 2307 inverters cause the
output VOLTAGE and FREQUENCY to vary
simultaneously. This allows optimisation of the motor
torque curve and prevents overheating.
FMV 2107 / FMV 2307 inverters power the motor by
means of a voltage generated from a steady internal
D.C. voltage. Voltage modulation is achieved using the
principle of pulse width modulation (P.W.M.).
This provides the motor with a current close to a sine
wave with few harmonics.
LS MV motors are designed for use with a frequency
inverter. Their magnetic circuits and windings have been
adapted for use with FMV 2107
/ FMV 2307 inverters.
Thus the motor-inverter unit provides guaranteed torque
performances in all types of operating conditions (please
consult LEROY-SOMER).
1.1.1 - Functional description of the variable speed
controller
The variable speed controller comprises :
• A rectifier for the mains supply voltage, along with a
smoothing capacitor to provide a steady D.C. voltage
which depends on the mains supply voltage.
• An inverter : this D.C. voltage supplies power to the
6-transistor inverter (IGBT). The inverter converts the
D.C. voltage to an A.C. voltage which is modulated in
voltage and frequency.
• Three internal current measurements for the D.C.
bus, the inverter output and the braking transistor.
• An electronic control board
comprising : the microprocessor, the ASIC circuit which
generates PWM and the circuits which amplify the
power control signals.
• A console for entering parameters, reading data and
controlling the inverter.
1.1.2 - Operating diagrams
- FMV 2107
- FMV 2307
N = -----------------------
120 x F
P
Internal
interface Internal interface
I/O
control
Mains
supply
ASIC
PWM
Switching mode
power supply
Control
Operator
panel Inverter
interface
+
Control board
Power board
M
IGBT
DCCT
ACCT
External
braking
resistance
(option)
Internal
interface Internal interface
I/O
control
ASIC
PWM
Control
Operator
panel Inverter
interface
+
Control board
Power board
M
IGBT
DCCT
ACCT External
braking
resistance
(option)
Mains
supply
Switching mode
power supply

1.2 - Product designation
Examples : FMV 2107 - 1.5M, FMV 2307 - 1.5TL and
FMV 2307 - 1.5T
FMV 2107 : frequency inverter for general applications
and single phase 200V/240V supply.
FMV 2307 : frequency inverter for general applications
and 3-phase supply
1.5 = Rating in kVA.
M = Single phase supply.
TL = 3-phase 200V/240V supply.
T = 3-phase 380V/440V supply.
This designation is shown on the identification plate.
1.3 - Characteristics
1.3.1 - Electrical characteristics
7
Frequency inverters
FMV 2107
FMV 2307
Characteristics FMV 2107 FMV 2307 FMV 2307
1.5M to 3.5M 1.5TL to 3.5TL 1.5T to 5.5T
Power single phase 3-phase 3-phase
supply 200 to 240V to ±10% 200 to 240V to ±10% 380 to 440V ±10% 48 to 56 Hz
48 to 62 Hz 48 to 62 Hz 380 to 480V ±10% 58 to 62 Hz
Rating 1.5M 2.5M 3.5M 1.5TL 2.5TL 3.5TL 1.5T 2T 2.5T 3.5T 4.5T 5.5T
Supply current 7 14 18 5 10 13 3,5 4,5 5,5 9 11 13
Output current 4,3 7 10 4,3 7 10 2,1 2,8 3,8 5,6 7,6 9,5
Motor power 0,75 1,5 2,2 0,75 1,5 2,2 0,75 1,1 1,5 2,2 3 4
Output voltage from 0V to supply from 0V to supply from 0V to supply voltage
voltage voltage
Max nbr of power-ups per hour 20 20 20
Continuous braking current 6 6 6
Peak braking current 15 15 15
FMV 2107
1.5 M
Il est indispensable de lire
la notice avant de raccorder
cet appareil
It is essential to read
the instructions before
connecting the inverter
Après mise hors tension,
attendre 5 minutes
pour toute intervention
dans l'appareil
After switching off
the inverter, wait 5 minutes
before performing
maintenance or inspection
ENTRÉE / INPUT
1 Ph. 200 - 240 V
50 - 60 Hz
Serial N° :
Date :
XXXXXX
XX/XX/XX
SORTIE /
OUTPUT
3 Ph. 0 - 240 V
0.75 KW
4,3 A
FMV 2307
1.5 TL
Il est indispensable de lire
la notice avant de raccorder
cet appareil
It is essential to read
the instructions before
connecting the inverter
Après mise hors tension,
attendre 5 minutes
pour toute intervention
dans l'appareil
After switching off
the inverter, wait 5 minutes
before performing
maintenance or inspection
ENTRÉE / INPUT
3 Ph. 200 - 240 V
50 - 60 Hz
Serial N° :
Date :
XXXXXX
XX/XX/XX
SORTIE /
OUTPUT
3 Ph. 0 - 240 V
0.75 KW
4,3 A
FMV 2307
1.5 T
Il est indispensable de lire
la notice avant de raccorder
cet appareil
It is essential to read
the instructions before
connecting the inverter
Après mise hors tension,
attendre 5 minutes
pour toute intervention
dans l'appareil
After switching off
the inverter, wait 5 minutes
before performing
maintenance or inspection
ENTRÉE / INPUT
3 Ph. 50Hz
380-440V
3 Ph. 60Hz
380-480V
Serial N° :
Date :
XXXXXX
XX/XX/XX
SORTIE /
OUTPUT
3 Ph. 0 - 480 V
0.75 KW
2,1 A

1.3.2 - Characteristics and functions
8
Frequency inverters
FMV 2107
FMV 2307
Regulation mode Voltage/Frequency characteristic
Regulation Frequency reference.
" Torque " reference : current regulation in the motor.
Ratio : U/f ratio may be adjusted by the base frequency.
Voltage (U) / Frequency (f) Fixed U/f ratio : constant torque, or dynamic U/f ratio : variable torque according to the load.
Switching frequency
Frequency accuracy ±0.01 % of the maximum adjusted range for a digital reference (preset speed or
serial link).
Frequency resolution - Reference via serial link : 0.001 Hz.
- Digital reference *< 100 : 0.1 Hz.
- Digital reference *≥100 : 1 Hz.
- 10 bit resolution - 8 bit accuracy.
Incrementation of P2 and P3 : proportional to the display.
parameters P0, P1, P7, P10 to P15 and P20 to P27 : 0.1 Hz for LFm < 480 Hz,
0.3 Hz for LFm > 480 Hz and 0.5 Hz for LFm = 960 Hz.
Display resolution 0.1 Hz from 0 to 100, 1 from 101 to 999.
Slip compensation
Overload capacity 150 % In for 60s.
Braking Hypersynchronous braking :
- inverter alone,
- with options R - FMV.
D.C. injection braking.
Torque at low frequency - Fixed by programming.
(Boost) - Automatically adjusted according to the load.
Inverter control Via operator panel.
Via terminal block.
Via serial link.
Frequency reference Analogue reference :
- voltage : 0 to +10V or ±10V (input impedance 110 kΩ),
- current : 4 to 20mA, 20 to 4mA, 0 to 20mA (impedance 100Ω).
Digital reference :
- via preset speed,
- via command on operator panel,
- via serial link.
Torque reference Analogue reference : 0 to +10V D.C. (impedance 27 kΩ).
Digital reference : programmable via serial link.
Torque limitation Via analogue reference (impedance 27 kΩ).
Local/Remote Via terminal C11
Frequency reference - Local : voltage, terminal C2,
changeover - Remote : current, terminal C5, following b11.
Fwd/Rev operation Via the terminal block, terminal C10 Forward Operation, terminal C12 Reverse Operation.
Via the operator panel
Via the serial link.
CHARACTERISTICS
*Digital reference : via preset speed or operator panel.
Switching frequency (kHz) 2,9 5,9 8,8 11,7
Maximum output frequency (Hz) 120 240 480 960
Maximum output frequency (Hz) 120 240 480 960
Compensation range (Hz) 0 to 5 0 to 10 0 to 20 0 to 25
CONTROL

1.3.2 - Characteristics and functions (continued)
9
Frequency inverters
FMV 2107
FMV 2307
Acceleration/deceleration Separate adjustments from 0.2 to 600 s : linear characteristics.
ramps
Preset speeds Either : 3 programmable speeds (plus the reference) + jog (inch) function.
Or : 7 programmable speeds (plus the reference).
Acceleration/deceleration Selection : - analogue reference ramps,
ramps with - special independent ramps
preset speeds
Frequency limitation Variation of the reference between 2 limits.
Minimum/Maximum
Frequency skipping 3 frequency skips with adjustable skip band, to prevent mechanical resonance phenomena.
Jogging Adjustable frequency : 0 to 15 Hz.
Separate acceleration and deceleration ramps : 0.2 to 600s.
Stopping mode Freewheel stop : instantaneous brake of motor supply.
Braking in ramp (2 modes).
D.C. injection braking.
D.C. injection Braking torque : 40 to 150 % In.
braking Braking until motor stop and holding torque for 1 second.
Automatic reset - 1 to 5 attempts to restart,
- adjustment from 1 to 5 seconds between 2 attempts,
- the external fault " Et " is not involved.
Catch spinning motor Possibility of starting the inverter when the motor is rotating.
Protection Access to parameters limited by an access code.
Loss of current reference Reference value < 3 mA.
(4-20 / 20 - 4 mA) The function can be disabled by b26.
CPU fault Internal inverter fault at power up.
External trip Trip forced by the terminal block or via the serial link.
Overload (I x t) Electronic thermal relay.
Overheated inverter Protection of the inverter by thermal probes on the cooling unit.
Overheated motor PTC probe :
- tripping with PTC resistance > 3 kΩ(motor too hot),
- reset with PTC resistance = 1.8 kΩ.
PTO probe.
Overcurrent 185 % of the rated current.
Short-circuit Protection against short-circuits between phases and earths at the inverter output.
Phase - phase
Phase - Earth
Phase loss/ Supply cut
phase imbalance Supply voltage drop :
- < 170V for FMV 2107,
- < 300V for FMV 2307.
Undervoltage D.C. bus voltage below its operating range.
Overvoltage For an inappropriate deceleration time or for too high a voltage on the mains supply.
Internal supply fault Monitoring of inverter internal power supplies.
Reset Trip reset : " STOP/RESET " key on the operator panel or terminal C8 on
the terminal block, depending on the control mode.
OPERATION
TRIPS

10
Frequency inverters
FMV 2107
FMV 2307
Display On the operator panel :
- output frequency in Hz,
or
- output current as a % of the rated current In.
Status relay 240 V.A.C. relay - 6A (resistive load).
Activated when : the inverter is healthy or the frequency is higher than the minimum
frequency (P0).
Inverter status output Open collector : 24V internal source, 100 mA.
Activated when : the inverter is running or the frequency is higher than the minimum
frequency.
Frequency : - 0 to ±10V, 5mA, precision ±2 % : 0V = zero frequency, 10V = max. adjusted frequency.
analogue output - 4 to 20 mA precision ±2 % : 4 mA = zero frequency, 20 mA = max. adjusted frequency.
Motor load : - 0 to ±10V, 5 mA, precision ±10 % for F > 15 Hz, 0V = zero current, 10V = 1.5 In
analogue output - 4 to 20mA, precision ±10 % for F > 15 Hz, 4mA = zero current, 20mA = 1.5 In.
Motor current reached - 0V : current less than P5
logic output - 10V : P5 reached
Diagnostic The last 10 trip codes are stored.
Communication : PLC, PC, etc.
RS 485 and RS 422, protocol ANSI x 3.28 - 2.5 - A4.
RFI filter - FMV 2107 : FN 350-8-29 and FN 350-20-29
- FMV 2307 : FN 351-8-29 and FN 351-16-29
Leakage current SELF - MC 3.5T and 11T
attenuation chokes
Braking resistors - FMV 2107 : R-FMV 140M and R-FMV 320M
(4 quadrants) R - FMV - FMV 2307 : R-FMV 320T to R-FMV 2000T
Hoisting module - FMV 2307 T : L - FMV *
Control and supervision
software PEGASE
INDICATIONS
OPTIONS
SERIAL LINK

1.4 - Environmental characteristics
1.4.1 - General
b - Installation in a non-ventilated cubicle
The minimum required surface area for heat
exchange is calculated from the following equation :
where :
Pj = loss from all heat-producing equipment (W).
Tj = maximum permissible ambient operating
temperature (°C).
Tamb = maximum ambient external temperature (°C).
k = thermal transmission cœfficient.
S = heat exchange area (m2).
k = 5.5 for 2mm thick sheet steel.
Example : installation of an FMV in a non-ventilated IP 54
cubicle (cubicle placed against a wall).
Pj = 114W (FMV 2107 2,5M) for switching F = 11.7kHz.
Tj = 40°C.
Tamb = 30 °C for example.
k = 5.5.
The calculated heat exchange area is S = 2.07m2and
S = 2 (AB) + AC + BC.
Taking the following values for A and B :
A = 1.8 m (height) - B = 0.6 m (depth),
the minimum calculation for C = 0.39 m.
c - Installation in a ventilated cubicle
If it is possible to use forced ventilation (FV) the size of
the cubicle can be reduced. A minimum space of 100 mm
should be left around the inverter.
The flow rate of FV in m3/h is calculated using the
formula
for the previous example.
11
Frequency inverters
FMV 2107
FMV 2307
Characteristics Level
Ingress protection IP31
Storage temperature - 40°C to + 50°C, 12 months maximum.
Operating temperature - 10°C to + 50°C.
Altitude • ≤1000 m without derating.
• Derating : 1 % of INper 100 m above 1000m up to 4000 maximum.
Humidity Non condensing.
Vibration According to IEC 68-2-34 (0.01g2/Hz acceleration)
Shocks According to IEC 68-2-27 (50g peak acceleration)
Immunity According to : - IEC 801-2 Level 3
- IEC 801-3 Level 3
- IEC 801-4 Level 3
Emissions conducted According to : - EN 50081-1 (VDE 875 N) with : 2.9 kHz switching frequency
and supply filter
- EN 50081-2 (VDE 875 G) with supply filter
radiated According to EN 50081-2

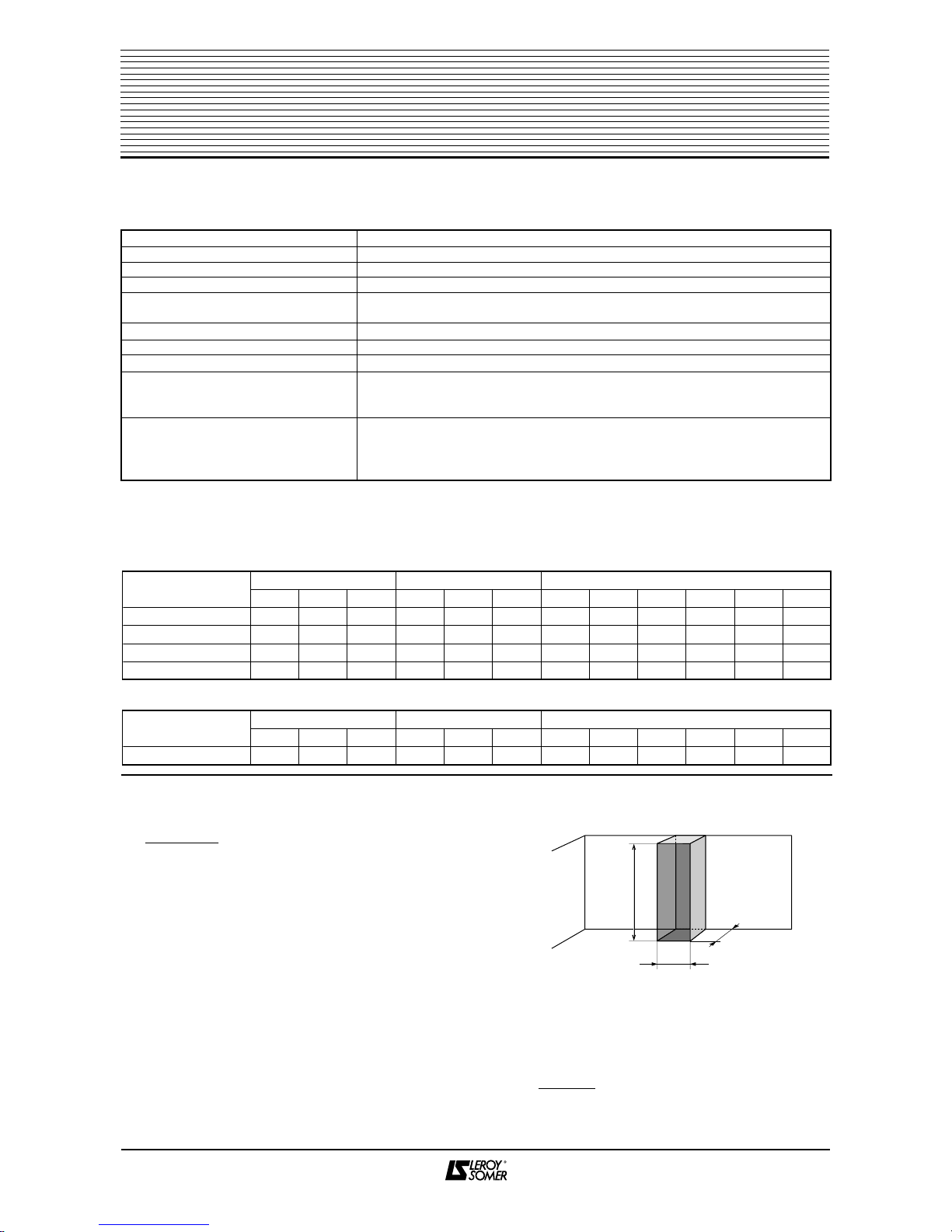

1.4.2 - Installation in a cubicle
Installing the inverter in a cubicle calls for special precautions with regard to the size of the enclosure. It is important to check
that there is sufficient heat dissipation.
a - Table of losses in Watts (W)
- Table of flow rates for forced ventilation (m3min)
Switching FMV 2107 FMV 2307 FMV 2307
frequency 1.5M 2.5M 3.5M 1.5TL 2.5TL 3.5TL 1.5T 2T 2.5T 3.5T 4.5T 5.5T
2.9 kHz 64 67 82 52 62 81 41 46 55 75 90 110
5.9 kHz 70 73 115 61 72 93 44 57 67 89 105 120
8.8 kHz 88 93 131 67 80 108 49 65 73 97 120 135
11.7 kHz 90 114 140 71 85 124 61 72 89 119 138 148
S = Pj
k (Tj - Tamb)
Forced FMV 2107 FMV 2307 FMV 2307
ventilation 1.5M 2.5M 3.5M 1.5TL 2.5TL 3.5TL 1.5T 2T 2.5T 3.5T 4.5T 5.5T
Flow rate (m3min) - 0,72 0,72 - 0,72 0,72 - - 0,72 0,72 0,72 0,72
A
C
B
V = 3.1 Pj
T
j
- T
a
m
b
= 35,3 m3/h

12
Frequency inverters
FMV 2107
FMV 2307
1.5 - Weight and dimensions
1.5.1 - Weight 1.5.2 - Dimensions
These are identical for inverters :
- FMV 2107 1.5M to 3.5M
- FMV 2307 1.5TL to 3.5TL
- FMV 2307 1.5T to 5.5T
Overall dimensions
FMV 2107 Weight (kg)
1.5M 3,05
2.5M 3,25
3.5M 3,35
FMV 2307 Weight (kg)
1.5TL 3,05
2.5TL 3,25
3.5TL 3,35
FMV 2307 Weight (kg)
1.5T 3.05
2T 3.10
2.5T 3.10
3.5T 3.10
4.5T 3.40
5.5T 3.40
888
FMV 2107
AB
C
Label A B C
Dimensions (mm) 91 200 293

13
Frequency inverters
FMV 2107
FMV 2307
2 - MECHANICAL INSTALLATION
2.1 - Checks on receipt
Before installing the inverter, ensure that :
- the inverter has not been damaged in transit,
- the fixing accessories are included,
- the identification plate corresponds to the power supply
and the motor.
2.2 - Installation precautions
FMV 2107 and FMV 2307 inverters must be installed in a
risk-free atmosphere, away from conductive dust,
corrosive gases and water leaks.
If this is not the case, it is recommended that they are
installed in an enclosure or a cubicle. (See section
1.4.2 for cubicle dimensions).
Mount the inverter upright, allowing 100 mm above and
below.
To prevent overheating problems, install the inverters
side by side and not on top of each other.
2.3 - Installing the inverter
2.3.1 - General
The installation is identical for the following inverters
FMV 2107 1.5M to 3.5M, FMV 2307 1.5TL to 3.5TL and
FMV 2307 1.5T to 5.5T.
Depending on the fixing accessories used, the inverter
can be installed in 3 different ways :
- on DIN rail,
- on a frame,
- cooling unit outside the cubicle.
2.3.2 - DIN rail mounting
1) Fix the DIN rail support above the cooling unit using the
M5 screw supplied.
2) Suspend the inverter on the DIN rail by inclining the top
towards the back.
3) Insert the foot mounting into the groove at the base of the
cooling unit.
4) Fix the foot mounting to the chassis using an M5 screw.
2.3.3 - Mounting on frame
1) Fix the support above the cooling unit using the M5
screw supplied.
2) Fix the inverter to the frame using 2 x M5 screws.
3) Insert the foot mounting into the groove at the base of
the cooling unit.
4) Fix the foot mounting to the frame using an M5 screw.
FMV 2107
888
M
Screw
B
C
D
E
Label B C D E Screw
Dimensions (mm) 35 37,5 258 15 M5
FMV 2107
888
M
Screw
C
D
E
A B
Screw
Label ABCDEScrew
Dimensions (mm) 16 6,5 7,5 303 15 M5

14
Frequency inverters
FMV 2107
FMV 2307
2.4 - Through-panel mounting
1) Cut out and drill the rear panel of the cubicle.
2) Fix the Z shaped support above the cooling unit.
3) Insert the inverter in the cut-out of the rear panel and fix it in place using 2 M5 screws.
4) Insert the foot mounting in the aperture at the bottom of the unit.
5) Fix the foot mounting to the rear panel of the cubicle.
Caution : Ensure that the air flow rate at the back of the cubicle is sufficient.
Label ABCDEFGHScrew
Dimensions (mm) 16 6,5 7,5 303 15 269 78 20 M5
FMV 2107
888
M
Screw Cut-out
C H
D F
E
G
A AB
Screw
,,
,,
,,
,,
,,
,,

3 - CONNECTIONS
Connection of the control terminal blocks is identical for
inverters :
- FMV 2107 1.5M to 3.5M,
- FMV 2307 1.5TL to 3.5TL,
- FMV 2307 1.5T to 5.5T.
Connection of the power terminal blocks differs
according to the type and rating of the inverter.
To gain access to the control and power terminal blocks,
remove the bottom cover and lift it through the cable
way, see illustration below.
Front panel of inverter
3.1 - Power terminal blocks
3.1.1 - FMV 2107 1.5M to 3.5M
The power supply terminal block is located at the base of
the product, the motor and D.C. bus terminal blocks are
located to the left and above.
Caution :
- never connect a circuit such as a bank of
capacitors between the inverter output and the
motor,
- never connect the A.C. supply to the inverter
U - V - W terminals,
- It is essential to protect the R - FMV optional
braking resistors by a thermal relay rated at the rms
current of the resistor.
3.1.2 - FMV 2307 1.5TL to 3.5TL - FMV 2307 1.5T to
5.5T
The power supply terminal block is located at the base of
the product, the motor and D.C. bus terminal blocks are
located to the left and above.
Caution :
- never connect a circuit such as a bank of
capacitors between the inverter output and the
motor,
- never connect the A.C. supply to the inverter
U - V - W terminals,
- It is essential to protect R - FMV optional braking
resistors, by a thermal relay rated at the rms current
of the resistor.
3.1.3 - Motor connection
Motors with a 230V/400V power supply are connected
as follows :
15
Frequency inverters
FMV 2107
FMV 2307
Label Function
L - N Inverter single phase supply
B
Earthing connection to power supply
+ Connection of optional R - FMV resistance
- - D.C. bus
U - V - W Motor power supply (see section 3.1.3)
B
Earthing connection to motor
+
LN
-
U
V
W
B
B
D.C. bus
Power supply
Motor
888
FMV 2107
+
L1 L2 L3
-
U
V
W
B
B
D.C. bus
Power supply
Motor
Label Function
L1 - L2 - L3 Inverter 3-phase supply
B
Earthing connection to power supply
+ Connection of the R - FMV optional
resistance (min. value 33 Ω)
- - D.C. bus
U - V - W Motor power supply (see section 3.1.3)
B
Earthing connection to the motor
Inverter Motor connection
FMV 2107 1.5M to 3.5M ∆
FMV 2307 1.5TL to 3.5TL ∆
FMV 2307 1.5T to 5.5T Υ

16
Frequency inverters
FMV 2107
FMV 2307
3.2 - Control terminal blocks
These are located at the top of the product and above to the right.
A1
A2
Relay output
Logic ouput
+24V 100mA supply
0V
A3
A4 +24V
A5 0V
A6
A7
B1
B2
B3
B4
B5
B6
B7
B8
B9
B10
C1
C2
+10V C3
C4
C6
C5
C7
C8
C9
C10
C12
C11
PTC/PTO 0V
0V
0V
4/20mA
20/4mA
0/20mA
Frequency ref.
Torque ref. Remote
frequency ref.
External trip
Reset
Ramp hold
Run forward
Local/Remote
Run reverse
0 to 10V Analogue outputs
4 to 20mA
Serial link
Inverter
reception
Inverter
transmission
Preset speed 1
Preset speed 2
Preset speed 3
or jog
V
A
Terminal Function Type Electrical characteristics
A1
A2 Programmable relay contacts Relay output
240VAC - 6A resistive load
Contact closed when :
- the inverter is switched on and not tripped
(b50 = 0),
- the inverter is not faulty and the frequency is
above P0 (b50 = 1).
A3 Programmable output Logic output
24VDC - 100 mA open collecter
Output at 0V when :
- the inverter is running (b53 = 0),
- when the frequency is at a minimum (b53 = 1).
Connect a 24VDC relay between A3 and A4.
A4 Power supply Internal source +24VDC, ±10 %, 100mA
A5 0V common to terminals A7, B7, C1, C6 - 0V floating
A6 Motor probe feedback (type PTC or PTO)
If no other motor probe is used, connect A6 to
A7 (0V) Analogue input U output < 2.5V
Trip threshold 3 kΩ±15 %
Reset threshold 1.8 kΩ±15 %
A7 0V common to terminals A5, B7, C1, C6 0V floating
B1
Image proportional to the frequency
Image proportional to the load
Load reached
Analogue output
Analogue output
Logic output
Voltage : 0 to +10V if b24 = 0 and b25 = 0
0 to +10V if b24 = 0 and b25 = 1
0 or +10V if b24 = 1 and b25 = 0
or b24 = 1 and b25 = 1
B2 Signal proportional to the load
Signal proportional to the frequency Analogue output Analogue output Current : 4 to 20mA if b24 = 0 or 1 and b25 = 0 4 to 20mA if b24 = 0 or 1 and b25 = 1
B3 Serial link, RX reception Logic input Non isolated inputs
Input impedance 3.7 kΩ
B4 Serial link RX reception Logic input High logic level (RX - RX > 0.2V)
Low lo
g
ic level
(
RX - RX < -0.2V
)
Note : Analogue outputs B1 and B2 are only indications and cannot be used for control.

17
Frequency inverters
FMV 2107
FMV 2307
Terminals Function Type Electrical characteristics
B5 Serial link, TX Transmission Logic output Non isolated outputs
0 to 5VDC, ±60mA
B6 Serial link, TX Transmission Logic output High logic level (TX = +5V TX = 0V)
Low logic level (TX = 0V TX = 5V)
B7 0V common to terminals A5, A7, C1 and C6 - 0V floating
B8
B9 Selection of preset speeds Logic input Selection via a binary combination, (b20 = 0) of 3 preset speeds plus the reference.
B10
Inching (JOG) or extension for preset speeds
Logic input
If b20 = 0 --> Inching (JOG),
If b20 = 1 --> Selection via a binary combination
with B8 and B9 of 7 preset
speeds plus the reference.
C1 0V common to terminals A5, A7, B7 and C6 - 0V floating
C2 Voltage frequency reference Analogue input
Input impedance = 94 kΩ
- 0 to +10VDC - voltage source or
potentiometer 10 kΩ,
-±10VDC - external voltage source.
C3 Power supply for the reference, frequency
and torque potentiometers. Analogue output +10VDC, ±2 %, 5mA maximum
C4 Torque reference or torque limitation Analogue input Input impedance = 27 kΩ
0 to 10VDC = voltage source or 10 kΩ
potentiometer
C5 * Current frequency reference Analogue input Input impedance = 100 Ω
Current signal = 4 to 20mA, 20 to 4mA, 0 to 20mA
Enable with terminal C11, select with b11
C6 0V common to terminals A5, A7, B7 and C1 - 0V floating
C7 External trip Logic input 0V interrupt = external trip
C8 Reset Logic input 0V pulse = reset
C9 Ramp hold Logic input Connection to 0V = ramp fixed
C10 Forward operation/stop Logic input Connection to 0V = Forward Operation
Not connected = Stop
Terminals C10 and C12 to 0V = Stop
C11 Selection of frequency reference
Local/Remote Logic input Connection to 0V = Remote frequency reference Not connected = Local frequency reference
C12 Forward operation/stop Logic input Connection to 0V = Reverse Operation
Not connected = Stop
Terminals C10 and C12 to 0V = Stop
Caution : in positive logic (b5 = 0) the logic inputs are enabled by the +24V.
* For the simultaneous reference of 2 inverters, the 0V must not be commons.

3.3 - Electrical and electromagnetic phenomena
associated with frequency inverters
3.3.1 - General
The power structure of frequency inverters leads to the
occurrence of two types of phenomenon :
- low frequency harmonic feedback on the power supply,
- emission of radio frequency signals which may interfere
with the operation of other equipment.
These are separate phenomena, which have different
consequences on the electrical environment.
3.3.2 - Low frequency harmonics
As the diode bridge at the head of the frequency inverter
rectifies the supply voltage it generates a non-sinusoidal
A.C. line current.
3.3.3 - Radio frequency interference
Frequency inverters use high-speed switches
(transistors, semi-conductors) for switching high voltages
(around 550V) and high frequency currents (several
kHz). This provides a high level of efficiency and a low
level of motor noise.
This results in the generation of radio frequency signals
which may disturb the operation of other equipment or
distort sensor measurements :
- due to high frequency leakage currents which escape
to earth via the inverter/motor cable leakage capacitance
This current carries harmonics 6n ±1.
The amplitude of these harmonics decreases as their
frequency increases.
Harmonics 5, 7, 11, and 13 are 250 Hz, 350 Hz, 550 Hz,
650 Hz respectively for a supply frequency of 50 Hz, and
are the most significant.
Their amplitudes depend on the impedance of the mains
supply upstream of the rectifier bridge, and the structure
of the D.C. bus downstream of the rectifier bridge.
The more inductive the mains supply and the D.C. bus,
the more these harmonics are reduced.
They have virtually no effect on the level of electrical
energy consumption. Temperature rises associated with
these harmonics in transformers and motors connected
directly to the mains supply are negligible.
These low frequency harmonics never cause
interference on sensitive equipment.
They may affect the energy distributor due to the
fluctuating resonances which may be present in the
meshed system, and the additional losses in the supply
cables. However these are minor consequences. They
only have a significant effect on loads on frequency
inverters of several hundred kVA and where these
loads are more than a quarter of the total on-site
load.
and the leakage capacitance of the motor across the
metal structures which support the motor.
- by conduction or feedback of radio frequency signals
on the supply cable,
- by direct radiation close to the power supply cable or
the inverter/motor cable.
These phenomena have direct consequences for the
user.
The frequency range concerned (radio frequency) does
not cause interference for the energy distributor.
18
Frequency inverters
FMV 2107
FMV 2307

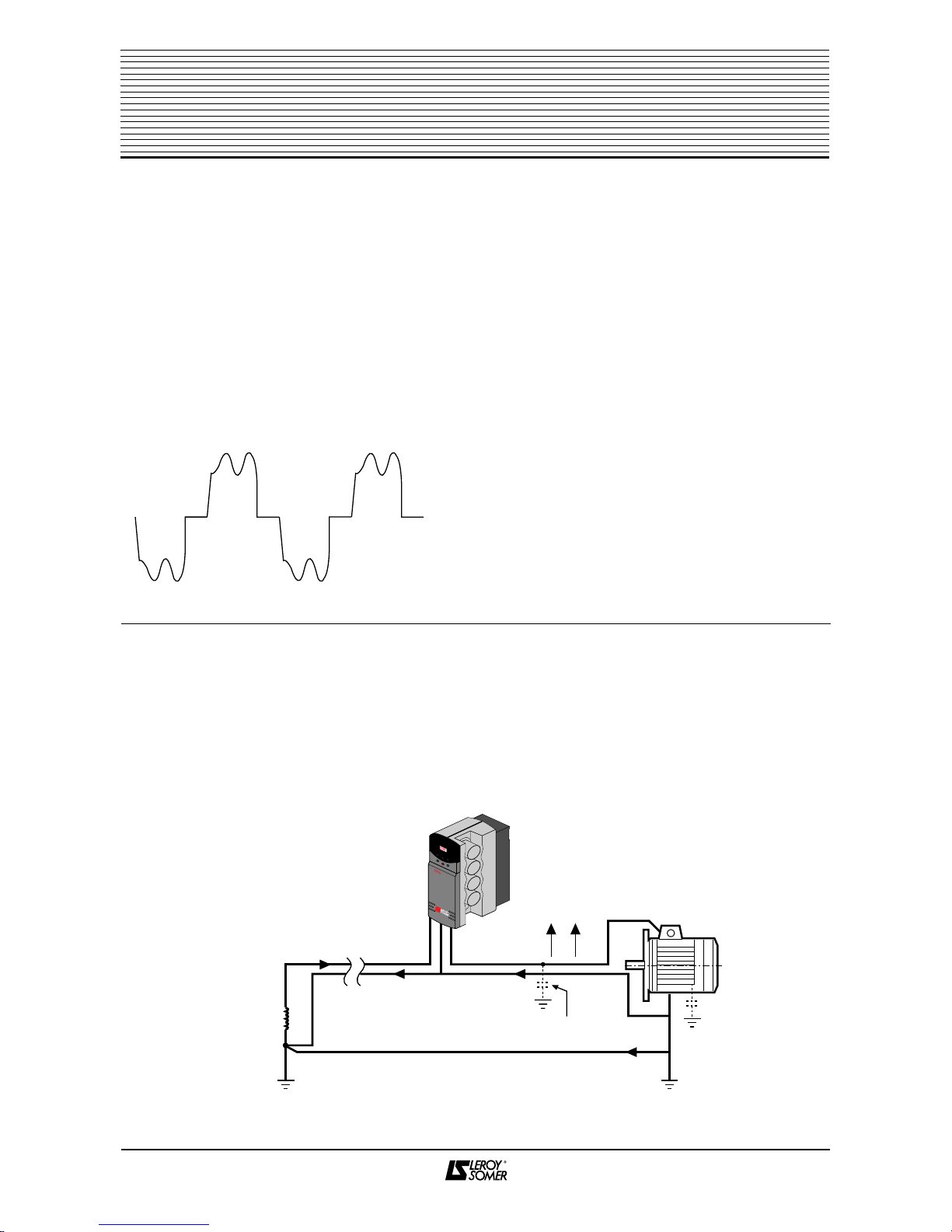

Mains supply line current drawn by a diode bridge.
IE1 = leakage current fed back to the inverter caused by the cable and motor leakage capacitances.
IE2 = leakage current escaping via metal structures.
Motor
I
E1
I
E1
I
E1
+I
E2
Mains supply
transformer Cable leakage
capacity Winding
leakage capacity
I
E2
Interference radiated
by the motor cable,
effect limited to
50 cm around the cable
888
FMV 2107
Interference emission paths

3.3.4 - Standards
a) Low frequency harmonics
There is no standard for current harmonics
Current harmonics introduce voltage harmonics on the
mains supply. The amplitude of these harmonics
depends on the impedance of the mains supply.
The power distributor who is affected by these
phenomena in the case of high power installations
(see 3.3.2), will have his own recommendations on the
level of voltage harmonics :
b) Radio frequency interference
To prevent interference to sensitive equipment,
European standards EN 50081 and EN 50082 stipulate
the following :
- interference levels below which sensitive equipment is
not affected : the following interference immunity :
EN 50082.1 for domestic equipment,
EN 50082.2 for industrial equipment.
- the maximum levels of interference fed back to the
supply, or radiated by power cables :
EN 50081.1 for domestic equipment,
EN 50081.2 for industrial equipment.
Note on leakage currents
High frequency leakage currents occur as interference
currents on the inverter power supply.
They may reach values above the isolation controller trip
threshold.
Previous standards which set the maximum leakage
current levels for the supply of motors connected directly
3.4 - Wiring instructions
3.4.1 - Earthing ( BB
BB
)
The earth conductor should have as large an area as
possible. The inverter(s) should preferably be placed in a
metal cubicle, mounted on a chassis or conductive metal
frame (unpainted).
Flat braid cables should be used to connect the various
devices to the chassis.
The motor body should be connected directly to the
inverter earth terminal by a standard cross-section earth
cable.
If a shielded connection cable is used between the
inverter and the motor to prevent radiation, the shielding
must be connected at both ends (motor body and
inverter earth terminal)
If the cross-section of the shielding is insufficient, it can
be doubled by a cable running the length of the shielded
- 0.6 % on even harmonic numbers,
- 1 % on uneven harmonic numbers,
- 1.6 % on whole harmonic distortion.
This applies to the power distributor connection point,
and not to each harmonic generator.
Reduction of harmonics fed back to the mains
supply.
The impedance upstream of the rectifier must be
increased by adding mains supply chokes.
Interference immunity
FMV 2107 and FMV 2307 inverters conform to
standards EN 50082.2, these standards are based on
IEC 801.
Radio frequency emission
FMV 2107 and FMV 2307 inverters fitted with RFI
(Radio-Frequency Interference) filters (optional)
conform to standard EN 50081 which is based
essentially on standard VDE 875.
to the 50 Hz supply can no longer be observed when a
frequency inverter is used.
In the absence of any specific standard, European
manufacturers use standard EN 60950 which allows the
leakage current to rise to 5 % of the load current per
phase.
cable, outside the shielding. This cable can be
connected to the same two ends as the shielding. This
cable prevents the circulation of high currents in the
shielding.
The quality of the earth connections must be checked
periodically, as with other power connections.
3.4.2 - Wiring inside cubicles
Do not place power cables and cables carrying
signals next to one another in the same cable trough,
even if the latter are shielded (distance > 0.5m).
Do not place inverter power supply cables next to motor
cables, especially if the inverter is fitted with an RFI filter,
as this would significantly reduce the efficiency of the
filter.
19
Frequency inverters
FMV 2107
FMV 2307
Domestic environment Industrial environment
EN 50081.1
VDE 875 N EN 50081.2 VDE 875 G
FMV 2107 1.5M to 3.5M Conforms with filter FN 350-8-29 or 20-29
switching frequency = 2.9 kHz Conforms with filter FN 350-8-29 or 20-29 switching frequency = 2.9 to 11.7 kHz
FMV 2307 1.5TL to 3.5TL Conforms with filter FN 351-8-29 or 16-29
switching frequency = 2.9 kHz Conforms with filter FN 351-8-29 or 16-29 switching frequency = 2.9 to 11.7 kHz
FMV 2307 1.5T to 5.5T Conforms with filter FN 350-8-29 or 16-29
switchin
g
fre
q
uenc
y
= 2.9 kHz Conforms with filter FN 351-8-29 or 16-29 switchin
g
fre
q
uenc
y
= 2.9 to 11.7 kHz

Keep the power supply terminal blocks separate from the
motor power terminal blocks and the signal terminal
blocks.
Shield sensitive circuits. The shielded cable must be
good quality, with flexible copper wire shielding, and very
tight meshing. Connect the shielding to both ends.
Connect the various devices in a star configuration
directly to the cubicle general earth, as specified in the
safety standards.
Remote control : the remote control relays and
contactors should be fitted with RC circuits.
Control cables
These should be copper, shielded and of a minimum
cross-section of 0.5 mm2.
3.4.3 - Wiring external to cubicles
Power cables should preferably be in steel cableways to
reduce radiation.
If the inverter/motor cable is long (> 20m), it is advisable to
install a suitable choke at the inverter output (SELF - MC) to
reduce high frequency leakage currents, caused by the
cable leakage capacity. This depends on the length of the
cable. The choke should be installed as close as possible to
the inverter (see 7.4).
Power cables
These should be copper multistrand cables with 600V
insulation for A.C. voltages and 1000V for D.C. voltages.
3.4.4 - Installation in a domestic environment
The loads are generally fairly low.
The mains supply is shared by several users.
Other users of the supply may be affected by radio
frequency interference fed back by the inverter to the
mains.
Equipment most sensitive to interference includes : radio
receivers, computers, etc.
A series of steps can be taken to solve the
interference problems on a site. It may not be
necessary to perform them all, as there is no need to
continue once the phenomena have disappeared.
1 - Observe the wiring instructions.
2 - Connect the inverter to the general earth of the
building using a good quality connection : flat cable, as
short as possible.
3 - Make it a priority to install the frequency inverter
close to the motor.
4 - Fit an R.F.I. filter to the inverter to reduce radio
frequency feedback to the mains to a level acceptable to
the standards.
5 - Connect the motor to the frequency inverter using a
shielded cable with the screening connected at both
ends : motor body and inverter earth.
3.4.5 - Installation in an industrial environment
In an industrial environment, it is unlikely that one user
will cause interference to another.
Installing RFI filters at the inverter input, which is often
costly, especially for high power ratings, is not always
the solution.
An in-depth analysis of the problems encountered in an
installation which is currently being used (or an
evaluation of the risks for a future installation) is
essential in order to implement the best technical and
financial solution.
A series of operations can be performed to solve the
interference problems in an installation. It may not
be necessary to perform them all, as there is no
need to continue once the pheneomena have
disappeared.
1 - Observe the wiring precautions.
2 - Interference suppression on probes.
Measurement probes are sensitive devices which may
be affected by interference.
Most problems can be solved by installing small bypass
capacitors (0.1 to 0.5 µF) on the probe feedback signals.
This solution is only possible for D.C. voltage signals
(12, 24 or 48V) or 50 Hz A.C. voltage up to 220V.
3 - Protective devices for sensitive equipment.
If the inverter power rating is significantly higher than
that of sensitive equipment connected to the mains
supply, it is more economical to install an RFI filter on
the supply to the lower rated equipment than to install an
RFI filter on the inverter input. The installation
precautions are the same : filter close to the device,
earth the device using a short connection, keep the filter
input and output wires separate.
4 - 3-phase chokes at the inverter output.
Downstream interference, high frequency leakage currents
are effectively suppressed by installing a suitable 3-phase
choke as close as possible to the inverter output.
5 - R.F.I. filters
If points 2 and 3 do not solve the problems associated
with interference fed back to the mains supply, an RFI
filter should be installed at the frequency inverter input.
6 - Shielded motor cable
The efficiency of this is comparable with standard cables
running through metal cable ducts.
This will significantly limit interference radiated by the
motor cables.
7 - Additional cable on the shielding of the control
electronics.
If these connections have to run through areas where
there is a high degree of interference, it may be
necessary to double the shielding by using an additional
cable connected at both ends in the same way as the
shielding. The circulating currents are thus concentrated
in this cable and not in the shielding of low level
connections.
20
Frequency inverters
FMV 2107
FMV 2307
