LevelOne FCS-3072 Instructions for use

Fixed/Panoramic Dome
Network Camera
Hardware User Manual
FCS-3072, FCS-3093
Ver. 2014/05/29

Hardware Manual
2

Hardware Manual
3
Table of Contents
Precautions 5
Safety Instructions .....................................................................................7
Introduction 8
List of Models...............................................................................................8
Package Contents.......................................................................................9
Physical Description................................................................................10
FCS-3072.....................................................................................10
FCS-3093.....................................................................................10
Installation Procedures 12
Step 1: Prepare for Installation .............................................................12
Step 2: Open the Dome Cover...............................................................13
Step 3: Route the Cables ........................................................................14
Step 4: Install the Camera.......................................................................15
Step 5: Waterproof the Cable Connection..........................................16
RJ-45 Ethernet Cable ..................................................................16
Step 6: Connect to Network...................................................................19
Step 7: Access the Camera Live View.................................................19
Step 8: Close the Dome Cover ..............................................................20
Other Adjustments and Accessories 21
How to Install / Remove the Memory Card.........................................21
How to Insert the Memory Card...................................................21
How to Remove the Memory Card...............................................21
How to Adjust the Fisheye View Orientation (for FCS-3093 only)22
How to Connect Audio In Device..........................................................23
How to Replace the Dome Cover..........................................................24

Hardware Manual
4
Accessing the Camera 27
Configure the IP Addresses...................................................................27
Using DHCP Server to Assign IP Addresses................................27
Using the Default Camera IPAddress..........................................29
Access the Camera...................................................................................31

Hardware Manual
5
Precautions
Read these instructions
You should read all the safety and operating instructions before using this product.
Heed all warnings
You must adhere to all the warnings on the product and in the instruction manual. Failure to follow
the safety instruction given may directly endanger people, cause damage to the system or to
other equipment.
Servicing
Do not attempt to service this video device yourself as opening or removing covers may expose
you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.
Trademarks
All names used in this manual are probably registered trademarks of respective companies.
Liability
Every reasonable care has been taken during the writing of this manual. Please inform your local
office if you find any inaccuracies or omissions. We cannot be held responsible for any
typographical or technical errors and reserve the right to make changes to the product and
manuals without prior notice.

Hardware Manual
6
Federal Communications Commission Statement
This equipment has been tested and found to comply with the limits for a class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Warning: Changes or modifications to the equipment that are not expressly approved by the
responsible party for compliance could void the user’s authority to operate the equipment.
European Community Compliance Statement
This product has been tested and found to comply with the limits for Class B
Information Technology Equipment according to European Standard EN 55022
and EN 55024. In a domestic environment, this product may cause radio interference in which
cause the user may be required to take adequate measures.

Hardware Manual
7
Safety Instructions
Cleaning
Disconnect this video product from the power supply before cleaning.
Attachments
Do not use attachments not recommended by the video product manufacturer as they may cause
hazards.
Water and Moisture
Do not use this video product near water, for example, near a bathtub, washbowl, kitchen sink, or
laundry tub, in a wet basement, or near a swimming pool and the like.
Don’t use accessories not recommended by the manufacturer
Only install this device in a dry place protected from weather
Servicing
Do not attempt to service this video product yourself as opening or removing covers may expose
you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.
Damage Requiring service
Disconnect this video product from the power supply immediately and refer servicing to qualified
service personnel under the following conditions.
1) When the power-supply cord or plug is damaged
2) If liquid has been spilled, or objects have fallen into the video product.
3) If the video product has been directly exposed to rain or water.
4) If the video product does not operate normally by following the operating Instructions in this
manual. Adjust only those controls that are covered by the instruction manual, as an improper
adjustment of other controls may result in damage, and will often require extensive work by a
qualified technician to restore the video product to its normal operation.
Safety Check
Upon completion of any service or repairs to this video product, ask the service technician to
perform safety checks to determine if the video product is in proper operating condition.

Hardware Manual
8
Introduction
List of Models
This hardware manual contains the following models:
FCS-3072
5MP Outdoor Mini Dome with Basic WDR, Fixed lens
FCS-3093
5MP Outdoor Mini Fisheye Dome with Basic WDR, Fixed lens
From the installation perspective, the above models are very similar; therefore one manual is
used for all of them.

Hardware Manual
9
Package Contents
Check if the camera package comes with the following items:
Camera
FCS-3072
Camera
FCS-3093
Screw Kit
Drill Template
Hexagon Screwdriver
Cable Gland
(Not available in E9xxM models)
Quick Installation Guide
IMPORTANT: When the camera is taken out from the box, the lens cover is covered by a thin film.
DO NOT remove this film. It is used to protect the lens cover from scratches or fingerprint marks
which may happen during installation. Remove this film only after the camera is securely installed
and all connections are complete.
Drill Template
or

Hardware Manual
10
Physical Description

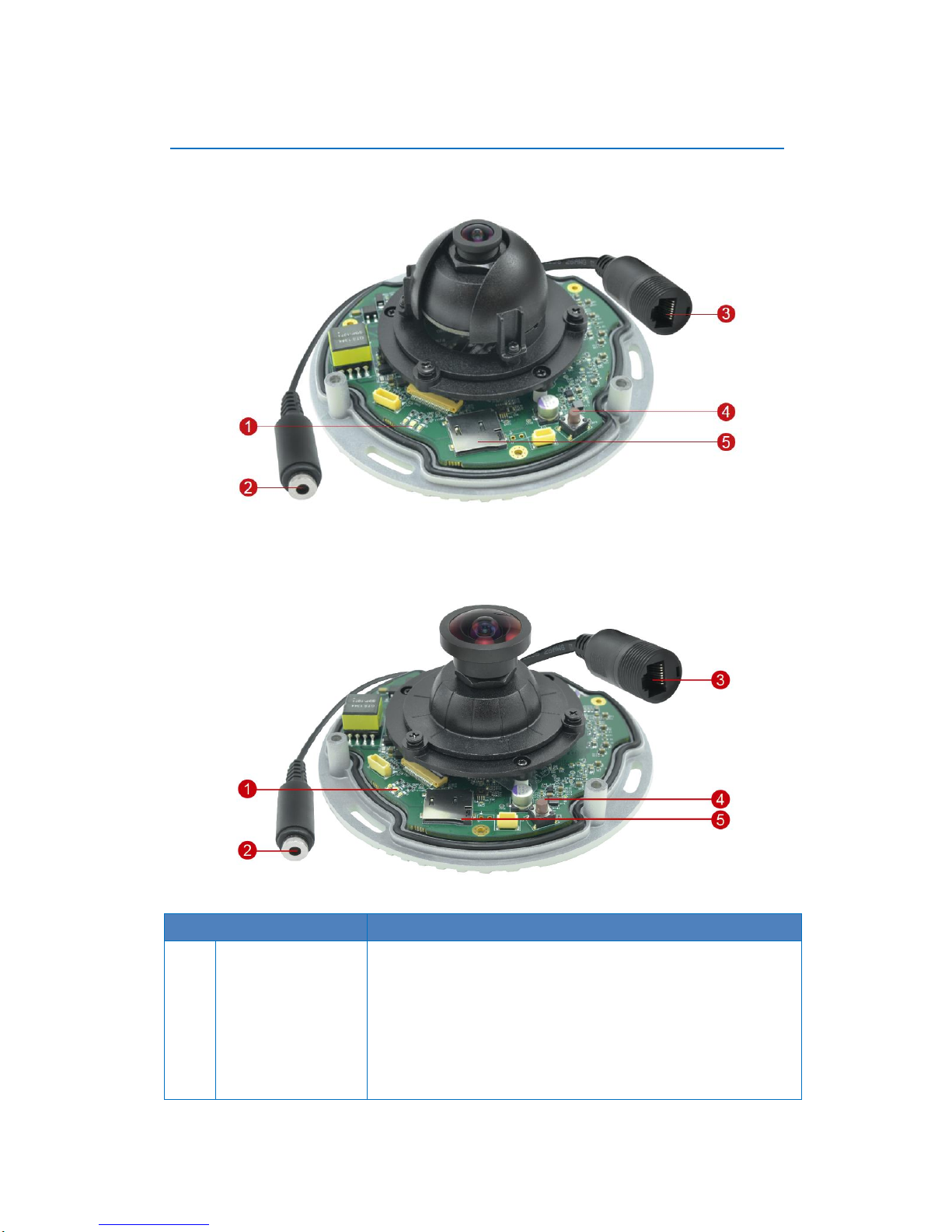

FCS-3072
FCS-3093
Item
Description
1
System LEDs
Indicates the camera status:
Amber LED: Blinks when network activity is in progress.
Blue LED: Lights up when the camera is powered up and
goes off again after the boot up process is complete.
Green LED: Lights up when the camera is connected to a
network.

Hardware Manual
11
Item
Description
2
Audio Input
Connects to audio input devices, such as a microphone with
built-in amplifier, etc. See How to Connect Audio In Device on
page 23 for more information.
NOTE: The microphone must have a built-in amplifier.
Connecting an ordinary microphone will dwarf sounds and will
result in inaudible recording.
3
Ethernet Port
(RJ-45)
Connects to a network using an Ethernet cable with RJ-45
connector.
4
Reset Button
Restores the factory default settings of the camera. To reset the
camera, while the power is on, press and hold the Reset Button
for at least 5 seconds or until the Blue LED lights up.
5
Memory Card Slot
Insert a memory card (not included) into the slot for local
recording purposes. See How to Install / Remove the Memory
Card on page 21 for more information.
NOTE: Supports only microSDHC and microSDXC cards.

Hardware Manual
12
Installation Procedures
This section describes procedures in mounting the camera on a flat surface.
NOTE: The camera images on this documentation are for reference only and may be different
from the actual camera.

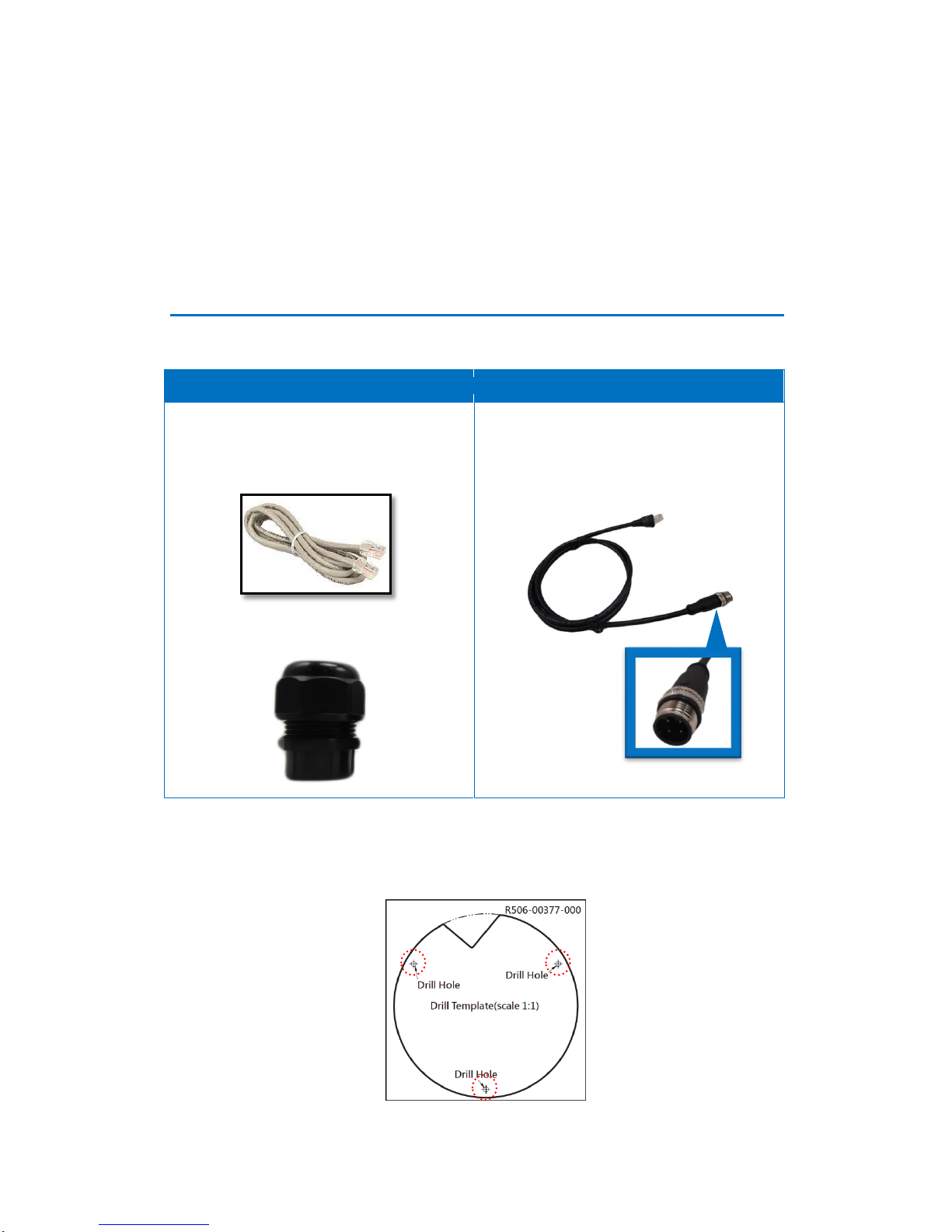

Step 1: Prepare for Installation
1. Before installing the camera, prepare the additional accessories required for installation.
E9xx Models
E9xxM Models
Exterior-grade Ethernet Cable with
RJ-45 connector (not included in the
package)
Bundled Cable Gland
Exterior-grade Ethernet Cable with
Waterproof M12 Male Connector
(not included in the package)
2. Depending on the material of the surface where the camera will be installed, it may be
necessary to drill the three (3) screw holes and use the supplied screw tox. In this case,
attach the bundled drill template on the surface and drill the screw holes.

Hardware Manual
13

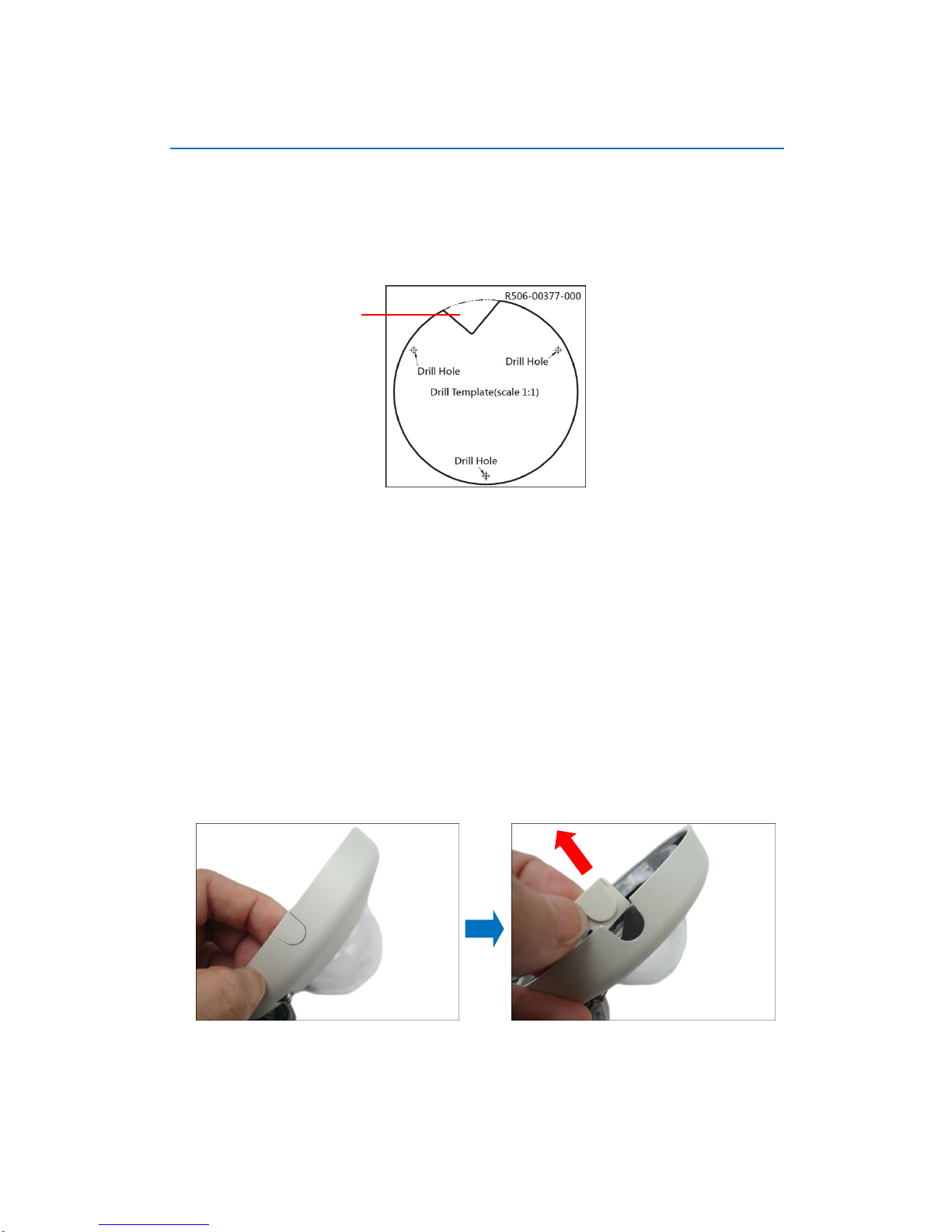

Step 2: Open the Dome Cover
1. Loosen the three (3) screws using the bundled hex screwdriver.
2. Lift to remove the dome cover.
NOTE:
The dome cover is attached to the camera body by a string, do not abruptly lift the
dome cover!
A desiccant bag is attached underneath the dome cover. DO NOT remove the
desiccant bag to keep the camera interior parts dry.

Hardware Manual
14
Step 3: Route the Cables
Determine whether the cable will pass through a hole on the surface or be routed along the
surface:
If the cable will pass through a hole on the surface:
1. Drill the hole for the cable on the surface.
2. Route the cable from the network side through the hole and connect it to the Ethernet port of
the camera.
NOTE: If the camera will be installed outdoors or in places wherein environmental factors
change drastically, make sure to waterproof the cable connection; see Step 5: Waterproof
the Cable Connection on page 16 for instructions.
3. Push the cable through the the hole on the surface.
If the cable will be routed along the surface
1. Pull the tab to slide it off from the dome cover.
2. Route the camera cable through the gap on the camera cover.
Drill cable hole
within this block.

Hardware Manual
15
Step 4: Install the Camera
1. If necessary, insert a memory card into the memory card slot of the camera. See How to
Insert the Memory Card on page 21 for more information.
2. Install the camera to the surface using the three (3) bundled screws.
NOTE: Please make sure the screw is flat on the plate.

Hardware Manual
16
Step 5: Waterproof the Cable Connection
Depending on the camera model, the Ethernet cable or the “pigtail” of the camera may either
have the RJ-45 connector.
RJ-45 Ethernet Cable
When using the RJ-45 Ethernet cable, follow the procedures below to waterproof the cable
connection:
1. Detach the cable gland as shown below.
2. On the network side cable, insert the clamping nut through the Ethernet cable.
3. Insert the sealing rubber and claw through the Ethernet cable.
Gland Body
Clamping Nut
Sealing Rubber and Claw

Hardware Manual
17
4. Make sure the bundled rubber ring is completely aligned on the gap on the gland body.
5. Attach the gland body to the Ethernet port of the camera.
IMPORTANT!
Make sure the rubber ring is completely aligned and flat on the gland body to avoid
possible water leakage.
6. Connect the RJ-45 connector of the network cable to the Ethernet port of the camera.

Hardware Manual
18
7. Insert the sealing rubber and claw into the cable gland body.
8. Attach the clamping nut to the cable gland body. Make sure the clamping nut is tightly
secured and the rubber is squeezed in to avoid water leakage.
DISCLAIMER: LevelOne will not be responsible for camera damage caused by water entering
the cable connections.

Hardware Manual
19
Step 6: Connect to Network
Connect the other end of the network cable to a switch or injector. Then, connect the switch or
injector to a network or PC and a power source. See Power-over-Ethernet (PoE) example
connection diagram below.
Network
AC Power
Source
PoE Injector /
PoE Switch
Power Cable
Ethernet Cable
Ethernet Cable
(Data + Power)
Ethernet Cable
(Data)
Camera
Step 7: Access the Camera Live View
See Accessing the Camera on page 27 for more information on how to access the Live View of
the camera.

Hardware Manual
20
Step 8: Close the Dome Cover
1. Align cable tab side of the dome cover to the direction of the network cable.
2. Tighten the three (3) screws using the supplied hex screwdriver to attach the dome cover.
3. Remove the thin film.
Final installation should look similar to the illustration below.
