LevelOne FCS-3051 User manual

Network Camera
FCS-3031
PoE PIR IP Dome Camera
FCS-3051
Day/Night PoE PIR IP Dome Camera
User Manual
V1.0.0

ii
Safety
FCC
This equipment has been tested and found to comply with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference
(2) This device must accept any interference received, including interference that may
cause undesired operation.
CE
This equipment is in compliance with the requirements of the following regulations: EN
55 022: CLASS B
RoHS
This product is RoHS compliant.

i
Table of Contents
CHAPTER 1 INTRODUCTION..............................................................................................1
Overview ............................................................................................................................1
Physical Details..................................................................................................................4
Package Contents ..............................................................................................................5
CHAPTER 2 BASIC SETUP ...................................................................................................6
System Requirements........................................................................................................6
Installation .........................................................................................................................6
Setup using the Camera Wizard ......................................................................................7
CHAPTER 3 VIEWING LIVE VIDEO................................................................................12
Overview ..........................................................................................................................12
Requirements...................................................................................................................12
Connecting to a Camera on your LAN..........................................................................12
Connecting to a Camera via the Internet......................................................................14
Viewing Live Video .........................................................................................................16
CHAPTER 4 ADVANCED VIEWING SETUP ...................................................................18
Introduction.....................................................................................................................18
Adjusting the Video Image.............................................................................................18
Viewing the live Video on your cell phone.....................................................................21
Controlling User Access to the Video Stream...............................................................23
Making Video available from the Internet....................................................................24
Viewing Live Video via the Internet..............................................................................27
Motion Detection Alerts..................................................................................................28
CHAPTER 5 WEB-BASED MANAGEMENT ....................................................................30
Introduction.....................................................................................................................30
Connecting to Network Camera.....................................................................................30
Welcome Screen...............................................................................................................31
Administration Menu......................................................................................................32
System Screen..................................................................................................................33
Network Screen................................................................................................................35
DDNS Screen....................................................................................................................38
IP Filter ............................................................................................................................40
I/O Port.............................................................................................................................41
Video & Audio Screen.....................................................................................................42
Video Access Screen........................................................................................................45
User Database Screen......................................................................................................47
Motion Detection Screen.................................................................................................48
E-Mail Screen ..................................................................................................................49
FTP Screen.......................................................................................................................51
HTTP Screen....................................................................................................................52
SMB Client Screen ..........................................................................................................53
Event Trigger Screen ......................................................................................................54
Maintenance Screen........................................................................................................56
Status Screen....................................................................................................................58
Log Screen........................................................................................................................60
CHAPTER 7 TROUBLESHOOTING..................................................................................61
Overview ..........................................................................................................................61
Problems...........................................................................................................................61

ii
APPENDIX A SPECIFICATIONS........................................................................................63
FCS-3031/3051.................................................................................................................63
Regulatory Approvals.....................................................................................................64
Copyright Notice..............................................................................................................65
APPENDIX B STREAMING VIDEO/AUDIO SOLUTION...............................................80
Overview ..........................................................................................................................80
Streaming Video/Audio through Internet Camera.......................................................80

1
Chapter 1
Introduction
This Chapter provides features of LevelOne Network Camera, FCS-3031 and
FCS-3051 in detail with its components and capabilities.
Please be noted that all the captured images in the following chapters are based on
Windows XP by using FCS-3051 Network Camera.
Overview
The FCS-3031/FCS-3051 has an Integrated Microcomputer and a high quality CMOS digital-
Image-Sensor, enabling it to display high quality live streaming video over your wired LAN.
Using enhanced MPEG-4 technologies, the FCS-3031/FCS-3051 is able to stream high quality
video and audio directly to your PC. The high compression capabilities of MPEG-4 reduce
network bandwidth requirements to amazingly low levels.
With built-in PIR sensor and IR LEDs, FCS-3051 can provide home security and illumination
around 5 meters long under low light conditions in a simple, economical manner.
A convenient and user-friendly surveillance software, IP CamSecure Lite, which provided for
both viewing and recording video. If necessary, you can even view video using your Web
Browser, on a variety of software platforms.

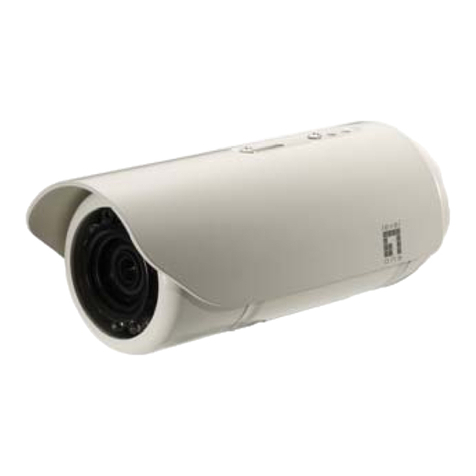

Figure 1: Network Camera
Features
•Dual Video Support. FCS-3031/3051 can support both MEPG4 and MJEPG video for
different image compression.
1

2
•Stream Live Video to Multiple Users.The MPEG4 encoder and HTTP server built
into the camera generate a ready-to-view video stream. Just connect to the camera using
your Web browser or the provided Windows utility to view live video.
•Suitable for Home, Business or Public Facilities. Whether for Home, Business or
Public Facility surveillance, or just for entertainment and fun, FCS-3031/3051 has the
features you need.
•Multi-Protocol Support.Supporting TCP/IP networking, SMTP (E-mail), HTTP and
other Internet related protocols, FCS-3031/3051 can be easily integrated into your existing
network.
•Easy Configuration. A Windows-based Wizard is provided for initial setup.
Subsequent administration and management can be performed using a standard web
browser. The administrator can configure and manage FCS-3031/3051 via the LAN or
Internet.
•Viewing/Recording Utility. A user-friendly Windows utility is provided for viewing
live video. For periods when you are absent, or for scheduled recording, this application
also allows you to record video to an ASF file on your PC. The recorded files are in a
standard Windows Media format, and thus usable by a wide variety of programs if
required.
•Motion Detection. This feature can detect motion in the field of view. FCS-3031/3051
will compare consecutive frames to detect changes caused by the movement of large
objects. This function only works indoors due to the sensitivity of the CMOS sensor.
When motion is detection, an E-mail alert can be sent, or some other action may be
triggered.
•Flexible Scheduling. You can limit access to the video stream to specified times using
a flexible scheduling system. The Motion Detection feature can also have its own schedule,
so it is active only when required.
•Syslog Support. If you have a Syslog Server, FCS-3031/3051 can send its log data to
your Syslog Server.
•Audio Support. You can listen as well as look! Audio is encoded with the video if
desired. You can connect to an external microphone.
•PIR (Passive Infrared Sensor) Support. FCS-3031/3051 is embedded with a PIR
Sensor, which senses infrared light radiating from human bodies in its field of view. This
feature is very helpful in enhancing home security systems.
•IR LEDs Support (FCS-3051 Only). FCS-3051 has 11 IR LEDs. The LEDs can
provide illumination around 5 meters long, that can help to output a better video quality
while under low-light conditions such as indoors, on cloudy days, or in the morning or
evening.
•PoE Support. You can use PoE (Power over Ethernet) to provide power to the FCS-
3031/3051, so only a single cable connection is required.
Internet Features
•User-definable HTTP port number. This allows Internet Gateways to use "port
mapping" so the FCS-3031/3051 and a Web Server can share the same Internet IP address.
•SMB Client Support.With Server Message Block Protocol (SMB protocol) support, the
client applications in a computer can read, create, and update files on the remote server.
•DDNS Support. In order to view video over the Internet, users must know the Internet
IP address of the gateway used by the FCS-3031/3051. But if the Gateway has a dynamic
IP address, DDNS (Dynamic DNS) is required. Since many existing Gateways do not
support DDNS, this function is incorporated into the FCS-3031/3051.

3
•NTP (Network-Time-Protocol) Support. NTP allows the FCS-3031/3051 to calibrate
its internal clock from an Internet Time-Server. This ensures that the time stamp on Video
from the FCS-3031/3051 will be correct.
Security Features
•User Authentication. If desired, access to live video can be restricted to known users.
Users will have to enter their username and password before being able to view the video
stream. Up to 10 users can be entered.
•Password-Protected Configuration. Configuration data can be password protected, so
that it only can be changed by the Administrator.

4
Physical Details
Front
IR LEDs
(FCS-3051 Only) These IR LEDs are designed for the supply of backlighting while
under the low-light environments.
Light Sensor The light sensor can be used to distinguish between light and dark,
as well as determine the intensity of the light.
Lens (FCS-3031) Use board mount lens. You should ensure that the lens
cover remain clean. The image quality is degraded if the lens cover
is dirty or smudged.
(FCS-3051) Use the zoom and focus puller to adjust the image of
the lens. You should ensure that the lens cover remain clean. The
image quality is degraded if the lens cover is dirty or smudged.
Power LED
(Green) On - Power on.
Off - No power.
Blinking - The Power LED will blink during start up. This will take
15 to 20 seconds.
PIR Sensor The PIR sensor is designed for human body detection.
Rear
Power Input Connect the supplied 12V power adapter here. Do not use other
power adapters; doing so may damage the camera.
LAN port Use a standard LAN cable to connect your Network Camera to a
10/100BaseT hub or switch.
Digital
Input/Output The GPIO terminal block includes 1 input port and 1 output port.
Reset Button This button is recessed; you need a pin or paper clip can be used to
depress it. It can be activated at any time the camera is in the
"ready" mode.
•Reset to manufacturer default valued and reboot. When
pressed and held over 10 seconds, the settings of Network
Camera will be set to their default values.
Note:
After this procedure is completed, all LEDs will blink three times to
confirm that the reset was completed successfully.
AV Connect the supplied AV cable to the AV port, which will extend
TV out, mic in, and spk out connections.

5
Package Contents
The following items should be included: If any of these items are damaged or missing, please
contact your dealer immediately.
1. FCS-3031 or FCS-3051
2. Power Adapter
3. CD Manual/Utility
4. Quick Installation Guide
5. Allen Wrench
Figure 2: AV Cable

6
Chapter 2
Basic Setup
This Chapter provides details of installing and configuring the FCS-
3031/3051.
System Requirements
To use the wired LAN interface, a standard 10/100BaseT hub or switch and network cable is
required.
Installation
1. Assemble the Camera
Mount the Network Camera if required.
2. Connect the LAN Cable
Connect the Network Camera to a 10/100BaseT hub or switch, using a standard LAN
cable.
The first time you connect to the camera, you should connect
the LAN cable and configure the Network Camera with
appropriate settings.
3. Power Up
Connect the supplied 12V power adapter to the Network Camera and power up. Use only
the power adapter provided. Using a different one may cause hardware damage.
4. Check the LEDs
The Power LED will turn on briefly, then start blinking. It will blink during startup, which
takes 15 to 20 seconds. After startup is completed, the Power LED should remain ON.
For more information, refer to Physical Details in Chapter 1.
Using PoE
The FCS-3031/3051 supports PoE (Power over Ethernet). To use PoE:
1. Do not connect the supplied power adapter to the FCS-3031/3051.
2. Connect one end of a standard (category 5) LAN cable to the Ethernet port on the FCS-
3031/3051.
3. Connect the other end of the LAN cable to the powered Ethernet port on a suitable PoE
Adapter.
4. Connect the unpowered Ethernet port on the PoE adapter to your Hub or switch.
5. Connect the power supply to the PoE adapter and power up.
2

7
Setup using the Camera Wizard
Initial setup should be performed using the supplied Windows-based Camera Wizard. This
program can locate the Network Camera even if its IP address is invalid for your network. You
can then configure the FCS-3031/3051 with appropriate TCP/IP settings for your LAN.
Subsequent administration can be performed with your Web browser, as explained in Chapter
5 - Web-based Management.
Setup Procedure
1. Insert the supplied CD-ROM into your drive. If the setup program does not start
automatically, run Autorun.exe in the root folder.
•You will see the Welcome screen shown below.
•Click the Camera Wizard button to start the setup Wizard
Figure 3: Welcome Screen

8
2. The next screen, shown below, will list all the Network Cameras on your LAN.
Figure 4: Camera List Screen
•Select the desired Camera from the list on the left. The current settings for the selected
Camera will be displayed in the table on the right.
•Click Next to continue.
3. You will be prompted to enter the Administrator Name and Administrator Password, as
shown below.
•If using the default values, enter administrator for the name, and leave the
password blank.
•Otherwise, enter the Administrator Name and Administrator Password set on the
Maintenance screen.
Figure 5: Password Dialog

9
4. This screen allows you to enter a suitable Description, and set the correct Time Zone,
Date, and Time. Make any desired changes, then click Next to continue.
Figure 6: Camera Settings
5. On the following IP Address Settings screen, shown below, choose Fixed IP Address or
Dynamic IP Address.
Figure 7: Fixed or Dynamic IP Selection
•Fixed IP Address is recommended, and can always be used.
•Dynamic IP Address can only be used if your LAN has a DCHP Server.
Click Next to continue.

10
6. If you chose Fixed IP Address, the following TCP/IP Settings screen will be displayed.
Figure 8: TCP/IP Settings
•Enter an unused IP Address from within the address range used on your LAN.
•The Subnet Mask and Default Gateway fields must match the values used by PCs on
your LAN.
•The Primary DNS address is required in order to use the E-mail alert or Dynamic
DNS features. Enter the DNS (Domain Name Server) address recommended by your
ISP.
•The Secondary DNS is optional. If provided, it will be used if the Primary DNS is
unavailable.
Click Next to continue.
7. The next screen, shown below, displays all details of the FCS-3031/3051.
•Click Next if the settings are correct
•Click Back to modify any incorrect values.
Figure 9: Save Settings

11
8. Click OK to confirm that you want to save the new settings. If you want to cancel your
changes, click Cancel.
Figure 10: Confirm Screen
9. After clicking OK, you will see the screen below.
Figure 11: Final Screen
10. Click OK to end the Wizard.
Setup is now complete.

12
Chapter 3
Viewing Live Video
This Chapter provides basic information about viewing live video.
Overview
After finishing setup via the Camera Wizard, all LAN users can view live video using Internet
Explorer on Windows.
This Chapter has details of viewing live video using Internet Explorer.
But many other powerful features and options are available:
•To view multiple cameras simultaneously, or record video (either interactively or by
schedule), you should install the IP CamSecure Lite. Refer to the user’s manual in the
software CD for details on installing and using this program.
•The camera administrator can also adjust the Video Stream, and restrict access to the video
stream to known users by requiring viewers to supply a username and password. See
Chapter 4 - Advanced Viewing Setup for details.
•To make Live Video from the camera available via the Internet, your Internet Gateway or
Router must be configured correctly. See Making Video available from the Internet in
Chapter 4 - Advanced Viewing Setup for details.
Requirements
To view the live video stream generated by the FCS-3031/3051, you need to meet the
following requirements:
•Windows 2000, Windows XP or Windows Vista.
•Internet Explorer 6 or later.
Connecting to a Camera on your LAN
To establish a connection from your PC to the FCS-3031/3051:
1. Use the Camera Wizard to get the IP address of the Network Camera.
2. Start Internet Explorer.
3. In the Address box, enter "HTTP://" and the IP Address of the FCS-3031/FCS-3051.
4. When you connect, the following screen will be displayed.
3

13
Figure 12: Home Screen
5. Click View Video.
6. If the Administrator has restricted access to known users, you will then be prompted for a
username and password.
Enter the name and password assigned to you by the administrator.
7. The first time you connect to the camera, you will be prompted to install an ActiveX
component (OCX or CAB file), as in the example below.
You must install this ActiveX component (OCX or CAB file) in order to view the
Video stream in Internet Explorer.
Click the "Yes" button to install the ActiveX component.
Figure 13: ActiveX OCX Prompt
8. Video will start playing automatically. There may be a delay of a few seconds while the
video stream is buffered.

14
Connecting to a Camera via the Internet
You can NOT connect to a camera via the Internet unless the camera
Administrator has configured both the camera and the Internet Gateway/Router
used by the camera.
See Making Video available from the Internet in Chapter 4 - Advanced Viewing Setup for
details of the required configuration.
Also, you need a broadband Internet connection to view video effectively. Dial-up connections
are NOT supported.
To establish a connection from your PC to the FCS-3031/3051 via the Internet:
1. Obtain the following information from the Administrator of the camera you wish to
connect to:
•Internet IP Address or Domain Name of the camera.
•Port number for HTTP connections.
•Login (username, password) if required.
2. Start Internet Explorer.
3. In the Address box, enter the following:
HTTP://Internet_Address:port_number
Where Internet_Address is the Internet IP address or Domain Name of the camera,
and port_number is the port number used for HTTP (Web) connections to the camera.
Examples using an IP address:
HTTP://203.70.212.52:1024
Where the Internet IP address is 203.70.212.52 and the HTTP port number is 1024.
Example using a Domain Name:
HTTP://mycamera.dyndns.tv:1024
Where the Domain name (using DDNS in this example) is mycamera.dyndns.tv and
the HTTP port number is 1024.

15
4. When you connect, the following screen will be displayed.
Figure 14: Home Screen
5. Click View Video.
6. If the Administrator has restricted access to known users, you will then be prompted for a
username and password.
Enter the name and password assigned to you by the administrator.
7. The first time you connect to the camera, you will be prompted to install an ActiveX
component (OCX or CAB file), as in the example below.
You must install this ActiveX component (OCX or CAB file) in order to view the
Video stream in Internet Explorer.
Click the "Yes" button to install the ActiveX component.
Figure 15: ActiveX OCX Prompt
8. Video will start playing automatically. There may be a delay of a few seconds while the
video stream is buffered.

16
Viewing Live Video
After installing the ActiveX component, you will be able to view the live video stream in its
own window, as shown below.
Figure 16: View Video Screen
There are a number of options available on this screen, accessed by select list, button or icon.
See the table below for details.
Note: The options can only be configured while using IE browser. Other browsers can just
view the video rather than configuration.
General Options
These options are always available, regardless of the type of camera you are connected to.
Resolution. Use this drop-down list to select the desired video size.
Zoom. A digital zoom feature is available. To zoom in on a section of the
window, click this icon. Then use your mouse to select the section you want
to magnify. Click the icon again to disable the zoom feature.
Snapshot. Click this button to take a single JPEG "snapshot" image of the
current video.
Flip. Click this button to have the image swapped top-to-bottom.
Mirror. Click this button to have the image swapped left-to-right.
Audio On. This icon is displayed if audio is On. Click on the icon to turn
audio Off.
Volume. If audio is enabled, use this slider to adjust the volume.
