Leviton VerifEye 7000 Series User manual

VerifEye®Series 7000/7100
Cat. No 70D48, 71D48, 70N48
User Guide
PK-A3259-10-00-0A ARN0439
Cat. 71D48 Cat. 70D48
WEB VERSION

WEB VERSION

TABLE OF CONTENTS
1 Introduction ........................................................................................1
1.1 Unpacking the Unit.........................................................................1
1.2 VerifEye Anatomy...........................................................................2
2 Planning For Field Installation..........................................................3
2.1 Project Manager Aspects ...............................................................3
2.1.1 Configuration & Data Viewing Options ..................................3
2.1.2 Information Access by Interface Type....................................3
2.2 Meter Configuration Overview........................................................4
2.3 Meter Installation Overview............................................................4
2.4 Verification & Communication Overview ........................................4
2.5 RTU Programming and Scripting Overview ...................................4
3 Meter Configuration .............................................................................5
3.1 Install the S7 Configuration Utilities Software ................................5
3.1.1 Connection & Config. Using S7 Configuration Utilities ..........5
3.1.2 USB Connection (Power & Communications) .......................6
3.1.3 Ethernet Network Connections..............................................6
3.2 S7 Configuration Utilities Software Overview.................................9
3.2.1 Configuring Electrical Components .....................................10
3.2.2 Configuring RS-485 Communications ................................. 11
3.2.3 Configuring Ethernet Communications ................................12
3.2.4 Configuring Alarms ..............................................................13
3.2.5 Setting the Real Time Clock ................................................14
3.2.6 Retrieving Interval Data .......................................................15
3.3 VerifEye Web App Overview ........................................................16
3.3.1 Connect to Web App Using USB .........................................16
3.3.2 Connect to Web App Using Ethernet...................................16
3.3.3 Authentication ......................................................................16
4 Meter Installation................................................................................17
4.1 Meter Mounting Configurations....................................................17
4.2 Installation Sequence...................................................................18
4.3 Wiring in a 3-wire, Split Phase Service Panel ..............................21
4.4 Wiring in a 3 Phase, 4 Wire Service Panel ..................................22
4.5 Current Transformers Basics .......................................................23
4.6 Wiring the CTs to the VerifEye Meter ...........................................24
5 Communication & Verification ........................................................25
5.1 Physical Connections on an RS-485 Multidrop Network..............25
5.2 Communication Verification..........................................................26
5.3 Physical Interface Verification ......................................................27
WEB VERSION

TABLE OF CONTENTS
5.4 Protocol Verification .....................................................................27
5.5 Modbus Settings ..........................................................................28
5.6 BACnet Settings...........................................................................28
5.7 Pulse Inputs .................................................................................29
5.8 Alarms (SPDT) .............................................................................29
5.9 12 Volt Auxillary Power.................................................................29
5.10 Access Restriction Limitations....................................................30
5.11 Security PIN Protection ..............................................................30
5.12 Verification of Installation ...........................................................32
5.12.1 Installation Phase Verification............................................32
5.12.2 Phase Checking by Phasor Plot ........................................33
5.12.3 CT Orientation Check ........................................................34
5.13 Power Factor Convention...........................................................35
5.14 Total Harmonic Distortion ...........................................................35
5.15 Pre-Processing Aids...................................................................36
6 RTU Programming & Scripting.........................................................37
6.1 Register Organization ..................................................................37
6.2 Element vs. System Scope ..........................................................37
6.3 Configuring Element and Channel Register for Service Types ....38
6.4 Configuring System Registers......................................................40
6.5 Modbus Protocol Commands.......................................................40
6.6 BACnet.........................................................................................41
Appendix A: LCD Menu Navigation .....................................................43
Appendix B: Technical Specifications.................................................46
WEB VERSION

WARNING:
• RISK OF ELECTROCUTION, SHOCK, EXPLOSION, OR ARC FLASH.
CAREFULLY READ AND FOLLOW INSTRUCTIONS:
• HIGH VOLTAGE MAY BE PRESENT. RISK OF ELECTRIC SHOCK. LIFE
THREATENING VOLTAGES MAY BE PRESENT. Qualified personnel only.
• TO AVOID FIRE, SHOCK OR DEATH, turn off all power supplying equipment
before working on or inside the equipment. Use a properly rated voltage sensing
device to confirm power is off.
• Follow safe electrical work practices. See NFPA 70E in the USA, or applicable
local codes.
• This equipment MUST be installed and serviced by qualified electrical personnel
with the requisite knowledge, training and experience related to the installation and
operation of this equipment.
• Product may use multiple voltage/power sources. Be sure all sources of power
have been disconnected before servicing.
• Do not depend on this product for voltage indication.
• Only install this product on insulated conductors.
• If the meter appears damaged or defective, first disconnect all power to the meter.
Then call or email technical support for assistance.
DO NOT EXCEED 346V Line to Neutral or 600 volts Line to Line. This meter is equipped
to monitor loads up to 346V L-N. Exceeding this voltage will cause damage to the meter
and danger to the user. Always use a Potential Transformer (PT) for voltages in excess
of 346V L-N or 600 volts line to line. The VerifEye® is a 600 Volt Over Voltage
Category III device.
For use in a Pollution Degree 2 or better environment only. A Pollution Degree 2
environment must control conductive pollution and the possibility of condensation or high
humidity. Consider the enclosure, the correct use of ventilation, thermal properties of the
equipment, and the relationship with the environment. Installation category:
CAT II or CAT III
Provide a disconnect device to disconnect the meter from the supply source. Place this
device in close proximity to the equipment, and within easy reach of the operator, and
mark it as the disconnecting device. The disconnecting device shall meet the relevant
requirements of IEC 60947-1 and IEC 60947-3 and shall be suitable for the application.
In the US and Canada, disconnecting fuse holders can be used. Provide overcurrent
protection and disconnecting device for supply conductors with approved current limiting
devices suitable for protecting the wiring. If the equipment is used in a manner not
specified by the manufacturer, the protection provided by the device may be impaired.
WEB VERSION

CAUTION:
• This product is not intended for life or safety applications.
• Do not install this product in hazardous or classified locations.
• The installer is responsible for conformance to all applicable codes.
• Mount this product inside a suitable fire and electrical enclosure.
• If the collector is connected directly to a source of voltage, the pulse isolator will
immediately burn out and become non-responsive.
• Do no use any cleaning agents, including water, on the VerifEye device.
• No accessories are approved for use with the VerifEye meter other than those
specified in the Leviton Manufacturing product literature and price sheets.
• A circuit breaker used as a disconnect must meet the requirements of IEC 60947-1
and IEC 60947-3 (Clause 6.11.4.2)
• Current transformers may not be installed in equipment where they exceed 75
percent of the wiring space of any cross-sectional area within the equipment.
• Current transformers may not be installed in an area where they block
ventilation openings.
• Current transformers may not be installed in an area of breaker arc venting.
• Not suitable for Class 2 wiring method nor intended for connection to
Class 2 equipment.
• Secure current transformer and route conductors so that they do not directly
contact live terminals or bus.
• External secondary inputs and outputs should be connected to devices meeting
the requirements of IEC 60950
• The following additional requirements apply for Recognized board versions of the
VerifEye meter
• For use only with Listed Energy-monitoring Current Transformers
• Associated leads of the current transformers shall be maintained within the
same overall enclosure.
• Unless the current transformers and their leads have been evaluated for
REINFORCED INSULATION, the leads must be segregated or insulated
from different circuits.
• The current transformers are intended for installation within the same
enclosure as the equipment. These may not be installed within switchgears
and panel boards or similar.
• Use this device with copper or copper clad wire only.
• For indoor use only.
WEB VERSION

1
1 INTRODUCTION
There are two meters in the VerifEye®series: the VerifEye 7000 and the VerifEye 7100.
These meters monitor the voltage, current, power, energy, and many other electrical
parameters on single and three-phase electrical systems. A VerifEye meter uses direct
connections to each phase of the voltage and current transformers to monitor each
phase of the current. Information on energy use, demand, power factor, line frequency,
and more are derived from these voltage and current inputs.
The VerifEye meter is not meant to be a standalone energy recorder; rather it is
connected as a slave device to a data logger, Remote Terminal Unit (RTU), or Building
Management host network. The VerifEye meter communication interfaces include
Ethernet (LAN), or RS-485 serial. BACnet MS/TP and Modbus RTU are the two
communication protocols that operate over an RS-485 serial network and BACnet IP and
Modbus TCP are supported over Ethernet. A USB port is also provided as the preferred
connection for on-site configuration and can be run concurrently with an RTU.
1.1 Unpacking the Unit
The VerifEye meters can be ordered with optional product features which are
identifiable on the part number label.
VerifEye Part Numbering Scheme
70D48-000 Series 7000 Embedded Branch Circuit Monitor, Mounting Plate
48 Input, with LCD Display
70N48-000 Series 7000 Embedded Branch Circuit Monitor, Mounting Plate
48 Input, with no display
71D48-000 Series 7100 Branch Circuit Monitor, Plastic Enclosure
48 Input, with LCD Display
Each VerifEye meter shipment also includes the following items:
• Meter with Options Installed – Serial Number, MAC ID, and FCC ID
indicated on side label
• Pluggable Connectors (2 voltage, 50 three-position terminals,
3 two-position terminals)
• Thumb drive containing VerifEye S7 Configuration Utilities Software,
Register List, Manual, Tutorial Videos
• Certificate of Calibration (COC) for each unit
WEB VERSION

2
1 INTRODUCTION
1.2 Meter Anatomy
All user connections are made on the circuit board. Connectors are
identified by function and include polarity markers.
Element ID Element ID
LCD Display
Navigation
Buttons
Expansion
Card (12V)
Pulse Input
Pulse Input
ETHERNET
USB
+12 VDC
RS-485
Alarm
Expansion
Card (12V)
Serial #
Model #
MAC ID(s)
Voltage
Input 1
Voltage
Input 2
Plate
Ground
Voltage
Cover
(transparent)
WEB VERSION

3
2.1 Project Manager Aspects
Meter installation often includes coordination between individuals or groups of
people with different responsibilities. Spend a few minutes considering who will
be executing each portion of the installation and what tools are needed at each
stage. Things to consider include determining how to communicate with the
meter, setting address configuration, installing S7 Configuration Utilities, access
to PIN numbers, etc. The more tasks completed before installation the fewer
tasks will be needed in the field. The following section gives an overview of
typical process activities followed by details in the next section.
2.1.1 Configuration & Data Viewing Options
The VerifEye meter has three methods for configuration and data viewing. The
most powerful interface is a Microsoft Windows application (S7 Configuration
Utilities ) that runs on PCs or tablets. S7 Configuration Utilities is encouraged
for complex installations and is required for configuring advanced functions like
alarms. The second interface is the VerifEye Web App and is intended for smart
phones or tablets that can connect over USB, or Ethernet. The third interface is
an optional LCD display which is intended for intermittent end-user observation
and is restricted in capability. The RTU can also be used for configuration
if communication settings are already established. The feature set of each
interface is summarized next.
2.1.2 Information Access by Interface Type
* If PINs are configured
2 PLANNING FOR FIELD INSTALLATION
Interface
Options
PC or Laptop
Running
S7 Configuration
Utilities
Smart Device or
Tablet via
VerifEye Web App
LCD on Meter
(if equipped)
RTU
(Host System)
Modbus /BACnet
When Meter Setup
Field Visit
Field Visit End User Building
System
Real Time
Values
All Meter Parameters
Waveform Capture
Harmonic Analysis
All Element View
Phasor Plot
Alarms
All Meter Parameters
Multi-Element View
Voltage
Current
VA
VAR
kWh
Single Element View
All Meter
Parameters
Configuration Entire Meter
Visual Guides
Copy / Paste
Entire Meter
Text Based
Communications
Only
Entire Meter
Register Based
Security PINs Factory Support –
Level 3
Read Only - Level 1*
Read/Write - Level 2*
Read Only – Level 1*
Read / Write Level 2*
(limited to
communication)
Factory Support –
Level 3
WEB VERSION

4
2.2 Meter Configuration Overview
Work performed ahead of the installation saves time in the field and results in
fewer mistakes!
2.3 Meter Installation Overview
Performed by licensed electrician.
2.4 Verification & Communication Overview
Can be modified with power applied to the meter.
2 PLANNING FOR FIELD INSTALLATION
Tools Typical Work
• Desktop or Laptop PC
•
USB Type AB Cable (preferred) or Ethernet & USB
wall charger (> 500 mA)
• Thumb Drive (S7 Configuration Utilities Installer)
or access www.Leviton.com and go tosoftware
downloads for this product
• Electrical Schematics of project
• Installation of S7 Configuration Utilities Software
• Connect USB/Ethernet cable from PC to meter
• Establish communication with meter
• Firmware update (if desired)
• Configure software for anticipated meter setup
• Field wiring documentation
Tools Typical Work
• Mounting hardware (customer supplied)
• Wiring & supplies, labels, wire ties
• Tablet, Smart Device, or Laptop PC
• Multi Meter, Current Clamp
• Camera
• Mechanical mounting
• Electrical installation
• Install voltage cover
• Apply power to meter
• Confirm basic operation of meter
Tools Typical Work
• Tablet, Smart Device (Web Page Based), or Laptop
PC (S7 Configuration Utilities Software)
• On site troubleshooting
• Multi Meter, Current Clamp
• Camera
• Locate the power meter
• Confirm RTU device
• Add wire terminations (if required)
• Confirm meter communication settings
• Meter health metrics (check for setup errors)
• Analytics (S7 Configuration Utilities )
• Correct instrumentation
• Set security PINs
• Checklist
2.5 RTU Programming and Scripting Overview
Tools Typical Work
• Laptop PC (Remote Access to RTU)
• Remote troubleshooting
• Register List
• Confirm meter communication settings
• Confirm communication protocols
• Exercise remote connectivity
• Run configuration scripting
• Confirm data integrity
WEB VERSION

5
3 METER CONFIGURATION
This section is written to support setting up the VerifEye in an office environment and
configuring the power meter for a pre-determined configuration. In many cases, the
setup is standardized for an organization or project. In other cases, the setup can be
documented and emailed to an installer. The setup can also be performed on-site and
reflect “as-built” configurations.
3.1 Install the S7 Configuration Utilities Software
Insert the S7 Configuration Utilities thumb drive into the computer or download
from the Leviton FTP site. (qualified Leviton personnel only). The installer
should start automatically. If it does not, browse the thumb drive and locate the
S7ConfigurationUtilities.exe program, double-click on it, and follow the
installer instructions.
Custom Installation
For users who want to specify the location of the S7 Configuration Utilities
software and support files, double-click the folder [Install Files] and run setup.
exe. This will prompt the user for additional details.
3.1.1 Connection & Configuration Options Using S7 Configuration Utilities
When the S7 Configuration Utilities application is launched, it will prompt the
user to select one of four connectivity options.
• Connect over USB cable
• Connect over Ethernet to a Predetermined IP address
• Scan Network
• Create Setup file only (no meter connected)
NOTE: The USB connection method is
recommended for new users who have physical
access to the meter using a USB A to B cable.
WEB VERSION

6
3 METER CONFIGURATION
3.1.2 USB Connection (Power & Communications)
1. Connect the VerifEye meter to a USB port of your computer to provide both
power and communications.
a. If equipped, the LCD display is the most visible indication of a
running meter.
b. For meters without a display, a green flashing LED on the circuit board
indicates that the VerifEye meter has booted and is running.
CAUTION: The VerifEye meter draws 450mA from the USB port. Be sure
the USB host is industry standard otherwise overloading may occur. If the
meter fails to power, or flickers when powering over USB, an alternate
configuration for power must be used.
2. Launch the S7 Configuration Utilities application and select
[CONNECT OVER USB] on the pop up window.
The meter should now be communicating. The S7 Configuration Utilities
application offers visual guides and context help to facilitate meter configuration.
Please read the S7 Configuration Utilities overview section for additional
information on configuring the meter. By default, VerifEye meters are configured
for DNS Ethernet addressing. A very common configuration sequence is using
USB to configure a meter for Ethernet communications at a static IP address
and then switching from USB over to Ethernet to locate it. This is facilitated in S7
Configuration Utilities by selecting [Refresh Connectivity] located in the upper
right hand corner.
3.1.3 Ethernet Network Connections
Configuring the meter over Ethernet requires that the meter be powered used a
second connection. The meter does not support Power Over Ethernet (POE). If
the meter is already installed within the buildings electrical network, closing the
AC breaker (or approved disconnect) will turn on the meter through the meter’s
internal power supply.
NOTE: In the rare case that a computer’s USB port cannot provide 500mA of
current, an AC / USB charger or a USB battery can be used as a power source
while using Ethernet for communications.
NOTE: Both the Network Scan and Connect Over Ethernet to IP options
require that a valid network connection exists between the VerifEye meter and
configuration PC.
Dynamic Host Configuration Protocol (DHCP):
VerifEye meters are shipped in DHCP mode to prevent IP conflicts with other
equipment. The meter is expecting to receive an IP address from a DHCP
service provided by a router, Layer 3 switch, or a server providing DHCP
service. Under this configuration, as long as the VerifEye meter and the host PC
are requesting an IP address from the same DHCP service provider, they will
be able to communicate. Upon powering up, the VerifEye meter will indicate the
IP address on the LCD display (if equipped) or can be found using the Network
Scan function.
WEB VERSION

7
3 METER CONFIGURATION
Direct
When a PC is directly connected to a VerifEye meter via an ethernet cable,
no DHCP service exists. This configuration can be made to work, but requires
changes to either the meter communication settings or the PC
network configuration.
LCD Display
For units equipped with an LCD display, navigate to
Communications > Ethernet Settings > DHCP > OFF
Change the IP address in the meter to match the subnet of your PC’s IP
address, making the meter IP unique, or note the current address on the meter
and prepare to configure your PC’s IP settings as shown below.
Control Panel
> Network and Sharing Center
> Change Adapter Settings
> Properties
> Internet Protocol Version 4 (TCP/IPv4)
> Properties
Change Computer IP Address and Subnet Mask to 192.168.1.100 and
255.255.255.000 respectively.
Once the PC and VerifEye meter are set to communicate on the same
IP subnet:
1.Launch the S7 Configuration Utilities application and enter the IP address of
the meter (shown as the factory default).
2.Select [Connect over Ethernet to:] on the pop up window.
3.The meter should now be communicating. S7 Configuration Utilities is an
intuitive application; read the S7 Configuration Utilities overview section for
additional information on configuring the meter.
No LCD Display
A VerifEye meter without a display can only communicate directly with a PC over
ethernet if the IP address of the meter is set to static. Setting the IP address
must be done ahead of time using another interface (such as USB or serial).
WEB VERSION

8
3 METER CONFIGURATION
Network Scan

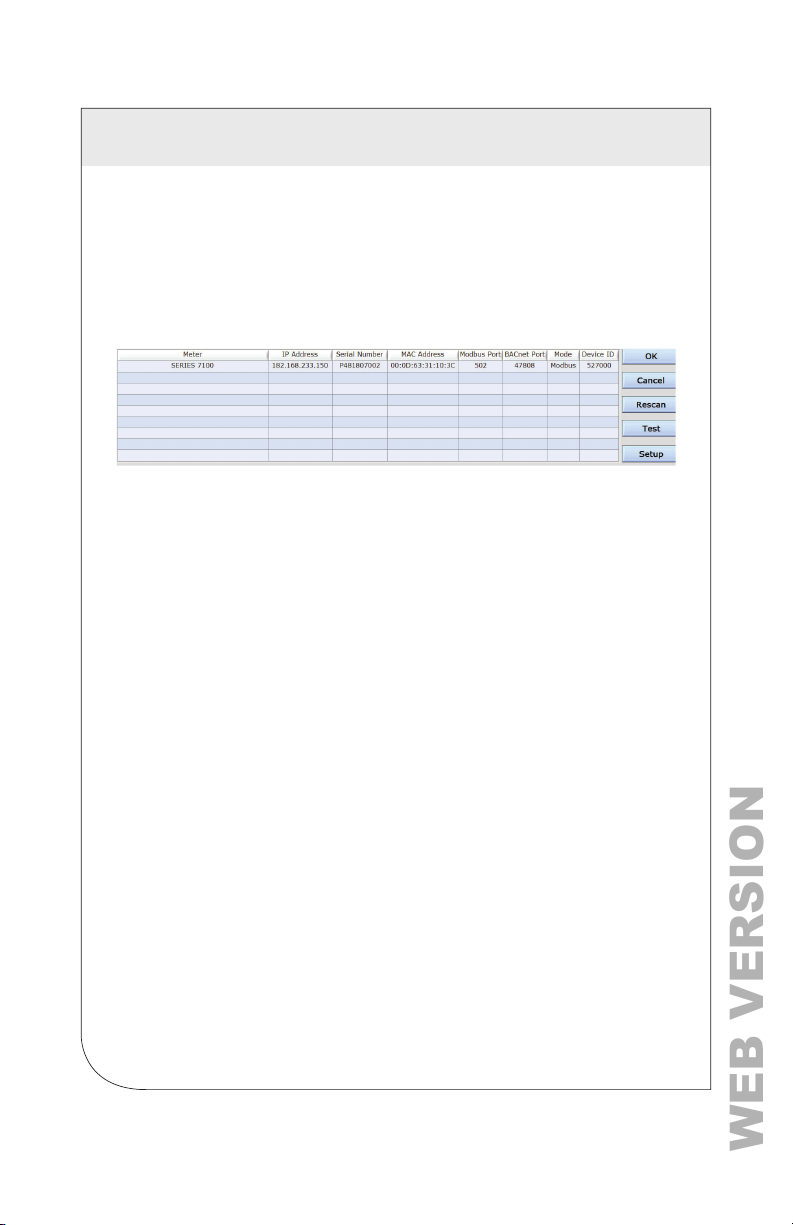

Network Scan is a feature for monitoring previously installed and configured
VerifEye meters over an Ethernet network. Network Scan will broadcast a UDP
discovery packet on the same network as the PC running the S7 Configuration
Utilities application. Normally this will be performed on a corporate network
running DHCP. Any VerifEye meter that responds will be displayed in a table
that includes the system description register, IP address, serial number, and
communication configuration.
Highlight the desired meter and select OK, Test or Setup. Note that the
effectiveness of this technique is highly dependent on the configuration of the
PC running S7 Configuration Utilities (which may have more than one network
card) and the network configuration. Rescans can be used to make multiple
attempts to locate a particular meter on busy networks (UDP has no built-in
retry provisions).
Launch Configurator
The final option in the S7 Configuration Utilities Connect to Meter pop-up
window is Launch Configurator. This option allows for the creation of a meter
setup or alarm table for future use without connecting to a meter. After prompting
the user for a meter model, the S7 Configuration Utilities application launches
under a mode with restricted functionality. This mode operates on files only.
WEB VERSION

9
3 METER CONFIGURATION
3.2 S7 Configuration Utilities Software Overview
S7 Configuration Utilities is a Windows application and is the most versatile
software tool for configuring and verifying a VerifEye meter. All functions and
menus are accessed under the central drop-down list which has a content filter
for viewing Basic metering data or Extended meter data that can be helpful in
troubleshooting. The information displayed in the drop-down list for each filter
setting is summarized below.
ExtendedBasic
Display Data Basic Extended
Monitor Power DD
Energy DD
Demand DD
Power Factor D
Waveform Capture D
Harmonics D
Phasor Plots D
Setup Meter Setup DD
Communication Setup DD
Alarms D
Advanced DD
About the Meter DD
WEB VERSION

10
3 METER CONFIGURATION
3.2.1 Configuring Electrical Components Using S7 Configuration Utilities
1. Navigate to Meter Setup under Display Menu List Box.
2. Enter a System Description for the physical location of the meter.
3. Enter Element Description (defaults are A, B, etc.).
4. Select the Voltage Input (voltage connector 1 or 2) - for OS48 only.
5. Select the Voltage Multiplier (optional).
6. Select the Service Type (3-Phase 4-Wire, etc.).
7. Select CT Type (HSC-050, etc.).
8. Set CT Multiplier (optional).
9. Set CT Flipper (optional).
10. Repeat steps 3 - 7 for each Element.
11. Click SEND SETUP TO METER
WEB VERSION

11
3 METER CONFIGURATION
3.2.2 Configuring RS-485 Communications Using S7 Configuration Utilities
If planning to setup communication via RS-485, follow the steps below:
1. Navigate to Communication Setup under Display Menu List Box.
2. Select RS-485.
3. Select either Modbus or BACnet.
4. If Modbus is selected, set the following:
• Serial Settings
If BACnet is selected, set the following:
• Serial Settings
• Device ID
• MS/TP Address
• Max Masters (optional)
• Max Info Frames (optional)
5. Click SEND SETUP TO METER
WEB VERSION

12
3 METER CONFIGURATION
3.2.3 Configuring Ethernet Communications Using S7
Configuration Utilities
If planning to setup communication via Ethernet, follow the steps below:
1. Navigate to Communication Setup under Display Menu List Box.
2. Select Ethernet.
3. Select either Modbus or BACnet.
4. If Modbus is selected, set the following:
• Modbus Port (optional)
If BACnet is selected, set the following:
• Device ID
• BACnet Port & BBMD
5. Select either DHCP or Static IP.
6. If DHCP is selected, proceed to the next step.
If Static IP is selected, set the following:
• Static IP Address
• Subnet Mask
• Gateway Mask
• Default Gateway
7. Click SEND SETUP TO METER
WEB VERSION

13
3 METER CONFIGURATION
3.2.4 Configuring Alarms in S7 Configuration Utilities
The VerifEye power meter has the ability to set alarms for over and under
conditions for voltage and current on any meter channel.
Configuration Input Methods
S7 Configuration Utilities uses dynamic entry for the specification of Alarm
settings. Whichever text entry field is selected becomes the forcing condition
and the other related fields are updated by calculation to reflect a consistent
set of conditions. The text entry fields in grey are Configuration and are NOT
retained by the meter. Only the fields with a black background are stored in the
meters memory or in configuration files
Nominal Values
Entering alarm thresholds based on “percent of nominal” values is helpful
when alarm conditions are desired to be centered around electrical
components or industry standard conditions. For example, an over current
alarm may be set to 80% of an installed circuit breaker to alert when that
breaker exceeds NEC recommendations.
Absolute Values
Entering alarms based on absolute value is a matter of entering the
triggering values directly in the register fields (black background).
WEB VERSION

14
3 METER CONFIGURATION
3.2.5 Setting the Real Time Clock
The VerifEye meter includes a Real Time Clock. The clock is used only to time
stamp Interval Data in the log, it is not used for calculation within the meter.
For those customers using the IDR function of the meter, it is helpful (but not
strictly necessary) to set the real time clock so that data records can be uniquely
identified. The time can be set using S7 Configuration Utilities, under the
Advanced Tab, by clicking on the small time icon in the bottom right corner of
the clock.
The clock icon launches the Window Calendar and allows the user to choose
desired date and time. Set Time to Now populates the current time. Click OK to
commit this time to the RTC chip onboard the meter.
Real Time Clock Power Source
The RTC integrated circuit is a stand alone low power circuit within the VerifEye
meter. Time is kept in the absence of a connected external power source (AC or
USB power) by a super capacitor. The capacitor can keep the RTC running over
normal power outages (days to weeks) but is not expected to keep time while
the meter is being stored or shipped.
NOTE: It is recommended that users desiring to use the Interval Data
Recording capability of the VerifEye meter ensure the Real Time Clock is set
as part of the commissioning process.
WEB VERSION
