Leviton VerifEye MDTFW User manual

Wireless Meter in Flush Mount Enclosure
Installation Manual
Cat No. MDTFW
VerifEye®
WEB VERSION

WEB VERSION

TABLE OF CONTENTS
1 Warnings and Cautions ....................................................................
2 Product Description .........................................................................
2.1 General Description ................................................................
2.2 Meter Features ........................................................................
2.3 Meter Certifications .................................................................
2.4 Model Numbers .......................................................................
2.5 Physical Description ................................................................
2.5.1 Meter in Flush Mount Enclosure .....................................
2.6 Functional Description .............................................................
3 Technical Specifications ..................................................................
3.1 Electrical and Environmental Specifications ............................
3.2 Input/Output Connections and User Display ...........................
4 Installation Instructions ...................................................................
4.1 Preparation ..............................................................................
4.2 List of Materials .......................................................................
4.3 Mounting the Enclosure ..........................................................
4.3.1 Mounting Location ..........................................................
4.3.2 Making Conduit Openings ..............................................
4.4 Installation of Voltage Lines ....................................................
4.5 Installation of Current Transformers ........................................
4.5.1 General Requirements ....................................................
4.5.2 Installing Solid Core CTS ................................................
4.6 Flush Mount Enclosure Installation .........................................
4.7 Testing the Installation .............................................................
5 Wireless Automatic Meter Reading .................................................
5.1 MDT Transceiver Wiring ..........................................................
5.2 Network Activation ...................................................................
6 Maintenance ......................................................................................
7 Troubleshooting ...............................................................................
8 Warranty and FCC Compliance .......................................................
9 Contact Information .........................................................................
2
3
3
3
3
3
4
4
4
5
5
6
8
8
8
8
8
9
10
11
11
11
12
14
15
15
15
17
18
19
20
WEB VERSION

2
1 WARNINGS AND CAUTIONS
The following section contains installation and wiring instructions for the Leviton wireless
meter in an indoor flush mount enclosure. If technical assistance is required at any point
during the installation, contact information can be found at the end of this manual. Leviton is
not responsible for damage to the meter caused by incorrect wiring, which will
void the product’s warranty.
WARNING:
• TO AVOID FIRE, SHOCK OR DEATH; TURN OFF POWER at circuit breaker or fuse
and test that the power is off before installing product or servicing current transformers.
• Make sure all tools used during installation have proper installation ratings.
• Installations must be done in accordance with local codes and current National
Electric Code requirements, and performed by trained, qualified professionals.
• Equipment used in a manner not specified by this document impairs the protection
provided by the equipment.
CAUTIONS:
• Verify the model number and electrical specifications of the device being installed to
confirm they are appropriate for the intended electrical service (see Section 3).
• Consult local codes for any possible permits or inspections required before beginning
electrical work.
• Like repeaters, MDTs should not be mounted inside a metal box or near a metal wall
(i.e. heating furnace or electrical panel). Consult the Tehama QuickStart Guide, which
can be downloaded from the manufacturers website.
• MDTs must be mounted using velcro, tie-wraps, or screws. Don’t let the MDT
dangle by the pulse input wire.
• Avoid locations with dampness, high humidity, or an abundance of mold.
• Ensure the conduit for the installation is flexible and non-metallic. For outdoor
applications conduit and conduit fittings must be rated UL Type 4X for outdoor
enclosures. Failure to use the appropriate conduit impairs the degree of equipment
protection.
WEB VERSION

3
2 PRODUCT DESCRIPTION
2.1 General Description
This device is a self-powered, current transformer (CT) rated electronic kilowatt-hour
(kWh) meter designed for permanent connection to an electrical service. This guide
is for use with the dual element (1PH 120/240V or 2PH 120/208V, 3-Wire) meter in a
flush mount enclosure.
2.2 Meter Features
• Exceeds Revenue-grade accuracy
• Built in LCD display
• Multiple load monitoring with a single meter
• Isolated Pulse outputs
• Tamper Micro Switch
• 5-year warranty
2.3 Meter Certifications
• UL Listed Component for use in US or Canada
• NRTL certified compliance with ANSI C12.1 and C12.20 (0.5)
• Wireless option complies with NY DPS and NYSERDA requirements for
revenue grade submeters
2.4 Model Numbers
MDTFW-2SC Flush Mount Mini Meter™ Kit, LCD Display, Isolated Pulse Outputs, TOU
enabled kWh Meter Data Transceiver
Table 1 - Kit Models and Options
WEB VERSION

4
2 PRODUCT DESCRIPTION
2.5 Physical Description
2.5.1 Meter in Flush Mount Enclosure
2.6 Functional Description
The MDTFW version of the meter accurately quantifies electrical energy usage of 1PH
2W or 2PH 3W 120/208V or 120/240V loads. Solid Core Current Transformers are used
to measure current flowing to a load. Energy information (pulses) is recorded by the
onboard wireless transceiver, which time stamps kWh readings in 15-minute intervals
and sends it over a secure wireless network to a Data Concentrating Access Point
(DCAP), where data from a network of meters is stored for on a local computer for billing
or energy management functions, or data can be pushed from the DCAP or pulled from
remote locations via an ethernet connection.
9.88 in.
5
.67 in. 4.60 in.
1.54
in.
8.81 in.
Figure 1 – Meter in Flush Mount Enclosure Dimensions
4.620 in.
2.845 in.2.150 in.
3.525 in.
5.130 in.
5.130 in.
1.107 in. 1.282 in.
.125 in.
WEB VERSION

5
3 TECHNICAL SPECIFICATIONS
Table 2 – Electrical and Environmental Specifications
1Product approved for use with included Leviton Current Transformers, as follows:
• 200A: Part Numbers CDA02-K12 (Black)
2Pollution Degree 2: normally only non-conductive pollution occurs. Occasionally, however, a
temporary conductivity caused by condensation can happen.
3.1 Electrical and Environmental Specifications
The meter falls under UL Circuit Category III: Devices for measurements performed in
the building installation. The electrical and environmental specifications for the meters
are given in the table below.
Input Configurations 1 Phase, 2 wire
1 or 2 Phase, 3 wire
Supply Voltage Range
(L1 or L2 to Neutral)
Min. 102 VAC Max. 138 VAC
Maximum Input Power 8 VA
Maximum Rated Current1220 A primary for 200 A models
110 A primary for 100 A models
0.11 A secondary for 0.1 A secondary models
0.22 A secondary for 0.2 A secondary models
Line Frequency 50-60 Hz
Power Factor Range 0.5 to 1.0, leading or lagging
Accuracy +/- 0.5% of registration @ 1.0pf. 2 to 200 A
+/- 0.75% of registration @ 0.5pf, 2 to 200 A
Operating Temperature Range -30 to +70 degrees C
Rated Pollution Degree22
Rated Relative Humidity 80%
Branch Fuse Holder
Klemsan ASK2 or equiv.
250 V, 1 A, fast acting, short time lag
Terminal Blocks Mini Meter
Dinkle/International Connector
OSTVI110152
4.4 in-lb of torque maximum
WEB VERSION

6
3 TECHNICAL SPECIFICATIONS
3.2 Input/Output Connections and User Display

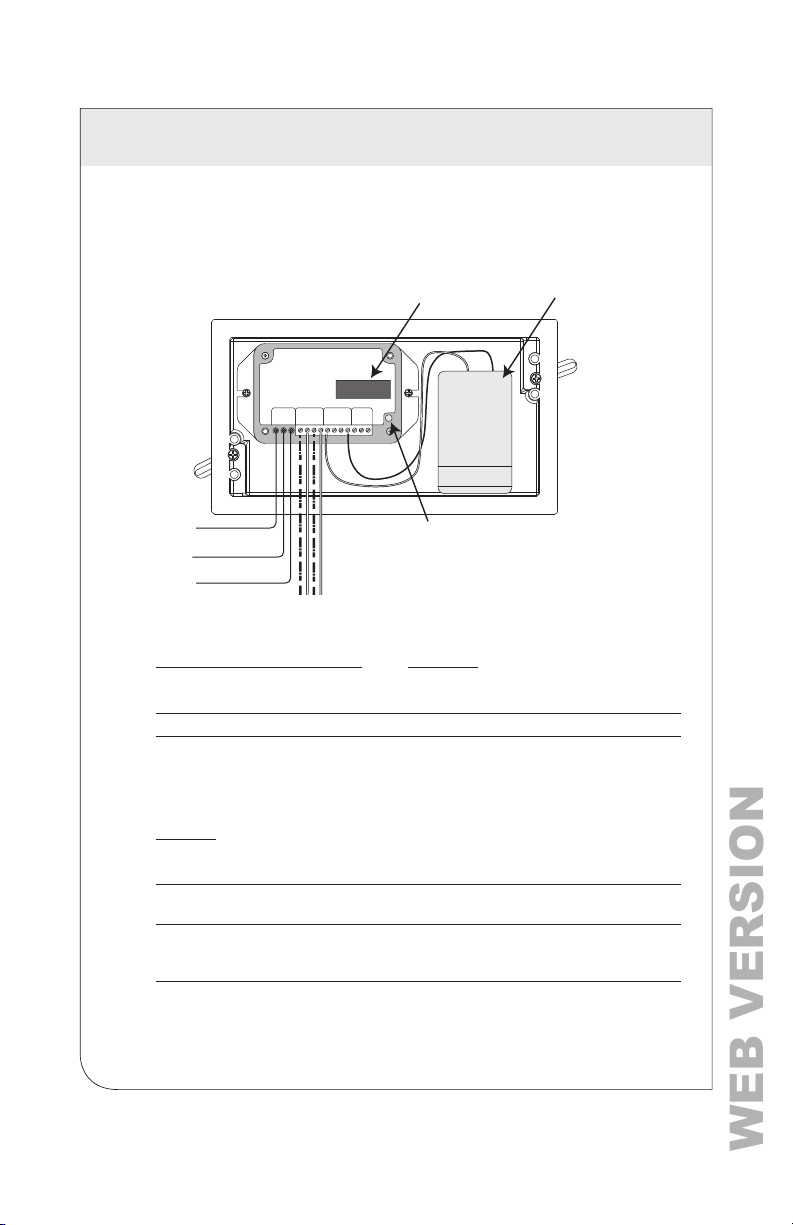

Figure 2 – Meter Connections and Display
Table 2A – Input Connections
Voltage Inputs (wire connections) Description
L1 Black wire, voltage input, Line 1,
120 V with respect to neutral
N White wire, Neutral input
L2 Red wire, voltage input, Line 2, 120 V with
respect to neutral (2 phase models only)
CT Inputs
CT1 : X1 Current Transformer input, CT1.
Colored wire of CT 1
CT1 : X2 Current Transformer input, CT1. White wire
of CT1
CT2 : X1 Current Transformer input, CT2.
Colored wire of CT 2.
(2 phase models only)
CT2 : X2 Current Transformer input, CT2. White wire
of CT2 (2 phase models only)
LCD DisplayWireless Data
Transceiver
Load LED
L1 X1 X2
CT1 CT2 (Kh) Isol
Isolated Output
X1 X2 10 100 1000
Counter
+12VDC
12COM L2N
WEB VERSION

7
10, Isolated Output (10 Wh/P, Kh = 10) Isolated pulse output: 5 watthours on,
5 watthours off, referenced to ISOL
COM.Connected at factory to wireless
transceiver. ISOL COM NOT TO BE
USED FOR FIELD WIRING
LED Indicators Description
Load LED (green) 50% duty cycle LED to verify proper
meter function when connected to a
load. At 200 watts, LED will flash 1.5
minutes on, 1.5 minutes off; with no
load, LED will remain on or off.
LCD Display LCD display that shows total kWh
(also displays kw demand,
instantaneous kw, error codes if
applicable, and more information
upon boot. Refer to the Mini Meter™
manual for complete information).
3 TECHNICAL SPECIFICATIONS
Table 3 – Display Indicators
Table 2B – I/O Connections
3.2 Input/Output Connections and User Display
Outputs Description
100, Isolated Output (100 Wh/P, Kh=100) Isolated pulse output: 50 watthours
on, 50 watthours off, referenced to
ISOL COM
1000, Isolated Output (1 kWh/P, Kh=1000) Isolated pulse output: 500 watthours
on, 500 watthours off, referenced to
ISOL COM (not available on models
with T suffix)
ISOL COM Isolated common for 10/100/1000
isolated outputs
Counter (kh = 100 or kh = 1000)* For 12 VDC electro-mechanical
counter
+12 VDC 12 VDC output; current rating is
3 mA max.
*Recommended Leviton Mechanical Counters part numbers are:
MPCTR-1KW (1kWh) and MPCTR-TKW (0.1kWh).
WEB VERSION

8
4 INSTALLATION INSTRUCTIONS
4.1 Preparation
WARNINGS
•TO AVOID FIRE, SHOCK OR DEATH; TURN OFF POWER at circuit breaker
or fuse and test that power is off before installing product or servicing current
transformers.
CAUTIONS
•Ensure the conduit for the installation is flexible and non-metallic. For outdoor
applications conduit and conduit fittings must be rated UL Type 4X for outdoor
enclosures. Failure to use the appropriate conduit impairs the degree of
equipment protection.
•Specification for branch circuit protection, rated min. 250 V, 1A, for voltage
sense / input leads.
4.2 List of Materials
•Meter, flush mount enclosure and associated mounting materials, two #6
x 15/8 drywall screws.
•Additional wiring for CT or voltage leads extension if needed. Wires must be 18
AWG or thicker and insulated for 300 VAC min.
•Current Transformers (CTs): This product is designed for use with Leviton CTs.
• Flexible, non-metallic conduit and fittings; UL Type 4X for outdoor applications.
4.3 Mounting the Enclosure
4.3.1 Mounting Location
•Meters with flush mount enclosures require a switch or circuit breaker as part of
the building installation.
•The switch or circuit breaker must be marked as the disconnecting device for
the meter.
•It is recommended that the enclosure be mounted near the disconnecting
device in an area with adequate ventilation.
•Ensure that the CT and voltage lead lengths (and conduit lengths) are capable
of reaching the enclosure from the load center.
•If a suitable mounting location near the load center cannot be found, additional
in-line fuses or circuit breaker may be required in accordance with NEC
regulations.
WEB VERSION

9
4 INSTALLATION INSTRUCTIONS
4.3.2 Making Conduit Openings
It is recommended that conduit holes be placed in the lower left compartment of the
flush mount enclosure, just below the meter I/O terminal block. Conduit hole sizes
must be appropriate to fittings, and large enough to fit all voltage and CT wiring (4-7
18 AWG min. wires insulated for 300 V min.).
WEB VERSION

10
4 INSTALLATION INSTRUCTIONS
4.4 Installation of Voltage Lines
WARNING: TO AVOID FIRE, SHOCK OR DEATH; TURN OFF POWER at circuit
breaker or fuse and test that the power is off before wiring! Verify that branch circuit fuse
specifications meet local electric codes (see section 3.2).
1. Based on desired mounting location, check if additional in-line fuses are required to
meet local electric codes. (See section 4.3.1 for mounting location requirements and
recommendations).
2. Meters come standard with voltage wires pre-connected to the metering board.
3. Route wires through conduit to the breaker panel.
4. Trim the wire to the appropriate length to avoid coils of excess wiring.
5. Following all national and local electric codes, connect wires to appropriate locations in
the load center. Wires should be tightened so that they are held snuggly in place, but
do not to over-tighten, as this may compress and weaken the conductor. See figure 5
for meter wiring diagram.
WEB VERSION

11
4 INSTALLATION INSTRUCTIONS
4.5 Installation of Current Transformers
WARNING: TO AVOID FIRE, SHOCK OR DEATH; TURN OFF POWER at
circuit breaker or fuse and test that the power is off before installing or servicing
current transformers.
CAUTION: In accordance with NEC, CTs may not be installed in any panel board
where they exceed 75% of the wiring space of any cross-sectional area. Violation
of the electric code could be punish by a fine or imprisonment.
4.5.1 General Requirements
• Field wired CT connections are made to the meter terminal block. The rated
torque for these terminal blocks is 4.4 in-lb, and can be used with solid and
stranded copper wires, at 12-18 AWG.
• Splices on the CT leads must be within the meter enclosure, not inside the
conduit.
• Leviton-provided CT leads are approximately 48 inches. Wire insulation should
be stripped so that the bare conductor length that connects to the meter
terminal block does not exceed 0.300 inches.
• CTs should be securely fastened such that they will not slide down to live
terminals.
• Wires should be tightened so that they are held snuggly in place, but do not to
overtighten, as this may compress and weaken the conductor.
• Current and voltage inputs must be installed ‘in phase’ for accurate readings
(e.g. CT1 on Line 1, CT2 on Line 2)
• Leviton solid core CTs (Figure 3): In accordance with CT label, the LINE side of
CT must face incoming Line. White lead connects to X2 of CT connection
(CT1:X2 or CT2:X2). Colored lead connects to X1 of the corresponding CT
connection (CT1:X1 or CT2:X1).
4.5.2 Installing solid core CTs
WARNING: TO AVOID FIRE, SHOCK OR DEATH; TURN OFF POWER at
circuit breaker or fuse and test that the power is off before installing or servicing
current transformers.
1. Route CT wires through the conduit if not already done.
2. Trim the wire to the appropriate length to avoid coils of excess wiring.
3. Strip wiring to approximately .300 inches and connect to the appropriate
terminals as described above.
4. With power turned off, disconnect each monitored conductor and slide on a
CT, ensuring the CT is correctly oriented as noted above.
5. Reconnect the conductors.
NOTE: Failure to install CTs in the correct orientation and on the correct phase
will lead to inaccurate meter readings. The meter wiring diagram is shown
in Figure 5.
Figure 3 – Leviton Solid Core CTs
WEB VERSION

12
4 INSTALLATION INSTRUCTIONS
4.6 Flush Mount Enclosure Installation
The Flush Mount Enclosure uses preinstalled clamps (Figure 4). After performing
steps 1 and 2 after section 4.5.2, follow the instructions for the appropriate
enclosure.
1. Select a desired installation location following the guidelines of 4.3.1.
2. Make a 4.5” x 8.75” hole in the mounting surface for the enclosure to be
situated. See Figure 1 for enclosure dimensions.
3.Unscrew the clamps to their maximum distance and orient them parallel with
the enclosure as show in frame 2 of Figure 4.
4. Slide the meter into the wall opening and tighten the clamp screws as in frame
3 of Figure 4.
5. After running the tests in Section 4.7, place the cover on the meter and attach
with the provided screws.
Figure 4 – Flush Mount Enclosure Installation
1
3
2
WEB VERSION

13
L1 X1 X2
CT1 CT2 (Kh) Isol
Isolated Output
X1 X2 10 100 1000
Counter
+12VDC
12COM L2N
DUAL ELEMENT,
METER WIRING DIAGRAM
LINE 1
120 V
NEUTRAL
LOAD
LINE
LINE 2
240 V
or
208 V
CT1
H1
CT2
X2
X1
X2
X1
H1
120 V
L1 X1 X2
CT1 CT2 (Kh) Isol
Isolated Output
X1 X2 10 100 1000
Counter
+12VDC
12COM L2N
SINGLE ELEMENT,
METER WIRING DIAGRAM
LINE 1
120 V
NEUTRAL
LOAD
LINE
CT1
H1 X2
X1
Secure clear cover
with two screws after wiring
(2 places)
888888
Optional 12VDC Counter
(Kubler Type K46 or Equivalent)
Optional 12VDC Counter
(Kubler Type K46 or Equivalent)
888888
Manufacturer is not responsible for
damage to the meter caused by
incorrect wiring
Secure clear cover
with two screws after wiring
(2 places)
4 INSTALLATION INSTRUCTIONS
Figure 5 – Dual and Single Element Meter Hookup Diagram
WEB VERSION

14
4 INSTALLATION INSTRUCTIONS
4.7 Testing the Installation
Testing Voltage
The LCD illuminates when the meter has a proper power supply. Voltage should also
be tested using an AC voltmeter to verify that the voltage across voltage line terminals
(L1 to Neutral and L2 to Neutral) is not in excess of the maximum rated voltage.
Load LED
The load LED is described in section 3. This LED should be cycling at 50% duty cycle
when the meter is connected properly and a sufficient load is applied.
WEB VERSION

15
5 WIRELESS AUTOMATIC METER READING
5.2 Network Activation
For complete wireless system commissioning information, consult the Tehama
QuickStart Guide, which can be downloaded from the manufacturers website.
DCAP
NOTE: The DCAP should be the first device installed and powered. Once the
DCAP is in place and powered, the repeater backbone can then be installed.
Repeaters
Power up repeaters starting with the closest to the DCAP and progressing out
to the one farthest from the DCAP. This will allow remote repeaters to see the
network backbone when they are turned on. If the repeaters are not powered up
in this order, then the power-up LED indicator on the remote repeaters may not
turn on to indicate that it has successfully joined the network. Once the repeaters
are in place, you can use the Commissioning and Installation Tool (CIT) software
(supplied on disc with purchase of the DCAP) to monitor the performance of the
network backbone.
Figure 6 – Wireless Network Consisting of MDTs, Repeater, and DCAP
5 Wireless Automatic Meter Reading
5.1 MDT Transceiver Wiring
Built into 6W201 models is a wireless Meter Data Transceiver (MDT) as shown in
Figure 2. The transceiver logs and time stamps accumulated pulses in 15 minute
intervals and sends the data via mesh network of transceivers and repeaters (if
required) to a Data Concentrating Access Point (DCAP). Repeaters and DCAPs are
sold separately.
MDT Power and Pulse input are pre-wired to isolated pulse output terminals:
• Power: Red wire to meter terminal +12 VDC and black to terminal counter.
• Meter Pulse Input: Green wire to terminal 10 and black to ISOL COM.
• Tamper Switch: White and black to tamper proof micro-switch.
TransceiverRepeaterTransceiverTransceiverTransceiverTransceiver
WEB VERSION

16
5 WIRELESS AUTOMATIC METER READING
Figure 7 – Wireless AMR
MDTs
After the network is in place, you can begin to place the MDTs in their locations and
turn them on. Alternatively the MDTs can also be installed with the meters while they
are powered off. As soon as the meter begins to generate pulses, the first pulse will
automatically turn on the MDT and begin to transmit.
Placement
CAUTIONS
•Like repeaters, MDTs should not be mounted inside a metal box or near a metal
wall (i.e. heating furnace or electrical panel). Consult the Tehama QuickStart
Guide, which can be downloaded from the manufacturers website.
•MDTs must be mounted using velcro, tie-wraps, or screws. Don’t let the MDT
dangle by the pulse input wire.
• Avoid locations with dampness, high humidity, or an abundance of mold.
MDT and Repeater Power-up
Power up the MDT so it can register with the DCAP. MDT’s must be wired to the meter
described in Section 5.1 in order for the device to be operational.
The image below shows where an invisible button is on the wireless transceiver. Press
that area of the MDT until you can feel the button click below your finger. The LED
to the right of the ON/OFF button will provide feedback when the button is properly
pushed.
• To turn the device ON, press and hold the ON/OFF button until the LED flashes off
(about four seconds) then release the button.
• After about 30 seconds the LED flash frequency will change from slow to fast. After
another 30 seconds, the LED will stay solid for 10 seconds then turn off, indicating the
device is communicating with the network.
• To turn a device OFF, press and hold the ON/OFF button until the LED flashes off
(about four seconds) then release the button. The LED will flash twice, indicating the
device is OFF.
ON/OFF
LED Indicator Light
WEB VERSION

17
5 WIRELESS AUTOMATIC METER READING
Power-up LED Indications
Slow flash: The device is searching for a signal from a Beacons from a DCAP and/
or repeaters.
Rapid Flash: The device has received a signal from a DCAP or a repeater and is in
the process of joining the network.
Solid Flash: The device has successfully joined the network.
After power up, if ON/OFF button is quickly pressed once, LED will indicate:
Single Flash: The device is in a light sleep mode. It will wake up periodically to
listen for beacons.
Double Flash: The device is OFF.
10 second on: The device is connected with a network.
NOTE: When the device is ON but cannot connect with a radio network, it enters a
light sleep mode. If no network is present, the device will continue to flash
slowly for 90 seconds then return to sleep mode for some time before trying
to connect to a signal again. If no network is in range, turn device OFF so
the battery will not drain.
5 WIRELESS AUTOMATIC METER READING
6 MAINTENANCE
Properly installed meters with correct connections and secure conduit fittings should
not require user maintenance. If the meter is functioning abnormally, consult the FAQ/
Troubleshooting guide. If the answer cannot be found there, contact Technical Support.
WEB VERSION

18
7 TROUBLESHOOTING / FAQ
Q:What is AMR equipment?
A:AMR is Automatic Meter Reading equipment. This typically consists of radio transmitters,
repeaters and a collector that monitors, records, and is capable of transmitting data to a third
party billing service (residential billing company).
Q: Why are the current transformers color coded (black and white, red and white, and blue
and white)?
A:CT1 needs to monitor the same phase used to power the meter on line 1, CT2 needs to monitor
the same phase used to power line 2. Color coding helps the installer maintain correct phasing.
Q: Can the meters be tampered with after installation?
A:The flush mount enclosures provide two drilled fillister head screws through which wire seals can
be installed. Also, tamper-evident labels can be affixed to the cover after installation.
Q: Can voltage input wires and current transformer secondary leads be routed through the
same conduit?
A:Yes, provided Leviton supplied CTs are used.
Q: I still can’t get my meter to work, what now?
A:Contact technical support via phone or at www.leviton.com.
Problem Solution
1. LCD not illuminated • Check to make sure all connections are
wired properly.
• Test the voltage being supplied to the
meter using an AC voltmeter.
•With power OFF, remove any additional
line fuses and test with ohmmeter.
2. Load LED not flashing • Verify CT connections and orientations.
•Make sure there is sufficient load to draw a
significant current.
•Test the voltage being supplied to the
meter using an AC voltmeter.
3. Registered consumption low • Check to make sure the reverse phase
arrow is not shown on the LCD.
• Make sure that current and voltage
connections are in phase.
• Check power connections and fuses.
WEB VERSION
