Setting up the printer

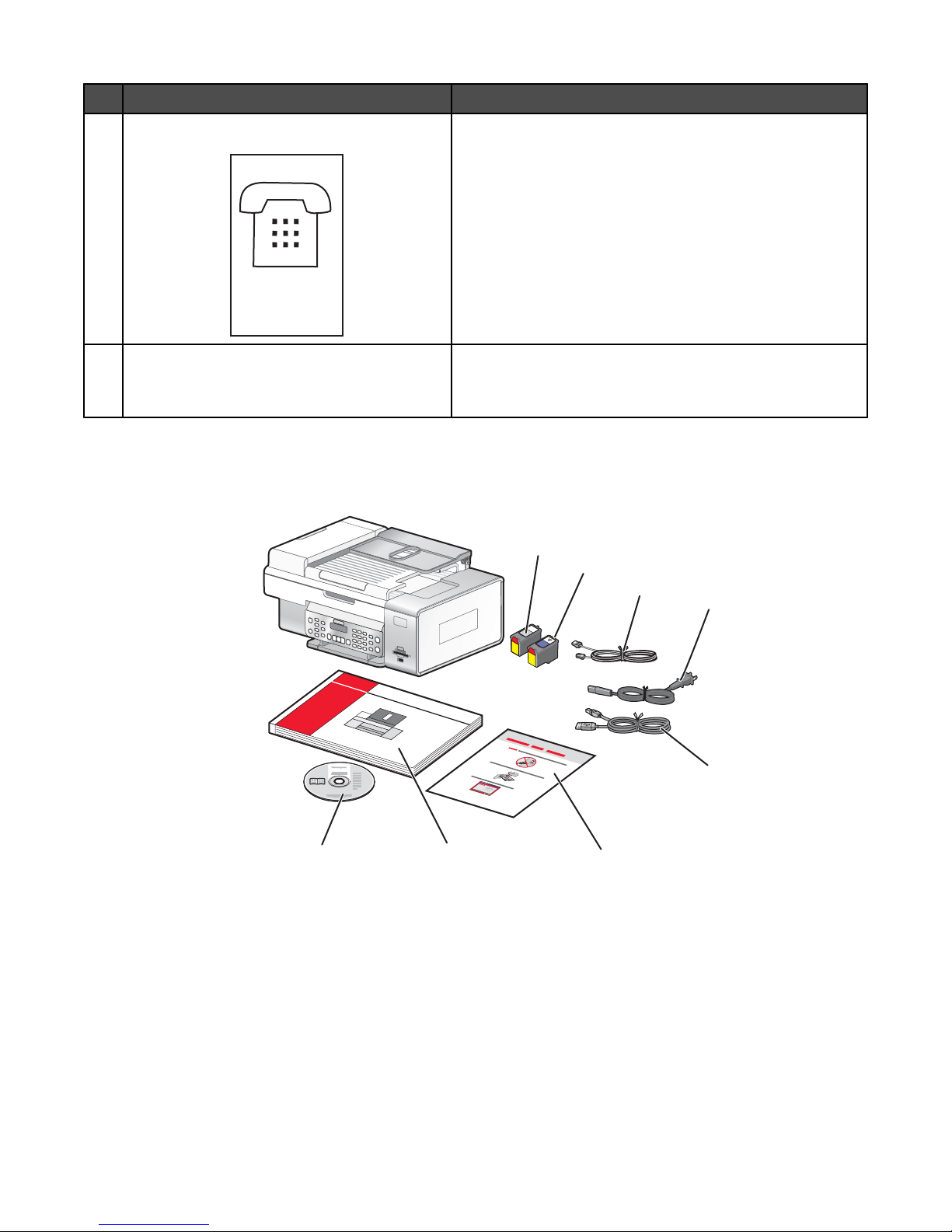

Checking the box contents
1234
5
7
8
1
2
3
6
Name Description
1Black print cartridge Cartridges to be installed into the printer.
Note: Cartridge combinations vary depending on the
product purchased.
2Color print cartridge
3Telephone cord Use for faxing. For more information about connecting this
cord, see “Choosing a fax connection” on page 30. Your
telephone cord may look different from the one shown.
4Power cord Attaches to the power supply port located at the back of the
printer.
Note: Your power cord may look different from the one
shown.
5Installation cable Connects the printer to the computer temporarily during
some methods of installation.
6Quick Setup sheet Initial setup directions
7User's Guide Printed booklet that serves as a guide.
Note: Complete user information (User's Guide:
Comprehensive Version or Mac Help) can be found on the
installation software CD.
8Installation software CD for Windows and Mac •Installation software for the printer
•User's Guide: Comprehensive Version in electronic
format
•Mac Help
17

Understanding the parts of the printer
12
3
4
5
6
7
8
9
10
11
12
13
14
Use the To
1Paper support Load paper.
2Paper feed guard Prevent items from falling into the paper slot.
3Paper guides Keep paper straight when feeding.
4Automatic Document Feeder (ADF) tray Load original documents in the ADF. Recommended for
scanning, copying, or faxing multiple-page documents.
Note: Do not load postcards, photos, small items, or thin
media (such as magazine clippings) into the ADF. Place
these items on the scanner glass.
5Automatic Document Feeder (ADF) output tray Hold documents as they exit from the ADF.
6Wi-Fi indicator Check wireless status:
•Off indicates that no wireless option is installed.
•Orange indicates that the printer is ready for wireless
connection, but not connected.
•Green indicates that the printer is connected to a
wireless network.
7Memory card slots Insert a memory card.
8PictBridge port Connect a PictBridge-enabled digital camera or a flash
drive to the printer.
9Control panel Operate the printer.
For more information, see “Using the control panel” on
page 36.
10 Paper exit tray Hold paper as it exits.
11 Automatic Document Feeder (ADF) paper guide Keep paper straight when feeding into the ADF.
12 Automatic Document Feeder (ADF) Scan, copy, or fax multiple-page letter-, legal-, and A4-size
documents.
18

Use the To
13 Scanner glass Copy or remove an item.
14 Top cover Access the scanner glass.
EXT
EXT
1
2
3
4
5
6
7
8
Use the To
1Scanner unit Access the print cartridges.
2Print cartridge carrier Install, replace, or remove a print cartridge.
3Power supply with port Plug the power cord into the power supply at the back of the
printer and then into the wall outlet.
4Duplex cover •Print on both sides of a sheet of paper.
•Remove paper jams.
5Lexmark N2050 (internal wireless print server) Connect the printer to a wireless network.
Note: The internal wireless print server may not come
installed on all printers. To purchase the Lexmark N2050,
see “Ordering paper and other supplies” on page 136.
6LINE port
LINE
Connect the printer to an active telephone line to send and
receive faxes. The printer must be connected to this
telephone line to receive incoming fax calls.
Note: Do not connect additional devices to the LINE port,
and do not connect a DSL (digital subscriber line), ISDN
(integrated services digital network), or cable modem to the
printer.
19

Use the To
7EXT port
EXT
Connect additional devices, such as data/fax modem,
telephone, or answering machine to the printer.
Note: Remove the plug to access the port.
8USB port Connect the printer to a computer using a USB cable.
Warning: Do not touch the USB port except when plugging
in or removing a USB cable or installation cable.
Standalone setup
1Unpack the printer.
1234
5
7
8
1
2
3
6
Notes:
•Place the printer near the computer during setup. If you're setting up on a wireless network, you may move
the printer after setup is complete.
•You may need to purchase a USB cable separately.
20

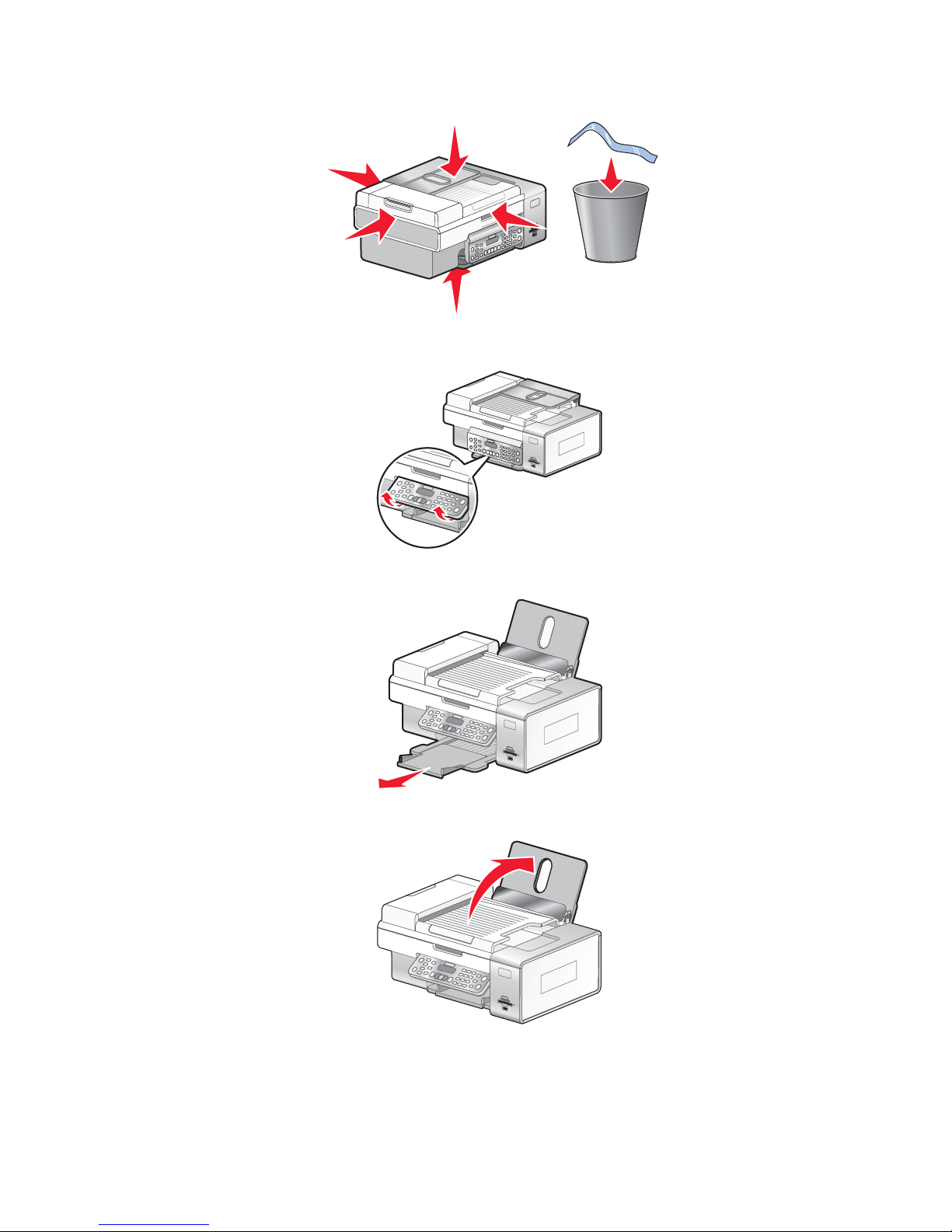

2Remove all tape and packing material from all areas of the printer.
3Raise the control panel.
4Extend the paper exit tray.
5Raise the paper support.
21

6Extend the paper guides.
7Load paper.
8Connect the power cord.
2
1
9Make sure the power is on.
22

10 If prompted, set the language.
2
1
1
aUsing the control panel of the printer, press or repeatedly until the language you want appears on the
display.
bPress to save.
11 If prompted, set the country/region.
2
1
1
aUsing the control panel of the printer, press or repeatedly until the country or region you want appears
on the display.
bPress to save.
12 Open the printer.
13 Press down on the cartridge carrier levers.
23

14 Remove the tape from the black print cartridge, and insert it in the left cartridge carrier.
15 Close the black cartridge carrier lid
16 Remove the tape from the color print cartridge, and insert it in the right cartridge carrier.
17 Close the color cartridge lid.
24

18 Close the printer.
19 Press .
An alignment page prints.
20 Discard the alignment page.
Notes:
•The alignment page that prints may differ from the one shown.
•Streaks on the alignment page are normal and not an indication of a problem.
Installing the printer on additional network computers
If you are installing your network printer for use with multiple computers on the network, insert the installation CD
into each additional computer, and follow the instructions on the computer screen.
•You do not need to repeat the connection steps for each computer you want to print to the printer.
•The printer should appear as a highlighted printer in the installation. If multiple printers appear in the list, make
sure you select the printer with the correct IP address/MAC address. If you need help finding the IP or MAC
address, see “Finding the MAC address” on page 51.
25

Setting up the printer on a Windows operating system
1Before you unpack the printer or attach anything, locate the CD for Windows.
2Make sure the computer is on, and then insert the CD for Windows.
Wait several seconds for the install screen to appear.
Note: If the install screen does not appear automatically, click Start Run, and then type D:\setup.exe, where
D is the letter of your CD-ROM drive.
3Follow the instructions on the computer screen to set up the printer.
Your security software may notify you that Lexmark software is trying to communicate with your computer
system. Always allow these programs to communicate. This is necessary for the printer to work properly.
Lexmark XXXX Series Installation
Welcome...
To prevent errors during installation, close all
open programs.
Security Information
Documentation
Support
Click Install to begin.
26

Getting the printer ready to fax
Using an RJ11 adapter
Country/region
•United Kingdom
•Ireland
•Finland
•Norway
•Denmark
•Italy
•Sweden
•Netherlands
•France
•Portugal

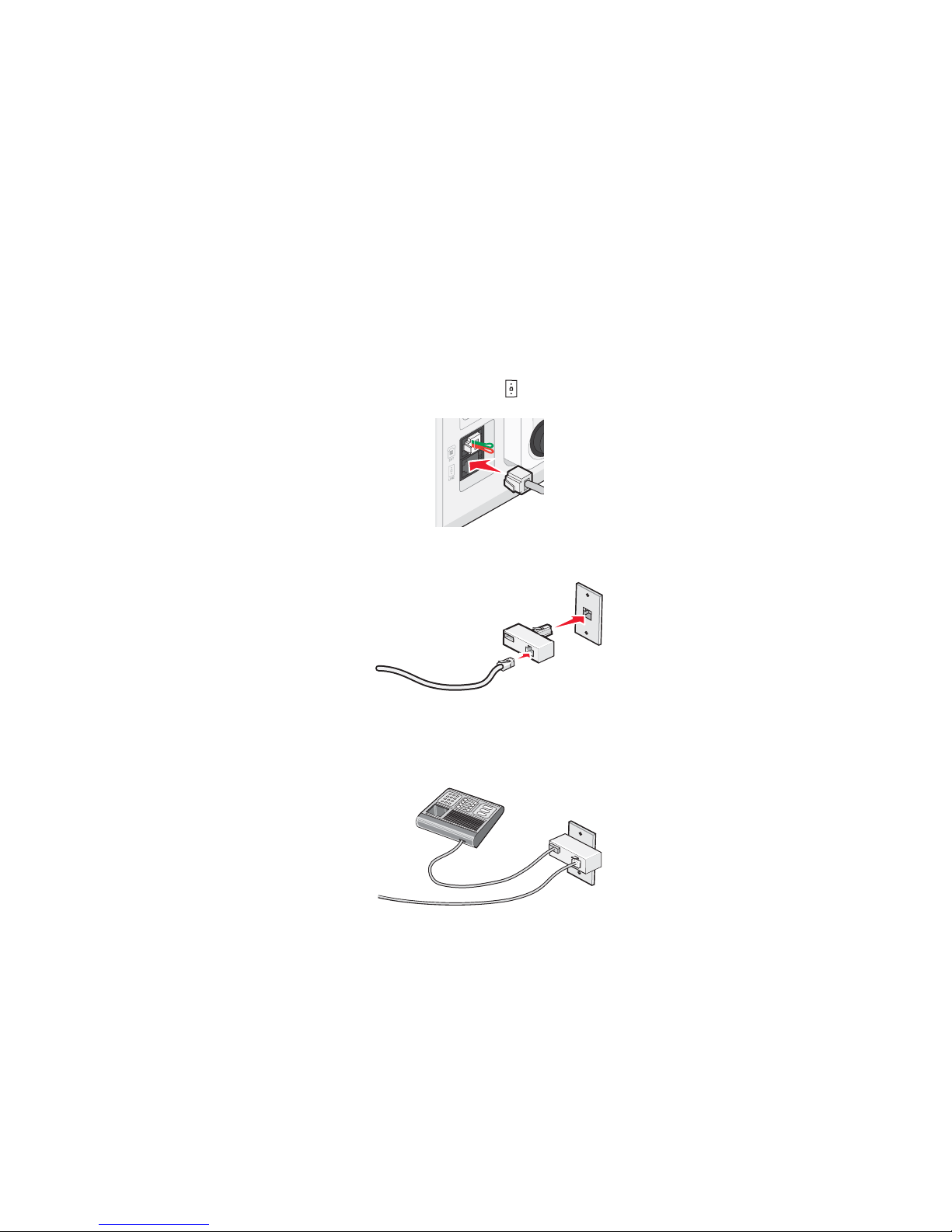

To connect your printer to an answering machine or other telecommunications equipment, use the telephone line
adapter included in the box with the printer.
1Connect one end of the telephone cord into the Line port of the printer.
2Connect the adapter to the telephone line that came with the printer.
Note: The UK adapter is shown. Your adapter may look different, but it will fit the telephone outlet used in your
location.
3Connect the telephone line of your chosen telecommunications equipment to the left outlet of the adapter.
27

If your telecommunications equipment uses a US-style (RJ11) telephone line, follow these steps to connect the
equipment:
1Remove the plug from the EXT port on the back of the printer.
Note: Once this plug is removed, any country- or region-specific equipment you connect to the printer by the
adapter, as shown, will not function properly.
2Connect your telecommunications equipment directly to the EXT port on the back of the printer.
Warning: Do not touch cables or the printer in the area shown while actively sending or receiving a fax.
Country/region
•Saudi Arabia
•United Arab Emirates
•Egypt
•Bulgaria
•Czech Republic
•Belgium
•Australia
•South Africa
•Greece
•Israel
•Hungary
•Poland
•Romania
•Russia
•Slovenia
•Spain
•Turkey
28

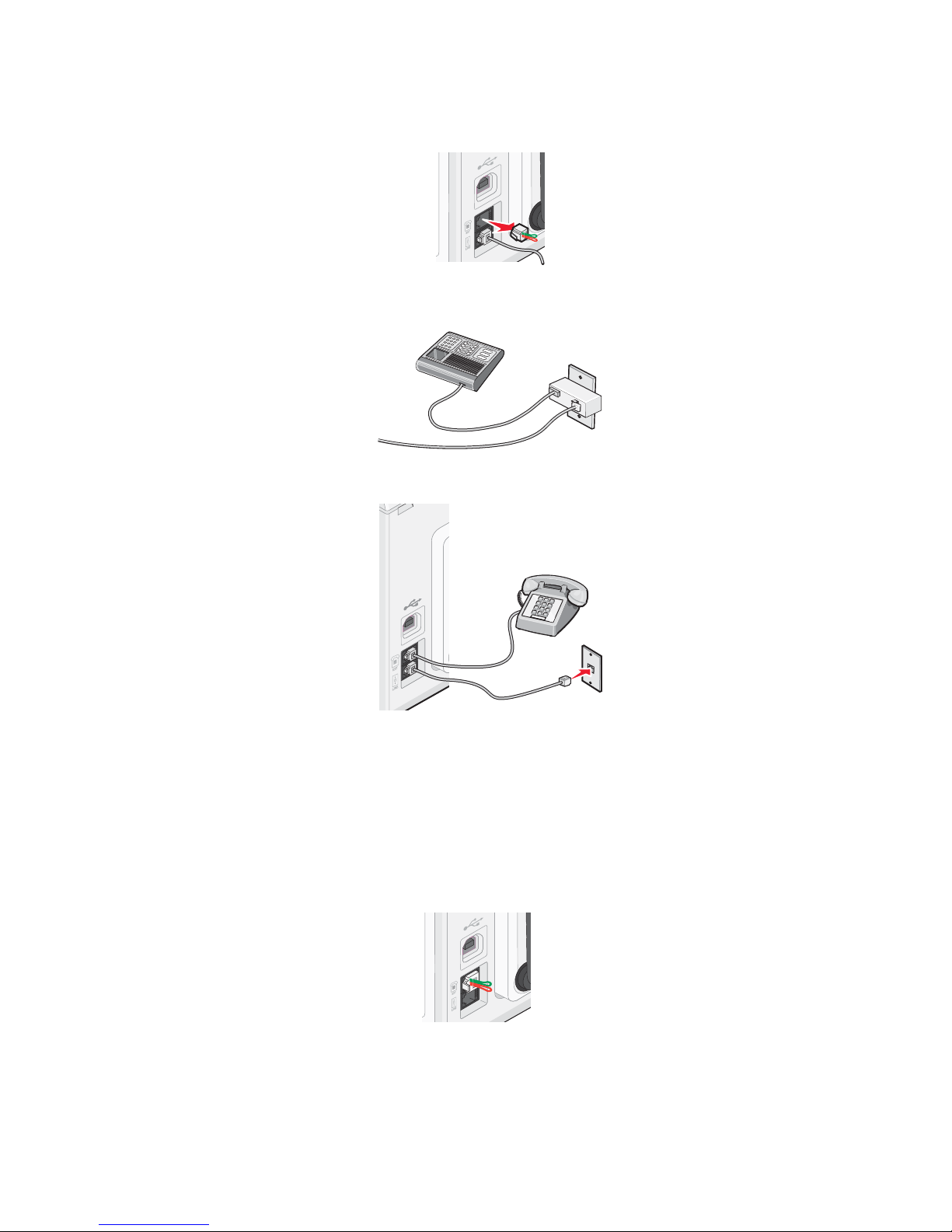

To connect an answering machine or other telecommunications equipment to the printer:
1Remove the plug from the back of the printer.
Note: Once this plug is removed, any country- or region-specific equipment that you connect to the printer by
the adapter, as shown, will not function properly.
2Connect your telecommunications equipment directly to the EXT port on the back of the printer.
Warning: Do not touch cables or the printer in the area shown while actively sending or receiving a fax.
Country/region
•Germany
•Austria
•Switzerland
There is a plug installed in the EXT port of the printer. This plug is necessary for the proper functioning of the printer.
Note: Do not remove the plug. If you remove it, other telecommunications devices in your home (such as telephones
or answering machines) may not work.
29

Choosing a fax connection
You can connect the printer with equipment such as a telephone, an answering machine, or a computer modem. If
problems occur, see “Setup Troubleshooting” on page 137.
Note: The printer is an analog device that works best when directly connected to the wall jack. Other devices (such
as a telephone or answering machine) can be successfully attached to pass through the printer, as described in the
setup steps. If you want a digital connection such as ISDN, DSL, or ADSL, a third-party device (such as a DSL filter)
is required.
You do not need to attach the printer to a computer, but you do need to connect it to a telephone line to send and
receive faxes.
You can connect the printer to other equipment. See the following table to determine the best way to set up the
printer.
Equipment Benefits See this section
•The printer
•A telephone cord
Send and receive faxes without using a
computer.
“Connecting directly to a telephone
wall jack” on page 32

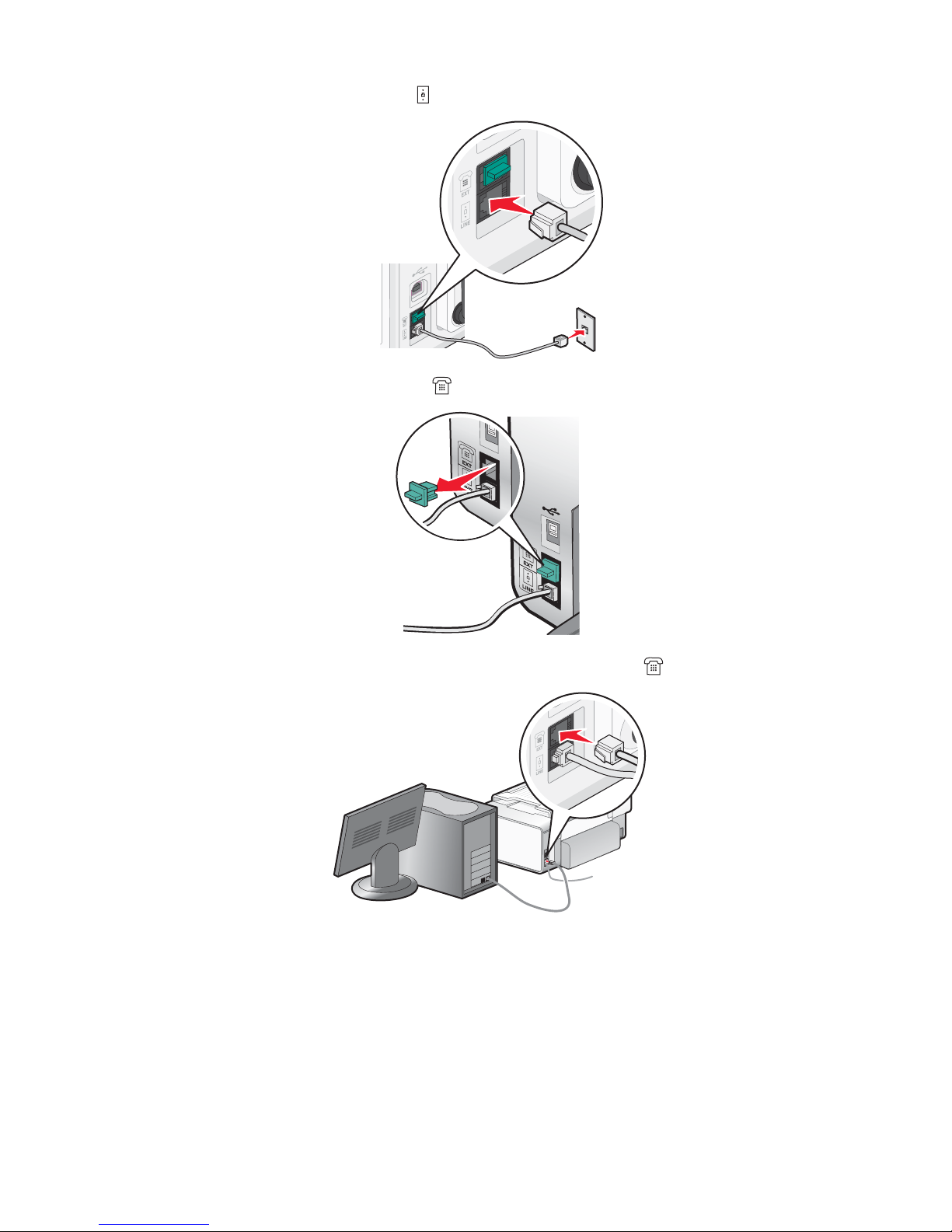

•The printer
•A telephone
•Two telephone cords
•Use the fax line as a normal telephone
line.
•Send and receive faxes without using a
computer.
“Connecting to a telephone” on
page 34
•The printer
•A telephone
•An answering machine
•Three telephone cords
Receive both incoming voice messages and
faxes.
“Connecting to an answering
machine” on page 30
•The printer
•A telephone
•A computer modem
•Three telephone cords
Send faxes using the computer or the
printer.
“Connecting to a computer with a
modem” on page 33

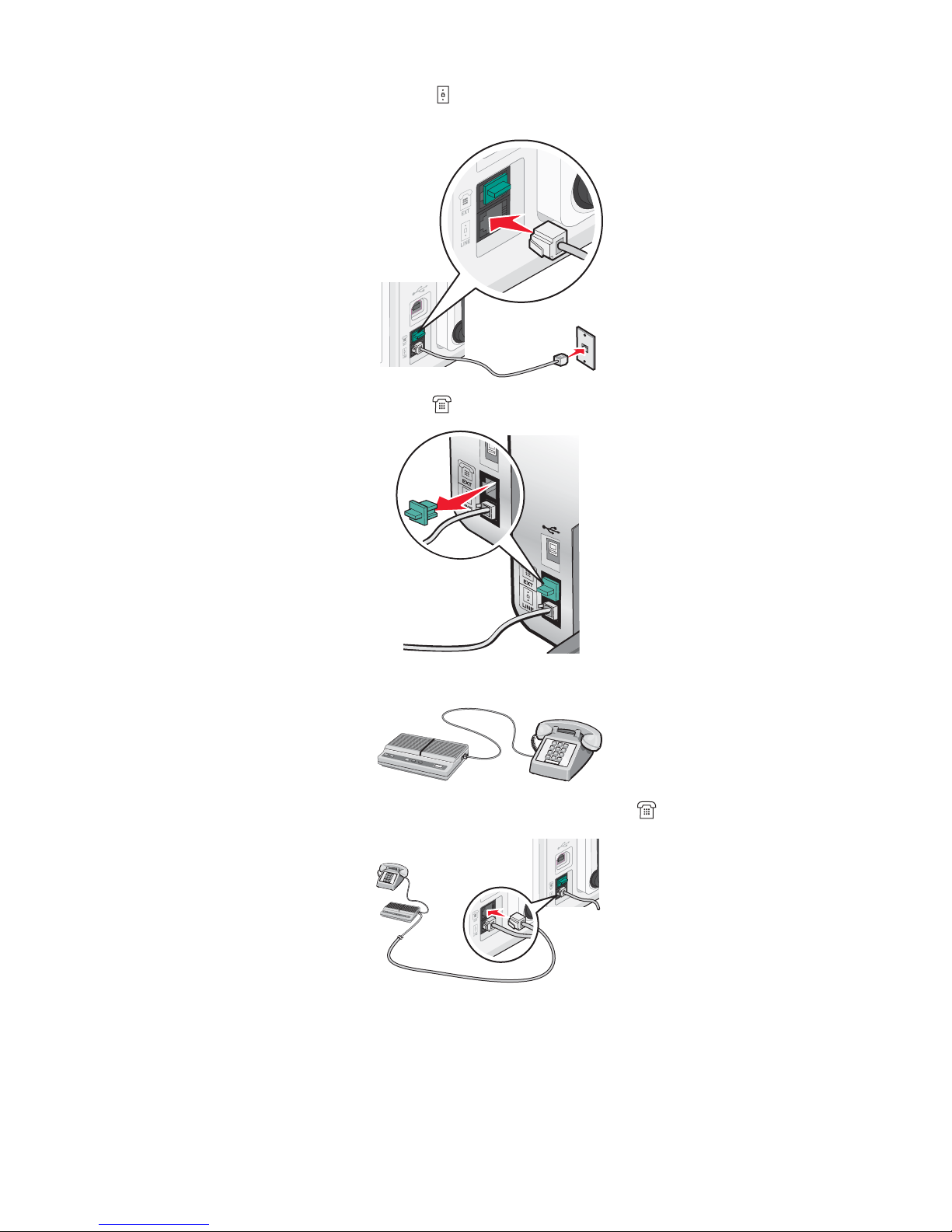

Connecting to an answering machine
Connect an answering machine to the printer to receive both incoming voice messages and faxes.
Note: Setup steps may vary depending on your country or region. For more information on connecting the printer
to telecommunications equipment, see the related topic, “Using an RJ11 adapter.”
1Make sure you have the following:
•A telephone
•An answering machine
•Three telephone cords
•A telephone wall jack
30

2Connect one telephone cord into the LINE port of the printer, and then plug it into an active telephone wall
jack.
3Remove the protective plug from the EXT port of the printer.
4Connect a second telephone cord from the telephone to the answering machine.
5Connect a third telephone cord from the answering machine to the EXT port of the printer.
31

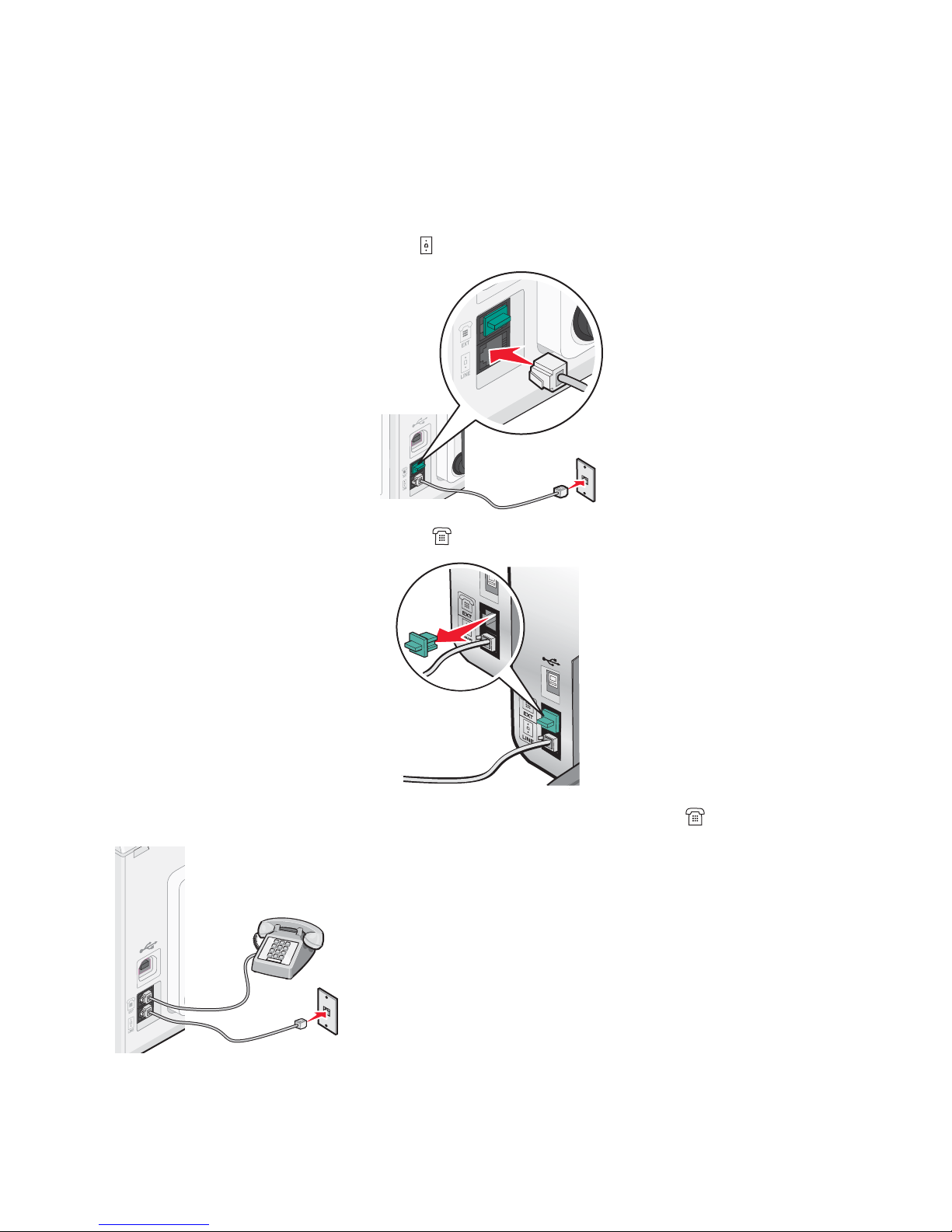

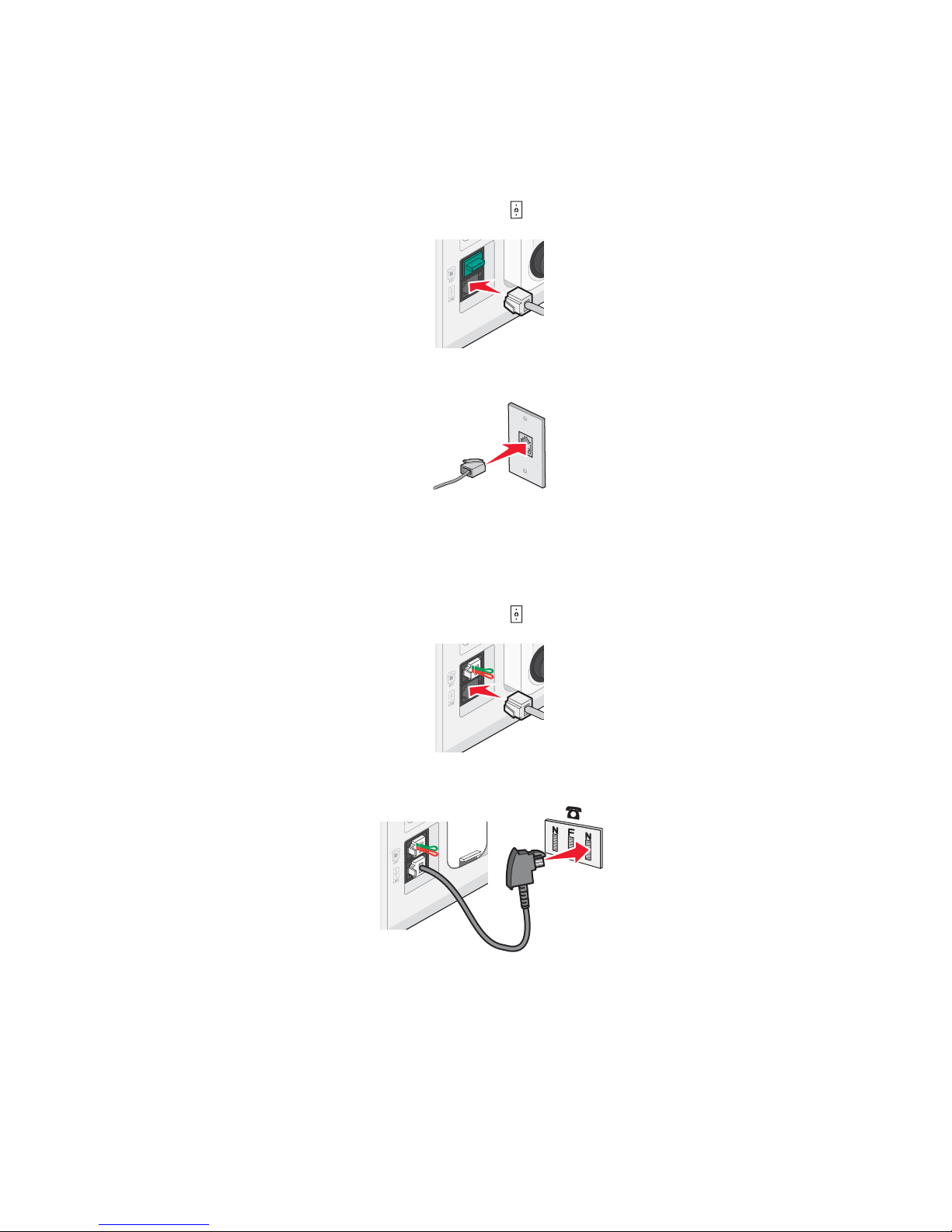

Connecting directly to a telephone wall jack
Connect the printer directly to a telephone wall jack to make copies or to send and receive faxes without using a
computer.
1Make sure you have a telephone cord and a telephone wall jack.
2Connect one end of the telephone cord into the LINE port of the printer.
3Connect the other end of the telephone cord into an active telephone wall jack.
Connecting directly to a telephone wall jack in Germany
Connect the printer directly to a telephone wall jack to send and receive faxes without using a computer.
1Make sure you have a telephone cord (provided with the product) and a telephone wall jack.
2Connect one end of the telephone cord into the LINE port of the printer.
3Connect the other end of the telephone cord into the N slot of an active telephone wall jack.
32

4If you would like to use the same line for both fax and telephone communication, connect a second telephone
line (not provided) between the telephone and the F slot of an active telephone wall jack.
5If you would like to use the same line for recording messages on your answering machine, connect a second
telephone line (not provided) between the answering machine and the other N slot of the telephone wall jack.
Connecting to a computer with a modem
Connect the printer to a computer with a modem to send faxes from the software application.
Note: Setup steps may vary depending on your country or region. For more information on connecting the printer
to telecommunications equipment, see the related topic, “Using an RJ11 adapter.”
1Make sure you have the following:
•A telephone
•A computer with a modem
•Two telephone cords
•A telephone wall jack
33

2Connect a telephone cord into the LINE port of the printer, and then plug it into an active telephone wall jack.
3Remove the protective plug from the EXT port of the printer.
4Connect a second telephone cord from the computer modem to the EXT port of the printer.

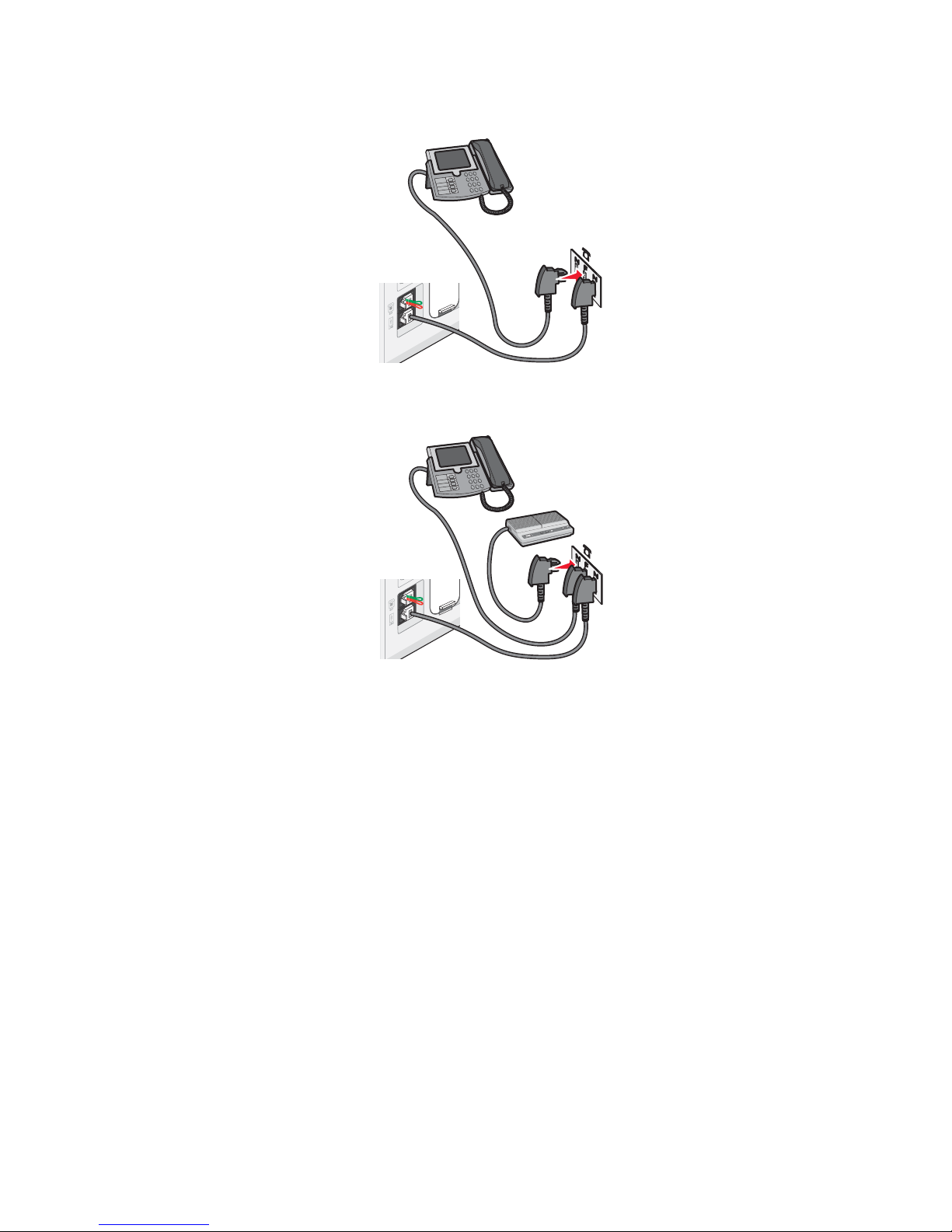

Connecting to a telephone
Connect a telephone to the printer to use the fax line as a normal telephone line. Then set up the printer wherever
your telephone is located to make copies or to send and receive faxes without using a computer.
34

Note: Setup steps may vary depending on your country or region. For more information on connecting the printer
to telecommunications equipment, see the related topic, “Using an RJ11 adapter.”
1Make sure you have the following:
•A telephone
•Two telephone cords
•A telephone wall jack
2Connect one telephone cord to the LINE port of the printer, and then plug it into an active telephone wall jack.
3Remove the protective plug from the EXT port of the printer.
4Connect the other telephone cord to a telephone, and then plug it into the EXT port of the printer.
35

Setting up to fax while behind a PBX
If the printer is being used in a business or office, it may be connected to a Private Branch Exchange (PBX) telephone
system. Ordinarily, when dialing a fax number, the printer waits to recognize the dial tone and then dials the fax
number. However, this method of dialing may not work if the PBX telephone system uses a dial tone that is not
recognizable to most fax machines. The “Dialing while behind a PBX” feature enables the printer to dial the fax
number without waiting to recognize the dial tone.
1From the desktop, double-click the Productivity Studio icon.
2From the Settings area of the Welcome Screen, click Fax History and Settings.
3From the “I Want To” menu, click Adjust speed dial list and other fax settings.
4Click the Dialing and Sending tab.
5From the “Dialing on your phone line” area, select Behind PBX from the Dialing Method drop-down list.
6Click OK to save the setting.
Using a digital phone service
The fax modem is an analog device. Certain devices can be connected to the printer so that digital telephone services
can be used.
•If you are using an ISDN telephone service, connect the printer to an analog telephone port (an R-interface port)
on an ISDN terminal adapter. For more information and to request an R-interface port, contact your ISDN
provider.
•If you are using DSL, connect to a DSL filter or router that will support analog use. For more information, contact
your DSL provider.
•If you are using a PBX telephone service, make sure you are connecting to an analog connection on the PBX.
If none exists, consider installing an analog telephone line for the fax machine. For more information on faxing
when using a PBX telephone service, see the related topic, “Setting up to fax while behind a PBX.”
Understanding the control panel
Using the control panel
The control panel contains:
•Power on/off button
•Two-line display to show the printer status, messages, and menu items
•30 buttons
123
46
79
0
5
8
A
The following diagrams explain the sections of the control panel:
36
