3Printer overview
Printer overview
Basic printing
Printing ideas
Maintenance
Troubleshooting
Notices
Index
Lexmark Z65
Lexmark Z65n
Using this
Guide...
www.lexmark.com
•Understanding the printer software
•Understanding the printer parts

4Printer overview
Printer overview
Basic printing
Printing ideas
Maintenance
Troubleshooting
Notices
Index
Lexmark Z65
Lexmark Z65n
Using this
Guide...
www.lexmark.com
Understanding the printer software
Your printer software includes the:
•Page Setup dialog
•Print dialog
•Lexmark Z45 Utility
To customize the settings for your document, use the Page Setup dialog and the Print
dialog. For more information on which settings to select for your document, see Printing
ideas. When you installed the printer software, the Page Setup and Print dialogs were set to
these default settings:
Note: Your printer has paper type sensing capability that automatically detects
most paper types. For more information, see Using the paper type
sensor.
Print Quality: Normal Paper Type: Automatic
Paper Size: A4 or U.S. Letter Paper Feed: Printer Setting or Paper Tray 1 (front)
Orientation: Portrait

5Printer overview
Printer overview
Basic printing
Printing ideas
Maintenance
Troubleshooting
Notices
Index
Lexmark Z65
Lexmark Z65n
Using this
Guide...
www.lexmark.com

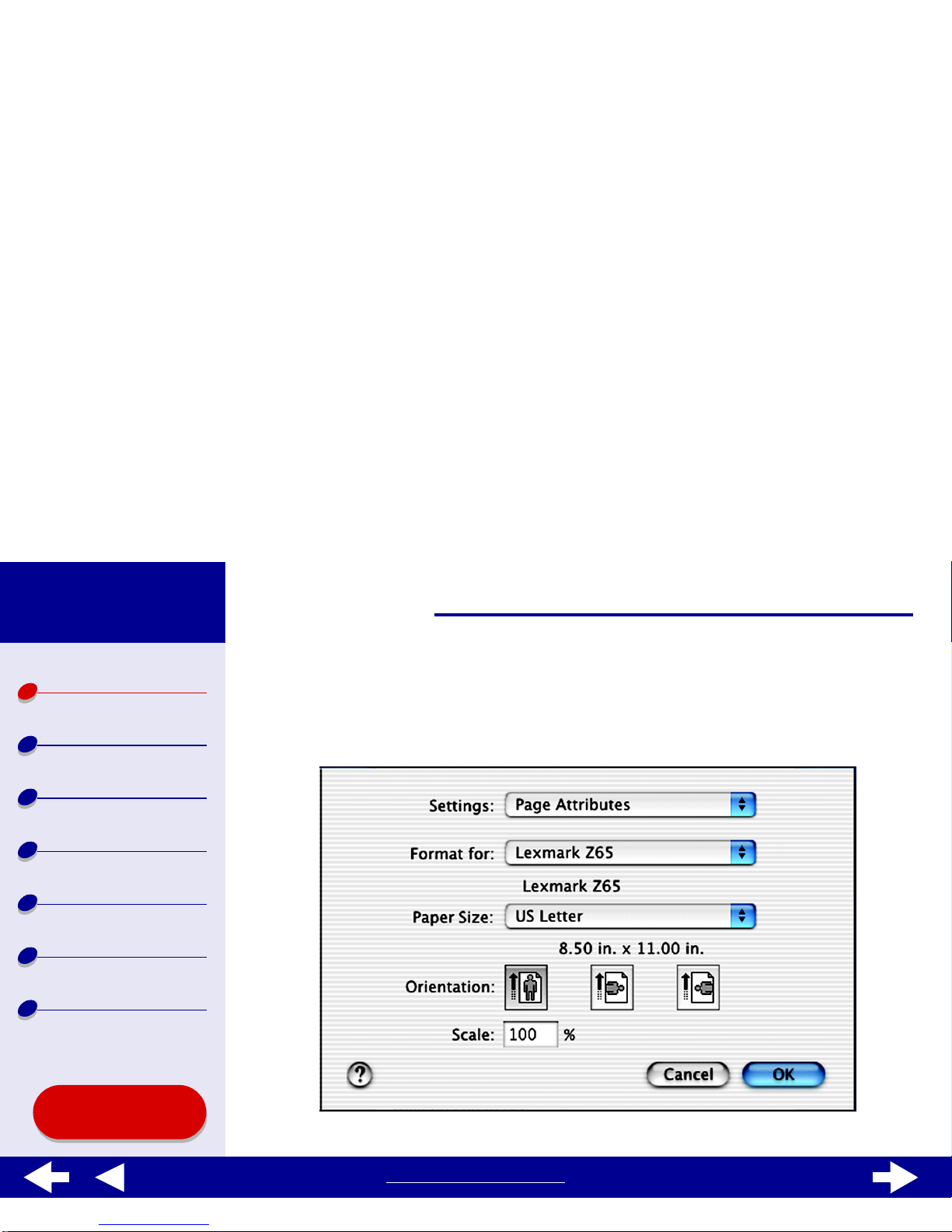

Page Setup dialog
While the document you want to print is open, use the Page Setup dialog to select settings
such as paper size. To customize the settings in the Page Setup dialog:
1From the File menu of your software application, choose Page Setup.

6Printer overview
Printer overview
Basic printing
Printing ideas
Maintenance
Troubleshooting
Notices
Index
Lexmark Z65
Lexmark Z65n
Using this
Guide...
www.lexmark.com
2Change the settings as needed.
For more information about these settings, click ? to view the OS X software Help.
3Click OK to apply the settings and close the Page Setup dialog.
From this pop-
up menu: Select: When you want to:
Format for Lexmark Z65 Format your page for printing with your Lexmark Z65
printer.
Settings Page Attributes Choose a paper size, orientation, or scaling value for your
document.
Summary View a summary of the current page settings.

7Printer overview
Printer overview
Basic printing
Printing ideas
Maintenance
Troubleshooting
Notices
Index
Lexmark Z65
Lexmark Z65n
Using this
Guide...
www.lexmark.com
Print dialog
While your document is open, you can use the Print dialog to select settings that affect the
appearance of your document. To customize the settings in the Print dialog:
1From the software application File menu, choose Print.

8Printer overview
Printer overview
Basic printing
Printing ideas
Maintenance
Troubleshooting
Notices
Index
Lexmark Z65
Lexmark Z65n
Using this
Guide...
www.lexmark.com
2From the Printer pop-up menu, choose Lexmark Z65.
3Change the settings as needed.
From the
pop-upmenu,
choose: Select: When you want to:
Copies &
Pages Copies Specify the number of copies you want to print.
Collated Sort multiple copy jobs.
All or From Print all of the pages in a document or print a range of
pages.
Layout Pages per Sheet Print multiple pages of your document on a single sheet
of paper.
Layout Direction Print the pages of your document in a specified order.
Border Print a border around each page of your document.
Output
Options Save as PDF File Print your document to a PDF.
Color Options Document Color Choose a color setting.
Halftone Choose a halftone setting.

9Printer overview
Printer overview
Basic printing
Printing ideas
Maintenance
Troubleshooting
Notices
Index
Lexmark Z65
Lexmark Z65n
Using this
Guide...
www.lexmark.com
Advanced
Layout Print Last Page First Print your document in reverse page order.
Mirror Print your document as a mirror image.
Quality &
Media Paper Type Choose the paper type for your document.
• When Tray 1 is set to Automatic, your printer
detects most paper types. For more information,
see Using the paper type sensor.
• Paper tray 2 does not have a paper type sensor. If
you are printing from paper tray 2, you must
choose a paper type.
Print Quality Choose a print quality. You can choose from Quick
Print, Normal, Better, or Best.
Note: Normal print quality is recommended for most
documents. Higher print quality settings result
in better quality documents for some paper
types, but take longer to print. For more
information about the appropriate print quality
for your document, see Printing ideas.
From the
pop-upmenu,
choose: Select: When you want to:

10Printer overview
Printer overview
Basic printing
Printing ideas
Maintenance
Troubleshooting
Notices
Index
Lexmark Z65
Lexmark Z65n
Using this
Guide...
www.lexmark.com
Paper Feed All Pages Specify which paper tray you want the pages of your
document to print from. If you choose:
•The default (Printer Setting), you can choose the
tray you want to print from by pressing the
appropriate paper tray button on the printer
•Tray 1 (Front), all of the pages of your document
print from the front tray
•Tray 2 (Rear), all of the pages of your document
print from the rear tray
First Page and
Remaining Pages Specify which pages you want to print from paper tray 1 (front) and which you want to print from the paper tray 2
(rear). For example, if you are printing letterhead and
plain paper, you can print them in the same job by using
paper tray 1 to print your letterhead, and paper tray 2 to
print your plain paper.
From the
pop-upmenu,
choose: Select: When you want to:

11Printer overview
Printer overview
Basic printing
Printing ideas
Maintenance
Troubleshooting
Notices
Index
Lexmark Z65
Lexmark Z65n
Using this
Guide...
www.lexmark.com
4If you want more information about the settings in the Print dialog, click ?to view Help
on these items. When you are finished, click the red close button.
5Click Print to apply your settings and print your document.
Printer
Services Lexmark Z65 Utility Open the Lexmark Z45 Utility.
Troubleshooting View troubleshooting information in the printer software
Help.
Order Supplies View supplies information or order supplies on the
Lexmark Web site.
Software Version View printer software version information.
Summary View a summary of the current print settings.
Save Custom Setting Save the current print settings for future use.
From the
pop-upmenu,
choose: Select: When you want to:

12Printer overview
Printer overview
Basic printing
Printing ideas
Maintenance
Troubleshooting
Notices
Index
Lexmark Z65
Lexmark Z65n
Using this
Guide...
www.lexmark.com
Lexmark Z65 Utility
Use the Lexmark Z65 Utility to monitor your printer and printer supplies. You can:
Using the Lexmark Z65 Utility
1From a Finder window, click Computer and then, double-click the OS X disk icon
Library folder Printers folder Lexmark folder.
•Install cartridges •Print a test page
•Align cartridges •Obtain information on ordering supplies
•Clean print nozzles •Obtain software version information
•Select a printer •Configure a network printer
•Calibrate the paper type sensor

13Printer overview
Printer overview
Basic printing
Printing ideas
Maintenance
Troubleshooting
Notices
Index
Lexmark Z65
Lexmark Z65n
Using this
Guide...
www.lexmark.com
2Double-click the Lexmark Z65 Utility icon.
The Lexmark Z65 Utility appears.
Click the: Select: When you want to:
Cartridges tab Install/Change
Cartridge Specify cartridge settings in the printer software when installing or changing a cartridge. For more
information, see Replacing the print cartridge.
Align Cartridges Align the cartridges. For more information, see
Aligning the print cartridges.
Clean Print
Nozzles Improve print quality by cleaning clogged print nozzles. For more information, see Cleaning the
print cartridge nozzles.
Print Test Page Print a test page to verify your printer is functioning
properly.
Order Supplies Order supplies, such as print cartridges, from the
Lexmark Web site. For more information, see
Ordering supplies.
About tab Obtain printer software version information.

14Printer overview
Printer overview
Basic printing
Printing ideas
Maintenance
Troubleshooting
Notices
Index
Lexmark Z65
Lexmark Z65n
Using this
Guide...
www.lexmark.com
3To learn more about what you can do with your printer, click the ?to view the printer
software Help. When you are finished, click the red close button.
4Click the red close button to close the Lexmark Z65 Utility.
Advanced menu Select Printer •Select a printer and make it the default printer.
•Find the IP address for the selected printer.
•Add a printer located on a remote subnet. You
can add a single printer or search the subnet for
all available printers.
•View a list of all USB, USB print sharing, and
network printers.
Network Printer
Configuration •Configure an unconfigured network printer.
•View a list of network printers.
Click the: Select: When you want to:

15Printer overview
Printer overview
Basic printing
Printing ideas
Maintenance
Troubleshooting
Notices
Index
Lexmark Z65
Lexmark Z65n
Using this
Guide...
www.lexmark.com

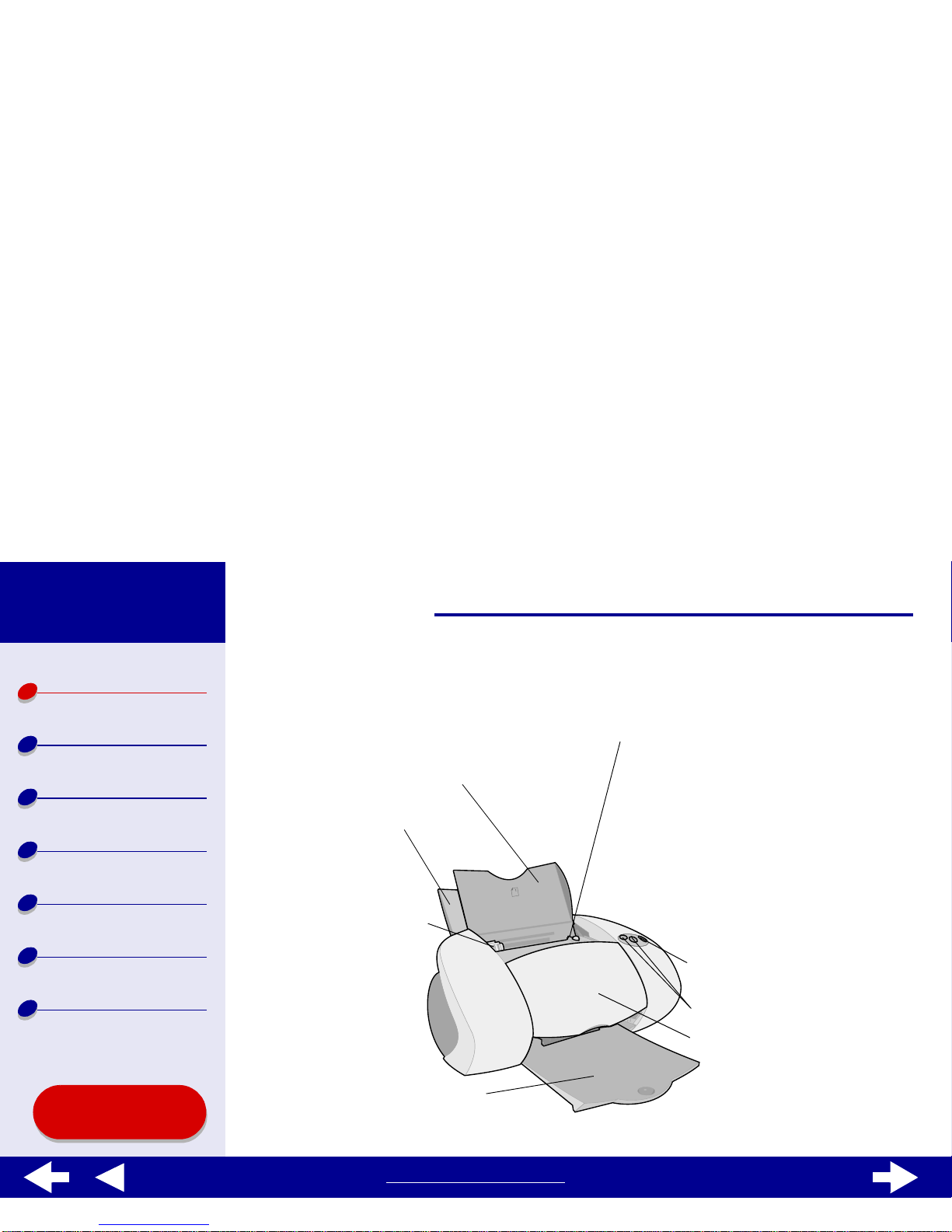

Understanding the printer parts
The table beginning on page 17 describes each part.
Paper tray 1 (front)
Paper tray 2 (rear)
Paper exit tray
Front cover
Power button
Paper tray buttons
Paper guide
Paper release lever

16Printer overview
Printer overview
Basic printing
Printing ideas
Maintenance
Troubleshooting
Notices
Index
Lexmark Z65
Lexmark Z65n
Using this
Guide...
www.lexmark.com

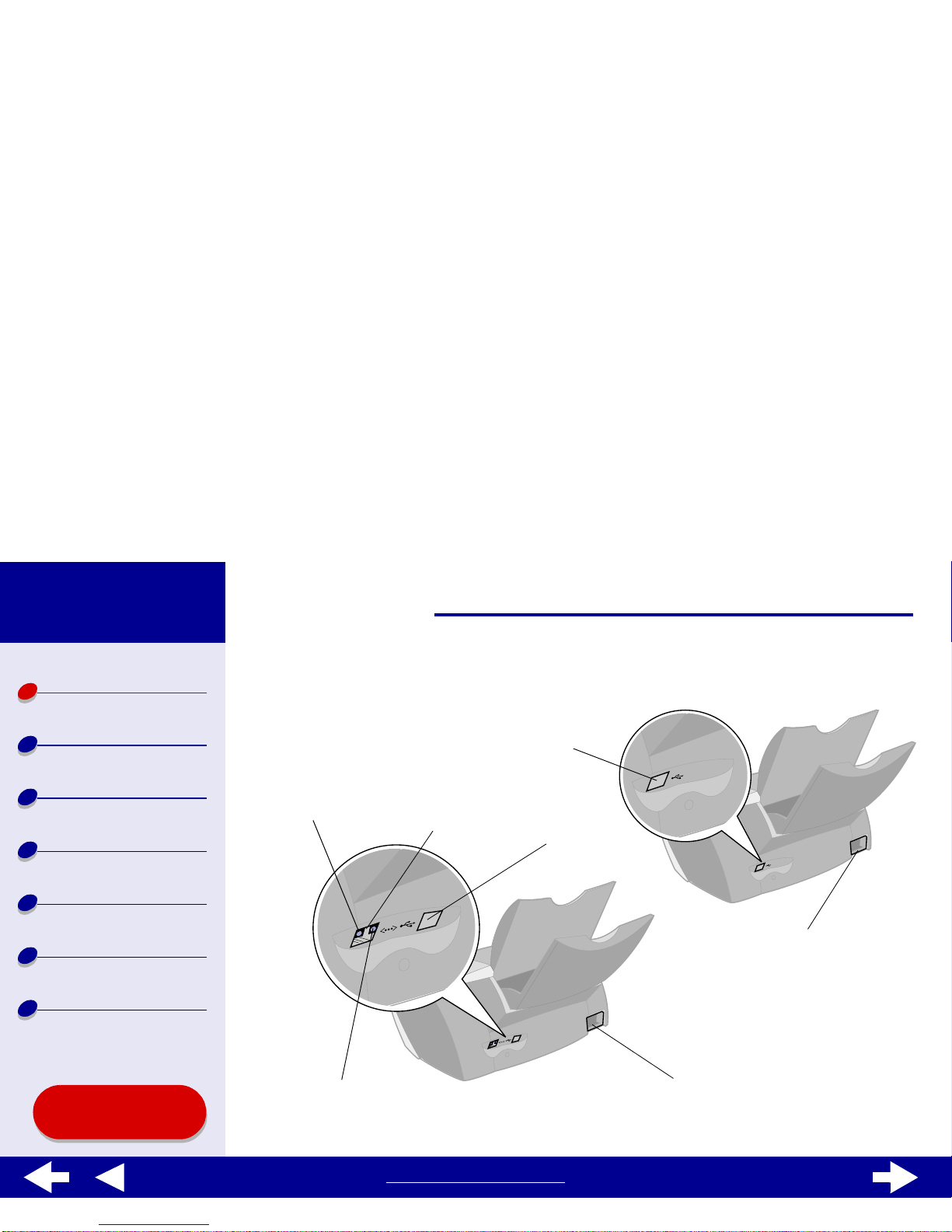

Lexmark Z65n
Lexmark Z65
Power supply connector
Network link
light
Network connection
speed light Ethernet cable
connector
Power supply
connector
USB cable
connector
USB cable
connector

17Printer overview
Printer overview
Basic printing
Printing ideas
Maintenance
Troubleshooting
Notices
Index
Lexmark Z65
Lexmark Z65n
Using this
Guide...
www.lexmark.com
Use this: When you want to:
Ethernet cable connector Connect the printer to a network with an RJ-45 (Category 5)
Ethernet cable.
Front cover •Install or change print cartridges.
•Clear a paper jam.
Network connection speed
light See how quickly your network is transmitting data.
•When it flashes, your network is transmitting data at 100
Mbps.
•When it is on, your network is transmitting data at 10 Mbps.
Network link light See if your network is properly connected (the light is on).
Paper exit tray Stack paper after printing.
Paper tray 1 (front) Print on most types and sizes of paper. This tray has a paper type
sensor and should be used as the main paper tray. For more
information, see Using the paper type sensor. Check the
number icon so you can match it with the appropriate paper tray
button.
Paper tray 2 (rear) Print on various paper types. The default setting for this paper
tray is for plain paper. This tray does not have a paper type
sensor. Check the number icon so you can match it with the
appropriate paper tray button.

18Printer overview
Printer overview
Basic printing
Printing ideas
Maintenance
Troubleshooting
Notices
Index
Lexmark Z65
Lexmark Z65n
Using this
Guide...
www.lexmark.com
Paper tray
buttons •Select a paper tray (press the button once). The light indicates the tray that is selected.
•Eject paper from the printer.
•Check the printer status. For more information, see
Understanding error messages and flashing lights.
Paper guide Make sure paper feeds correctly into the printer. Each paper tray
has a paper guide.
Paper release lever Release a sheet of paper before removing it. Each paper tray has
a paper release lever.
Power button •Turn the printer on or off.
•Check the printer status.
For more information, see Understanding error messages and
flashing lights.
Power supply connector Connect the power supply to the printer.
USB cable connector Connect the printer to the computer with a USB cable.
Use this: When you want to:

19Printer overview
Printer overview
Basic printing
Printing ideas
Maintenance
Troubleshooting
Notices
Index
Lexmark Z65
Lexmark Z65n
Using this
Guide...
www.lexmark.com
Using the paper type sensor
Your printer has a paper type sensor in paper tray 1. If you load transparencies or plain,
coated, photo, or glossy paper into paper tray 1, the printer detects the paper type and
automatically adjusts the Paper Type setting in the Print dialog accordingly.To enable the
printer to automatically detect the paper type loaded in your printer:
1From the software application File menu, choose Print.
2From the Printer pop-up menu, choose Lexmark Z65.
3From the pop-up menu in the upper left, choose Quality & Media.
4From the Tray 1 (Front) pop-up menu, choose Automatic.
5Click Print.
Note: Although the printer can detect the type of paper you are using, it cannot
detect the paper size. Make sure you select the appropriate paper size in
the Page Setup dialog.

16Basic printing
Printer overview
Basic printing
Printing ideas
Maintenance
Troubleshooting
Notices
Index
Lexmark Z65
Lexmark Z65n
Using this
Guide...
www.lexmark.com
Basic printing is as easy as:
Step 1: Load the paper
Step 2: Customize the printer settings
Step 3: Print your document
Note: For help printing on specialty paper (such as photo paper, banner paper,
transparencies, or iron-on transfers), see Printing ideas.
