SOGEVAC
®
SV40 B - SV65 B - SV100 B
Single-stage, oil-sealed rotary vane pump
Operating instructions 300267596_002_C0
Ref.:
960x00 to 960x07
960x11 to 960x14
960x16 to 960x19
960x20 to 960x24
and their variants

2300267596_002_C0 - 11/2016 - © Leybold
Contents
Page
Important Safety Information 3
1 Description 5
1.1 Principle of operation 5
1.2 Technical characteristics (valid with standard oil) 6
1.3 Ordering Information 10
1.4 Accessories 13
1.5 Spare parts 15
1.6 Lubricants 15
2 Transport and Storing 16
2.1 Transport and packaging 16
2.2 Mounting orientation 16
2.3 Storing 16
3 Installation 17
3.1 Setting up 17
3.2 Connection to system 17
3.3 Electrical connections 18
3.4 Oil filling 19
3.5 Start-up 19
4 Operation 20
4.1 Operation 20
4.2 Switching off / Shutdown 21
5 Maintenance 22
5.1 Safety Information 22
5.2 Maintenance Intervals 22
5.3 Leybold Service 23
5.4 Maintenance Work 23
6 Troubleshooting 26
7 Spare parts 28
EC Declaration of Conformity 42

3
300267596_002_C0 - 11/2016 - © Leybold
Important Safety Information
Indicates procedures that must be strictly observed to prevent hazards to
persons.
Indicates procedures that must be strictly observed to prevent damage to, or
destruction of the product.
Emphasises additional application information and other useful information
provided within these Operating Instructions.
The Leybold Sogevac® SV40 B - SV65 B - SV100 B has been designed
for safe and efficient operation when used properly and in accordance
with these Operating Instructions. It is the responsibility of the user to
carefully read and strictly observe all safety precautions described in this
section and throughout the Operating Instructions. The Sogevac® SV40
B - SV65 B - SV100 B must only be operated in the proper condition
and under the conditions described in the Operating Instructions.
It must be operated and maintained by trained personnel only. Consult
local, state, and national agencies regarding specific requirements and
regulations. Address any further safety, operation and/or maintenance
questions to our nearest office.
Failure to observe the following precautions could result in serious
personal injury!
Sogevac® pumps are not designed:
■ for pumping of dusty, aggressive, corrosive, flammable or explosive gases
or gases mixtures,
■ for pumping of oxygen with a greater concentration than atmospheric
concentration (>20%) or other highly reactive gases
■ for working in flammable, explosive or dusty environment.
For all these cases, special materials must be used. In case of doubt, please
contact Leybold.
See also the limits of use indicated in the CE declaration of conformity.
Never expose part of the body to the vacuum. There is a danger of injury.
Never operate the pump with an open and thus accessible inlet. Vacuum
connections as well as oil filling and oil draining openings must not be
opened during operation of the pump.
When operating pump is hot and some surfaces could reach a temperature
higher than 80 °C (176 °F). There is a risk of burn by touching.
Depending on the process involved, dangerous substances and oil may
escape from the pump. Take the necessary safety precautions!
When working on the pump system always observe the Operating
Instructions.
Safety Information
Warning
Caution
Note
Warning

4300267596_002_C0 - 11/2016 - © Leybold
Disconnect the unit from the power supply before starting any work.
Take appropriate precautions to insure that the pump cannot start.
If the pump has pumped hazardous gases it will be absolutely necessary to
determine the nature of the hazard involved and take the appropriate safety
precautions.
Observe all safety regulations!
Take adequate safety precautions prior to opening the intake or exhaust port.
Failure to observe the following precautions could result in damage to
the equipment!
Liquid and solid particles must not enter the pump. Install the adequate
filters, separators and/or condensers. In case of doubt consult Leybold.
The intake line of the pump must never be connected to a device with over
atmospheric pressure. Design the exhaust line so that no pressure higher
than 1,15 bar abs. (0,15 bar rel.) can occur.
Operating of the pump without oil or operating with incorrect direction of
rotation can destroy the pump.
Never use discarded seals. Always assemble using new seals.
Respect the instructions concerning environment protection when discarding
used oil or exhaust filters!
The pump must be packaged in such a way that it will not be damaged
during shipping, and so that no harmful substances can escape from the
package.
We reserve the right to alter the design or any data given in these Operating
Instructions. The illustrations are not binding.
Caution
Note
Safety Information
Warning
Warning

5
300267596_002_C0 - 11/2016 - © Leybold
1 Description
Sogevac® pumps are designed for pumping of inert gases in the range of
rough vacuum, between atmospheric pressure and ultimate pressure of the
pump.
When removing condensable vapours, a gas ballast valve must be installed.
1.1 Principle of operation
The Sogevac® pumps SV40 B, SV65 B and SV100 B are single-stage oil-
sealed rotary vane vacuum pumps.
The rotor, having three slots in which the vanes are sliding, is eccentrically
installed in a pump cylinder (stator).
The vanes separate the interior space into 3 chambers. The volume of these
chambers varies with the rotation of the rotor.
The gas sucked into the inlet chamber is compressed and then pushed out
at the exhaust valve.
The oil injected in the inlet chamber guarantees the air-tightness, the
lubrication and cooling of the pump. It is dragged off by the compressed
gases and roughly separated by gravity when entering in the oil sump. A
fine separation is then operated in the exhaust filter, which retains > 99,9
% of the oil aerosols. An internal transfer pushes the collected oil back into
the vacuum generator, the transfer is operated by a float valve to avoid
atmospheric air coming from the oil casing to the inlet of the pump when no
oil is present in the recovery system.
The oil circulation functions by differential pressures. Some pumps are
equipped with an oil filter.
Pumps are available with or without gasballast, with corresponding catalog
numbers.
At pump switch off, an anti suck-back valve (ASBV) closes the pump inlet
and avoids pump oil be sucked into the chamber.
For this, the ASBV must be kept clean and in good condition.
Description

6300267596_002_C0 - 11/2016 - © Leybold
1.2 Technical characteristics (valid with standard oil)
SV40 B
Technical data 50 Hz 60 Hz
Nominal pumping speed m3/h 44 53
Pumping speed (according to PNEUROP) m3/h 38,5 47
Ultimate partial pressure without gas ballast mbar ≤ 0,5 ≤ 0,5
Ultimate total pressure with small gas ballast mbar ≤ 0,8 ≤ 0,8
Ultimate total pressure with standard gas ballast mbar ≤ 1,5 ≤ 1,5
Water vapour tolerance:
■ with small gas ballast mbar 10 10
■ with standard gas ballast mbar 30 30
Water vapour tolerable load:
■ with small gas ballast kg.h-1 0,28 0,34
■ with standard gas ballast kg.h-1 0,76 0,90
Noise level (according to DIN 46 635) dB (A) 58 60
Motor power - Rated rotational speed see ordering information
Mains voltage (+/- 10 %) see ordering
information
Protection - Isolation IP 55 - F IP 55 - F
Leak rate mbar.I.s-1 1 x 10-3 1 x 10-3
Oil Capacity l 1 1
Intake connection 1 1/4 1 1/4
Exhaust connection 1 1/4 1 1/4
SV65 B
Technical data 50 Hz 60 Hz
Nominal pumping speed m3/h 59 71
Pumping speed (according to PNEUROP) m3/h 54 64
Ultimate partial pressure without gas ballast mbar ≤ 0,5 ≤ 0,5
Ultimate total pressure with small gas ballast mbar ≤ 0,8 ≤ 0,8
Ultimate total pressure with standard gas ballast mbar ≤ 1,5 ≤ 1,5
Water vapour tolerance:
■ with small gas ballast mbar 10 10
■ with standard gas ballast mbar 30 30
Water vapour tolerable load:
■ with small gas ballast kg.h-1 0,36 0,42
■ with standard gas ballast kg.h-1 1 1,25
Noise level (according to DIN 46 635) dB (A) 60 64
Motor power - Rated rotational speed see ordering information
Mains voltage (+/- 10 %) see ordering information
Protection - Isolation IP 55 - F IP 55 - F
Leak rate mbar.I.s-1 1 x 10-3 1 x 10-3
Oil Capacity l 2 2
Intake connection 1 1/4 1 1/4
Exhaust connection 1 1/4 1 1/4
Description

7
300267596_002_C0 - 11/2016 - © Leybold
Description

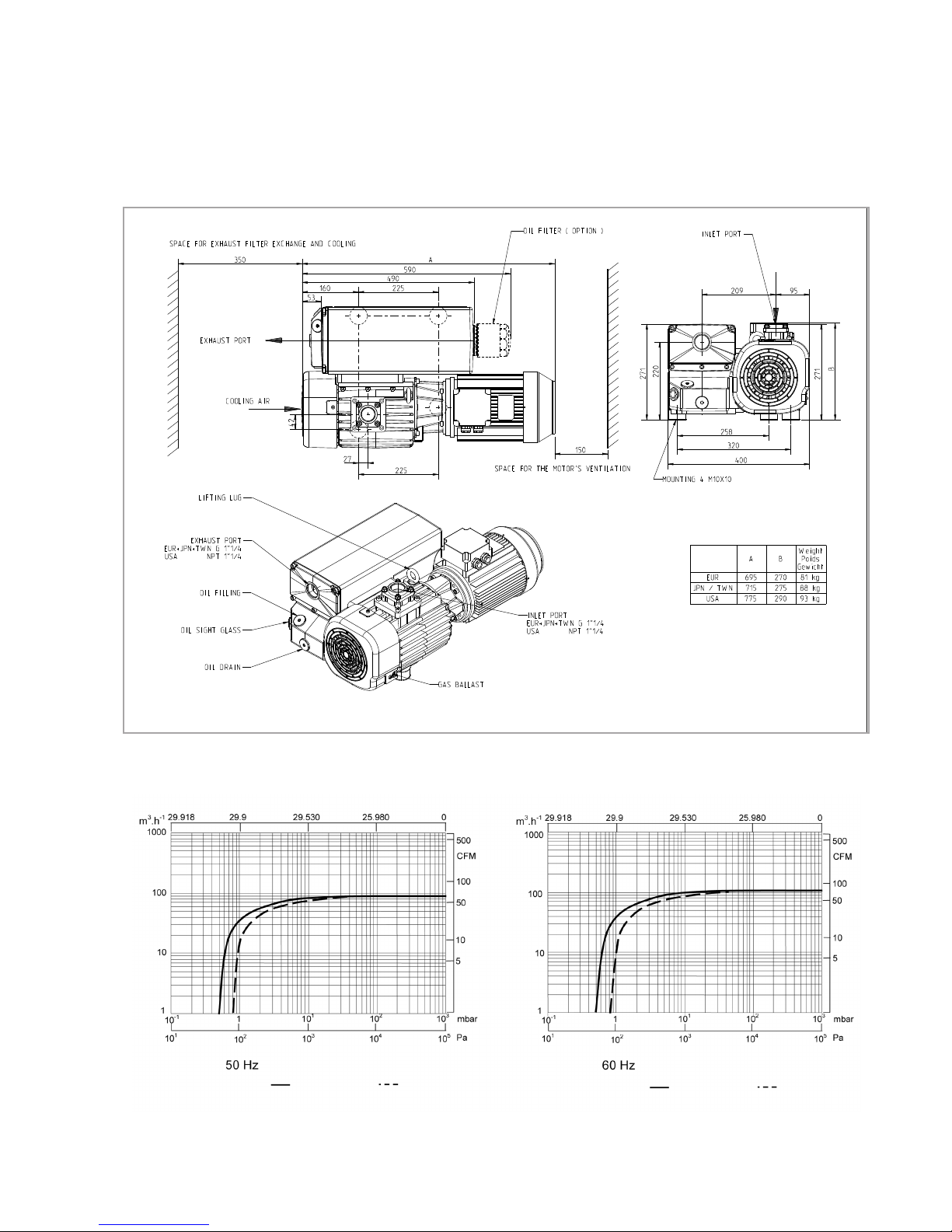

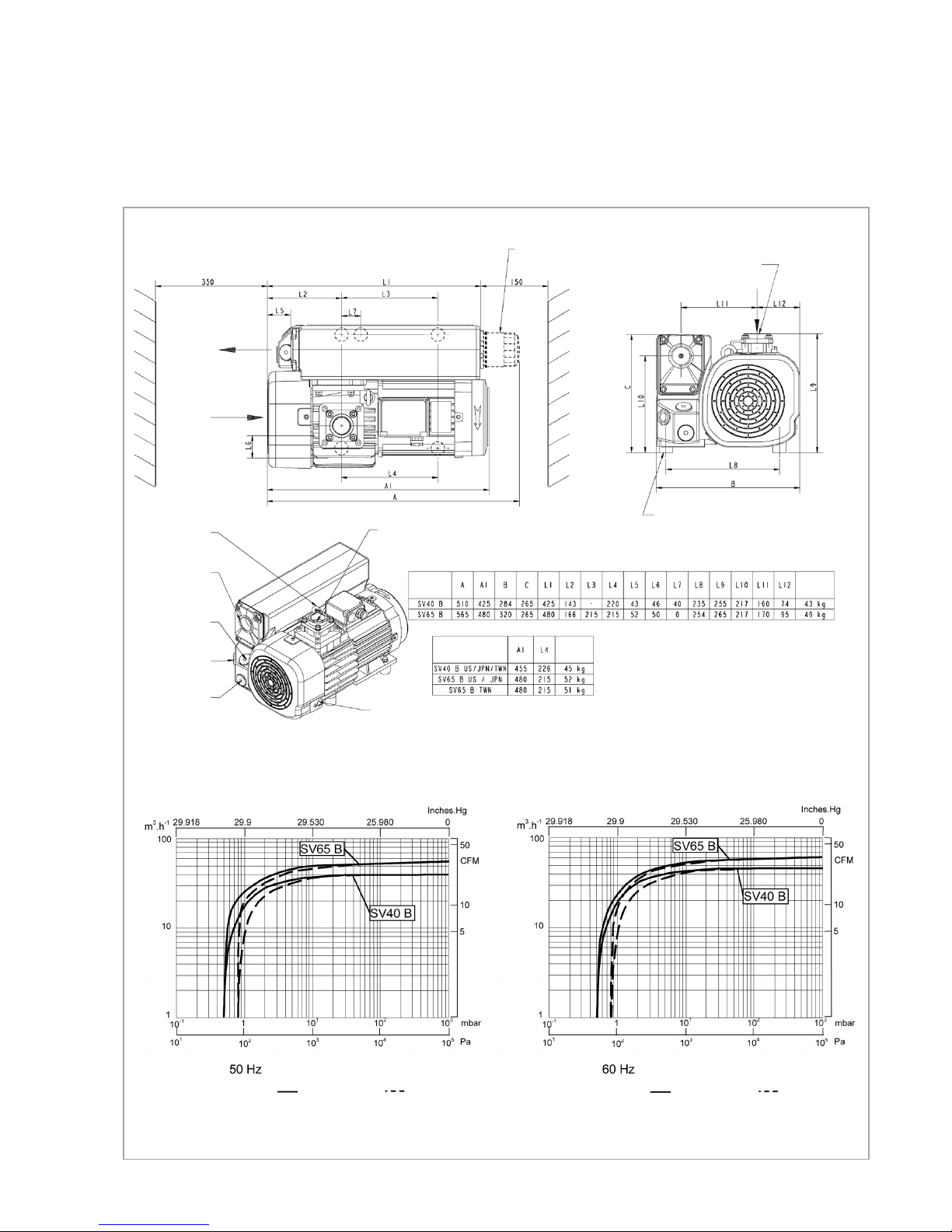

Pumping speeds curves SV40 B - SV65 B
fig. 1
SV40 B - SV65 B
OIL FILTER (OPTION)
INLET PORT
SPACE FOR EXHAUST FILTER EXCHANGE AND COOLING
SPACE FOR THE MOTOR‘S VENTILATION MOUNTING M8X7 (SV40 B x3 SV65 B x4)
EXHAUST PORT
COOLING AIR
LIFTING LUG
EXHAUST PORT
OIL FILLING
OIL SIGHT GLASS
OIL DRAIN
INLET PORT
GAS BALLAST
EUR+JPN+TWN G 1“1/4
USA NPT 1“1/4
Weight
EUR+JPN+TWN G 1“1/4
USA NPT 1“1/4
Pumping speed
at at
Pressure Pressure
Pumping speed
(volume flow rate)
Without gas ballast With gas ballast Pumping speed
(volume flow rate)
Without gas ballast With gas ballast
Weight
Pumping speed
+/- 5 mm
+/- 2 kg

8300267596_002_C0 - 11/2016 - © Leybold
Description
SV100 B
Technical data (valid with standard oil) 50 Hz 60 Hz
Nominal pumping speed m3/h 97,5 117
Pumping speed (according to PNEUROP) m3/h 87,5 105
Ultimate partial pressure without gas ballast mbar ≤ 0,5 ≤ 0,5
Ultimate total pressure with small gas ballast mbar ≤ 0,8 ≤ 0,8
Ultimate total pressure with standard gas ballast mbar ≤ 1,5 ≤ 1,5
Water vapour tolerance:
■ with small gas ballast mbar 10 10
■ with standard gas ballast mbar 30 30
Water vapour tolerable load:
■ with small gas ballast kg.h-1 0,45 0,60
■ with standard gas ballast kg.h-1 1,60 1,70
Noise level (according to DIN 46 635) dB (A) 61 64
Motor power - Rated rotational speed see ordering information
Mains voltage (+/- 10 %) see ordering
information
Protection - Isolation IP 55 - F IP 55 - F
Leak rate mbar.I.s-1 1 x 10-3 1 x 10-3
Oil Capacity l 2 2
Intake connection 1 1/4 1 1/4
Exhaust connection 1 1/4 1 1/4

9
300267596_002_C0 - 11/2016 - © Leybold
Description
Pumping speeds curves SV100 B
fig. 2
SV100 B
at at
Pumping speed
Pressure Pressure
Pumping speed
(volume flow rate)
Without gas ballast With gas ballast Pumping speed
(volume flow rate)
Without gas ballast With gas ballast
Pumping speed
+/- 5 mm
+/- 2 kg

10 300267596_002_C0 - 11/2016 - © Leybold
Description
P/N Pump Motor GB Oil Filter Inlet & Exhaust
960300 SV40 B A NN G 1 1/4
960301 SV40 B A Y 1 N G 1 1/4
960302 SV40 B A N Y G 1 1/4
960303 SV40 B A Y 1 Y G 1 1/4
960305 SV40 B A Y 2 N G 1 1/4
960307 SV40 B A Y 2 Y G 1 1/4
960311 SV40 B B Y 1 N NPT 1 1/4
960312 SV40 B B Y 2 N NPT 1 1/4
960313 SV40 B B Y 1 Y NPT 1 1/4
960314 SV40 B B Y 2 Y NPT 1 1/4
960316 SV40 B C Y 1 N G 1 1/4
960317 SV40 B C Y 2 N G 1 1/4
960318 SV40 B C Y 1 Y G 1 1/4
960319 SV40 B C Y 2 Y G 1 1/4
960320 SV40 B D N N G 1 1/4
960321 SV40 B D Y 1 N G 1 1/4
960322 SV40 B D Y 2 N G 1 1/4
960323 SV40 B D Y 1 Y G 1 1/4
960324 SV40 B D Y 2 Y G 1 1/4
Motors :
GB Y1 = 0,8 m3/h
GB Y2 = 2 m3/h
GB Y3 = 4 m3/h
SVB 40 m3/h
A = Three phase Euro 230 / 400 V ± 10 %, 50 Hz and 460 V ± 10 %, 60 Hz
B = Three phase USA 230 / 460 V ± 10 %, 60 Hz and 400 V ± 10 %, 50 Hz
C = Three phase Japan 200 V +10 % - 15 %, 50/60 Hz
D = Three phase 210 - 240 & 360 - 420 V ± 5%, 50 Hz & 210 - 260 & 360 -
460 V ± 5%, 60 Hz
1.3 Ordering Information

11
300267596_002_C0 - 11/2016 - © Leybold
Description
P/N Pump Motor GB Oil Filter Inlet & Exhaust
960400 SV65 B A NN G 1 1/4
960401 SV65 B A Y 1 N G 1 1/4
960402 SV65 B A N Y G 1 1/4
960403 SV65 B A Y 1 Y G 1 1/4
960405 SV65 B A Y 2 N G 1 1/4
960407 SV65 B A Y 2 Y G 1 1/4
960411 SV65 B B Y 1 N NPT 1 1/4
960412 SV65 B B Y 2 N NPT 1 1/4
960413 SV65 B B Y 1 Y NPT 1 1/4
960414 SV65 B B Y 2 Y NPT 1 1/4
960416 SV65 B C Y 1 N G 1 1/4
960417 SV65 B C Y 2 N G 1 1/4
960418 SV65 B C Y 1 Y G 1 1/4
960419 SV65 B C Y 2 Y G 1 1/4
960420 SV65B D N N G 1 1/4
960421 SV65 B D Y 1 N G 1 1/4
960422 SV65 B D Y 2 N G 1 1/4
960423 SV65 B D Y 1 Y G 1 1/4
960424 SV65 B D Y 2 Y G 1 1/4
Motors :
GB Y1 = 0,8 m3/h
GB Y2 = 3,5 m3/h
GB Y3 = 5 m3/h
SVB 65 m
3
/h
C = Three phase Japan 200 V +10 % - 15 %, 50/60 Hz
D = Three phase 210 - 240 & 360 - 420 V ± 5%, 50 Hz & 210 - 260 & 360 -
460 V ± 5%, 60 Hz
A = Three phase Euro 230 / 400 V ± 10 %, 50 Hz and 460 V ± 10 %, 60 Hz
B = Three phase USA 230 / 460 V ± 10 %, 60 Hz and 400 V ± 10 %, 50 Hz

12 300267596_002_C0 - 11/2016 - © Leybold
P/N Pump Motor GB Oil Filter Inlet & Exhaust
960500 SV100 B A N N G 1 1/4
960501 SV100 B A Y 1 N G 1 1/4
960502 SV100 B A N Y G 1 1/4
960503 SV100 B A Y 1 Y G 1 1/4
960505 SV100 B A Y 2 N G 1 1/4
960507 SV100 B A Y 2 Y G 1 1/4
960511 SV100 B B Y 1 N NPT 1 1/4
960512 SV100 B B Y 2 N NPT 1 1/4
960513 SV100 B B Y 1 Y NPT 1 1/4
960514 SV100 B B Y 2 Y NPT 1 1/4
960516 SV100 B C Y 1 N G 1 1/4
960517 SV100 B C Y 2 N G 1 1/4
960518 SV100 B C Y 1 Y G 1 1/4
960519 SV100 B C Y 2 Y G 1 1/4
960521 SV100 B D Y 1 N G 1 1/4
960522 SV100 B D Y 2 N G 1 1/4
960523 SV100 B D Y 1 Y G 1 1/4
960524 SV100 B D Y 2 Y G 1 1/4
Motors :
GB Y1 = 1,5 m3/h
GB Y2 = 4 m3/h
GB Y3 = 7 m3/h
A = Three phase Euro 230 / 400 V ± 10 %, 50 Hz and 460 V ± 10 %, 60 Hz
SVB 100 m3/h
B = Three phase USA 230 / 460 V ± 10 %, 60 Hz and 400 V ± 10 %, 50 Hz
C = Three phase Japan 200 V +10 % - 15 %, 50/60 Hz
D = Three phase wide range 230 & 400 V ± 10%, 50 Hz & 230 & 400 & 460 V
± 10%, 60 Hz
Description

13
300267596_002_C0 - 11/2016 - © Leybold
Description
1.4 Accessories
Item Specification Size Cat. Nr.
1 Union coupling G1 1/4 M/F 711 18 023
2 Nipple G1 1/4 M/M 711 18 033
3 Ball valve G1 1/4 F-F 711 30 105
4 Threaded flange adapter G1 1/4 M - 40KF 711 18 123
5 Centering ring 40KF 18 328
6 Clamping ring 40KF 18 343
7 Adapter for tubing G1 1/4 M-DN40 711 18 013
8 Rubber vacuum tubing Ø10X25 17 203
9 Adapter for tubing G1 1/4-Ø10X25 711 18 153
10 Adapter 40KF-DN40 711 18 303
11 PVC tubing DN40 - 1m. 711 18 324
12 TEE reducer bush G1 1/4 - 1/2 7 711 18 263
13 Right-angle bend 90° G1 1/4 F-F 7 711 18 213
14 Dust filter paper F40 G1 1/4 M-F 95 155
Dust filter charcoal F40 G1 1/4 M-F 711 27 102
Dust filter metal F40 G1 1/4 M-F 711 27 103
Dust filter polyester F40 G1 1/4 M-F 711 27 104
Dust filter paper F65-100 G1 1/4 M-F 95 160
Dust filter charcoal F65-100 G1 1/4 M-F 711 27 112
Dust filter metal F65-100 G1 1/4 M-F 711 27 113
Dust filter polyester F65-100 G1 1/4 M-F 711 27 114
15 Vacuum gauge G1/2 M 95 192
16 Ball valve G1/2 M/F DN13 711 30 113
17 Threaded flange adapter G1/2 M - 16KF 711 18 120
18 Regulation valve with isolation valve G1/2 M 95 187
19 Regulation valve G1/2 M 95 186
20 Condensate trap SL40 G1 1/4 95 140
21 Condensate trap SL65-100 G1 1/4 95 142

14 300267596_002_C0 - 11/2016 - © Leybold
Description
fig. 3

15
300267596_002_C0 - 11/2016 - © Leybold
Description
SV40 B SV65 B SV100 B
Specification Cat. Nr. Cat. Nr. Cat. Nr.
Oil level switch 711 19 110 711 19 110 711 19 110
Temperature switch upon request
Exhaust filter over 9 714 25 890 9 714 25 890 9 714 25 890
pressure switch
Exhaust filter over 95 194 95 194 95 194
pressure manometer
Oil drain tap 711 30 114 711 30 114 711 30 114
Roots adapter 9 714 48 740
Oil filter* 714 20 980 714 20 980 712 13 150
Oil filter bypass* 712 30 570 712 30 570 712 30 570
* depends of pump Cat-Nr.
1.5 Spare parts
SV40 B SV65 B SV100 B
Specification Size Cat. Nr. Cat. Nr. Cat. Nr.
Set of seals FKM 9 714 27 640 714 20 410 9 714 27 670
Repair set 9 714 27 650 714 20 420 9 714 27 680
Vacuum generator without GB 9 714 28 210 714 22 080 7 714 27 740
Vacuum generator with GB 9 714 28 220 9 714 23 430 9 714 27 750
Service kit 9 714 27 660 9 714 23 440 9 714 27 690
Inlet filter element
■ paper 710 46 118 712 13 283 712 13 283
■ metal 710 49 083 E 712 13 324 E 712 13 324
■ charcoal 710 49 103 E 712 13 304 E 712 13 304
■ polyester 712 61 298 712 61 300 712 61 300
1.6 Lubricants
The Sogevac® pumps should be run with mineral oils for vacuum pumps with
low viscosity according to ISO category VG77. The Leybold oil fulfills these
specifications.
LVO130 oil: Conditioning Reference
2 l 711 17 773 / L13002
5 l 711 17 774 / L13005
20 l 711 17 775 / L13020
200 l 711 17 779 / L13099
You may use other special lubricants adapted to the applications.
Please consult us.
Use the oil type indicated on the pump and in the additional operating
instructions. In case other oils are used, Leybold is not liable and declines
warranty claims.

16 300267596_002_C0 - 11/2016 - © Leybold
Transport and storing
2 Transport and Storing
2.1 Transport and packaging
Sogevac® vacuum pumps pass a rigorous operating test in our factory and
are packaged to avoid transport damages.
Please check packaging on delivery for transport damages.
Packing materials should be disposed off according to environmental laws or
re-cycled. These operating instructions are part of the consignment.
The connection ports are blanked off by plastic protective caps or self-
adhesives. Take these caps or self-adhesives away before turning on the
pump.
For SV40 B and SV65 B, the necessary oil is supplied in a can beside the
pump. For the SV100 B, the oil is filled in.
2.2 Mounting orientation
See required space on drawings in paragraph 1.2.
Pumps which have been filled with oil must only be moved in the upright
position (horizontally). Otherwise oil may escape. The angle of slope may not
be over 10° max. Avoid any other orientations while moving the pump.
Only use the lifting lugs which are provided on the pump to lift the pump with
the specified lifting devices.
Use only lifting devices appropriated to the pump weight. Check name plate.
Do not use other pump elements than the lifting lugs as handles.
Make sure that these have been installed safety. Use suitable lifting
equipment. Make sure that all safety regulations are observed.
2.3 Storing
Before stocking the pump for a long time put it back in its original condition
(blank off inlet and exhaust ports with the shipping seals, drain the oil) and
store the pump in a dry place at room temperature.
Until the pump is put back in to service again, the pump should be stored
in a dry place, preferably at room temperature (20 °C - 168 °F). Before
taking the pump out of service, it should be properly disconnected from the
vacuum system, purged with dry nitrogen and the oil should be exchange
too. The gas ballast must be closed and if the pump is to be shelved for a
longer period of time is should be sealed in a plastic bag together with a
desiccant (Silicagel).
If the pump has been shelved for over one year, standard maintenance must
be done and the oil must be exchanged too before the pump is put in to
service once more.
We recommend that you contact the service from Leybold.
Caution

17
300267596_002_C0 - 11/2016 - © Leybold
3 Installation
It is essential to observe the following instructions step by step to ensure safe
start-up. Start-up may only be conducted by trained specialists.
The standard pump is not suitable for installation in explosion hazard areas
ATEX. Please contact us, if you are planning such an application. Before
installing the pump you must reliably disconnect it from the electrical power
supply and prevent the pump from running up inadvertently.
Observe all safety regulations.
3.1 Setting up
The pump must be set up or mounted horizontally on a flat surface. Special
mounting is not required. For indoor use only up to 1000 m altitude.
The following ambient operating environment must be observed:
■ Ambient temperature: 12 °C to 40 °C (54 °F to 104 °F),
■ Rel. humidity (without condensation) ≤ 95 %
■ Ambient pressure = Atmospheric pressure.
In order to avoid over-heating of the pump, an undisturbed fresh airflow to
the pump is necessary.
The pump must be kept clean (no dust deposit)
3.2 Connection to system
Inlet connection
See safety instructions page 3.
■ The inlet flange can be connected with a vacuum-tight flexible hose
and/or pipe. The pipes should cause no stresses on the pump’s flanges. If
necessary, compensators must be installed.
■ Restriction of the pipes must be avoided in order not to decrease the
pumping speed of the pump. The nominal diameter of the pipes has to be at
least the same as the diameter of pump’s inlet flange.
■ When removing condensable vapours, a gas ballast valve must
be installed.
■ Inlet pressure must not exceed atmospheric pressure.
Connection to exhaust side
■ No isolation or restricting devices should be installed in the exhaust line
of the pump. If an exhaust line is installed, it must at least have the same
diameter as the exhaust flange. It should be installed in a manner so that no
condensate can enter the pump (siphon, slope).
The maximum exhaust pressure must neither exceed 1.15 bar absolute (0.15
bar relative), nor fall under atmosphere pressure minus 15 mbar.
Pump exhaust to be connected if oil mist or process gases are to be avoided
in the pump area.
Corresponding pressure regulating devices to be installed by the user.
Warning
Caution
Warning
Installation

18 300267596_002_C0 - 11/2016 - © Leybold
Voltage and frequency mentioned on the motor nameplate must agree with
the supply voltage.
To check the direction of rotation of pumps, flick the ON/OFF switch. If
the direction of rotation is not identical with the one indicated by the arrow
sticking on the motor hood, then inverse any two of the electrical phases in
the terminal box. Looking at the motor fan cover, the direction of rotation has
to be counterclockwise.

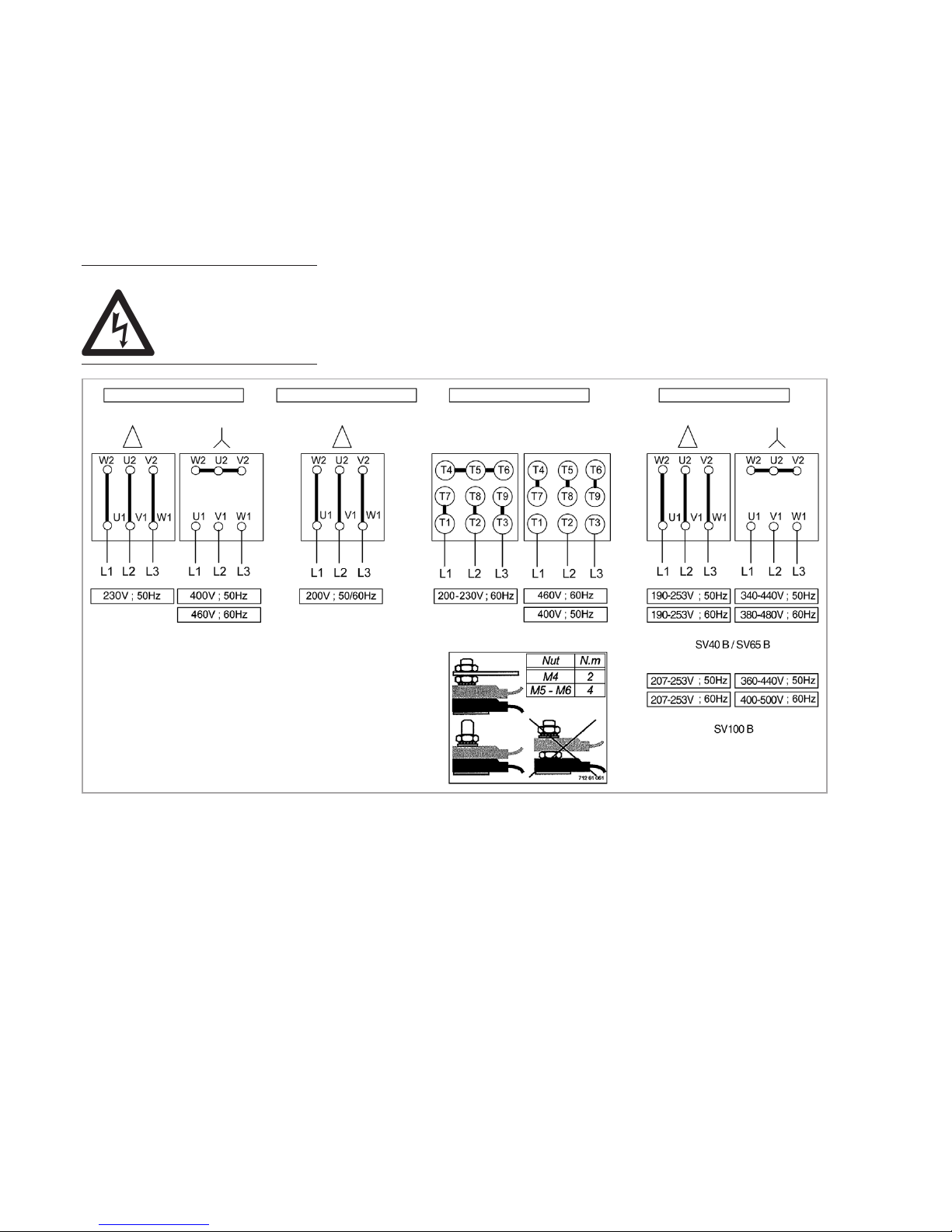

3.3 Electrical connections
Ensure that incoming power to the pump is off before wiring the motor or
altering the wiring.
Electrical connection work must only be carried out by a qualified electrician
in accordance with the applicable safety rules, see IEC 60204-1 & IEC
61010-1.
Installation
Warning
fig. 6
fig. 4
CAT NR 960X00 to 960X07 CAT NR 960X16 to 960X19 CAT NR 960X11 to 960X14 CAT NR 960X20 to 960X24
(EUROPE) (JAPAN) (USA) (TAÏWAN/BRASIL)
LOW VOLTAGE HIGH VOLTAGE LOW VOLTAGE HIGH VOLTAGE
LOW VOLTAGE HIGH VOLTAGE

19
300267596_002_C0 - 11/2016 - © Leybold
3.4 Oil filling
For SV40 B and SV65 B, the necessary oil is supplied in a can beside the
pump.
For the SV100 B, the oil is filled in.
To fill in the oil, unscrew the oil fill plug (48 for SV40 B and SV65 B, 52 for
SV100 B) and fill in until the oil level reaches the “MAX” mark beside the oil
sight glass.
3.5 Start-up
The pumps are supplied with the necessary oil filling in ready-to-use
condition. Always verify proper oil level before operating the pump.
The pump is designed for fail-safe start-up at temperatures over 12 °C (55 °F)
(as per PNEUROP).
If local regulations provide a WYE-DELTA starting connect the pump to the
system so that it can start loadfree, i.e. at atmospheric pressure in the intake
port. If the vacuum system is not to be vented further measures will be
necessary, e.g. a starting valve can be mounted.
Please contact us in this case.
The signals of the oil level switch and exhaust filter over pressure switch must
be delayed (timer) on the pump switch-on for approx. 1 minute.
Installation
Caution
Caution

20 300267596_002_C0 - 11/2016 - © Leybold
Operation
4 Operation
4.1 Operation
To avoid overloading the motor, do not start the pump more than 6 times
within one hour. If more than 6 starts per hour are necessary keep the pump
running and mount a valve which opens and closes into the intake line.
Take note of warning labels on the pump.
Use ear protection in case of operation at high inlet pressures
Pumping of non-condensable gases
If the pump system contains mainly non condensable gases, the pumps
should be operated without gas ballast.
If the composition of the gases to be pumped is not known and if
condensation in the pump cannot be ruled out, run the pump with gas ballast
valve open in accordance with section below.
Pumping of condensable gases and vapors
With the gas ballast valve open and at operating temperature, the Sogevac®
pumps can pump pure water vapor up to the values indicated in the
Technical Data.
The gas ballast valve is opened by a screwdriver. The running noise of the
pump is slightly louder if the gas ballast valve is open. Before pumping
vapors ensure that the pump has warmed up for approx. 30 min. with closed
intake line and with open gas ballast valve.
Don’t open the pump to condensable vapors until it has warmed to operating
temperature; pumping process gas with a cold pump results in vapors
condensing in the oil.
For processes with a high proportion of condensable vapors, the intake line
should be opened only slowly after reaching the operating temperature.
One sign of condensation of vapors in the pump is a rise of the oil level
during operation of the pump.
When vapors are pumped, the pump must not be switched off immediately
after completion of the process because the condensate dissolved in the
pump oil may cause changes or corrosion. To prevent this, the pump must
continue to operate with open gas ballast valve and closed intake port until
the oil is free of condensate. We recommend operating the pump in this
mode for at least 30 min. after completion of the process.
In cycle operation, the pump should not be switched off between the cycles
but should continue to run with gas ballast valve open and intake port closed
(if possible via a valve). Power consumption is minimal when the pump is
operating at ultimate pressure.
Once all vapors have been pumped off from a process (e. g. during drying),
the gas ballast valve can be closed in order to improve the ultimate pressure.
Caution
Note
Warning
Caution
