Aria 130c/130/300/600 DECT
Wireless Terminal (GDC-345H) User Guide
LG-Nortel systems １Issue 2.3
1. GENERAL DESCRIPTION
1.1 Purpose
The purpose of this manual is to provide the correct instructions as to the GDC-345H wireless terminal
functionality and its accessories. This manual lists programming and troubleshooting techniques and
explains the features of the wireless terminal as a terminal connected to the Aria 130, 300 & 600
systems (may also apply to the following discontinued systems Aria 20W, 34e, 100, 186.) The features
which are explained in this manual describe the user-interface for the Aria series DECT key system of
local sale. Also it illustrates the specifications of the terminal and its accessories. The wireless terminal,
GDC-345H (GAP), is designed and manufactured for interface with Aria series DECT key systems and
LG-Nortel systems does not guarantee inter-operability between any other GAP system and GDC-345H
(GAP). Please, refer to ‘Aria System Installation Manuals’ about applicable peripheral items.
1.2 Contents
The wireless terminal tool kit contains the following items. Please be sure all of the listed items are
contained.
zWireless Terminal User Guide : 1
zGDC-345H, Wireless Terminal : 1
z345H-SSC, Single-slot Charger : 1
zStandard Rechargeable Battery : 2 Cell
z330-HAP, AC/DC Adapter : 1
zBelt Clip : 1
zEAR/MIC Phone : Optional
zA leather case : Optional
Note ) The above figure is illustrative purpose only. The actual products may look different.
Leather Case
Rechargeable battery
330
-
HAP
345H-SSC
Belt Clip
GDC-345H EAR/MIC Phone

Aria 130c/130/300/600 DECT
Wireless Terminal (GDC-345H) User Guide
LG-Nortel systems ２Issue 2.3
1.3 Preparation
Below table shows the maximum cell number, maximum registrable terminal number, and
maximum simultaneous wireless call number in different configurations of ARIA-
186/100/34e/20W & ARIA 130/300/600 system and the applicable S/W version of GDC-345H
handset. Please note that only one(1) WTIB(with WTIU) board can be installed in ARIA-
186/100/34e/20W system, two(2) WTIB(with WTIU) boards can be installed in ARIA 130
system and three(3) WTIB(with WTIU) board can be installed in ARIA 300/600 system. (The
WTIU board is not available in the ARIA-20W system.)
The wireless terminal should be subscribed before using it. (Please refer to ‘6. Installation of
Wireless Terminal’)
A call may be failed even when free channels exist due to unexpected changes of radio
environment.
When all channels are occupied, no more call can be made. In this case, a user should wait
until a channel becomes free.
The S/W of a wireless terminal can be updated by the manufacturer.
The working area of your hand-held type wireless terminal is limited to the domain of the
coverage area of a wireless system, which may be adjusted to a premise of an organization,
an office, or a company. Using a terminal outside of this area will bring unsatisfied results.
A hand-held type wireless terminal is not specified as intrinsically safe. So do not use it in
hazardous area or intent.
If a user doesn’t use matched configuration, the normal operation can’t be guaranteed.
If you are out from the range of a base station for a long time with your handset power-
on, it may fail to find the base station again when you are in the range. In that case,
refresh the power of the handset or press “[MENU key] + [3]+ [OK key]”
2. WIRELESS TERMINAL TOOL KIT
Items
System
Name
1. Board
Name
2. Max.
Cell Number
(Base Station
Num.)
3. Channels/
Cell
4. Registrable
Max.
Terminal Number
5. Max.
Simultaneous
Wireless Call
6. Applicable
SW version
(GDC-345H)
WTIB 3 5 8~96 by step 8 15
ARIA-186 With WTIU 6 5 8~96 by step 8 30 All version
WTIB 4 5 8~64 by step 8 16
ARIA-100 With WTIU 8 5 8~64 by step 8 32 All version
WTIB 4 5 8~32 by step 8 16
ARIA-34e With WTIU 8 5 8~32 by step 8 16 All version
MBU 1 4 20 4
ARIA-20W WTIB 3 4 20 12 All version
WTIB
(MAX. 2) 4 ( x 2 ) 5 8~80 by step 8 32
ARIA 130 With WTIU
(MAX. 2) 8 ( x 2 ) 5 8~80 by step 8 64
All version
WTIB
(MAX. 3) 4 ( x 3 ) 5 8~192 by step 8 48
ARIA 300/600 With WTIU
(MAX. 3) 8 ( x 3 ) 5 8~192 by step 8 96
All version

Aria 130c/130/300/600 DECT
Wireless Terminal (GDC-345H) User Guide
LG-Nortel systems ３Issue 2.3
2.1 Wireless Terminal (GDC-345H)
The GDC-345H is a DECT business wireless terminal that communicates with a ARIA-
186/100/34e/20W & ARIA 130/300/600 WOTS (Wireless Office Telephone System) via radio
channels.
A cell is an area effected by the antenna of a fixed part of the system. A Cell of the same wireless
system is overlapped with other cells. The coverage area of a wireless system consists of these
cells. A user can make calls within this area. As a user moves, the effecting cell of the terminal will
be switched over.

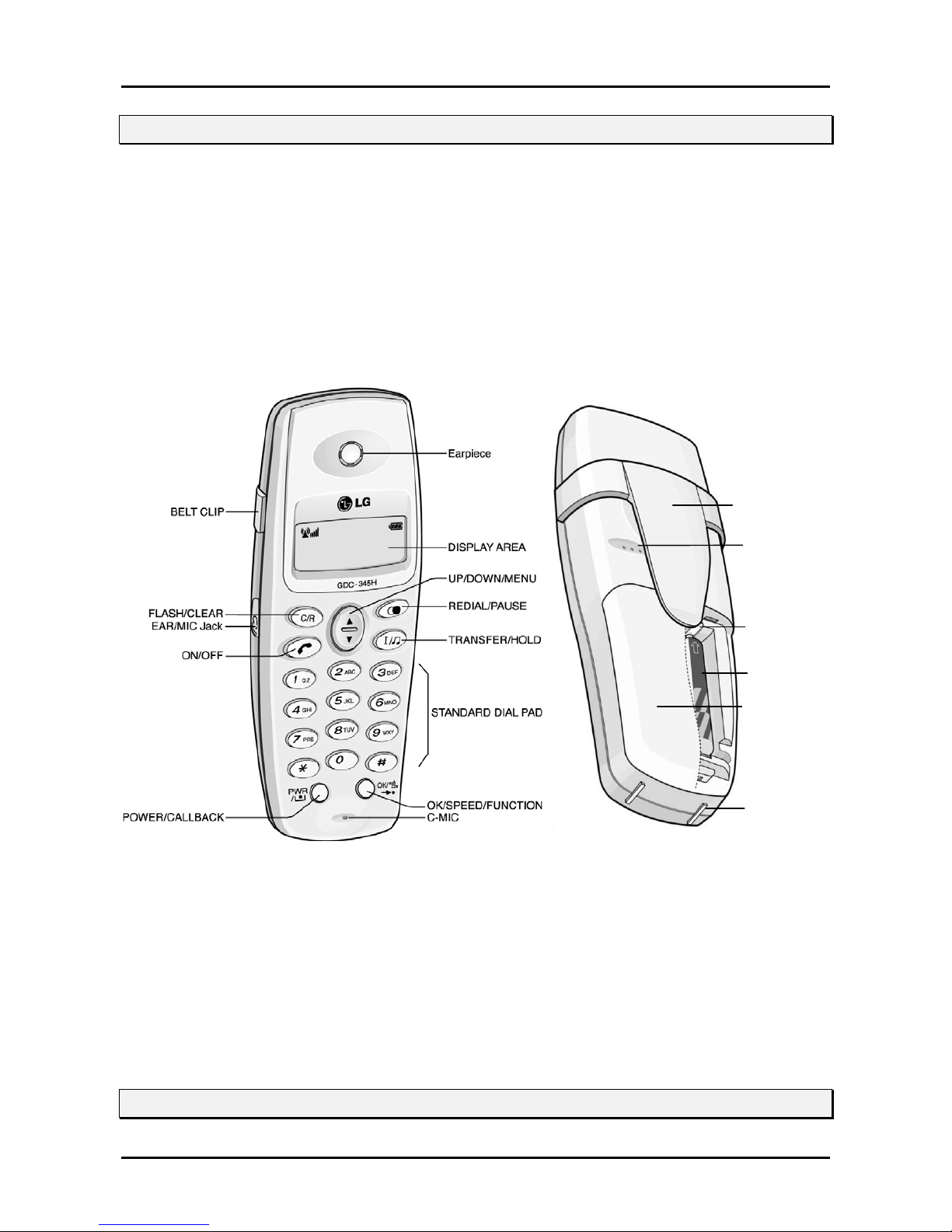

Hand-held Type Wireless Terminal : GDC-345H
The hand-held type wireless terminal (GDC-345H) is designed for ease and portable use.
Note:
The above and the following figures are just for illustrative purposes only. An actual product may look
different.
2.2 Single-slot Charger (345H-SSC)
Buzzer
Battery cover
Battery Terminal
Belt Clip
Battery
Charging Terminal

Aria 130c/130/300/600 DECT
Wireless Terminal (GDC-345H) User Guide
LG-Nortel systems ４Issue 2.3
A 345H-SSC is used as a charger of GDC-345H. It uses an AC 230V/50Hz adapter or a AC
220V/110V ~ 50/60Hz adapter, 330-HAP.

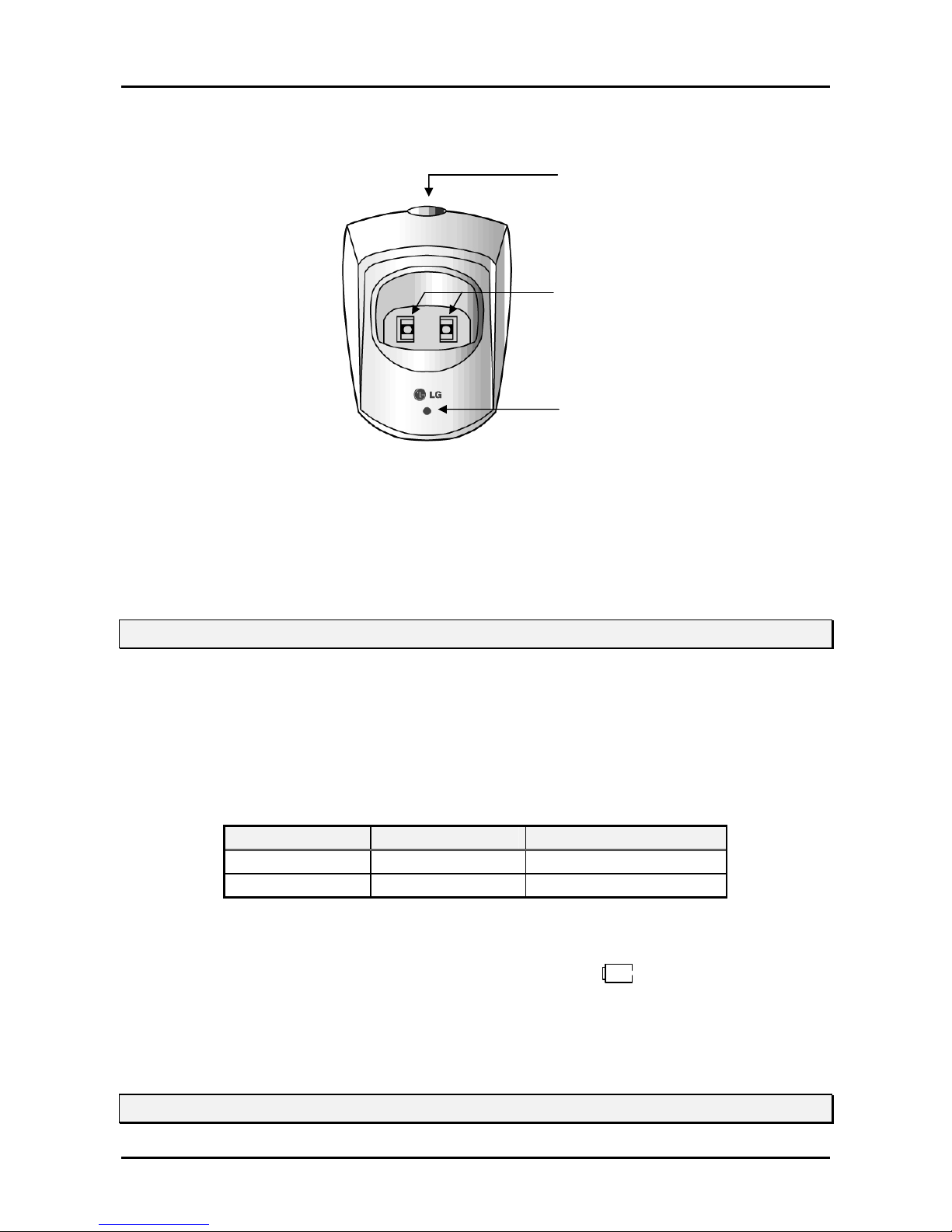

Single-slot Charger (345H-SSC)
The LED on the charger indicates that charging is in progress.
The battery is Nickel Metal Hydride(NiMH) type. To maintain the initial duration of the battery,
charge a fully discharged battery.
2.3 Battery (1.2V rechargeable NiMH AAA Size 2 cell)
A standard battery lasts 9 hours in talking mode and 50 hours in standby mode.
According to the charged state, temperature, environment and habits of using, or radio environment
of using place, the duration of a battery will be varied. If a user uses a battery according to the
described maintenance(in the next chapter), a full-charged battery guarantees the duration as
below table. Unless a user follows the maintenance guideline, the duration of a fully charged
battery is not guaranteed.
Bat. Type Rechargeable Full Charging Time
Talking Mode 9 hrs 10 ~ 12 hrs
Standby Mode 50 hrs 10 ~ 12 hrs
< Battery duration and charging time >
When a battery is almost consumed during a call or in an idle state (under 2.3V ± 0.1V), warning
tone will be heard once in every 20 second, and a low-battery icon( ) on the upper right corner
of the LCD will be blinking.
2.4 Adapter (330-HAP)
A
da
p
ter Jack
Charge Contacts
LED

Aria 130c/130/300/600 DECT
Wireless Terminal (GDC-345H) User Guide
LG-Nortel systems ５Issue 2.3
330-HAP adapter is used for the charger, 340-SSC. There are two types of adapter. It is dependent
on country adaptation.
Type -
zInput : Only AC 230V/50Hz 50mA
zOutput : DC12V 200mA 2.4VA
Type -
zInput : AC 220V or 110V 50/60Hz
zOutput : DC 12V 200mA
2.5 Installation(Battery and Belt Clip)
Note :
1. Before the inserting the battery, check the convex pictogram(○+ ○-)compartment in the base and con
nect the dry cell according to the convex pictogram.
2. Push the dry cell until you hear “clicks” sound.
Note :
1. Put belt clip into Handset’s one side slot.
2. Push belt clip into the other side slot until it “clicks” sound.
3. MAINTENANCE
This chapter mentions what a user has to do and should avoid in order that a user may treat the
zHow to disassemble the battery cover and insert the battery.
zHow to put the belt clip into Handset.

Aria 130c/130/300/600 DECT
Wireless Terminal (GDC-345H) User Guide
LG-Nortel systems ６Issue 2.3
wireless terminal and its accessories to keep them in good condition.
The user is responsible for the result caused by violating the below warnings.
3.1 Wireless Terminal (GDC-345H)
A user should keep the followings to use wireless terminal GDC-345H without any harm to the user
or to the product.
zDo not expose it to direct sunlight for long period. For operational temperature range, refer to
the section of ‘8. Specifications’.
zSpilling or being wet may result impossible condition to be repaired.
zDo not remove the rubber lid attached on the left side of GDC-345H. The hole on the side part
is used for ear-microphone and is covered with a rubber lid.
zDo not insert any external substance except ear-microphone for GDC-345H in the hole.
Inserting anything except for ear-microphone provided by LGE may cause severe damage to
the terminal.
zDo not try to disassemble it. Disassembling the terminal may damage it electronically.
zDo not try to alter the external or internal. Trying to alter the terminal may damage severely.
zClean a hand-held type wireless terminal only with a soft and dry cloth. Using soap or any
other cleansing materials may damage it.
zAvoid shocks and keep in safe place when it is not used.
zKeep it away from any flammable thing or excessive heat. For operational temperature range,
refer to the section of ‘8. Specifications’.
zWhen not used for long period, remove a battery from it and keep separately.
zBefore initial use, charge fully the battery.
Warning
The ear cap region of this telephone may attract and retain small metal objects.
3.2 Charger (345H-SSC)
For right use of 345H-SSC, keep the followings:
LEFT SIDE VIEW
Rubber lid for ear-microphone
♣A ear-microphone is optional.
